V-TAC VT-1001 User manual

INSTRUCTION MANUAL
ENERGY STORAGE POWER SUPPLY
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: [e-mail]
FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST
DEALERS. V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
TECHNICAL DATA
Model VT-1001
Battery capacity 1050Wh 328300mAh
Weight 14Kg
Wireless output 15W
Dimension 366*235*266mm
USB-C input port PD-65W
Vehicle charging
output port
12.5V 8A,100W
Solar energy 26V-40V, 650W (MAX)
AC output port 110V/10.9A, 60Hz
USB output port
5V2.4A*1, PD65W*2,
QC18W*2
Battery Lithium iron phosphate
Battery cycle ≥2000
Work Temperature -10~40
℃
Charging Temperature 0~40
℃
Lighting 1W
Thank you for selecting and buying V-TAC Product. V-TAC will serve you
the best. Please read these instructions carefully & keep this user manual
handy for future reference. If you have any another query, please contact
our dealer or local vendor from whom you have purchased the product.
They are trained and ready to serve you at the best.
INTRODUCTION
Multi-Language Manual QR CODE
Please scan the QR code to access the manual
in multiple languages.

WARNING

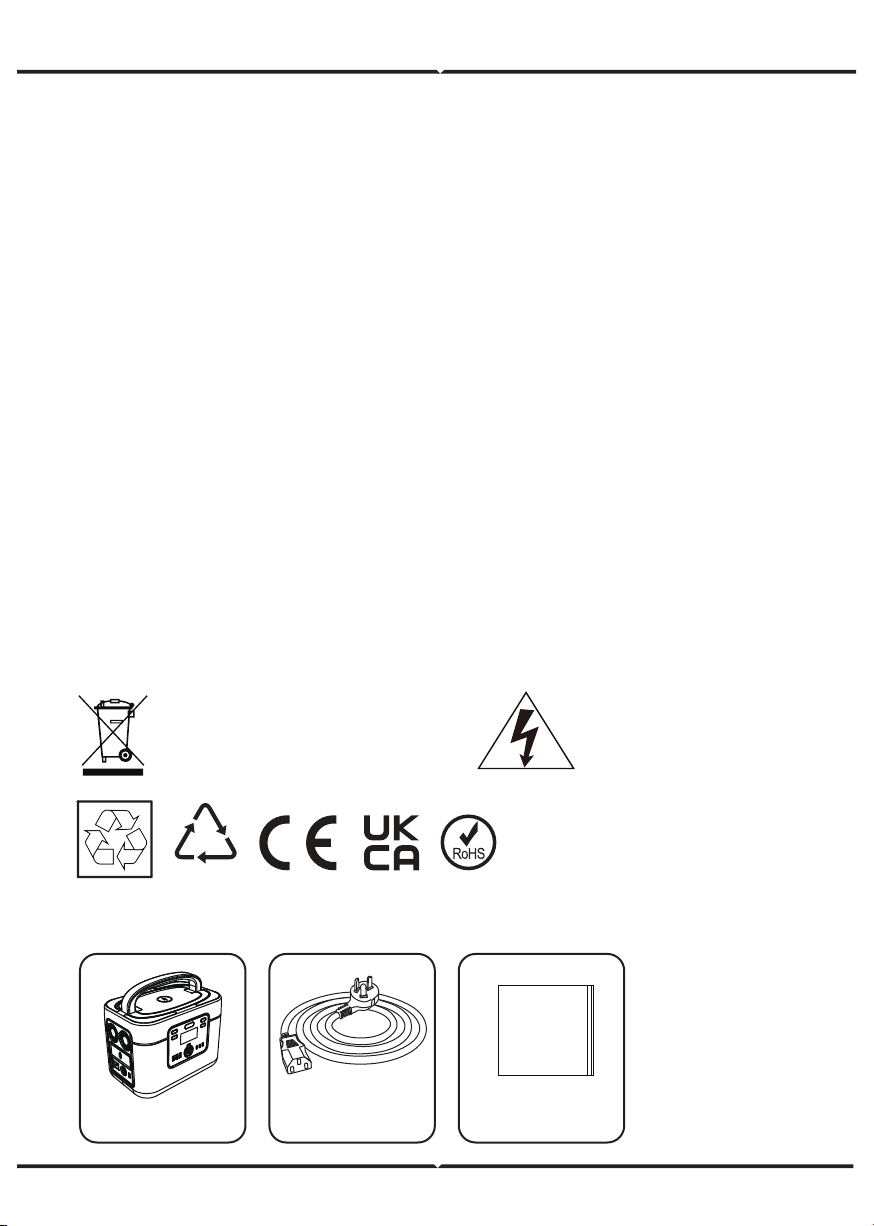

PACKAGING LIST
1. Please make sure to turn off the power before starting the installation.
2. Installation must be performed by a qualified electrician.
3. Please read all instructions before using this product.
4. In order to reduce the risk, close supervision is required when using this
product near children.
5. The use of accessories recommended or sold by non professional product
manufacturers may lead to the risk of electric shock.
6. When the product is not in use, please pull the power plug out of the product
socket.
7. It is forbidden to dismantle the product, which may lead to unpredictable
risks such as fire, explosion or electric shock.
8. Do not use damaged wires or plugs or damaged output cables to use the
product, which may cause electric shock.
9. Please charge the product in a well ventilated place. Do not restrict the
ventilation of the product in any way.
10. Please put the product in a well ventilated and dry place to avoid the risk of
electric shock due to water intrusion.
11. It is forbidden to expose the product to fire or temperature higher than
130°C, which may lead to fire, explosion and other safety accidents.
12. It is forbidden to use or place the product under high temperature (direct
hot sunshine or hot car interior), otherwise the internal battery may overheat,
catch fire or function failure, shorten the service life and other risks.
13. Please charge the product every three months to prevent the battery from
running out.
Caution, risk of
electric shock.
This marking indicates that this
product should not be disposed
of with other household wastes.
20
PAP
Power supply Charging
Wire User Guide
User guide

PARTS & DESCRIPTION
8
7
5
6
4
2
1
3
11
10
9
USB-18W output
12V Car charging
PD65W Quick Charge
AC Switch（At the same time, hold down the AC main
switch for 3 seconds to switch the frequency）
Wireless charging Switch
Power Switch (click on start, press 3 seconds to shut down)
USB output Switch
DC Switch
Wireless charging
Collapsible handle
LCD Screen
12
13
14
16
15
18
17
20
19
AC fast charging
charging power 800W
DC charging 60 Interface
It can be charged by solar energy
Safety Switch
220V output
Removable Lid
Cooling outlet
220Voutput
Cooling outlet
lighting
21
lighting Switch

PARTS & DESCRIPTION
Equipment failure, please restart
AC Output Power
）CD/CA（rewoPtuptuO
Output Frequency 50Hz
Output Frequency 60Hz
AC working indicator
USB working indicator
DC working indicator
Wireless charging working
Cooling Fan working
ICONS AND DESCRIPTION

CHARGING MODE
PRECAUTIONS FOR USE
1.⑦press the button, the screen lights up, about 60 seconds after the screen
backlight automatically closed.
2.When ②④⑧⑨the button is pressed, the output port is turned on to power the
device.
3.When the power output port is not used, press the 2489 button to turn it off to
save power.
4.Low temperature may affect the battery capacity of the product, the product
can be charged in the temperature range of 0 ~ 40 °C, in the temperature range
of-10 ~ 40°C for equipment use.
5.The first use of the product is recommended to be fully charged, to avoid the
lack of power to your use of inconvenience. After the device is fully charged, the
fan will continue to work for about 2 minutes after the charging power cord is
unplugged, which is used for cooling the device (the specific time may vary with
the scene temperature) , pay attention to prevent dust particles or foreign
matter from being inhaled into the equipment, otherwise it will easily lead to
internal equipment damage.
6.After the discharge is terminated, the device fan will continue to work to
reduce the device temperature to a reasonable temperature for about 30
minutes (the time may vary with the scene temperature) . At the same time
charge and discharge, current more than 15A or equipment temperature is too
high, will trigger automatic power-off protection.
7.During the charging and discharging process, please connect the device with
the charging and discharging device, then turn on the charging and discharging.
Otherwise, there might be a spark.
Before using or storing the product, please use the charger to charge the
product. When charging, the indicator light is blue. The LED screen will display
the current charging ratio and charging power. When the LED screen shows
100% power, it means full charge. The charging process is about 2.5 hours. The
current power can be viewed through the LED screen.2
Standard charger,
about 2.5 hours
Scar charger
about 2.5 hours
600W solar photovoltaic panel,
about 3.5hours.
(the charging time is determined by the intensity of sunlight). Support solar
photovoltaic panel MPPT function charging (12-24V)
The above data are from the laboratory. The test data may vary due to the use
environment, use method and other factors, and the charging time will be
different.

FAQS
TROUBLESHOOTING
1. Can the product be brought on the plane?
No, because this product is a lithium battery product. According to the
international air transport standard regulations, carrying lithium battery products
can not exceed 100wh.
2. If the power of the equipment is within the rated output power range
of the product, it cannot be used?
a. The power consumption of the product is less than 20%; it needs to be
supplemented.
b. When some equipments start, the products which are larger than the peak
value of rated power cannot be used;
3. Why is there sound when using it?
The product adopts air cooling system, and the built-in fan is better to help
product heat dissipation. It is normal to have slight noise when using.
4. Is the charger heating normal when charging?
Charging charger heating is a normal phenomenon, standard charger in line with
national safety standards, you can rest assured to use!
FAULT
PHENOMENON
TROUBLESHOOTING SOLUTIONS
1. The charger and product are not in good
contact with the mains power supply (the
charging indicator is not on at this time)
Check whether the charger and product are
in good contact with the main power
2. The contact is good, but the charging
indicator is not on
If the charger is broken, please contact the
customer service
3. If the charging indicator light is on, it still
can't be charged
If the product is broken, please contact the
customer service
1. The connection line between the
equipment and the product is not plugged
in properly
Make the equipment well connected with
the product
2. The output port switch is not turned on
Turn on the port output switch, and the
indicator light will be on
3. Low power consumption Charging the product
4. There is no output after eliminating
according to 1.2.3 above
If the product is broken, contact the
customer service for handling
1. The nominal power or instanteneous
starting power of the equipment used is
greater than the power of the product
Select higher power energy storage
products
2. If the equipment used is short circuit, an
alarm symbol will appear on the display
screen, an alarm sound will be send and the
product will automatically turn off the
output within 15 seconds
It is not a product problem.
It is recommended to replace the
equipment.
3. The output will still be turned off after
removing according to the above 1.2 point
If the product is broken, contact the after-
sales department for handling
The product has
no output
The product
cannot be
charged
With device
output interrupt
