V-ZUG Steam HSE User manual

Operating instructions
Steam HSE
Steam cooker

Thank you for choosing to buy one of our products. Your appliance is made to high
standards and is easy to use. Nevertheless, please take the time to read these operat-
ing instructions in order to familiarise yourself with the appliance and get the best use
out of it.
Please follow the safety precautions.
Modifications
Text, diagrams and data correspond to the technical standard of the appliance at the
time these operating instructions went to press. The right to make technical modifica-
tions for the purpose of the further development of the appliance is reserved.
Validity
The product family (model number) corresponds to the first alphanumerics on the iden-
tification plate. These operating instructions apply to:
Type Product family Size system
STHSE 23001 55-381
STHSE60 23002 60-381
Variations depending on the model are noted in the text.
Colour operating instructions can be downloaded from the internet from www.vzug.com.
© V-ZUG Ltd, CH-6301 Zug, 2017
2

3
Table of contents
1 Safety precautions 5
1.1 Symbols used .............................................5
1.2 General safety precautions ......................5
1.3 Appliance-specific safety precautions .....
6
1.4 Instructions for use ....................................7
2 Using for the first time 9
3 Appliance description 10
3.1 Construction............................................. 10
3.2 Operating and display elements .......... 10
3.3 Cooking space ........................................ 11
3.4 Accessories.............................................. 11
4 Operating modes 12
4.1 Overview of operating modes .............. 12
4.2 Steam ........................................................ 12
5 Using the appliance 13
5.1 Filling the water tank .............................. 14
5.2 Selecting and starting the operating
mode ......................................................... 14
5.3 Checking and changing the settings .. 15
5.4 Setting a duration.................................... 15
5.5 Setting a delayed start / end time ....... 15
5.6 Cancelling/ending the operating mode
before time ............................................... 16
5.7 Changing the operating mode ............. 16
5.8 Timer.......................................................... 16
5.9 End of operation...................................... 17
5.10 Switching the appliance off................... 18
5.11 Emptying the water tank ........................ 19
6 EasyCook 19
6.1 Overview of food groups ....................... 19
6.2 Selecting and starting foods ................. 20
7 Favourites 20
7.1 Creating favourites.................................. 20
7.2 Selecting and starting favourites...........20
7.3 Changing favourites.................................20
7.4 Deleting favourites ...................................21
8 Tips and tricks 21
8.1 General tips...............................................21
8.2 Saving energy ...........................................21
9 User settings 21
9.1 Overview of user settings .......................21
9.2 Adjusting user settings............................22
9.3 Language...................................................22
9.4 Display........................................................22
9.5 Date ............................................................23
9.6 Clock ..........................................................23
9.7 Notifications...............................................23
9.8 Descaling the appliance .........................23
9.9 Water hardness ........................................23
9.10 Loudness ...................................................24
9.11 Assistance functions................................24
9.12 Temperature..............................................24
9.13 Childproof lock .........................................24
9.14 Appliance information .............................24
9.15 Demo mode ..............................................25
9.16 Factory settings ........................................25
10 Care and maintenance 25
10.1 Cleaning the exterior ...............................25
10.2 Cleaning the cooking space ..................25
10.3 Cleaning the appliance door .................26
10.4 Cleaning the door seal............................27
10.5 Replacing the door seal..........................27
10.6 Cleaning the accessories and shelf
guides.........................................................27
10.7 Descaling...................................................27
11 Trouble-shooting 30
11.1 What to do if … .........................................30

4
11.2 After a power failure ............................... 32
12 Accessories and spare parts 33
12.1 Accessories.............................................. 33
12.2 Special accessories................................ 34
12.3 Spare parts............................................... 34
13 Technical data 34
13.1 Note for testing institutes....................... 34
13.2 Temperature measurement................... 35
13.3 EcoStandby .............................................. 35
13.4 Reference to «Open Source» licence .......
35
14 Disposal 35
15 Index 36
16 Notes 38
17 Service & Support 39

5
1 Safety precautions
1.1 Symbols used
Denotes important safety precau-
tions.
Failure to observe said precautions
can result in injury or in damage to
the appliance or fittings!
Information and precautions that
should be observed.
Information on disposal
Information about the operating in-
structions
▸ Indicates step-by-step instructions.
–Describes how the appliance re-
acts to the steps taken.
▪Indicates a list.
1.2 General safety precautions
▪Read the operating instruc-
tions before using the appli-
ance for the first time!
▪This appliance can be used
by children aged 8 and
above and by persons with
reduced physical, sensory or
mental capabilities, or lack of
experience and/or know-
ledge, provided they are su-
pervised or have been in-
structed on the safe use of
the appliance and have un-
derstood the hazards in-
volved. Children shall not
play with the appliance.
Cleaning and user mainten-
ance shall not be undertaken
by children without supervi-
sion.
▪If an appliance is not
equipped with a mains cable
and a plug or other means
for disconnecting from the
mains with a contact opening
on each pole complying with
the conditions of overvoltage
category III for full isolation,
an isolating device must be
incorporated into the per-
manently installed electrical
installation in accordance
with the installation regula-
tions.
▪If the mains cable of this ap-
pliance is damaged, it must
be replaced by the manufac-
turer or its Customer Ser-
vices or a similarly qualified
person in order to avoid haz-
ard.

1 Safety precautions
6
1.3 Appliance-specific safety
precautions
▪READ THE IMPORTANT
SAFETY PRECAUTIONS
CAREFULLY AND RETAIN
FOR FUTURE USE.
▪WARNING: The appliance
and its accessible parts get
hot during use. Be careful
not to touch the heating ele-
ments. Children under 8
years of age must be kept
away from the appliance un-
less they are constantly su-
pervised.
▪WARNING: Accessible parts
can get hot during use. Keep
young children away from the
appliance.
▪This appliance is intended for
use in the home and similar
settings such as: in staff kit-
chens in shops, offices and
other commercial establish-
ments; in agricultural estab-
lishments; by guests in ho-
tels, motels and other ac-
commodation establish-
ments; in bed and breakfast
establishments.
▪A heatable appliance drawer
and its contents get hot.
▪Do not use aggressive or ab-
rasive cleaning agents or
sharp metal scrapers for
cleaning the glass in the
oven door as they could
scratch the surface. This can
destroy the glass.
▪For appliances with pyrolytic
self-cleaning: Excessive soil-
ing and any and all accessor-
ies (tableware, baking trays,
runners, shelf guides) must
be removed before carrying
out pyrolytic self-cleaning.
▪Under no circumstances use
a steam cleaner to clean the
appliance.
▪WARNING: Before replacing
the light bulb, ensure the ap-
pliance is switched off and
disconnected from the mains
power supply to avoid pos-
sible electric shock.
▪To avoid overheating, the ap-
pliance must not be installed
behind a decor door.
▪This appliance is not inten-
ded for use in vehicles or on
board ships or aircraft or in
rooms where there are spe-
cial conditions such as, for
instance, a corrosive or ex-
plosive atmosphere (dust,
steam or gas) or condensing
moisture.

1 Safety precautions
7
▪WARNING: Never heat food
or liquids in sealed contain-
ers such as cans or bottles
as they are liable to explode
due to overpressure.
▪See the «Accessories» sec-
tion for the proper use of in-
sertable parts.
1.4 Instructions for use
Before using for the first time
▪The appliance must be installed and
connected to the electricity supply in
accordance with the separate installa-
tion instructions. Have a qualified fitter/
electrician carry out the necessary
work.
Correct use
▪The appliance is designed for use in
the home for preparing food. Under no
circumstances flambé or cook food us-
ing a lot of fat in the cooking space!
No liability is assumed for any damage
caused by improper use or incorrect
handling.
▪Never use the appliance to dry anim-
als, textiles or paper, etc.
▪Do not use the appliance as a room
heater.
▪The appliance should only be installed
and operated at an ambient temperat-
ure of 5 °C to 35 °C. If frost develops,
residual water left in the pumps could
freeze and cause damage.
▪Any repairs, modifications or manipula-
tions to the appliance, especially any
electrically live parts, may only be car-
ried out by the manufacturer, its Cus-
tomer Services or a similarly qualified
person. Repairs if carried out incor-
rectly may cause serious injury, dam-
age to the appliance and fittings, as
well as affect the functioning of the ap-
pliance. If the appliance is not working
properly or in case of a repair order,
follow the instructions given in the
«Service & Support» section. Please
contact our Customer Services if ne-
cessary.
▪Use original spare parts only.
▪Retain these operating instructions for
future reference.
▪The appliance corresponds to recog-
nized technology standards and the
relevant safety regulations. Proper use
of the appliance is essential to avoid
damage and accidents. Please there-
fore follow the precautions given in
these operating instructions.
Note on use
▪Use the childproof locking facility.
▪If the appliance is visibly damaged, do
not use it. Contact our Customer Ser-
vices.
▪If the appliance is not operating prop-
erly, disconnect it from the power sup-
ply immediately.
▪Ensure there are no foreign bodies or
pets in the cooking space before clos-
ing the appliance door.
▪Objects that could pose a danger if the
appliance were accidentally switched
on should not be stored in the cooking
space or the heatable appliance
drawer. Do not store food or any tem-
perature-sensitive or inflammable ma-
terials, e.g. cleaning agents, oven
sprays, etc., in the cooking space or
the heatable appliance drawer.
▪For appliances with grill: Leave the ap-
pliance door closed when grilling. The
heat could otherwise damage the oper-
ating and display elements or the fitted
units above.

1 Safety precautions
8
Caution: Risk of burns!
▪The appliance gets very hot when in
use. The appliance door also gets hot.
▪Steam and/or hot air may escape from
the cooking space when the appliance
door is opened.
▪The appliance will remain hot for some
time after it is switched off and will only
cool down slowly to room temperature.
Allow sufficient time for the appliance
to cool down before, for instance,
cleaning it.
▪Overheated fat and oil can easily catch
fire. Heating oil in the cooking space to
sear meat is dangerous and should not
be done. Never attempt to extinguish
burning oil or fat with water. Danger of
explosion! Smother the flames with a
fire blanket. Keep doors and windows
closed.
▪Do not pour spirits (brandy, whisky,
schnapps, etc.) over hot food. Danger
of explosion!
▪Do not leave the appliance unattended
when drying herbs, bread, mushrooms,
etc. If the foodstuff dries out too much,
it can pose a fire hazard.
▪If you notice smoke possibly coming
from the appliance itself or from inside
the cooking space, keep the appliance
door closed. Disconnect the appliance
from the power supply.
▪Accessories get hot in the cooking
space. Use protective gloves or oven
cloths.
Caution: Risk of injury!
▪Be careful not to put fingers in the door
hinges, there is otherwise a risk of in-
jury if the appliance door is moved.
Particular care should be taken when
children are around.
▪Only leave the appliance door open in
the at-rest position. An open appliance
door poses a danger of tripping or in-
jury! Do not sit or rest on the appliance
door or use it as a storage surface.
▪For hobs: A hob guard can be fitted to
protect small children. Hob guards are
available from specialist retailers.
Caution: Risk to life!
▪Danger of suffocation! Keep packaging
material, e.g. plastic film and poly-
styrene, away from children. Packaging
material can be dangerous for children.
How to avoid damaging the appliance
▪Close the appliance door carefully.
▪For appliances with visible bottom
heating element: Do not place any ob-
jects directly on the bottom heating ele-
ment.
▪Do not use protective aluminium in-
serts with appliances with no visible
bottom heating element.
▪Do not use objects that can rust in the
cooking space.
▪Using knives or cutting wheels on the
baking tray will visibly damage the sur-
face.
▪To prevent corrosion, leave the appli-
ance door open in the at-rest position
until the cooking space has cooled
down.
▪When cleaning the appliance, make
sure no water gets inside it. Use a
moderately damp cloth. Do not spray
the outside or the inside of the appli-
ance with water. If water gets inside the
appliance, it will cause damage.

2 Using for the first time
Before operating the newly installed appliance for the first time, the following steps
should be taken:
▸ Remove packaging and transport materials as well as any protective blue film from
out of the cooking space.
▸ Clean the cooking space and the accessories.
▸ Press the power button.
–The appliance switches on.
Version 1 *
* Depending on the software version
–Various user settings necessary for operation, such as language, time and tem-
perature unit, appear in the display one after the other.
▸ Make the settings and confirm.
▸ Fill the water tank with fresh, cold drinking water and slot into position in the water
tank compartment.
Language and time must be set so that the appliance can be operated.
Version 2 *
* Depending on the software version
▸ Set the time (see page 23).
▸ If necessary, adjust the user settings to the water hardness (see page 23).
▸ Fill the water tank with fresh, cold drinking water and slot into position in the water
tank compartment.
Completing the initial set-up
▸ Heat the empty cooking space (without wire shelves, baking trays, etc.) using the
operating mode at 100°C for about 30minutes.
As there is likely to be some smoke and odour given off, we recommend ventilat-
ing the room well during this phase.
All temperatures in these operating instructions are in degrees Celsius. Apply the
corresponding conversions via the user setting «Degrees Fahrenheit» (see page
24).
9

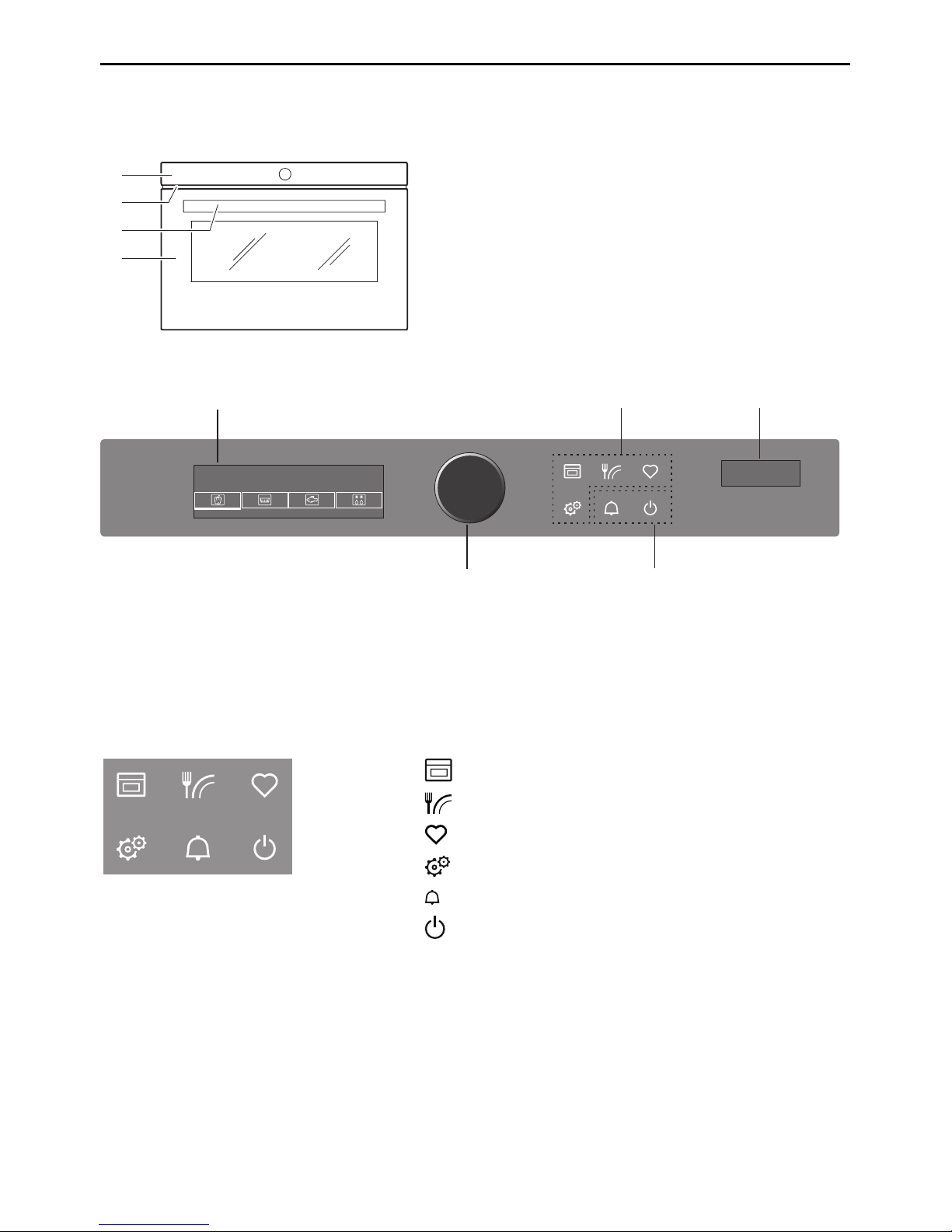

3 Appliance description
3 Appliance description
3.1 Construction
1
3
4
2
1Operating and display elements
2Ventilation opening
3Door handle
4Appliance door

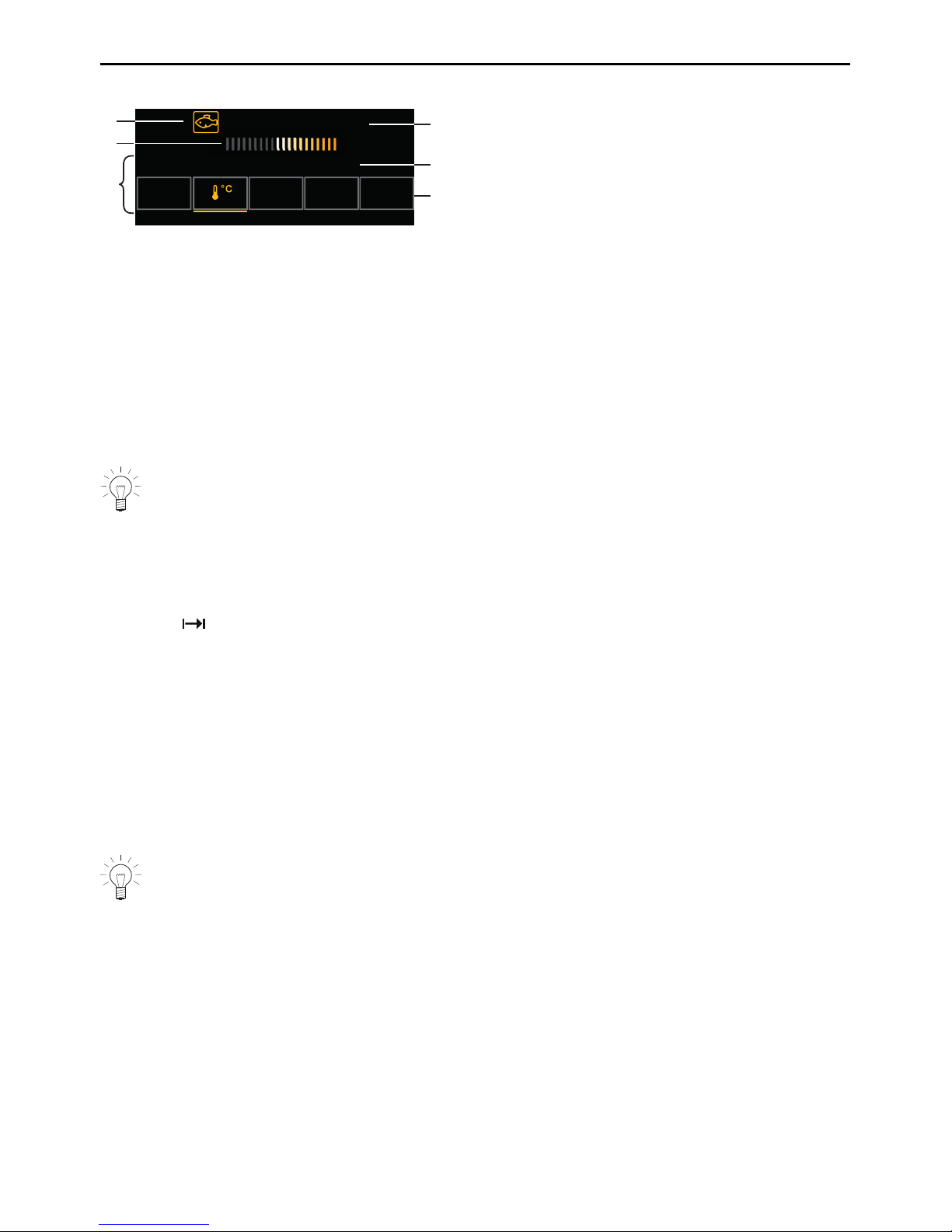

3.2 Operating and display elements
12:00
곋2SHUDWLQJPRGHV6WHDPr32
4
1
5
1Display 4Action buttons
2Menu buttons 5Adjusting knob / switching on
appliance
3Digital display (duration/timer/time)
Overview of touch buttons
Operating modes
EasyCook
Favourites
User settings
Timer
Switch off
10
