V3 SOUND ROMMEX User manual

TONE GENERATOR
ROMMEX
sound expansion for digital accordions
manual - midi implementation - sound list
V3SOUND.COM

1
HPF High Pass Filter: Use the cutoff parameter to set the low frequency limit. When you do this,
the sound will naturally be brighter and thinner. A cutoff value over 64 usually needs to be
selected just so you notice the change.
Notch Filter - take some frequencies out
SL 116 Velocity zone 116 - 127 Slide up sound variation
SP 116 Velocity zone 116 - 127 Split variation
velo. Velocity split
AV Auto variation with grace notes
+ Small variation in sounds
56/57 Controller 56 main tone - controller 57 over tone - specially created for MIDI files
MEGA Voice special for Styles
Exm Experimental sounds
R Auto Repetition - Samples change any hit
Spc Bellow change overtone spectrum
PEV One reed slide up by attack
OCB Octave break
special key setting
The sound board will just give sound, when you call up a sound with a bank and program number
from this sound list. Sending a bank message with another value - NO SOUND!
PROGRAM LIST SOLO SOUNDSPROGRAM LIST SOLO SOUNDSPROGRAM LIST SOLO SOUNDS
PROGRAM LIST SOLO
SOUNDS
PROGRAM LIST SOLO SOUNDS
BANK CONCEPTSAFETY PRECAUTIONS COPYRIGHT
SPECIFICATIONS
LEGEND
SAFETY INSTRUCTIONS
• Read the user manual before using the device
• Do not allow any liquid to come in contact
with the device
• Do not place anything on top of the device
• Do not handle the power supply with wet hands
• Turn off all connected devices before you
connect any new devices
Do not use or store the device where it is
exposed to:
• dampness or wetness
• extreme temperature changes
(i.e. do not store in a vehicle in winter)
• strong vibrations or jolts
HANDLING
• Use only the original cables and power supply
• Remove the cable only by pulling on the plug,
not on the cable
• Do not expose the power adapter to any
mechanical stress
CUSTOMER SERVICE
Do not carry out any repairs at home, as this may result
in permanent damage to the electronics. Any guarantee
claims are no longer valid in this case.
ACCESSORIES
Manual and power
POWER REQUIREMENT
9VDC / 1.0A
HUMIDITY
max. 80%, non-condensing
OPERATING TEMPERATURE
10 to 40 degrees Celsius

!


All the audio recordings V3SOUND uses on
the sound boards are protected by copyright.
V3SOUND alone has been given the right by all
musicians involved to use this material. Any duplica-
tion, editing or any other copy of individual sounds
by or given to a third party in any form (audio samp-
ling CD, data storage device with individual sounds,
download of any file, etc.) is strictly forbidden.
Copyright © 2018 V3SOUND - Austria
• Master Volume
• Master Reverb
• 4 GB flash memory
• 16 MIDI channels
• 4 audio out (2 stereo)
• Polyphony 256 voice
• Ports available for 1 sustain foot pedal
• Dimensions: 12cm (L) x 12cm (W) x 6cm (H)
• Weight: 0,2kg
• USB Host
The CE certification is available at
http://www.v3sound.com/support/
V3SOUND GMBH
Kirchplatz 7 - 6114 Kolsass - Austria - Europe
This product conforms to the
FCC 47 CFR PART 15
SUBPART B

2
MIDI-THRU MIDI-IN
POWER ON/OFF USB-HOST PEDAL
MAIN REVERB
LED - POWER ON
LED - MIDI
MAIN VOLUME
PROGRAM LIST SOLO SOUNDSUSER INTERFACE PORTS
To avoid possible damage to the loud speakers
or other connected electronic devices, always
connect all cables before turning on the units.
Plug the power adapter that came with the
V3 unit into the DC port on the back of the unit.
Plug the other end of the power adapter into a
power outlet.
Connect the MIDI-cable
MIDI-OUT
MIDI Instrument
MIDI-IN V3 unit
You can also use a USB cable in place of the
MIDI cable.
Connect the audio outputs
AUDIO OUT
L & R V3 unit
MIXER or
AKTIV LOUDSPEAKER
MIDI-INMIDI-OUT - INSTRUMENT
AUDIO-OUT
POWER ON/OFF USB-HOST
PROGRAM LIST SOLO SOUNDSCONNECT


 

3
V3SOUND
TO TURN ON
Before you turn the device on or off, make sure that
all connected audio devices that amplify the audio
signal (mixer, amplifier, active loud speakers) have
their volumes turned down.
Turn on your MIDI-instrument
 Wait till your MIDI instrument
is full bootet
Press the POWER ON/OFF switch on
the back of theV3 unit.
Turn up the V3 unit MAIN VOLUME
knob to adjust the volume.
Adjust the volume on your mixer or
active loudspeaker.
CONNECT – USB KEYS
The V3 unit can be connected to any USB Audio
Class 1 compatible MIDI instrument.
The V3 unit can supply your USB instrument with a
maximum of 500mA.
If your MIDI instrument requires more than 500mA,
you will need an external power supply.
Just plug in your USB instrument here.
SUSTAIN FOOT PEDAL
The polarity of the sustain foot pedal is set up
automatically when you turn on the V3 unit.
The pedal only works on MIDI channel 1.
AUX OUT - 2nd STEREO OUT
To use the AUX OUT for any MIDI channel, you
must manually change the 4 internal switches
and send a NPRN MIDI message on the specified
MIDI channel.
The connection changes from 2 mono jacks to 2
stereo jacks.
One stereo jack gives you the MAIN in stereo; the
other one the AUX in stereo.
SELECT SOUNDS
The V3 unit is a 16-channel, multi-timbral MIDI
tone generator. Change sounds by sending a
program change through MIDI.
After POWER ON no program is selected.
The sound board will just give sound, when you
call up a sound with a bank and program num-
ber from this sound list.
Sending a bank message with another value -
NO SOUND!
STEREO L + R = BABAA (grafic)
STEREO + AUX = BBABB
TIP
Turn the volume on the V3 unit as loud as
possible, and then adjust the volume of the
sound on your mixer.
The sound board will just give sound, when
you call up a sound with a bank and program
number from this sound list. Sending a bank
message with another value - NO SOUND!
MSB Bank 80
Prg. change 1
NO SOUND

!

USE A ROMMEX SOUND IN SETS

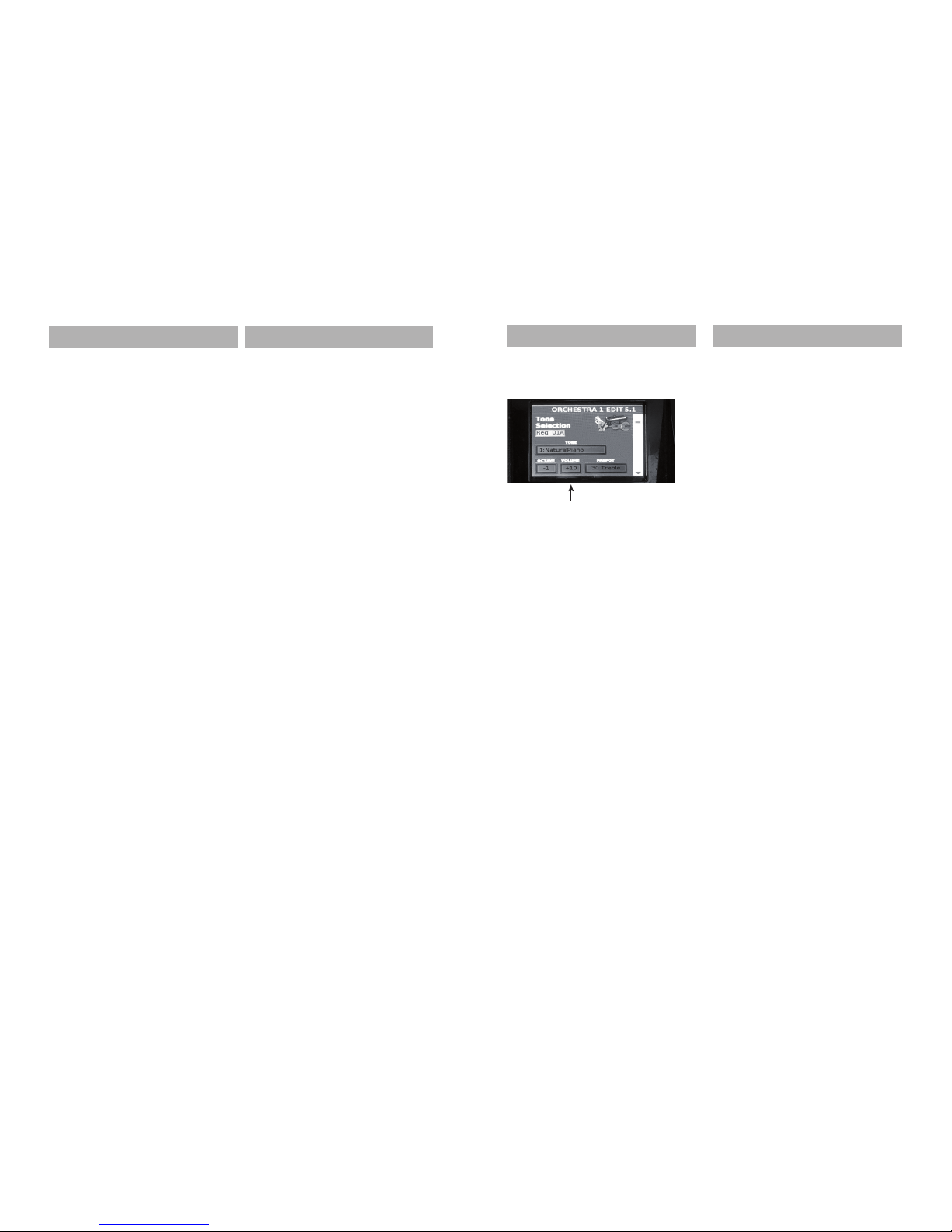

EXAMPLE ORCHESTRA EDIT 1
turn internal part volume to 00
 go to page 5.8
MIDI TX
now select a program
NOTE TX ON
Octave ~ your choice
CC00 Example 80 for Piano group
CC32 00 (not needed)
PC 1 for Grand Piano 1
Volume example 100
Panpot example 64
Reverb example 40
Chorus example 0
velocity ~ your choice
Expression ~ your choice
SAVE AND CALL UP NEW
You have to save the settings inside a SET
and then call up the set new.
MIDI-SETTING FR-8x
press down
[MENU]
 turn the
[DATA] POTENTIOMETER
to get in Display MIDI IN OUT
press down
[DATA] POTENTIOMETER
do the following settings:
MIDI 16.1
REALTIME RX-TX
PARAMETER VALUE
Accordion 1
Orchestra 1/Organ 4
Orchestra 2 5
Bass/Free Bass 3
Chord 2
Orchestra Bass 6
Orchestra Chord 8
Orchestra FBass 7
Drums 10
Basic any
Control Channel any
MIDI-SETTING FR-8x
go to MIDI page
Global Setting 16.3
do the following settings:
PARAMETER VALUE
Note TX default
CC00 default
CC32 default
PC default
Aftertouch default
Volume default
Panpot default
Reverb default
Chorus default
Bellow TX ~ your choice
Organ AT ~ your choice
Chord TX mode normal
2nd Bass out ON
2nd Bass channel 9
2ns Bass Oct. 0
Start/Stop TX ~ your choice
go to MIDI page
MIDI 16.4
EXPRESSION MIDI TX
make your adjustments:
PARAMETER VALUE
ON = Bellow dynamic
4

PIANO BANK MSB 80
TUNED MSB 80
5
V3SOUND
11 Glockenspiel
12 Musicbox
13 Musicbox & Oct.
14 Musicbox soft
15 Vibraphon Vib.
16 Vibraphon Vib. short
17 Vibraphone Vib. soft attack
18 Vibraphone
19 Vibraphone short
20 Vibraphon fast Tremolo
21 Marimba
22 Marimba & Octave
23 Marimba & Xylophon
24 Marimba & Xylophon+
25 Xylophon
26 Xylophon & Octave
27 Kalimba
28 Steel Drums
E-PIANO MSB 80
PIANO MSB 80
PIANO CHORD MSB 80
GENERAL MIDI MSB 00
01 Grand Piano
02 Bright Piano
03 Honky Tonk
04 Classic Grand
05 Latin Grand
06 Rock Grand
07 Rock Bright
08 Harpsichord
USE CHORD INVERSION G - C - E
100
Zone lower then note C1-60 delay 0 ms
Zone around note C1-60 delay 10 ms
Zone around note E1-64 delay 20 ms
101
Zone lower then note C1-60 delay 0 ms
Zone around note C1-60 delay 15 ms
Zone around note E1-64 delay 30 ms
102
Zone lower then note C1-60 delay 0 ms
Zone around note C1-60 delay 30 ms
Zone around note E1-64 delay 50 ms
103
slow
Zone lower then note C1-60 delay 0 ms
Zone around note C1-60 delay 300 ms
Zone around note E1-64 delay 600 ms
USE CHORD INVERSION C - E - G
104
Zone lower then note E1-64 delay 0 ms
Zone around note E1-64 delay 10 ms
Zone around note G1-64 delay 20 ms
105
Zone lower then note E1-64 delay 0 ms
Zone around note E1-64 delay 15 ms
Zone around note G1-64 delay 30 ms
106
Zone lower then note E1-64 delay 0 ms
Zone around note E1-64 delay 30 ms
Zone around note G1-64 delay 50 ms
107
slow
Zone lower then note E1-64 delay 0 ms
Zone around note E1-64 delay 300 ms
Zone around note G1-64 delay 600 ms
RANDOM NOTES
108 Just some keys are playing - Random A
109 Just some keys are playing - Random B
COPIES - VELOCITY NOT ACTIVE
The programs are copies of the programs 100
- 109 with the difference that the velocity was
deactivated.
In this way you determine with the velocity
value on your instrument which of the
7 dynamic levels sounds.
110 - 113 - are copies from 100 - 103
114 - 117 - are copies from 104 - 107
118 copy 108
119 copy 109
Next sounds was generated for a natural chord
progression. With a MIDI accordion, it is usu-
ally the case that all 3 notes, which are output
by pressing a chord key, sound within 1 ms.
For slow pieces, it is more pleasant if these
notes do not sound so accurate.
In the following programs, the 3 incoming notes
will be delayed slightly from bottom to top.
001 - 128 NO SOUND
09 Electric Grand
10 E-Piano Dyno
ORGAN MSB 81
41 Or.Tower Mighty
42 Or.Tower Piston 2
43 Or.Tower Piston 4
44 Or.Tower Piston 5
45 Or.Tower Solo 5
46 Or.Tower Solo 6
47 Or.Tower Acc. 1
48 Or.Tower Acc. 2
49 Or.Tower Tibias
50 Or.Tower Meloton
51 Or.Tower Royal 1
52 Or.Tower Royal 2
53 Or.Tower Krumm
54 Or.Tower T. Vox
55 Or.Tower Straight
56 Or.Tower Tubas
57 Or.T. Pedals small
58 Or.T. Pedals full
59 Or.T. Pedals Dixon
60 Or.C3 Full
61 Or. Rock Organ
62 Or.Pipe Tutti 1
63 Or.Pipe Tutti 2
64 Or.Pipe Flutes
65 Or.Cordovox A
66 Or.Cordovox B
67 Or.Cordovox C
68 Or.Cordovox D
69 Or.Cordovox E
70 Or.Vox4 A
71 Or.Vox4 B
72 Or.Vox4 C
101 Or.Glocken
102 Or.Glocken short
103 Or.Glocken Reiteration
104 Or.Xylophon Hit
105 Or.Xylo Reiter A & Hit
106 Or.Xylo Reiter B
107 Or.Glo. Reiter velocity
108 Or.Xylo. Reiter velocity
128 Or. Tower FX
01 Or. 776555678 slow
02 Or. 776555678 fast
03 Or. 800000568 slow
04 Or. 800000568 fast
05 Or. 008530000 slow
06 Or. 008530000 fast
07 Or. 800000000 slow
08 Or. 800000000 fast
09 Or.807800000 slow
10 Or.807800000 fast
11 Or.804708000 slow
12 Or.804708000 fast
13 Or.800008000 slow
14 Or.800008000 fast
15 Or.800000008 slow
16 Or.800000008 fast
17 Or.687600000 slow
18 Or.687600000 fast
19 Or.888000000 Perc
20 Or.Hamm full
21 Or.CD-DB slow
22 Or.CD-DB fast
23 Or.CD-FL slow
24 Or.CD-FL fast
25 Or.KW full slow
26 Or.KW full fast
27 Or.KW perc slow
28 Or.KW perc fast
29 Or.FL perc slow
30 Or.FL perc fast
31 Or.ZR soft slow
32 Or.ZR soft fast
33 Or.Klaus W. slow
34 Or.Klaus W. fast
35 Or.Klaus Musical
36 Or.Versinum
37 Or.German A
38 Or.German B
39 Or.L100 A
40 Or.L100 B

6
V3SOUND
GUITAR Msb 83
01 Guitar Nylon
02 Guitar Nylon soft
03 Guitar Nylon Octave
04 Guitar Steel 1
05 Guitar Steel 1 soft
06 Guitar Steel 1 hard
07 Guitar Steel 1 double
08 Guitar Steel 1 bowed
09 Banjo
10 Ens. Mandolins Tremolo
11 Ens. Mandolins Tremolo+
12 Ens. Mandolins
13 Git. Jazz 1
14 Git. Jazz 2
15 Git. Jazz & Octave
16 Pedal Steel Vib.
17 Pedal Steel
18 Pedal Steel bowed
19 Git. Jazz Amp 1
20 Git. Jazz Amp 2
21 Git. Jazz Chicken Picking 1
22 Git. Jazz Chicken Picking 2
23 Git. Nylon Zupf & note off
24 Git. Nylon Zupf
25 Git. clean
26 Git. Overdrive
27 Git. Overdrive short & long velo. 64/65
28 Git. Overdrive short
29 Git. Rhythm 1
30 Git. Rhythm 2
64 Guitar Nylon SL116 - Slide velocity 116
65 Guitar Steel SL116 - Slide velocity 116
66 Banjo SL 116 - Slide velocity 116
67 Guitar Pedal Steel SL 116 - velocity 116
BASS MSB 84
01 Contrabass
02 Contrabass Finger Attack+
03 Contrabass soft
04 Contrabass 2
05 Contrabass 2 soft
06 Contrabass bowed
07 Contrabass bowed short
08 E-Bass 1
09 E-Bass 1 & note off
10 E-Bass 2
11 E-Bass 2 & note off
12 E-Bass 3
13 E-Bass 3 Eq
14 E-Bass 3 Filter
15 E-Bass Pick 1
16 E-Bass Pick 2
17 E-Bass Fretless
18 Doppelbass Bariton & E-Bass
72 Synthbass 1
73 Synthbass 2
74 Synthbass 3
75 Synthbass 4
76 Synthbass 5
77 Synthbass Jupiter 1
78 Synthbass Jupiter 2
79 Synthbass Jupiter 3
80 Synthbass Jupiter 4
81 Synthbass DX100 kurz
82 Synthbass DX100
83 Synthbass DX100 Reso
84 Synthbass DX100 HP
85 Synthbass CE25 kurz
86 Synthbass CE25
87 Synthbass CE25 Reso
88 Synthbass CE25 HP
89 Synthbass CS01 kurz
90 Synthbass CS01
91 Synthbass CS01 Reso
92 Synthbass Z3 kurz
93 Synthbass Z3
94 Synthbass Z3 long
STRINGS MSB 85 SYN-STRINGS MSB 85
01 Violin Solo
02 Viola Solo
03 Cello Solo
04 Contrabass Solo
05 Full Strings Tremolo
06 Full Strings pizzicato
07 Strings Chamber
08 Full Strings dynamic
09 Full Strings fast
10 Full Strings detache
11 Full Strings forte
12 Full Strings Emotion
13 Full Strings 2
14 Full Strings 2 fast
15 Full Strings 2 Filter
16 Full Strings 2 LFO
17 Full Strings 2+
18 Full Strings 2 sp.
19 Full Strings for 2nd dynamic channel
20 Fiddle soft
21 Fiddle
22 Zillertal Geige
23 Zillertal Geige+ Arco
24 Zillertal Geige legato
25 Zillertal Geige legato up
26 Zillertal Geige legato down
27 FULL STRINGS Marcato/Legato fast
28 FULL STRINGS Marcato/Legato
29 FULL STRINGS Marc./Leg. slow
30 FULL STRINGS Marcato/Legato
31 FULL STRINGS Marcato piano
32 CHAMBER Marcato/Legato fast
33 CHAMBER Marcato/Legato
34 CHAMBER Marc. Leg. slow
35 CHAMBER Marcato/Legato
36 CHAMBER Marcato piano
47 Synth. Strings PWM
48 Synth. Strings PWM+
49 Synth. Strings PWM up
50 Synth. Strings FWM
51 Synth. Strings MKS
52 Synth. Strings MKS+
53 Synth. Strings MKS24 Filter
54 Synth. Strings MKS24+
55 Retro Strings
56 Retro Stringman
64 Fiddle SL116 Slide velocity 116
65 Zillertal Geige SL116 Slide

7
V3SOUND
BRASS MSB 86
01 Cornet
02 Cornet soft
03 Cornet hard
04 Cornet legato up
05 Trumpet Vibrato
06 Trombone
07 Trombone soft
08 Trombone hard
09 Trp. Miles mute
10 Trp. Miles mute AV
11 French horn
12 F-Horn
13 Trumpet Section
14 Lead Trumpets
15 Trombone Section
16 Brass sfz fall
17 Brass short
18 Trumpet Ivan
19 Trumpet Ivan
20 Trumpet Ivan 1/4 note
21 Trumpet Ivan 1/4 note
22 Trumpet Dixie
23 Trumpet Dixie soft
24 Trumpets
25 Trumpets HPF
26 Trumpets Filter
27 Trumpet Damper
28 Tenorhorn Vibrato
29 CLASSIC Trumpet Ensemble
30 CLASSIC Trombone Ensemble
31 CLASSIC Horn Ensemble
32 CLASSIC Tuba Ensemble
33 CLASSIC Trumpet Solo
34 CLASSIC Trombone Solo
35 CLASSIC Horn Solo
36 CLASSIC Tuba Solo
37 Bariton Sepp Accent
38 Bariton Sepp Vibrato
39 Bariton Sepp staccato mezzo
40 Bariton Sepp staccato forte
41 Tuba Jon
42 Tuba Jon soft
43 Tubas
64 Cornet SL116 - Slide up velo. 116
65 Trumpet Dixie SL116
66 Trumpets SP116
67 Trumpet Section SP 116 fall
68 Trumpet Section SP 116 up
69 Trumpet Section SP 116 shake
SAX MSB 87
01 Sax Sopran
02 Sax Sopran soft
03 Sax Sopran hard
04 Sax Sopran noisy
05 Sax Alto
06 Sax Alto soft
07 Sax Alto hard
08 Sax Alto noisy
09 Sax Tenor 1 Jazz Vibrato smooth
10 Sax Tenor 2
11 Sax Tenor 2 soft
12 Sax Tenor 2 hard
13 Sax Tenor 2 noisy
14 Sax Tenor 2 piano
15 Sax Bariton
16 Sax Sopran Carlo
17 Sax Section Tenor 1
18 Sax Section Tenor 2
19 Sax Section Alto
20 Sax Tenor Funk
21 Sax Tenor Growl
64 Sax Sopran SL116 Slide up velo. 116
65 Sax Alto SL116
66 Sax Tenor SL116
67 Sax Tenor Funky SP116 Growl
WOODWIND MSB 88
01 Oboe
02 Englishhorn
03 Bassoon
04 Clarinet
05 Clarinet noisy
06 Piccolo
07 Flute
08 Flute EQ
09 Flute HP
10 High Whistle
11 High Whistle AV
12 Low Whistle
13 Whistle
14 Panflute
15 Bottle
16 Bottle soft
17 Bottle Q
18 Bottle LFO
19 Shakuhachi
20 Whistle GS
21 Ocarina
22 Clarinet Carlo
23 Clarinet Carlo EQ
24 Clarinet Vito
25 Clarinet Vito velo.
26 Clarinet Vito staccato
27 Clarinet Vito staccato velo.
28 CLASSIC Solo Clarinet
29 CLASSIC Bass Clarinet
30 CLASSIC Contrabassoon
31 CLASSIC Flute Ensemble
32 CLASSIC Clarinet Ensemble
64 Clarinet SL116
65 High Whistle SL116
66 Low Whistle SL116

8
V3SOUND
SYNTHESIZER MSB 89 ETHNO MSB 90
41 Softpad+
42 Synth OBX
43 Synth OBX soft
44 Synth OBX warm
45 Synth OBX ENV
46 Synth Fairly
47 Synth Spacy
48 Bowed Glas
49 Bowed Glas+
50 Metal Pad
51 Halo Pad
52 Sweep Juno
53 Sweep Juno fast
54 Sweep Juno Atk.
55 Ice Rain
56 Soundtrack
57 Soundtrack+
58 Soundtrack up
59 Soundtrack fade
60 Crystal Bell
61 Crystal Bell HPF
62 Crystal Bell & off
63 Atmos
64 Atmos+
65 Brightness A
66 Brightness B
67 Brightness C
68 Goblin
69 Echo Drops
70 Star Them
71 Bell Hit
01 Square Lead 1
02 Square Lead 2
03 Square Lead 3
04 Square Lead 4
05 Square Lead 5
06 Saw Lead 1
07 Saw Lead 2
08 Saw Lead 3
09 Saw Lead 4
10 Saw Lead 5
11 Calliope 1
12 Calliope 1
13 Chiffer 1
14 Chiffer 2
15 Chiffer 3
16 Chiffer 4
17 Hook
18 FM7 Pluk
19 Charang 1
20 Charang 1
21 FM8 Brass
22 Synth Brass 1
23 Synth Brass 2
24 Prophet 8 Brass
25 Prophet 8 Brass
26 Prophet 8 Brass 24db
27 Synth 5th
28 SYizer X
29 SYizer Y
30 SYizer Z
31 SY Lead A
32 SY Lead B
33 SY Lead C
34 SY Lead D
35 Fantasia
36 Fantasia+
37 TX816 Bells
38 DX1 Toy Bell
39 DX1 Toy Bell+
40 Softpad
01 Bag Pipe
02 Bag Pipe AV
03 Bag Pipe Drone
04 Ullian Pipe
05 Ullian Pipe AV
06 Ullian Pipe Drone
07 Pipers
08 Pipers Drone
09 Dulcimer 5 strings
10 Dulcimer 5 strings+
11 Dulcimer 5 strings Tremolo
12 Dulcimer 5 strings bowed
13 Alphorn
14 Alphorn Duo
15 Alphorn Trio
16 Alphorn Trio+
17 Alphorn Trio tune
18 Schellen Hit
19 Schellen Hit & Roll
20 Schellen Roll
21 Harp
22 Harp+
23 Harp Special - small Arpeggio on attack
24 Dulcimer 3 strings
25 Dulcimer 3 strings+
26 Dulcimer 3 strings Tremolo
27 Dulcimer 3 strings bowed
28 Dulcimer 3 random key setting
29 Dulcimer 3 random key setting
30 Zither
31 Jew´s Harp
32 Sitar
33 Shamisen
34 Koto
35 Shanai
64 Bag Pipe SL116
65 Ullian Pipe SL116
72 Orchestra Hit Major
73 Orchestra Hit Minor
76 SFX Cymbal 77 SFX Seashore
78 SFX Bird 79 SFX Phone
80 SFX Heli 81 SFX Applause
82 SFX Gunshot 83 SFX Fret noise
84 SFX Breath
CHOIR MSB 91
01 Choir Classic Aah
02 Choir Pop Ooh
03 Choir Pop Ooh Q
04 Choir Pop Filter
05 Choir Doo
06 Choir Ooh+
07 Choir Doo+
08 Synth Vox
09 Synth Vox
10 Synth Vox pad
11 Synth Vox soft
12 Synth Vox 2
13 Synth Vox 2
14 Synth Vox up

8
CHORD GUITAR
The following sound banks contain recordings
of complete major, minor, 7th and diminished
guitar chords.
These guitar sounds are available in many strum-
ming patterns: short, long, up, down, plucked
and slow. When you press a key, you hear a full
chord.
To use this function LIVE with a MIDI
accordion, the MIDI system must have the fol-
lowing special function.
The accompanying bass must have its own
MIDI channel from which to output the neces-
sary keynotes. This sounds complicated, but in
reality it is quite simple.
The MIDI system always plays three notes for
the C-major chord on an accordion:
C, E, G.
On a typical MIDI system playing a chord gui-
tar program, the C-major, E-major and G-major
are heard at the same time, which does NOT
sound good.
Our invention allows just the note 48 to sound
when you press the C-major chord. When you
press the C-minor chord, the note 60 is played.
Many modern MIDI systems operate with this
logical programming. Without this function,
the guitar chords are NOT playable on a MIDI
accordion.
For MIDI systems without this function, regist-
rations with special guitar sounds are available
that will fit your needs.
Sound programs run on Round Robin
technology. When a key is pressed more than
once, the available samples are automatically
switched out in order to bring the music to life.
TO USE THIS SPECIAL FULL GUITAR CHORD
YOU NEED THIS SETTING:
go to MIDI page
Global Setting 16.3
do the following settings:
PARAMETER VALUE
Chord TX Mode D-Mode
Prg. Nylon German Folk Guitar
01 Chord Guitar - short 
03 Chord Guitar - medium 
04 Chord Guitar - long 
Oberkrainer Git. Renato Verlič
16 Chord Guitar - short 
18 Chord Guitar - medium 
19 Chord Guitar - long 
Jazz Gitarre Edi Köhldorfer
31 Chord Guitar - Jazz Amp short 
33 Chord Guitar - Jazz Amp medium 
34 Chord Guitar - Jazz Amp long
35 Chord Guitar - Jazz Micro short 
37 Chord Guitar - Jazz Micro medium 
38 Chord Guitar - Jazz Micro long
39 Ch.Git. - Jazz Amp & Micro short 
41 Ch.Git. - Jazz Amp & Mic. medium 
42 Ch.Git. - Jazz Amp & Micro long
43 Ch.Guitar - Jazz DI & Micro short 
45 Ch.Guitar - Jazz DI & Mic. medium 
46 Ch.Guitar - Jazz DI & Micro long
OB-Guitar Gerhard Kometer
63 Ch.Guitar - Jazz DI & Micro short 
65 Ch.Guitar - Jazz DI & Mic. medium 
66 Ch.Guitar - Jazz DI & Micro long
Slow Arpeggio Guitar
101 Nylon Guitar slow Arpeggio
102 Jazz Guitar slow Arpeggio
CHORD GUITAR MSB 92
LAYOUT
MAJOR MINOR 7th DIM
Note 48 Note 60 Note 72 Note 84

10
V3SOUND
Prg. Harp R
01 Harp
02 Accordina 
French
03 MAU Musette 88
04 MAU Musette 888
05 MAU Musette 88+16
06 MAU Musette 888+16
07 MAU Musette 4+88
08 MAU Musette 4+888
09 MAU Musette 4+88+16
10 MAU Musette 4+888+16
Benelux
11 PIM 88
12 PIM 88+16
Benelux
13 ACC 888 Musette
14 ACC 888+8 Musette Exm
French
15 HOH 88
16 HOH 88+16
17 HOH 4+88+16
18 HOH 816
19 HOH 816 
French
20 CAV Ve10 88
21 CAV Ve10 88+16
22 CAV Ve10 88+1616
23 CAV Ve10 1616 Cassotto
24 CAV Ve10 1616+8
25 CAV Ve10 1616+5th Exm
26 CAV Ve10 88+8 flat Exm 
27 CAV Ve10 88+8 dark Exm 
28 CAV Ve10 4+88 Exm 
Italian
29 BAL Musette 888
30 BAL Musette 888+16
31 BAL Musette 4+888
32 BAL Musette 4+888+16
French R
33 HOH Musette Fun 888
34 HOH Flash 88
35 HOH Flash 1616 (Cassotto)
36 HOH Flash 1616+16 
37 HOH Flash 1616+8 
38 HOH Flash 88+1616
Italian
39 SCA VI Vintage 8 (Cassotto)
40 SCA VI Vintage 88
41 SCA VI Vintage 8+16
42 SCA VI 8+8+8 medium
43 SCA VI Vintage 4+8
44 SCA VI Vintage 4+16
45 SCA VI Vintage 4+88
46 SCA VI Vintage 4+8+16 
47 SCA VI Vintage 4+88+16 
48 SCA VI Vintage 88+16 
Italian
49 GAL 888 Musette Vintage
Italian
50 BUG Reed 16
51 BUG Reed 16+8
52 BUG Reed 16+8+4
53 BUG Reed 16+4
Italian
54 BAM Retro 88
55 BAM Retro 88+
56 BAM Retro 88++
French
57 CAV Retro 88
58 CAV Retro 88+8
59 CAV Retro 88+8+16
60 CAV Retro 888
61 CAV Retro 8
62 CAV Retro 888+8
Irish
63 BOR Musette 888
Scottish
64 HOH J. Shand Morino
ACCORDIONS & MORE MSB 93
Irish
65 PM Reed 8
66 PM Reed 8+16
67 PM Reed 4+8+16
68 PM Reed 4+8
Scottish
69 HOH Domino 888
70 HOH 4+8+16
Irish
71 PM Reed 4+88
72 PM Reed 88
73 PM Reed 88+8a
74 PM Reed 88+8b
75 PM Reed 88+8c
Scottish
76 HOH Gola 888
77 HOH Gola 888+16
78 HOH Gola 4+888
79 HOH Gola 4+888+16
Alpina 2004
80 HOH Alpina 888
81 HOH Alpina 888+16
82 HOH Alpina 4+888
83 HOH Alpina 4+888+16
Alpengold
84 AG Alpengold 888
85 AG Alpengold 888+16
86 AG Alpengold 4+888
87 AG Alpengold 4+888+16
Alpin Morino VM
88 HOH Morino VM 888
89 HOH Morino VM 888+16
90 HOH Morino VM 4+888
91 HOH Morino VM 4+888+16
Alpina 2018
92 HOH Alpina 888
93 HOH Alpina 888+16
94 HOH Alpina 4+888
95 HOH Alpina 4+888+16
Alpin Reed
96 ZUP Reed 8
97 ZUP Reed 8+8
98 ZUP Reed 88
99 ZUP Reed 88+16
100 ZUP Reed 4+88+16
V3 Accordion
101 V3 Celest 88 tune 4 cent
102 V3 Celest 88 tune 8 cent
103 V3 Celest 88 tune 16 cent
Austrian Squeeze Box
104 STR 2 chörig Volksmusik
105 AG Alpengold
106 ZUP Juwel soft
107 ZUP Juwel forte
108 KAE Bergkristall
109 PO Posch 1
110 PO Posch 2
111 MUE St. Leonhard
Melodeons
112 HOH Corona Nord Vintage
113 PM Saturn Irland
114 SER Meldeon Netherland
Melodeon
115 WEM 8 Reed
116 WEM 8+8 small
117 WEM 8+8 medium
118 WEM 8+8 wide
119 WEM 8+8+8 small
120 WEM 8+8+8 wide
121 WEM 888
122 WEM 888+8 Mega Musette
UK Concertina
123 UK Concertina
Schwyzer Örgeli
124 NUS 888
125 NUS 88
Accordion Fake Drawbar (Exm)
126 V3 Drawbar 888000678
127 V3 Drawbar FULL 888888888
ACCORDIONS & MELODEONS MSB 93

11
V3SOUND
ACCORDIONS BASS & CHORD MSB 95
ALL BRAND/PRODUCT NAMES ARE
REGISTERED TRADEMARKS OF THEIR
RESPECTIVE HOLDERS
HOH Hohner
ZUP Zupan
MAU Maugein
CAV Cavagnolo
GAL Galanti
SCA Scandalli
BAL Ballone Burini
BUG Bugari
MEN Mengascini
BAM Bugari Armando
PIM Piermaria
ACC Accordiola
MÜL Müller
WEM Weltmeister
SER Serinelli
VIC Victoria
NUS Nussbaumer
AEM Aemmitaler
Cordavox
Accordion Bass
1SCA VI Bass
2 VIC Bass
3 BUG Bass 16
4 BUG Bass 8
5 BUG Bass 4
6 BUG Bass 2
7 BUG Bass 16+8
8 BUG Bass 16+8+4
9SCA VI Bass + BUG Bass 16
Accordion Chord
10 SCA VI Chord (Octave break 47/48)
11 BUG 4
12 BUG 8
13 BUG 4+8
14 BUG 2+4
Melodeon
15 WEM Melodeon Bass
16 WEM Melodeon Bass less Attack noise
17 WEM Melodeon Chord note 60-71
Bass Austria Squeez Box Helikon Bass
18 AG Alpengold Helikon
19 AG Alpengold Hel. less reed noise
Schwyzer Örgeli Bass
20 AEM Örgeli Bass
Noise and partial
123 V3 Key OFF
124 V3 Attack Layer reed
125 V3 Attack Layer nail linear
126 V3 Attack Layer nail concave
127 V3 Attack Layer nail conc. offset 50
128 - Silence - no sound
KEY RANGE
e bass and chord keys are usable as
in the original only in a small note
range.
French
03 MAU Musette 88
04 MAU Musette 888
Benelux
11 PIM 88
12 PIM 88+16
13 ACC 888 Musette
French
15 HOH 88
20 CAV Ve10 88
23 CAV Ve10 1616 Cassotto
Italian
29 BAL Musette 888
French
33 HOH Musette Fun 888
34 HOH Flash 88
35 HOH Flash 1616 (Cassotto)
Italian
39 SCA VI Vintage 8 (Cassotto)
40 SCA VI Vintage 88
49 GAL 888 Musette Vintage
50 BUG Reed 16
54 BAM Retro 88
55 BAM Retro 88+
56 BAM Retro 88++
57 CAV Retro 88
60 CAV Retro 888
61 CAV Retro 8
Irish
63 BOR Musette 888
Scottish
64 HOH J. Shand Morino
Irish
65 PM Reed 8
Scottish R
69 HOH Domino 888
Italian
72 PM Reed 88
Scottish
76 HOH Gola 888
Alpin
80 HOH Alpina 888
41 SCA VI Vintage 8+16
84 AG Alpengold 888
88 HOH Morino VM 888
92 HOH Alpina 888
Alpin Reed
96 ZUP Reed 8
97 ZUP Reed 8+8
98 ZUP Reed 88
Austrian Squeeze Box
104 STR 2 chörig Volksmusik
105 AG Alpengold
106 ZUP Juwel soft
107 ZUP Juwel forte
108 KAE Bergkristall
109 PO Posch 1
110 PO Posch 2
111 MUE St. Leonhard
Melodeons
112 HOH Corona Nord Vintage
113 PM Saturn Irland
114 SER Meldeon Netherland
Melodeon
115 WEM 8 Reed
116 WEM 8+8 small
117 WEM 8+8 medium
118 WEM 8+8 wide
119 WEM 8+8+8 small
120 WEM 8+8+8 wide
121 WEM 888
122 WEM 888+8 Mega Musette
Melodeon
124 NUS 888
125 NUS 88
ACCORDIONS RPC BELLOW MSB 92
RPC realtime phaselinear control
The bellow dynamic increase the volume
and also the over tones.

12
V3SOUND V3SOUND
PROGRAM LIST SOLO SOUNDSDRUM MAP MSB 00 Prg. 80 PROGRAM LIST SOLO SOUNDSCLASSIC ORCHESTRA PERC. MSB 00 Prg. 81
Note number
7 Guitar Stroke FX
8 - 17 Gran Casa
18 Gran Casa forte
G 19 Gran Casa medium
20 Gran Casa piano
A 21 -
22 -
23 Gong
C 24 -
25 -
D 26 -
27 Hihat closed
E 28 Hihat Pedal
F 29 Hihat open
30 Ride Cymbal
G 31 -
32 -
A 33 -
34 -
35 Gran Casa
C 36 Gran Casa
37 -
D 38 Concert Snare
39 Castanets
E 40 Concert Snare
41 - 53 Timpani
54 Tamburine
55 - 65 Concert Cymbal
66 Concert Cymbal Roll
G 67 -
68 -
A 69 -
70 -
71 -
C 72 Triangle open
73 Triangle mute
D 74 Triangle Roll
75 -
E 76 -
F 77 Wind. down
78 Wind. up
Note number
E 88 Applaus
F 89 Concert Snare pp
90 Concert Snare p
G 91 Concert Snare mp
92 Concert Snare mf
A 93 Concert Snare f
94 Concert Snare ff
95 Concert Snare pp
C 96 Concert Snare p
97 Concert Snare mp
D 98 Concert Snare mf
99 Concert Snare f
E100 Concert Snare ff
F101 Snare Roll p
102 Snare Roll p
G103 Snare Roll m
104 Snare Roll m
A105 Snare Roll f
106 Snare Roll f
107 Snare Roll dyn
C108 Snare Roll dyn
109 Snare Roll dyn
D110 Snare Roll dyn
111 Snare Roll dyn
E112 Snare Roll dyn
F113 Opera Gong
114 Opera Gong
G115 Opera Gong
116 Opera Gong
A117 Opera Gong
118 Opera Gong
119 Opera Gong
C120 Opera Gong
121 Opera Gong
D122 Opera Gong
123 Opera Gong
E124 Opera Gong
F125 Opera Gong
126 Opera Gong
G127 Intro Tune
Note number
G 7 Brush AY swirl 1
8 Brush AY swirl 2
A 9 Brush AY swirl 3
10 Brush MO open
11 Brush MO
C 12 Brush MO
13 Brush MO o. ac
D 14 Snare AY
15 Snare AY
E 16 Snare AY
F 17 Rim AY
18 Snare AY
G 19 Snare AY
20 Snare AY
A 21 Snare AY
22 Sn. AY shallow
23 Snare Rim shot
C 24 Snare Rim shall.
25 Buzzer
D 26
27 High Q
E 28 Slap
F 29 Scratch Push (7)
30 Scratch Pull (7)
G 31 Sticks
32 Square Click
A 33 Metronom Click
34 Metronom Bell
35 Bass Drum 1
C 36 Bass Drum 2
37 Rim
D 38 Snare 1 AY
39 Clap
E 40 Snare 1 AY
F 41 Tom Low Low
42 HiHat closed (0)
G 43 Tom Low
44 HiHat Pedal (0)
A 45 Tom Medium L.
46 HiHat open (0)
Note number
47 Tom Medium
C 48 Tom High
49 Crash Cymbal 1
D 50 Tom High High
51 Ride Cymbal 1
E 52 China Cymbal
F 53 Ride Cup
54 Tambourin
G 55 Splash Cymbal
56 Cowbell
A 57 Crash Cymbal 2
58 Vibraslap
59 Ride Cymbal 2
C 60 Bongo high
61 Bongo low
D 62 Conga mute
63 Conga open
E 64 Conga low
F 65 Timbale high
66 Timbale low
G 67 Agogo high
68 Agogo low
A 69 Cabasa
70 Maracas
71 Whistle (2)
C 72 Whistle (2)
73 Guiro short (3)
D 74 Guiro long (3)
75 Claves
E 76 Woodblock low
F 77 Woodblock hi
78 Cuica mute (4)
G 79 Cuica open (4)
80 Triangle mute(5)
A 81 Triangle open(5)
82 Shaker
83 Jingle Bell
C 84 Bell Tree
85 Castanet
D 86 Surdo mute (6)
Note number
87 Surdo open (6)
E 88
F 89
90 Bass Dr. 1 mp
G 91 Bass Dr. 1 mf
92 Bass Dr.1 f
A 93 Bass Dr. 1 ff
94 Bass Dr .1 mp
95 Bass Dr. 1 mf
C 96 Bass Dr. 1 f
97 Bass Dr. 1 ff
D 98 HiHat Pedal (7)
99 Hi Hat cl. Tip
E 100 Hi Hat cl. Pearl
F 101 Hi Hat cl. Pearl
102 Hi H. cl. Shaft 1
G 103 Hi H. cl. Shaft 2
104 Hi Hat med. 1
A 105 Hi Hat med. 2
106 Hi Hat Open 1
107 Hi Hat Open 2
C 108 Hi Hat Splash
109 Hi Hat Open 3
D 110 Ride Pearl
111 Ride Pearl retrig
E 112 Ride Cup
F 113 Ride Cup retrig.
114 Ride Shaft (8)
G 115 Ride Shaft retrig.
116 Ride Chock (8)
A 117 Cym Crash 1 (9)
118 Cym Splash (9)
119 Cym Crash 2 (9)
C 120 Cym Chock (9)

PROGRAM LIST SOLO SOUNDSDRUMS & PERCUSSION MAP MSB 00 LSB 82
7 Snare swirl
8 Snare swirl
9 - 11 Concert bass drum
12-23 Bass drum
24-35 Kick 1
C 36 Kick 2
37 Rim
D 38 Snare - Round Robin
39 Clap
E 40 Snare
F 41 Tom Low Low
42 HiHat closed
G 43 Tom Low
44 HiHat Pedal
A 45 Tom Medium Low
46 HiHat open
47 Tom Medium
C 48 Tom High
49 Crash Cymbal 1
D 50 Tom High High
51 Ride Cymbal 1
E 52 China Cymbal
F 53 Ride Cup
54 Tambourin
G 55 Splash Cymbal
56 Cowbell
A 57 Crash 2 - Round Robin
58 Vibraslap
59 Ride 2 - Round Robin
C 60 Brush Roll A
61 Brush Roll B
D 62 Brush Roll C
63 Brush Mix A
E 64 B. Mix A long swirl
F 65 B. Mix B
66 B. Mix B long swirl
G 67 Brush Tap single hit
68 Brush Tap single hit
A 69 Brush Tap single hit
70 Brush swish
71 Brush swish
C 72 Brush Roll A
73 Brush Roll B
74 Brush Roll C
D 75 Brush Mix A
76 Brush Mix A long swirl
F 77 Brush Mix B
78 Brush Mix B long swirl
G 79 Brush Tap single hit
80 Brush Tap single hit
81 Brush Tap single hit
82 Brush swish
83 Brush swish
C 84 Stick Roll
85 Stick Roll
D 86 Stick Rim
87 Stick & Roll * roll fade
E 88 Stick & Roll * linear 2
F 89 Stick & Roll * linear 3
90 Stick & Roll * linear 4
G 91 Stick single stroke
92 Stick single stroke
A 93 Stick single sroke
94 Stick Roll accent
95 Stick Roll no accent
C 96 Guitar Stroke Effect
97 Concert Snare Round R.
D 98 -
99 Snare 4 Round Robin
E100 Brush Round Robin
F101 Brush A
102 Brush B
G103
Cymbal Ride/Crash
velocity split 110/111
Round Robin
104 -
A105 HiHat cl. Round Robin
106 Concert Cym. Round R.
107
Concert Cym
velocity split 110/111
Round Robin
C108 SC HiHat Pedal A
109 SC HiHat Pedal B
D110 SC HiHat Pedal C
111 SC HiHat closed A
E112 SC HiHat closed B
F113 SC HiHat open
114 Rim
G115 Claps
116 Stick 3 Roll
A117 Stick 3 Roll
118 Stick 3 Roll
119 Concert BD
C120 Concert BD
121 Concert BD
D122 Concert BD
123 Concert BD
E124 Concert BD
125 Concert Cymbal med.
126 Concert Cymbal open
V3SOUND
13

14
84 - Portamento control 91 - Reverb send 93 - Chorus send 120 - All sound off 121 - Reset all controllers 123 - All note off 126 - Mono-mode 127 - Poly-mode
RPN 0000H BnH 65H 00H 64H 00H 06H vv Pitch bend sensitive in semitone (default=2)
RPN 0001H Fine tune in cent BnH 65H 00H 64H 01H 06H vv vv=00 -100 vv=40H 0 vv=7FH +100
RPN 0002H Coarse tune half tone BnH 65H 00H 64H 02H 06H vv vv=00 -64 vv=40H 0 vv=7FH +64
NRPN 18rrH BnH 63H 18H 62H rr 06H vv Pitch coarse of perc. rr in semitone (vv=40H->no modif)
NRPN 1ArrH BnH 63H 1AH 62H rr 06H vv Level of perc. sound rr (vv=00 to 7FH)
NRPN 1CrrH BnH 63H 1CH 62H rr 06H vv Pan of perc. sound rr (40H = middle)
NRPN 1DrrH BnH 63H 1DH 62H rr 06H vv Reverb send level of perc rr (vv=00 to 7FH)
AUX AUDIO OUT (Reverb return is fixed in Main out)
BnH 63H 38H 62H rr 06H vv rr = MIDI channel - CH1 = 00 CH2 = 01
vv = 0 MAIN 127=AUX Example :Set CH1 to AUX - send 3 MIDI controllers: cc99 value 56 + cc98 value 00 + cc06 value 127
Program Change : 0-127 * depends on sound board System Exclusive: SYSEX F0H 7EH 7FH 09H 01H F7H General MIDI Reset SYSEX F0H 7FH 7FH 04H 01H 00H II F7H Master volume (II=0 to 127, default 127) SYSEX DSP1 F0h,41h,00h,42h,12h,40h,7Fh,7Fh,xxh,00h,F7h
xxh=Effect 00h=HALL1 01h=HALL2 02h=ROOM1 03h=ROOM2 04h=ROOM3“ 05h=PLATE1 06h=PLATE2 07h=PLATE3 08h=CHORUS 09h=FLANGE 0Ah=DELAY1 0Bh=DELAY2 0Ch=CHORUS/ROOM1 0Dh=CHORUS/ROOM2 0Eh=VOCCANCEL 0Fh=ROTARY SPEAKER
SYSEX DSP2 F0h,41h,00h,42h,12h,40h,01h,38h,xxh,00h,F7h xxh=Effect
0h=CHORUS 1 02h=CHORUS 3 04h=FEEDBACK 06h=SHORT DELAY
01h=CHORUS 2 03h=CHORUS 4 05h=FLANGER 07h=FB DELAY
Recognized
Basic Default 1 - 16 Mode 3 poly mode Messages Note number * 12-109 * depends on sounds Velocity Note ON 9nH,v=1-127 o Note OFF 9nH,v=0 x Key aftertouch o Channel aftertouch o Pitch Bend 0-12 Bank Select 00 * value depends on sound board - see page 3-13 Controller 01 - Modulation
05 - Portamento time 06 - Data Entry 07 - Volume 10 - Panorama 11 - Expression 64 - Sustain 65 - Portamento 66 - Sostenuto 71 - Filter resonance 72 - ENVELOPE Release 73 - ENVELOPE Attack 74 - Filter cutoff 75 - ENVELOPE Decay 76 - Vibrato rate 77 - Vibrato depth 78 - Vibrato delay
V3SOUND - MIDI IMPLEMENTATION
