INSTALLATION
Note: Before installation, please inspect the unit. Be sure that nothing inside the package is damaged.
Please keep the original package in a safe place for future use.

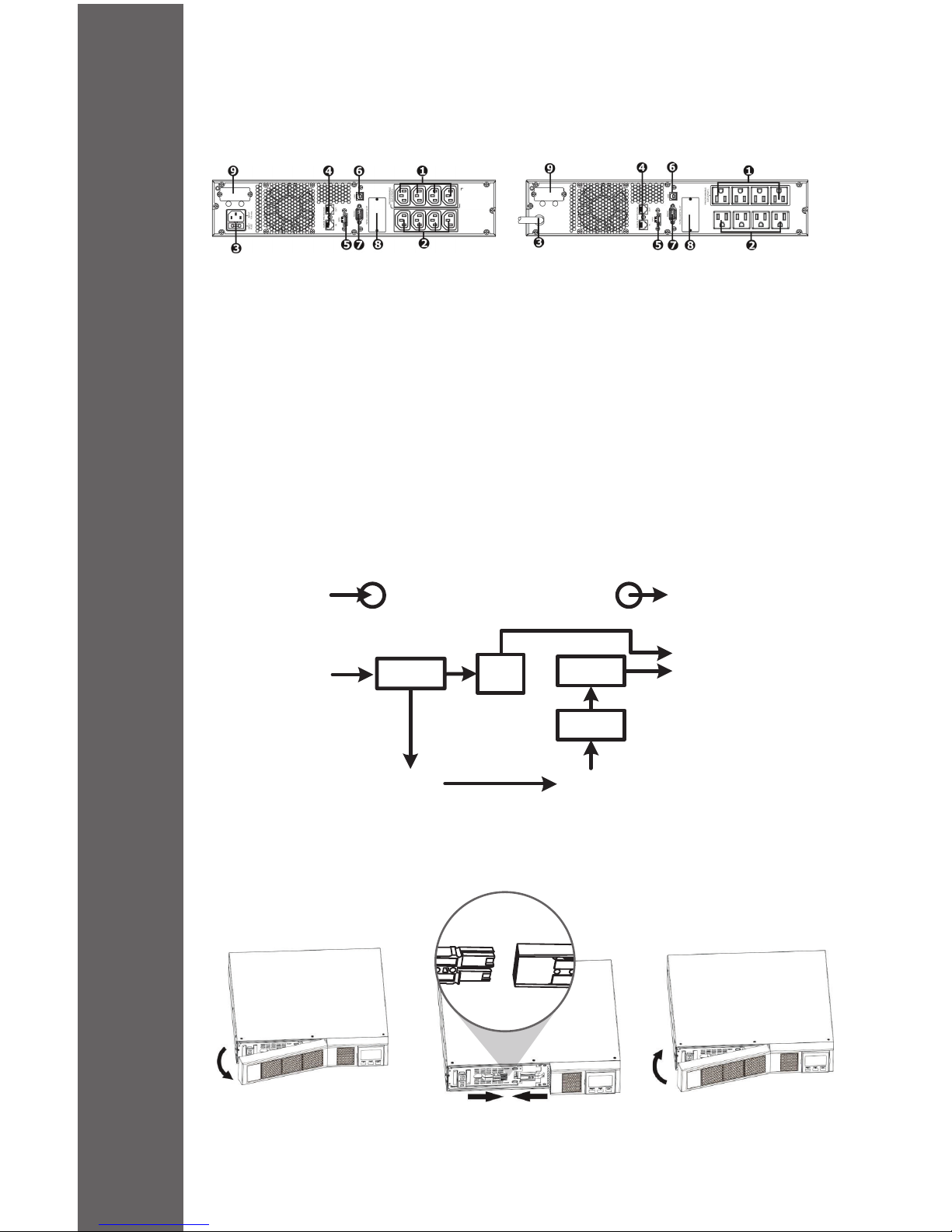

1.1 Rear Panel View
IEC Type NEMA Type
The UPS is composed of mains input, EMI/RFI Filters, Inverter, Battery charger, DC-to-DC converter, battery,
AVR TX and UPS output
1.2 Operation
EMI/RFI
Filters
Battery
Charger Battery
DC-to-DC
Converter
Inverter
AVR
TX
Output
For safety consideration, the UPS is shipped out from factory without connecting battery wires. Before
installation of the UPS, please follow the steps below to re-connect the battery wires.
1.3 Installation
Remove Front Panel Connect the AC Input and re-connect
battery wires
Put the front panel back
on the unit
1. Programmable outlets: connect to non-critiacal loads.
2. Output receptacles: connect to mission-critical loads
3. AC input
4. Network/Fax/Modem surge protection
5. Emergency power o function connector (EPO)
6. USB communication port
7. RS-232 communication port
8. SNMP intelligent slot
9. External battery connector

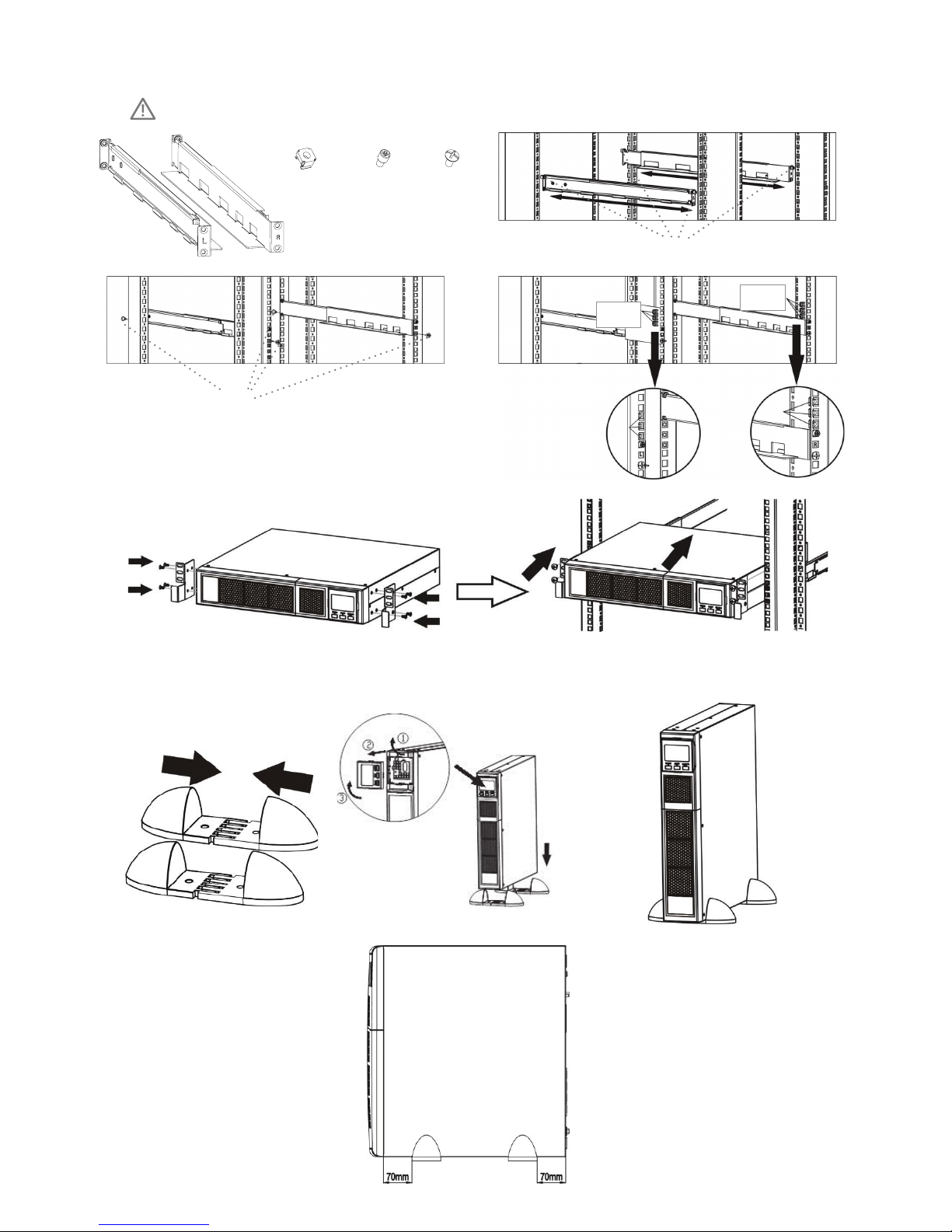

Rack-Mount Installation
Caution! – DO NOT use the mounting brackets to lift the unit. The mounting brackets are only
for securing the unit to the rack.
Tower Installation
1 2 3
Note: When installing the
UPS or battery pack with feet,
please keep 70mm distance
from the edge of the unit
M6
Screws
3 Cage
Nuts
3 Cage
Nuts
Fixing
Studs
Cage
Nuts (6) Fixing Studs (4) M6 Screws (8)

1.4 Setup
1. UPS input connection
Plug the UPS into a grounded receptacle only. Avoid using extension cords, power strips or surge protectors
2. UPS output connection
There are two kinds of outputs: programmable outlets and general outlets. Please connect non-critical devices to the
programmable outlets and critical devices to the general outlets. You may extend the backup time to critical devices by
setting shorter backup time for non-critical devices
3. Communication connection (Optional)

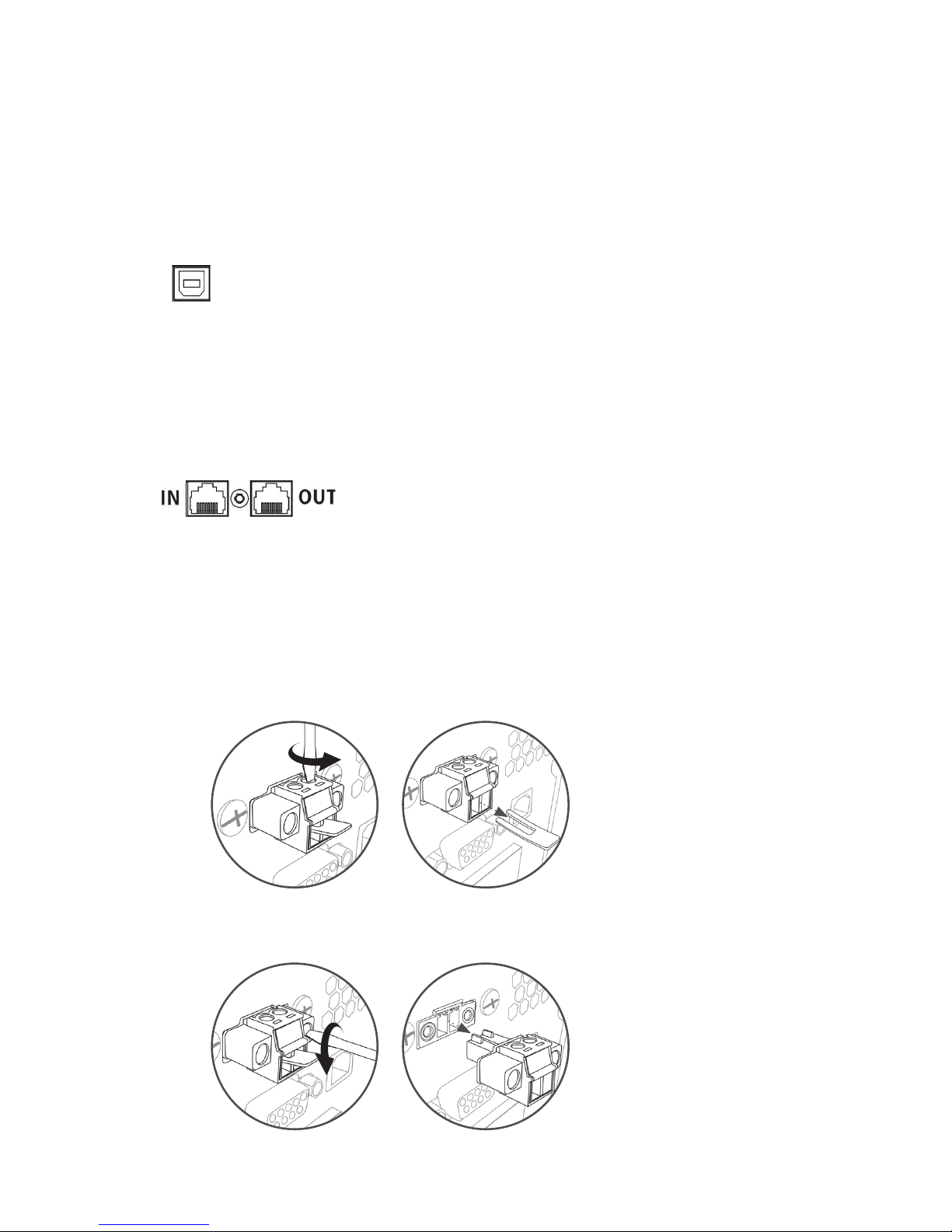

USB Port
4. Network connection
Network/Fax/Phone surge port
Method 1
Remove two top screws Pull out metal pin
Method 2
Remove two front screws Pull out the entire green connector
To allow for unattended UPS shutdown/start-up and status monitoring, connect the included USB cable from the
computer to the UPS system
Note: USB port and RS-232 port can’t work at the same time.
5. Disable and enable EPO function
This UPS is equipped with EPO function. Pin 1 and Pin2 are closed by default for normal UPS operation.
Note: The EPO function logic can be set up via LCD setting. Please refer to program 08 in UPS setting for the details
Connect a single modem/phone/fax/network line into surge-protected “IN” outlet on the back panel of the UPS unit.
Connect from“OUT”outlet to the equipment with another modem/fax/phone/network line cable.

5. Disable and enable EPO function
This UPS is equipped with EPO function. Pin 1 and Pin2 are closed by default for normal UPS operation.
Note: The EPO function logic can be set up via LCD setting. Please refer to program 08 in UPS setting for the details

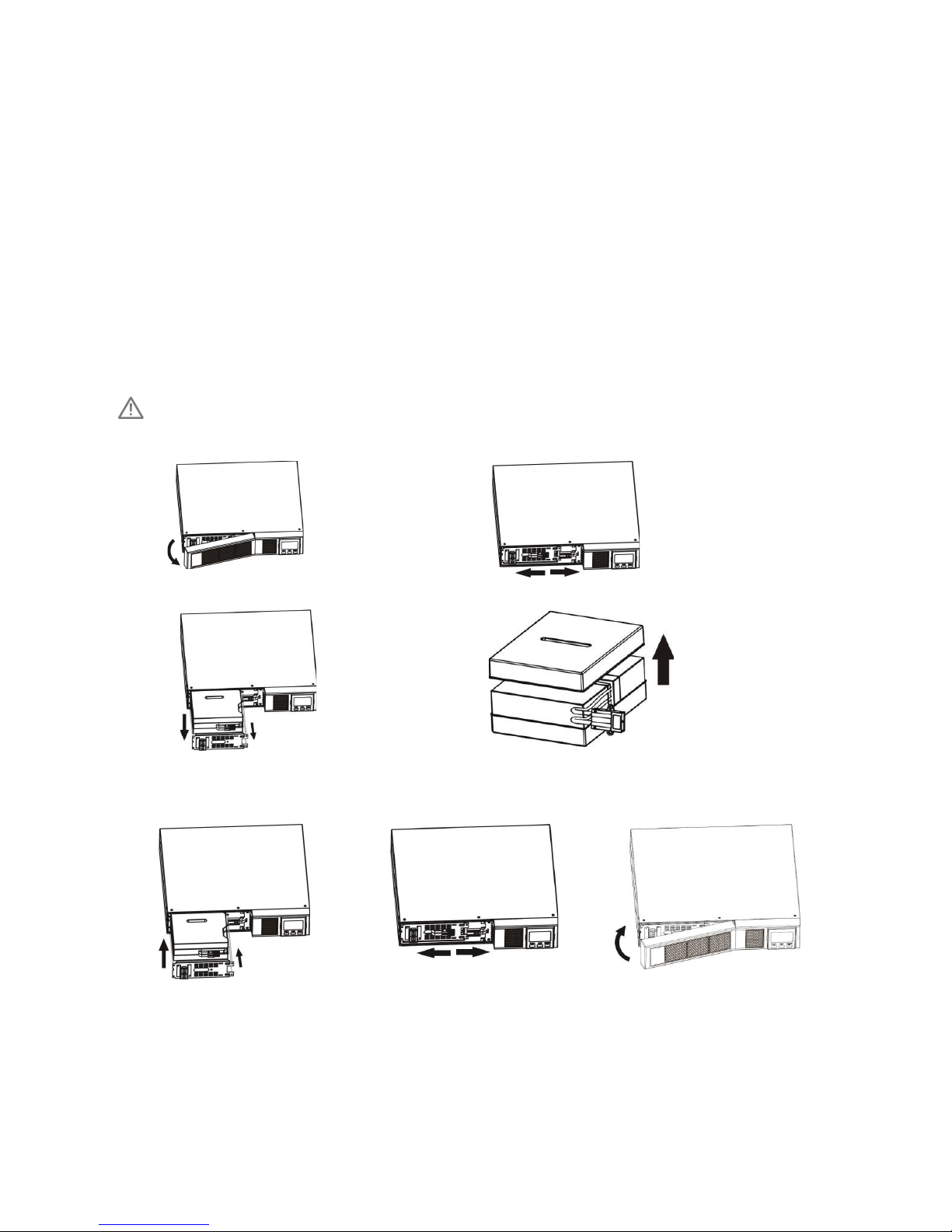

1.5 Battery Replacement
Note: This UPS is equipped with internal batteries and only a trained technician should replace the batteries.
Note: When battery is disconnected, equipment is not protected from power outages.
Caution! – Adhere to all warnings, cautions, and notes before replacing batteries.
1 2
3 4
Remove front panel Disconnect battery wires
Pull out the battery box by removing two screws
on the front panel
Remove the top cover of battery box and replace
the inside batteries
5 6 7
After replacing the batteries,
put the battery box back to the
its original location and screw
it tightly
Re-connect the battery wires Put the front panel back on the unit
6. Turn on the UPS
Press the ON/Mute Button on the front panel for two seconds to power on the UPS.
Note: The battery charges fully during the rst ve hours of normal operation. Do not expect full battery run
capability during this initial charge period
7. Install software (Optional for advanced users)
For optimal computer system protection, install UPS monitoring software to fully congure the UPS system. Please
follow steps below to download and install monitoring software.
1. Go to the website http://www.V7-world.com/downloads
2. Select ViewPower software for your operating system to download the software.
3. Follow the on-screen instructions to install the software.

2.1 Button Operations
Display Function
Backup Time Information
Indicates the estimated backup time.
H= Hours M= Minutes S= Seconds
Conguration and Fault Information
Indicates the conguration items, listed in detail in section 2.5
Indicates the warning and fault codes. Codes are listed in details in section 2.7 and 2.8
Mute Operation
Indicates the UPS alarm is disabled
Input, Battery, Temperature, Output & Load information
Indicates the input voltage, input frequency, battery voltage, battery capacity, ambient
temperature, output voltage, output frequency, load current and load percentage
K= Kilo W= Watt V= Voltage A= Ampere %= Percent °C = Degrees Centigrade Hz
= Frequency
Load Information
Indicates the load level by 0-24%, 25-49%, 50-74% and 75-100%
Indicates Overload
Programmable Outlets Information
Indicates that programmable management outlets are working
INSTALLATION

Mode Operation Information
Indicates the UPS connects to the mains
Indicates the battery is working
Indicates charging status
Indicates the ECO mode is enabling
Indicates the UPS is working in boost mode
Indicates the UPS is working in buck mode
Indicates the AC to DC circuit is working
Indicates the inverter circuit is working
Indicates the Output is working.
Battery Information
Indicates the battery level by 0-24%, 25-49%, 50-74%, and 75-100%
Indicates low battery
2.2 Audible Alarm
Battery Mode Sounds every 10 seconds
Low Battery Sounds every 2 seconds
Overload Sounds every second
Fault Continuously sounds

2.4 LCD Display Wording Index
2.5 UPS Setting
Parameter 1 Parameter 2
There are 2 parameters to set up the UPS
1. For program alternatives (Refer to table below)
2. Setting options or values for each program
Interface Setting
01 Output Voltage Setting
For EU Models you may choose 208/220/230/240 VAC settings
230VAC is the default. (Changing this setting is not recommended)
For US Models you may choose 110/115/120/127 VAC
120VAC is the default. (Changing this setting is not recommended)
02 Programmable outlets enable/disable
ENA > Programmable outlets enabled
DIS > Programmable outlets disabled
03 Programmable outlet settings
Set up the backup time limits in minutes from 0-999 for programmable out-
lets which connect to non-critical devices on battery mode. (Default = 999)
Abbreviation Display Content Denition
ENA / DIS / Enable / Disable
ESC Escape
ON ON
OK OK
EP EPO
AO / AC / Active Open / Active Close
TP Temperature
CH Charger
SF Site Fault
EE EEPROM Error
BR Battery Replacement
ST1 / ST2 / ST3
St1 /St2 /St3
Input Waveform Sensitivity Setting

Step 1
Before entering setting mode, the UPS should be in Stand-by mode (o-
charging) and make sure the battery is connected. The LCD display is shown
on the right.
Step 2
Press and hold the “Select” button for 3 seconds to enter Setting Mode.
Step 3
Press the “Up”button (ON/MUTE) to switch to“02” of program list. Then press
“Enter”button to enter value setting of parameter 2. Press the “Up”button to
change the value to“ENA”to enable the programming outlet function. Then
press“Enter” button again to conrm the setting.
Step 4
Press the “Up”button (ON/MUTE) again to switch to“03” of program list. Then
press“Enter” button for setting programmable outlet time. Push“Up” button to
change the value of backup time. Then press“Enter”to conrm the setting.
Step 5
Press “Up”button (ON/MUTE) to switch to“00” of program list. Then press“Enter”
button to exit setting menu.
Step 6
Disconnect AC input and wait until the LCD display is o. The new setting will
be activated when turning on the UPS again.
04 Maximum charger current setting
Set up the maximum charger current
You can change the charger setting to 1/2/4/6/8 ampere
(Default setting is 8A)
Note: this setting is only eective for super charger
06 Autonomy limitation setting
Set backup time on battery mode for general outlets.
Set the back up battery time from 0-999 minutes for general outlets on battery
mode
DIS > Disable the autonomy limitation: back up time will depend on the battery
capacity (Default setting)
Note: when setting is “0”, the back up time will only be 10 seconds
07 Battery total AH setting
Set up the battery total AH of the UPS
Set the battery total capacity from 7-999 in AH
*Set the correct battery total capacity if there is a connected battery bank
08 EPO Logic Setting
Set up the EPO function Control Logic
AO > Active Open (Default): When AO is selected as EPO Logic, it will activate EPO
function with Pin 1 and Pin 2 in open status
AC > Active Close: When AC is selected as EPO logic, it will activate EPO function
with Pin1 and Pin 2 in closed status
09 Input waveform sensitivity setting
St1: high sensitivity. min 4/32 cycle detection and waveform distortion detection
(Default)
St2: middle sensitivity. min 7/32 cycle detection
St3: low sensitivity. min 10/32 cycle detection (use with generators)
00 Exit setting
Exit the Setting mode

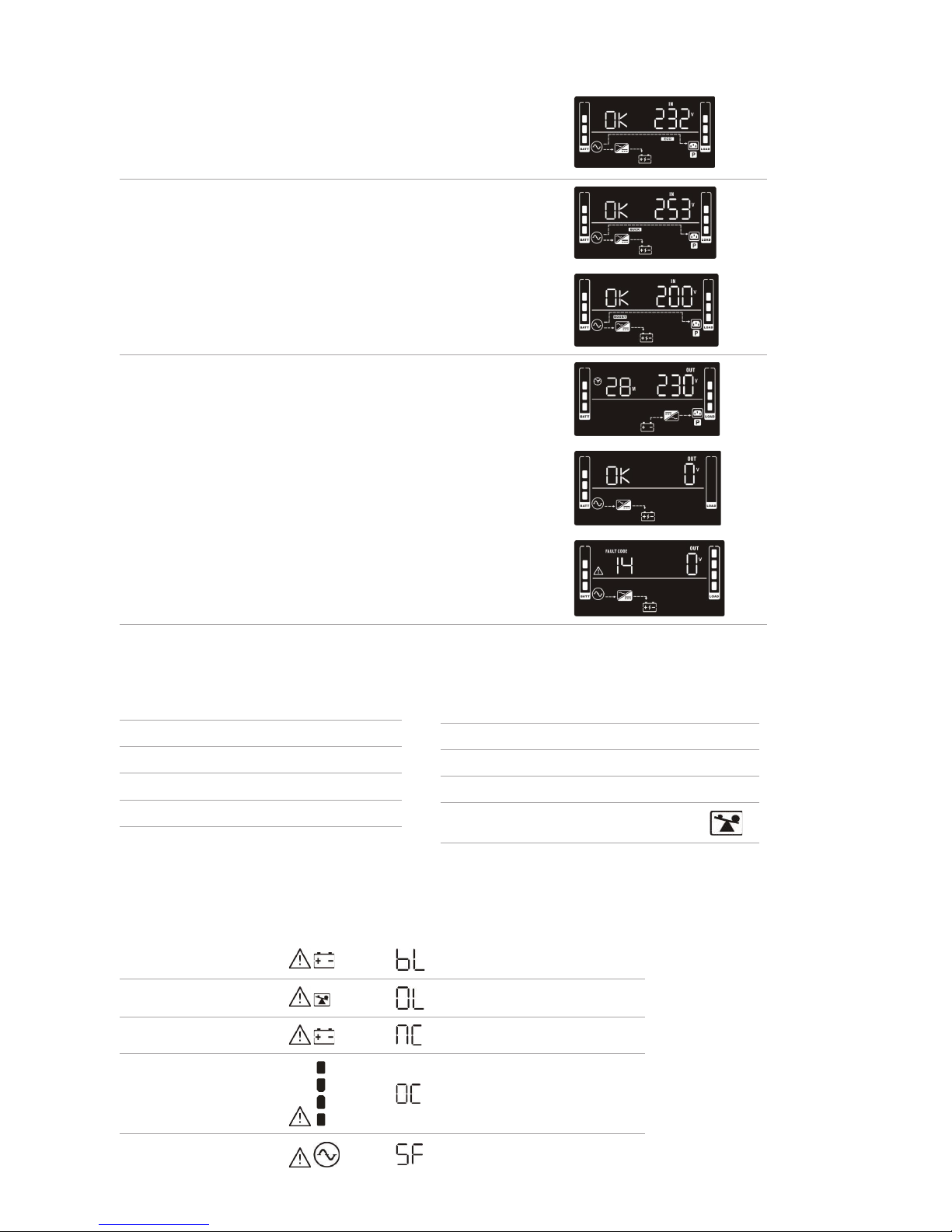

Operating Mode Description LCD Display
ECO Mode When the input voltage is within voltage regulated
range, UPS will power the output directly from the
mains. ECO is an abbreviation of Eciency Corrective
Optimizer. In this mode, when the battery is fully
charged, the fan will stop working to save energy
Buck Mode when
AC is normal
When the input voltage is higher than the voltage
regulation range but lower than high loss point, the
buck AVR will be activated
Boost mode when
AC is normal
When the input voltage is lower than the voltage
regulation range but higher than low loss point, the
boost AVR will be deactivated
Battery Mode When the input voltage is beyond the acceptable range
or power failure and alarm is sounding every 10 seconds,
UPS will backup power from battery
Standby Mode UPS is powered o and no output supply power, but can
still charge batteries
Fault Mode When a fault occurs, the ERROR icon and the fault code
will be displayed
2.6 Operating Mode Description
Fault Event Fault Code Icon
Bus start fail 01 x
Bus over 02 x
Bus Under 03 x
Inverter soft start fail 11 x
Inverter voltage high 12 x
Inverter voltage low 13 x
Fault Event Fault Code Icon
Inverter output short 14 x
Battery voltage too high 27 x
Battery voltage too low 28 x
Over temperature 41 x
Over load 43
Charger failure 45 x
2.7 Faults Reference Codes
Warning Icon (Flashing Code Alarm
Low battery Sounds every 2 seconds
Overload Sounds every second
Battery is not connected Sounds every 2 seconds
Over Charge
Sounds every 2 seconds
Site wiring fault Sounds every 2 seconds
2.8 Warning Indicator

Warning Icon (Flashing Code Alarm
EPO Enabled Sounds every 2 seconds
Over temperature
tp
Sounds every 2 seconds
Charger Failure Sounds every 2 seconds
Battery fault Sounds every 2 seconds
(UPS will turn o)
Battery replacement Sounds every 2 seconds
EEPROM error Sounds every 2 seconds
Note: “Site Wiring Fault” function can be enabled/disabled via software. Please check soft-
ware manual for the details.

TROUBLESHOOTING
Problems Cause Solution
No indication and alarm even though
the mains are normal
The AC input power is not
connected
Check if input power cord rmly
connected to the mains
The AC input is connected to
the UPS output
Plug AC input power cord to AC input
correctly
The icon and the warning code
ashing on LCD display and alarm
is sounding every 2 seconds
EPO function is activated Set the circuit in closed position to
disable EPO function.
The icon , and the warning
code ashing on LCD display and
alarm is sounding every 2 seconds
Line and neutral conductors
of UPS input are reversed
Rotate main power socket by 180°
and then connect to UPS system
The icon , and the warning
code ashing on LCD display and
alarm is sounding every 2 seconds
The external or internal
battery is incorrectly
connected
Check if all batteries are connected
Fault code is shown as 27 on LCD
display and alarm is continuously
sounding
Battery voltage is too high or
the charger is faulty Contact your dealer
Fault code is shown as 28 on LCD
display and alarm is continuously
sounding
Battery voltage is too low or
the charger is faulty Contact your dealer
The icon , and the warning
code ashing on LCD display and
alarm is sounding every second
UPS is overloaded Remove excess loads from UPS
output and restart
Fault code is show as 43 and the icon
is lit on LCD display. Alarm sounds
continuously
The UPS automatically shut
down due to an overload at
the output
Remove excess loads from the UPS
output and restart
Fault code is shown as 14 and alarm
sounds continuously
The UPS automatically shut
down because of a short
circuit on the UPS
Check output wiring and if connected
devices are in short circuit status
Fault code is shown as 01, 02, 03, 11,
12, 13 and 41 on LCD display and
alarm is continuously sounding
A UPS internal fault has
occurred Contact your dealer
Battery backup time is shorter than
nominal value Batteries are not fully charged
Charge the batteries for at least 5
hours and then check capacity. If the
problem persists, consult your dealer
Batteries are defective Contact your dealer to replace the
batteries
Fault code is show as 45 on LCD
display and code is continuously
sounding
The charger does not have
output and battery voltage is
less than 10V/PC
Contact your dealer
If the UPS system does not operate correctly, please solve the problem by using the table below

STORAGE AND MAINTENANCE
The UPS system contains no user-serviceable parts. If the battery service life of 3~5 years at 25°C ambient
temperature) has been exceeded, the batteries must be replaced. In this case, please contact your dealer
Be sure to deliver the spent battery to a recycling facility or ship it to your
dealer in the replacement battery packing material
Storage Temperature Recharge Frequency Charging Duration
25°C  40°C Every 3 Months 1-2 hours
40°C  45°C Every 2 Months 1-2 hours
3.1 Storage + Maintenance
Operation
Storage

SAFETY INFORMATION
4.1 Transportation
4.2 Preparation
4.4 Operation
4.3 Installation
• Transport the UPS system only in the original package to protect against shock and impact
• Condensation may occur if the UPS system is moved directly from a cold to warm environment. The UPS
system must be absolutely dry before being installed. Please allow at least two hours for the UPS system
to acclimate the environment.
• Do not install the UPS system near water or in moist environments.
• Do not install the UPS system where it would be exposed to direct sunlight or near a heater
• Do Not block ventilation holes in the UPS housing.
• Do not disconnect the mains cable on the UPS system or the building wiring outlet (shockproof socket
outlet) during operations since this would cancel the protective earthing of the UPS system and of all
connected loads.
• The UPS system features its own, internal current source (batteries). The UPS output sockets or output
terminals block may be electrically live even if the UPS system is not connected to the building wiring
outlet.
• In order to fully disconnect the UPS system, rst press the OFF/Enter button to disconnect the mains.
• Prevent uids and other foreign objects from entering the UPS system.
• The EPO, RS-232 and USB circuits are IEC 60950-1 safety extra low voltage circuits by reinforced insulation
• Do not connect appliances or devices which can overload the UPS system (e.g. laser printers) to the UPS
output sockets
• Place cables in such a way that no one can step on or trip over them.
• Do not connect appliances such as hair dryers to UPS output sockets.
• Connect the UPS system only to an earthed shock proof outlet.
• Please use only the included VDE-tested, CE-marked mains cable (e.g. the mains cable of your computer)
to connect the UPS system to the building wiring outlet (shockproof outlet).
• Please use only VDE-tested, CE-marked power cables to connect the loads to the UPS system.
• When installing the equipment, ensure that the sum of the leakage current of the UPS and the connected
devices does not exceed 3.5mA
• Temperature Rating - Units are considered acceptable for use in a maximum ambient temperature of
40°C (104°F)
• FOR PLUGGABLE EQUIPMENT, the socket-outlet shall be installed near the equipment and shall be easily
accessible.
• CAUTION: The unit is heavy. Lifting the unit requires at least two people
• Check if there is a protection devices against over current and short circuit in the upstream of the UPS
system. The recommended protection specication is 11A for 800VA~1100VA, 15A for 1.5 VA, 20A for LV
2KVA and 30A for 2.5~3KVA with a B or C trip curve.

4.5 Maintenance, Service and Faults
• The UPS system operates with hazardous voltages. Repairs should be carried out only by a qualied technician
• CAUTION - risk of electric shock. Even after the unit is disconnected from the mains (building wiring outlet), components
inside the UPS system are still connected to the battery and electrically live and dangerous.
• Before carrying out any kind of services and/or maintenance, disconnect the batteries and verify that no current is
present and no hazardous voltage exists in the terminals of high capability capacitor such as BUS-capacitors.
• To avoid electrical shock, turn o the unit and unplug it from the AC power source before servicing the battery
• Only persons who are adequately familiar with batteries and with the required precautionary measures may replace
batteries and supervise operations. Unauthorized persons must be kept well away from the batteries.
• CAUTION - risk of electric shock. The battery circuit is not isolated from the input voltage. Hazardous voltages may occur
between the battery terminals and the ground. Before touching, please verify that no voltage is present.
• Batteries may cause electric shock and have a high short-circuit current. Please take the precautionary measures
specied below and any other measures necessary when working with batteries:
• Remove wristwatches, rings and other metal objects
• Only tools with insulated grips and handles.
• When changing batteries, install the same number and same type of batteries .
• Do not attempt to dispose of batteries by burning them. This could cause battery explosion
• Do not open or destroy batteries. Escaping electrolyte can cause injury to the skin and eyes. It may be toxic
• When replacing batteries, use the same type and number of batteries or battery packs
• A battery can be at risk for electrical shock and high - short circuit current.
• The following precautions should be observed when working on batteries:
a. Remove watches, rings, or other metal objects.
b. Use tools with insulated handles.
c. Wear rubber gloves and boots.
d. Do not lay tools or metal parts on top of batteries.
e. Disconnect charging source prior to connecting or disconnecting battery terminals.
f. Determine if battery is inadvertently grounded. If inadvertently grounded, remove source from ground. Contact with any
part of a grounded battery can result in electrical shock. The likelihood of such shock can be reduced if such grounds are
removed during installation and maintenance
9/02/2016

INSTALLATION
Hinweis: Bitte prüfen Sie das Gerät vor der Installation. Stellen Sie sicher, dass der Paketinhalt nicht beschädigt
wurde. Bewahren Sie die Originalverpackung für einen späteren Zeitpunkt gut auf.
1.1 Ansicht Rückseite
IEC-Schutzklasse NEMA-Schutzklasse
Die USV verfügt über einen Netzeingang, EMI-/HFI-Filter, einen Wechselrichter, ein Batterieladegerät, einen
Gleichspannungswandler, eine Batterie, einen AVR TX sowie einen USV-Ausgang.
1.2 Betrieb
EMI/RFI
Filters
Battery
Charger Battery
DC-to-DC
Converter
Inverter
AVR
TX
Output
Aus Sicherheitsgründen wird die USV ab Werk ohne angeschlossene Batteriekabel geliefert. Bevor Sie die USV
Installieren, befolgen sie bitte die folgenden Schritte, um die Batteriekabel wieder anzuschließen.
1.3 Installation
Nehmen Sie die Frontblende ab. Schließen Sie den Wechselstromeingang
an und verbinden Sie die Batteriedrähte.
Setzen Sie die Frontblende
wieder auf das Gerät.
1. Programmierbare Steckdosen maximieren die Backup-Zeit für kritische Systeme
2. Indem kürzere Backup-Zeiten für nicht-kritische Systeme eingestellt werden
3. Wechselstromeingang
4. Netzwerk / Fax / Modem Überspannungsschutz
5. Notausschalter
6. USB Anschluss
7. RS-232 Anschlus
8. SNMP Card slot
9. Externer Batterieanschluss

Rackmontage
Achtung! – Verwenden Sie die Montagehalterung NICHT zum Anheben des Gerätes.
Die Montagehalterung dient ausschließlich der Befestigung des Gerätes im Rack.
Towermontage
1 2 3
Hinweis: Wenn Sie die USV
oder die Batterieeinheit
mit Standfüßen montieren,
achten Sie bitte auf einen
Mindestabstand von 70mm
zur Unterkante des Gerätes.
M6-Schrauben
3 Käg
muttern
3 Käg
muttern
3 Käg
Fixier
stifte
Käg
muttern (6) Fixier
stifte (4) M6- Schrauben (8)

1.4 Einrichtung
1. USV-Eingang
Schließen Sie die USV nur an einen geerdeten Stromanschluss an. Verwenden Sie keine Verlängerungskabel, Steckdosenleisten
oder Überspannungsschutzeinrichtungen.
2. USV-Ausgänge
Die USV verfügt über zwei verschiedene Arten von Ausgängen: programmierbare und reguläre Ausgänge. Bitte schließen
Sie unkritische Geräte an die programmierbaren Ausgänge und kritische Geräte an die regulären Ausgänge an. So kann
eine längere Backup-Zeit für kritische Geräte erreicht werden, wenn die unkritischen Geräte eine kürzere Backup-Zeit haben.
3. Kommunikationsanschlüsse (optional)
USB-Anschluss
4. Netzwerkverbindung
Überspannungsschutz für Netzwerk/Fax/Telefon
Methode 1
Entfernen Sie die beiden oberen Schrauben. Ziehen Sie den Metallstift heraus.
Methode 2
Entfernen Sie die beiden vorderen Schrauben. Ziehen Sie den gesamten grünen Anschluss heraus.
Schließen Sie das im Lieferumfang enthaltene USB-Kabel an den Computer und das USV-Gerät an, um ein unbeaufsichtigtes
Herunterfahren/Hochfahren sowie eine Statusüberwachung zu ermöglichen.
Hinweis: Der USB- und der RS-232-Anschluss können nicht gleichzeitig genutzt werden.
5. Deaktivierung und Aktivierung der Notabschaltungsfunktion (EPO)
Diese USV ist mit einer Notabschaltungsfunktion ausgestattet. Pin 1 und Pin 2 sind standardmäßig für den Normalbetrieb
der USV geschlossen.
Hinweis: Die EPO-Funktionslogik kann über die LCD-Einstellung angepasst werden. Weitere Informationen hierzu nden
Sie in Programm 08 in den USV-Einstellungen.
Schließen Sie ein Modem-/Telefon-/Fax-/Netzwerkkabel an der überspannungsgeschützten „IN“-Buchse auf der Rückseite
der USV an. Anschließend können Sie ein weiteres Modem/Fax-/Telefon-/Netzwerkkabel an den „OUT“-Anschluss stecken.

5. Deaktivierung und Aktivierung der Notabschaltungsfunktion (EPO)
Diese USV ist mit einer Notabschaltungsfunktion ausgestattet. Pin 1 und Pin 2 sind standardmäßig für den Normalbetrieb
der USV geschlossen.
Hinweis: Die EPO-Funktionslogik kann über die LCD-Einstellung angepasst werden. Weitere Informationen hierzu nden
Sie in Programm 08 in den USV-Einstellungen.
1.5 Austauschen der Batterien
Hinweis: Diese USV ist mit integrierten Batterien bestückt, die nur von einer Elektrofachkraft ausgetauscht werden sollten.
Hinweis: Wenn die Batterie nicht angeschlossen ist, sind die Geräte nicht vor Stromausfällen geschützt.
Achtung! – Beachten Sie alle Warnhinweise und Anmerkungen, bevor Sie die Batterien austauschen.
1 2
3 4
Nehmen Sie die Frontblende ab. Ziehen Sie das Batteriekabel ab.
Ziehen Sie das Batteriegehäuse heraus, indem
Sie die beiden frontseitigen Schrauben lösen.
Entfernen Sie die obere Abdeckung des Gehäuses
und tauschen sie die Batterien.
5 6 7
Nachdem Sie die Batterien
ausgetauscht haben, schieben
Sie das Gehäuse wieder in seine
Position und ziehen Sie die
Schrauben fest.
Schließen Sie die Batteriekabel
wieder an
Setzen Sie die Frontblende wieder
auf das Gerät.
6. Einschalten der USV
Halten Sie die Taste„ON/Mute“ auf der Vorderseite des Gerätes zwei Sekunden lang gedrückt, um die USV einzuschalten.
Hinweis: Die Batterie wird während der ersten fünf Stunden im Normalbetrieb vollständig aufgeladen. In dieser
Zeit kann keine vollständige Batterielaufzeit erwartet werden.
7. Installieren der Software (optional für fortgeschrittene Benutzer)
Installieren Sie die USV-Software, um das USV-System umfassend zu kongurieren und einen optimalen Systemschutz
für Ihren Computer zu gewährleisten. Bitte befolgen Sie die untenstehenden Anweisungen zum Download und zur
Installation der Software.
1. Rufen Sie http://www.V7-world.com/downloads auf.
2. Wählen Sie die ViewPower-Software für Ihr Betriebssystem aus und laden Sie sie herunter.
3. Befolgen Sie die Installationsanweisungen auf dem Bildschirm.

2.1 Tastenfunktionen
Anzeige Funktion
Informationen zu Backup-Zeiten
Zeigt die geschätzte Backup-Zeit an.
H= Stunden M= Minuten S= Sekunden
Kongurations- und Fehleranzeige
Zeigt die Kongurationselemente an. Eine detaillierte Auistung dieser Elemente nden
Sie in Abschnitt 2.5.
Zeigt Warn- und Fehlercodes an. Eine detaillierte Auistung aller Codes nden Sie in den
Abschnitten 2.7 und 2.8.
Stummschaltung
Zeigt an, dass der akustische Alarm der USV deaktiviert ist.
Zeigt Informationen zu Eingang, Batterie, Temperatur, Ausgang und Last an
Zeigt die Eingangsspannung, die Eingangsfrequenz, die Batteriespannung, den Batteriestand,
die Umgebungstemperatur, die Ausgangsspannung, die Ausgangsfrequenz, den Laststrom
und die prozentuale Auslastung an.
K= Kilo W= Watt V= Spannung A= Ampere %= Prozent °C = Grad Celsius
Hz = Frequenz
Lastinformationen
Zeigt die Lastebenen für 0-24%, 25-49%, 50-74% und 75-100% an.
Zeigt Überlast an.
Informationen zu programmierbaren Ausgängen
Zeigt an, dass die programmierbaren Ausgänge in Betrieb sind.
INSTALLATION
