Vaask WMD-001-M03 User manual

PEDESTAL INSTALLATION GUIDE
PREMIUM HAND SANITIZING FIXTURE
ASSEMBLED IN THE USA
Original instructions (English language/U.S. version). All versions of this manual in languages other than
English are translated based on the original, capturing its substance without additions or alterations.
Patents applied for in the USA and abroad.
Model #: WMD-001-M03 | Rev. PIG-221101
®

| 2
FOR COUNTRIES NOT COVERED BY THE EUROPEAN UNION
This appliance is not intended for use by people (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless a person responsible for their safety has given them supervision or instruction
concerning the use of the appliance. Children should be supervised to ensure that
they do not play with the appliance.
FOR COUNTRIES COVERED BY THE EUROPEAN UNION
This appliance can be used by children age 8 and older and by people with reduced
physical, sensory or mental capabilities, or a lack of experience and knowledge, only
if someone supervises them or instructs them on the safe use of the appliance and
the user understands the hazards involved.
Children shall not play with this appliance, nor shall they clean or maintain the
appliance, without supervision.
To prevent accidents and machine damage, read these instructions before
installation or use.
For help, call [phone] or visit vaask.com.

| 3
INSTALLATION
This equipment is not designed for maritime use or for use in mobile installations such as
caravans or aircraft, except under certain conditions. Contact the Vaask Technical Service
Department at [phone] with specific requirements.
Inspect the dispenser for transport damage, and do not install or use a damaged unit.
Contact Customer Service at [phone] if you find damage.
ELECTRICAL SAFETY
Before installation, make sure the voltage and frequency listed on the data plate match
that of the electrical supply. This data must correspond in order to prevent injury and
machine damage. Consult a qualified electrician if you are unsure.
To guarantee the electrical safety of this appliance, it is imperative that continuity exists
between the appliance and an effective grounding system. If you have any doubt, get a
qualified electrician to check the electrical system of the facility. The manufacturer cannot
be held responsible for damages caused by the lack or inadequacy of an effective grounding
system.

| 4

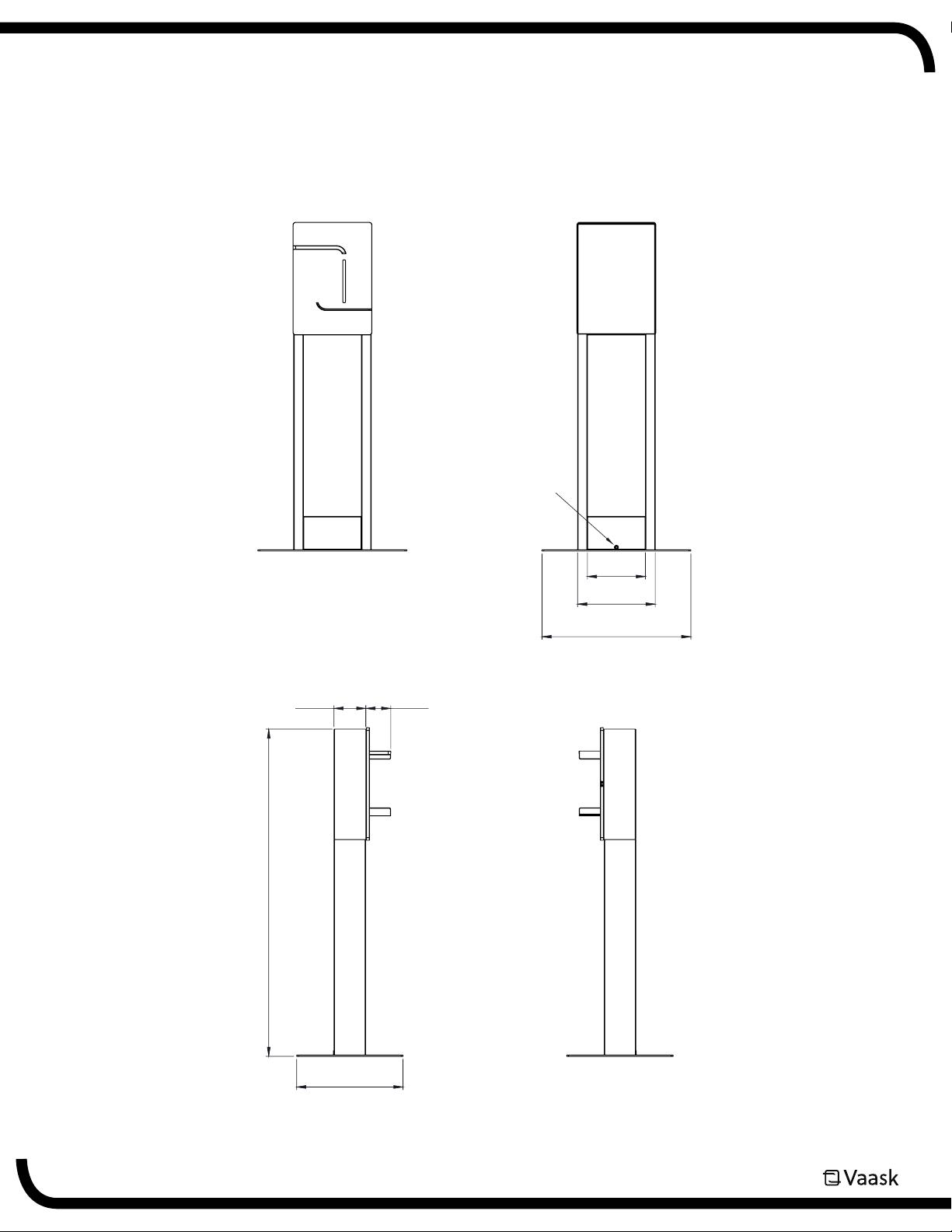

DIMENSIONAL DRAWINGS AND PARTS
4.5 in
(11.4 cm) 3.5 in (8.9 cm)
15 in
(38.1 cm)
46.2 in (117.2 cm)
8.2 in (20.8 cm)
10.9 in (27.8 cm)
21 in (53.3 cm)
Cord entry point
4.5 in
(11.4 cm) 3.5 in (8.9 cm)
15 in
(38.1 cm)
46.2 in (117.2 cm)
8.2 in (20.8 cm)
10.9 in (27.8 cm)
21 in (53.3 cm)
Cord entry point

| 5
TOOLS NEEDED
#2 Phillips screwdriver
WHAT’S INCLUDED IN THE BOX
Box 1
One (1) Pedestal
Eight (8) #10-32 x 5/8-inch Phillips flat head screws, bagged
Box 2
One (1) baseplate
Box 3
One (1) hand sanitizing fixture

| 6
BEFORE YOU BEGIN
Ensure that the Vaask Pedestal [option C in the diagram below] will be located no
more than 8 feet (2.4 m) from a 110V to 220V single-phase outlet with at least
0.25-amp capacity. Most standard outlets meet these requirements.

| 7
INSTALLATION INSTRUCTIONS
1. Remove Pedestal from box 1 and place on a flat, working surface.
2. Remove foam inserts.
3. Place the inserts under the Pedestal to raise it above the working surface.
4. Remove the power cord from the bottom section of the Pedestal and route it
through the bottom notch (A).

| 8
5. Remove the baseplate from Box 2. Align the baseplate with the bottom of the
Pedestal frame. Ensure that the flared end of the holes is facing away from the
frame.
6. Using a #2 Phillips screwdriver, attach the baseplate to the bottom of the
Pedestal with the eight (8) included screws, starting with the holes on the far
left and far right, as shown below.

| 9

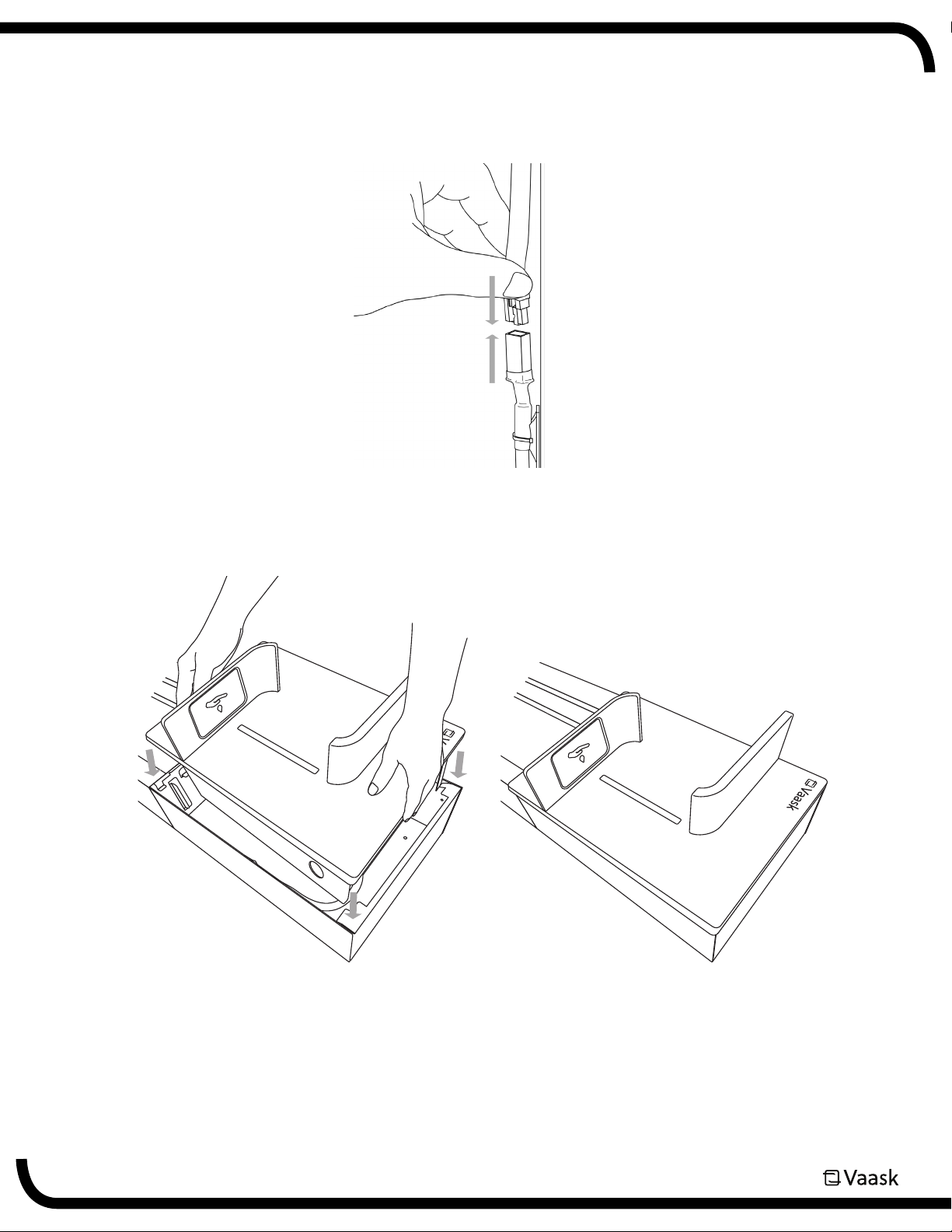

7. Take the Vaask hand sanitizing fixture out of Box 3, and remove foam inserts.

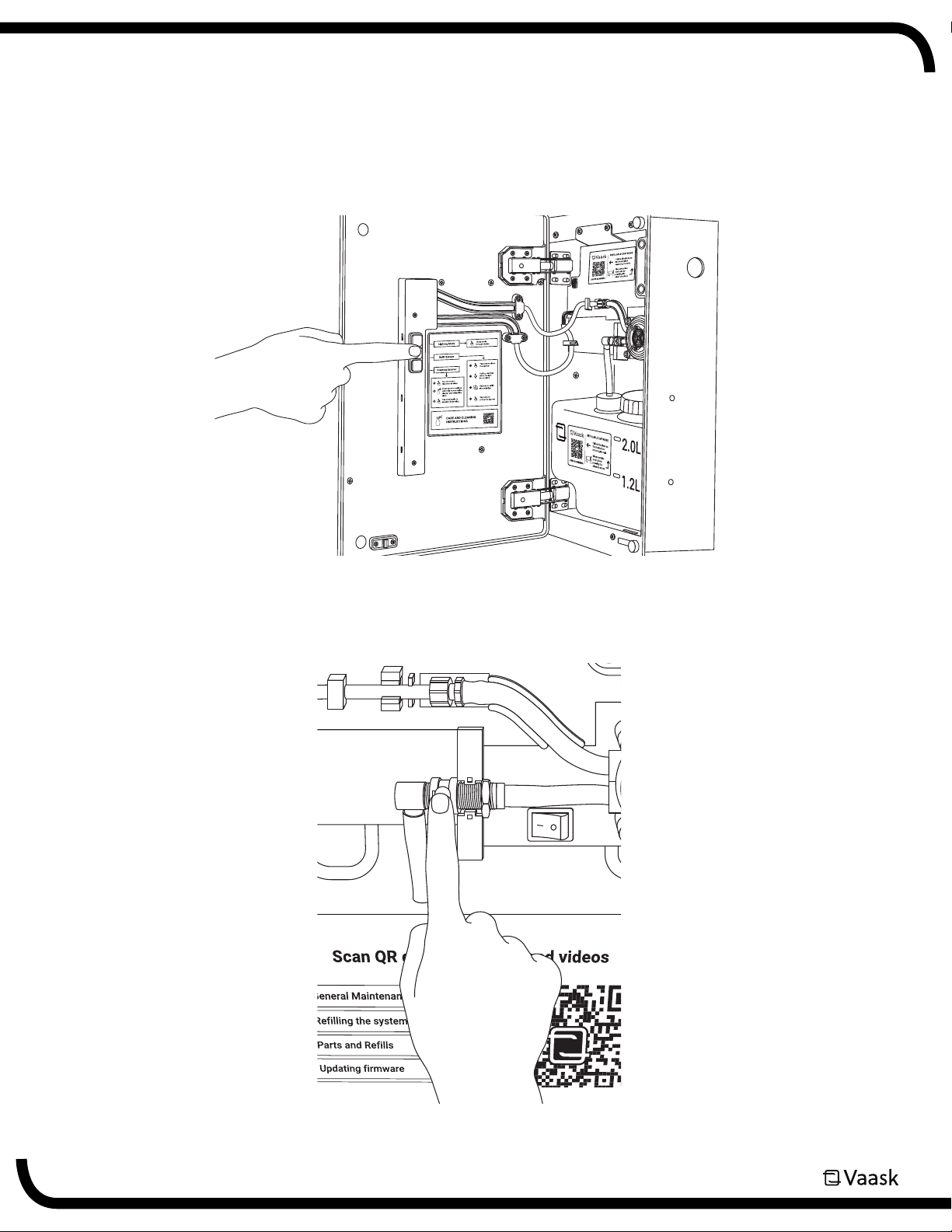

8. Attach the power cord connectors from the fixture to the Pedestal.
9. Carefully align (A) the fixture to the opening of the Pedestal and slide (B) in until
the edges are completely flush.

| 10

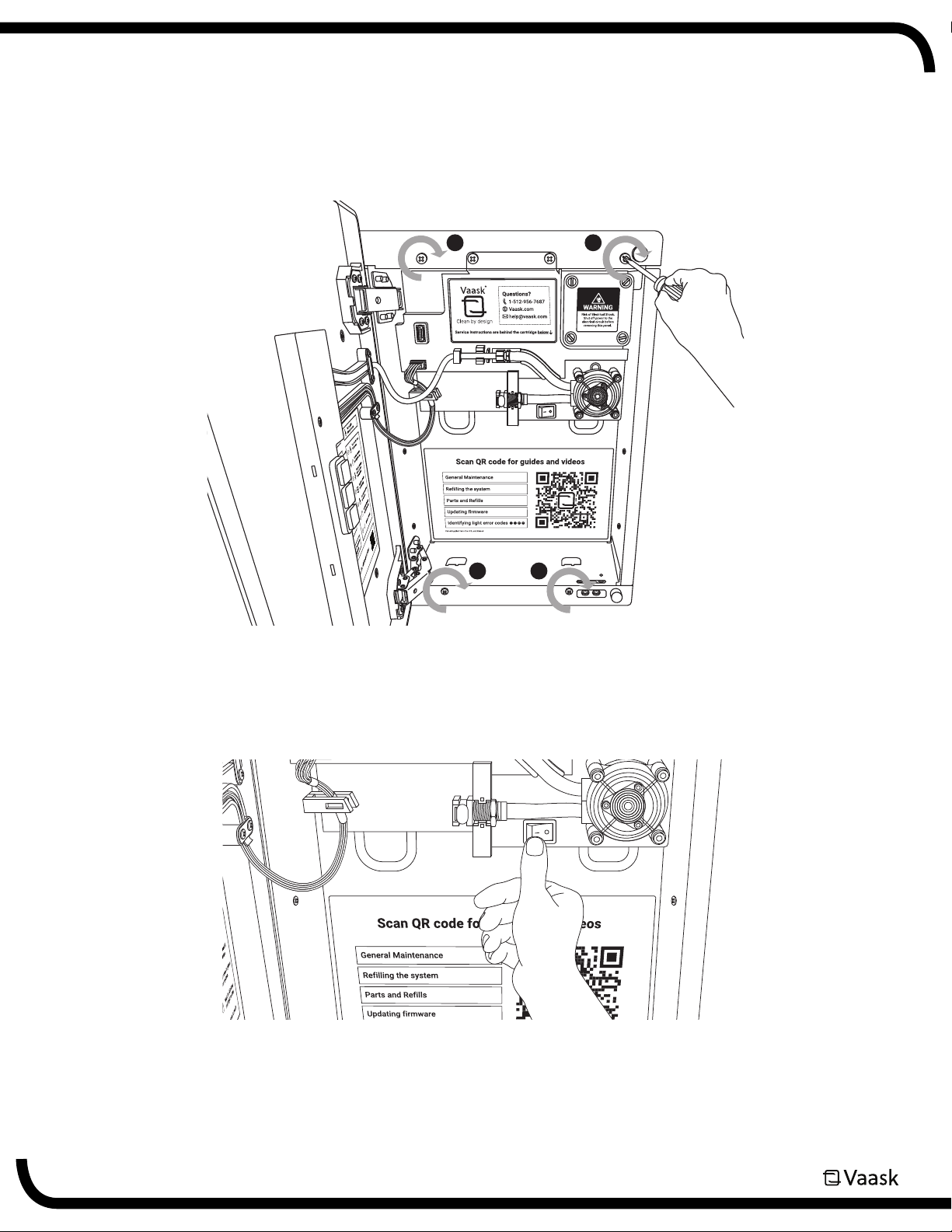

10.Open the door and hand-tighten the screw in each of the four corners of the
enclosure (A).
WARNING: Do not use an electric screwdriver or drill.
11. Set the Pedestal upright on the floor.
12. Plug in, and turn on the switch within the enclosure. The front light should
illuminate.
A
A A
A
