vacuubrand VHC pro User manual

page 1 of 36
VHCpro
Instructions for use
Technology for Vacuum Systems

page 2 of 36
After sales service:
Contact your local dealer or call [phone].
The document ”Safety information for vacuum equipment” is
part of this manual! Read the ”Safety information for vacuum
equipment” and observe the instructions contained therein!
Trademark index:
VACUU•LAN® (US-Reg.No 3,704,401), VACUU•BUS®, VACUU•CONTROL®,
Peltronic®, VARIO® (US-Reg.No 3,833,788), VACUUBRAND®(US-Reg.
No 3,733,388) and also the shown company logos are trademarks of
VACUUBRAND GMBH + CO KG in Germany and/or other countries.

page 3 of 36
Contents
Safety information!............................................................. 4
Important information! ......................................................................... 4
General information............................................................................. 6
Intended use........................................................................................ 6
Ambient conditions.............................................................................. 7
Operating conditions ........................................................................... 7
Safety during operation ....................................................................... 8
Maintenance and repair....................................................................... 9
Technical data................................................................... 10
Wetted parts ..................................................................................... 10
System parts .....................................................................................11
Use and operation ............................................................ 12
Assembling the wall holder................................................................ 14
Adapters............................................................................................ 16
Changing the adapter........................................................................ 17
Settings ............................................................................................. 19
Handling ............................................................................................ 20
Shutdown .......................................................................................... 24
Cleaning and decontaminating ....................................... 25
Accessories and spare parts........................................... 27
Troubleshooting ............................................................... 30
Replacing the aspiration hose ........................................ 31
Repair - Maintenance - Return - Calibration................... 33

page 4 of 36
Safety information!
Important information!
+ Keep this manual complete and accessible to per-
sonnel at all times!
+ Read this manual carefully before installing or op-
erating the equipment. Observe the instructions
contained in this manual.
+ Do not modify the equipment without authorization.
This manual is an integral part of the equipment de-
scribed therein. It describes the safe and proper use
of the vacuum pump.
Make operating personnel aware of dangers arising
from the pump and the pumped substances.
VACUUBRAND disclaims any liability for inappropri-
ate use of these pumps and for damage from failure
to follow instructions contained in this manual.
This manual is only to be used and distributed in its com-
plete and original form. It is strictly the users’ responsibility
to check carefully the applicability of the guidance in this
manual with respect to his product.
Manual-no.: 999276 / 18/01/2016
The following signal word panels and safety
symbols are used throughout this manual:
This is the safety alert symbol. It is used to alert you to po-
tential personal injury hazards. Obey all safety messages
that follow this symbol to avoid possible injury and death.
NOTICE

page 5 of 36
➨ DANGER indicates a hazardous situation which, if not
avoided, will result in death or serious injury.
+ WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
• CAUTION indicates a hazardous situation which, if not
avoided, could result in minor or moderate injury.
NOTICE is used to address practices not related to per-
sonal injury.
NOTICE
Formatting used in this manual:
Note: The signal word panels in all sections of this manual always refer
to all paragraphs of the same format (➨ / + / • / plain text) following each
signal word panel.

page 6 of 36
General information
+Read and comply with this manual before installing
or operating the equipment.
+Before operating the equipment read and comply
with the section ”Cleaning and decontamination”!
Remove all packing material, remove the product from its
packing-box, remove the protective covers from the inlet
and outlet ports and keep, inspect the equipment.
If the equipment is damaged, notify the supplier and the
carrier in writing within three days; state the item num-
ber of the product together with the order number and the
supplier’s invoice number. Retain all packing material for
inspection.
Do not use the equipment if it is damaged.
Intended use
+ The device may only be used by well trained and skilled
personnel.
+ The device may not be used for in vivo applications (e.
g., not at humans or animals).
Ensure that the equipment and all components are suit-
able for the intended application. Use the system only for
aspiration of liquids.
Setting up
The VHCpro is intended to be conntect to a suitable suction
system, e. g., VACUUBRAND BVC systems.
Comply with all applicable and relevant safety require-
ments (regulations and guidelines), implement the re-
quired actions and adopt suitable safety measures.
NOTICE
NOTICE
NOTICE

page 7 of 36
Ambient conditions
• The systems are designed for ambient temperatures
during operation between +10°C and +40°C. Check the
maximum temperatures.
Operating conditions
➨ The devices are not suitable to aspirate:
- unstable substances
- substances which react explosively under impact
(mechanical stress) and/or when being exposed to
elevated temperatures without air,
-self inammable substances,
- substances which are inammable without air and
- explosive substance
➨The devices have no approval for operation below
ground.
+The pumps are not suitable for aspiration of dust.
• Take into consideration interactions and chemical
reactions of the aspirated media.
• Ensure that the materials of the wetted parts are com-
patible with the aspirated substances, see section
”Technical data”.
If aspirating different substances, it is recommended
that the aspiration hose be purged prior to changing the
media in order to rinse out residues and to avoid reactions
of the substances with each other and with the materials.
NOTICE

page 8 of 36
Safety during operation
➨ Ensure that while operating the device no persons can
be endangered.
➨ Wear personal protection equipment.
➨ Comply with requirements when using infectious liq-
uids, pathogenic germs, toxic, radioactive or aggres-
sive substances.
➨Prior to operation check all relevant safety and health
requirements and determine the applicability of regula-
tory limitations prior to use if necessary.
➨ Comply with material safety data sheets and notes on
safe use of the manufacturer.
➨ Comply with the biosafety level of the laboratory.
➨ Use appropriate safety work materials and methods if
necessary, e. g., steam sterilization, sterilization indica-
tors or germicides. For notes concerning the steriliza-
tion of wetted parts, see the “Technical Data” section
and “Cleaning and decontaminating”. It is the user´s
responsibility to ensure effective sterilization.
➨ Never operate a defective or damaged device.
+Comply with applicable regulations when disposing of
chemicals. Take into consideration that chemicals may
be polluted.
+Use only OEM spare parts and accessories; other-
wise safety and performance of the equipment as well
as the electromagnetic compatibility of the equipment
might be reduced.
+ In case of leaks in the aspiration hose, aspirated sub-
stances might be released into the environment. Com-
ply especially with notes on operation and use.
Ensure that, in case of failure, the system will always re-
turn to a safe status. Provide appropriate protective mea-
sures (i.e., precautions which allow for the requirements
of the respective application) even for the case of failure
and malfunction.
NOTICE

page 9 of 36
Maintenance and repair
➨ Attention: The device might be contaminated with nox-Attention: The device might be contaminated with nox-
ious or otherwise dangerous chemicals that have been
aspirated during operation. Ensure that the device is
decontaminated before maintenance.
+Take adequate precautions to protect people from the
effects of dangerous substances if contamination has
occurred. Wear appropriate safety-clothing when you
come in contact with contaminated components.
Ensure that maintenance is done only by suitably trained
and supervised technicians. Ensure that the maintenance
technician is familiar with the safety procedures which re-
late to the products processed by the system.
In order to comply with law (occupational, health and safe-
ty regulations, safety at work law and regulations for en-
vironmental protection) vacuum pumps, components and
measuring instruments returned to the manufacturer can
be repaired only when certain procedures (see section
”Repair - Maintenance - Return - Calibration”) are fol-
lowed.
NOTICE

page 10 of 36
We reserve the right for technical modications without prior notice!
Type VHCpro
Permissible ambient tempera-
ture storage / operation
°F
°C 14 to 140 / 50 to 104
(-10 to +60 / +10 to +40)
Permissible relative atmospher-
ic moisture during operation
(no condensation)
%30 to 85

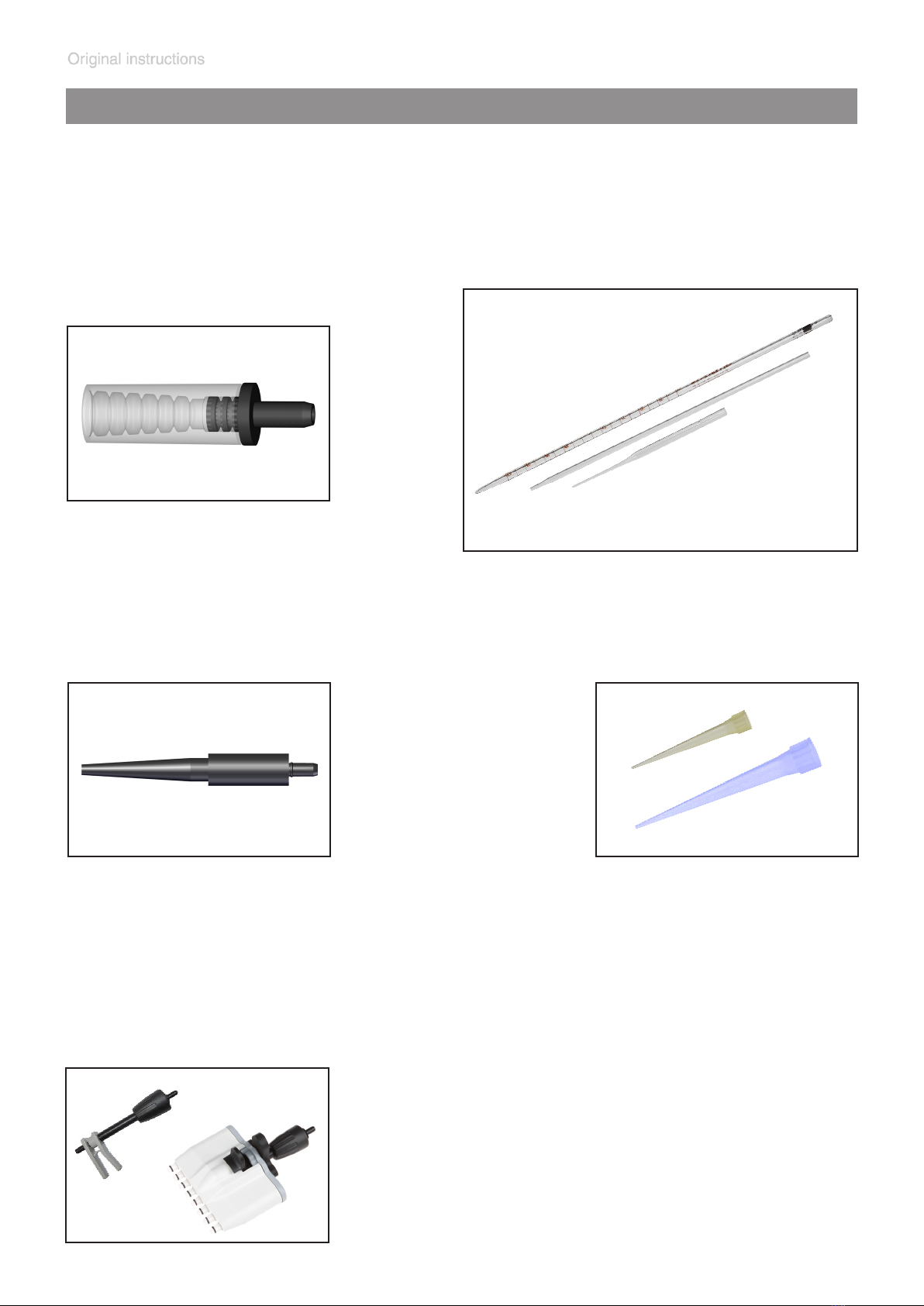

Adapters for Pipettes with outer diameter 5.5 - 8 mm
Pipette tips 2 - 200 µl and 50 - 1000 µl
Length of aspiration hose m2.5
Dimensions L x W x H approx.
(without aspiration hose) mm 185 x 30 x 38
Weight (with aspiration hose)
approx. g 125
Components Wetted parts
Aspiration hose Silicone rubber
Adapter pipettes TPE / PP
Adapter pipette tips PP
Screw cap, adjusting knob, operating
lever PPS, glass bre reinforced
Housing PP, glass bre reinforced
Technical data
Wetted parts

page 11 of 36
Position Designation
1operating lever
2 aspiration hose
3adjusting knob
4 screw cap
1
2
3
4
System parts

page 12 of 36
VHCpro with adapter for pipettesaspiration hose
bend protection
wall holderadapter for pipette tips
clip with
adhesive surface
screws for wall holder
Unpack the equipment.
Use and operation

page 13 of 36
Enclosed are two clips with an adhesive sur-
face. Afx these clips to the biosafety cabinet to
guide the aspiration tubing.
Attach the aspiration hose of the VacuuHand-
Control VHCpro to a suitable aspiration system,
e. g., VACUUBRAND BVC systems.
Attach the aspiration hose (1) rst, then slide
the bend protection (2).
1
2

page 14 of 36
The surface of the wall has to be smooth, dry
and free of grease.
Remove the protective foil from the adhesive
tape at the wall holder part 1. Align part 1 with
cover directed downward and press rmly on
the wall for 1 minute.
The full load is achieved after 72 h at 20°C.
Alternativly screw part 1 of the wall holder to
the wall using the two screws enclosed in the
delivery.
Assemble part 2 of the wall holder to part 1 and
click into place.
Disassembling
Push both wings of the wall holder part 2 apart
and silde the part upwards.
1
2
When replacing the adhesive tape to x the wall holder
we recommend to use the 3M™ VHB™ high performance
connection system 4932P.
3MTM and VHBTM are trade marks or registered trade marks
of 3M.
NOTICE
Assembling the wall holder

page 15 of 36
For keeping position the VHCpro in the wall holder.
Alternativly to keeping the VHCpro in the wall
holder position the VHCpro in a table stand for
Vacuu Hand Control VHCpro (Accesory), see
section „Acessories and spare parts”.

page 16 of 36
Adapter for pipettes wit outer diameter of 5.5 - 8.0 mm
- Pasteur pipette
- Aspiration pipette
- Graduated pipettes
Adapter for pipette tips
- Pipette tips 2 - 200 µl
- Pipette tips 50 - 1000 µl
Two adapters are enclosed in the delivery.
Adapters
An adapter for pipette tips 2 - 200 µl with tip
ejector and an 8-channel tip adapter with ejec-
tor for pipette tips 2 - 200 µl and 50 - 1000 µl
are available as accessory, see section “Acces-
sories and spare parts”.

page 17 of 36

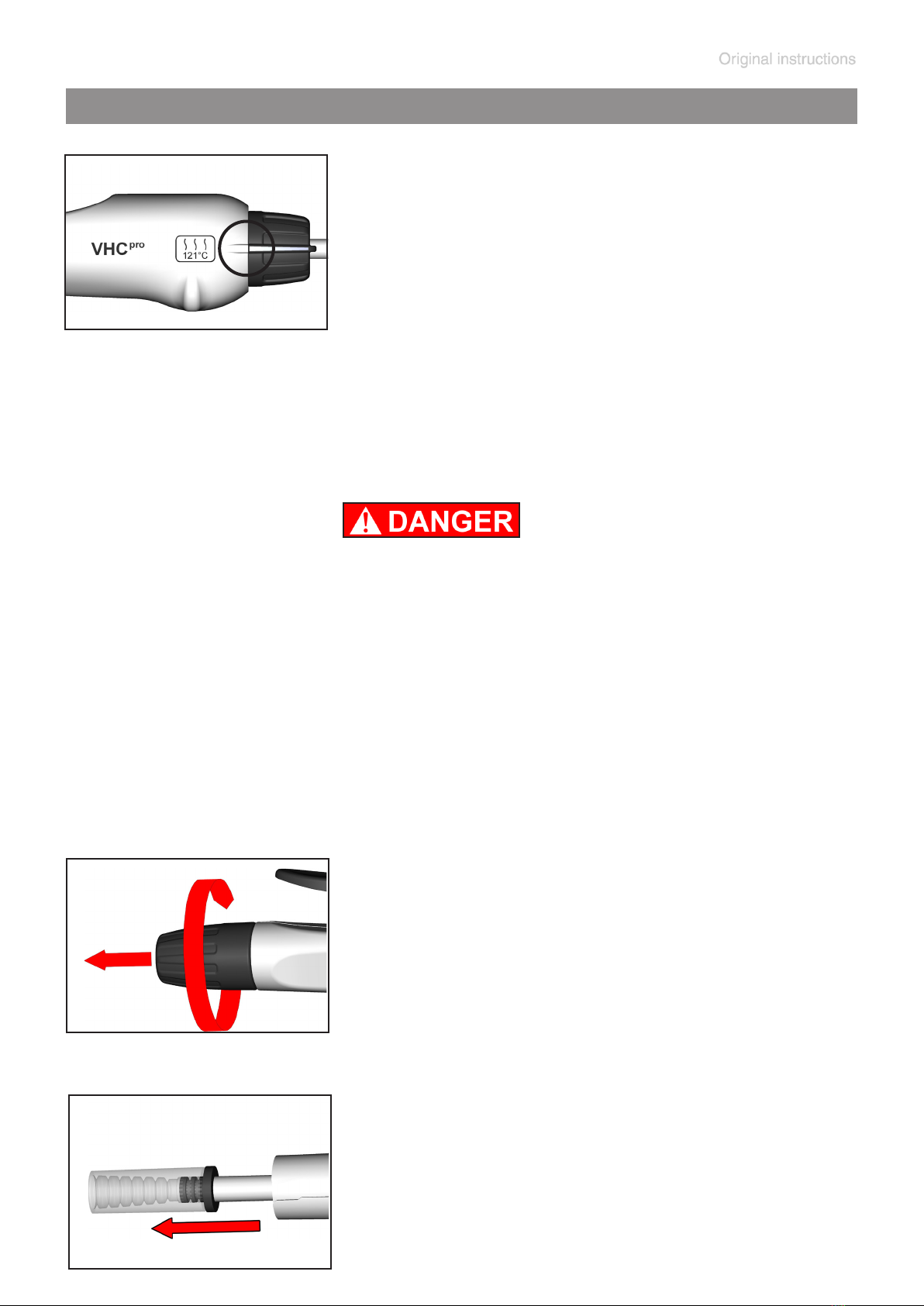

Turn cap (1) and remove (2).
1
2
➨ Attention: Liquid in the tube may leak. Adopt
suitable measures to prevent the release of
dangerous, toxic, explosive, corrosive, nox-
ious or polluting uids, vapors and gases. In
such cases, use an appropriate collecting
and disposal system and take protective ac-
tion for personnel, equipment and environ-
ment.
Ensure that there is no liquid in the tube to avoid
risk of contamination.
Aspirate until the aspiration tube is empty and
decontaminate if necessary.
Select continuous aspiration.
We recommend to switch off vacuum supply or
to close connection to the vacuum supply.
Remove pipette if necessary.
Pull adapter with hose out of the VHCpro.
Changing the adapter

page 18 of 36
Remove adapter from hose.
Obey mark at the cap when reassembling the
cap.
Attach new adapter to the hose.
Pull the adapter with hose back in the VHCpro.
Attach cap over the adapter to the VHCpro.
Screw cap.

page 19 of 36
Continuous aspiration / Autoclaving
The setting “continuous aspiration / autoclav-
ing ” is designated to aspirate larger amounts
of liquid. The handle aspirates without pressing
the lever.
Select this setting also for autoclaving, see sec-
tion “Cleaning and decontamination”.
The adjustment knob can be turned through
360°, but the knob is not removable.
Setting “Aspiration”.
Setting “Continuous aspiration” and “Auto-
claving”.
When the VHCpro is set to “Aspiration” press the
lever to aspirate.
Settings

page 20 of 36
Hold the VHCpro in such a way that working is comfortable, examples see
gures below.
Handling
