VADO Life Installation and operating instructions

Single lever wall mounted basin mixer
Edit Ion Life Notion Origins Phase
Photon Soho Synergie Té Tef Zoo
Life Notion Origins
Vado
Wedmore Road, Cheddar, Somerset, England BS27 3EB
tel [phone]. fax [phone]
[email protected]
www.vado-uk.com
Guarantee
Customer/technical services
For any technical or installation queries please contact Vado on 01934 745163.
GUARANTEE REGISTRATION
NAME
ADDRESS
RETAILER
ADDRESS
PURCHASE DATE
PRODUCT DESCRIPTION
WHO INSTALLED THE PRODUCT?
FOR VADO USE
POSTCODE
POSTCODE
ARTICLE NUMBER (SEE BOX)
RETAILER PLUMBER BUILDER SELF
This product is guaranteed against manufacturing defects from the date of purchase until the expiry of the relevant
guarantee period shown below.
The guarantee is only valid if:-
1. The product has been installed, used and maintained in accordance with Vado’s instructions and subjected to
normal use only.
2. The defect is not due to use of an unsuitable or inadequate water or power supply.
3. The defect is not due to accident, misuse, neglect or repair other than by Vado or Vado authorised agents or
damage caused by foreign objects or substances.
4. We have received from you the completed Guarantee Registration Form. Vado accepts no responsibility for any
forms lost in the post and returns by registered means is therefore recommended.
Under this guarantee (which is non-transferable) Vado will, at its option, repair or replace free of charge any product
(or replacement part) found to be defective. The guarantee does not extend to any consequential loss or damage.
After repair or replacement the relevant guarantee period will be calculated from the original date of purchase.
The relevant guarantee periods are:-
1. Twelve years on chrome nish products.
2. Six years on Vado Identity products.
3. Three years on all other products with the exception of Stuart Turner Pumps which carry a 2 year Guarantee on
Monsoon Range and 1 Year Guarantee on Showermate Range.
All claims under the guarantee must be submitted in writing to the person who supplied the product to you and
must be received no later than the last day of the relevant guarantee period. All claims must be accompanied by
proof of purchase (sales receipt or delivery note).
Vado operates a policy of continuous product development and therefore reserves the right to change the product,
packaging and documentation specications without notice.
This guarantee is in addition to and does not aect your statutory rights as a consumer.
Installation & maintenance instructions
Please leave these instructions with the customer

211
Important - please read
Please read these instructions carefully before starting installation and keep for future
reference.
Remove all packaging and check the product for missing parts or damage before starting
installation.
Any alterations made to this product and ttings may infringe water regulations and will
invalidate the guarantee.
The installation must comply with all Local/National Water Supply Authority Regulations/
Byelaws and Building and Plumbing Regulations.
We strongly recommend that you use a qualied and registered plumber.
General installation
These ttings are mixing devices and therefore water supplies must be reasonably
balanced.
Where connections are made to the mains cold water supply, single check valves must
be tted to both hot and cold inlets. This is a stated requirement of Water Supply (Water
Fittings) Regulations 1999 Schedule 2, Section 15.
Before making any inlet pipe connections, all supply pipes MUST be thoroughly ushed
to remove debris. Failure to do so could result in damage or low ow from the mixer unit.
Water Supply (Water Fittings) Regulations 1999 Schedule 2 Section 13.
The tting of isolating valves to the inlet feeds is advised for ease of maintenance.
Please take great care when installing this mixer not to damage its surface.
Please note if installing in an enclosed environment, access should be left for servicing and
maintenance. No costs relating to inadequate access can be accepted.
Care of the mixer
Our products are nished to the highest standard and due care needs to be taken to
ensure their looks are retained.
We recommend cleaning all products with a soft damp cloth ONLY and advise strongly
against the use of ALL cleaning products i.e. powders and liquids.
If the above instructions are not followed this will invalidate your guarantee in the event of
a problem occurring.
Operating Specications
Operating Pressure
All models except Edit - Minimum operating pressure 0.5 bar (1.5 bar if used as a bath ll).
Edit - Minimum operating pressure 1.0 bar (1.5 bar if used as a bath ll).
Maximum operating pressure 5 bar
Turn the handle clockwise to increase the
temperature and anti-clockwise to decrease
the temperature.
Operation
Pull the handle up
to increase the ow
of water.
Note: For illustrative purposes only the Life version is shown.
The same operation applies to all the other shower valves.

10 3
Dimensions - valve
*This dimension changes to 50mm for the Soho only.
Zoo installation
175mm
5mm
40mm
98mm
60mm
60mm
28mm
Tef installation
Using sucient ptfe tape to hold the spout securely and prevent leaks, screw the spout into the
valve body and adjust the spout to the correct position for when the cover is slid on.
Remove the backing paper from the seal on the back of the cover. Apply the supplied lubricant
to the slot in the cover. Slide the cover over the valve, push onto the wall until it makes contact.
Carefully slide the control handle onto the valve and secure in position with the grub screw
within the handle using the hexagonal key supplied, replace the screw cover.
Apply a small bead of silicone around the plate to seal against the tile.
Cover
Grub screw &
cover
Handle
Seal
175mm
200mm
80mm
43mm
20mm
40mm
90mm
Spout
5mm
Valve
Apply lubricant
to slot
1/2”1/2”
Depth tolerance.
See table on the right
Ø40mm*
Cover plate
16mm
79mm
100mm
58mm
Cover ‘O’ ring
Grub
screws
Spout
Cover ‘O’ ring
Grub
screw &
cover
Handle
Slide the cover over the valve, push onto the wall until it makes contact.
Carefully slide the control handle onto the valve and secure in position with the grub screw
within the handle using the hexagonal key supplied, replace the screw cover.
Screw the spout into the cover. Push the spout over the connecting tube, secure using the grub
screws on the underside.
Apply a small bead of silicone around the plate to seal against the tile.
Connecting tube
Depth tolerance.
Model Depth
EDI-109S/A-C/P 52-72mm
ION-109S/A-C/P 53-73mm
LIF-109S/A-C/P 53-73mm
NOT-109S/A-C/P 53-73mm
ORI-109S/A-C/P 53-70mm
PHA-109S/A-C/P 53-73mm
PHO-109S/A-C/P 53-73mm
SOH-109S/A-C/P 53-72mm
SYN-109S/A-C/P 53-73mm
TE-109S/A-C/P 53-73mm
TEF-109S/A-C/P 53-73mm
ZOO-109S/A-C/P 53-72mm

49
Installation - valve
Wall plugs
Fixing screws
Hot inlet
Outlet
Before installing your new mixer, ush through the pipe work to ensure removal of debris, turn
o the water supply.
Warning! Please check for any hidden cables and pipes before drilling holes in the wall.
During and after installation protect the outer parts by leaving the guard on to avoid any
damage to the valve.
The valve must be set into the wall (see dimension page).
Mark a horizontal line on the wall at the required height, mark the position of the valve and the
spout with centres of 100mm, drill a 20mm hole for the spout and a 50mm hole for the valve.
Mark the position of the valve and drill 4 holes to take suitable wall plugs and screws and x in
position.
Make all connections to the valve. Connect hot supply to bottom left inlet of the valve and cold
supply to the bottom right inlet.
Cold inlet
Synergie installation
Remove the backing paper from the seal on the back of the cover. Slide the cover over the valve,
push onto the wall until it makes contact.
Carefully slide the control handle onto the valve and secure in position with the grub screw
within the handle using the hexagonal key supplied, replace the screw cover.
Push the spout over the connecting tube, secure using the grub screws on the underside.
Apply a small bead of silicone around the plate to seal against the tile.
Cover
Grub
screw &
cover
Handle
Seal
Grub
screws
160mm
200mm
80mm
43mm
20mm
40mm
91mm
Spout
5mm
Installation - connecting tube
Short connecting tube
Outlet
Ion, Life, Phase, Photon and Synergie.
These models are supplied with a choice
of 2 connecting tubes to give the depth
tolerance required for installation.
53mm-63mm for the short connecting tube.
63mm-73mm for the long connecting tube.
Using PTFE tape screw the chosen
connecting tube into the valve and tighten.
Long connecting tube
Edit, Notion, Origins, Soho, Te and Zoo.
Using PTFE tape screw the supplied connecting tube into the valve and tighten.
Te installation
Remove the backing paper from the seal on the back of the cover. Slide the cover over the valve,
push onto the wall until it makes contact.
Carefully slide the control handle onto the valve and secure in position with the grub screw
within the handle using the hexagonal key supplied, replace the screw cover.
Push the spout over the connecting tube, secure using the grub screws on the underside.
Apply a small bead of silicone around the plate to seal against the tile.
Cover
Grub
screw &
cover
Handle
Seal
Grub
screws
214mm
200mm
80mm
38mm
30mm
40mm
90mm
Spout
5mm
Connecting tube
Guard
Valve
Connecting tube

58

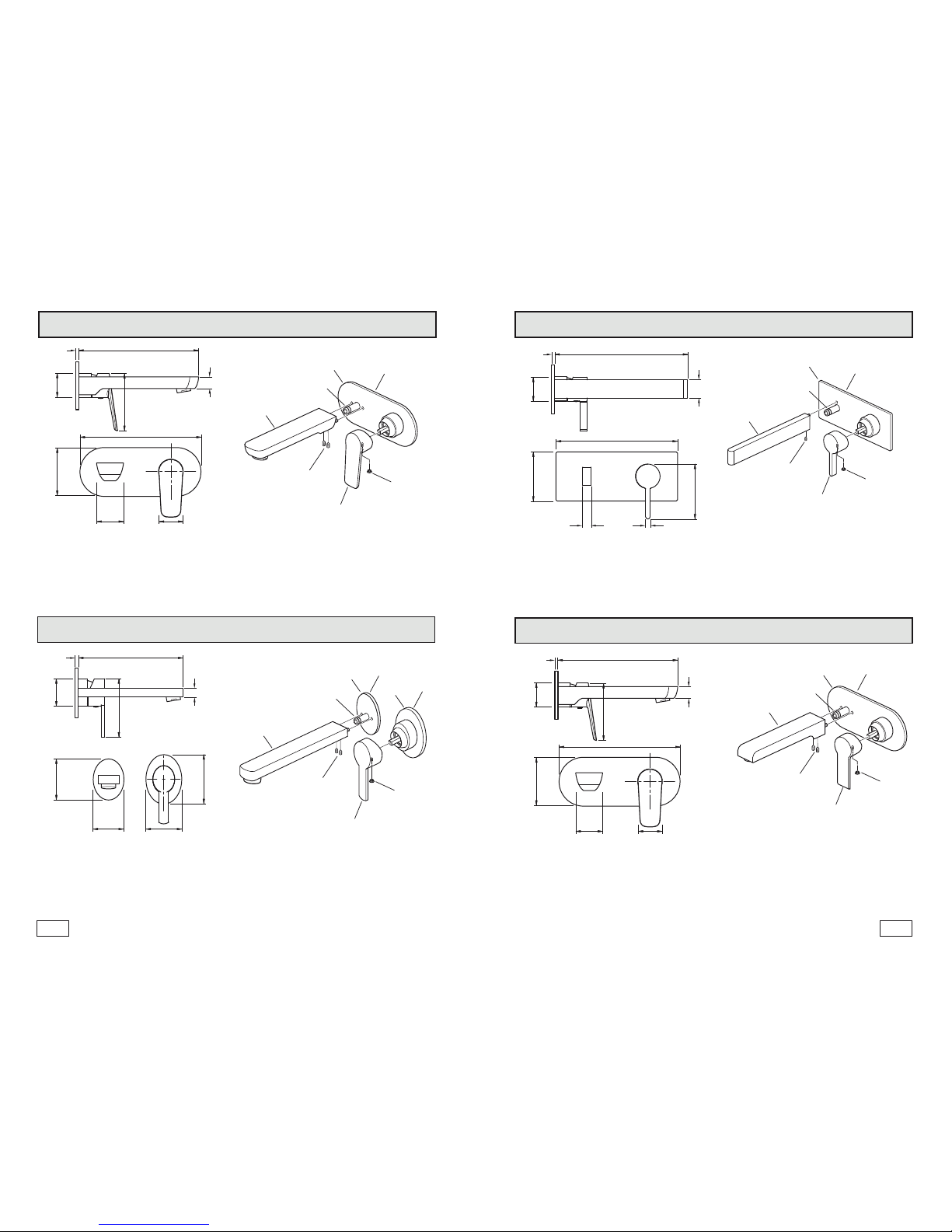

Photon installation
Remove the backing paper from the seal on the back of the cover. Slide the cover over the valve,
push onto the wall until it makes contact.
Carefully slide the control handle onto the valve and secure in position with the grub screw
within the handle using the hexagonal key supplied, replace the screw cover.
Push the spout over the connecting tube, secure using the grub screws on the underside.
Apply a small bead of silicone around the plate to seal against the tile.
Cover
Grub
screw &
cover
Handle
Seal
Grub
screws
200mm
200mm
80mm
40mm44mm
20mm
40mm
95mm
Spout
5mm
Edit installation
Remove the backing paper from the seal on the back of the cover. Slide the cover over the valve,
push onto the wall until it makes contact.
Carefully slide the control handle onto the valve and secure in position with the grub screw
within the handle using the hexagonal key supplied, replace the screw cover.
Push the spout over the connecting tube, secure using the grub screw on the underside.
Apply a small bead of silicone around the plate to seal against the tile.
220mm
200mm
80mm
7mm14mm
30mm
40mm
90mm
5mm
Ion installation
Remove the backing paper from the seal on the back of the cover. Slide the cover over the valve,
push onto the wall until it makes contact.
Carefully slide the control handle onto the valve and secure in position with the grub screw
within the handle using the hexagonal key supplied, replace the screw cover.
Push the spout over the connecting tube, secure using the grub screws on the underside.
Apply a small bead of silicone around the plate to seal against the tile.
Soho installation
Slide the cover over the valve, push onto the wall until it makes contact.
Carefully slide the control handle onto the valve and secure in position with the grub screw
within the handle using the hexagonal key supplied, replace the screw cover.
Slide the cover over the connecting tube, Push the spout over the connecting tube, secure
using the grub screws on the underside.
Apply a small bead of silicone around the plate to seal against the tile.
Cover ‘O’ ring
Grub
screws
196mm
55mm 65mm
75mm
90mm
16mm
40mm
106mm
Spout
6mm
Cover ‘O’ ring
Grub
screw &
cover
Handle
Connecting tube
Cover
Grub
screw &
cover
Handle
Seal
Grub
screw
Spout
Connecting tube
Cover
Grub
screw &
cover
Handle
Seal
Grub
screws
186mm
200mm
80mm
40mm38mm
20mm
40mm
93mm
Spout
5mm
Connecting tube
Connecting tube

67
Life installation
Remove the backing paper from the seal on the back of the cover. Slide the cover over the valve,
push onto the wall until it makes contact.
Carefully slide the control handle onto the valve and secure in position with the grub screw
within the handle using the hexagonal key supplied, replace the screw cover.
Push the spout over the connecting tube, secure using the grub screws on the underside.
Apply a small bead of silicone around the plate to seal against the tile.
Notion installation
Origins installation
Remove the backing paper from the seal on the back of the cover. Slide the cover over the valve,
push onto the wall until it makes contact.
Carefully slide the control handle onto the valve and secure in position with the grub screw
within the handle using the hexagonal key supplied, replace the screw cover.
Push the spout over the connecting tube, secure using the grub screws on the underside.
Apply a small bead of silicone around the plate to seal against the tile.
Slide the cover over the valve, push onto the wall until it makes contact.
Carefully slide the control handle onto the valve and secure in position with the grub screw
under the handle using the hexagonal key supplied, screw the lever onto the handle.
Screw the spout into the cover. Push the spout over the connecting tube, secure using the grub
screws on the underside.
Apply a small bead of silicone around the plate to seal against the tile.
Phase installation
Remove the backing paper from the seal on the back of the cover. Slide the cover over the valve,
push onto the wall until it makes contact.
Carefully slide the control handle onto the valve and secure in position with the grub screw
within the handle using the hexagonal key supplied, replace the screw cover.
Push the spout over the connecting tube, secure using the grub screws on the underside.
Apply a small bead of silicone around the plate to seal against the tile.
Cover
Grub
screw &
cover
Handle
Seal
Grub
screws
190mm
200mm
80mm
40mm40mm
16mm
40mm
93mm
Spout
5mm
Cover
Grub
screw &
cover
Handle
Seal
Grub
screws
200mm
200mm
80mm
40mm40mm
19mm
40mm
93mm
Spout
5mm
Cover
Grub
screw &
cover
Handle
Seal
Grub
screws
180mm Short spout
220mm Short spout
200mm
80mm
40mm38mm
16mm
40mm
90mm
Spout
5mm
Cover
Lever
Handle
‘O’ ring
Grub
screws
180mm
55mm 65mm
26mm
40mm
111mm
Spout
8mm
Cover ‘O’ ring
Connecting tube
Connecting tube
Connecting tube Connecting tube
