System and product description
10 Operating and installation instructions 0020248967_00
3
3 System and product
description
3.1 Component of the
ambiSENSE system
The product is part of the ambiSENSE
room climate solution and communicates
with the VR 920 Internet gateway via a
radio protocol. All products in the
ambiSENSE room climate solution can be
configured using the VRC 700 app on a
smartphone.
You can use the radiator thermostat for
the time-controlled regulation of the tar-
get room temperature via the VRC 700
app and adjust the heating times to suit
your needs. The Boost function means
that the radiator can be rapidly heated for
a short period by opening the radiator
valve.
The product is paired to the VR 920 Inter-
net gateway via the VRC 700 app.

System and product description
Operating and installation instructions 0020248967_00 11
3
You manually start the pairing mode for
three minutes by briefly pressing the sys-
tem button.
The product is suitable for all common
radiator valves with thread dimensions of
M30 x 1.5 mm. Using the adapter that is
included in the scope of delivery means
that the product can also be installed on
Danfoss RA, Danfoss RAV and Danfoss
RAVL radiator valves.
The product can automatically decrease
the target temperature during ventilation.
To precisely control the room temperature,
the optional ambiSENSE VR 51 room ther-
mostat can record the actual room tem-
perature centrally and transfer this to the
radiator thermostat.

System and product description
12 Operating and installation instructions 0020248967_00
3
3.2 Design of the product

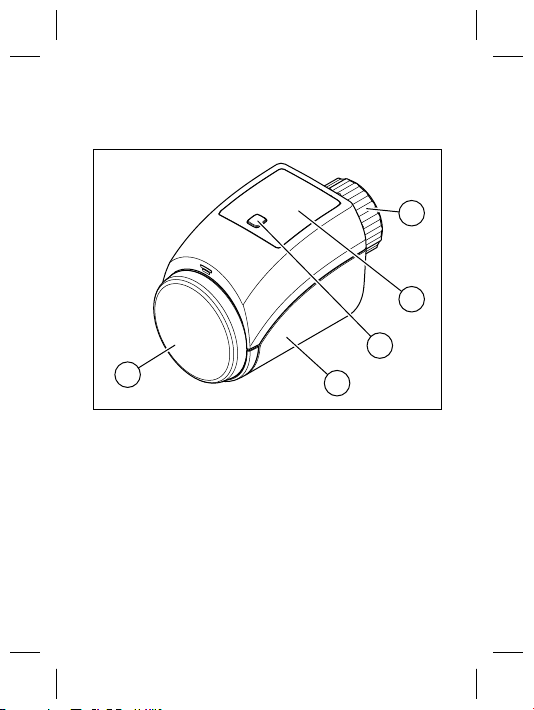

5
1
2
3
4
1 Knurled nut
2 Display
3 System button with signal LED
4 Battery compartment
5 Setting wheel

System and product description
Operating and installation instructions 0020248967_00 13
3
3.3 Display
iNote
The background lighting for the dis-
play is switched off in Standby
mode. To activate the background
lighting, press the setting wheel
once.
VALVE adapt
VALVE install
MANU BOOST
8
7
6
5
1
2
3
4
1 Operation lock active
2 Automatic decrease active

System and product description
14 Operating and installation instructions 0020248967_00
3
3 Radio data transmission
4 Low battery charge
5 Boost mode active
6 Manual mode active
7 Target temperature °C
8 Status information for the valve
3.4 Window-opening detector
When a window is open, e.g. for ventila-
tion, the system automatically lowers the
temperature in order to save heating
energy and costs. No window sensor is
required for this function. This function is
implemented in the ambiSENSE software
and is activated by a measured tempera-
ture drop. After the window is closed, the
product is switched back to the original
operating mode. When switching to auto-
matic mode, the temperature is brought to
the desired temperature that is set in the
time programme.

System and product description
Operating and installation instructions 0020248967_00 15
3
3.5 Radio operation
The radio signal is transmitted on a
non-exclusive transmission path. Faults
can therefore not be ruled out. Interfer-
ences may, for example, be caused by
switching operations, electric motors or
defective electrical units.
The range inside buildings may differ con-
siderably from the range outdoors. Except
for the transmission power and the recep-
tion properties of the transceivers, envi-
ronmental influences (such as air humidity
and structural elements) play an important
role on-site.

System and product description
16 Operating and installation instructions 0020248967_00
3
3.6 Flashing sequence of the
signal LED
Flashing
sequence Meaning Required activity
Brief period
of flashing
orange
Radio trans-
mission/
transmission
attempt/data
transmission
Wait until the
transmission
has ended.
1 x long
period of
lighting up
green
Process con-
firmed Continue with the opera-
tion.
1 x long
period of
lighting up
red
Process failed
or duty cycle
limit reached
Wait for the
Duty Cycle
interval and
try again.
Brief period
of flashing
orange (every
10 seconds)
Pairing mode
active Enter the dig- its of the unit
number to
confirm.

System and product description
Operating and installation instructions 0020248967_00 17
3
Flashing
sequence Meaning Required
activity
Brief period
of lighting up
orange (after
a green or
red reception
notification)
Batteries flat Replace the
batteries.
3 x long
period of
flashing red
Product
defective Note the dis- play in the
App or con-
tact the spe-
cialist dealer.
Lights up 1
x orange
and 1 x
green (after
inserting the
batteries)
Test display Once the test
display goes
out, you can
continue.

System and product description
18 Operating and installation instructions 0020248967_00
3
Flashing
sequence Meaning Required
activity
Long and
brief period
of flashing
orange (alter-
nating)
Update to the
unit software
(OTAU = Over
the Air
Update)
New software
is trans-
ferred. (Dura-
tion: Up to 12
hours) This
does not
affect how
the product
works during
this time.
3.7 Duty cycle limit
The duty cycle limit describes a legally
regulated limit on the transmission time of
units in the 868 MHz range. The aim of
this regulation is to guarantee that all
units that work in the 868 MHz range
work correctly. In the frequency range 868
MHz that is used by the product, the maxi-
mum transmission time for each individual
unit is 1% of an hour (i.e. 36 seconds in

System and product description
Operating and installation instructions 0020248967_00 19
3
1 hour). The product complies with this
directive.
In normal mode, the duty cycle limit is not
normally reached. In individual cases, e.g.
during start-up or the new installation of a
system, increased and radio-intensive pair-
ing processes may mean that this limit is
not reached. If the duty cycle limit is
exceeded, the signal LED lights up red for
one extended period and may indicate that
a function is temporarily missing from the
product. After a short time (max. one
hour), the product’s function is restored.
3.8 CE marking
The CE mark shows that the products
comply with the basic requirements of the
applicable guidelines as stated on the data
plate.

System and product description
20 Operating and installation instructions 0020248967_00
3
The manufacturer hereby declares that the
type of radio equipment that is described
in these instructions complies with Direc-
tive 2014/53/EU. The complete text for the
EU Declaration of Conformity is available
at: http://www.vaillant-group.com/doc/
doc-radio-equipment-directive/.
3.9 Checking the scope of delivery
>Check that the scope of delivery is com-
plete and intact.
Number Designation
1 Radiator thermostat
3 Danfoss adapter (RA, RAV, RAVL)
1 Danfoss RAV tappet extension
1 Support ring
1 M4 nut
1 M4 x 12 mm fillister head screw
2 LR6/Mignon/AA batteries
