Valcom VIP-814B User manual

1 947541
ISSUE 1

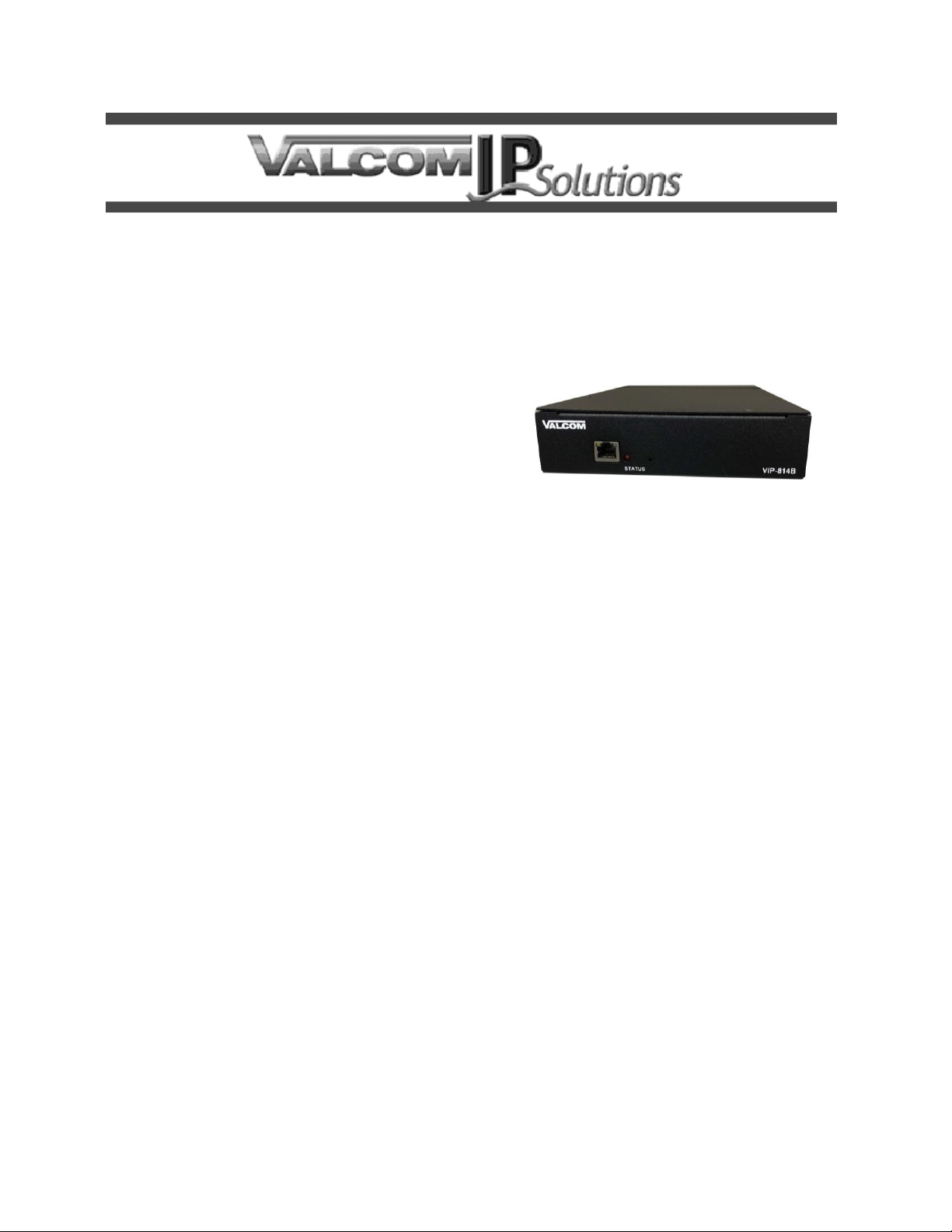

VIP-814B
QUAD NETWORK STATION PORT
INTRODUCTION
The VIP-814B Quad Network Station Port allows
most loop start terminal devices to be connected
to a managed IP-based LAN/WAN.
SPECIFICATIONS
Access Methods
PBX, FXO Port
POTS telephone set
Features
RJ-45 for network connection
4 RJ-11 telephone connections
4 Relays with Form C contacts
Generates Caller ID Signals
Front panel Status/Link/Activity LEDs
2 RENS
2.5mm jack for external power (optional)
Power over Ethernet (PoE) 802.3af
compatible
Dimensions/Weight
1.72 H x 7.00" W x 11.875" D
(4.36cm H x 17.78cm W x 30.16cm D)
Weight: 2.11 lbs. (0.95 kg)
Nominal Specifications
Input Impedance: 600 Ohms
Input Level: -10dBm
Output Impedance: 600 Ohms
Output Level: - 10dBm nominal
Relay Current: 1 AMP @ 24VDC
Nominal Power Requirements
Via rear panel barrel connector:
Voltage: 24VDC
Current: 325mA
Via 802.3af (PoE) Ethernet Switch:
802.3af: Class 3
Environment
Temperature: 0 to +40° C
Humidity: 0 to 85% non-precipitating
WARNING:
To Reduce The Risk Of Fire Or Electric Shock
Do Not Expose This Apparatus To Rain Or
Moisture.
AVERTISSEMENT : Afin de réduire les risques
d'incendie ou de décharge électrique, évitez
d'exposer le système à la pluie ou à
l'humidité.
INSTALLATION
NOTE: The telephone system referred to in
this manual is the customer premise
equipment such as an electronic key system,
a PBX or a dedicated single line telephone
sets. The VIP-814B is not intended for direct
or indirect connection to the public telephone
network. When used with a customer premise
telephone system such as a key system or
PBX system, these units are interfaced to the
system via a fully protected system central
office port, which is a fully protected interface
device. Also, the host system must be
configured to disallow central office trunk
conferencing in order to prevent indirect
connection to the public network.

2 947541
CAUTION: To reduce the risk of electric shock,
Do not remove cover.
No user serviceable parts inside.
Refer servicing to qualified service personnel.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
Precautionary Designations
FCC Information
This equipment has been tested and found to
comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference when the equipment is operated
in a commercial environment. This
equipment generates, uses and can radiate
radio frequency energy and if not installed
and used in accordance with the instruction
manual, may cause harmful interference to
radio communications. Operation of this
equipment in a residential area may cause
harmful interference in which case the user
will be required to correct the interference at
his own expense.
Mounting
The VIP-814B is designed for wall, table or two
units rack mounting together.
Table: Provided with the VIP-814B are four
rubber pads. Peel pads from their carrier backing
and place at the four corners of the bottom of the
unit.
Wall: Using #8 screws (included), attach the wall
mounting brackets to each side of the VIP-814B
as shown in Figure 1. Use the included wood
screws to attach the VIP-814B to the wall. For
surfaces other than wood, use hardware
appropriate for the surface (not provided).
Rack: Two VIP-814B units may be joined
together and installed into a 1U rack slot. Using
Figure 2 as a guide, attach the interlock brackets
and end mounting brackets to each of the
VIP-814B units, then mount the combined units
into an available rack slot.
Power Connections
The preferred method of powering a VIP-814B is
via a Power over Ethernet (PoE) switch meeting
the 802.3af specification.
If the rear panel barrel connector is used for
power, the preferred power supply is a Valcom
VIP-324D.
Make all required signal connections before
applying power to the unit. If powering via
802.3af, make sure all signal connections via the
back panel are made then connect the VIP-814B
to the Ethernet switch.
If power is supplied via the barrel connector,
make sure all signal connections are secure.
Attach the unit to the network via the front panel
RJ-45 Ethernet connector. Apply power by
plugging the power supply in to the VIP-814B via
the barrel connector on the rear of the VIP-814B.
Network Connection
The VIP-814B has one RJ-45 network connector
on the front panel.
Use a standard Ethernet patch cable to connect
the VIP-814B to an Ethernet switch. If the
Ethernet switch is 802.3af compliant, the
VIP-814B will draw power from it.
Signal Connections
On the back panel, the VIP-814B has 4 RJ-11
jacks for telephone connection and 2 terminal
blocks for relay connections.
FXO Connections: Connect loop start FXO port
or standard analog telephones to the VIP-814B
via the rear panel RJ-11 jacks labeled Phone 1,
Phone 2, Phone 3 and Phone 4. Tip and Ring
appear on pins 3 and 4 of these jacks.
Relay Connections: Access to the four form C
relays is provided via two six pin screw terminal
blocks. The relays are labeled K1, K2, K3 and
K4. Each relay is brought out on three terminals.
The common contact (COM) is the middle
terminal with the normally closed (N.C.) contact
on the right and the normally open (N.O.) contact
on the left. Relay contacts are rated for 1A @
24VDC.

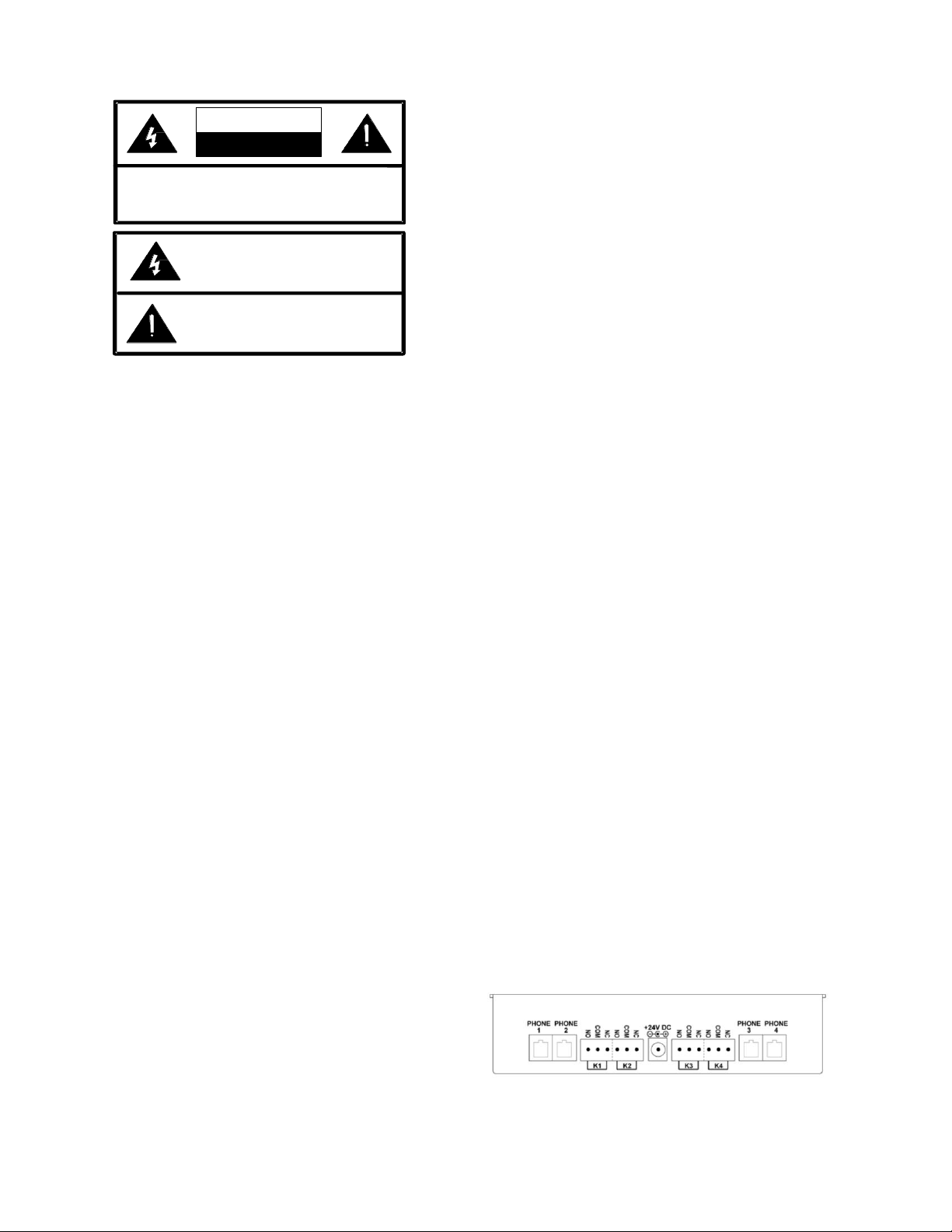

Rear View

3 947541
Setup
Information specific to your application will need
to be programmed into the VIP-814B using a
computer. The PC used for programming should
be connected to the same subnet as the
VIP-814B.
Setup will be done using the IP Solutions Setup
Tool. Download the latest version of the free IP
Solutions Setup Tool from Valcom web site at
www.valcom.com/vipsetuptool.
Status Indicator Lights
The VIP-814B has 3 status indication lights on
the front panel:
STATUS: Illuminates at regular intervals during
normal operation. On steady indicates unit is in
reset mode.
The network jack provides two LED indicators:
Green LED: (Link) Indicates Ethernet connection
when illuminated.
Yellow LED: (Activity) Indicator flashes to
indicate network activity.
TECHNICAL ASSISTANCE
When trouble is reported, verify power is being
supplied to the unit and there are no broken
connections. If a spare unit is available,
substitute a spare unit for the suspected
defective unit.
Assistance in troubleshooting is available from
the factory. Call [phone] and press 1 for
Technical Support or via email at
[e-mail].
When requesting assistance, you should include
all available information. General information and
troubleshooting procedures are available on the
Valcom website at www.valcom.com.
Valcom equipment is not field repairable.
Valcom, Inc. maintains service facilities in
Roanoke, VA. Should repairs be necessary,
attach a tag to the unit clearly stating your
company name, address, phone number, contact
person and the nature of the problem. Send the
unit to: Valcom, Inc.
Repair & Return Dept.
5614 Hollins Road
Roanoke, Va. 24019-5056
VALCOM LIMITED WARRANTY
Valcom, Inc. warrants its products only to the original purchaser, for its own use, to be free from defects in materials and workmanship under conditions of
normal use and service for a period of one year from the date of shipment. This Limited Warranty obligation shall be limited to the replacement, repair or refund
of any such defective device within the warranty period, provided that:
1. inspection by Valcom, Inc. indicates the validity of the claim;
2. the defect is not the result of damage, misuse or negligence after the original shipment;
3. the product has not been altered in any way or repaired by others and that factory sealed units are unopened (a service charge plus parts
and labor will be applied to units defaced or physically damaged);
4. freight charges for the return of products to Valcom are prepaid;
5. all units 'out of warranty' are subject to a service charge. The service charge will cover minor repairs (major repairs will be subject to
additional charges for parts and labor).
This Limited Warranty is in lieu of and excludes all other warranties, expressed or implied and in no event shall Valcom, Inc. be liable for any
anticipated profits, consequential damages, loss of time or other losses incurred by the buyer in connection with the purchase, operation,
maintenance, installation, removal or use of the product. The maximum liability of Valcom under this warranty is limited to the purchase price of the
specific Product covered by the warranty.
Disclaimer. Except for the Limited Warranty provided herein, the product is provided “as-is” without any warranty of any kind whatsoever including, without
limitation, any WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT.
This warranty specifically excludes damage incurred in shipment. In the event a product is received in damaged condition, the carrier should be notified
immediately. Claims for such damage should be filed with the carrier involved in accordance with the F.O.B. point.
Headquarters:
Valcom, Inc.
5614 Hollins Road Roanoke, VA 24019-5056
Phone: [phone] FAX: [phone]

4 947541

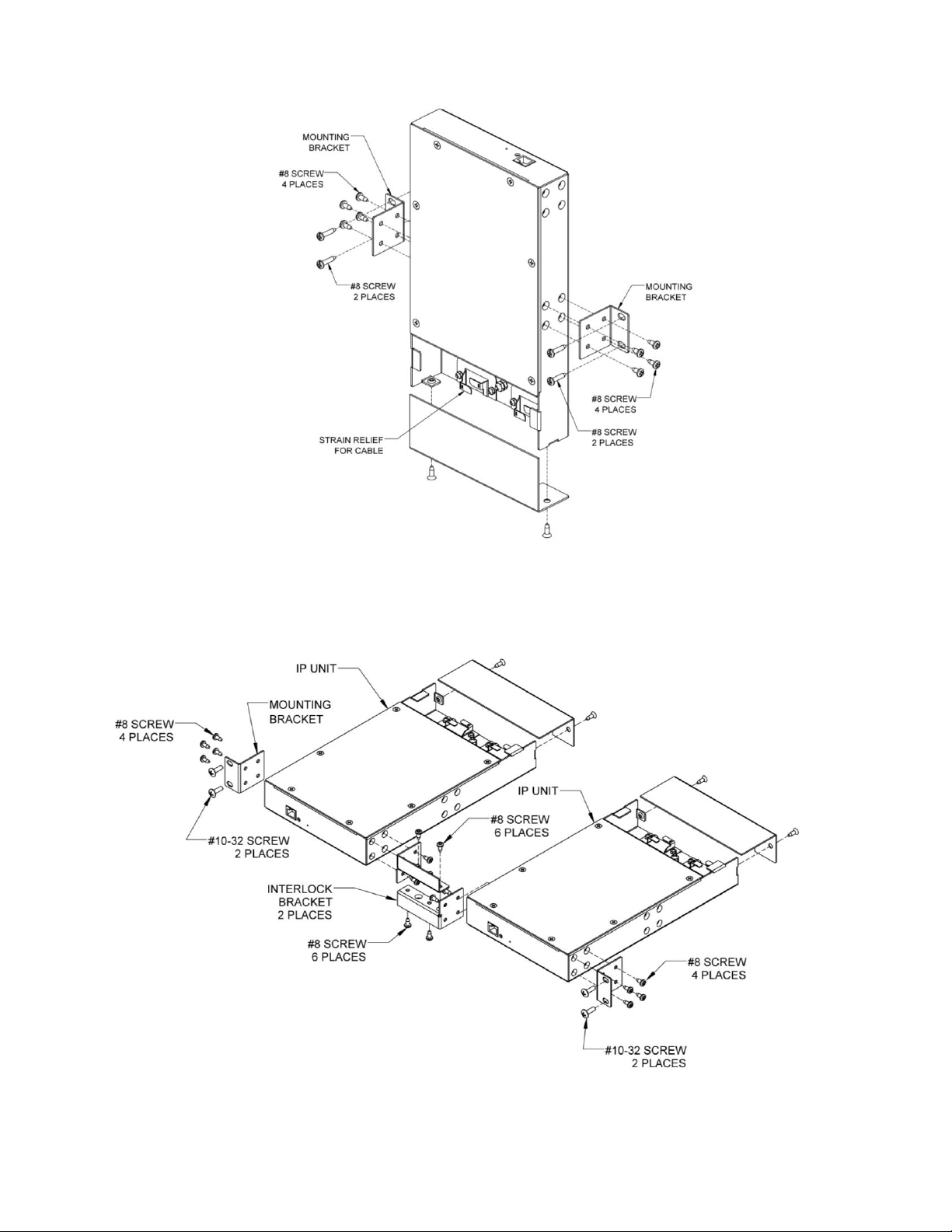

Figure 1. Wall Mount
Figure 2. Rack Mount
