Valentine V40-90 User manual

Spare parts:
Only use original spare parts. When ordering spare parts, please quote the following in addition to the number from
the list below:
type of hot cupboard
serial number
voltage, current and rating
You will find this information on the serial number plate of the hot cupboard
Description
V40
-
90
V42
-
90
Item No
Drwg code
Feature
Man'r
Thermostat V40-90 3 3 2690-1 S1, S2, S3 30 à 80 °C EGO
Button for thermostat 0 - 85 °C V40 3 3 2691
Pilot lamp E10 + metal nut (no bulb) 4 4 3269 + 3273 H1,H2,H3,H4
Bulb E10 220/240V 4 4
Yellow lens 3 3 3271 H1, H2, H3 20 x 17 x 18 mm RAFI
White lens 1 1 3270 H4 20 x 17 x 18 mm RAFI
Switch 2P 1 1 2693-01 S4 12 A, 250 V EGO
Button for switch 1 1 2694
Main terminal block 10EDS prot. 1 1 3258 XT1 4 mm2 AWAG
Heating 3 3 2687 R1, R2, R3 230 V 500 W LÜKON
Sundry
Bearing door V40-90 4 4 2684 ø 5 x 16
Axis for ball-bearing front door 2 2 2679 M5 x 33
Nut M5 security for front door-axis (comby-S) 4077
Axis for ball-bearing back side-door 2 2 2680 M5 x 16
Nut M5 for back side door axis (INKOBA) 4078
Castor ø 80, V40-90 4 4 2657
Wiring diagram:
Layout:
Warning:
The information contained in these instructions for use may be modified without warning.
Valentine Fabrique SA cannot be held liable for any errors contained in this document or for damage or injury re-
sulting from use of this.
Instructions for
hot cupboards
a
pplicable to the following models:
V40-90 V42-90
Your agent
DECLARATION OF CONFORMITY
We, manufacturer Valentine Fabrique SA
Z.I. Moulin-du-Choc E
CH – 1122 Romanel-sur-Morges
Tél.: [phone] Fax: [phone]
Mail : [e-mail] Internet : www.valentine.ch
hereby declare that these products comply with following directives and standards:
Low Voltage Directive: 2006/95/CE
ROHS Directive: 2002/95/CE
Food contact : 2004/1935/CE
Applicable standards: IEC 60335-1 ed 5.1
IEC 60335-2-49 ed.4.0 + am.1
Romanel-sur-Morges, February 2015
Valentine Fabrique SA
B. Paris
President

We congratulate you on your purchase of a Valentine Hot cupboard. This is
a high quality product renowned throughout Europe for over 50 years.
The instructions below take into account new legislation concerning product
liability as well as EU and international safety standards.
Important note:
Before using your hot cupboard, please make sure you observe the following:
⇒study and strictly follow the instructions given below
⇒notify personnel on how to use the hot cupboard correctly and draw their attention to in-
herent risks
Valentine Fabrique SA disclaims any liability for damage or injury caused by incorrect use of
the hot cupboard and failure to comply with the operating instructions
Inherent risks
•
Beware of burns!
•Take care when touching the upper and lower parts of the table or the
heating shelves, which can reach 100
0
C
•Set the thermostat at 60
0
C maximum
•Do not sit on or upon the hot cupboard!

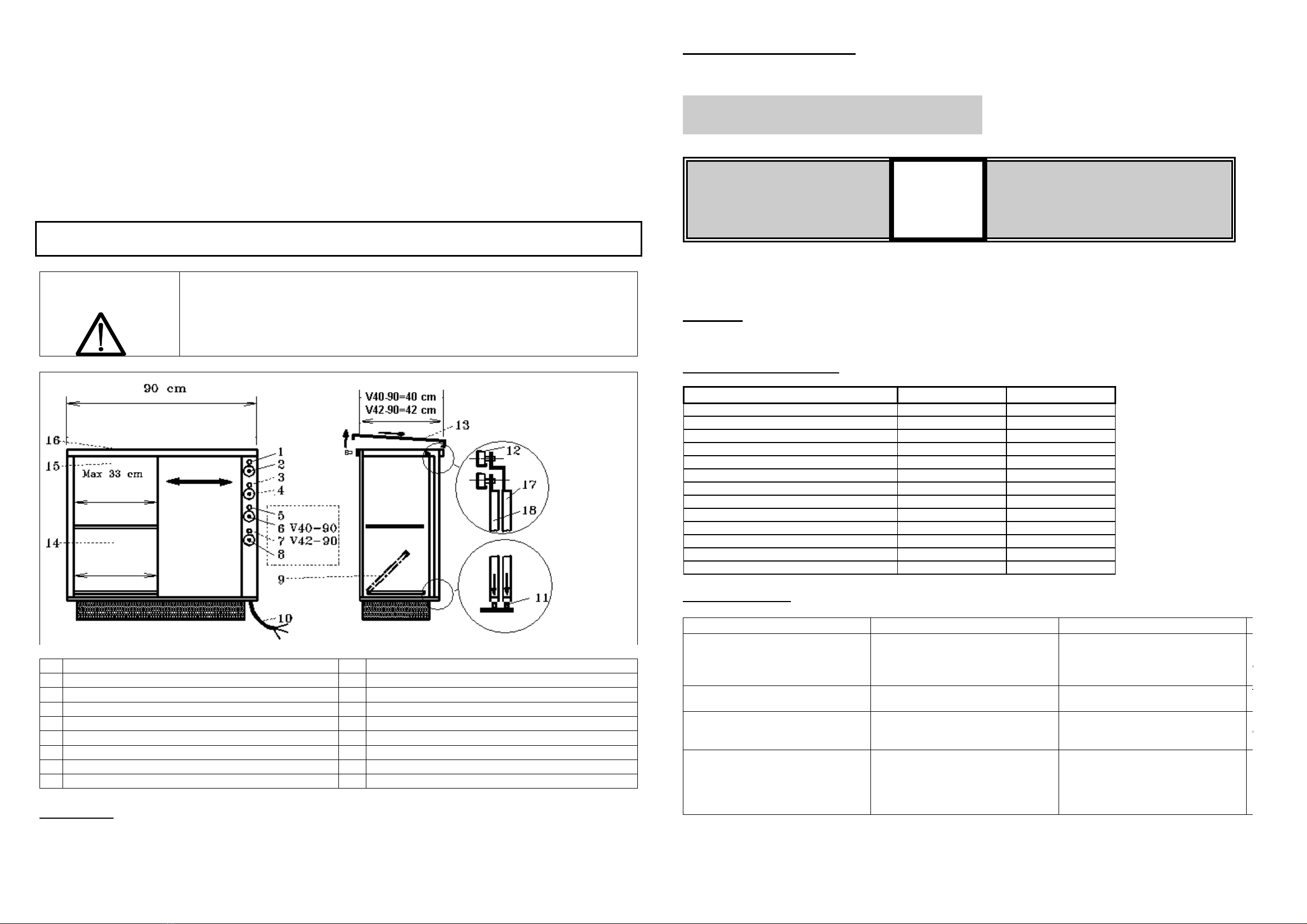

1 Hot table signal lamp 10 Connecting lead - 1,9 m
2 Hot table thermostat 11 Lower guide rails
3 Upper compartment signal lamp( 12 Door rails and bearings
4 Upper compartment thermostat 13 Hot table top
5 Lower compartment signal lamp 14 Lower compartment
6 Lower compartment thermostat 15 Upper compartment
7 On / OFF signal lamp 16 Hot table
8 Switch 17 Front sliding door on bearing
9 Hinged shelf, lift to clean base 18 Back sliding door on bearing
Installation: The hot cupboard must be connected to a one-phase 3-pins plug with earth
connection, voltage 230 V~ [10] Earth: yellow / green Neutral: blue
Use of V40
-
90 and V42
-
90:
The hot cupboards V40-90 and V42-90 are divided into 3 inde-
pendent parts, each with its own thermostat, that is: the lower compartment [14], the upper com-
partment [15] and the hot table [16].
Switch on main switch [8] ⇒ The lamp [7] lights up
Turn the thermostat [4] to «60» if necessary the thermostat
[6] and the thermostat [2] during use
⇒ The lamp [3], [5] and [1] lights up
⇒ Pre-heating of plates = 1 to 1½h.
Always shut the doors co
m-
pletely
Never overheat.
Set the thermostat of 60
o
C
maximum
otherwise
•
An open door lets all the heat es-
cape
•
The plates will cool down even with
the heating switched on
The plates are made of on isolating material and the heat will take approximately 1 hour to pene-
trate to the centre of the plate. A plate which is heated too quickly is only hot on the surface and
will cool very quickly.
Cleaning: The interior must be kept very clean. Disconnect the apparatus and clean with a
damp cloth. To clean the box, lift the hinged shelf [9]. Never splash water into
the apparatus.
Technical specifications:
Model:
V 40
-
90
V 42
-
90
Rating
[kW]
1,5
1,5
Conn. 230 V [A]
6,5
6,5
Frequency [Hz]
50
-
60
50
-
60
Capacity of 27 cm
ø
plates
150
150
Capacity of 30 cm
ø
plate
s
100
100
Capacity of 32 cm
ø
plates
100
100
Capacity of 33 cm
ø
plates
---
100
Heating
on 3 levels
on 3 levels
Leaktightness
IP X5 IP X5
Weight [kg]
61 62
External dimensions [m
m]
900 / 400 / 850 900 / 420 / 850
Internal dimensions [mm]
2 x (820 / 325 / 310)
2 x (820 / 335 / 310)
Troubleshooting:
Faults
Probable cause
Solutions
Main switch and / or a thermostat
switched on: one of the signal
lamps does not light up
∗No power ◊Check fuses, plug and socket
carefully
◊Change bulb if other lamps work
Interrupteur principal et (ou) un
thermostat enclenché: un des s
gnaux lumineux ne s’allume pas
Thermostat switched on: the signal
lamp does not light up ∗Faulty bulb ◊Change bulb
Thermostat enclenché: le signal
lumineux ne s’allume pas
Main switch and thermostat
switched on: the cupboard does not
heat
∗Faulty heating element ◊Call After-Sales Service
Interrupteur principal et thermostat
enclenché: l’armoire ne chauffe pas
The door do not slide freely ∗Door derailed ◊Dismount the table [13] in order
to reach the bearings. Remove
the screws of the top back edge,
lift the top and push forward
Les portes ne roulent pas librement
