Valentine VMC-3 User manual

Date de création: 11.04.07 Edition 06.01.2017
Date de modif 15.07.2015 MM Version A
Fichier VMC-3-ENC_E_A déf.doc
Fabrique SA
Doc. No.: VMC-3-ENC_E
Page No.: 1 / 13
Instructions for
Multicooker
Applicable to the following models:
VMC-3
Multicooker VMC-3
Built in
3N400/415 V~

3N230 V~

1N240 V~

Your agent:
DECLARATION OF CONFORMITY
We, manufacturer Valentine Fabrique SA
Z.I. Moulin-du-Choc E
CH – 1122 Romanel-sur-Morges
Phone: [phone] Fax: [phone]
Mail : [email protected] Internet : www.valentine.ch
hereby declare that these products comply with the following standards:
Low Voltage Directive 2014/35/UE
EMC Directive 2004/108/CE
ROHS Directive 2002/95/CE
Food contact 2004/1935/CE
Standards: IEC 60335-1 :2013 (ed.5.1)
IEC 60335-2-47 :2002 (ed.4.0)
EN 60335-1 :2012 ;+A11
IEC 60335-2-50 : 2008 (ed.4.1)
EMC: CISPR 14-1 (ed.5);am1 ;am2
CISPR 14-2 (ed.1);am1 ;am2
EN 55014-1 :2006 ;am1 ;am2 2011
EN 55014-2 :1997 ;am1 ;am2 2008
IEC61000-3-2 :2014 (ed.4)
IEC61000-3-3 :2013 (ed.3)
IEC62233 :2008
Romanel-sur-Morges, April 20th, 2016
Valentine Fabrique SA
B. Paris
President

Date de création: 11.04.07 Edition 06.01.2017
Date de modif 15.07.2015 MM Version A
Fichier VMC-3-ENC_E_A déf.doc
Fabrique SA
Doc. No.: VMC-3-ENC_E
Page No.: 2 / 13
Table of contents
Important notes____________________________________________________________________ 3
Warnings ________________________________________________________________________________3
Inherent risks ____________________________________________________________________________3
Periodic checks ___________________________________________________________________________3
Technical specifications_____________________________________________________________ 4
Installation _______________________________________________________________________ 4
Important precautions for installation________________________________________________________4
Connection of drainage tube ________________________________________________________________4
Description of the appliance ________________________________________________________________5
Principal dimensions ______________________________________________________________________5
Functions description______________________________________________________________________6
Identification of the principal element ________________________________________________________7
Instruction for use _________________________________________________________________ 8
Filling with water _________________________________________________________________________8
Switching on, cooking______________________________________________________________________8
Emptying the pan _________________________________________________________________________8
Servicing the multicooker, cleaning __________________________________________________________8
Troubleshooting ___________________________________________________________________ 9
Simple faults _____________________________________________________________________________9
Complex faults ___________________________________________________________________________9
Spare parts _____________________________________________________________________________10
Wiring diagram VMC-3___________________________________________________________________11
Wiring diagram VMC-3 Turbo_____________________________________________________________12
After Sales Service _______________________________________________________________________13
Warning:
The information contained in these instructions for use may be modified without
warning. Valentine Fabrique SA cannot be held liable for any errors contained
in this document or for damage or injury resulting from use of this appliance

Date de création: 11.04.07 Edition 06.01.2017
Date de modif 15.07.2015 MM Version A
Fichier VMC-3-ENC_E_A déf.doc
Fabrique SA
Doc. No.: VMC-3-ENC_E
Page No.: 3 / 13
Dear Customer
We congratulate you on your purchase of a Valentine Multicooker. This is a high quality
product of renown that is both easy to use and reliable.
The instructions below take into account new legislation concerning product liability as well
as EU and international safety standards.
Exclusively advantage on your Multicooker Valentine:
Pan size GASTRONORM
GN 1/1
 You can use GN pans you already
have
Single-pressed deep pans
 Easy to clean
 Resistant to salt water
Revolve Heating element
 Easy to reach the bottom of the pan
 Easy to replace element and thermo-
stat
Multi-function
 Cook, blanch, poach
 Reheat, defrost
 Boil in the bag, steam, etc
Adjustable thermostat
from 40 to 105°
 Always at the right temperature for
pasta, vegetables, etc.
Important notes
Warnings
Before using your Multicooker, please make sure you observe the following :
 study and strictly follow the instructions given below
t
 notify personnel on how to use the Multicooker correctly and draw their attention
to inherent risks
t
Valentine Fabrique SA disclaims any liability for damage or injury caused by incorrect
use of the Multicooker and failure to comply with the operating instructions.
Inherent risks
 The hot water contained in the pan and steam can cause seri-
ous burns
Avoid all direct contact with the body
 Lift the back of the lid first to allow steam to escape
 Do not touch the hot unit until the equipment emptied and has
cooled down
Periodic checks
 Check the unit for correct operation and electrical insulation at least once a year

Date de création: 11.04.07 Edition 06.01.2017
Date de modif 15.07.2015 MM Version A
Fichier VMC-3-ENC_E_A déf.doc
Fabrique SA
Doc. No.: VMC-3-ENC_E
Page No.: 4 / 13
Technical specifications
Model
VMC-3
VMC-3 Turbo
Voltages
V
3N400
3N230
1N240
3N400
Rating
KW
6.6
6.6
7.2
10
Connection
A
9.5
28.7
30
14.45
Frequency
Hz
50/60
Capacity in litres
L
35-40
Principal switch
1
Service thermostat 40-105°C
1
Safety thermostat
1
Protection factor
IP X4
Pan
510 / 308 / 310
Ball drain valve
G¾ ‘’
Installation
Important precautions for installation
 The purchaser must have the Multicooker installed at his own cost by an approved dealer
in accordance with local regulations.
 The voltage, frequency and current should comply with the information given on the rating
plate on the Multicooker.
 The Multicooker should in any case be connected to safety earth by the mains lead. The
Multicooker is supplied with a mains cable 1,9 m in length.
 Conductor colours:
Earth : yellow / green Neutral : blue
 Before connecting up, set switch [2] to « 0 ».
 Never switch the Multicooker on without water, otherwise the elements can be damaged.
 Before switching on, make sure there is water in the pan at least up to the "MIN" level
mark. Do not fill past the "MAX" mark to prevent overflow.
Connection of drainage tube
The drain tube size is G3/4" [2]
Connector : nipple G3/4" x 60mm
Ways of draining
Container : under the tap
Connection with the waste system according to current regulations
Pipe with connection G3/4"
Flexible pipe Ø25 mm and clamp
In the even of connection with the flow use the overflow pipe [15] in the inside of the
pan to maintain a constant level.
After Sales intervention
The box protecting [17] the connector block of the heating element must always remain in
place.

Date de création: 11.04.07 Edition 06.01.2017
Date de modif 15.07.2015 MM Version A
Fichier VMC-3-ENC_E_A déf.doc
Fabrique SA
Doc. No.: VMC-3-ENC_E
Page No.: 5 / 13
Description of the appliance
Principal dimensions
Pan
Edge of the pan folded downwards
external dimensions 349 x 561 mm.
Build in
Opening in the work plan edge upwards
external dimensions 344 x 556 mm.

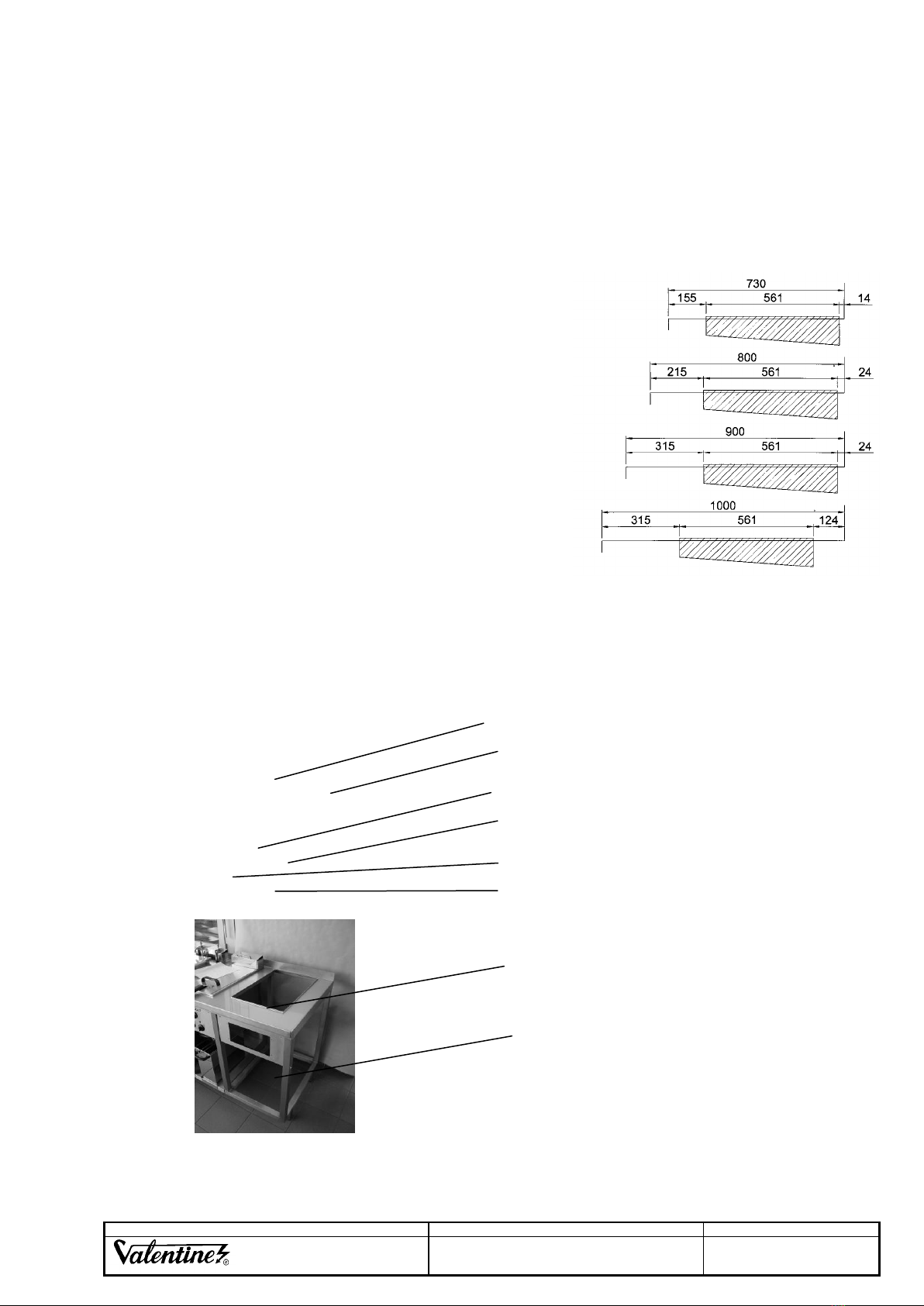

Location of the working plan
In the depth direction : (see drawing )
In the front, minimum 155 mm to place the case of
command delivered.
In the back, minimum 14 mm for the cleaning.
Attention Depth minimum for the working plan 730 due to
connection box.
Depth minimum 730 ex.155 + 561 + 14 mm
Depth 800 ex.215 + 561 + 24 mm
900 ex.315 + 561 + 24 mm
1000 ex.315 + 561 + 124 mm
Fixing of the pan:
Stick with a joint (Silicon, Sicaflex) between the plate and the edge of the pan
Description of the elements
Build in material
[20] Removable control box
[10] Pan
[17] Protection block of the heating element
[7] Tap drain ¾'
[26] Sheath connection
[14] Mains cable
Layout of the working plan
● Working plan with cut out and raised edge
● Cut out panel for fixing the case
See drawing page 7

Date de création: 11.04.07 Edition 06.01.2017
Date de modif 15.07.2015 MM Version A
Fichier VMC-3-ENC_E_A déf.doc
Fabrique SA
Doc. No.: VMC-3-ENC_E
Page No.: 6 / 13
Equipment of the case of command
[2] Switch 2 position 0-1
[3] Security thermostat
[8] Main thermostat 40-105°
[2a / 8a / 3a] Pilot lamp
Functions description
[2] Main switch Function On / Off
[2a] Neutral lamp Illuminated The multicooker is on
[8] Main thermostat Temperature adjustment of the water in the pan between
40° to 105°C
[8a] Orange lamp Illuminated The Multicooker is in the process of heating
Off The Multicooker has gained set temperature
[3] Safety thermostat Activates in case of overheating
[3a] Red lamp Off Normal function
On Hi limit thermostat has activated
NOTE
If the problem persist see
page 7
To reset the safety thermostat [3]
 Switch off the main switch [2]
 Let the heating element cool down [5]
 Push the red button [3]
 Switch the unit back on [2]
 The red lamp [3a] should go out
Positioning of control box:
You can cut out a window in your panel and pull the case from behind against your panel
or fit the control equipment to your own panel. Make sure container is waterproof.
Accessories for the pan
The Multicooker VMC-3 is delivered without accessories
According to use, please order the accessories according to our price list

Date de création: 11.04.07 Edition 06.01.2017
Date de modif 15.07.2015 MM Version A
Fichier VMC-3-ENC_E_A déf.doc
Fabrique SA
Doc. No.: VMC-3-ENC_E
Page No.: 7 / 13
Identification of the principal elements
Rep.
Description
Rep.
Description
Rep.
Description
2
Switch
8
Thermostat 40-105°C
20
Control board
2a
Neutral lamp
8a
Orange lamp
22
Element connection
3
Security thermostat
9
Heating element protection
23
Microswitch heating element
3a
Red lamp
10
Pan depth 310
24
Contactor
4
Hook for turning heating
12
Threaded tube
25
Water tap (option)
5
Heating element (working)
14
Connecting lead
5a
Heating element (cleaning)
15
Overflow pipe
6
Rating plate
17
Protection connection
7
Drainage valve G3/4" closed
7a
Drainage valve G3/4" open

Date de création: 11.04.07 Edition 06.01.2017
Date de modif 15.07.2015 MM Version A
Fichier VMC-3-ENC_E_A déf.doc
Fabrique SA
Doc. No.: VMC-3-ENC_E
Page No.: 8 / 13
Instruction for use
Filling with water
Fill the pan with water to correct level for cooking application:
 Never throw a handful of salt in the bottom of the pan. A high concentration of salt in
combination with chlorine can attack the special stainless steel pan.
 If you need salty water, sprinkle the salt into the boiling water.
To cook, reheat, poach and boil-in-the-
bag
 Up to "MAX" mark (approx.. 35 litres)
 For small quantities of food reduce volume of water
accordingly
To steam:
 Fill to "VAP" mark
 As soon as the level drops to the "MIN" mark, water
must be added to prevent damage to the heating el-
ements
To use as a bain-marie:
 Adapt level to depth and content of GN dishes. Nev-
er let level fall below "MIN"
Switching on, cooking
 Position 0 Unit Off
 Position 1 Unit On
The neutral lamp [2a] lights up
Turn the thermostat knob [8] to the re-
quired temperature between 40 and 105
oC
 The orange lamp [8a] lights up when the unit
starts heating.
 The orange lamp goes out when the tempera-
ture is reached.
Warning:
To cook pasta, the water should be
boiling fiercely. By turning the
thermostat to maximum, it will not
switch off

Before removing the pasta from the pan
when it is "al dente", reduce the thermo-
stat to 90°C for example
Emptying the pan
At the end of the evening or least once a day the pan should be emptied completely.
 Remove the bottom plate covering the heating element.
 To drain, open valve by turning the handle [7] downwards.
 Use the hook [4] to turn the heating element and put it in position shown in figure [5a].
 Clean the pan and the base thoroughly.
It is not advisable to leave water in the pan for days at a time.
Servicing the Multicooker, cleaning
Apart from thorough cleaning for hygienic reasons, the VMC-3 does not required any
maintenance. Avoid letting the unit overflow. Do not splash water on the electrical parts, and
clean the outside with a damp cloth only.
Do not damage the thermostat probe with sharp or pointed tools.

Date de création: 11.04.07 Edition 06.01.2017
Date de modif 15.07.2015 MM Version A
Fichier VMC-3-ENC_E_A déf.doc
Fabrique SA
Doc. No.: VMC-3-ENC_E
Page No.: 9 / 13
Troubleshooting
Simple faults
Faults
Probable cause
Solutions
Multicooker does not heat up
● No power
 Check fuses, plug and
socket carefully
The Multicooker does not heat up and the red
lamp is On
● The security thermostat has
activated
 See NOTE page 6 / 10
Multicooker does not get hot enough
● One phase missing in power
supply
 Check fuses
Clear pilot lamp does not come on or flashes
● Faulty bulb
● One phase missing in power
supply
 Change bulb
 Check fuses
Yellow pilot lamp does not come on or flash-
es
● Faulty bulb
 Change bulb
Complex faults
Faults
Probable cause
Solutions
Pilot lamps are on but the Multicooker does
not heat up
● Faulty heating element
 Call after-sales Service
Multicooker does not get hot enough
● Phase failure
● Faulty element
Fuses blow on switching on
● Short-circuit
The neutral lamp does not come on or flash-
es
● Faulty switch
The orange lamp does not come on or flash-
es
● Faulty thermostat

Date de création: 11.04.07 Edition 06.01.2017
Date de modif 15.07.2015 MM Version A
Fichier VMC-3-ENC_E_A déf.doc
Fabrique SA
Doc. No.: VMC-3-ENC_E
Page No.: 10 / 13
Spare parts
Only use original spare parts. When ordering spare parts, please quote the following in addition to the number
from the list below.
You will find this information
on the Multicooker
Description (LPGEN-01 \ LP-VMC-3)
VMC-3 Turbo
VMC-3
Voltages
3N400
3N230
1N240
3N400
Item No
Drwg code
Feature
Man’r
[2]
Switch ON / OFF
1
0718
S1
4 poles 25A
EGO
[2]
Switch ON / OFF
1
1
1
0719
S1
4 poles 10A
EGO
[8]
Work thermostat
1
1
1
1
3769-03
S2
Triphasé
EGO
[3]
Security thermostat
1
1
1
1
3761-04
S3
Triphasé
EGO
[23]
Microswitch
1
1
1
1
3772-57
S4
250V 16A
[2a]
Neutral lamp
1
1
1
1
6324
H1
230V
ISC
[8a]
Orange lamp
1
1
1
1
6325
H2
230V
ISC
[3a]
Red lamp
1
1
1
1
6327
H5
230V
ISC
[19]
Contactor
1
1
1
1
6282-11
K1
3x25A
Heating element
[5]
Heating element VMC-3 230 V 6.6kW
1
1
1
3772-30
R1, R2, R3
IRCA
Heating element VMC-3 230 V 10 kW
1
3773-30
R1, R2, R3
IRCA
Sundry
[18]
Button for thermostat. Switch
2
2
2
2
0712-02
EGO
[7]
Ball drainage valve
1
1
1
1
3782
G3/4"
Important: When calling the After Sales Service, please quote:
Type of Multicooker, serial number, voltage, current and rating
You will find this information on the rating plate.
You will save time and therefore additional costs.
You can fax us a copy of the page 13/13
type of Multicooker Type
serial number No
voltage, current and rating U, I, P

Date de création: 11.04.07 Edition 06.01.2017
Date de modif 15.07.2015 MM Version A
Fichier VMC-3-ENC_E_A déf.doc
Fabrique SA
Doc. No.: VMC-3-ENC_E
Page No.: 11 / 13
Wiring diagram VMC-3

Date de création: 11.04.07 Edition 06.01.2017
Date de modif 15.07.2015 MM Version A
Fichier VMC-3-ENC_E_A déf.doc
Fabrique SA
Doc. No.: VMC-3-ENC_E
Page No.: 12 / 13
Wiring diagram VMC-3 Turbo

Date de création: 11.04.07 Edition 06.01.2017
Date de modif 15.07.2015 MM Version A
Fichier VMC-3-ENC_E_A déf.doc
Fabrique SA
Doc. No.: VMC-3-ENC_E
Page No.: 13 / 13
After Sales Service
In the case of a fault or if you need spare parts for your unit
Complete and transmit this page to receive the best service.
Your details
Company Name
Address Telephone
Fax
email
Personal contact
Your Multi-
cooker
Type
Series N°
Voltages Connection Rating
What you
need?
Spare parts (see page 10) Troubleshooting (see page 9)
Our contact
Agent (see page 1)
