Thank you for choosing Valley Acrylic Products. This installation manual provides general information on the
installation of our products.
• Prior to installation, examine all boxes and packages for shipping damage and compare the piece count with your
packing slip. After opening all boxes and packages read this instruction carefully. Check that all of the needed parts are
included in the package by checking o the components on the “Detailed Diagram of Shower Enclosure Components”.
If the unit has been damage, has a nishing defect, or has missing parts, Please contact us for replacements within
3 business days. Please note that we will not replace any damage product or missing parts free of charge after 3
business days or if the product has been installed.
• Prior to installation, please ensure that the surface is level and solid and will be able to support the total weight of
the unit. Also make sure that the walls are plumb. Depending on the type of unit you are installing, some adjustments
in leveling may be possible. However, irregular installation surface level or out-of-square conditions can result in
serious problems for your installation. Please note that some adjustments and drilling may be necessary. Please
protect all primary surfaces of the product during installation.
• NOTE: This door is reversible for right or left-hand door installation. The right-hand door installation is shown as an
example throughout this manual. For left-hand door installation, simply begin on the opposite wall and reverse the
orientation of the steps shown.
BEFORE YOU BEGIN

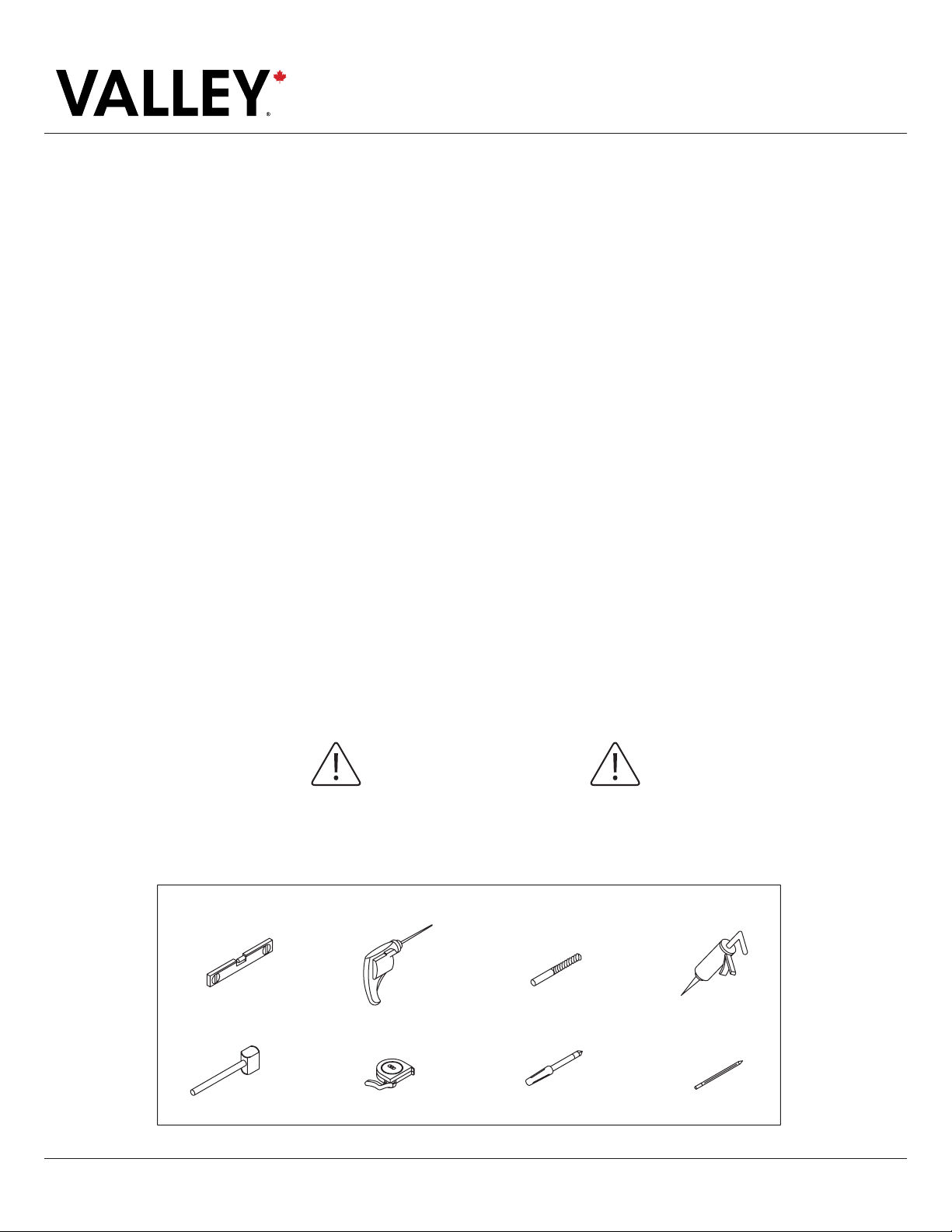

REQUIRED TOOLS
Level
Rubber Hammer
Cordless Drill
Tape Measure
1/4” Drill Bit
Phillips screwdriver
Silicone Gun
Pencil
ALL SHOWER DOORS NEED TO BE DRY-FITTED
BEFORE DRILLING ANY HOLE
IMPORTANT INFORMATION

website: www.valleyacrylic.com • E-mail: [email protected] • customer service call Toll Free: 1.877.398.8827 • Fax: [phone]
SD10A
SHOWER DOOR
INSTALLATION GUIDE
FOR TRIPLE THRESHOLD SHOWER BASES
3
FIXED
PANEL
SIDE FIXED
PANEL
SIDE FIXED
PANEL
DOOR
PANEL
A.
A A
BB
C
D
E
A
B.
E.
C.
D.
Guide Rail Brackets must be rmly attached to the wall. Installation into a stud is strongly
recommended. All of the guide rail bracket set screws must be tightened.
Thread Lock must be applied to both stopper set screws. Panel-side stopper must be installed
into the pre-drilled stopper hole in the upper guide rail. Door-side stopper must be installed at
the proper position to stop the door from contacting the wall.
The Guide Block must be installed square to the panel glass and door glass. Installing the guide
block crooked may damage the bottom edge of the door glass and lead to breakage.
Roller Wheel Safety Set Screws must be re-tightened after installation.
Bumper Vinyl Seal must be installed on the closing edge of the door glass.
IMPORTANT INFORMATION

website: www.valleyacrylic.com • E-mail: [email protected] • customer service call Toll Free: 1.877.398.8827 • Fax: [phone]
SD10A
SHOWER DOOR
INSTALLATION GUIDE
FOR TRIPLE THRESHOLD SHOWER BASES
4
01
02
Position the wall prole on threshold, set back
1/4” back from the front of the threshold base.
Ensure that the wall prole is level. Mark the
screw location & Mark the screw position.
2.1 Drill the screw holes on
each location over a stud
2.2 Insert the wall anchors
into place
2.3 Tighten the wall anchors
with a screwdriver
0.25” / 6mm
SIDE PANELS INSTALLATION

website: www.valleyacrylic.com • E-mail: [email protected] • customer service call Toll Free: 1.877.398.8827 • Fax: [phone]
SD10A
SHOWER DOOR
INSTALLATION GUIDE
FOR TRIPLE THRESHOLD SHOWER BASES
5
03
04
3.1 Drill the screw holes on
each location over a stud
3.2 Insert the screws to the
wall prole
3.3 With the screwdriver,
install the wall proles into
place
4.1 Thoughly clean the edges
of the side panel. Install the
U-Gaskets as shown
4.2 Place the side xed panel
onto the wall jam.

website: www.valleyacrylic.com • E-mail: [email protected] • customer service call Toll Free: 1.877.398.8827 • Fax: [phone]
SD10A
SHOWER DOOR
INSTALLATION GUIDE
FOR TRIPLE THRESHOLD SHOWER BASES
6
05
06
Position the wall prole on threshold, set back
1/4” back from the front of the threshold base.
Ensure that the wall prole is level. Mark the
screw location & Mark the screw position.
6.1 Drill the screw holes on
each location over a stud
6.2 Insert the wall anchors
into place
6.3 Tighten the wall anchors
with a screwdriver
0.25” / 6mm
SIDE PANELS INSTALLATION

website: www.valleyacrylic.com • E-mail: [email protected] • customer service call Toll Free: 1.877.398.8827 • Fax: [phone]
SD10A
SHOWER DOOR
INSTALLATION GUIDE
FOR TRIPLE THRESHOLD SHOWER BASES
7
07
08
7.1 Drill the screw holes on
each location over a stud
7.2 Insert the screws to the
wall prole
7.3 With the screwdriver,
install the wall proles into
place
8.1 Thoughly clean the edges
of the side panel. Install the
U-Gaskets as shown
8.2 Place the side xed panel
onto the wall jam.

website: www.valleyacrylic.com • E-mail: [email protected] • customer service call Toll Free: 1.877.398.8827 • Fax: [phone]
SD10A
SHOWER DOOR
INSTALLATION GUIDE
FOR TRIPLE THRESHOLD SHOWER BASES
8

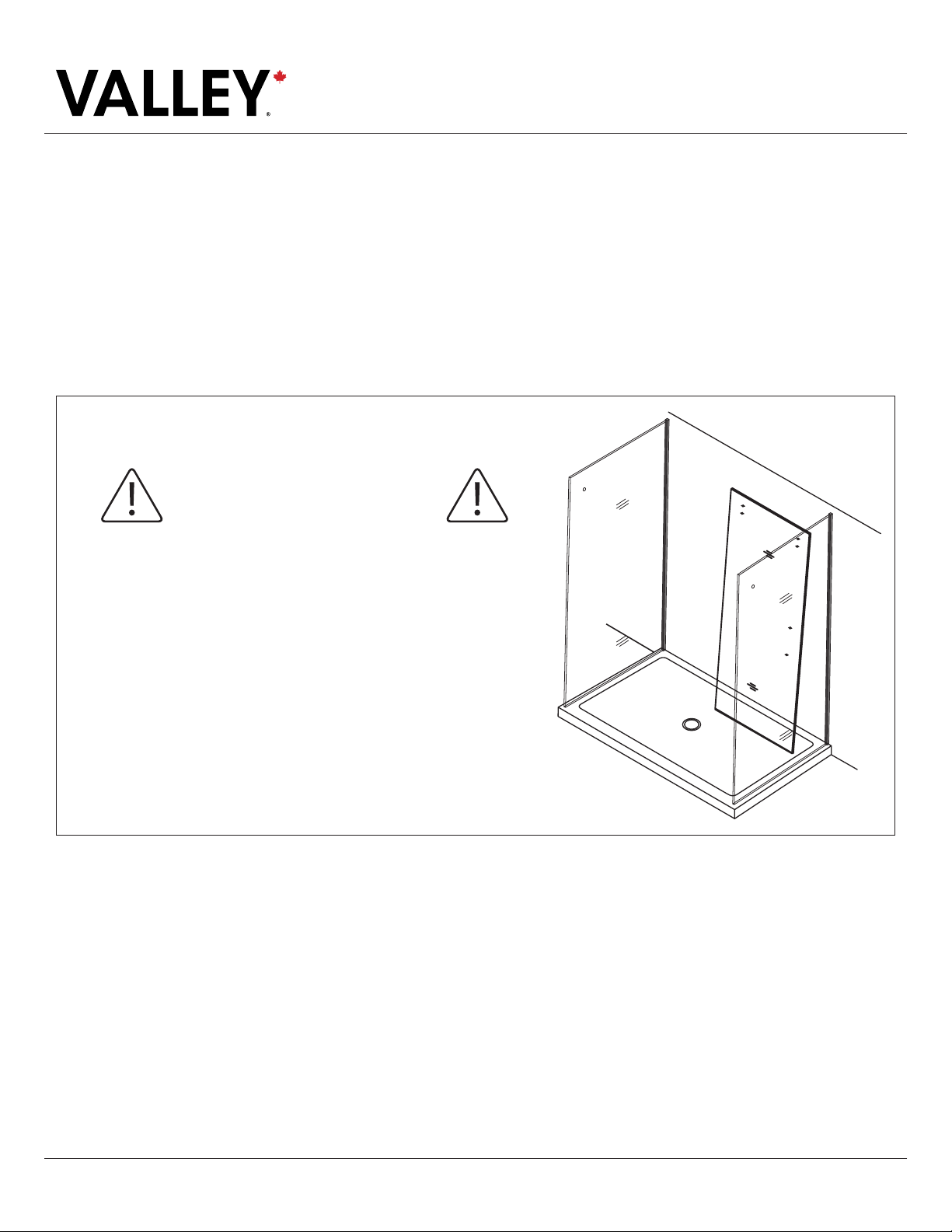

Place the sliding door panel inside the shower base to
simplify following installation procedures. Ensure placing
the panel onto a cushioned surface, such as a towel or
card board, to prevent damage either to the panel or the
shower base.
IMPORTANT INFORMATION

website: www.valleyacrylic.com • E-mail: [email protected] • customer service call Toll Free: 1.877.398.8827 • Fax: [phone]
SD10A
SHOWER DOOR
INSTALLATION GUIDE
FOR TRIPLE THRESHOLD SHOWER BASES
9
01

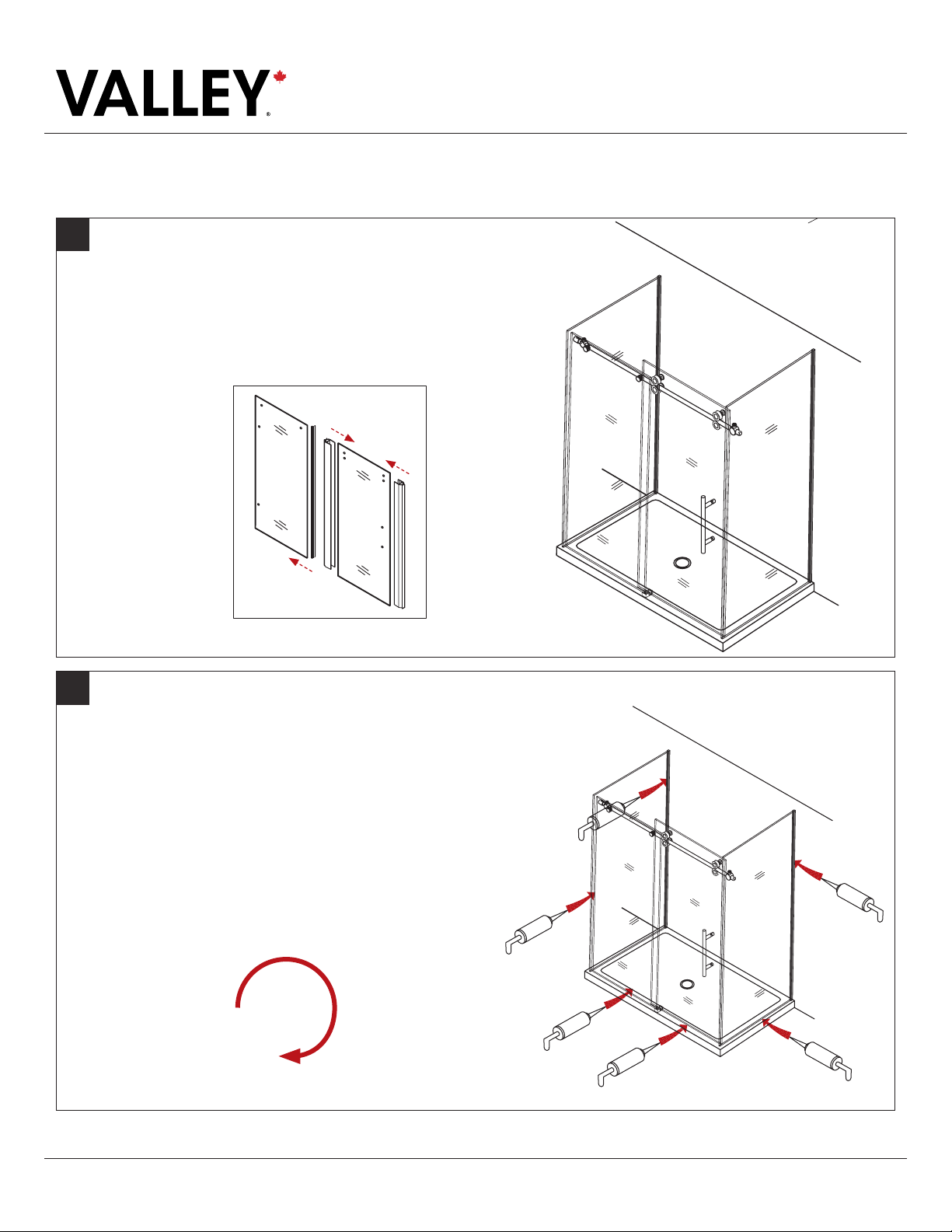

SHOWER DOOR INSTALLATION
02
Install the running rail
Fasten the running rail to the xed panel
with the glass holders.

website: www.valleyacrylic.com • E-mail: [email protected] • customer service call Toll Free: 1.877.398.8827 • Fax: [phone]
SD10A
SHOWER DOOR
INSTALLATION GUIDE
FOR TRIPLE THRESHOLD SHOWER BASES
10
Guide Block Installation
Assembly the Guide Block on the shower base threshold and
adjust into a precise position. Apply silicone to the bottom of the
Guide Block.
DO NOT SCREW THE BOTTOM STRIP TO THE THRESHOLD
03
04
Twin Roller Installation
Assemble the top Twin Rollers to the sliding panel
as shown.

website: www.valleyacrylic.com • E-mail: [email protected] • customer service call Toll Free: 1.877.398.8827 • Fax: [phone]
SD10A
SHOWER DOOR
INSTALLATION GUIDE
FOR TRIPLE THRESHOLD SHOWER BASES
11

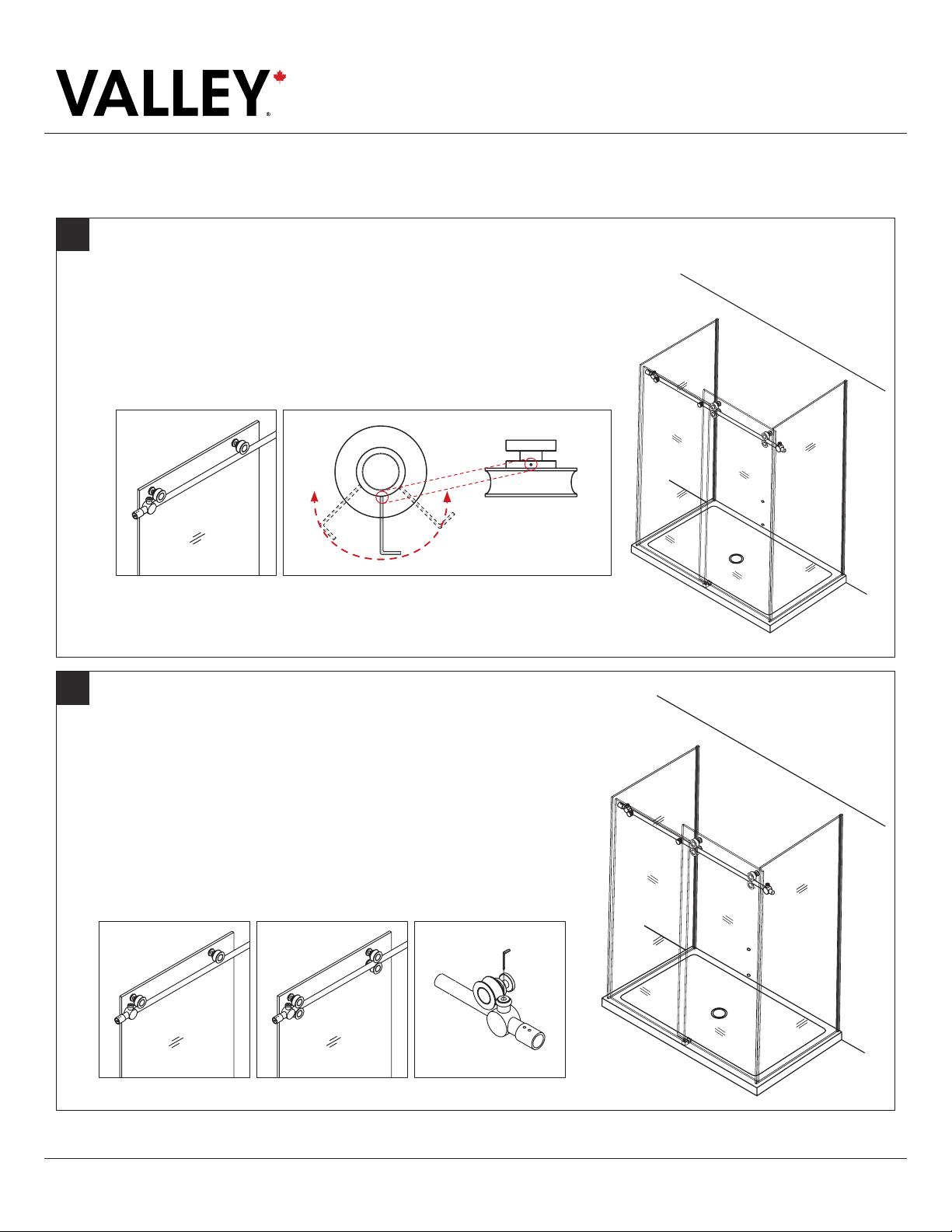

Install sliding door ensuring that the top rollers are xed over
the running rail. Ensure that sliding door is placed within the
Guide Block. Install bottom rollers, making sure that they are
tangent to the running rail. Adjust stoper closing door and
move the stopper on the position to stop the wheels moved,
then tighten with screws.
05
06
Place the allen key on the
adjustment outlet and adjust
accordingly as shown
A B
Install sliding door ensuring that the top rollers are installed
rst. Adjust the top rollers accordingly.
Fix the top rollers over the running rail. Ensure that sliding
door is placed within the Guide Block.

website: www.valleyacrylic.com • E-mail: [email protected] • customer service call Toll Free: 1.877.398.8827 • Fax: [phone]
SD10A
SHOWER DOOR
INSTALLATION GUIDE
FOR TRIPLE THRESHOLD SHOWER BASES
12
Handle Installation.
Make sure to have a gasket in either side of the glass
door, to make sure the metal is not touching the
tempered glass.
07
08
SHOWER BASE
CLEAR
ANTI-SPLASH
THRESHOLD
Clear Anti-splash threshold installation.
• Remove the adhesive tape
• Make sure to clean the shower base threshold before placing
the anti-splash threshold.
• Place the anti-splash threshold into place

website: www.valleyacrylic.com • E-mail: [email protected] • customer service call Toll Free: 1.877.398.8827 • Fax: [phone]
SD10A
SHOWER DOOR
INSTALLATION GUIDE
FOR TRIPLE THRESHOLD SHOWER BASES
13
U-Gasket installation.
Thoughly clean the edges of the xed panel and the sliding
door panel. Install the Anti-water strip (F-shape) onto the
vertical edge of the xed panel and the U-Gaskets on the
sliding door panel.
Apply silicone between the bottom of the xed
panel and the threshold of the base. Silicone
application along the length of the threshold is
also suggested. In both cases, it is done from the
outside of the shower area.
09
10
PLEASE ALLOW 24 HOURS FOR THE SILICONE
TO FULLY CURE BEFORE USING THE SHOWER.
24
HRS

website: www.valleyacrylic.com • E-mail: [email protected] • customer service call Toll Free: 1.877.398.8827 • Fax: [phone]
SD10A
SHOWER DOOR
INSTALLATION GUIDE
FOR TRIPLE THRESHOLD SHOWER BASES
14
Congratulations! You are now a part of the Valley Acrylic family, and an owner of a great product!
