Thank you for choosing Valley Acrylic Products. This installation manual provides general information on the
installation of our products.
• Prior to installation, examine all boxes and packages for shipping damage and compare the piece count with your
packing slip. After opening all boxes and packages read this instruction carefully. Check that all of the needed parts are
included in the package by checking o the components on the “Detailed Diagram of Shower Enclosure Components”.
If the unit has been damage, has a nishing defect, or has missing parts, Please contact us for replacements within
3 business days. Please note that we will not replace any damage product or missing parts free of charge after 3
business days or if the product has been installed.
• Prior to installation, please ensure that the surface is level and solid and will be able to support the total weight of
the unit. Also make sure that the walls are plumb. Depending on the type of unit you are installing, some adjustments
in leveling may be possible. However, irregular installation surface level or out-of-square conditions can result in
serious problems for your installation. Please note that some adjustments and drilling may be necessary. Please
protect all primary surfaces of the product during installation.
• NOTE: This door is reversible for right or left-hand door installation. The right-hand door installation is shown as an
example throughout this manual. For left-hand door installation, simply begin on the opposite wall and reverse the
orientation of the steps shown.
BEFORE YOU BEGIN

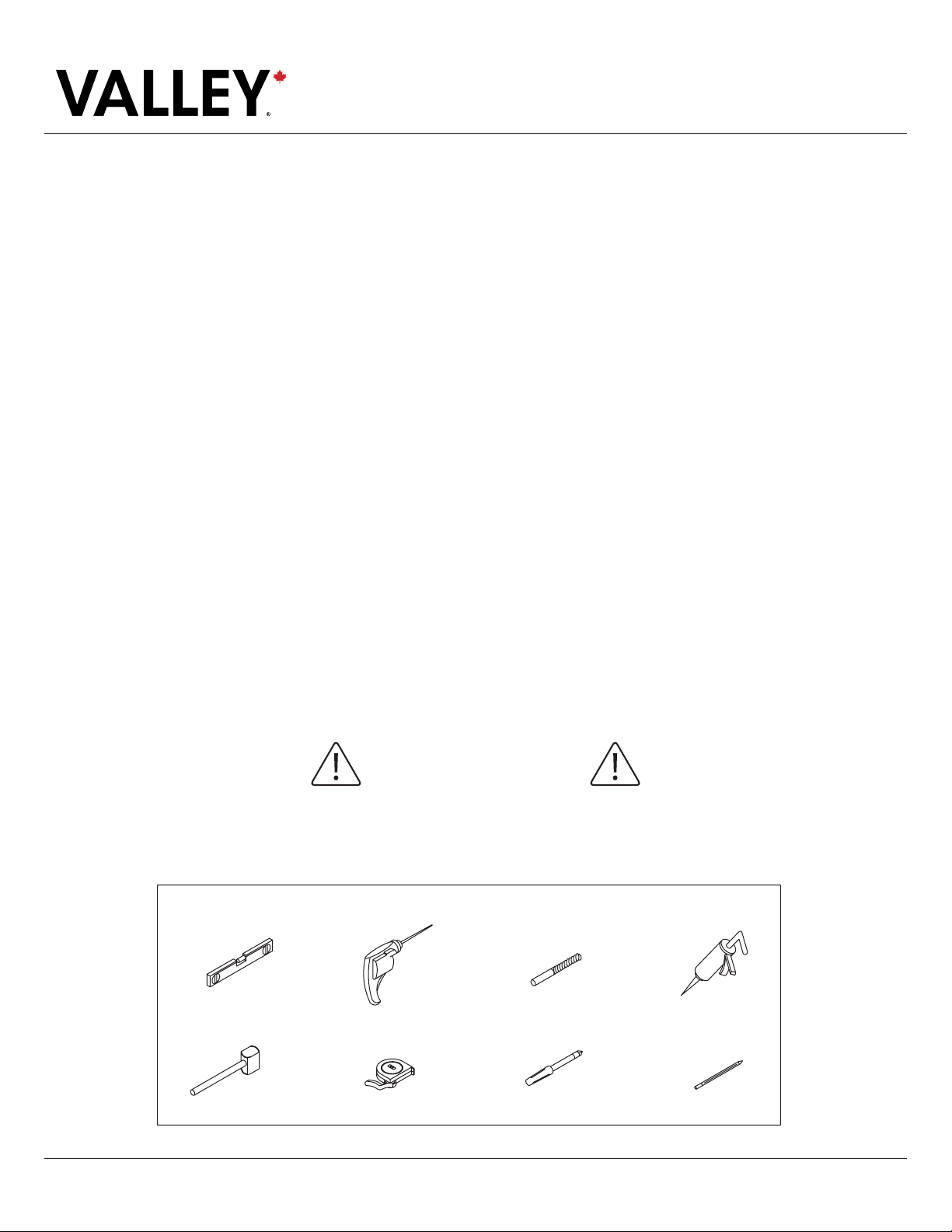

REQUIRED TOOLS
Level
Rubber Hammer
Cordless Drill
Tape Measure
1/4” Drill Bit
Phillips screwdriver
Silicone Gun
Pencil
ALL SHOWER DOORS NEED TO BE DRY-FITTED
BEFORE DRILLING ANY HOLE
IMPORTANT INFORMATION

website: www.valleyacrylic.com • E-mail: [email protected] • customer service call Toll Free: 1.877.398.8827 • Fax: [phone]
SD10A
SHOWER DOOR
INSTALLATION GUIDE
3

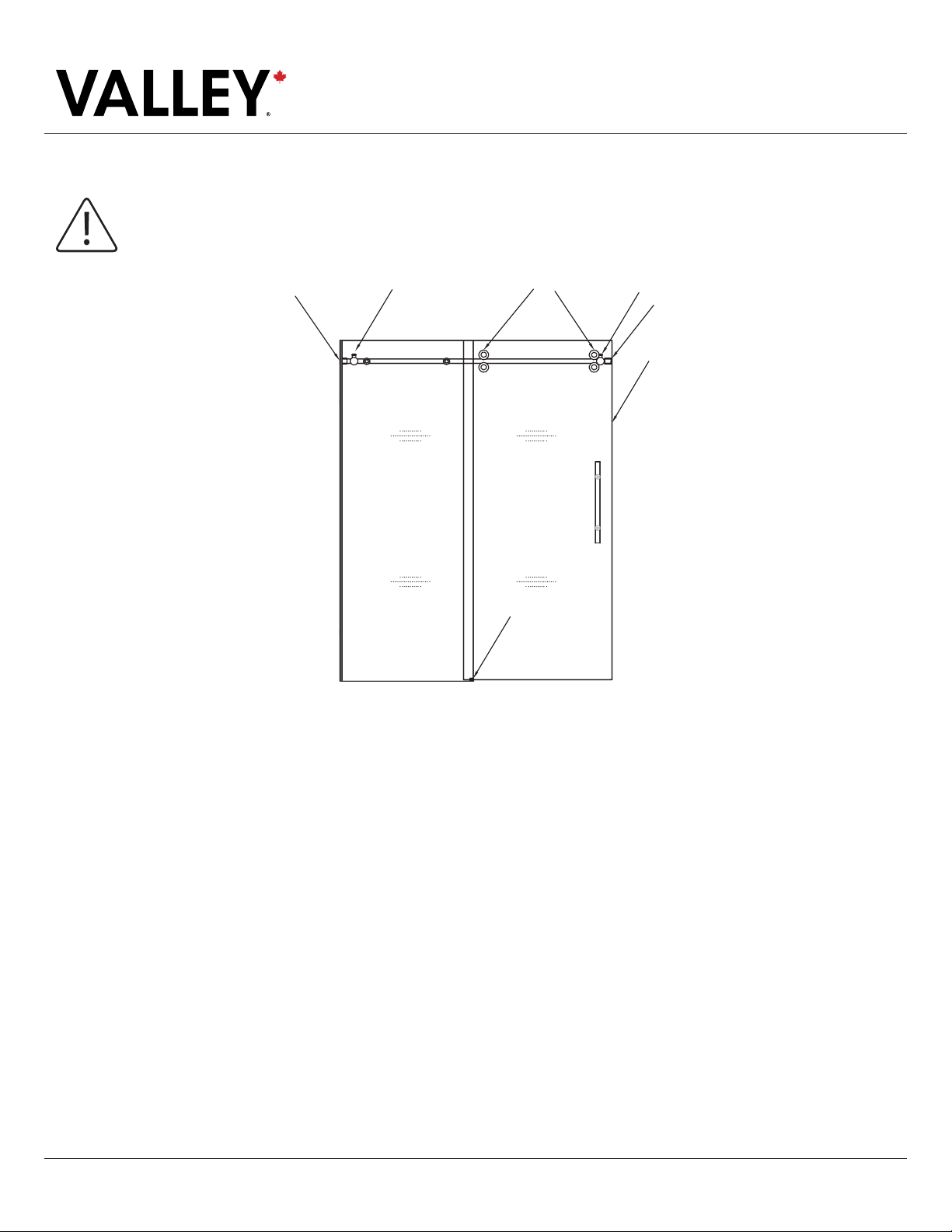

PANEL DOOR
A.
ABB
C
D
E
A
B.
E.
C.
D.
Guide Rail Brackets must be rmly attached to the wall. Installation into a stud is strongly
recommended. All of the guide rail bracket set screws must be tightened.
Thread Lock must be applied to both stopper set screws. Panel-side stopper must be installed
into the pre-drilled stopper hole in the upper guide rail. Door-side stopper must be installed at
the proper position to stop the door from contacting the wall.
The Guide Block must be installed square to the panel glass and door glass. Installing the guide
block crooked may damage the bottom edge of the door glass and lead to breakage.
Roller Wheel Safety Set Screws must be re-tightened after installation.
Bumper Vinyl Seal must be installed on the closing edge of the door glass.
IMPORTANT INFORMATION

website: www.valleyacrylic.com • E-mail: [email protected] • customer service call Toll Free: 1.877.398.8827 • Fax: [phone]
SD10A
SHOWER DOOR
INSTALLATION GUIDE
4
01
02

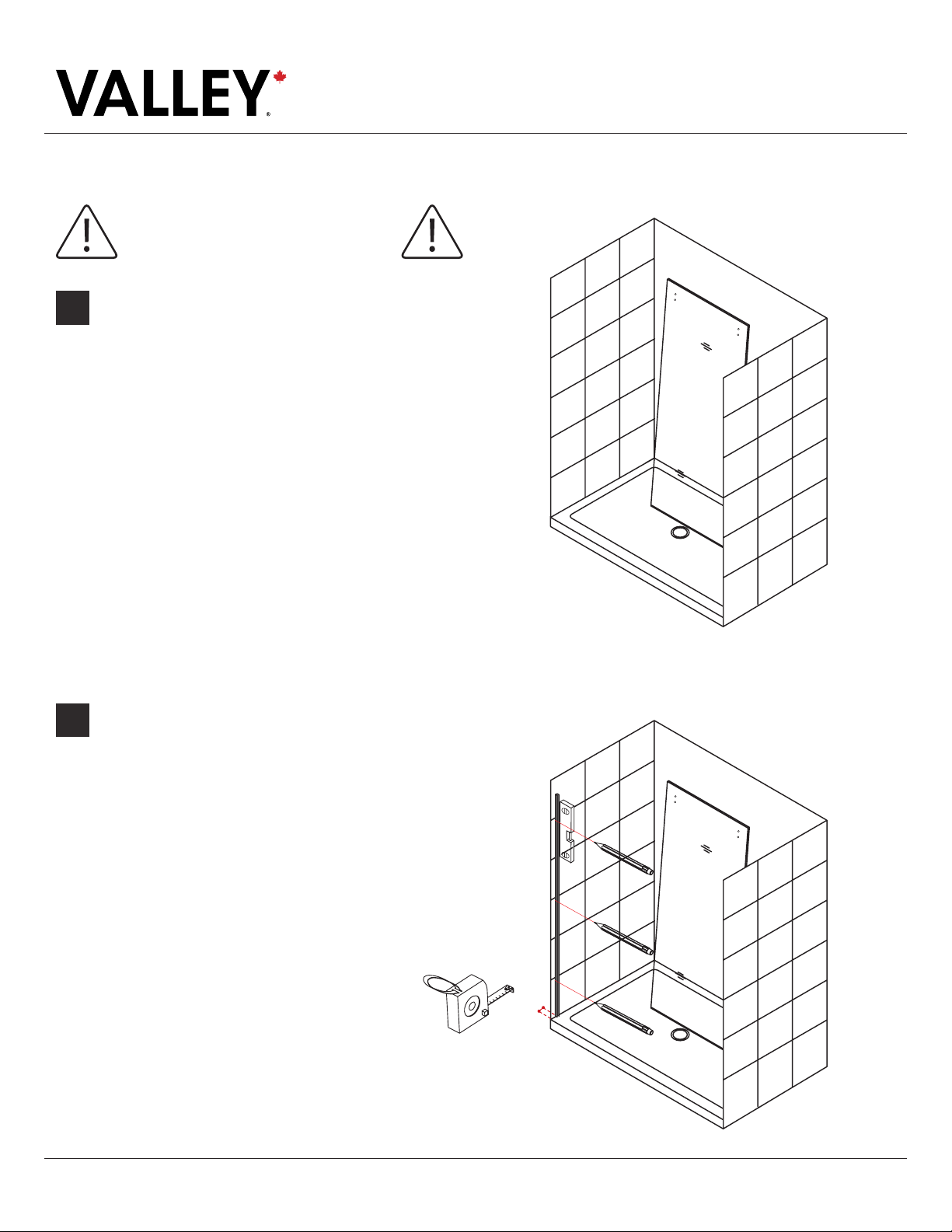

Place the sliding door panel inside the shower
base to simplify following installation procedures.
Ensure placing the panel onto a cushioned surface,
such as a towel or card board, to prevent damage
either to the panel or the shower base.
Position the wall prole on threshold, set back
1/4” back from the front of the threshold base.
Ensure that the wall prole is level. Mark the
screw location & Mark the screw position.
IMPORTANT INFORMATION
0.25” / 6mm

website: www.valleyacrylic.com • E-mail: [email protected] • customer service call Toll Free: 1.877.398.8827 • Fax: [phone]
SD10A
SHOWER DOOR
INSTALLATION GUIDE
5
03
04.A
04.B

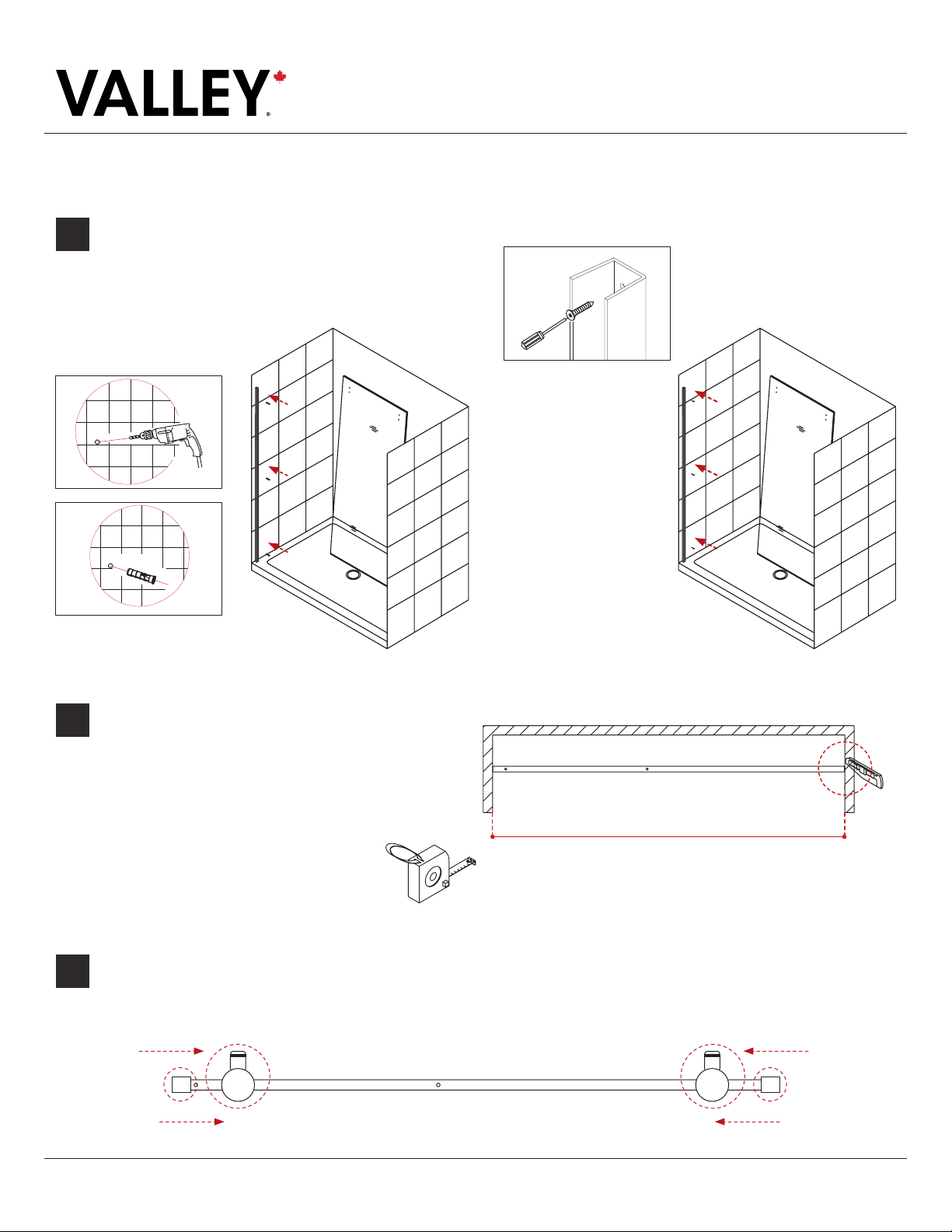

3.1 - Drill the screw holes on wall.
Tighten the wall anchor on wall.
3.2 - Install the wall prole into place.
Running Rail
Measure the distance from wall to wall.
The Running Rail needs to be cut a 1/2” shorter
of the overall opening. Make sure to cut on the
opposite side of the xed panel holes.
Position the stoppers and the wall brackets on the
running rail as illustrated. Secure them temporarily
in place
1/2” shorter
SAW

website: www.valleyacrylic.com • E-mail: [email protected] • customer service call Toll Free: 1.877.398.8827 • Fax: [phone]
SD10A
SHOWER DOOR
INSTALLATION GUIDE
6
5
6
Fasten the running rail to the xed panel with the
glass holders.
6.1 Place the xed panel on the wall prole.
6.2 Mark the rail brackets screw location & position.
6.2
6.1

website: www.valleyacrylic.com • E-mail: [email protected] • customer service call Toll Free: 1.877.398.8827 • Fax: [phone]
SD10A
SHOWER DOOR
INSTALLATION GUIDE
7
7
8

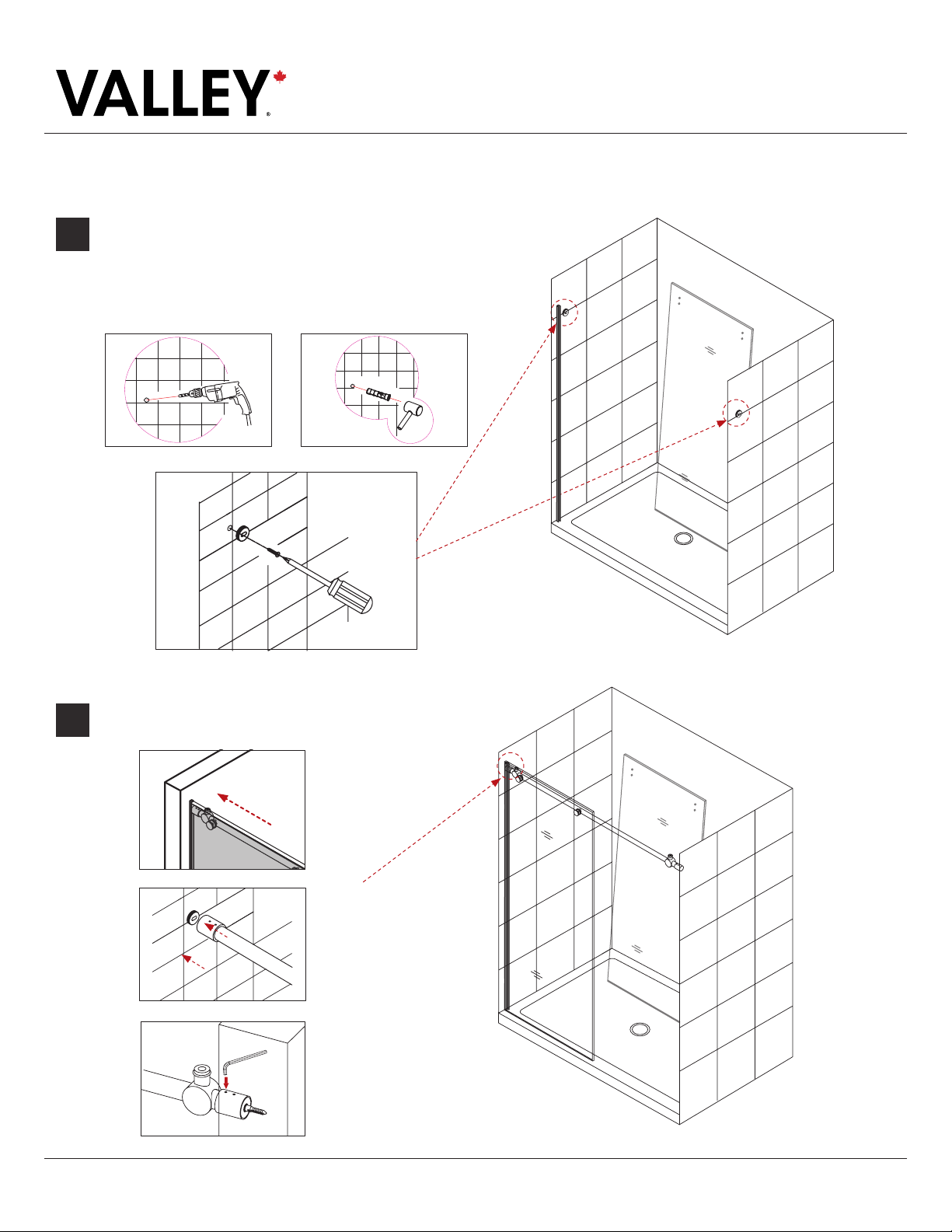

Remove the xed panel. Drill the screw holes.
Tighten the wall anchor.
Install wall bracket sleeves on both sides.
Install the xed panel into place.

website: www.valleyacrylic.com • E-mail: [email protected] • customer service call Toll Free: 1.877.398.8827 • Fax: [phone]
SD10A
SHOWER DOOR
INSTALLATION GUIDE
8
9
10
Guide Block Installation
Assembly the Guide Block on the shower base
threshold and adjust into a precise position. Apply
silicone to the bottom of the Guide Block.
Twin Roller Installation
Assemble the top Twin Rollers to the sliding panel
as shown.

website: www.valleyacrylic.com • E-mail: [email protected] • customer service call Toll Free: 1.877.398.8827 • Fax: [phone]
SD10A
SHOWER DOOR
INSTALLATION GUIDE
9

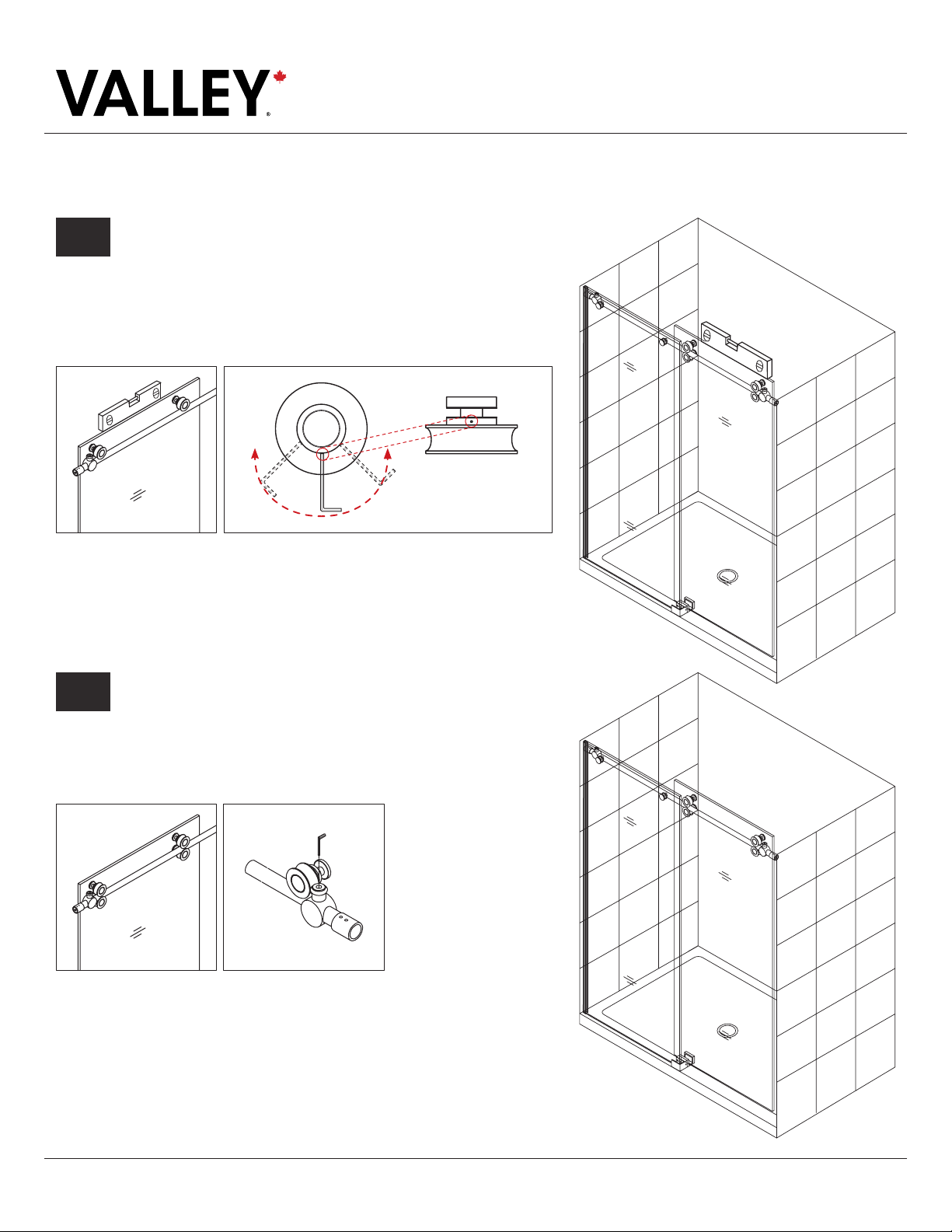

11.1 Install sliding door ensuring that the top rollers are installed
rst. Adjust the top rollers accordingly.
Fix the top rollers over the running rail. Ensure that sliding
door is level and placed within the Guide Block.
Place the allen key on the
adjustment outlet and adjust
accordingly as shown
11.2 Install bottom rollers, making sure that they are
tangent to the running rail. Adjust stoper closing
door and move the stopper on the position to stop
the wheels moved, then tighten with screws.
AB

website: www.valleyacrylic.com • E-mail: [email protected] • customer service call Toll Free: 1.877.398.8827 • Fax: [phone]
SD10A
SHOWER DOOR
INSTALLATION GUIDE
10
SHOWER BASE
CLEAR
ANTI-SPLASH
THRESHOLD
13 Clear Anti-splash threshold installation.
• Remove the adhesive tape
• Make sure to clean the shower base threshold before placing
the anti-splash threshold.
• Place the anti-splash threshold into place
12 Handle Installation.
Make sure to have a gasket in either side of the
glass door, to make sure the metal is not touching
the tempered glass.

website: www.valleyacrylic.com • E-mail: [email protected] • customer service call Toll Free: 1.877.398.8827 • Fax: [phone]
SD10A
SHOWER DOOR
INSTALLATION GUIDE
11

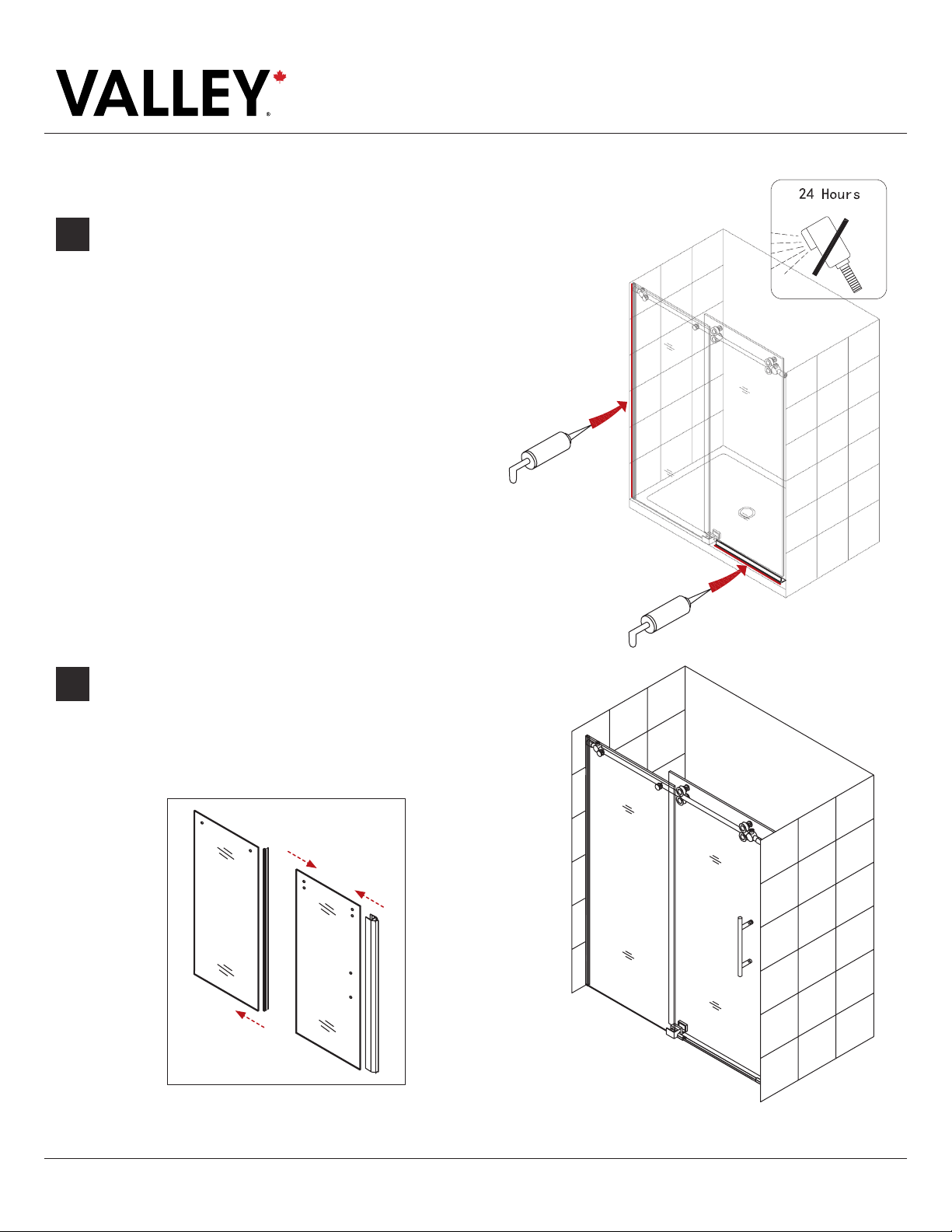

14 Apply silicone as shown. Silicone application along
the length of the threshold is also suggested.
In both cases, it is done from the outside of the
shower area.
PLEASE ALLOW 24 HOURS FOR THE SILICONE
TO FULLY CURE BEFORE USING THE SHOWER.
15 U-Gasket installation.
Thoughly clean the edges of the xed panel and
the sliding door panel. Install the Anti-water strip
(F-shape) onto the vertical edge of the xed panel
and the U-Gaskets on the sliding door panel.

website: www.valleyacrylic.com • E-mail: [email protected] • customer service call Toll Free: 1.877.398.8827 • Fax: [phone]
SD10A
SHOWER DOOR
INSTALLATION GUIDE
12
Congratulations! You are now a part of the Valley Acrylic family, and an owner of a great product!
