Valor Fires Artura 958 Instruction Manual

5131886/01
© Baxi Heating U.K. Limited 2008.
Model 958
INSET LIVE FUEL EFFECT GAS FIRE
Fitted with one of the following fascia.
Aspect Glass, Fascination,
Landscape, Serenity,
Tranquility or Visia
(GC No. 32-032-89)
INSTALLER: Please leave this guide with the owner
INSTALLATION AND OWNER GUIDE
We trust that this guide gives
sufficient details to enable this
appliance to be installed and
maintained satisfactorily. However, if
further information is required, our
Valor Fires Technical Helpline will
be pleased to help.
Telephone [phone] (National
call rates apply in the United
Kingdom).
In the Republic of Ireland
Telephone [phone].

© Baxi Heating U.K. Limited 2008.
All rights reserved. No part of this publication may be reproduced in any material form
(including photocopying), stored in any medium by electronic means (including in any
retrieval system or database) or transmitted, in any form or by any means, whether
electronic, mechanical, recording or otherwise, without the prior written permission of
the copyright owner.
Applications for the copyright owner's permission to reproduce any part of this
publication should be made, giving details of the proposed use, to the following
address: The Company Secretary, Baxi Heating UK Limited, The Wyvern Business
Park, Stanier Way, Derby, DE21 6BF.
Warning: Any person who does any unauthorised act in relation to a copyright work
may be liable to criminal prosecution and civil claims for damages.
Valor Fires, Erdington, Birmingham B24 9QP
www.firesandstoves.co.uk
Because our policy is one of constant development and improvement, details may vary slightly from
those given in this publication
Page 2
© Baxi Heating U.K. Limited 2008.
THIS APPLIANCE IS FOR USE WITH NATURAL GAS (G20).
WHEN CONVERTED USING CONVERSION KIT NUMBER 05754M1 THE
‘FASCINATION’ MODEL IS FOR USE WITH PROPANE GAS (G31).
THIS APPLIANCE IS SUITABLE ONLY FOR INSTALLATION IN THE UNITED
KINGDOM (GB) AND THE REPUBLIC OF IRELAND (IE).

Safety First.
Valor Fires fires are CE Approved and designed to meet the appropriate British
Standards and Safety Marks.
Quality and Excellence.
All Valor Fires fires are manufactured to the highest standards of quality and
excellence and are manufactured under a BS EN ISO 9001 quality system accepted
by the British Standards Institute.
The Highest Standards
Valor Fires is a member of SBGI and HHIC (Heating and Hot water Industry Council)
that work to ensure high standards of safety, quality and performance.
Careful Installation
Valor Fires is a CORGI registered company. All our gas fires must be installed by a
competent CORGI Registered Installer in accordance with our Installer Guide and
should not be fitted directly on to a carpet or floor of combustible material.
Page 3
© Baxi Heating U.K. Limited 2008.

Page 4
© Baxi Heating U.K. Limited 2008.
INSTALLER GUIDE
INSTALLER GUIDE
FOR OWNER GUIDE SEE PAGES 41 TO 55

CONTENTS
Section Heading Page
INSTALLER GUIDE 4 - 40
OWNER GUIDE 41 - 55
1. SAFETY 6
2. ACCESSORY LIST 6
3. APPLIANCE DATA 7
4. GENERAL INSTALLATION REQUIREMENTS 9
5. PACK CONTENTS 16
6. FIREPLACE CHECK 18
7. IGNITION CHECK 20
8. GAS SUPPLY CONNECTION 20
9. PREPARING APPLIANCE FOR INSTALLATION 21
10. HOTBOX INSTALLATION 23
10.1 Method 1 - Front fixing to fireplace surround. 23
10.2 Method 2 - Cable retention and floor fixing. 24
10.3 Sealing floor front - all installations. 26
11. BURNER & SUPPLY PIPE INSTALLATION 26
12. FITTING THE CERAMIC FUEL EFFECT 28
13. FULL OPERATING CHECKS 28
13.1 Check the control settings. 28
13.1.1 Lighting the burner. 28
13.1.2 Operating the burner. 29
13.2 Check for spillage. 29
13.3 Flame supervision and spillage monitoring system. 30
14. FASCIA INSTALLATION 30
15. FINAL REVIEW 34
16. SERVICING & PARTS REPLACEMENT 35
16.1 To remove the fascia. 36
16.2 To remove the burner unit. 37
16.3 To remove the pilot unit. 38
16.4 To remove the gas valve. 38
16.5 To remove the piezo generator. 39
16.6 To grease the control tap. 39
16.7 To replace the burner. 39
16.8 To remove the main burner injector. 40
16.9 To remove the appliance from the fireplace. 40
Page 5
© Baxi Heating U.K. Limited 2008.
INSTALLER GUIDE

1. SAFETY
Installer
Before continuing any further with the installation of this appliance please read the
following guide to manual handling:
 The approximate lifting weight (kg) of this appliance is as below:
Model Heat Engine Fascia Total
Aspect Glass 7.21 5.75 12.96
Fascination 7.21 8.79 16.0
Landscape 7.21 6.89 14.1
Serenity 7.21 7.76 14.97
Tranquility 7.21 3.79 11.0
Visia 7.21 6.11 13.32
 One person should be sufficient to lift the fire. If for any reason this weight is
considered too heavy then obtain assistance.
 When lifting always keep your back straight. Bend your legs and not your back.
 Avoid twisting at the waist. It is better to reposition your feet.
 Avoid upper body/top heavy bending. Do not lean forward or sideways whilst
handling the fire.
 Always grip with the palm of the hand. Do not use the tips of fingers for support.
 Always keep the fire as close to the body as possible. This will minimise the
cantilever action.
 Use gloves to provide additional grip.
 Always use assistance if required.
2. ACCESSORY LIST
The following accessories are available: -
Description Part Number
Pre cast and clay flue block spacer kit 05654K1
LPG conversion kit for ‘Fascination’ model only 05754M1
Page 6
© Baxi Heating U.K. Limited 2008.
INSTALLER GUIDE

3. APPLIANCE DATA
* When converted using conversion kit number 05754M1.
The appliance information label is located on a plate at the base of the fire. This can
be seen by lowering the bottom front cover of the fascia.
Page 7
© Baxi Heating U.K. Limited 2008.
INSTALLER GUIDE
Gas Natural (G20) Propane (G31)*
Inlet Pressure 20mbar 37mbar
Landscape, Serenity and
Visia - Input Max. (Gross) 5.1kW (17,401 Btu/h) Not available
Landscape, Serenity and
Visia - Input Min. (Gross) 3.2kW (10,918 Btu/h) Not available
Aspect Glass and Tranquility
Input Max. (Gross) 5.2kW (17,742 Btu/h) Not available
Aspect Glass and Tranquility
Input Min. (Gross) 3.3kW (11,256 Btu/h) Not available
Fascination - Input Max.
(Gross) 5.5kW (18,766 Btu/h) 5.0kW (17,060 Btu/h)
Fascination - Input - Min.
(Gross) 3.3kW (11,256 Btu/h) 4.6kW (15,695 Btu/h)
Inlet Test Pressure (Cold) 20.0 ± 1.0mbar (8.0 ± 0.4in
w.g.)
37.0 ± 1.0mbar (14.85 ±
0.4in w.g.)
Gas Connection 8mm pipe 8mm pipe
Burner Injector Cat. 82 Size 065 Size 110
Pilot & Atmosphere
Sensing Device
Copreci Ref. O.D.S
21500/166
Copreci Ref. O.D.S
21500/166 Fitted with
RBM 180 - 02 injector
Ignition Integral piezo (Mounted on
gas valve)
Integral piezo (Mounted
on gas valve)
Aeration Non-adjustable Non-adjustable

The efficiency of this appliance has been measured as specified in BS 7977 - 1 and
the result is as below :
Model Efficiency % (Gross)
Landscape, Serenity and Visia. 51
Aspect Glass, Tranquility and Fascination. 45
Fascination when converted to LPG. 46
The gross calorific value of the fuel has been used for this efficiency calculation. The
test data from which it has been calculated has been certified by Advantica
Certification services (0087). The efficiency value may be used in the UK
Government's Standard Assessment Procedure (SAP) for energy rating of dwellings.
The convertion of net efficiency to gross was achieved by multiplying the net
efficiency by the following conversion factor from Table E3 of SAP 2005, rounding
down to the nearest whole number.
This product uses fuel effect pieces containing Refractory Ceramic Fibres
(RCF), which are man-made vitreous silicate fibres. Excessive exposure to
these materials may cause irritation to eyes, skin and respiratory tract.
Consequently, it is important to take care when handling these articles to
ensure that the release of dust is kept to a minimum. To ensure that the release
of fibres from these RCF articles is kept to a minimum, during installation and
servicing we recommend that you use a HEPA filtered vacuum to remove any
dust and soot accumulated in and around the fire before and after working on
the fire. When replacing these articles we recommend that the replaced items
are not broken up, but are sealed within a heavy duty polythene bag, clearly
labelled as RCF waste. RCF waste is classed as a stable, non-reactive
hazardous waste and may be disposed at a landfill licensed to accept such
waste. Protective clothing is not required when handling these articles, but we
recommend you follow the normal hygiene rules of not smoking, eating or
drinking in the work area and always wash your hands before eating or
drinking.
This appliance does not contain any component manufactured from asbestos
or asbestos related products.
Page 8
© Baxi Heating U.K. Limited 2008.
INSTALLER GUIDE
Gas Conversion factor from net to gross efficiency
Natural Gas 0.901
LPG 0.921

4. GENERAL INSTALLATION REQUIREMENTS
4.1 The installation must be in accordance with these instructions.
For the user’s protection, in the United Kingdom it is the law that all gas appliances
are installed by competent persons in accordance with the current edition of the Gas
Safety (Installation and Use) Regulations. Failure to install the appliance correctly
could lead to prosecution. CORGI requires its members to work to recognised
standards.
In the United Kingdom the installation must also be in accordance with:
All the relevant parts of local regulations.
All relevant codes of practice.
The relevant parts of the current editions of the following British Standards:-
BS EN 1856 Part 1 which replaces BS 715.
BS EN 1858 which replaces BS 1289 Part 1.
BS EN 1806 which replaces BS 1289 Part 2.
BS EN 1856 Part 1 which replaces BS 4543 Part 2.
BS 5440 Part 1.
BS 5440 Part 2.
BS 6461 Part 1.
BS 1251.
BS EN 1806.
BS 5871 Part 2.
BS 6891.
BS 8303.
In England and Wales, the current edition of the Building Regulations issued by the
Department of the Environment and the Welsh Office.
In Scotland, the current edition of the Building Standards (Scotland) Regulations
issued by the Scottish Executive.
In Northern Ireland, the current edition of the Building regulations (Northern Ireland)
issued by the Department of the Environment for Northern Ireland.
In the republic of Ireland the installation must also conform to the relevant parts of:
a) The current edition of IS 813 “Domestic gas installations”
b) All relevant national and local rules in force.
Where no specific instructions are given, reference should be made to the relevant
British Standard Code of Practice.
4.2 In the United Kingdom, as supplied, the appliance can be installed in the
following situations:

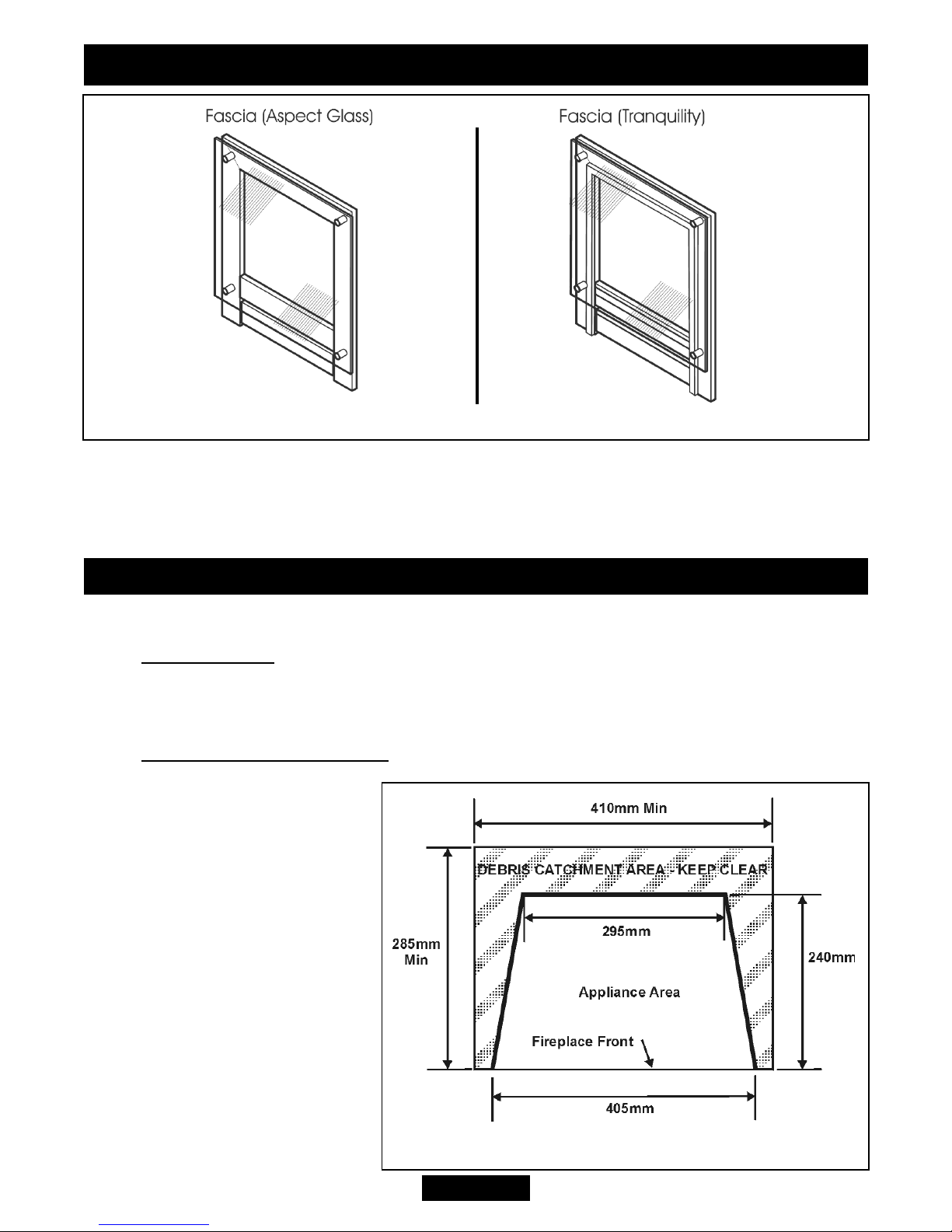

4.2.1 To a fireplace complete with surround and hearth as shown in figure 1 and
complying with BS1251 after removal of the fireback and sufficient material behind the
fireback for a debris catchment space. The required fireplace, hearth, debris
catchment area and clearance dimensions are shown in figure 1.
Page 9
© Baxi Heating U.K. Limited 2008.
INSTALLER GUIDE

4.2.1.1 ‘Hole-in-the-wall’ installations.
It is recommended that
a hearth should be
installed as in figure 1.
If a hearth is not fitted,
the fire must be
installed so that the
distance from the base
of the fireplace opening
in the wall to the
finished floor level is at
least 85mm. Where
there is no floor
covering or carpet and
the floor is of a type
that is likely to be
covered in such a way
in the future then the
distance from the base
of the fireplace opening
in the wall to the floor
level should be increased to at

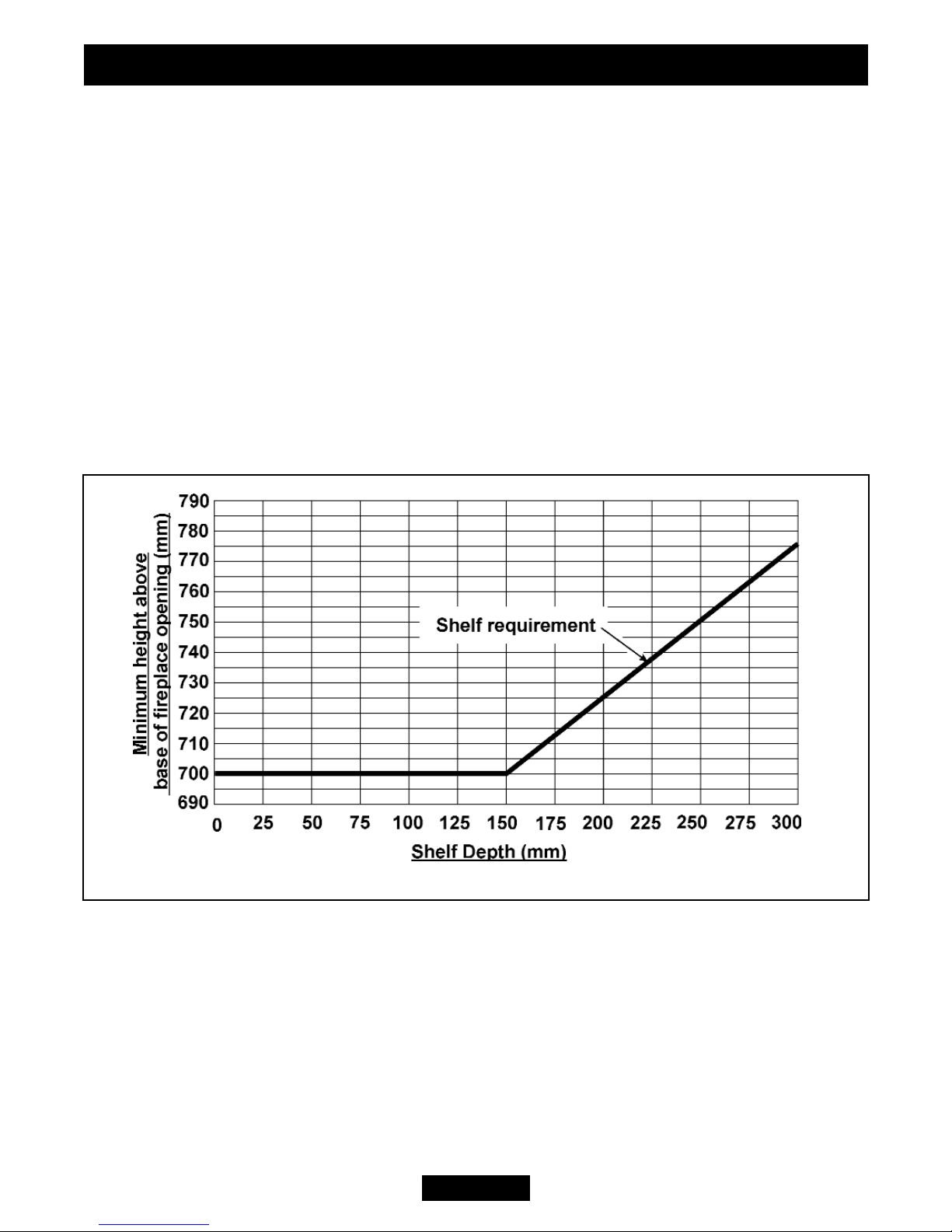

least 160mm. The minimum
shelf height will have to be
taken from the base of the
fireplace opening.
(All models except Fascination,
Tranquility and Aspect Glass
that are glass fronted
appliances).
To protect from the risk of
burns and ignition of clothing a
tactile separator shall be used.
The hearth detailed in section
4.9 meets the requirements for
a tactile separator. If this is not
used then a 672mm long
fender, kerb, horizontal bar, or
other barrier, being fixed not
less than 50mm above floor
level and positioned 300mm in front of the fixing plane of the fire will meet the
requirement.
Page 10
© Baxi Heating U.K. Limited 2008.
INSTALLER GUIDE

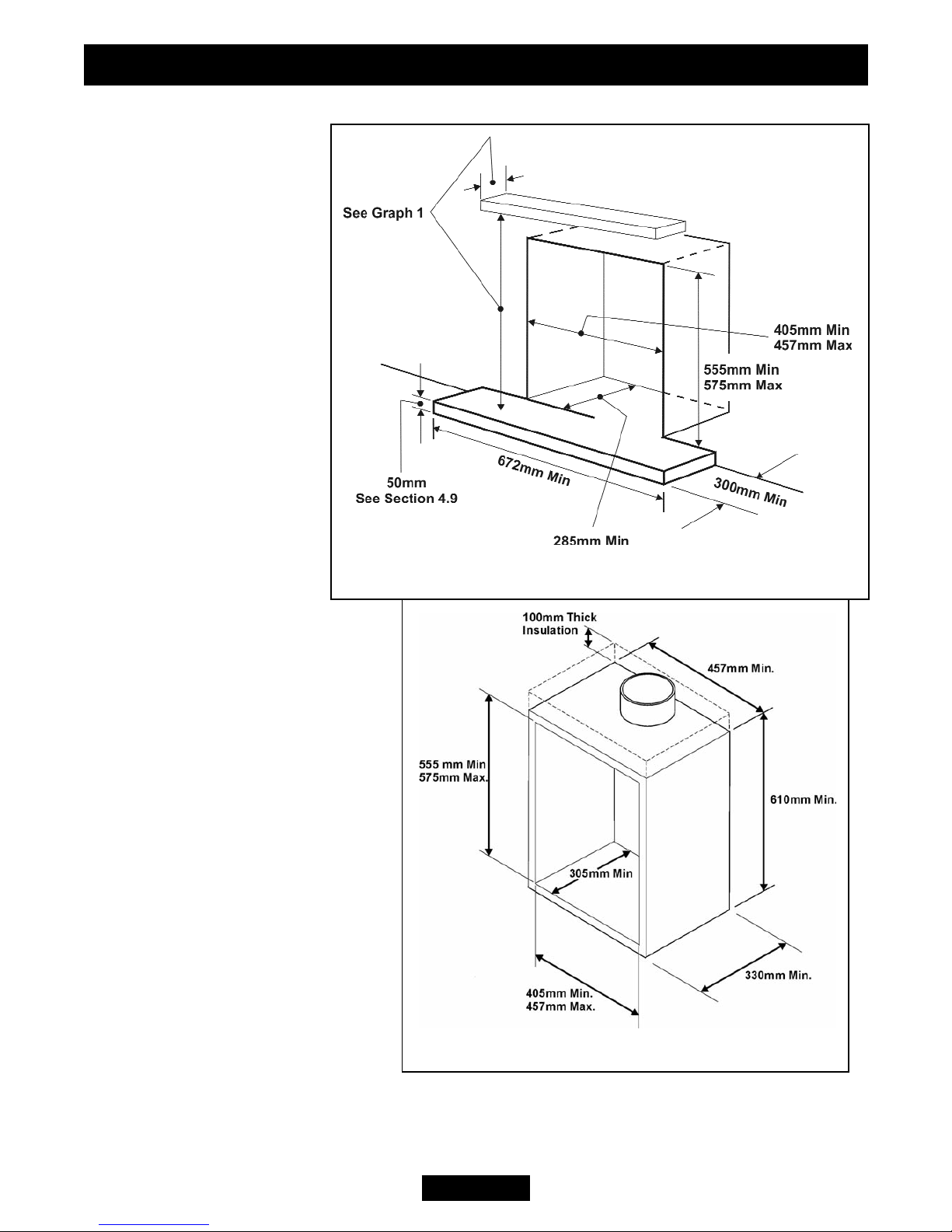

Figure 2. Metal flue box
Figure 1. Hearth and fireplace opening dimensions

4.2.2 To a fireplace incorporating a
metal flue box complying with the
constructional requirements of the
current edition of BS EN 1856 Part 1
or BS715. The dimensions of the flue
box must conform to those shown in
figure 2.
4.2.3 A precast concrete or clay flue
block system conforming to BS1289
or BS EN 1806 with dimensions as in
figure 3 or using a 05654K1 spacer
kit (Installation Instructions part
number 3003095). BS EN 1806 and
BS1289 recommend that there
should be an air space or insulation
between the flue blocks and the
plaster because heat transfer may
cause cracking on directly plastered
flues. However, generally this
appliance is suitable for installations
under all circumstances unless there
is a history of cracking problems.
Remember that faults such as
cracking may be caused by poorly
built and restrictive flues, e.g. mortar
extrusions, too many bends, flue
heights below three metres,
restrictive terminations etc (See
figure3).
4.2.4 If the fireplace opening is
greater than the acceptable
dimensions given in this guide, do not use the back of a fire surround or marble to
reduce the opening. This may cause cracking of the surround back or marble.
4.3 Suitable flues and minimum flue sizes are as follows: -
It should be noted that, as with many appliances, sharp bends or horizontal runs in
metal flues at the top of the system can be a cause of problems in these types of
installation.
225mm x 225mm conventional brick flue.
175mm diameter lined brick or stone flue.
200mm diameter factory made insulated flue manufactured to BS EN 1856 Part 1
or BS4543.
175mm diameter flue pipe. See BS6461 Part 1 for suitable materials.
Single wall, twin wall or flexible flue liner with a minimum diameter of 125mm. The
Page 11
© Baxi Heating U.K. Limited 2008.

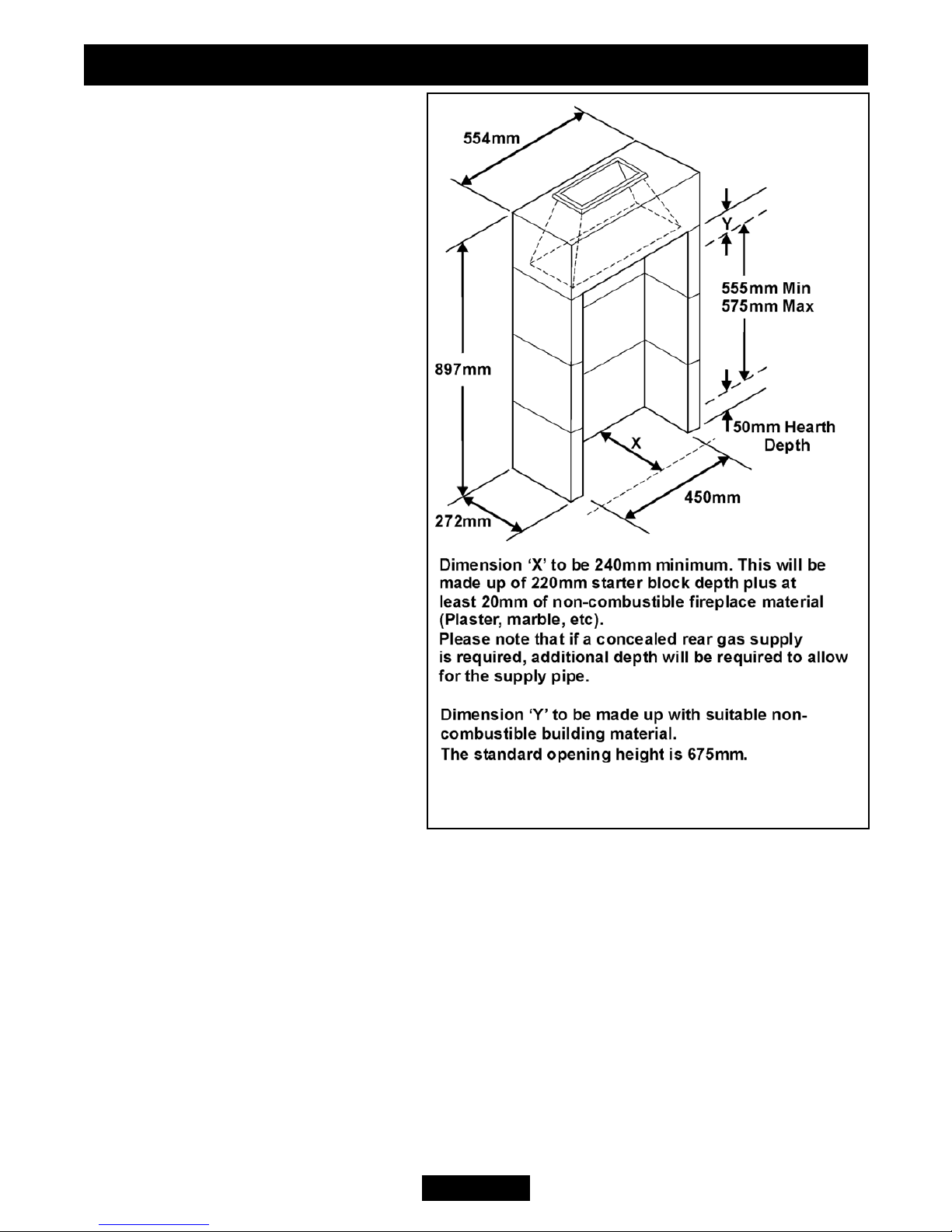

Figure 3. Precast or clay flue block system
dimensions
INSTALLER GUIDE

materials to be used are stainless steel or aluminium as specified in BS EN 1856
Part 1 or BS715. The liner must be sealed to the surrounding area above the
fireplace opening and to the top of the chimney. An approved terminal must be
fitted.
A properly constructed precast concrete or clay flue system conforming to BS1289
or BS EN 1806. This system is only suitable if the conditions stated in section 4.2.3
are met.
4.4 The flue must conform to BS 5440: Part 1 in design and installation.
The flue, measured from the bottom of the fireplace opening to the bottom of the
terminal, shall be not less than 3m in actual vertical height. When calculated in
accordance with BS 5440: Part 1 Annex A, the minimum equivalent height of the flue
shall be 2.0m of 125mm-dia. flue pipe.
4.5 The flue must not be used for any other appliance or application.
4.6 Any chimney damper or restrictor should be removed. If removal is not possible,
they must be secured in the open position.
4.7 If the appliance is intended to be installed to a chimney that was previously
used for solid fuel, the flue must be swept clean prior to installation. All flues should
be inspected for soundness and freedom from blockages.
4.8 If the fireplace opening is an underfloor draught type, it must be sealed to stop
any draughts.
4.9 The appliance must be mounted behind a non-combustible hearth unless the
conditions of section 4.2.1.1 are met (N.B. conglomerate marble hearths are
considered as non-combustible). The appliance can be fitted to a purpose made
proprietary class “O”-150°C surround. The hearth material must be at least 12mm
thick. The periphery of the hearth (or fender) should be at least 50mm above floor
level to discourage the placing of carpets or rugs over it.
The surface of the hearth must be sufficiently flat to enable the bottom of the fascia
and the bottom front cover to be aligned horizontally. Any excessive unevenness
(uneven tiles, Cotswold stone, etc.) should be rectified.
The appliance must not stand on combustible materials or carpets.
4.10 The front face of the fireplace should be reasonably flat over the area covered
by the hotbox top and side flange seals to ensure good sealing. These faces should
be made good if necessary.
The fireplace floor should be reasonably flat to ensure that a good seal with the
hotbox can be made.
4.11 Note that soft wall coverings (e.g. embossed vinyl, etc.) are easily affected by
heat. They may scorch or become discoloured when close to a heating appliance.
Please bear this in mind when installing.
Page 12
© Baxi Heating U.K. Limited 2008.
INSTALLER GUIDE

4.12 This appliance must not be installed in any room that contains a bath or shower
or where steam is regularly present.
4.13 An extractor fan may only be used in the same room as this appliance, or in any
area from which ventilation for the appliance is taken, if it does not affect the safe
performance of the appliance. Note the spillage test requirements detailed further on
in this manual. If the fan is likely to affect the appliance, the appliance must not be
installed unless the fan is permanently disconnected.
4.14 The minimum height from the base of the fireplace opening to the underside of
any shelf made from wood or other combustible materials is shown below: -
•For a shelf up to 150mm deep
Minimum height = 700mm.
•For a shelf deeper than 150mm
Minimum height = 700mm + 12.5mm for every 25mm depth over 150mm.
(See graph 1).
4.15 Normal adventitious ventilation is usually sufficient to satisfy the ventilation
requirements of this appliance. In GB reference should be made to BS 5871 Part 2
and in IE reference should be made to the current edition of IS 813 “Domestic Gas
Installations” which makes clear the conditions that must be met to demonstrate that
sufficient ventilation is available.
4.16 If the appliance is to be fitted against a wall with combustible cladding, the
cladding must be removed from the area covered by the fascia. The cladding must
also not touch the fascia (See figure 4). We suggest that the actual fascia is used as
a template to mark the area for combustible cladding removal and that this area is
Page 13
© Baxi Heating U.K. Limited 2008.
Graph 1. Combustible shelf clearances
INSTALLER GUIDE

increased by at least 2mm all round.
If the cladding projects forward from
the fixing plane of the fire the
clearance at the top of the
appliance must be increased to a
minimum 15mm.This will allow for
fascia removal.
4.17 Proprietary terminals must
comply with BS EN 1856 Part 1 /
BS 715 or BS EN 1858 / BS 1289.
Any terminal or termination must be
positioned in accordance with BS
5440 Part 1 to ensure that the
products of combustion can be
safely dispersed into the outside
atmosphere. Where the appliance is
connected to an unlined brick
chimney it is generally unnecessary for the chimney pot to be replaced or for a
terminal to be fitted unless the flue has a diameter smaller than 170mm.
4.18 The appliance is fitted with an A.S.D (Atmosphere sensing device). If the
appliance closes down after a period of operation for no apparent reason, the
consumer should be informed to stop using the appliance until the installation and
appliance have been thoroughly checked. The A.S.D will shut the appliance down if
an unacceptable amount of harmful products of combustion accumulate. Under no
circumstances should the A.S.D be altered or bypassed in any way. Only a genuine
manufacturers replacement part should be fitted. The individual A.S.D components
are not replaceable.
4.19 A fireguard complying with BS 8423 should be fitted for the protection of young
children, the elderly, or the infirm.
‘Fascination’, ‘Tranquility’ and ‘Aspect Glass’ fascia: The glass panel is a working
surface and is hot during normal operation of the fire and whilst cooling. A fireguard
complying with BS 8423 should be fitted for the protection of young children, the
elderly, or the infirm.
4.20 The minimum allowable distance from the outside of the appliance fascia to a
corner wall having combustible material or any other combustible surface which
projects beyond the front of the appliance is shown in figure 5.
Page 14
© Baxi Heating U.K. Limited 2008.
INSTALLER GUIDE

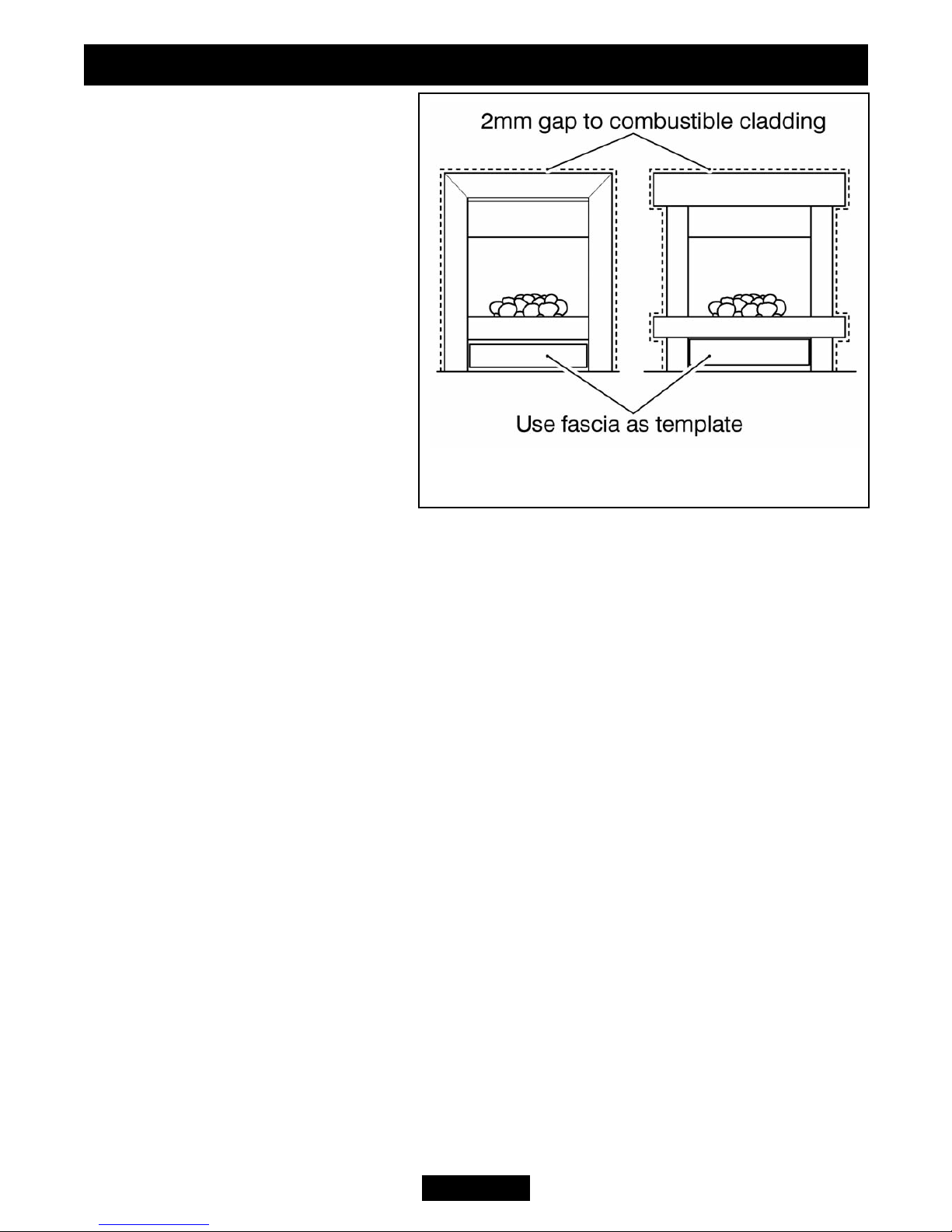

Figure 4. Removal of combustible
cladding (Fascia may differ from that shown)

Page 15
© Baxi Heating U.K. Limited 2008.
Figure 5. Appliance dimensions and clearances (Fascia may differ from that shown)
INSTALLER GUIDE
Key Description
Model
Fascination Landscape
& Serenity Visia Tranquility & Aspect Glass
AAppliance height (mm) 599 607 640 612
BAppliance width (mm) 520 976 930 505
CAppliance depth into room
(mm) 61 72 40 50
D
Minimum mandatory
clearance to combustible
surfaces projecting beyond
the front of appliance
(mm).
10 10 10 10
E
Recommended clearance
to non-combustible
surfaces for access
purposes (mm).
10 10 10 10

5. PACK CONTENTS
1 Burner & Hotbox Unit.
1 Nut & olive for 8mm inlet pipe.
1 Inlet ‘T’ Connector.
1 Flue restrictor plate.
2 Screws (For flue restrictor).
2 Fireback spacing brackets.
2 Screws (For Fireback spacing brackets).
1 Ceramic fuel effect pack (Not shown).
2 Small “U” seals for hotbox side flanges.
1 Strip of floor sealing tape.
2 Black self tapping screws (For securing
top of ‘Landscape’ and ‘Serenity’ fascia.
2 Self tapping screws (For securing the
sides of ‘Landscape’ ,‘Serenity’and ‘Visia’
fascia.
6 Fibre / wooden plugs.
Page 16
© Baxi Heating U.K. Limited 2008.
Figure 6. Pack contents
4 Woodscrews.
2 Fascia securing brackets and
screws (For the‘Landscape’,
‘Serenity’ and ‘Visia’models).
2 Fire retaining cables.
2 Cable clamps.
4 Eyebolts.
1 Rubber grommet.
1 Smoke match tube.
1 Length of self adhesive foam
seal.
1 Literature pack.
1 Fascia.
1 Lower hotbox baffle for Fascination.
4 Self tapping screws (For securing
the heat baffle on ‘Landscape’,
‘Serenity’and ‘Visia’ fascia.
INSTALLER GUIDE

Page 17
© Baxi Heating U.K. Limited 2008.
INSTALLER GUIDE
Figure 6. Pack contents continued

Carefully remove all the contents. Take special care in handling the ceramic fuel
effects. Check that all the listed parts are present and in good condition. The pack
may contain additional components to that stated above. These can be discarded.
6. FIREPLACE CHECK
6.1 Fireplace check.
6.1.1 Fireplace size
The fireplace must comply with the requirements described in section 4.2. This will
probably entail removing the fireback and infill material behind the fireback. The
debris catchment area shown in figure 7 must be kept clear of obstructions.
6.1.2 Fireplace general condition
The fireplace floor should be
reasonably flat to ensure that
the hotbox can be installed
without it rocking and so that a
good seal can be made at the
bottom front of the box. The
front face of the fireplace should
be reasonably flat over the area
covered by the hotbox top and
side flange seals to ensure
good sealing. These faces
should be made good if
necessary. If the appliance is to
be fitted against a wall with
combustible cladding, the
cladding must be removed from
Page 18
© Baxi Heating U.K. Limited 2008.
Figure 6. Pack contents continued
Figure 7. Fireplace area
INSTALLER GUIDE

the area covered by the fascia. The cladding must also not touch the fascia (See
figure 4). We suggest that the actual fascia is used as a template to mark the area for
combustible cladding removal and that this area is increased by at least 2mm all
round.
6.1.3 Soundness for appliance attachment
Two primary methods of retaining the appliance are provided: -
1) By fixing to the fireplace front surround.
2) Using concealed tension cables fixed to the rear of the fireplace opening
together with secondary fixing to the fireplace floor.
The methods are detailed in section 10 of this manual. Before selecting the retention
method, consult with the customer. Method 2 is provided for instances where drilling
holes in the front surface of the fireplace surround is unacceptable to the customer or
otherwise impractical. N.B. It is unwise to attempt to drill into marble without the
proper tools and equipment.
If method 1 is chosen, make sure that the front surround area is sound enough to
take the fibre / wooden plugs and woodscrews. If necessary, make sound with
suitable cement.
If method 2 is chosen, make sure that the areas at the back and towards the centre of
the fireplace floor are sound enough to take the eyebolts and screws. If these areas
have deteriorated due to prolonged use, they should be made sound with suitable
cement.
6.1.4 Installations using a metal flue box
The whole of the top surface of the metal flue box must be covered with a 100mm
layer of mineral wool or equivalent insulation (See figure 2).
6.2 Fireplace flue pull.
Close all doors and windows in the room in which the appliance is to be installed.
After confirming with a match that smoke is drawn into the flue, light a 13 gram
smoke pellet and check that there is a definite flow through the flue. Verify outside
that the smoke exits from one terminal only and that the termination is suitable.
Observe where possible, upstairs rooms and loft spaces for signs of escaping smoke
indicating a defective flue. If there is not a definite flow warm the flue for a few
minutes and repeat the smoke pellet test. If there is still no definite flow the flue may
need remedial work – Do not fit the appliance until there is a definite flow
through the flue.
Page 19
© Baxi Heating U.K. Limited 2008.
INSTALLER GUIDE

7. IGNITION CHECK
Before attempting to install, it is
worth checking that the ignition
system performs satisfactorily.
Set the control knob to the off
position. Depress the control knob
and rotate it anticlockwise to the
pilot ignition position. A 'click' will
be heard as the integral piezo
operates. A spark should be seen
between the electrode and pilot tip.
If there is no spark check the
following: -
 Ensure that the electrode lead
is connected to the terminal at the base of the electrode.
 If the above is correct, check for damage to the electrode lead.
8. GAS SUPPLY CONNECTION
A nut and olive are provided for an 8mm pipe inlet connection to the ‘T’ connector at
the bottom front of the appliance. The ‘T’ connector can be rotated to allow a
connection from any rear-concealed connection. The ‘T’ connector includes a valve
for isolating the gas supply and a pressure test point.
The supply pipe must be rigid material. Flexible pipe must not be used.
Concealed supply pipe connection.
If a concealed connection from inside the fireplace is required then, before the
appliance is fitted into the fireplace it will be necessary to extend the supply line so
that it will project through the hole in the back of the hotbox and run to the ‘T’
connector at the front. The pipe run from the supply line up to the rear opening in the
hotbox must be kept away from the area which will be taken by the hotbox when it is
installed. Note that the centre of the appliance inlet ‘T’ connector is 25mm above the
fireplace floor. The inlet ‘T’ connector should be fitted to the supply pipe at this stage.
Page 20
© Baxi Heating U.K. Limited 2008.

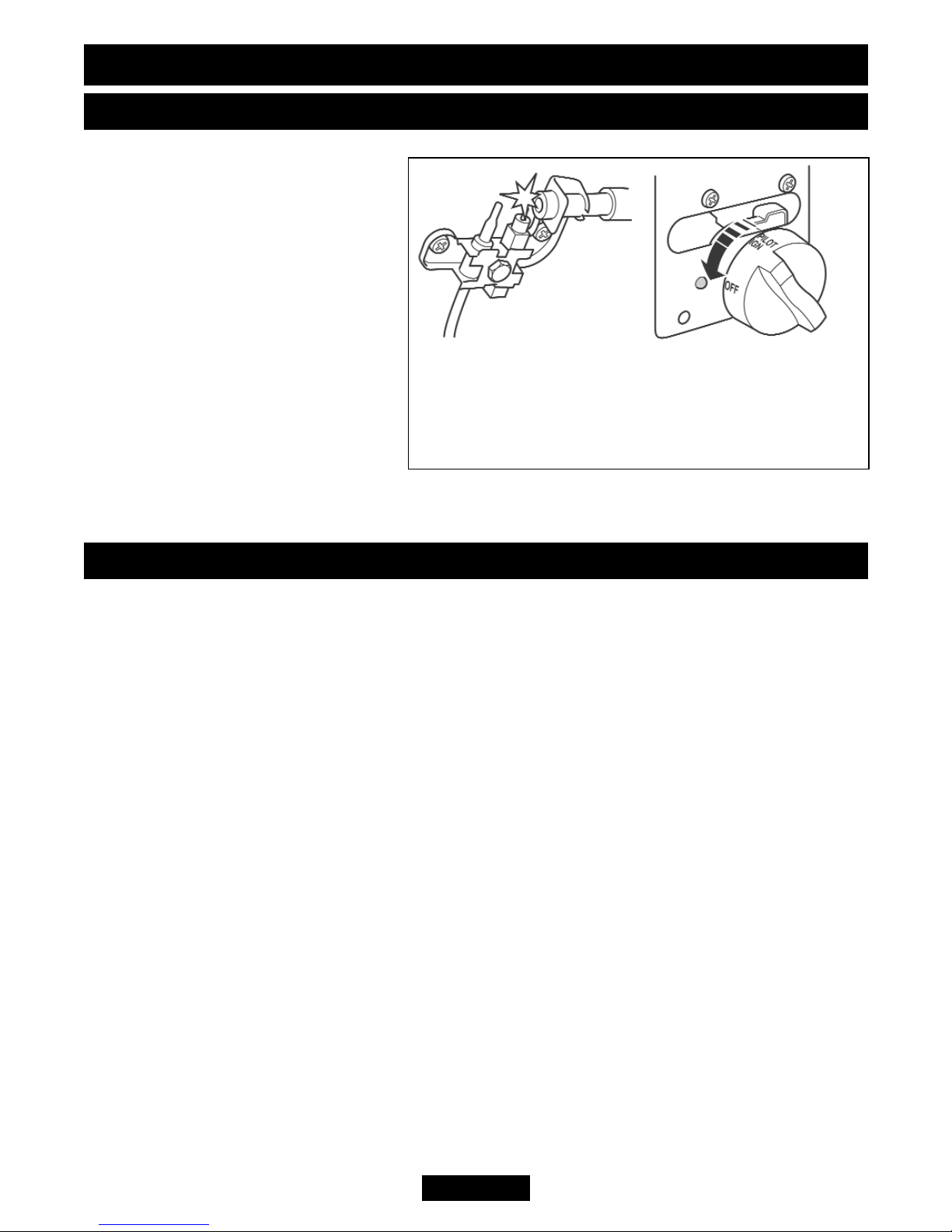

Figure 8. Ignition operation.
(On ‘Landscape’, ‘Visia’ and ‘Serenity’ models
the control knob and indicator button will be
spaced away from the support leg)
INSTALLER GUIDE
