Valor Black Beauty Unigas II Assembly instructions

MODEL 473
Room Sealed
Radiant / Convector
Gas Fire
Black Beauty Unigas II
INSTALLER GUIDE
Please keep in a safe place for future reference
For latest prices and delivery to your door visit MyTub Ltd - www.mytub.co.uk - [email protected] 0844 556 1818

2
600A742/02
For latest prices and delivery to your door visit MyTub Ltd - www.mytub.co.uk - [email protected] 0844 556 1818

3
This Installer Guide gives sufficient details to enable the appliance to be
installed and maintained. If further information is required, our Valor
AdviceLine will be pleased to help.
Please telephone [phone] (In UK local call rates apply)
This appliance is for use with natural gas (G20)
This appliance is for use in the United Kingdom
(GB) and the Republic of Ireland (IE) only.
Please leave this Installer Guide with the u s e r
CUSTOMER CARE
For latest prices and delivery to your door visit MyTub Ltd - www.mytub.co.uk - [email protected] 0844 556 1818

4
Page
Specification 4
Installation Conditions 4
Unpacking 6
Preparing the Fire 6
Preparing the Wall 6
Preparing the Flue Unit 8
Terminal Guard Fitting 9
Ignition Spark Check 9
Gas Supply Connection 9
Fitting Coals 10
Operation Check 12
Reference Pressure Check 13
Outer Case Fitting 13
Final Checks & User Instruction 13
Servicing 14
•Outer Case Removal 14
•Window Unit Removal 14
•Ceramic Fuels Removal 14
•Burner(s) Removal 14
•Injector(s) Removal 14
•Thermocouple Removal 14
•Electrode Pin Removal 14
•Pilot Pipe & Jet Removal 14
•Gas Tap Unit Removal 15
•Piezo Generator Removal 15
•Gas Tap Greasing 15

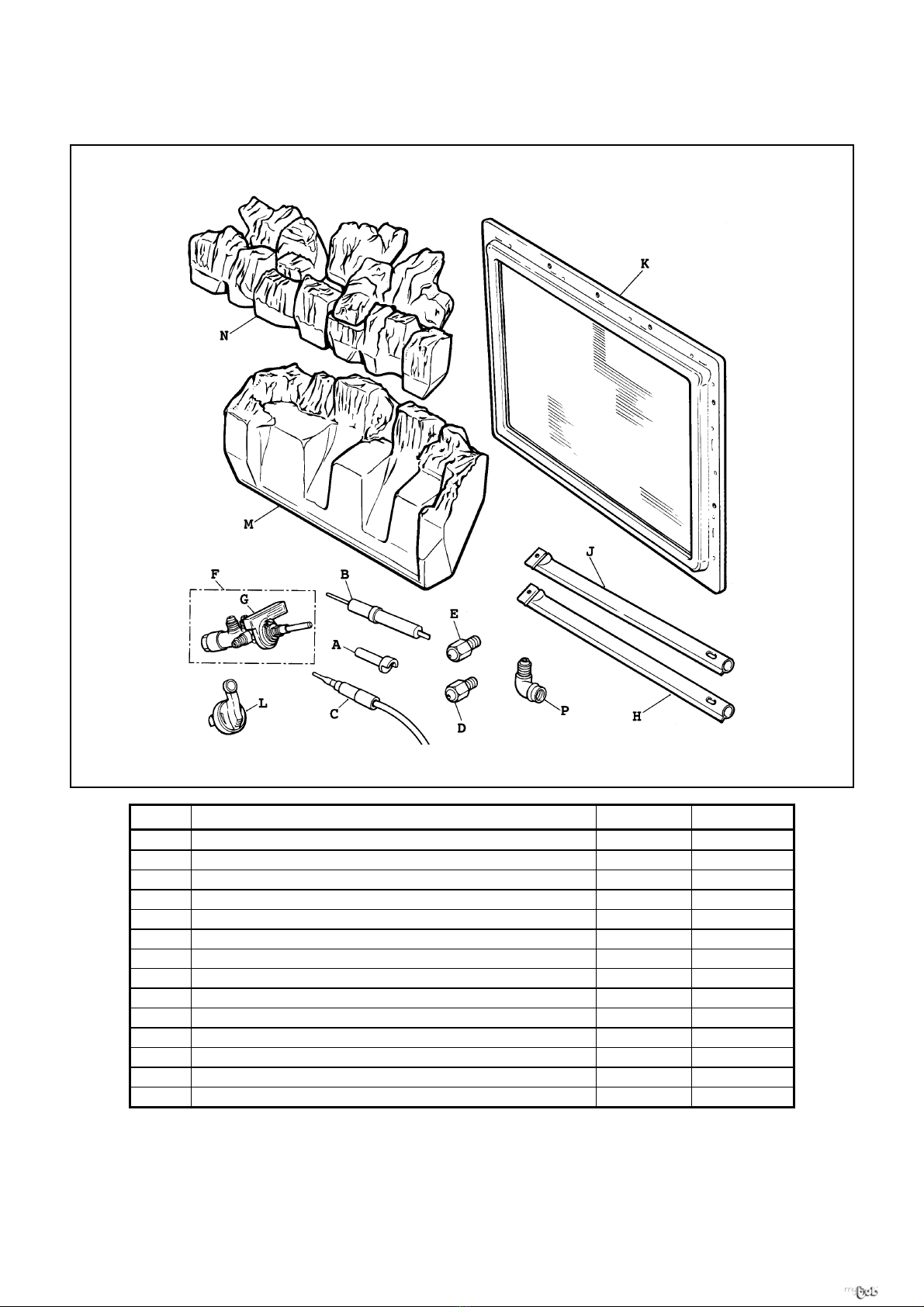

•Short Spares List 16
CONTENTS
For latest prices and delivery to your door visit MyTub Ltd - www.mytub.co.uk - [email protected] 0844 556 1818

5
1. SPECIFICATION
The overall dimensions are shown in figure 1.
Gross Weight: 26.2kg
Main Burner: Simplex aerated
Flame Effect Burner: Simplex aerated.
Gas Connection: RP 1/4 (1/4in. B.S.P) Female.
Gross Gas Consumption: 4.9kW at maximum position.
Maximum output: 3.54kW
Injectors:-
Main Burner: Bray Cat. 960 Size 240.
Flame Effect Burner: Bray Cat. 960 Size 130
Pressure Setting (Cold): 18.2 + 0.75mbar
Aeration Adjustment: None required.
Control Tap: Variable position fitted with
flame supervision device and integral piezo igniter.
Pilot Unit: Right side of firebox.
Combined Pilot jet thermocouple sensor and electrode.
No component on this appliance is manufactured from asbestos or asbestos related products.
The appliance data label is at the left side of the rear case and is visible after removing the case front. In addition, for
customers reference, there is a label giving the appliance serial number on the outside of the case at the bottom right side.
2. INSTALLATION CONDITIONS
This product uses fuel effect pieces, burner compartment walls and gaskets containing Refractory Ceramic Fibres (RCF), which
are man-made vitreous silicate fibres. Excessive exposure to these materials may cause temporary irritation to eyes, skin and
respiratory tract. Consequently, it makes sense to take care when handling these articles to ensure that the release of dust is kept to
a minimum. To ensure that the release of fibres from these RCF articles is kept to a minimum, during installation and servicing we
recommend that you use a HEPA filtered vacuum to remove any dust and soot accumulated in and around the fire before and after
working on the fire. When replacing these articles we recommend that the replaced items are not broken up, but are sealed within
a heavy duty polythene bag, clearly labelled as RCF waste. This is not classified as “hazardous waste” and may be disposed of at
a tipping site licensed for the disposal of industrial waste. Protective clothing is not required when handling these articles, but we
recommend you follow the normal hygiene rules of not smoking, eating or drinking in the work area and always wash your hands
before eating or drinking.
2.1 Walls:-
Minimum 102mm (4in.) thick
Maximum 660mm (26in.) thick.
Suitable for use with combustible walls provided that there is no combustible material or combustible cladding in the area
indicated on the wall fixing template.
Please note that soft wall coverings (e.g. embossed vinyls etc.) are easily affected by heat. They may therefore, scorch or become discoloured
when close to a heating appliance. Please bear this in mind when installing.
2.2 Where installation is into a timber framed house, this should be in accordance with Paragraphs 5.2, 5.3, 5.4, 5.5,
5.6, and 6.1 of British Gas publication ‘Dm2 Guide For Gas Installations In Timber-Framed Housing’.

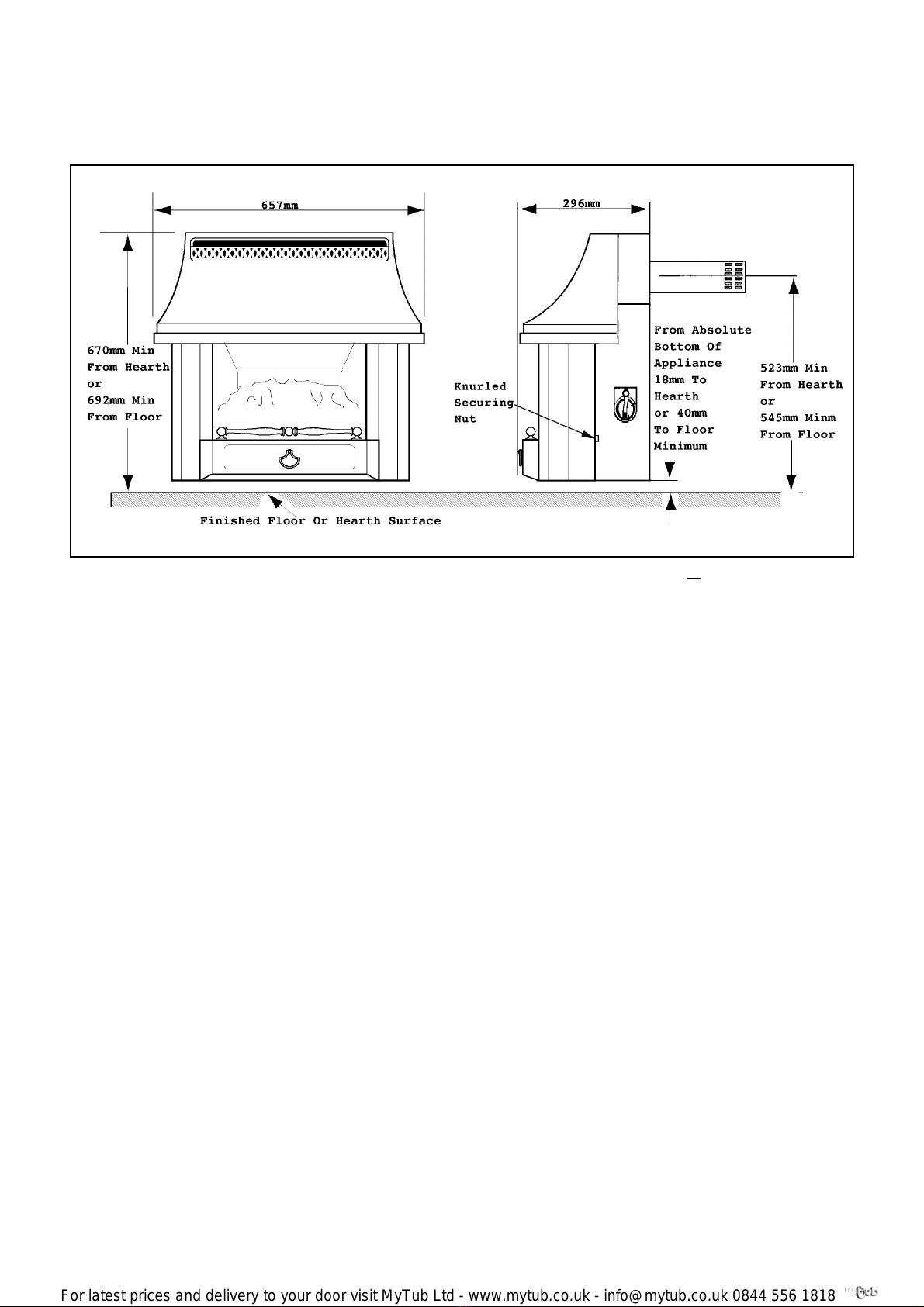

Fig. 1 Overall dimensions
For latest prices and delivery to your door visit MyTub Ltd - www.mytub.co.uk - [email protected] 0844 556 1818

6
2.3 The installation must be in accordance with these instructions.
For the user’s protection, in the United Kingdom it is the law that all gas appliances are installed by competent persons in
accordance with the current edition of the Gas Safety (Installation and Use) Regulations. Failure to install the appliance
correctly could lead to prosecution. The Council for the Registration of Gas Installers (CORGI) requires its members to
work to recognised standards.
2.4 In the United Kingdom the installation must also be in accordance with:
a) All the relevant parts of local regulations.
b) The current edition of the Building Regulations issued by the Department of the Environment and the Welsh Office or
the Building Standards (Scotland) (Consolidation) Regulations issued by the Scottish Development Department.
c) All relevant codes of practice.
d) The relevant parts of the current editions of the following British Standards:-
BS 5440 Part 1 BS 5871 Part 1 BS 6891
In the republic of Ireland the installation must also conform
a) with the relevant parts of the current editions of IS 813 and ICP3
b) All relevant national and local rules in force.
2.5 A minimum clearance of 140mm should be maintained at the right side of the fire to allow easy access to the
control knob and 75mm at the left side to allow access to the knurled nut for removal of the outer case.
2.6 Any combustible side wall must be at least 500mm clear from direct exposure to the radiant surface of the
appliance unless suitably protected.
2.7 A shelf or other projection made of wood or any other combustible material may be fitted over the appliance
provided that the following conditions are satisfied:-
Where not more than 150mm deep, there must be at least 150mm clearance above the extreme top surface of the fire. For
greater depth there must be an additional clearance of 12.5mm for each extra 25mm of added projection.
2.8 There is no restriction on the depth of non-combustible projections but a space of at least 30mm should be
allowed above the top of the appliance to enable removal of the case front.
2.9 It is advisable that combustible fabrics such as curtains are not fitted above the fire. If, however, this is
unavoidable, a clearance of at least 150mm must be maintained from the extreme bottom edge of the fabric to the extreme
top surface of the fire.
2.10 The appliance can be installed with or without a non-combustible hearth. If a non-combustible hearth is installed,
there must be a minimum clearance from the top surface of the hearth to the absolute bottom of the appliance of 18mm
(see figure 1). The hearth must be at least 700mm wide x 300mm deep. The non-combustible hearth material must be at
least 12mm thick. Its top surface should be preferably 50mm above floor level to discourage the placing of carpets or rugs
over it.
If the appliance is not installed with a hearth meeting the above conditions, the minimum distance from the top surface of
the finished floor covering (including any carpet etc.) to the absolute bottom of the appliance must be at least 40mm (see
figure 1).
2.11 A hole 152mm (6in) is required through the wall for the flue unit.
The minimum height of the hole centre is shown in figure 1 and on the wall fixing template.
2.12 Minimum allowable distances from the terminal are shown table 1 and figure 2:-
2.13 In England and Wales the Building Regulations require a terminal guard to be fitted if the terminal could come
into contact with people near the building or be subject to damage.
Fitting a terminal guard is recommended where contact with or damage to the terminal is possible even if regulations do
not demand it.
A suitable guard - Part No. 516539 - is available from Valor Heating, Wood Lane, Erdington, Birmingham B24 9QP.
2.14 No special ventilation bricks or vents into the room containing the appliance are required.
For latest prices and delivery to your door visit MyTub Ltd - www.mytub.co.uk - [email protected] 0844 556 1818

7
Fig. 3 Window Removal
Fig. 2 Terminal Positions
Terminal Position Minimum
Distance
(mm)
A Directly below an openable
window or other opening e.g. air
brick 300
B Below gutters, soil pipes or drain
pipes 300
C Below eaves 300
D Below balconies or car port roof 600
E From vertical drain pipes and soil
pipes
75
F From internal or external corners 600
G Above ground, roof or balcony
level
300
H From a surface facing a terminal 600
I From a terminal facing a terminal 600
J From an opening in a car port
(e.g. door, window) into dwelling
1200
K Vertically from a terminal on the
same wall
1500
L Horizontally from a terminal on
the same wall
300
3. UNPACKING
The carton contains the following:-
1 Fire assembly
1 Ceramic fuel base
4 Ceramic coals
1 Flue unit
1 Inlet elbow
1 Pack fixing screws and wall plugs
1 Wall fixing template
1 Length of flue sealing tape
Remove all the items carefully to prevent damage. Some items may be contained in the packaging fitments - Examine the
packaging carefully before discarding. Check that all the items are present and undamaged.
4. PREPARE THE FIRE
4.1 Stand the fire upright
4.2 Detach the case front by removing the knurled nuts and washers at
the case sides (see fig.1).
4.3 Pull the bottom of the case forwards and then left to remove.
4.4 Remove the window unit by detaching the 12 wing nuts securing the
window frame (see fig.3) and pulling forward.
5. PREPARE THE WALL
The flue must be installed so that it is at right angles to the back panel of the
fire all round the flue circumference. The fire itself should be fitted vertically
against a flat wall. Where this is difficult to achieve due to building
inaccuracies care should be taken to ensure that the back of the fire is not
stressed in any way due to distortion of the assembly when tightening the
fixing screws. Where necessary, non-combustible packing pieces should be
used to provide a satisfactory fixing surface.
Before cutting the hole in the wall make sure that the height to the top
surface of the finished floor is known. The minimum acceptable height from
this surface to the flue hole centre is shown in figure 4.
If a loose hearth or plinth is to be used, the height from its top surface must be used when determining the minimum flue
height. Where installation is to a timber frame wall, the appliance should be positioned so that the right side wall fixings
are into timber studs to absorb any pressure generated by operating the control knob.
Proprietary cavity fixings should be used at the left side if the fixing at this side is into plasterboard.
5.1 Place dust sheets on the floor and over any furnishings etc.
For latest prices and delivery to your door visit MyTub Ltd - www.mytub.co.uk - [email protected] 0844 556 1818

8
Fig. 6 Wall Cover Plate
Fig.5 Combustible Clasdding Removal
Fig. 4 Wall Drilling
5.2 Place the template against the wall. Make sure that the
centre of the flue hole is not less than the minimum shown in figure
4.
5.3 Pierce the centre of the screw fixing holes and the flue hole
and mark the positions on the wall.
Remove the template.
5.4 Cut the hole for the flue unit. Make sure that it is straight
and level. Though a hammer and chisel can be used, using a core
drill is by far the quickest and simplest method for normal
brickwork.5.5 Core Drilling
5.5.1 Drill a pilot hole through the wall. Inspect the hole to
ensure that it is in the brickwork and not in mortar. If it is in
mortar, it is advisable to reposition the hole approximately 25mm
away (making sure that the minimum side clearances and height are
complied with). Remember to reposition the screw fixing holes.
5.5.2 Drill the flue hole with a 6in. (152mm) core drill. Where
practical, it is recommended that the hole is drilled from
inside the building to about half the wall depth with the
remainder drilled from outside. This ensures that the
edges of the hole are clean on both sides.
5.6 Hammer & Chisel Cutting
5.6.1 Mark a 152mm (6in) diameter circle for the flue
hole. Chisel out the area marked.
5.6.2 It may be necessary to make good both the
internal and external wall faces. To achieve a neat finish
and to make any future removal of the flue unit easier, it
is recommended that a cardboard cylinder is formed
around the flue unit and inserted in the hole while
making good. Remove the cardboard cylinder after
making good.
5.7 Recheck the screw fixing holes relative to the
flue hole.
5.8 Drill the four fixing holes to a minimum depth
of 42mm using a 7mm diameter masonry drill.
5.9 Insert the four wall plugs supplied.
5.10 Remove any combustible wall cladding material
from the area shown in figure 5.
5.11 Leaving a Hole, Building under
Construction
It will be convenient to use a non-corrosive metal tube
160mm diameter built into the wall at the correct position
for the flue unit.
5.12 Combustible Walls (Wood, Fibreboard,
Plasterboard etc.)
Building regulations require that the inlet and outlet ducts
and terminal bust not be closer than 25mm to combustible
material.
5.12.1 Mark out and cut a hole 202mm diameter through
the combustible part of the wall. A 152mm diameter hole
can be cut through non-combustible parts of the wall (see
figure 6).
5.12.2 Cover the hole with a square sheet steel plate
500mm x 235mm with a 152mm diameter hole cut out of
the centre (see figure 6). The steel should be not less than
1.5mm thick. Fix with suitable screws and plugs.
5.12.3 Where the whole wall is of combustible material, a
non-corrosive plate 455mm x 455mm with a 152mm
diameter hole in the centre must be fitted to the outer wall.
The hole through the wall should be lined with a non-corrosive metal tube 202mm diameter.
For latest prices and delivery to your door visit MyTub Ltd - www.mytub.co.uk - [email protected] 0844 556 1818

9
6. PREPARE FLUE UNIT (Figure 7)
6.1 Measure the total wall thickness from the
outside surface to the inside face. Add 80mm to this
measurement to obtain the correct length of flue unit
required.
6.2 Mark off the flue length on the outer (air)
tube measuring from the end of the terminal.
6.3 Insert the polystyrene ring between the inner
and outer tubes to support them and cut both tubes
squarely at the marked distance.
6.4 Important: Remove all polystyrene from the
flue unit after cutting.
6.5 Fit the flue unit tubes firmly over the spigots
at the rear of the fire. Make sure that the seam on the
flue tube is not at the bottom. Push on until the outer
tube touches the screw heads on the outer spigot.
6.6 If it is felt of benefit, the flue unit may be
additionally secured to the fire with one or two
suitable self tapping screws (we suggest No.6) before
installing into the wall as follows:-
6.6.1 Using a suitable metal cutting drill bit,
drill through the outer flue tube and outer spigot at
a distance of between 6mm & 7mm from the cut
end of the outer flue tube - See figure 8.
6.6.2 Fit the self tapping screw(s) in the drilled
hole(s).
6.7 Seal the flue unit all round the
circumference of the fire spigot with the tape
supplied.
6.8 Insert the plugs into the wall fixing holes.
Insert the top right fixing screw leaving the plain
shank proud to allow the top fixing keyhole in the
fire back to go over the screw.
6.9 Offer the fire complete with flue unit
through the wall and hook the top right keyhole
slot over the previously fitted wall screw.
6.10 Insert the top left and two bottom fixing
screws and tighten.
6.11 Seal, the outer flue tube to the outside
surface of the wall with fireclay or cement. Make
sure that the slots in the flue terminal are not
closer than 8mm to the wall and are not obstructed
by cement.
Fig. 8 Flue Securing
Fig. 7 Flue Unit Dimensions
For latest prices and delivery to your door visit MyTub Ltd - www.mytub.co.uk - [email protected] 0844 556 1818

10
7. TERMINAL GUARD FITTING
7.1 Place the guard centrally over the flue terminal with the
fixing ears at each side - not at the top and bottom (see figure 9).
7.2 Holding the guard in position and using it as a template,
mark on the wall the positions of the four fixing holes.
7.3 Remove the guard. Drill and plug the holes
7.4 Replace the guard fixing with suitable screws.
8. CHECK IGNITION SPARK
The pilot ignition unit is situated at the bottom right side of the
firebox - See figure 10.
Check that there is an ignition spark between the pilot hood and the
electrode pin.
8.1 Depress the control knob and, while keeping it depressed,
turn to IGN position. Turning the control should normally cause
two consecutive sparks to occur between the pilot hood and the
electrode pin.
8.2 If there is no spark, check that the wire connection is
secure.
8.3 If there is still no spark disconnect the electrode wire from
the pilot unit and place the end of the wire close to a bright metal
part of the appliance.
8.4 Operate the control again keeping your hand
away from the end of the wire. If there is a spark, the
pilot unit is at fault.
8.5 The spark gap on the pilot unit is non-
adjustable. Replace the pilot unit or its components.
8.6 If there is no spark, the gas tap piezo unit
should be changed.
9. CONNECT TO THE GAS SUPPLY
9.1 Extend the gas supply pipe to a convenient
point beneath the appliance and connect it to the inlet
pipe at the right side of the fire using the Rp1/4 (1.4in.
B.S.P) elbow provided.
The supply pipe must be of rigid material (e.g. copper).
Flexible connections must not be used.
9.2 Provision for isolation of the gas supply
upstream of the fire must be provided for safety and
servicing.
9.3 Pressure test the installation for gas soundness
in accordance with the current edition of B.S.6891.
Fig. 10 Pilot & Ignition Unit
Fig. 9 Terminal Guard
For latest prices and delivery to your door visit MyTub Ltd - www.mytub.co.uk - [email protected] 0844 556 1818

11
10. FIT COALS
10.1 Place the fuel bed (embossed 'A' underneath) in position. The front
edge of the fuel bed locates under the flange of the locating strip at the base of
the firebox - see figure 11.
10.2 Place the front right coal (embossed 'B' underneath) in
position. The flat bottom front face of the coal should rest on the
metal ledge immediately behind the bottom front of the firebox
opening. Slide the coal to the right side. See figure 12.

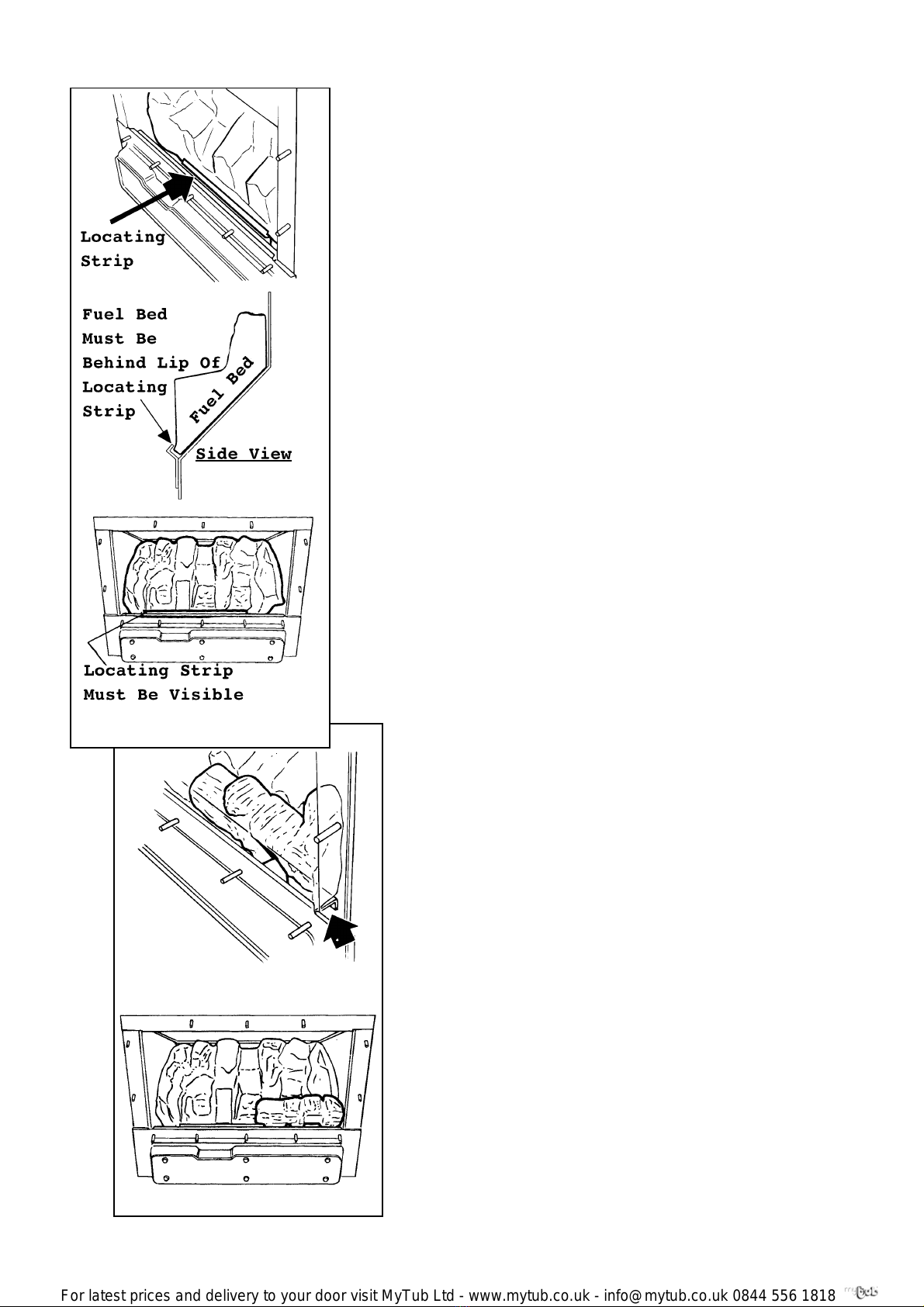

Fig. 12 Front Right Coal “B” Location
Fig. 11 Fuel Bed “A” Location
For latest prices and delivery to your door visit MyTub Ltd - www.mytub.co.uk - [email protected] 0844 556 1818

12
10.3 Place the front left coal (embossed 'C' underneath) in position at the
side of the first coal. The flat bottom front face of the coal should rest on the
metal ledge immediately behind the bottom front of the firebox opening. See
figure 13.
10.4 Close any gap between the two front coals by sliding them together
to meet at the centre.
10.5 Place the rear right coal (embossed 'D' underneath) in
position as shown in figure 14.
Fig. 14 Rear Right Coal “D” Location
Fig. 13 Front Left Coal “C” Location
For latest prices and delivery to your door visit MyTub Ltd - www.mytub.co.uk - [email protected] 0844 556 1818

13
10.6 Place the rear left coal (embossed 'E' underneath) in position as shown
in figure 15.
10.7 Replace the window unit and tighten the 12 wing nuts.
11 CHECK APPLIANCE OPERATION
11.1 Turn on the gas supply and check all joints up to the appliance gas tap for gas soundness using a soap solution or
leak detection fluid.
11.2 Depress the control knob. While keeping it depressed, turn to IGN position. Turning the control should
normally cause two consecutive sparks to occur between the pilot hood and the electrode pin which should ignite the pilot
gas.
The pilot flame can be seen by looking through the gap at the front of the right side front coal.
If the pilot does not ignite, keep the knob depressed for a few seconds to purge air from the supply pipes, then, turn back to
OFF and repeat the ignition procedure.
11.3 When pilot ignition has been achieved, keep the control knob depressed for a few seconds then release it. If the
pilot does not remain alight ensure that the air has been purged.
11.4 Partially depress the knob and turn to position 1. Both main and decorative flame burners should light at the
lowest setting. The decorative flames should just be visible. If the decorative flames are visible, the main burner must be
alight since it lights the decorative burner.
11.5 Turn the control knob gradually to MAX position. Both burners should gradually increase in output until at
MAX position the main burner is at its greatest heat output and the decorative flames are at their full magnitude.
11.6 Turn back to off after checking.
Depress the control knob partially, turn clockwise to OFF and release the knob. If any resistance is felt when turning,
release the downwards pressure on the knob before continuing to turn.
Fig. 15 Rear Left Coal “E” Location
For latest prices and delivery to your door visit MyTub Ltd - www.mytub.co.uk - [email protected] 0844 556 1818

14
12 CHECK THE REFERENCE PRESSURE
The burner aeration is non-adjustable. The appliance is preset to give the correct heat input on Natural Gas at 20 mbar
(8in w.g) inlet pressure and no further adjustment is necessary. The burner pressure should be checked at the pressure test
point located on the pipe connecting the gas tap to the main burner. The pressure check should be carried out using a
calibrated pressure gauge after removing the test point screw. The fire should be alight and the control knob at MAX
setting. the pressure setting should be within the limits shown in the appliance specifications - see section 1.
After checking the pressure, turn off the fire, remove the pressure gauge and replace the pressure test sealing screw.
Relight the fire and test all gas joints for soundness using a suitable leak detection fluid.
13 REPLACE OUTER CASE
13.1 Lower the outer case into position with its top rear rim behind the vertical flange at the top of the ear case and
with the outer case bottom angled forward slightly. Then, ease the case bottom inwards to engage the fixing studs through
the holes in the rear case.
13.2 Secure the case with the two knurled nuts and washers.
14. MAKE FINAL CHECKS AND INSTRUCT USER
14.1 Recheck the pilot ignition and operate the fire through the range of settings.
14.2 Instruct the user on the correct operation of the fire and especially advise that:
14.2.1 The fire has a pilot. To light the pilot, the control knob must be depressed and turned to IGN position.
14.2.2 The pilot flame can be viewed to ensure that it is alight. Show the user where to view the pilot and point out the
illustration in the users instructions showing how to view the pilot.
14.2.3 The pilot can be left alight. Advise, though, that if the premises are to be left unoccupied for a lengthy period, it is
advisable to turn the pilot off.
14.3 Advise the user that the fire may give off a slight odour while new. This is normal and it will disappear after a
short period of use.
14.4 Advise the user that the bright metal firebox will discolour with use.
14.5 Emphasise that if the glass panel is broken or damaged, the fire should be turned off and not used until the
window unit is refitted with an authorised replacement.
14.6 Recommend that the appliance should be serviced by a competent person (In the UK a CORGI registered person) at
least annually.
If the appliance is in premises in the United Kingdom occupied by a tenant, point out that by law a landlord must have any gas appliance,
flue and pipework which is situated in a tenant’s premises checked for safety at least every 12 months.
14.7 Hand over to the customer this guide and the users guide.
For latest prices and delivery to your door visit MyTub Ltd - www.mytub.co.uk - [email protected] 0844 556 1818

15
15. SERVICING
Turn off the gas and make sure that the appliance is cool before commencing any servicing.
Always test for gas soundness after refitting the appliance.
15.1 To Remove Outer Case.
15.1.1 Remove the knurled screws at the case sides (see fig.1).
15.1.2 Pull the bottom of the case forwards and then lift the case clear.
15.2 To Remove Window Unit
15.2.1 Remove the outer case as 15.1 above.
15.2.2 Remove the window unit by detaching the 12 wing nuts securing the frame (see fig. 3) and pulling forward.
15.3 To Remove The Ceramic Fuel Items
15.3.1 Remove the outer case as 15.1 above.
15.3.2 Remove the window unit as 15.2 above
15.3.3 Remove the coals carefully
15.3.4 Lift out the coal bed
15.3.5 Replace the items as described in the installation instructions.
15.4 To Remove Burner(s)
15.4.1 Remove the outer case as 15.1 above
15.4.2 Remove the window unit as 15.2 above.
15.4.3 Remove the ceramic items as 15.3 above.
15.4.4 Remove the burner front cover by unscrewing 14 screws.
15.4.5 Remove the front ceramic support bar by unscrewing 1 screw each side.
15.4.6 Remove the burner(s) by unscrewing one screw at the left side and lifting clear.
15.4.7 The main and decorative flame burners are of different lengths. They cannot be fitted in the wrong positions.
15.5 To Remove Injectors(s)
15.5.1 Remove the outer case as 15.1 above.
15.5.2 Release the pipe compression fitting(s) to the injector(s).
15.5.3 Loosen the pipe compression fitting(s) to the tap and move the pipe(s) clear.
15.5.4 Remove the injector(s) and carrier(s) from the firebox side.
15.5.5 Remove the injector(s) from the carrier(s)
15.6 To Remove Thermocouple
15.6.1 Remove the outer case as 15.1 above.
15.6.2 Disconnect the thermocouple at the gas tap end.
15.6.3 Undo the nut securing the thermocouple to the pilot unit bracket outside the firebox side. Withdraw the
thermocouple.
15.7 To Remove Electrode Pin
15.7.1 Remove the outer case as 15.1 above.
15.7.2 Disconnect the electrode lead at the pilot unit end.
15.7.3 To gain access to the electrode nut, disconnect the thermocouple at the pilot unit end as 15.6.3 above.
15.7.4 Undo the nut securing the electrode ceramic and pin to the pilot unit bracket.
15.8 To Remove Pilot Pipe & Jet
15.8.1 Remove the outer case as 15.1 above
15.8.2 Unless the appliance is sufficiently high above the floor to allow access from underneath, remove the
thermocouple and electrode pin from the pilot bracket as 15.7.3 and 15.7.4 above.
15.8.3 Release the pilot pipe from the gas tap.
15.8.4 Unscrew the pilot pipe from the pilot bracket.
15.8.5 Carefully withdraw the pilot pipe from the pilot bracket - when withdrawing, the pilot jet will be pulled out.
15.8.6 When replacing, make sure that the pilot jet is hooked over the seating at the end of the pipe.
For latest prices and delivery to your door visit MyTub Ltd - www.mytub.co.uk - [email protected] 0844 556 1818

16
15.9 To Remove The Gas Tap And Piezo Unit
15.9.1 Remove the outer case as 15.1 above.
15.9.2 Remove the window unit as 15.2 above.
15.9.3 Remove the ceramic items as 15.3 above.
15.9.4 Remove the burner front cover by unscrewing 14 screws.
15.9.5 Remove the control knob by pulling clear of the gas tap spindle.
15.9.6 Remove the control bezel by unscrewing 2 screws.
15.9.7 Remove the case side and top unit by unscrewing 2 screws at each side near the top and one screw each side near
the bottom.
15.9.8 Remove the inlet pipe clamp bracket from the case back (one screw).
15.9.9 Remove the gas tap bracket from the case (3 screws).
15.9.10 Remove the bulkhead plate from the firebox side (3 screws).
15.9.11 Lift the manifold unit clear.
15.9.12 Disconnect the pipes, thermocouple and bracket from the gas tap.
15.10 To Remove The Piezo Generator
15.10.1 Remove the gas tap as 15.9 above
15.10.2 Make sure that the tap is in the off position.
15.10.3 Remove the circlip holding the piezo unit to the tap. Remove the piezo unit.
15.11 To Grease The Control Tap
15.11.1 Detach the tap and remove the piezo generator as 15.10 above making sure that the tap is in the off position.
15.11.2 Remove the two screws from the head of the tap. Remove the niting head and spindle complete with collar and
spring.
15.11.3 Note the position of the slot in the plug - mark its position on the tap body. Remove the plug rotating slightly
while pulling.
15.11.4 Clean and grease the plug lightly with a suitable grease. Do not apply excessive grease. Particularly, make sure
that the gas ports in the tap are not restricted by grease.
15.11.5 Push the plug into the tap body and position the slot in line with the mark previously made on the tap body.
15.11.6 Reassemble the niting head and spindle complete with collar and spring making sure that the components are
correctly engaged. Check the operation of the tap.
15.11.7 Refit the piezo generator.
For latest prices and delivery to your door visit MyTub Ltd - www.mytub.co.uk - [email protected] 0844 556 1818

17
SHORT LIST OF SPARES
Key Description No. Off Part No.
A Pilot Injector SIT Ref 0.977.113 (Stamped ‘27’) 1 524949
B Electrode Pin SIT Ref. 0.007.243 1 524979
C Thermocouple SIT Ref. 0.290.198 1 524999
D Main Burner Injector Bray Cat 960/240 1 551079
E Decorative Burner Injector Bray Cat 960/130 1 525059
F Gas Tap & Piezo Unit Copreci 21400/88 1 525069
G Piezo Generator - Copreci 18600 Twin Spark 250mm Lead 1 525339
H Main Burner 1 525119
J Decorative Flame Burner 1 525129
K Window Unit 1 525159
L Control Knob 1 525199
M Coal Bed Base 1 525259
N Coals - Set of 4 1 525269
P Inlet elbow 1 532519
For latest prices and delivery to your door visit MyTub Ltd - www.mytub.co.uk - [email protected] 0844 556 1818

18
Safety First.
Valor fires are CE Approved and designed to meet the appropriate British Standards and Safety Marks.
Quality and Excellence.
At the heart of every Valor fire.
All Valor fires are manufactured to the highest standards of quality and excellence and are manufactured under
a BS EN ISO 9001 quality system accepted by the British Standards Institute.
The Highest Standards
Valor is a member of the Society of British Gas Industries which works to ensure high standards of safety,
quality and performance.
Careful Installation
Valor is a Corgi registered company. All our gas fires must be
installed by a competent Corgi Registered Installer in accordance
with our Installer Guide and should not be fitted directly on to a
carpet or floor of combustible material.
Valor Heating, Erdington, Birmingham B24 9QP
Because our policy is one of constant development and improvement, details may vary slightly from those given in this publication
© Valor Heating
For latest prices and delivery to your door visit MyTub Ltd - www.mytub.co.uk - [email protected] 0844 556 1818
