Valor LX Series Planning guide

WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings
exactly could result in serious
injury, death, or property damage.
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
▪Do not try to light any appliance.
▪Do not touch any electrical switch; do
not use any phone in your building.
▪Leave the building immediately.
▪Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
▪If you cannot reach your gas supplier,
call the fire department.
Installation and service must be
performed by a qualified installer, service
agency or the gas supplier.
Hot glass
will cause burns.
Do not touch glass
until cooled.
Never allow children
to touch glass.
A barrier designed to reduce
the risk of burns from the hot
viewing glass is provided with this
appliance and must be installed for
the protection of children and
other at-risk individuals.
DANGER
4007625-01
Homeowner’s Manual
Gas Fireplaces
natural gas 2100PKN / 2200KN / 2200LKN / 2200RKN
propane gas 2100PKP / 2200KP / 2200LKP / 2200RKP
LX
LX

2
The information contained in this manual is believed
to be correct at the time of printing. Miles Industries
Ltd. reserves the right to change or modify any
information or specifications without notice. Miles
Industries Ltd. grants no warranty, implied or stated,
for the installation or maintenance of your heater,
and assumes no responsibility for any consequential
damage(s).
© Copyright Miles Industries Ltd., 2019. All rights reserved.
Designed and manufactured for Miles Industries Ltd.
This appliance may be installed in an
after-market permanently located,
manufactured (mobile) home where
not prohibited by local codes. This
appliance is only for use with the type
of gas indicated on the rating plate.
This appliance is not convertible for
use with other gases, unless a certified
kit is used.
INSTALLER: Leave this manual with the
appliance.
CONSUMER: Retain this manual for
future reference.
Massachusetts:
The piping and final gas connection must be
performed by a licensed plumber or gas fitter
in the State of Massachusetts. Also, see Carbon
Monoxide Detector requirements in the fireplace
installation manual.
WARNING
This product can expose you to chemicals including Benzene,
which is known to the State of California to cause cancer and
birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov.
Note: Natural gas, in its original state, contains Benzene.

3
Homeowner: Please read this manual before
operating this appliance, and save for future
reference.
Valor Fireplaces
190–2255 Dollarton Highway
North Vancouver, BC, Canada V7H 3B1
T 604.984.3496 F 604.984.0246
valorfireplaces.com
Thank you for purchasing a Valor Fireplace.We
appreciate your business and wish you many happy
years enjoying your new fireplace.
Your new radiant gas heater is a technical appliance
that must be installed by a qualified dealer. Each
Valor®fireplace is fully tested during the production
process for your safety and comfort.
Your unit has been professionally installed by:
Dealer Name: ___________________________________
Phone: _________________________________________
If you experience any problems, call your dealer
immediately. To avoid injury or damage to your
fireplace, do not try to repair the unit yourself.
Your Valor Fireplace
Here are some important details about your Valor
fireplace, should you need to contact your dealer.
Model: _________________________________________
Serial: __________________________________________
Options: ________________________________________
________________________________________________
________________________________________________
Please ask your installer for these details if they are
not already provided, or see page 7.
Welcome to Valor®
Contents
Safety and your fireplace ..........................................4
Child safety and your fireplace................................. 6
Getting started............................................................7
First time operation...................................................... 7
Locating fireplace and lighting information ............. 7
Parts of your fireplace................................................ 8

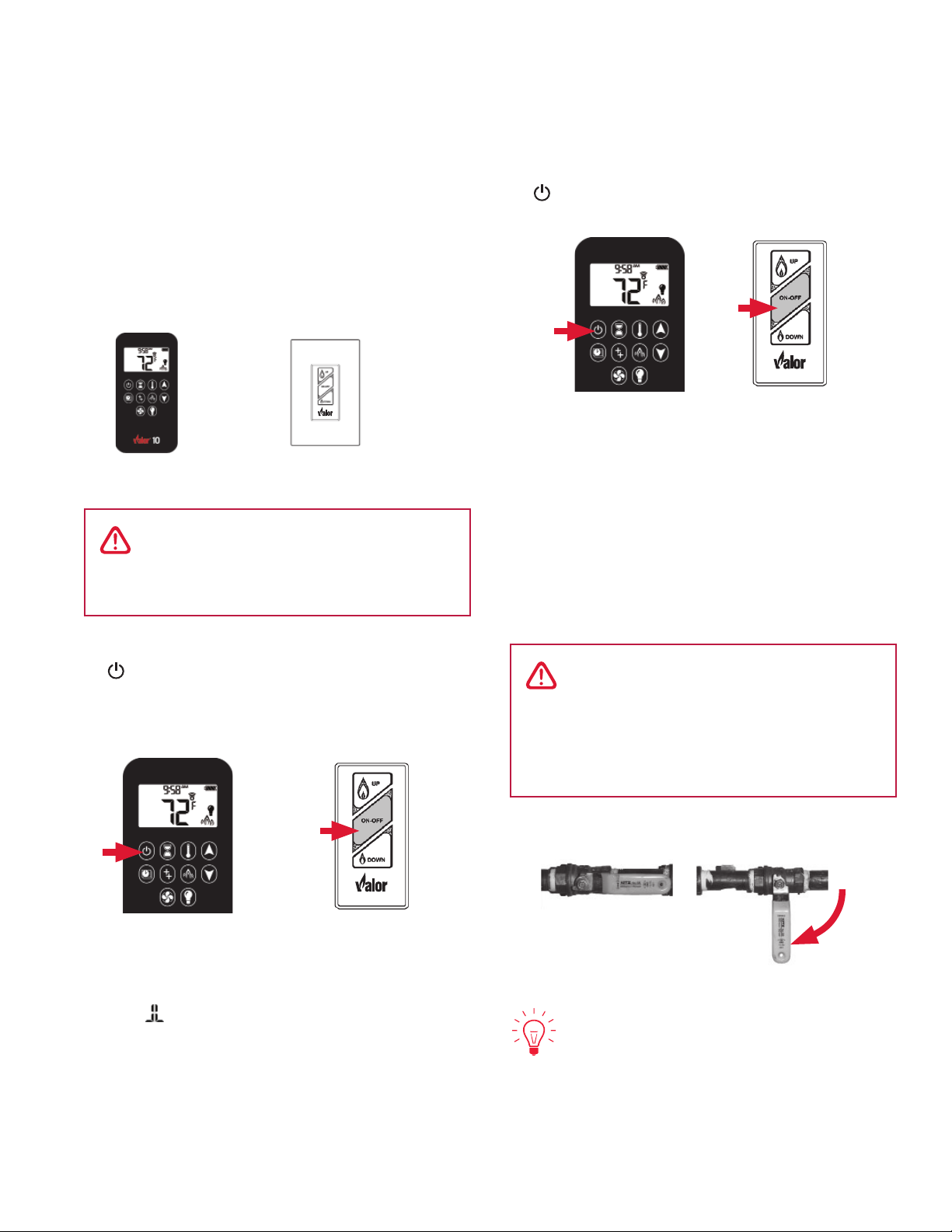

Operating your fireplace ...........................................9
Fireplace control devices............................................. 9
Preventing inadvertent ignition ...............................10
Replacing batteries................................................... 11
Annual service and maintenance........................... 12

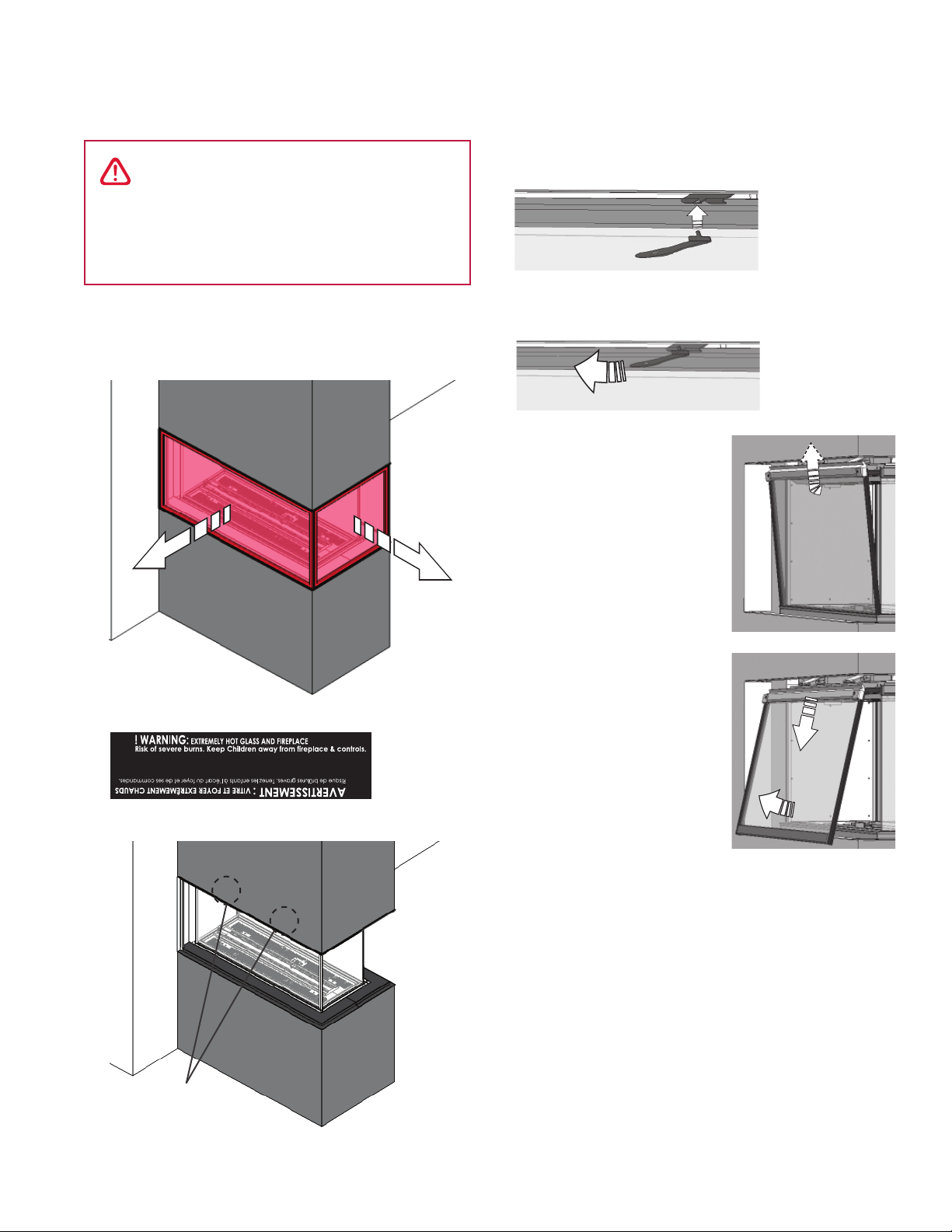

Cleaning your fireplace ............................................13

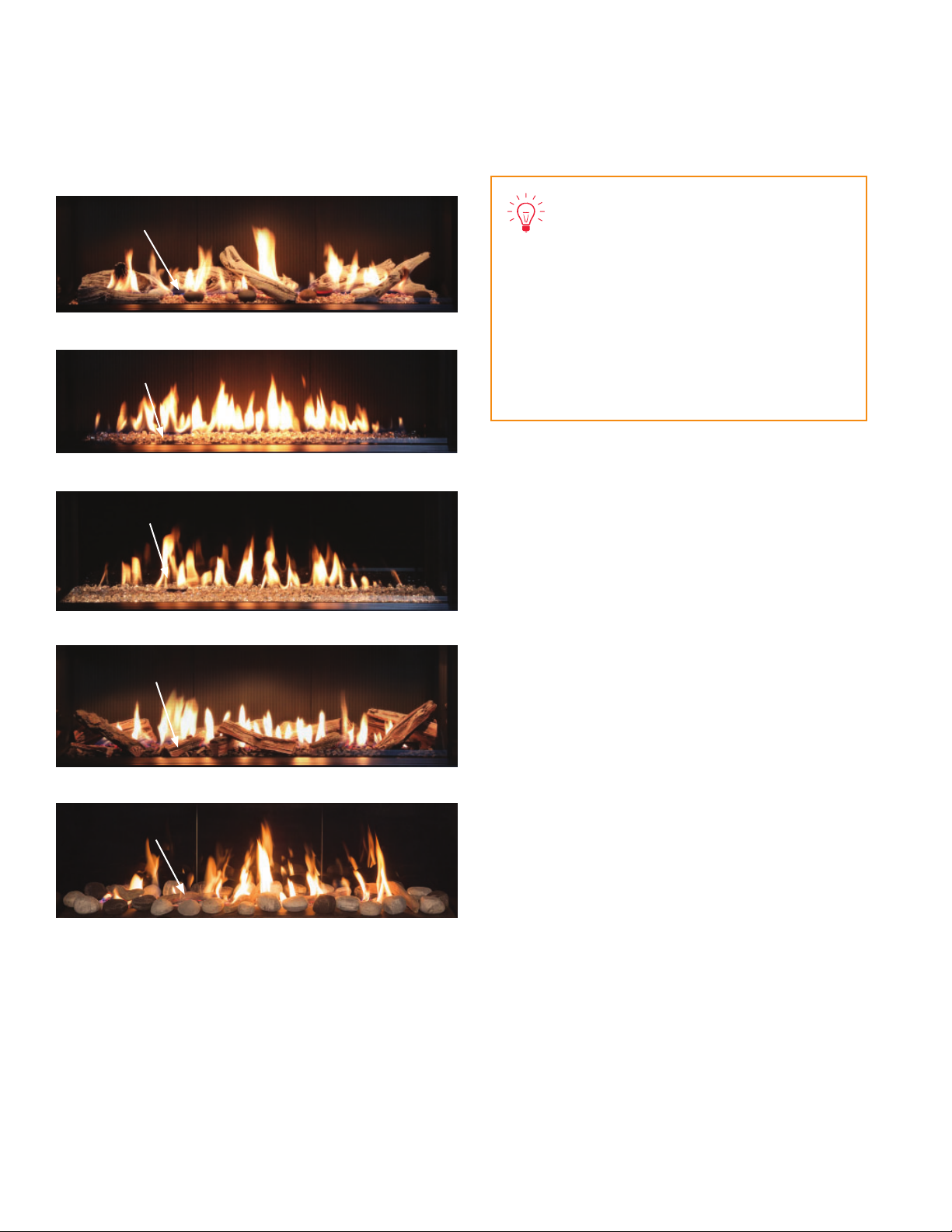

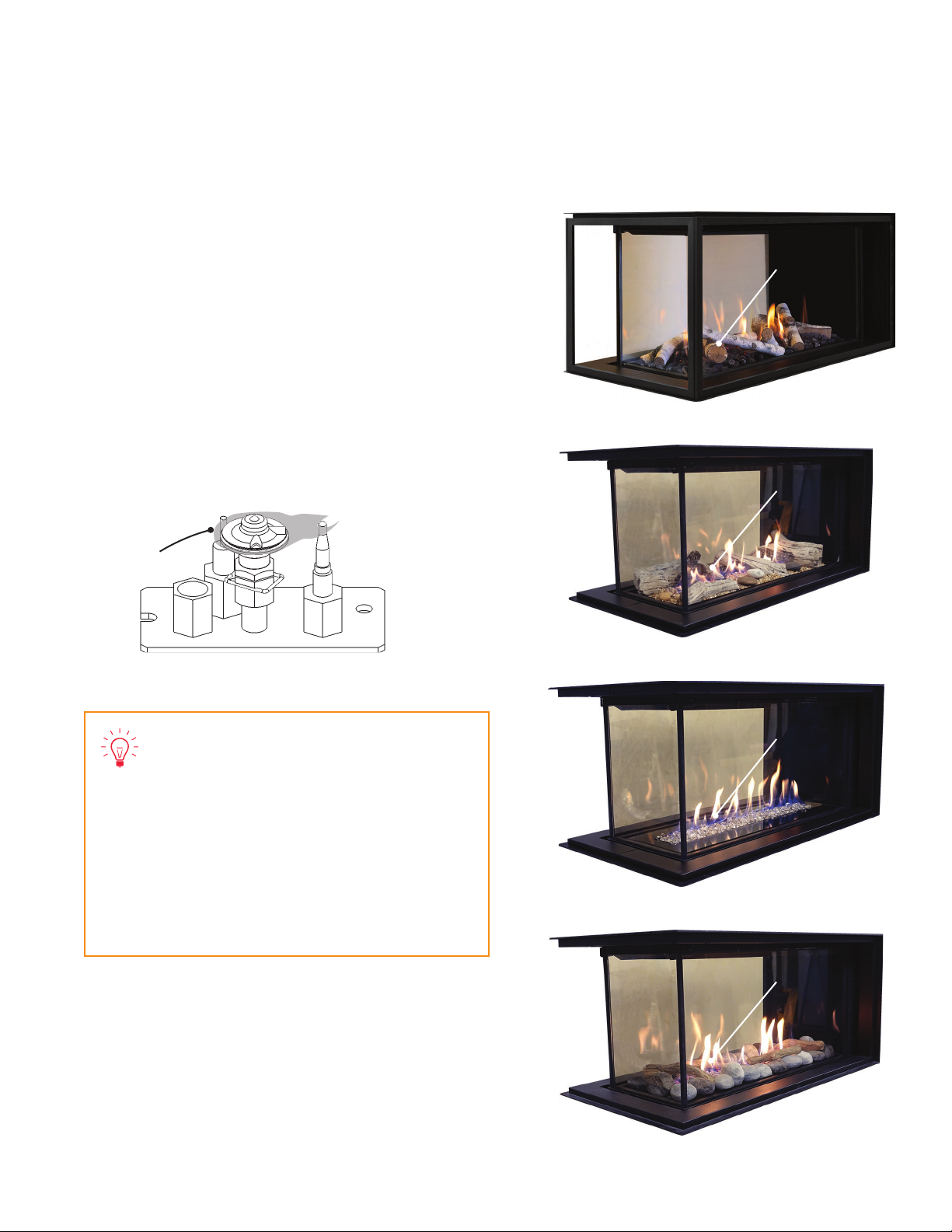

Checking pilot and burner flames.......................... 17
Frequently asked questions....................................19
Valor®Warranty ........................................................21
Appendix A-Remote Control Operation................22
Important—Register your warranty
Registration of your Valor is highly
recommended, and can be completed using the
enclosed Warranty Registration card or by visiting
valorfireplaces.com/warranty.
Completing your registration enables us to
properly address any warranty or service-related
concerns that you may have. This information
is strictly for customer service and warranty
purposes, and will never be shared with any third
party.

4
This manual contains very important information about the safe operation and maintenance of your fireplace.
Read and understand all instructions carefully before operating your fireplace. Failure to follow these
instructions may result in possible fire hazard and will void the warranty.
Replacement manuals are available by contacting Valor Customer Service at 1-800-468-2567, or by visiting
valorfireplaces.com.
WARNING: Extremely Hot!
Heat and flammability
• Some parts of your fireplace are extremely hot,
particularly the glass window. Use the provided bar-
rier screen and a gate to reduce the risk of severe
burns.
• The glass windows can exceed temperatures of
500°F at full capacity.
• Always keep the appliance clear and free from com-
bustible materials, gasoline, and other flammable
vapors and liquids.
• Be aware of hot wall surfaces. The wall directly
above the fireplace can get very hot when the fire-
place heats. Although safe, it may reach tempera-
tures in excess of 200ºF depending on choice of
trims or optional accessories. Do not touch!
• Be aware of hot surfaces in front of the fireplace
windows. A shelf directly in front of the fireplace
can get very hot when the fireplace heats. Although
safe, they may reach temperatures in excess of 200º
F depending on elevation of the shelf. Do not place
anything on it.
• Some materials or items, although safe, may
discolor, shrink, warp, crack, or peel due to the heat
produced by the fireplace. Avoid placing candles,
paintings, photos and other combustible objects
sensitive to heat or furniture within 36 inches
(0.9m) around the fireplace.
• Due to its high temperature, the appliance should
be located away from high-traffic areas, furniture,
and draperies.
• Clothing or flammable material should not be
placed on or near the appliance.
Glass window
• The glass window fronts must be in place and
sealed before the unit can be placed into safe op-
eration.
• The glass fronts must only be replaced as complete
units, as supplied by the fireplace manufacturer. No
substitute material may be used.
• Do not use abrasive cleaners on the glass front
assembly. Do not attempt to clean the glass front
when it is hot.
• Do not strike or slam the glass fronts.

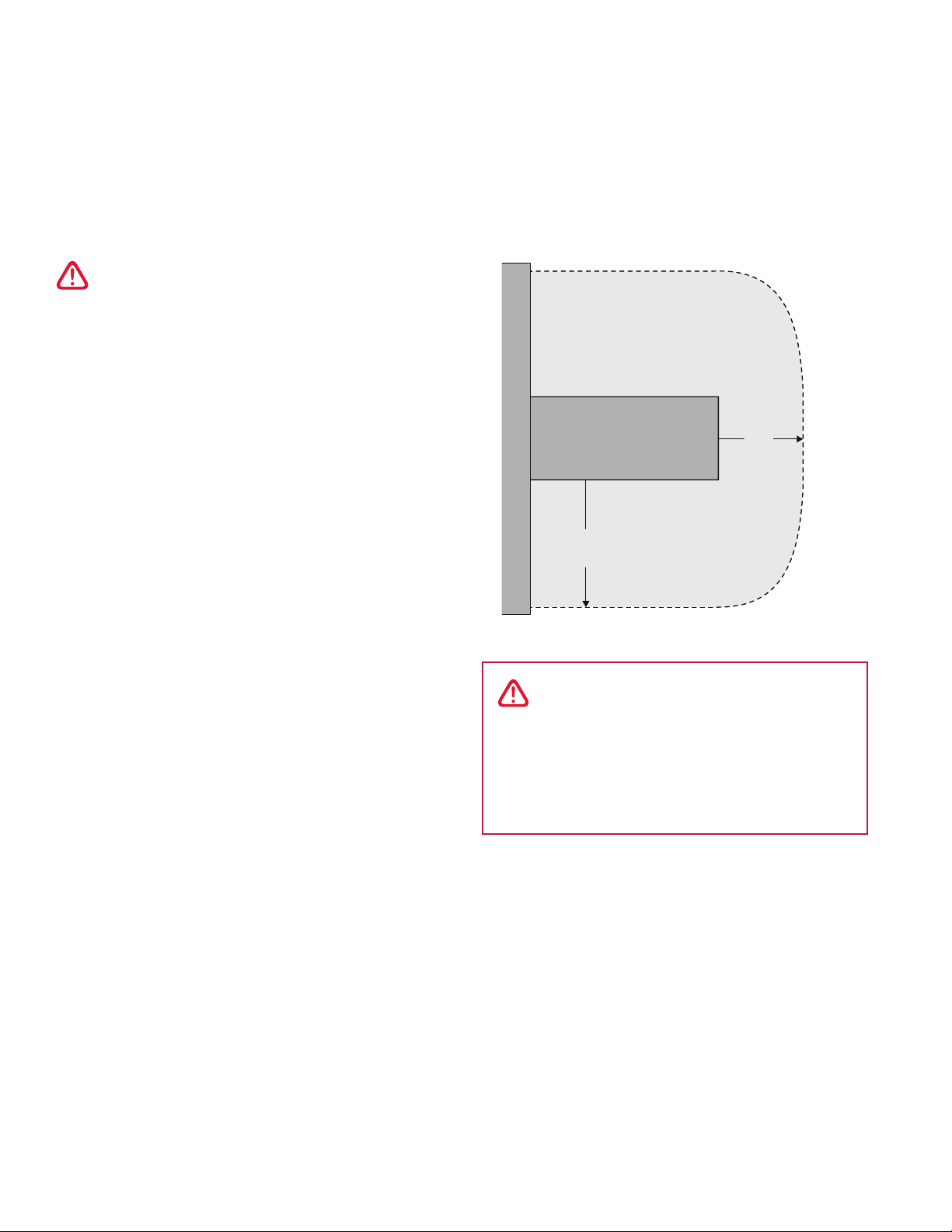

Fireplace
Do not put
furniture or objects
within this area!
24”
[915 mm]
36”
[610 mm]
Safety and your fireplace
WARNING
Do not operate this appliance with
the glass fronts removed, cracked, or
broken. Replacement of the glass fronts
should be performed by a licensed or
qualified service person.

5
Barriers and safety
• A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this appli-
ance and must be installed for the protection of
children and other at-risk individuals.
• If the barrier becomes damaged, the barrier must
be replaced with the manufacturer’s barrier for
this appliance.
• Any safety screen, guard or barrier removed for
servicing the appliance must be replaced prior to
operating the appliance.
Initial and annual inspection
• The appliance and venting system should be in-
spected before initial use and at least annually
by a professional service person.
• Installation and repair should be performed by
a qualified service person. The appliance should
be inspected before use and at least annually by a
professional service person. More frequent clean-
ing might be required due to excessive lint from
carpeting, bedding material, etc. It is imperatuve
that control compartments, burners, and circulta-
ing air passageways of the appliance be kept clean.
• Do not use this appliance if any part has been
under water. Immediately call a qualified service
technician to inspect the appliance and to replace
any part of the control system and any gas control
that has been under water.
Intended use
• This appliance is designed and approved as a
supplemental heater to be used while attended.
The use of an alternate primary heat source is
advisable.
• This unit is not for use with solid fuel.
Maintenance
• Keep the unit’s control compartment, burner, and
circulating air passageways clean to enable ad-
equate combustion and ventilation air.
• Inspect the external vent cap on a regular basis to
ensure that no debris, plants, trees, or shrubs are
interfering with air flow.
Venting
• This unit must be used with a vent system as
described in the installation manual. No other vent
system or components may be used.
• Never obstruct the flow of combustion and venti-
lation air. Keep the front of the appliance clear of
all obstructions for optimal operation and ease of
servicing.
• This unit must be vented directly outside and must
never be attached to a chimney serving a separate
solid fuel burning appliance. Each gas appliance
must use a separate vent system. Common vent
systems are prohibited.
Safety and your fireplace
Front outlet
Top of fireplace
Ceiling outlet
WARNING
HeatShift
System:
Do not cover
or place items
in front of or
above outlet(s)
or on top of
fireplace!

6
A heating gas appliance does require safe handling. For this reason, we very strongly recommend children not be
allowed to touch the fireplace or its controls.
Read and carefully follow all safety warnings and operating instructions contained in this manual, and follow
these important child safety precautions and recommendations:
• Parts of your Valor Fireplace become extremely
hot while in operation. The glass window tempera-
ture can exceed 500º F at full capacity.
• Do not let children touch the glass or any parts
of your fireplace even after it is turned off, as the
surfaces will remain hot for some time.
• Even momentary contact with a hot glass surface
can cause a severe burn, including when the fire-
place is operating at reduced heating capacity.
• The glass window will remain hot for an extended
period of time after the fireplace has been turned
off. Make sure that children do not touch the fire-
place during the cool down period.
• Children and adults should be alerted to the haz-
ards of high surface temperature and should stay
away to avoid burns or clothing ignition.
• Young children should be carefully supervised
when they are in the same room as the appliance.
Toddlers, young children, and others may be sus-
ceptible to accidental contact burns.
A physical barrier is recommended if there are
at-risk individuals in the house. To restrict access
to a fireplace or stove, install an adjustable safety
gate to keep toddlers, young children, and other
at-risk individuals out of the room and away from
hot surfaces.
• Keep the remote control handset out of reach of
children at all times. A child safety lockout feature
is included with your remote control, see page
10 for details.
• Make sure that the fireplace, including the pilot
light, is completely turned offwhen children are
present and close supervision is not available—see
page 9 and page 10 for details.
• If the fireplace is not going to be used for an ex-
tended period of time, remove the batteries from
the remote control handset and battery holder un-
der the firebox. It is recommended that batteries
are replaced annually —see page 11 for details.
Child safety and your fireplace
Hot glass
will cause burns.
Do not touch glass
until cooled.
Never allow children
to touch glass.
A barrier designed to reduce
the risk of burns from the hot
viewing glass is provided with this
appliance and must be installed for
the protection of children and
other at-risk individuals.
DANGER

7
First time operation
When operating your new fireplace for the first time,
some vapors may be released due to the burning of
curing compounds used during manufacturing. They
may cause a slight odor and could cause the flames
to be the full height of the firebox, or even slightly
higher, for the first few hours of operation.
It is also possible that these vapors could set offany
smoke detection alarms in the immediate vicinity.
These vapors are quite normal on new fireplaces.
We recommend opening a window to vent the
room. After a few hours of use, the vapors will have
disappeared and the flames will be at their normal
height.
Valor automatic gas shut-off
For your safety, Valor fireplaces are fitted with a
flame supervision device which will shut-offthe gas
supply if, for any reason, the pilot flame goes out.
This device incorporates a fixed probe, which senses
the heat from the pilot flame. If the probe is cool,
the device will prevent any gas flow unless manually
lighting the pilot. See the full Fireplace and Lighting
Information card attached to the fireplace or as
reproduced in Appendix A of the Installation Manual.
Locating fireplace and lighting information
The Fireplace and Lighting Information card is located
on a card under the firebox, below the end window,
on end opposite the wall.
To access the card, remove the front and end barrier
screens, and front sill (all held in place by magnets).
See diagrams at right.
The card is located at the end of the unit. There is
important information on both sides of the card. It
must be left with the fireplace when you are done.
Getting started
WARNING
Do not attempt to access the card while
the fireplace is hot! Let the fireplace cool
first before touching it!
739MN
FOR NATURAL GAS POUR LE GAZ NATUREL
750
24
,
000
6,500
3.2"
5.0"
4006176N/01
CIRCULATING FAN KIT 755CFK VENTILATE UR POUR CIRCULATION D'AIR 755CFK
#4003360-741, #4003293-742, #4003313-745, #4003426-765, #4004666 772
120V, 60Hz, LESS THAN 1A 120V, 60Hz, MOINS DE 1A
739N 10000
Fireplace
model
Serial
number
Locating info card
Info
card
LX1 pier LX2 3-sided
LX2 corner L+R

8
Gas Shutoff
Gas Line
Receiver (hidden)
Info Card (hidden)
Control valve
Barrier Screens (mesh) Wndows (glass) Liner
Fuel Bed - logs,
embers, pebbles
Burner
Platform
Batteries
Pilot Sill
Parts of your fireplace
Here are the major components of your installed fireplace, with the protective barriers
installed. Your individual fireplace may appear differently depending on your installed
options.
Here are the control components of your installed fireplace, with the barrier screens and
one sill removed. Your individual fireplace may appear differently depending on your
installed options.
LX1 pier
LX2 3-sided
LX2 corner L+R
LX1 pier
LX2 3-sided
LX2 corner L+R

9

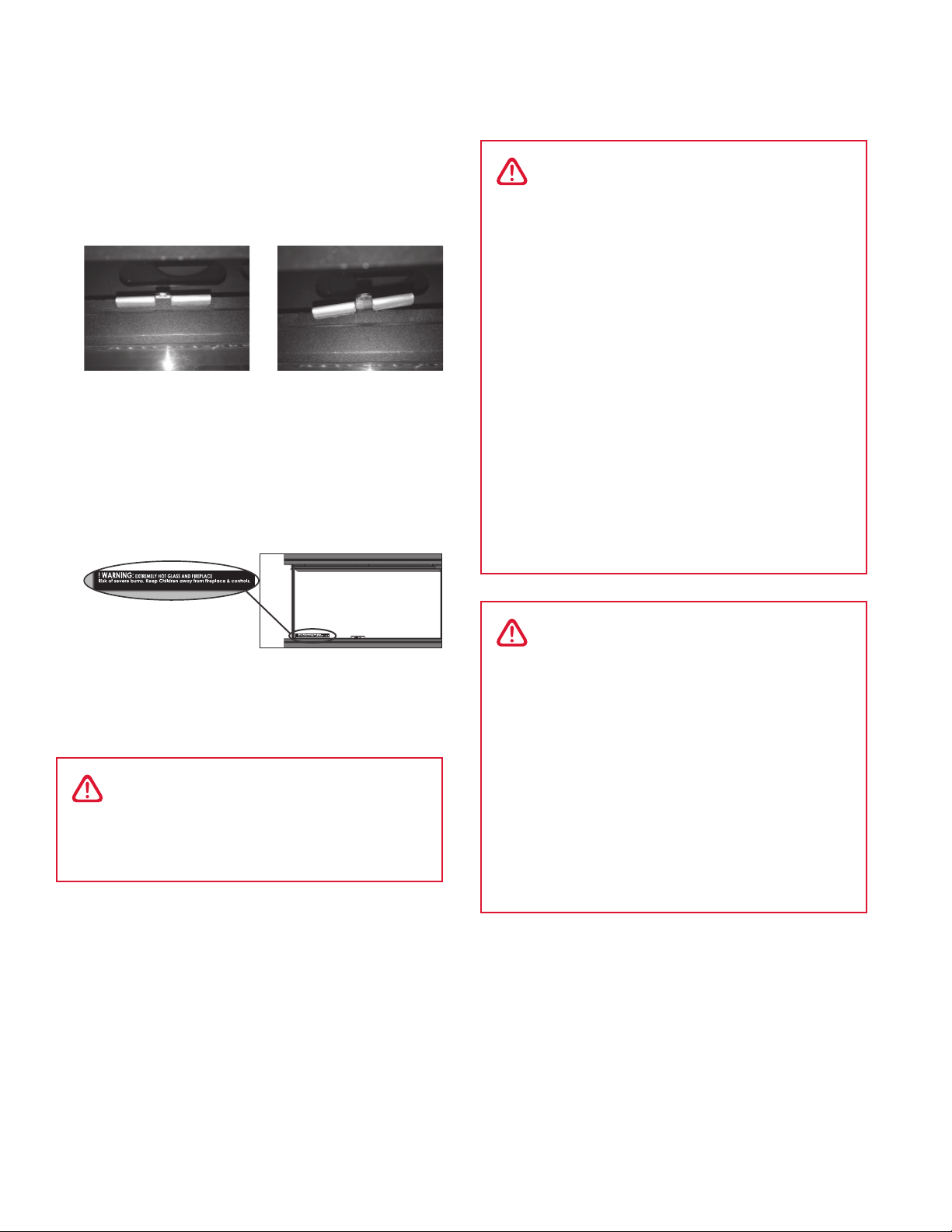

ON:
parallel
to pipe
OFF:
perpendicular
to pipe
Operating your fireplace
Fireplace control devices
There are two ways to control your fireplace.
1. Thermostatic Remote Control turns fire and
lights ON and OFF, controls flame height and can
be programmed to function automatically.
2. Wall Switch turns fire ON and OFF, and controls
flame height.
Turn your fireplace ON
Press and hold:
- button on remote, or
- ON-OFF button on wall switch
until a short beep confirms the start sequence has
begun; release button.
The fireplace beeps twice to confirm the ignition is in
process.The pilot lights up, followed by the fireplace.
If you are using the handset, it displays a pilot flame
symbol ( ) during the ignition sequence.
If you need to light up the pilot manually, see the
Fireplace and Lighting Information card attached to
the fireplace - see page 7 to learn how to access it.
Also, a copy of this card is reproduced in Appendix A
of the Installation Manual.
Turn your fireplace OFF (including pilot)
Press and hold:
- button on remote, or
- ON-OFF button on wall switch
If the flames or pilot are on, they will go out and you
will hear the valve motor wind down. You will hear
a clunk and a beep indicating that the valve has
received the signal from the remote control.
In the unlikely event that you cannot turn offyour
fireplace with the remote control handset, use the
wall switch. If the wall switch malfunctions and
will not turn offthe fireplace, wait 3 hours and the
fireplace will automatically go to pilot. You can then
access the controls inside your fireplace, once it has
cooled.
Alternatively, you may turn offthe house gas supply.
In all cases, call your dealer for service assistance.
To use additional functions of your Remote
Control such as temperature or program
settings, see "Appendix A-Remote Control
Operation" on page 28 of this manual or
visit valorfireplaces.com/remotes
WARNING
Risk of severe burns! Surface of the
fireplace are very hot during operation!
Ensure fireplace has cooled offbefore
accessing control.
Remote Control Wall Switch
WARNING
STOP IF YOU SMELL GAS! DO NOT LIGHT!
See cover page immediately!

10
Operating your fireplace
Turn on lights
Your fireplace comes with overhead lighting to
highlight the beauty of the logs. To turn the lights on,
press the button on the remote. To turn them off,
press the button again.
To adjust the light level, press and hold the button
until the symbol begins flashing on the remote.
Then press and hold the or button. Press or
wait to confirm lighting level.
Child proofing your handset
Your remote control can be locked to prevent
operation by children.
To turn child proofing ON:
1. Press and hold the and buttons
simultaneously.
2. is displayed on the handset screen making
the handset inoperable, with the exception of the
OFF function.
To turn child proofing OFF:
1. Press and hold the and buttons
simultaneously.
2. disappears from the handset screen and the
handset is returned to full functionality.
Preventing inadvertent ignition
You can use one of the following two methods
to ensure that your fireplace will not turn on
unexpectedly.
• Under the front sill, shut offthe local gas supply to
the control valve. (See Locating Info Card on page
7 for details on how to access this area)
• Alternately, remove all batteries from the battery
holder next to wall switch and the handset.
Automatic shut-off(in certain conditions)
Your fireplace’s remote control is equipped with an
automatic shut-offmechanism which is activated
in certain conditions. See Remote Control Operation
at Appendix A or valorfireplaces.com/remotes for a
description of this feature.
Gas ON Gas OFF
Gas shutoff
location
LX1 pier LX2 3-sided
LX2 corner L+R
