Valor Sunfire Assembly instructions

5109300/01
INSTALLER GUIDE
INSTALLER: Please leave this guide with the owner
© Valor Heating
S u n f i r e
MODEL 337
(GC No. 32-032-31)
RADIANT/CONVECTOR
GAS FIRES
THIS APPLIANCE IS FOR USE WITH NATURAL GAS (G20)
THIS APPLIANCE IS FOR USE IN THE UNITED KINGDOM (GB) AND
THE REPUBLIC OF IRELAND (IE) ONLY.
Manufactured exclusively for British Gas & Scottish Gas by Valor Heating
For Service Phone [phone]

CONTENTS
1 SAFETY 3
2 LIST OF ACCESSORIES 3
3 APPLIANCE DATA 4
4 GENERAL INSTALLATION REQUIREMENTS 5
5 PRE-INSTALLATION PREPARATION 11
5.1 Unpacking 11
5.2 Fireplace Flue Pull 11
5.3 Appliance Preparation 12
5.4 Fit The Closure Plate 13
6 APPLIANCE INSTALLATION 14
6.1 Installing To A Hearth 14
6.2 Wall Mounting 14
6.3 Gas Supply Connection 15
6.4 Radiants Installation 15

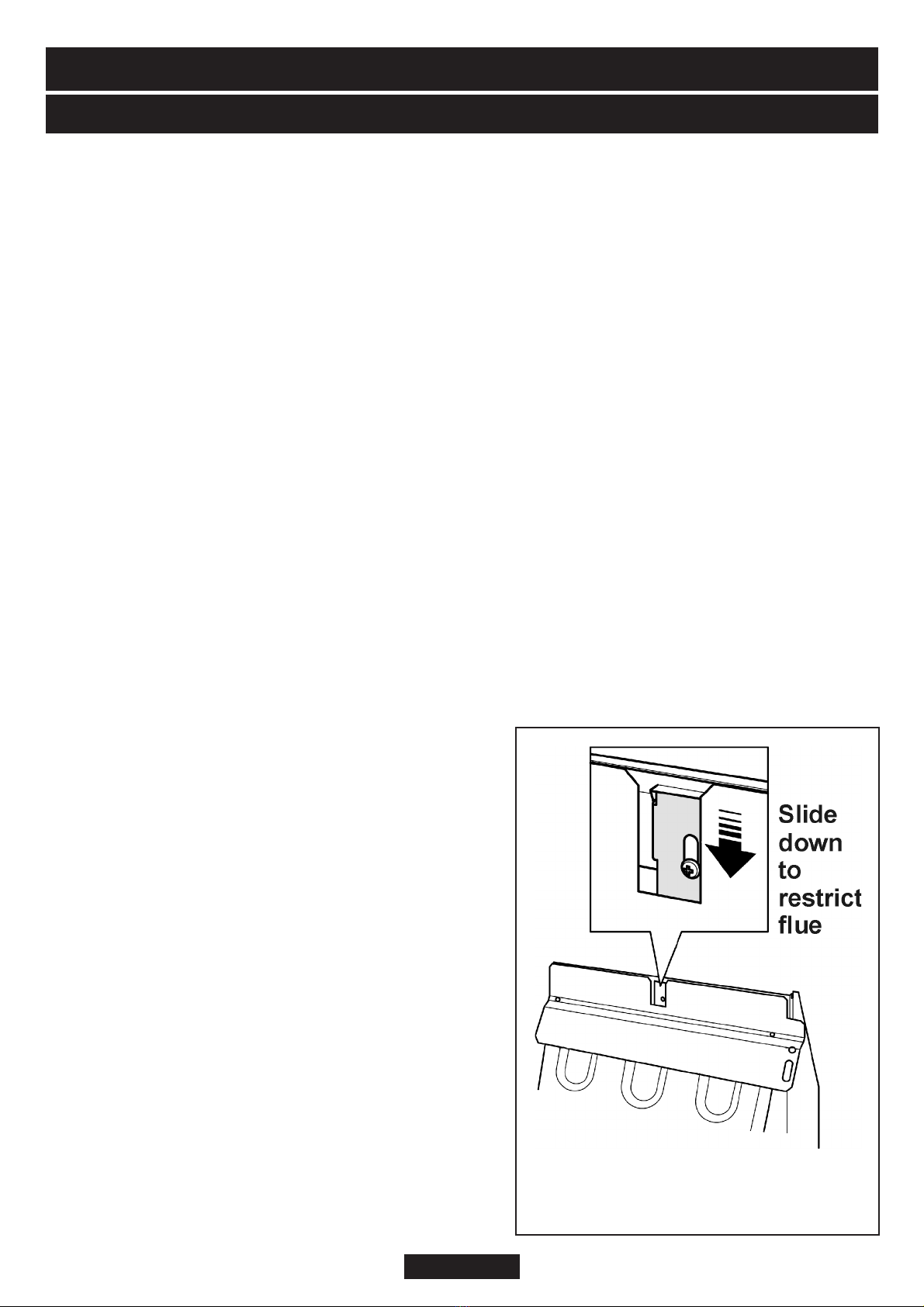

6.5 Flue Restrictor Adjustment 15
7 CONTROL & PRESSURE CHECKS 16
7.1 Check Control Settings 16
7.2 Flame Supervision & Spillage Monitoring System 16
7.3 Check Reference Pressure 17
8 OUTER CASE FITTING 17
9 SPILLAGE CHECK 18
10 FINAL REVIEW 19
11 SERVICING & PARTS REPLACEMENT 20
11.1 To Replace Radiant(s) 20
11.2 To Remove the Outer Case 20
11.3 To Replace the Pilot Unit 20
11.4 To Remove the Piezo Generator 21
11.5 To Remove The Complete Burner Module, Pipes and Pilot 21
11.6 To Grease the Gas Tap 22
REPLACEMENT PARTS – SHORT LIST 22
Valor Heating, Erdington, Birmingham B24 9QP
www.valor.co.uk
Because our policy is one of constant development and improvement, details may vary slightly
from those given in this publication.
Page 2
INSTALLER GUIDE

1 SAFETY
Installer
 Before continuing any further with the installation of this appliance please read
the following guide to manual handling
The lifting weight of this appliance is 15.5Kg
One person should be sufficient to lift the fire. If for any reason this weight is
considered too heavy then obtain assistance.
When lifting always keep your back straight. Bend your legs and not your back.
Avoid twisting at the waist. It is better to reposition your feet.
Avoid upper body/top heavy bending. Do not lean forward or sideways whilst
handling the fire.
Always grip with the palm of the hand. Do not use the tips of fingers for support.
Always keep the fire as close to the body as possible. This will minimise the
cantilever action.
Use gloves to provide additional grip.
Always use assistance if required.
2 LIST OF ACCESSORIES
Description Part number
Spigot extension 0595191
Page 3
INSTALLER GUIDE

3 APPLIANCE DATA
This appliance does not contain any component manufactured from asbestos or asbestos
related products.
The appliance data label is on the inner face of the back panel at the lower left hand
side. It is visible when the outer case is removed.
Page 4
INSTALLER GUIDE
Gas Natural (G20)
Inlet Pressure 20mbar
Gross Heat Input Max. 5.6kW (19,100Btu/h)
Min. 1.25kW (4,300Btu/h)
Burner Test Pressure (Cold) 17.95+0.75mbar
(7.2+0.3in w.g.)
Gas Connection 8mm pipe
Burner Injector Upper Bray Cat. 16 Size 120
(Centre Radiant)
Lower Bray Cat. 28 Size 250B
(Outer Radiants)
Pilot & Atmosphere Sensing Device OP9093
Ignition Twin spark Piezo-electric,
integral with gas tap
Aeration Non-adjustable

4 GENERAL INSTALLATION REQUIREMENTS
4.1 The installation must be in accordance with these instructions.
For the user’s protection, in the United Kingdom it is the law that all gas appliances are
installed by competent persons in accordance with the current edition of the Gas Safety
(Installation and Use) Regulations. Failure to install the appliance correctly could lead
to prosecution. The Council for the Registration of Gas Installers (CORGI) requires its
members to work to recognised standards.
In the United Kingdom the installation must also be in accordance with:
 All the relevant parts of local regulations.
 All relevant codes of practice.
 The relevant parts of the current editions of the following British Standards:-
BS 715 BS EN 1806 BS 5440 Part 2 BS 6891
BS 1251 BS 4543 Part 2 BS 5871 Part 1
BS 1289 Part 1 BS 5440 Part 1 BS 6461 Part 1
 In England and Wales, the current edition of the Building Regulations issued by
the Department of the Environment and the Welsh Office.
 In Scotland, the current edition of the Building Standards (Scotland) Regulations
issued by the Scottish Executive.
 In Northern Ireland, the current edition of the Building regulations (Northern
Ireland) issued by the Department of the Environment for Northern Ireland.
 In the republic of Ireland the installation must also conform to the relevant parts
of:
 The current edition of IS 813 “Domestic Gas Installations”
 All relevant national and local rules in force.
Where no specific instructions are given, reference should be made to the relevant
British Standard Code of Practice.
4.2 If the appliance is intended to be installed to a chimney that was previously used
for solid fuel, the flue must be swept clean prior to installation. All flues should be
inspected for soundness and freedom from blockages.
4.3 Any chimney dampers or restrictors should be removed. If removal is not
possible they must be fixed in the open position.
4.4 Normal adventitious ventilation is usually sufficient to satisfy the ventilation
requirements of this appliance. In GB reference should be made to BS 5871 Part 2 and
in IE reference should be made to the current edition of IS 813 “Domestic Gas
Installations” which makes clear the conditions that must be met to demonstrate that
sufficient ventilation is available.
Page 5
INSTALLER GUIDE

4.5 Note that soft wall coverings (e.g. embossed vinyl, etc.) are easily affected by
heat. They may scorch or become discoloured when close to a heating appliance. Please
bear this in mind when installing.
4.6 The minimum allowable distance from the outside of the appliance case to a
corner wall having combustible material or any other combustible surface which
projects beyond the front of the appliance is 50mm at either side. See figure 1. No side
clearance is necessary to non-combustible surfaces.
Page 6
INSTALLER GUIDE
Figure 1 Dimensions & clearances

4.7 Allow a minimum clearance of 90mm from the top surface of the appliance case
to the underside of any shelf whether it is made from combustible or non-combustible
materials. This clearance is necessary to allow the case to be lifted off for servicing and
also allows the owner sufficient access to operate the control knob.
For a shelf made from wood or other combustible materials deeper than 150mm, the
minimum clearance must be as shown in graph 1.
4.8 The appliance must not be installed in any room, which contains a bath, or shower
or where steam is regularly present.
Page 7
INSTALLER GUIDE
Graph 1 Shelf clearances

4.9 In the United Kingdom, as supplied, this appliance can be installed in the
following situations: -
Note: A spigot extension is available (Part number 0595191). When fitted this shall
extend through the closure plate for at least 15mm and have a minimum clearance of
50mm from the end to any surface.
4.9.1 Conventional Fireplace
The fireplace opening must be within the following dimensions:
Width Max. 440mm
Min. 305mm
Height Max. 610mm★
Min. 525mm
★Though the total height of the closure plate will accommodate a maximum opening
height of 650mm, heights above 610mm will leave the closure plate and sealing tape
visible above the appliance.
The appliance must be mounted on a non-combustible hearth (N.B. conglomerate
marble hearths are considered as non-combustible). The hearth must be at least 880mm
wide x 300mm deep. The hearth material must be at least 12mm thick. The periphery of
the hearth (or fender) should be at least 50mm above floor level to discourage the
placing of carpets or rugs over it.
The appliance can be fitted to a purpose made proprietary class “O” 150°C surround.
4.9.2 Wall Mounted
The wall opening must be within the following dimensions:
Width Max. 440mm
Min. 305mm
Height Max. 610mm★
Min. 350mm
★Though the total height of the closure plate will accommodate a maximum opening
height of 650mm, heights above 610mm will leave the closure plate and sealing tape
visible above the appliance.

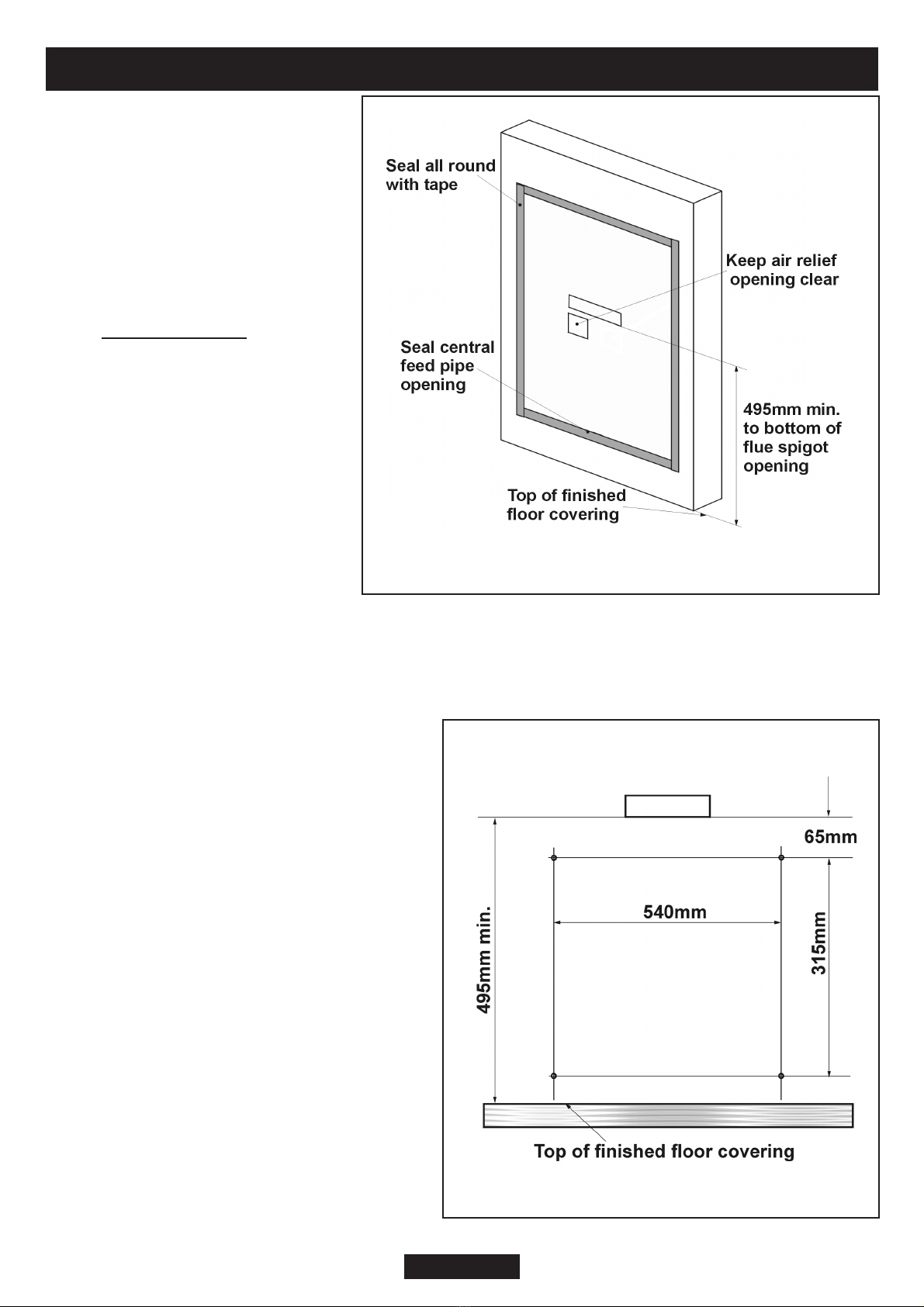

The bottom of the appliance must be at least 50mm above the finished floor covering.
See figure 1. This requires the top of the opening to be at least 575 mm above the
finished floor covering. Any opening visible below the appliance may be closed in but
the depth of the catchment space within the wall opening must be as shown in figure 2.
4.9.3 Precast Flues
The appliance can be installed to a fireplace that has a properly constructed precast
concrete or clay flue block system conforming to BS1289 or BS EN 1806. The
appliance is suitable for installations conforming to older versions of BS1289 as well as
Page 8
INSTALLER GUIDE

the current standards. The flue blocks must have a minimum width not less than 63mm
and a cross-sectional area not less than 13,000mm2.Older editions of BS1289 required
a cross-sectional area of 13,000mm2. The current revision of the standard requires
16,500mm2. This appliance is suitable in both cases.
The chimney should be one or two storeys high but not less than 3m vertical height and
be correctly terminated. No mortar fangs between the blocks should be extruded into the
flueway. If raking blocks are used, they must be fitted in accordance with the
manufacturer’s instructions. Mortar must not be allowed to drop down and accumulate
in the raked positions.
The fireplace opening must be within the following dimensions:
Width Max. 440mm
Min. 305mm
Height Max. 610mm1
Min. 525mm2
1Though the total height of the closure plate will accommodate a maximum opening
height of 650mm, heights above 610mm will leave the closure plate and sealing tape
visible above the appliance.
2Any opening visible below the appliance may be closed in.
4.9.4 Metal Flue Box
The appliance can be installed to a metal flue box conforming to BS715 Section 6 (For
gas fires to BS5258: Part 5) having a minimum internal depth of 165mm.
The opening must be within the following dimensions:
Width Max. 440mm
Min. 380mm
Height Max. 610mm★
Min. 525mm
★Though the total height of the closure plate will accommodate a maximum opening
height of 650mm, heights above 610mm will leave the closure plate and sealing tape
visible above the appliance.
4.10 The following flues are suitable:
 225mm x 225mm conventional brick flue.
If a flue liner is used, it must be a minimum of 125mm diameter. The liner must be
sealed to the surrounding area above the fireplace opening and to the top of the
chimney. An approved terminal must be fitted.
 A properly constructed precast flue conforming to B.S 1289 or BS EN 1806.
 A flue pipe with a minimum diameter of 127mm. See B.S 6461 Part 1 for suitable
materials. Metal flue pipes must comply with B.S 715. See section 4.9.4 of this guide
for flue box opening sizes.
Page 9
INSTALLER GUIDE

4.10.1 The flue must conform to BS 5440: Part
1 in design and installation.
The flue, measured from the bottom of the
fireplace opening to the bottom of the terminal,
shall be not less than 3m in actual vertical
height. When calculated in accordance with BS
5440: Part 1 Annex A, the minimum equivalent
height of the flue shall be 2.0m of 125mm dia.
flue pipe.
4.10.2 The flue must be clear of any
obstruction and its base must be clear of debris.
4.10.3 The flue must be completely sealed so
that combustion products do not come into
contact with combustible materials outside the
chimney.
4.10.4 The flue must serve only one fireplace.
4.10.5 Proprietary terminals must comply with
BS 715 or BS 1289. Any terminal or
termination must be positioned in accordance
with BS 5440 Part 1 to ensure that the products
of combustion can be safely dispersed into the
outside atmosphere. Where the appliance is connected to an unlined brick chimney it is
generally unnecessary for the chimney pot to be replaced or for a terminal to be fitted
unless the flue has a diameter smaller than 170mm.
4.11 If the fireplace opening is an underfloor draught type, it must be sealed to stop
any draughts.
4.12 The flue spigot and any spigot extension must be capable of passing through the
closure plate by at least 25mm with a minimum clearance of 50mm between its open
end and the nearest obstruction.
There must also be a minimum clearance of 165mm between the back of the closure
plate and the back of the catchment space.
The catchment space below the flue spigot must extend at least 250mm downwards
measured from the bottom of the flue spigot.
See figure 2.
4.13 The front of the fireplace should be flat over an area sufficient to ensure a good
seal with the closure plate. The flat surface should extend for a height equal to that of
the closure plate plus 20mm and for a width equal to that of the closure plate plus
40mm.
Page 10
INSTALLER GUIDE
Figure 2 Fireplace catchment
space.

4.14 If the fire is to be fitted against a wall with combustible cladding, the cladding
must be removed from the area shown in figure 3.
4.15 An extractor fan may only be used in the same
room as this appliance, or in any area from which
ventilation for the appliance is taken, if it does not
affect the safe performance of the appliance. Note
the spillage test requirements detailed further on in
this manual. If the fan is likely to affect the
appliance, the appliance must not be installed unless
the fan is permanently disconnected.
4.16 The space between the fireplace front face and
the back of the outer case must not be filled in.
4.17 If the fireplace opening is greater than the acceptable dimensions given in
this guide, do not use the back of a fire surround or marble to reduce the opening.
This may cause cracking of the surround back or marble.
4.18 The appliance is fitted with an A.S.D (Atmosphere sensing device). If the
appliance closes down after a period of operation for no apparent reason, the consumer
should be informed to stop using the appliance until the installation and appliance have
been thoroughly checked. The A.S.D will shut the appliance down if an unacceptable
amount of harmful products of combustion accumulate. Under no circumstances should
the A.S.D be altered or bypassed in any way. Only a genuine manufacturers replacement
part should be fitted. The individual A.S.D components are not replaceable.
4.19 A fireguard complying with BS 8423 should be fitted for the protection of young
children, the elderly, or the infirm.
Page 11
INSTALLER GUIDE
Figure 3. Area to be free of
combustible cladding

5 PRE-INSTALLATION PREPARATION
5.1 Unpacking
This appliance is supplied completely assembled except for:-
 3 radiants which are in a cardboard pack inside
the firebox.
 The closure plate
 Literature pack
 An olive & olive nut for gas line connection
Remove all the items carefully to prevent damage.
Some items may be contained in the packaging
fitments -Examine the packaging carefully before
discarding. Check that all the items are present and
undamaged.
5.2 Fireplace Flue Pull
Close all doors and windows in the room in which
the appliance is to be installed. After confirming with
a match that smoke is drawn into the flue, light a 13
gram smoke pellet and check that there is a definite
flow through the flue. Verify outside that the smoke
exits from one terminal only and that the termination
is suitable. Observe, where possible, upstairs rooms
and loft spaces for signs of escaping smoke indicating
a defective flue. If there is not a definite flow warm
the flue for a few minutes and repeat the smoke pellet
test. If there is still no definite flow the flue may need
remedial work – Do not fit the appliance until there
is a definite flow through the flue.
5.3 Appliance Preparation
5.3.1. Stand the fire upright.
5.3.2 Remove the two transit screws from near the top
of the back panel wings. See figure 4.
5.3.3. Remove the control knob by pulling clear of the gas tap spindle.
5.3.4. Remove the two case retaining screws located at the front of the case near the
bottom corners.
5.3.5. Lift the case up and forward to clear the rear top location. Store in a safe place.
5.3.6. Remove the radiant pack.
5.3.7. Remove any protective film from all the bright trims.
5.3.8. Check ignition spark: Before attempting to install, it is worth checking that the
piezo electric spark ignition system operates satisfactorily.
Page 12
INSTALLER GUIDE
Figure 4. Transit screws.
Figure 5. Pilot spark gap

To initiate the spark,
temporarily refit the control
knob to the spindle. Depress
the knob and while keeping it
depressed, turn to the 1/IGN
position. A spark should track
from the electrode pin to the
thermocouple tip. If there is
no spark or incorrect tracking,
check the spark gap between
the electrode wire and
thermocouple tip. See figure
5.
If the spark gap is correct,
check the ignition wiring.
5.3.9. If the fire is fitted to a
recessed fireplace, an
extension flue spigot up to a
maximum total length of
125mm may be used. The extension
must be a tight fit over the flue
spigot and be secured by two self
tapping screws. Note the minimum
clearance required as shown in
figure 2.
5.4 Fit The Closure Plate
See figure 6.
The closure plate has an opening
at the bottom for a central gas
feed pipe. The gap between the
pipe and this opening should be
sealed with tape after connection.
If a central feed pipe is not
required the opening should be
completely sealed with tape.
5.4.1 Hearth mounting
See figure 7.
The closure plate must be fitted and
sealed to the hearth and fireplace
opening using a suitable heat
Page 13
INSTALLER GUIDE

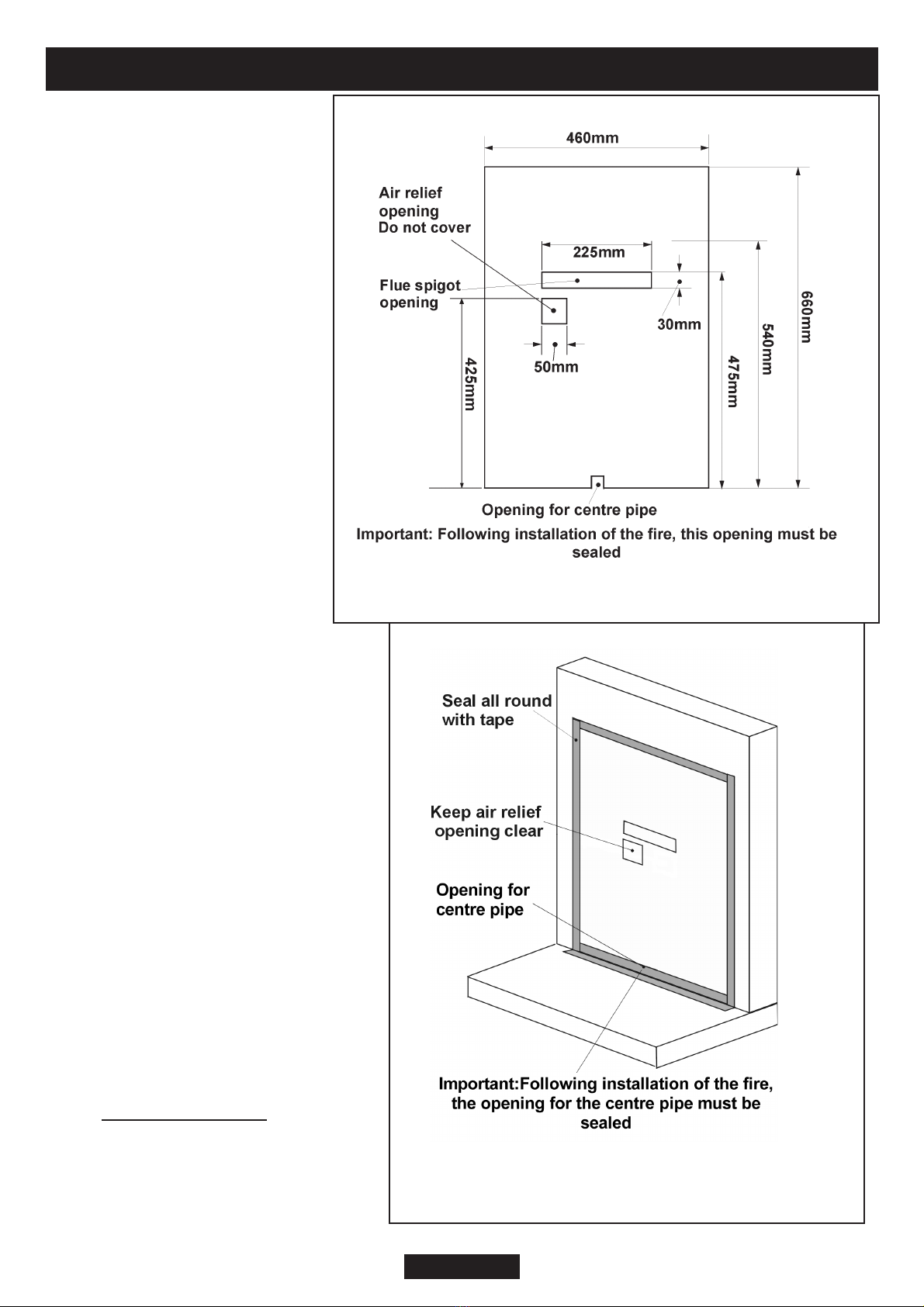

Figure 6. Closure plate.
Figure 7. Closure plate for Hearth
Mounting.

resistant material. If necessary
cut the closure plate but make
sure that it overlaps the fireplace
opening sufficiently to allow
satisfactory sealing. Make sure
that the rectangular air relief
opening is fully within the
fireplace opening.
5.4.2 Wall mounting
See figure 8.
The closure plate must be fitted
and sealed to the hearth and
fireplace opening using a
suitable heat resistant material. If
necessary cut the closure plate
but make sure that it overlaps the
fireplace opening sufficiently to
allow satisfactory sealing. Make
sure that the rectangular air relief opening is fully within the fireplace opening.
The bottom of the appliance must be at least 50mm above any carpet or other floor
covering. To achieve this, the bottom of the flue spigot opening must be at least 495mm
above the finished floor covering.
5.4.3 Check the flue pull with closure
plate fitted by applying a lighted match
or smoke match to the flue spigot
opening in the closure plate and observe
the smoke. If there is a definite flow
continue with the installation. If not
check the fitting of the closure plate. The
fireplace flue pull check described in
section 5.2 should have confirmed that
the fireplace itself is satisfactory.
Page 14
INSTALLER GUIDE
Figure 8. Closure plate for Wall Mounting.
Figure 9. Wall fixing holes

6 APPLIANCE INSTALLATION
6.1 Installing To A Hearth
6.1.1 Place the fire centrally on the hearth making sure that the spigot lines up with the
spigot hole in the closure plate. Gently slide the appliance into place. The spigot must
enter the closure plate to a depth of at least 25mm.
6.1.2 Level the fire by loosening the lock nuts and turning the levelling screws in the
feet up or down as required while they bear on the hearth. When the fire is level and
square to the wall, retighten the lock nuts.
6.2 Wall Mounting
The fixing hole positions in relation to the flue spigot opening are shown in figure 9.
Mark these positions on the wall. The positions can alternatively be marked by placing
the fire in position and marking the wall through the holes in the back panel. Drill and
plug the holes using no. 10 wall plugs. Place the fire in position and secure with four
no. 10 x 2in. woodscrews.
6.3 Gas Supply Connection
8mm rigid tubing must be used to connect the gas supply to the appliance. An olive and
nut are provided for connection to the “T” connector on the appliance. The connector
can be rotated to allow connection from either side or the rear. The connector includes a
valve for isolating the gas supply.
The closure plate has a cut-out for rear connection. Seal the gap between the cut-out and
the supply pipe.
Pressure check the installation pipework for gas
soundness. In the United Kingdom check in
accordance with the current edition of BS6891.
In the Republic of Ireland check in accordance
with the rules in force.
6.4 Radiants Installation
Important: Fit the radiants ensuring that their
rear face rests against the horizontal ribs in the
rear panel. There will be a small gap between
their bottom front edges and the retaining
channel at the front of the radiant box.
6.5 Flue Restrictor Adjustment
See figure 10.
The appliance has an integral adjustable flue
draught restrictor. This is supplied set in the fully
Page 15
INSTALLER GUIDE
Figure 10. Flue restrictor
adjustment

open (unrestricted) position and in most cases no adjustment should be necessary. It can
be reset to a fully restricted position if the flue draught is excessive. The restrictor
must remain in its fully open position if the flue has an equivalent height of 4m or
less (as calculated in accordance with BS5440: Part 1 Appendix A) or where a pre-
cast flue is used.
To close the restrictor:
1. Loosen the screw situated behind the cut-out in the black upper heat shield. Do not
fully remove the screw.
2. Push the restrictor firmly down as far as it will go. The top of the slot in the restrictor
bracket should touch the screw.
3. Fully tighten the screw.
There may be certain exceptional circumstances where closing the restrictor causes the
fire to fail the spillage test (See section 9). In such cases the restrictor will have to be
reopened.
7 CONTROL & PRESSURE CHECKS
7.1 Check Control Settings
7.1.1 If closed,open the isolating valve at the inlet elbow.
7.1.2 To check the control positions temporarily place the outer case loosely over the
engine. Fit the control knob over the gas tap spindle.
7.1.3 Depress the control knob and turn anticlockwise partially towards the 1/IGN
position until some resistance is felt. Keep depressed at this position for a few seconds
to purge air from the system then, while keeping it depressed, turn fully to the 1/IGN
position. A spark should be generated at the pilot while turning. The spark should ignite
the pilot. If it does not, keeping the knob depressed, continue to turn the knob
anticlockwise. A second spark should be generated at the pilot while turning. This
spark should ignite the pilot
7.1.4 When pilot ignition has been achieved, keep the control knob depressed for
approximately ten seconds to allow the thermocouple probe to warm up and then release
it. If the pilot does not remain alight, ensure that the air has been purged, that the pilot
orifice is clear and that the thermocouple connections are sound. Replace the pilot unit
if necessary (see servicing section of this manual).
Page 16
INSTALLER GUIDE

7.1.5 Check all the control settings. These are: -
7.2 Flame Supervision & Spillage Monitoring System
The pilot unit incorporates a system that will automatically shut off the gas supply if the
pilot flame goes out or if there is insufficient oxygen due to spillage or lack of
ventilation.
Check that the system operates properly as follows;
7.2.1 Light the appliance. Set at position 5 and leave for one minute.
7.2.2 Turn back to “OFF” to extinguish the pilot. Note the time when the pilot goes
out. Listen for a snap sound at the gas tap. Note the time when the sound is heard. An
electromagnetic valve shutting off the gas supply through the tap causes this sound. The
valve is located in the body of the tap. The valve should operate within 60 seconds of
the pilot going out. If the valve does not operate within this time limit do not allow the
appliance to be used until the fault has been corrected.
This monitoring system must not be adjusted, bypassed or put out of operation.
This monitoring system, or any of its parts, must only be exchanged using
authorised parts.
7.3 Check Reference Pressure
The appliance is pre-set to give the correct heat input at the inlet pressure shown in
section 3 of this manual. No adjustment is necessary.
7.3.1 Detach the control knob from the spindle. Remove the outer case.
7.3.2 Check the burner pressure by fitting a pressure gauge at the test point. The test
point is on the gas tap. Check the pressure with the appliance alight and set at maximum
output (Control position 5).
7.3.3 After checking, turn off the appliance. Remove the pressure gauge and replace the
test point sealing screw. Relight the appliance. Turn to the maximum output position
and test around the sealing screw for gas soundness with a suitable leak detection fluid.
7.3.4 If all the above checks are satisfactory, continue with the installation. If not, check
the control and ignition circuitry and components as described in the servicing section
of this manual.
Page 17
INSTALLER GUIDE
Knob
Position Radiants Condition
2Centre radiant on low. Outer radiants off.
3Centre radiant fully on. Outer radiants off.
4Centre radiant fully on. Outer radiants on low.
5 All radiants fully on.

8 OUTER CASE FITTING
 Place the case over the engine.
Make sure that the channel near the top
of the rear of the outer case locates fully
into the wings of the engine back panel.
See figure 11.
 Fit the control knob firmly on to
the control spindle.
 Refit the two case retaining screws
at the front of the case near the bottom
corners.
9 SPILLAGE CHECK
A spillage test must be made before the installed appliance is left with the
customer.
1. Close all doors and windows in the room containing the fire.
2. Light the appliance and set the control knob to the maximum position (Position 5).
3. Leave the appliance on for five minutes.
4. Place a smoke match tube (with lighted
match) horizontally underneath the radiant box
but touching the top lip of the box. The tube
should be between the two vertical inner ribs of
the centre radiant. The tip of the match should
project between 2mm and 5mm beyond the
lowest edge of the radiant box lip. See figure
12.
5. The installation is satisfactory if the smoke is
drawn into the appliance. If the smoke is not
drawn into the appliance, leave the appliance
alight at the maximum setting for a further ten
minutes and then repeat the test. If the smoke is
still not drawn into the appliance, inspect the
sealing of the closure plate. If the sealing is
satisfactory but the appliance is installed with
Page 18
INSTALLER GUIDE
Figure 12. Spillage check
Figure 11. Case top location

the flue restrictor in the closed position (see section 6.5), reopen the restrictor, reseal the
appliance and retest. If smoke is still not drawn into the appliance Disconnect the
appliance and seek expert advice
6. If the above test is satisfactory, open all internal connecting doors, hatches, etc. in the
room. Keep all doors and windows that open to the outside of the building closed.
Recheck for spillage as above. If an extractor fan is installed in the same room as the
appliance or a connecting room, check that spillage does not occur with the fan
operating and all doors and other openings between the fan and the appliance open. If
the test is satisfactory continue with the installation. If the test is not satisfactory
disconnect the appliance and advise the customer of the cause of failure.
10 FINAL REVIEW
 Make sure that the dress guard is securely in position.
 Recheck the operation of the fire at all control positions. Explain to the customer
that the appliance is fitted with a two-spark ignition system. (See section 7.1.3)
 Visually inspect the appliance. Clean off any marks incurred during installation.
 Advise the customer how to operate the fire.
 Explain to the customer that the appliance has a flame failure and spillage
monitoring system. Point out the explanation of this system shown in the owner’s guide.
Advise that if the fire goes out for any reason, wait at least three minutes before
relighting. Stress that if the monitoring system repeatedly shuts off the fire, the
appliance should be switched off and a specialist should be consulted.
 Advise that the dressguard can be removed to replace the radiants.
 Advise that the fire may give off a slight odour while new. This is quite normal
and it will disappear after a short period of use.
 Advise that any cleaning must only be carried out when the fire is off and cold.
 Advise the customer that they should read the Owner’s guide before operating the
fire and always follow the advice in the section headed “Cleaning your fire”.
 Advise the user that the appliance can be lit with a match if necessary by inserting
it through the central opening at the bottom of the radiant box.
 Recommend that the appliance should be serviced and the chimney inspected by a
competent person (In the UK a CORGI registered person) at least annually.
If the appliance is in premises in the United Kingdom occupied by a tenant, point out
that by law a landlord must have any gas appliance, flue and pipework which is situated
in a tenant’s premises checked for safety at least every 12 months.
 Mention that the radiants may become brown with use, that this is quite normal
and has no adverse effect.
 Hand this guide to the customer.
Page 19
INSTALLER GUIDE

11 SERVICING & PARTS REPLACEMENT
 Always turn off the gas supply before commencing any servicing (The
appliance inlet “T” connector incorporates an isolating valve).
 It is recommended that, at least once a year, the appliance is disconnected
and the catchment space behind the closure plate checked and cleared of any
debris. The closure plate must be resealed to the wall after checking.
 Check that soot or debris is not impairing the electrode spark or pilot burner.
 Check that soot or debris is not blocking any of the holes in the main burner.
 Always test for gas soundness and spillage after servicing the appliance.
11.1 To Replace Radiant(s)
11.1.1. Remove the dress guard by
pressing down the two hooks at the top.
Tilt the guard forward and lift out.
11.1.2. Remove the old radiant(s) Fit the
new radiant(s) ensuring that their rear
face rests against the horizontal ribs in
the rear panel. There will be a small gap
between their bottom front edges and the
retaining channel at the front of the
radiant box.
11.1.3 Replace in the reverse order.
11.2 To Remove the Outer Case
11.2.1 Remove the control knob by
pulling clear of the gas tap spindle.
11.2.2. Remove the two case retaining screws located at the front of the case near the
bottom corners.
11.2.3. Lift the case up and forward to clear the rear top location.
11.2.4. Replace in the reverse order. Make sure that the channel near the top of the
rear of the outer case locates fully into the wings of the engine back panel. See figure 11
in the installation section.
Make sure that the radiants are not dislodged when refitting the case.
11.3 To Replace the Pilot Unit
11.3.1 Remove the outer case as section 11.2 above.
11.3.2. Disconnect the thermocouple connection at the bottom of the gas tap.
11.3.3. Disconnect the pilot pipe from the gas tap. It is the upper connection at the right
side of the tap.
Page 20
INSTALLER GUIDE
Figure 12. Burner Module Removal
