Valor H5 1100MN User manual

©2021, Miles Industries Ltd.
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings
exactly could result in serious
injury, death, or property damage.
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
▪Do not try to light any appliance.
▪Do not touch any electrical switch; do
not use any phone in your building.
▪Leave the building immediately.
▪Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
▪If you cannot reach your gas supplier,
call the fire department.
Installation and service must be
performed by a qualified installer, service
agency or the gas supplier.
Hot glass
will cause burns.
Do not touch glass
until cooled.
Never allow children
to touch glass.
A barrier designed to reduce
the risk of burns from the hot
viewing glass is provided with this
appliance and must be installed for
the protection of children and
other at-risk individuals.
DANGER
Installer: Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
Direct Vent Zero Clearance
Gas Fireplace
natural gas 1100MN
propane gas 1100MP
Installation Manual
H5
Installer: Place model/serial number here.
4008355-01

Ce guide est disponible en français sur demande.
This appliance is a domestic room-
heating appliance. It must not be used
for any other purposes such as drying
clothes, etc.
This appliance is suitable for
installation in a bedroom or bed
sitting room.
This manual contains instructions to
install the ENGINE ONLY. A trim kit is
REQUIRED to complete the installation.
A barrier screen is provided with the
trim kit. Refer to the manual supplied
with the trim for installation.
2
The information contained in this manual is believed
to be correct at the time of printing. Miles Industries
Ltd. reserves the right to change or modify any
information or specifications without notice. Miles
Industries Ltd. grants no warranty, implied or stated,
for the installation or maintenance of your heater,
and assumes no responsibility for any consequential
damage(s).
© Copyright Miles Industries Ltd., 2021. All rights reserved.
Designed and manufactured for Miles Industries Ltd.
Valor Fireplaces
190–2255 Dollarton Highway
North Vancouver, BC, Canada V7H 3B1
T 604.984.3496 F 604.984.0246
valorfireplaces.com
This appliance may be installed in an
after-market permanently located,
manufactured (mobile) home where
not prohibited by local codes. This
appliance is only for use with the type
of gas indicated on the rating plate.
This appliance is not convertible for
use with other gases, unless a certified
kit is used.
INSTALLER: Leave this manual with the
appliance.
CONSUMER: Retain this manual for
future reference.
Massachusetts:
The piping and final gas connection must be
performed by a licensed plumber or gas fitter
in the State of Massachusetts. Also, see Carbon
Monoxide Detector requirements in the fireplace
installation manual.
WARNING
This product can expose you to chemicals
including Benzene, which is known to the State
of California to cause cancer and birth defects or
other reproductive harm. For more information
go to www.P65Warnings.ca.gov.
Note: Natural gas, in its original state, contains
Benzene.

Please read this manual BEFORE
installing and operating this
appliance.
3
This appliance has been professionally installed by:
Dealer Name: ________________________________
Phone:______________________________________
Welcome to Valor®
Fireplace Safety ................................................. 4
Specifications..................................................... 6
Kits & Accessories.............................................. 7
Dimensions & Location..................................... 8
Planning .............................................................. 9
Before Installing............................................................9
Overview ......................................................................10
Combustible Clearances ............................................11
Framing.........................................................................13
Stud Framing...............................................................13
Hearth ..........................................................................14
Venting Considerations .............................................18
Appliance Height in Framing ....................................19
Appliance Depth in Framing.....................................19
Using 1130FFK—Fixed Framing Kit..........................20
Using 1130CIK—Clean Install Kit..............................22
Using 3 or 4-Sided Trims ...........................................24
Wall Finish ................................................................... 26
Non-Combustible Cement Board............................26
Finishing Around Trims .............................................26
Cracking Wall Finishes ...............................................27
Venting .............................................................. 28
Overview ..................................................................... 28
Co-axial........................................................................ 29
Typical Co-axial Venting Components ....................29
Venting Chart ..............................................................30
Restrictors ...................................................................32
Horizontal Vent Termination Location....................33
Vertical Vent Termination ........................................ 34
Co-linear Conversion................................................. 35
Applications.................................................................35
Installing Into an Existing Fireplace.........................36
Partial Installation Into an Existing Fireplace ........37
Installation Into an Adjacent Chimney....................38
Typical Co-linear Venting Components ..................39
Appliance Preparation.................................... 40
Stand-offs & Heat Shield .......................................... 40
Vent Outlet...................................................................41
Window Removal ....................................................... 42
Optional HeatShift..................................................... 43
Installation ....................................................... 44
With 1130FFK—Fixed Framing Kit ........................... 44
With 1130CIK—Clean Install Kit............................... 46
With 3 or 4-Sided Trims............................................. 49
Electrical Wiring ......................................................... 50
Gas Supply....................................................................51
Liners ........................................................................... 53
Fuel Beds ..................................................................... 54
Birch Logs 1100BLK................................................... 54
Driftwood Kit 1100DWK ............................................57
Traditional Logs 1100LSK ..........................................60
Window Re-Installation ............................................ 63
Remote Battery and Wall Switch............................. 64
Remote Control Set-Up ............................................. 66
Operation and Burner Aeration .............................. 67
Trim and Barrier Screen............................................ 68
Wiring Diagram................................................ 69
Approved Venting Components .................... 70
Commonwealth of Massachusetts ............... 72
Appendix A - Lighting Instructions Plate...... 74
Appendix B - Remote Control Operation..... 75
Appendix C - Wall Switch Operation............. 82
Appendix D - HeatShift System ..................... 83
Appendix E - Spare Parts .............................. 103

4
Fireplace Safety
This manual contains very important information about the safe installation and operation of the fireplace. Read and
understand all instructions carefully before installing and operating the fireplace. Failure to follow these instructions
may result in possible fire hazard and will void the warranty.
Replacement manuals are available by contacting the Valor Customer Service at 1-800-468-2567, or by visiting
valorfireplaces.com.
WARNING: Extremely Hot!
Heat and flammability
• Some parts of the fireplace are extremely hot, par-
ticularly the glass window. Use the barrier screen
provided with the trim or a gate to reduce the risk of
severe burns.
• The glass windows can exceed 500°F at full capacity.
• Always keep the appliance clear and free from com-
bustible materials, gasoline, and other flammable
vapors and liquids.
• Be aware of hot wall surfaces! The wall directly above
the fireplace can get very hot when the fireplace
heats. Although safe, it may reach temperatures in
excess of 200ºF depending on choice of trims or op-
tional accessories. Do not touch!
• Be aware of hot hearth/floor surfaces! The hearth or
floor directly in front of the fireplace can get very hot
when the fireplace heats. Although safe, they may
reach temperatures in excess of 200º F depending on
elevation of hearth. Do not step on it! Temperature
of hearth/floor surface will be reduced when barrier
screen is installed.
• Solid wood flooring in front of the fireplace (if al-
lowed) may shrink during the heating season
due to heat.
• Some materials or items, although safe, may discolor,
shrink, warp, crack, peel, and so on because of the
heat produced by the fireplace. Avoid placing candles,
paintings, photos and other combustible objects
sensitive to heat or furniture within 36 inches (0.9m)
around the fireplace.
• Due to its high temperature, the appliance should be
located out of traffic areas and away from furniture
and draperies.
Barrier Screen and Safety
• Any safety screen, guard, or barrier removed for ser-
vicing an appliance must be replaced prior to operat-
ing the appliance
• Children and adults should be alerted to the hazards
of high surface temperature and should stay away to
avoid burns or clothing ignition.
• Young children should be carefully supervised when
they are in the same room as the appliance. Toddlers,
young children, and others may be susceptible to
accidental contact burns. A physical barrier is recom-
mended if there are at-risk individuals in the house.
To restrict access to a fireplace or stove, install an
adjustable safety gate to keep toddlers, young chil-
dren, and other at-risk individuals out of the room
and away from hot surfaces.
• A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this appliance
and shall be installed for the protection of children
and other at-risk individuals.

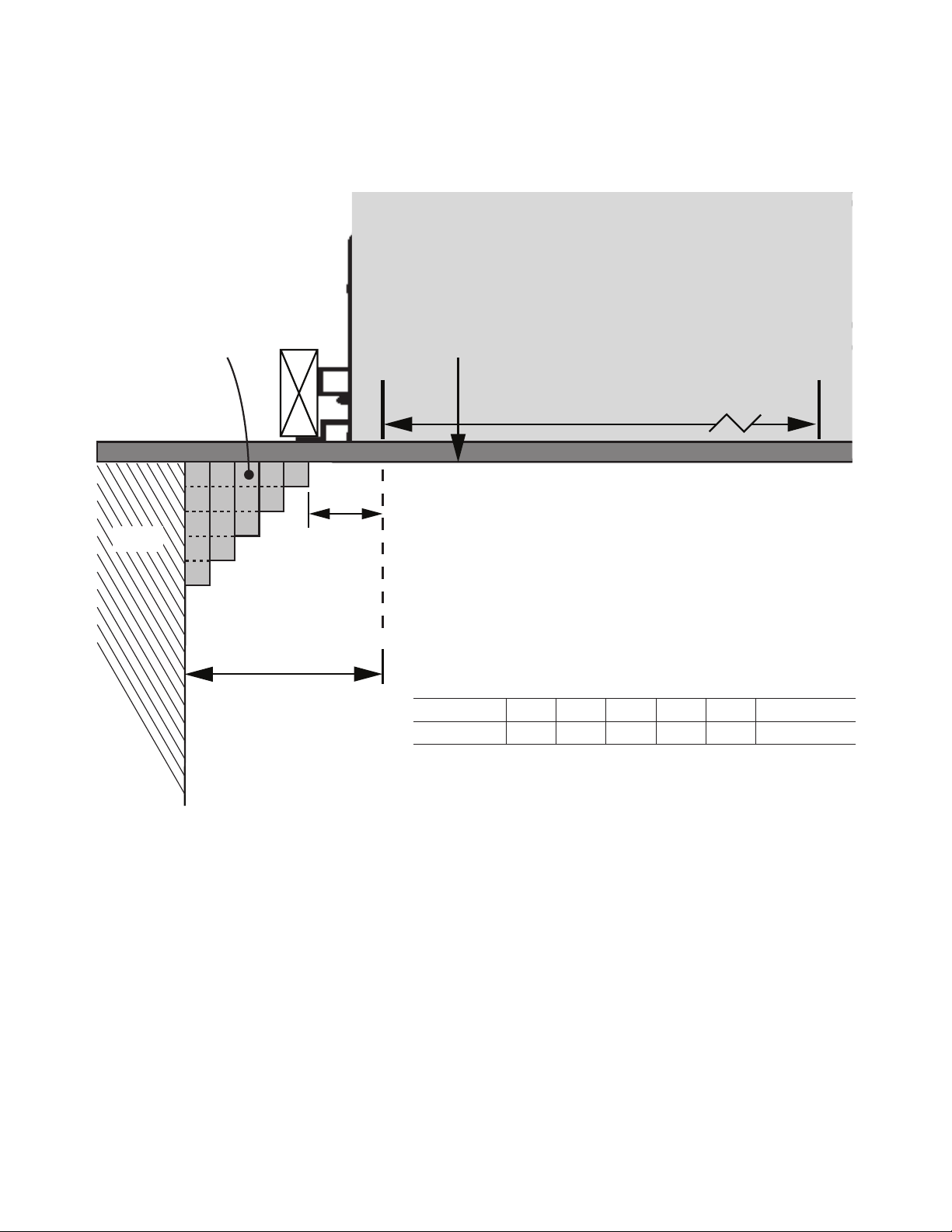

Do not put
furniture or other objects
in this space in front of
WKHȴUHSODFH
36” [0.9 m]
)LUHSODFH
Hearth

5
WARNING
Do not operate this appliance with the
glass front removed, cracked, or broken.
Replacement of the glass front should
be performed by a licensed or qualified
service person. Do not strike or slam the
glass front.
• Clothing or flammable material should not be placed
on or near the appliance.
Glass window
• The glass front assembly must be in place and sealed
before the unit can be placed into safe operation.
• The glass front assembly must only be replaced as a
complete unit, as supplied by the fireplace manufac-
turer. No substitute material may be used.
• Do not use abrasive cleaners on the glass front as-
sembly. Do not attempt to clean the glass front when
it is hot.
Venting
• This unit must be used with a vent system as de-
scribed in this manual. No other vent system or com-
ponents may be used.
• Never obstruct the flow of combustion and ventila-
tion air. Keep the front of the appliance clear of all
obstacles and materials for servicing and proper
operation.
• This gas fireplace and vent assembly must be vented
directly to the outside and must never be attached to
a chimney serving a separate solid fuel burning ap-
pliance. Each gas appliance must use a separate vent
system. Common vent systems are prohibited.
Intended use
• This appliance is designed and approved as a supple-
mental heater and provides the potential for most
energy conservation when used while attended. The
use of an alternate primary heat source is advisable.
• This unit is not for use with solid fuel.
• Do not use this heater as a temporary source of heat
during construction.
Installation and Servicing
• Installation and repair should be done by a qualified
service person. The appliance should be inspected
before use and at least annually by a professional
service person. More frequent cleaning might be
required due to excessive lint from carpeting, bedding
material, et cetera. It is imperative that control com-
partments, burners, and circulating air passageways
of the appliance be kept clean.
• Do not use this appliance is any part has been under
water. Immediately call a qualified service technician
to inspect the appliance and to replace any part of
the control system and any gas control that has been
under water.
Fireplace Safety
Front outlet
WARNING
Optional HeatShift
System:
Do not cover or
place items in
front of outlet!
Top outlet
Sides outlets

6
X
Specifications
Approval & Codes
This appliance is certified to ANSI Z21.88/CSA 2.33
American National Standard / CSA Standard for
Vented Gas Fireplace Heaters for use in Canada and
USA, and to CGA 2.17-M91 High Altitude Standard in
Canada. This appliance is for direct vent installations.
This appliance complies with CSA P.4.1-15 Testing
method for measuring annual fireplace efficiencies.
The installation must conform to local codes or, in
the absence of local codes, with the National Fuel
Gas Code, ANSI Z223.1/NFPA 54 or the Natural Gas
and Propane Installation Code CAN/CGA-B149.1. Only
qualified licensed or trained personnel should install
this appliance.
This appliance must be electrically grounded in
accordance with local codes, or, in the absence of local
codes, with the National Electrical Code, ANSI/NFPA 70
or the Canadian Electrical Code, CSA C22.1.
Ratings
*High Altitude Installations
Input ratings are shown in BTU per hour and are
certified without deration for elevations up to 4,500
feet (1,370 m) above sea level.
For elevations above 4,500 feet (1,370 m) in USA,
installations must be in accordance with the current
ANSI Z223.1 and/or local codes having jurisdiction.
Heating value of gas in some areas is reduced to
compensate for elevation—consult your local gas
utility to confirm.
For installations at elevations above 4,500 feet
(1,370 m) in Canada, please consult provincial and/or
local authorities having jurisdiction.
Model 1100 MN 1100MP
Gas Natural Propane
Altitude (Ft.)* 0-4,500 feet*
Input Maximum (Btu/h) 30,000 30,000
Input Minimum (Btu/h) 16,000 16,000
Manifold Pressure (in w.c.) 3.5” 9”
Minimum Supply Pressure (in w.c.) 5” 11”
Maximum Supply Pressure (in w.c.) 10” 14”
Main Burner Injector Marking 36 DMS 51 DMS
PSE Pilot Injector Marking BL22N BL14LP
Min. Rate By-Pass Screw 185 125
Supply Gas
Heater engines 1100MN is used with natural gas.
Heater engines 1100MP is used with propane gas.
The supply pressure must be between the limits
shown in the Ratings section.
The supply connection is 3/8”
NPT male and located on the
right hand side of the firebox.
A shut-offvalve (not supplied)
is required on the supply line to
isolate the unit during service.
See Gas Supply on pages
51-52 for details.
Conversion Kits
The 1100M is supplied as natural gas or propane gas
and is field convertible between fuels. See instructions
packaged with the conversion kits for further
information.
Electrical
The 1100M is designed to run on battery power and
does not require an electrical power source to operate
as a heater. However, it requires electrical power
to operate optional 1195CFK Circulating Fan Kit, or
GV60WIFI WiFi module.
HeatShift™System
The 1100M is designed to allow the installation of
the optional HeatShift System, a convection system
that redistributes the warm air flow away from the
fireplace opening to a more desirable location using
natural convection, without use of a fan.
The warm air flow may be relocated to a position
higher up the wall, or even to another room. The
result is much cooler wall temperatures above the
fireplace opening for locating televisions, artwork, etc.
Please note that the framing and mantel clearances
are affected by the installation of the HeatShift
System. Refer to Appendix D - HeatShift System on
pages 83-101 for more information.
Outdoor Conversion Kit
The 1100M models are supplied standard for indoor
applications and may be adapted for installation
in specific “outdoor” applications protected from
weather as defined in the GV60CKO outdoor
conversion kit manual.

7
Required Kits
Information accurate at the time of printing and subject
to change without notice.
Optional Accessories
Fuel Beds (choose one)
1100DWK Driftwood Kit
1100BLK Birch Log Kit
1100LSK Traditional Log Kit
Ceramic Liners (choose one)
1110VRL Valor Red Liners
1115LSL Ledgestone Liners
1125FBL Fluted Black Liners
1160PBL Plain Black Liners
1170RGL Reflective Glass Liners
1175HBL Herringbone Liners
Trims Barrier
Screens
1130CIK Clean Framing Kit 4008437
1130FFK Fixed Framing Kit 4005632
1135TSB Three-Sided Trim Black
1140FS 2 Four-Sided Trims 4006326
1184EC Edgemont Craftsman Trims 4008798
Gas Conversion Kits
1100MPGK Conversion to propane gas
1100MNGK Conversion to natural gas
Other Accessories
GV60CKO Outdoor Fireplace Conversion Kit
1105RGL Glass Rear Panel for 1125FBL or 1160PBL
1195CFK Circulating Fan Kit
1270RBK Remote Blower Kit
LDK HeatShift System
GV60WIFI WiFi Module
(requires GV60VM and H5/6-PWK if no fan)
GV60VM V-Module
H5/6-WPK WiFi Power Kit - J-box
Hearth Gate
Hearth Gates such as Cardinal’s VersaGate
are available at retail stores carrying
safety products for children.
Kits & Accessories
WARNING
Optional electrical accessories ARE NOT
ALLOWED when adapting appliance for
outdoor use.

8
7-1/
2”
[
1
9
1 mm
]
1
-1/
2”
[38
mm
]
M
in. 41-1/2” to to
p
o
f
cement board
4
0
”
Electrical
I
nlet Poin
t
O
p
tional
127
0
RBK
Remote Blower
Kit outle
t
O
p
tional
1
27
0
RBK
Remote Blower
K
it outle
t
G
as Lin
e
Access Poin
t
Zero Clearanc
e
6WD
Q
G

2
΍
V
H
ea
der
C
ente
r
L
in
e
6-5/8” dia
.
Ventin
g
ȴ
HOG
convertibl
e
f
rom to
p
t
o
rear outle
t
C
enter o
f
ven
t
Heat shield
re
q
uired
f
o
r
rear ven
t
section
s
Note
:
This dimension is
f
or th
e
1
130FFK and 1130CIK Kits onl
y
.
For all other trims this is the maximum
re
q
uired and ma
y
be reduced i
f
p
ositionin
g
the unit
f
orward o
f
the
f
ramin
g
to accomodate
thickness o
f
non-combustible material over to
p
o
f
non-combustible board
.
1-5/
8”
4-3/8”
3
1
6
-1/
2”
to
f
ront o
f
stud
1
13
-
3
/4
”
1
7
”
to
f
ront
f
ace o
f
n
on-combustibl
e
b
oard
29”
19
-1/4
”
2
7-1/
2”
36
-1/
8”
38”
2
5-1/4
”
30”
O
p
tional HeatShi
f
t®
S
y
stem outlets
1-1/4
”
5
-1/
2”
=HUR&OHDUDQFHWR6WDQGR΍V
DW%DFNDQG6LGHV
59” [1499 mm]
41-3/4” [1061 mm]
11-1/2”
[292 mm]
Face of
Framing
Top View
Required minimum corner
dimensions larger when
using HeatShift. See
Appendix D - HeatShift
System on page 86.
Dimensions & Location
Dimensions
Location
Front ViewLeft Side View Right Side View
Corner Dimensions

9
Planning Before Installing
Attention
ONLY qualified licensed or trained personnel
should install this appliance.
1. BEFORE YOU START—YOU NEED TO KNOW FROM
THE HOMEOWNER:
• Will the optional HeatShift System be used;
• Height of the unit and hearth if used;
• Thickness and type of wall finish around firebox
opening;
• Required accessories to install with fireplace (liners,
fuel bed, trim);
• Optional accessories if used;
• Venting configuration.
2. Unpack the appliance, removing all items packed
inside and around it. Recycle packaging.
3. Check that you have everything required for the in-
stallation, using the Pack Content sheet. Also, check
that you have:
• Fuel bed (packed separately);
• Liner panels (packed separately);
• Remote Battery & Wall Switch;
• Venting accessories;
• Gas conversion kit, if necessary;
• HeatShift accessories, if used;
• Electrical accessories, if necessary.
4. Carefully read the Installer’s Checklist included
with the fireplace for the installation sequence.
Read also this manual to have all information nec-
essary for the installation.

10
Planning Overview
Mantel—see pages 11-12
1100M engine
Framing—see pages 13-25
1/2” thick non-combustible board or equivalent—
NOT supplied—see Wall Finish on pages 26-27
Supplied as vertical outlet, field-convertible
to horizontal outlet—see page 41
Remote Handset Wall Holder
Remote battery
& Wall switch
(required)
35-foot wire
lentgh (supplied)
Trim with barrier screen
(required)
Fixed Framing Kit 1130FFK
or Clean Install Kit 1130CIK
install at framing stage and
allow non-combustible wall
finish to finish up to it.
All other trims overlap
the surrounding non-
combustible wall finish
and are adjustable to
accomodate material up
to 3/4” thickness overtop
of the base 1/2” non-
combustible board. For
material thickness greater
than 3/4”, the appliance
requires repositioning
further forward in the
framing cavity—see pages
20-25.
Wall Finish.
Any wall finishes applied over
non-combustible board must
also be non-combustible—
see pages 26-27.
Combustible mantels are ok
provided they conform to
chart on page 11.
Non-combustible hearth
—see Framing on pages
14-16
Combustible floor
1/2” Micore supplied with appliance.
Use as a thermal break between non-combustible
hearth material and combustible material underneath.
See required hearth clearances on page 16.
Combustible Framing Allowed Beneath Fireplace.
Do not install the appliance directly on carpet.
Note: This appliance may be installed in outdoor, weather protected environments as
defined in the GV60CKO Outdoor Conversion Kit instruction manual.
WARNING
HOT WALL SURFACES! The wall directly
above the fireplace is constructed of
non-combustible materials and, although
safe, it may reach temperatures in excess
of 200° F (93° C) depending on choice of
trims. Do not touch. Finish the wall using
materials suitable for these temperatures.
WARNING
HOT HEARTH SURFACES! The hearth in
front of the fireplace may become very
hot. Locating the appliance higher than
the surface of hearth and installing the
barrier screen will reduce temperatures.
Note that some materials, although safe,
may deteriorate due to heat—carefully
evaluate which materials to use.
Optional HeatShift System 4 x 5” Ø
outlets—see pages 83-101

11
Planning Combustible Clearances
NOTE
Use of optional HeatShift
System affects mantel and
hearth clearances. See
Appendix D - HeatShift
System on pages 83-101.
Combustible Mantel—Left Side View
Bottom of Unit
02”1” 4” 6” 8” 10”12”
Do not put
furniture or objects
within 36” (914 mm)
of front of appliance
Mantel Projection
(from Face of Cement Board)
Mantel
Height
(from
Bottom
of Unit)
Ceiling
65” Min. to Ceiling
49”
47”
45”
43”
41”
ȋPLQLPXPWRFRPEXVWLEOHȵRRU
or hearth.
See Framing on pages 13-16 for hearth requirements.

12
34”
Fireplace Opening
Wall
Min. 8” to
wall
3”
Face of
Finished
Wall above
unit
Shading denotes
allowable location
for combustible
mantel legs
Note
Right Side clearances are the same
FIREPLACE
Depth 1” 2” 3” 4” 5” 6” or greater
Clearance 3” 4” 5” 6” 7” 8”
Combustible Sidewall / Mantel Leg—Top View
Planning Combustible Clearances

13
Planning Framing
40”
38”
40”
*
*
Between underside of header and base of heater,
EDVHRIKHDWHUPXVWEHDWȴQLVKHGKHDUWKKHLJKW
However, please note that the 1140FSB 4-sided
trim extends 1-1/2” below the base of heater.
ΖQFUHDVHFDYLW\KHLJKWDFFRUGLQJO\
29” between underside
RIQRQFRPEXVWLEOHERDUG
DQGEDVHRIKHDWHU
ȋWKLFNQRQFRPEXVWLEOH
ERDUGUHTXLUHGDERYHHQJLQH
QRWVXSSOLHG6HHSDJH
$Q\VXUIDFHGLUHFWO\LQIURQW
RIWKHXQLWZKLFKLVDWDKHLJKW
RIOHVVWKDQȋIURPWKHERWWRP
RIWKHXQLWPXVWEHQRQFRPEXVWLEOH
- Rear Vent: 16-1/2“
- Top Vent: 17-1/2”
NOTE: This unit requires
DVROLGSODWIRUPWRVXSSRUW
LW&RPEXVWLEOHIUDPLQJ
DOORZHGEHQHDWKȴUHSODFH
3OHDVHQRWHWKDWDQ\VKLPV
used underneath to raise
WKHKHDWHUVKRXOGEHVHW
back 1/2” behind front face
RIIUDPLQJRWKHUZLVHWRS
IDFHRIVKLPVPD\EHYLVLEOH
26.
Stud Framing
NOTE
Use of optional HeatShift System affects
framing. See Appendix D - HeatShift System
on pages 83-101.

14
Planning Framing
Top of finished hearth must be
flush with bottom of heater to
accommodate most optional
mantels and trims.
However, the 1140 Four-Sided
trim extends 1-1/2” below the
bottom of the appliance. See
installation instructions packed
with 1140 for more information.
NOTE: Unit will need to be
raised above plywood sub-
floor in most cases due to
combustible hearth/floor
restrictions.
Any shims used underneath
to raise the heater should be
setback 1/2” behind front face
of framing otherwise top face of
shims may be visible.
Insulation board in non-
combustible hearth
When the appliance is installed directly on carpeting, tile or other
combustible material other than wood flooring, the appliance
shall be installed on a metal or wood panel extending the full
width and depth of the appliance.
Hearth
WARNING
The H5 is a very effective radiant heater. The hearth/floor in front of the heater can get very
hot (in excess of 200ºF). Locating the unit raised above the hearth/floor and using the barrier
screen will greatly reduce hearth temperatures. Any hearth within 4 inches of the base of the
heater must be constructed of non-combustible materials and utilise the insulation board
supplied as a thermal break between the non-combustible hearth finish and the combustible
construction below (see diagrams in the following pages). Note that some materials, although
safe can degrade due to heat—take this into consideration when choosing materials.

15
Unit Raised Above Combustible Hearth or Floor
Rules
1. A hearth is not required. However, any hearth/floor in front of fireplace within 4 inches vertically of the bottom
of the unit must be non-combustible and project a minimum distance as shown on page 16. Hearth/floors
within 4 inches must have a non-combustible finish applied over the 1/2 inch insulation board provided with the
engine. This insulation board acts as a thermal break.
2. Minimum hearth projection is determined by a combination of the height of the hearth above the surface of com-
bustible floor or carpet and the distance between the hearth and the bottom of the fireplace.
3. Combustible baseboards (1 inch thick or less) located on the wall are acceptable provided they are located
below the base of the raised fireplace.
Planning Framing
Hearth
Face of
cement
board
Top face of combustible
floor or carpet
Minimum
4” (102 mm)
Base of fireplace
When the appliance is installed directly on
carpeting, tile or other combustible material
other than wood flooring, the appliance shall be
installed on a metal or wood panel extending the
full width and depth of the appliance.
Note: Any shims used underneath to raise the heater should
be set-back 1/2” behind front face of framing otherwise top
face of shims may be visible.

16
Front of Fireplace
(Surface of Cement Board) Min. Hearth Projection
Required to Protect
Combustible Floor
Surface of
Combustible
Floor or Carpet
Bottom of
fireplace
When using Optional Trims and
Mantels, Surface of Finished
Hearth Must Be Flush With
Bottom of Fireplace
(otherwise, optional trims will not fit)
Surface of Hearth
(non-combutible material on
non-combustible insulation board
see diagram below)
Wood is Allowed
Directly Below Fireplace
Raised 1”
above combustible floor
Raised 2”
above combustible floor
Raised 3”
above combustible floor
Raised 4”
above combustible floor
3” 6” 9” 12”
4”
3”
2”
1”
Surface of
Combustible
Floor or Carpet
Bottom of
replace
Wood is Allowed directly below replace
Note: Any shims used underneath to raise the
heater should be set back 1/2” behind front face of
framing otherwise topface of shims may be visible
S
urface o
f
Co
mb
us
ti
bl
e
Fl
oor or Car
p
et
B
o
tt
o
m
of
re
p
lac
e
o
od is Allowed directl
y
below replac
e
ny
s
h
ims use
d
un
d
erneat
h
to raise t
he
d b t b k 1/2” b hi d f t f f
Non-Combustible
Finish
1/2” Insulation
Board supplied
with replace
Note: This surface can get
very hot if ush with bottom
of heater. We recommend
raising the heater.
DO NOT FINISH ABOVE
THIS HEIGHT!
(Hearth MUST be at this height
when using certain accessories
and trims - see pages )
See Chart above for Required Projection
Non-combustible substrate
construction detail
Example: If the fireplace is raised 2” above
combustible floor, the non-combustible-flush-
with-bottom-of-fireplace hearth must project a
min. of 6” in front of the fireplace.
Hearth projection
Height of fireplace above combustible floor
Unit With Site-Built Non-Combustible Hearth Extending
19–25
Planning Framing
Hearth

17
Partial Shelf—Top Outlet
Planning Framing
13-3/4”
[349 mm]
40” [1016 mm] to underside of combustible cavity
Minimum 1”
[26 mm]
clearance to
combustibles
around vertical
vent pipe
Approx. 9-1/4”
[35 mm]
from back surface
RIZDOOȴQLVKWR
front surface of
appliance case
ZQRYHQWR΍VHW
PARTIAL SHELF,
top outlet
1/2” [13 mm] WKLFN
non-combustible
board
6WDQGR΍VKHDWVKLHOG
required ZLWKSDUWLDOVKHOI
directly above appliance.
1RWHLID+HDW6KLIWNLWLV
XVHGZLWK3DUWLDO6KHOI
KHDWVKLHOGLVQRWUHTXLUHG

18
Planning Framing
Min 1”
[26 mm]
required
clearance
to vertical
SLSHD΍HFWV
cavity depth
Approx. 39-1/4” [997 mm]
6WDQGR΍
Fireplace -
Left Side View
*Approx. 49-3/4” [ 1266 mm] with 12” vent pipe
ȋ>PP@WRXQGHUVLGHRIFRPEXVWLEOHFDYLW\
ȋSLSHVHFWLRQ
1/2”
[13 mm]
beyond
VWDQGR΍
Approx. 31” [787 mm]
*Approx. 42-1/4” [ 1073 mm]
Fireplace -
Left Side View
12” pipe section
*Approx. 52-3/4” [ 1340 mm] with 12” vent pipe
40” [ 1016 mm] to underside of combustible cavity
Vertical Takeoff
Horizontal Takeoff
Venting Considerations
*Notes—ALL venting considerations
• Dimensions of venting are based on
using Dura-Vent elbows. Elbow curve
radius dimensions will vary when using
other brands. In general, other brands
have slightly bigger radius.
• 3 inches clearance to combustibles
required above horizontal pipe. Slope
horizontal pipe upwards 1/4 inch per
foot. 1 inch clearance required around
sides and bottom of horizontal pipe and
around vertical pipe.
• When calculating effective pipe lengths
subtract approximately 1-1/2 inch for
pipe joint - for example, a 12 inches pipe
section will add approximately 10-1/2
inches overall.

19
Appliance Height in Framing
Hearth considerations
• Only a non-combustible hearth can be installed in
front of the appliance if within 4” of the bottom of the
appliance.
• The top surface of the non-combustible hearth must
be at the same level as appliance bottom panel when
using certain trims and accessoires—see pages
14-16.
• The non-combustible hearth in front of the appliance,
if within 4” of the bottom of the appliance, must in-
clude the 1/2” Micore insulation board provided to be
used as thermal break between non-combustible and
combustible material underneath.
Appliance Depth in Framing
• 1130FFK Fixed Framing Kit and 1130CIK Clean Install
Kit install at framing stage and the appliance position
is fixed in the framing. In both cases, the wall finishes
butt up to the frame of the kit.
• All other trims install after the wall finish is applied.
The perimeter of the trims overlap the wall finish;
therefore the thickness of any wall finish materials
must be taken into consideration. The trims have
enough adjustability to allow up to 3/4” thick material
applied over top of the 1/2” thick non-combustible
board. Otherwise the appliance position within the
framing must be adjusted to allow the additional
thickness—see page 25.
Planning Framing

20
Using 1130FFK—Fixed Framing Kit
Part of the 1130 Fixed Framing Kit installs at the time of
framing the appliance.
The side brackets provided loose with the appliance are
not needed with this kit. See next page.
The positioning brackets and convection gap filler
brackets installed on the appliance are not needed with
this kit and must be removed. See next page.
The 1130 Fixed Framing Kit is not compatible with any
other trim or door kits.
Hearth considerations
You need to know whether there will be a hearth or
not in front of the appliance and some rules must be
considered.
Without hearth (up the wall)
In the case where there is no hearth, the bottom of the
appliance must be raised at least 4” inches above any
combustible floor in front.
With hearth
Only a non-combustible hearth can be installed in front
of the appliance if within 4” vertically of the bottom of
the appliance. See Framing on pages 13-16 of this
manual for hearth requirements details.
The non-combustible hearth in front of the appliance, if
within 4” of the bottom of the appliance, must include
the 1/2” Micore insulation board provided to be used
as thermal break between non-combustible and
combustible material underneath.
Section view, up the wall—detail
Lower panel
Removable panel
1-1/8”
(29 mm)
Front of
appliance
Stud
Plywood base
Appliance base
Lower panel
Removable panel
Finishing up the wall Stud
Plywood
base
Appliance base
Section view, hearth—detail
Lower panel
Removable panel
Finishing with hearth
Non-combustible
material
1/2” insulating Micore panel
(supplied with appliance)
Plywood
VXEȵRRU
1-1/2” (38 mm)
max. thickness
(including Micore)
Appliance base
1/2” combustible
shim at ends to
match Micore
Lower panel
Removable panel
1-1/2” (38 mm)
Front of
appliance
Plywood
Appliance base
Planning Framing—1130FFK Fixed Framing Kit
