VG-SBW330CMY 330W CMY LED Moving Head Spot Light User Manual VG-SBW330CMY 330W CMY LED Moving Head Spot Light User Manual
330W CMY LED
Moving Head Spot Light
VG-SBW330CMY
CE RoHS
User Manual
Please read this user manual before using this product！
Keep it for further reference!
http://www.vangaa.com

VG-SBW330CMY 330W CMY LED Moving Head Spot Light User Manual VG-SBW330CMY 330W CMY LED Moving Head Spot Light User Manual
INDEX
ⅠGENERAL ......................................................................................................01
ⅡSAFETY INFORMATION ............................................................................02
ⅢOPERATION INSTRUCTIONS ..................................................................03
ⅣTECHNICAL SPECIFICATION...................................................................04
ⅤDIMENSION..................................................................................................05
ⅥINSTALLATION AND CONNECTION.......................................................06
ⅦOPERATION AND CONTROL ...................................................................08
ⅧADDRESS SETTING AND DMX CHANNEL OPERATION...................11
ⅨMAINTENANCE AND CLEANING ............................................................18
ⅠGENERAL
Thank you for using our product! Please read this manual carefully and completely. For
technical reference in future, please keep this user manual well. This user manual contains
all installation and operation information of this CMY LED Moving Head Spot Beam Wash
Light, it‟s very useful for user to install and operate the light. Please strictly abide by the
relevant instruction for the installation and operation.
This 330W CMY LED Spot Moving Head Light is made of a new type of high temperature
strength of engineering ABS with nice outlook. The fixture is designed manufactured strictly
following CE standards, complying with international standard DMX512 protocol. It's
available independently controlled and linkable with each other for operation. And it is
applicable for large←→scale live performances, theater, studio, nightclubs and discos.
This light meets the following criteria:
GB7000.1←→2007/IEC60598←→1:2003
GB7000.217←→2008/IEC60598←→2←→17:1984+A2:1990
Once receiving a fixture, carefully unpack the carton, check the contents to ensure that all
parts are presented, and have been received in a good condition. Notify the shipper
immediately and retain packing material for inspection if any parts appear damaged from
shipping or the carton itself shows, sign of mishandling. Save the carton and all packing
materials. In the event that a fixture must be returned to the factory, it is important that the
fixture be returned in the original factory box and packing.
VG←→SBW330CMY←→←→←→←→←→←→←→←→←→←→1pc
Signal Cable←→←→←→←→←→←→←→←→←→1pc
Power Cable ←→←→←→←→←→←→←→←→1pc
User Manual←→←→←→←→←→←→←→←→←→1pc
Features
01

VG-SBW330CMY 330W CMY LED Moving Head Spot Light User Manual VG-SBW330CMY 330W CMY LED Moving Head Spot Light User Manual
⚫Multi-Colors+goboes ⚫Color strobe
⚫Electronic Dimming 0-100% ⚫DMX-512 protocol
⚫Master/Slave synchronization ⚫ LCD operation menu with function buttons
⚫Daisy Chain Units Together in DMX Mode
ⅡSAFETY INFORMATION
※Important
Every person involved with the installation, operation and maintenance of this device has to
be qualified and follow the instructions of this manual. Manufacturer will not with
responsibility for those operations which are not according to this Instruction.
Verify that the voltage matches the rated voltage.
When the voltage is 110V , Do not connect more than 10 lightings in total to AC mains
power in one interconnected daisy chain
When the voltage is 220V , Do not connect more than 20 lightings in total to AC mains
power in one interconnected daisy chain
Before using the fixture, check that all power distribution equipment and cables are in
perfect condition and rated for the current requirements of all connected devices.
Always ground (earth) the fixture electrically.
Avoiding hit the Light when you are move or install the light.
The minimum distance between light←→output and the illuminated surface must be more
than 0.5 meters. Keep all combustible materials (for example fabric, wood, paper) at least
0.2 meters away from the fixture.
Do not expose the fixture to rain or moisture.
Avoid looking directly into the light source (especially those who suffer from epileptic fits)
Maximum ambient temperature (Ta) is 40°C. Do not operate fixture at temperatures higher
than this.
The Maximum surface temperature is 50°C
When suspending the fixture above ground level, verify that the structure can hold at least
10 times the weight of all installed devices.
Verify that all external covers and rigging hardware are securely fastened and use an
approved means of secondary attachment such as a safety cable.
To determine the power requirements for a particular fixture, see the label affixed
to the back plate of the fixture or refer to the fixtures specifications chart. A fixture listed
current rating is its average current draw under normal conditions. All fixtures must be
directly powered off a switched circuit and cannot be run off a rheostat(variable resistor) or
dimmer circuit, even if the rheostat or dimmer source voltage matches the fixtures
requirement. Check the fixture or device carefully to make sure that if a voltage selection
switch exists that it sets to the correct line voltage you will use.
Warning! Verify that the voltage select switch on your unit matches the line voltage
applied. Damage to your fixture may result if the line voltage applied does not match the
voltage indicated on the voltage selector switch. All fixtures must be connected to circuits
with a suitable Earth ground.
ⅢOPERATION INSTRUCTIONS
The moving head is an LED wash light for onsite decoration purpose.
Don‟t turn on the fixture if it‟s been through severe temperature difference like after
transportation because it might damage the light due to the environment changes. So
make sure to operate the fixture until it is in normal temperature.
This light should be keep away from strong shaking during any transportation or
movement.
Don‟t pull up the light by only the head, or it might cause damages to the mechanical
parts.
Don‟t expose the fixture in overheat, moisture or environment with too much dust
when installing it. And don‟t lay any power cables on the floor. Or it might cause
02
03

VG-SBW330CMY 330W CMY LED Moving Head Spot Light User Manual VG-SBW330CMY 330W CMY LED Moving Head Spot Light User Manual
electronic shock to the people.
Make sure the installation place is in good safety condition before installing the
fixture.
Make sure to put the safety chain and check whether the screws are screwed properly
when installing the fixture.
Make sure the lens are in good condition. It‟s recommended to replace the units if
there are any damages or severe scratch.
Make sure the fixture is operated by qualified personnel who knows the fixture before
using.
Keep the original packages if any second shipment is needed.
Don‟t try to change the fixtures without any instruction by the manufacturer or the
appointed repairing agencies.
It is not in warranty range if there are any malfunctions from not following the user
manual to operate or any illegal operation, like shock short circuit, electronic shock,
lamp broke, etc.
ⅣTECHNICAL SPECIFICATION
Electrical:
Power supply:……………….…electronic auto←→ranging
Input voltage range:……………supply 90←→250V, 50/60Hz
Fuse:…………………………… 5 A@220V
Power consumption:……………450W@230V
Optic :
Light source: LED Apportronics 1piece *330W White LED
LED lifespan: 6,0000 hours
Dimmer: Smooth dimmer from 0←→100%
Fixed gobo wheel: 9gobos+Open
Rotating gobo wheel:7gobos+Open
Color system: 9 different colors+CMY
8←→facet prism
3.5←→35deg electronic zoom
Focus+Frost +Iris
Beam+Spot+Wash
Motorized:
Pan/Tilt
Pan movement range: 540°
Tilt movement range: 270°
16 bit movement resolution
Automatic Pan/Tilt position correction
Pan movement 0°
←→540°at max…….Speed: 2.2 sec.
Tilt movement 0°
←→270°at max…….. Speed: 1.2 sec.
LCD operation:
Built←→in demo sequences
Silent fans cooling
Strong two←→phase motors
Stand←→alone operation
Supported protocols: DMX512
2 DMX modes (21/26 control channels)
Connection:
DMX data in/out: Locking 3←→pin and 5←→pin XLR
AC power input: 1.5m power cord with plug
Rigging :
Mounting points: 2 pairs of 1/4←→turn locks
Mounting horizontally or vertically via 2 Omega brackets
Temperatures:
Maximum ambient temperature: 45℃
Maximum housing temperature: 75℃
Minimum distances:
Min. distance from flammable surfaces: 3.0m
04
05

VG-SBW330CMY 330W CMY LED Moving Head Spot Light User Manual VG-SBW330CMY 330W CMY LED Moving Head Spot Light User Manual
Min. distance to lighted object: 2.0m
Total heat dissipation: 1200 BTU/h (calculated)
Net dimension: 393(L) x 260(W) x 668(H) mm
Weight (net): 24.50kg
ⅤDIMENSION
Fixture dimension (mm)
ⅥINSTALLATION AND CONNECTION
1. Installation
Caution: Fixture may cause severe injuries when crashing down! If you have doubts
concerning the safety of
a possible installation, do not install the moving head!
Before rigging make sure that the installation area can hold a minimum point load of 10
times the fixture‟s
weight.
When installing the device, make sure there is no highly inflammable material (decoration
articles, etc.) in a
distance of min. 1.0 m.
CAUTION!
Use an appropriate clamp to ring the fixture on the truss.
Follow the instructions mentioned at the bottom of the base.
Make sure that the device is fixed properly! Ensure that the structure (truss) to which you
are attaching the
fixtures is secure.
2. DMX connection
The fixture is equipped with 3←→pin or 5←→pin XLR sockets for DMX input and output.
The sockets are wired in parallel.
Only use a shielded twisted←→pair cable designed for RS←→485 and 3←→pin or 5←→
pin XLR←→plugs and connectors in order to connect the controller with the fixture or one
fixture with another.
DMX Linking: To ensure proper DMX data transmission, when using several DMX fixtures
try to use the
05
07
06

VG-SBW330CMY 330W CMY LED Moving Head Spot Light User Manual VG-SBW330CMY 330W CMY LED Moving Head Spot Light User Manual
shortest cable path possible. The order in which fixtures are connected in a DMX line does
not influence the
DMX addressing. For example; a fixture assigned a DMX address of 1 may be placed
anywhere in a DMX
line, at the beginning, at the end, or anywhere in the middle. When a fixture is assigned a
DMX address of 1,
the DMX controller knows to send DATA assigned to address 1 to that unit, no matter where
it is located in the
DMX chain.
ⅦOPERATION AND CONTROL
1. Control panel
Operating Modes: You can use the LED BSW330 CMY in 3 ways:
⚫Auto Mode ←→ The unit will automatically chase through the different colors and built
←→in programs.
⚫Slave Mode –The unit will run under slave mode.
⚫DMX control mode ←→ This function will allow you to control each individual fixtures
traits with a standard
DMX 512 controller.
DMX Mode: Operating through a DMX controller give the user the freedom to create their
own programs
tailored to their own individual needs. This function also allows you to use your fixtures as
spot lights.
1. This function will allow you to control each individual fixture‟s traits with a standard DMX
512 controller.
2. The LED BSW330 CMY uses 21/26 DMX channels modes to operate. Please see “DMX
Values and
Functions” for the DMX traits.
3. To run your fixture in DMX mode, plug in the fixture via the XLR connections to any
standard DMX
controller. Set your desired DMX address following the setup specifications that come with
your DMX
controller.

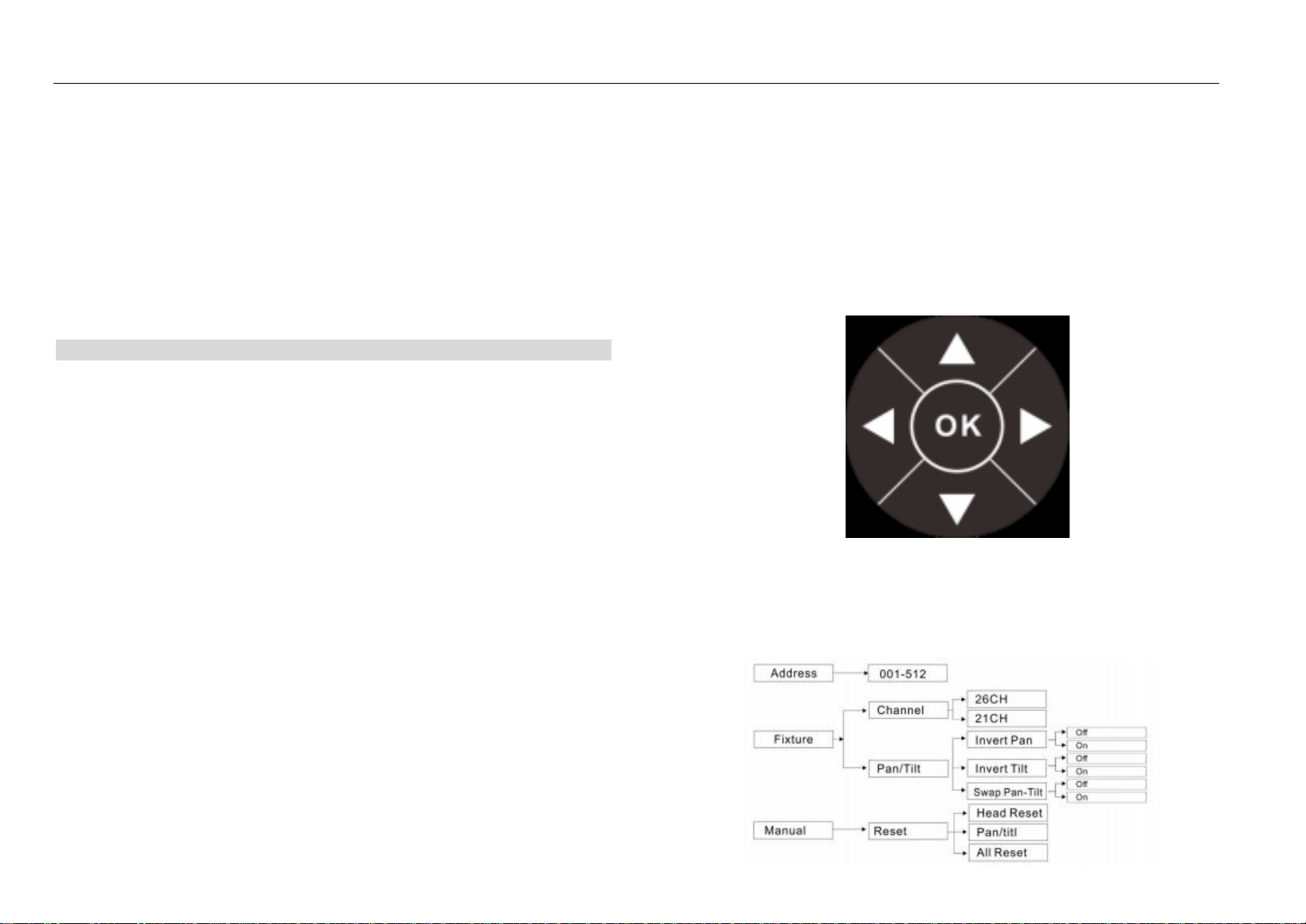

Touch Buttons: :
There are Five touch buttons nearby the LED display: Menu, Up, Down, Enter and
Invert, the LED will display the current DMX address code of the fixture. At this time,
presses up and down to choose the functions you want.

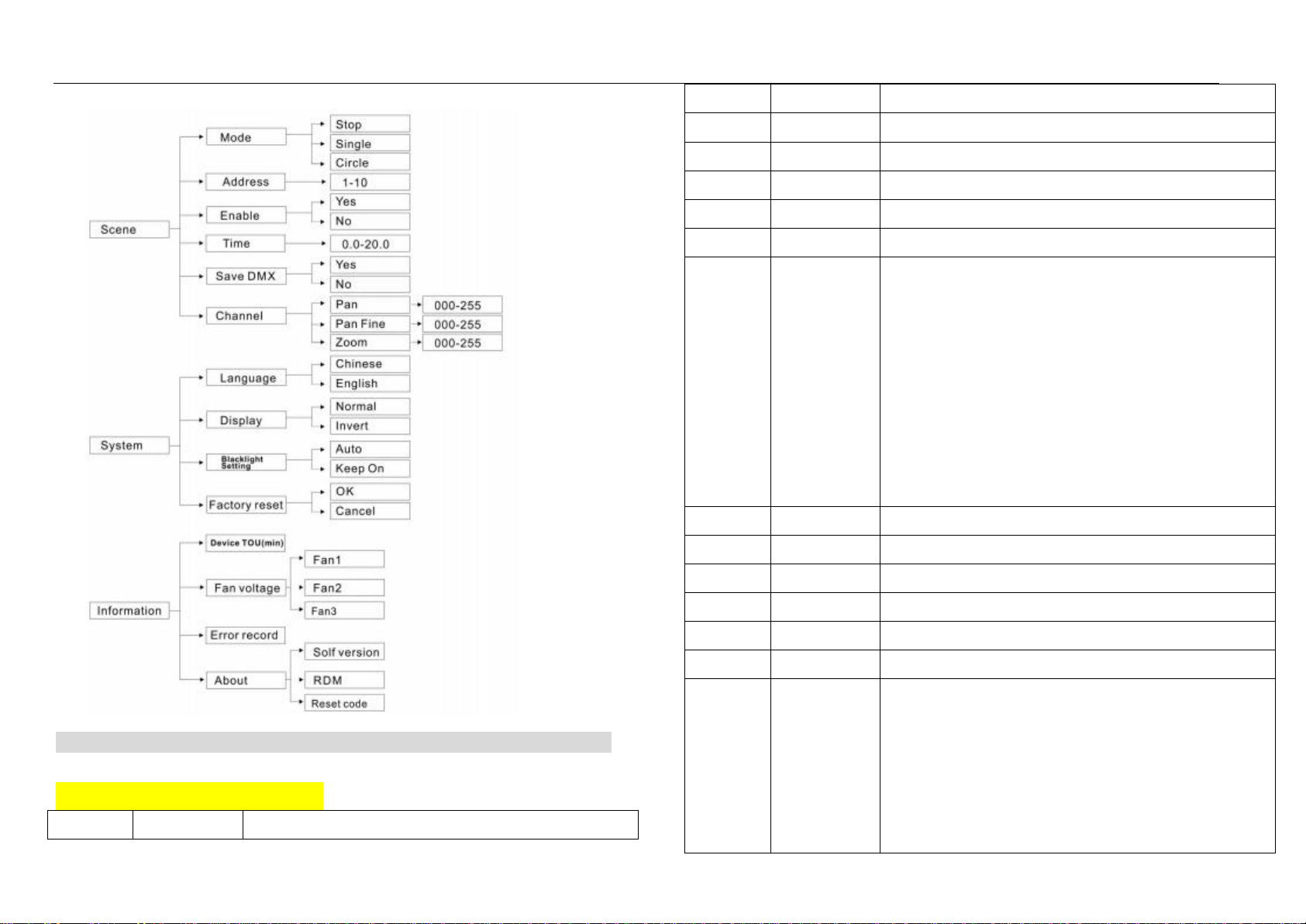

LCD Operation Menu: LCD screen with Five touch buttons: MENU, UP, DOWN
ENTER and INVERT
LCD display operation:
08
09

VG-SBW330CMY 330W CMY LED Moving Head Spot Light User Manual VG-SBW330CMY 330W CMY LED Moving Head Spot Light User Manual
ⅧADDRESS SETTING AND DMX CHANNEL OPERATION
26 DMX CHANNELS MODE [STANDARD MODE]
DMX CH
DMX Value
Function
CH1
000←→255
Pan 0~100degree
CH2
000←→255
Pan fine 0~100degree
CH3
000←→255
Tilt 0~100degree
CH4
000←→255
Tilt fine 0~100degree
CH5
000←→255
Pan/Fine Speed Fast ‐> Slow
CH6
000←→255
Dimmer, 0~100degree
CH7
252←→255
239←→251
226←→238
213←→225
208←→212
108←→207
104←→107
004←→103
000←→003
Strobe/Shutter
Open
Random Strobe(Fast)
Random Strobe(Medium)
Random Strobe(Slow)
Open
Pulse:Slow ←→> Fast
Open
Strobe:Slow ←→> Fast
Close
CH8
000←→255
Cyan, 0~100degree
CH9
000←→255
Magenta, 0~100degree
CH10
000←→255
Yellow, 0~100degree
CH11
000←→255
Color1, 0~100degree
CH12
000←→255
Color2, 0~100degree
CH13
000←→255
Color3, 0~100degree
CH14
192←→255
128←→191
120←→127
112←→119
104←→111
096←→103
Static Gobo
Rotation(CCW): Slow ←→> Fast
Rotation(CW): Fast←→> Slow
Gobo9 Shake: Slow ←→> Fast
Gobo8 Shake: Slow ←→> Fast
Gobo7 Shake: Slow ←→> Fast
Gobo6 Shake: Slow ←→> Fast
10
11

VG-SBW330CMY 330W CMY LED Moving Head Spot Light User Manual VG-SBW330CMY 330W CMY LED Moving Head Spot Light User Manual
088←→095
080←→087
072←→079
064←→071
056←→063
050←→055
045←→049
040←→044
035←→039
030←→034
025←→029
020←→024
015←→019
010←→014
005←→009
000←→004
Gobo5 Shake: Slow ←→> Fast
Gobo4 Shake: Slow ←→> Fast
Gobo3 Shake: Slow ←→> Fast
Gobo2 Shake: Slow ←→> Fast
Gobo1 Shake: Slow ←→> Fast
Open
Gobo9
Gobo8
Gobo7
Gobo6
Gobo5
Gobo4
Gobo3
Gobo2
Gobo1
Open
CH15
188←→255
120←→187
112←→119
104←→111
096←→103
088←→095
080←→087
072←→079
064←→071
056←→063
048←→055
040←→047
032←→039
Rotating Gobo
Rotation(CCW): Slow ←→> Fast
Rotation(CW): Fast ←→> Slow
Gobo7 Shake: Slow ←→> Fast
Gobo6 Shake: Slow ←→> Fast
Gobo5 Shake: Slow ←→> Fast
Gobo4 Shake: Slow ←→> Fast
Gobo3 Shake: Slow ←→> Fast
Gobo2 Shake: Slow ←→> Fast
Gobo1 Shake: Slow ←→> Fast
Gobo7
Gobo6
Gobo5
Gobo4
Gobo3
024←→031
016←→023
008←→015
000←→007
Gobo2
Gobo1
Open
CH16
193←→255
191←→192
128←→190
000←→127
Gobo Rotation
Gobo Rotation(CCW): Slow ←→> Fast
Stop
Gobo Rotation(CW): Fast ←→> Slow
Gobo Position
CH17
192←→255
128←→191
000←→127
Iris
Iris Pulse Closing: Slow ←→> Fast
Iris Pulse Opening: Slow ←→> Fast
Iris Index
CH18
000←→127
128←→255
Prism
Open
Prism
CH19
193←→255
191←→192
128←→190
000←→127
Prism Rotation
Prism Rotation(CCW): Slow ←→> Fast
Prism Static
Prism Rotation(CW): Fast ←→> Slow
Gobo Position
CH20
000←→255
Frost
Frost
CH21
000←→255
Focus
0~100degree
CH22
000←→255
Focus Fine
0~100degree
CH23
000←→255
Zoom
0~100degree
12
15
13

VG-SBW330CMY 330W CMY LED Moving Head Spot Light User Manual VG-SBW330CMY 330W CMY LED Moving Head Spot Light User Manual
CH24
000←→255
Zoom Fine
0~100degree
CH25
216←→255
176←→215
136←→175
096←→135
056←→095
000←→055
Auto Focus
Auto Focus 13m
Auto Focus 11m
Auto Focus 8m
Auto Focus 5m
Auto Focus 3m
Auto Focus Disable
CH26
200←→255
150←→199
100←→149
000←→99
System Control
All reset
Head reset
Pan and tilt reset
Unused
21 DMX CHANNELS MODE [REDUCE MODE]
DMX CH
DMX
Value
Function
CH1
000←→255
Pan 0~100degree
CH2
000←→255
Tilt 0~100degree
CH3
000←→255
Pan/Fine Speed Fast ‐> Slow
CH4
000←→255
Dimmer, 0~100degree
CH5
Strobe/Shutter
252←→255
Open
239←→251
Random Strobe(Fast)
226←→238
Random Strobe(Medium)
213←→225
Random Strobe(Slow)
208←→212
Open
108←→207
Pulse:Slow ←→> Fast
104←→107
Open
004←→103
Strobe:Slow ←→> Fast
000←→003
Close
CH6
000←→255
Cyan, 0~100degree
CH7
000←→255
Magenta, 0~100degree
CH8
000←→255
Yellow, 0~100degree
CH9
000←→255
Color1, 0~100degree
CH10
000←→255
Color2, 0~100degree
CH11
000←→255
Color3, 0~100degree
CH12
Static Gobo
192←→255
Rotation(CCW): Slow ←→> Fast
128←→191
Rotation(CW): Fast←→> Slow
120←→127
Gobo9 Shake: Slow ←→> Fast
112←→119
Gobo8 Shake: Slow ←→> Fast
104←→111
Gobo7 Shake: Slow ←→> Fast
096←→103
Gobo6 Shake: Slow ←→> Fast
088←→095
Gobo5 Shake: Slow ←→> Fast
080←→087
072←→079
Gobo4 Shake: Slow ←→> Fast
064←→071
Gobo3 Shake: Slow ←→> Fast
056←→063
Gobo2 Shake: Slow ←→> Fast
050←→055
Gobo1 Shake: Slow ←→> Fast
045←→049
Open
040←→044
Gobo9
035←→039
Gobo8
030←→034
Gobo7
025←→029
Gobo6
020←→024
Gobo5
015←→019
Gobo4
010←→014
Gobo3
005←→009
Gobo2

VG-SBW330CMY 330W CMY LED Moving Head Spot Light User Manual VG-SBW330CMY 330W CMY LED Moving Head Spot Light User Manual
000←→004
Gobo1
Open
CH13
Rotating Gobo
188←→255
Rotation(CCW): Slow ←→> Fast
120←→187
Rotation(CW): Fast ←→> Slow
112←→119
Gobo7 Shake: Slow ←→> Fast
104←→111
Gobo6 Shake: Slow ←→> Fast
096←→103
Gobo5 Shake: Slow ←→> Fast
088←→095
Gobo4 Shake: Slow ←→> Fast
080←→087
Gobo3 Shake: Slow ←→> Fast
072←→079
Gobo2 Shake: Slow ←→> Fast
064←→071
Gobo1 Shake: Slow ←→> Fast
056←→063
Gobo7
048←→055
Gobo6
040←→047
Gobo5
032←→039
Gobo4
024←→031
Gobo3
016←→023
Gobo2
008←→015
000←→007
Gobo1
Open
CH14
Gobo Rotation
193←→255
Gobo Rotation(CCW): Slow ←→>
Fast
191←→192
Stop
128←→190
Gobo Rotation(CW): Fast ←→>
Slow
000←→127
Gobo Position
CH15
Iris
192←→255
Iris Pulse Closing: Slow ←→> Fast
128←→191
Iris Pulse Opening: Slow ←→> Fast
000←→127
Iris Index
CH16
Prism
000←→127
Open
128←→255
Prism
CH17
Prism Rotation
193←→255
Prism Rotation(CCW): Slow ←→>
Fast
191←→192
Prism Static
128←→190
Prism Rotation(CW): Fast ←→>
Slow
000←→127
Gobo Position
CH18
Frost
000←→255
Frost
CH19
Focus
000←→255
0~100degree
CH20
Zoom
000←→255
0~100degree
CH21
System Control
200←→255
All reset
150←→199
Head reset
100←→149
Pan and tilt reset
000←→99
Unused
ⅨMAINTENANCE AND CLEANING
Cleaning
Due to fog residue, smoke, and dust cleaning the internal and external optical lenses must
be carried out
16
17

VG-SBW330CMY 330W CMY LED Moving Head Spot Light User Manual VG-SBW330CMY 330W CMY LED Moving Head Spot Light User Manual
periodically to optimize light output.
1. Use normal glass cleaner and a soft cloth to wipe down the outside casing.
2. Clean the external optics with glass cleaner and a soft cloth every 20 days.
3. Always be sure to dry all parts completely before plugging the unit back in.
Cleaning frequency depends on the environment in which the fixture operates (i.e. smoke,
fog residue, dust,
dew).
Unit not respond to DMX:
1. Check that the DMX cables are connected properly and are wired correctly (pin 3 is “hot”;
on some other
DMX devices pin 5 may be „hot‟). Also, check that all cables are connected to the right
connectors; it does
matter which way the inputs and outputs are connected.
Note: All information is subject to change without prior notice.
Innovation, Quality, Performance, Achieving Users’Value!
18
