Ⅰ. GENERAL
Thank you for using our products. This product is designed for indoor and outdoor use. It is
suitable for disco, stage, building etc. As the high power LED Par lighting, this product can be
operated as a single unit or in multiple units for large applications. Direct input of DMX512
signal to unit to allow it can be controlled by any DMX512 controller. Powerful internal programs
and friendly and convenient operation interface allow customers to program freely to any
different lighting project requirements for installation or shows.
This high power par light has got the nice sculpt, efficient, save electricity and durable.
This product complies with the following standards:
IEC60598-1:2003
IEC60598-2-17:1984+A2:1990
On receiving products, please carefully check that there has been no damage caused in
transportation and that the following parts are enclosed:
Power Cable ------- 1pc
User Manual ------- 1pc
Signal Output Cable ------- 1pc
Signal Input Cable --------- 1pc
Ⅱ. FEATURES
·4 -digit display, with power and data indication;
·256 degree brightness adjust, RGBW Mix could reach 16,000,000 Colors;
·Several built-in program function, strobe function, auto running, master/slave working mode;
·10, 7 DMX control channels modes optional;
·Over temperature protect;
·High brightness and Long project distance;
·We have created the grayscale adjusting and regulation technique. It makes the dimmer
become more smoothly;
01

VG-LP1515Z 15pcs 15W RGBW 4in1 LED Par Light User Manual VG-LP1515Z 15pcs 15W RGBW 4in1 LED Par Light User Manual
·ID function.
Ⅲ. SAFETY WARNING
Every person involved with the installation, operation and maintenance of this device has to
know:
1). This product must be installed by a qualified professional;
2). This product left the place of manufacture in perfect condition. In order to maintain this
condition and for safe operation, the user must always follow the instructions and safety
warnings described in this user manual;
3). Manufacturer will not with responsibility for those operations not according to this
Instruction.
Ⅳ. OPERATION ATTENTION
Do not connect power cable of other electric products with this unit;
Do not connect DMX512 Signal cable of other electric products with this unit;
Always make sure that you are connecting to the proper voltage, and that the line
voltage you are connecting to is not higher than that stated on the decal or rear
panel of the fixture;
Always ground (earth) the fixture electrically;
During long periods of non-use, disconnect the unit’s main power;
Do not attempt to operate this unit if the power cord has been frayed or broken;
There are no user serviceable parts inside the unit. Do not open the housing or
attempt any repairs yourself;
Maximum ambient temperature (Ta) is 35°C. Do not operate fixture at temperatures
higher than this;
The surface temperature of the light can reach to 65° C, cool down at least before
you operate the light;
The minimum distance between light-output and the illuminated surface must be
more than 1 meters. Keep all combustible materials (for example fabric, wood, paper)
at least 0.5 meters away from the fixture;
Avoid looking directly into the light source (especially those who suffer from epileptic
fits);
Always mount this unit in safe and stable matter;
When suspending the fixture above ground level, verify that the structure can hold at
least 10 times the weight of all installed devices;
Verify that all external covers and rigging hardware are securely fastened and use an
approved means of secondary attachment such as a safety cable;
Block access below the work area whenever installing or removing the fixture.
Avoiding hit the Light when you are move or install the light;
If the exterior cord of the fixture is damaged, it must be replaced by manufactory,
agent or a qualified technician.

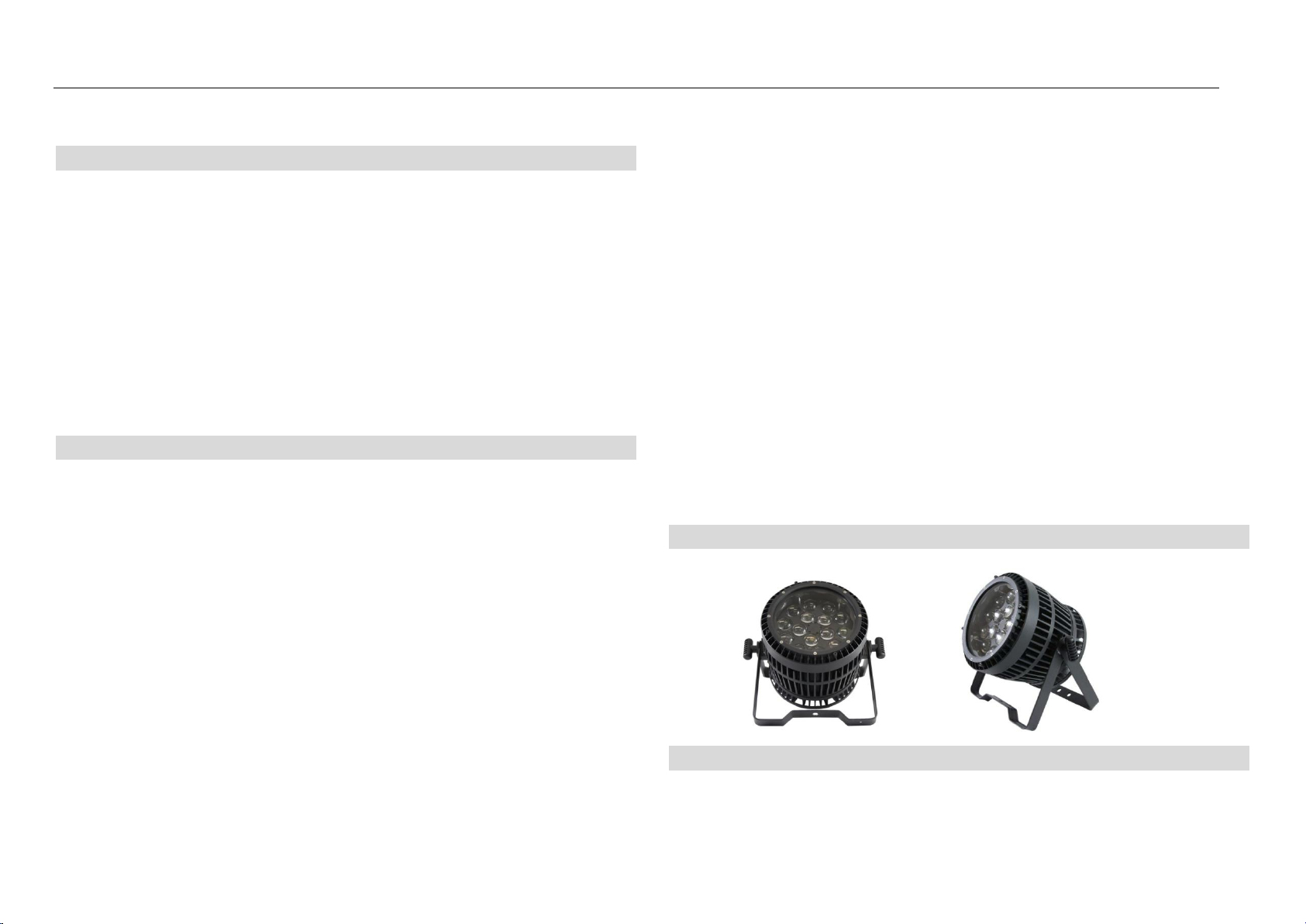

Ⅴ. PRODUCT DETAILS
Ⅵ. POWER CONNECTION
Connect the enclosed power transform cable to the POWER IN of the 1st lighting, and connect
the POWER IN of the 2nd to POWER OUT of the 1st lighting, and so on. Do not connect more
than 10 pieces lighting in the Same Circuit series.
03
02

VG-LP1515Z 15pcs 15W RGBW 4in1 LED Par Light User Manual VG-LP1515Z 15pcs 15W RGBW 4in1 LED Par Light User Manual
Ⅶ. DATA CONNECTION
Connect the DMX-output of the controller to DMX IN of the lighting by the enclosed signal cable,
if you want to connect more lightings, connect DMX OUT of the first lighting to the DMX IN of
the next lighting, and so on. Solder a 120Ω resistor between Signal (–) and Signal (+) into a
3-pin XLR-plug and plug it in the DMX-output of the last lighting can prevents electrical noise
from disturbing and corrupting the DMX control signals.
50 fixtures may be connected in Signal series without Signal amplifier.
Ⅷ. CONTROL PANEL OPERATION
BUTTON
A
B
C
D
Function keys
UP
DOWN
Enter key
INDICATOR
There are 4 dots at the bottom of the digital tube, from left to right as:
1. DMX signal LED indicator;
2. Memory writing indicator, (Press ENTER after amending the DATA, This Dot will be light
up, it means the Data is saving);
3. Power indicator;
4. Keyboard available indicator.
MENU NAVIGATION
No
Menu
Menu Function
Description
1
d001
DMX 512 Address code
Settings 001
Press UP and DOWN to adjust the address
code, press ENTER to save
2
r255
RED brightness
adjustment 255
Press UP and DOWN to adjust the
brightness of RED color, press OK to save
3
G255
Green brightness
adjustment 255
Press UP and DOWN to adjust the
brightness of GREEN color, press OK to save
120Ω
……
……
Power input
04
05

VG-LP1515Z 15pcs 15W RGBW 4in1 LED Par Light User Manual VG-LP1515Z 15pcs 15W RGBW 4in1 LED Par Light User Manual
4
b255
Blue brightness
adjustment 255
PressUP and DOWN to adjust the brightness
of BLUE color and press OK to save
5
H255
White brightness
adjustment 255
Press UP and DOWN to adjust the
brightness of WHITE color, press OK to save
6
F255
focal setting
Press UP and DOWN button to adjust the
focal length, control the key to save
7
Pr01
Built-in program setting
01
Press UP and DOWN button to select the
built-in program, press OK key to save
8
SP01
Built-in program speed
setting 16
Press UP and DOWN to select the built-in
program speed, press ENTER to save
9
LD01
Dimmer mode selection
Press UP and DOWN to select smooth
dimmer or beam dimmer mode
10
AUTO
Auto run mode
Press OK to save
11
AUDI
Voice control mode
Press OK to save
12
NT00
temperature display
Display the current operating temperature
of the lamp bead
13
DISP
Display the inverted
selection
Press UP and DOWN to select positive and
backward
14
REST
restoration
Press OK to reset
Ⅸ. CHANNEL FUNCTION
11CH MODE
CH
VALUE
NAME
FUNCTION
CH1
000←→255
General
dimmer
R、G、B、W General dimming, linear dimming,
from dark to light
CH2
000←→255
Strobe
R、G、B、W Strobe, from slow to fast
CH3
000←→255
RED dimming
R dimming, RED linear dimming, from dark to
light
CH4
000←→255
GREEN
dimming
G dimming, GREEN linear dimming, from dark
to light
CH5
000←→255
BLUE dimming
B dimming, BLUE linear dimming, from dark
to light
CH6
000←→255
WHITE
dimming
W dimming, White linear dimming, from dark
to light
CH7
000←→255
Colors
Color combination
CH8
000←→010
011←→120
121←→180
181←→244
245←→255
Macro
The first 7 channels enable;
Jump;
Gradual change;
Jump, gradual change;
Voice control
CH9
000←→255
Macro function
speed
Goes up slowly, 0 goes the fastest
CH10
000←→255
Focus
Focal length setting
CH11
000←→255
RESET
Press OK to reset
In the address code state, if there is no console after multi-machine connection, the
master-slave online function can be realized to operate one of the devices, and the rest devices
in the address D001 state can run programs synchronously with the host.After connecting the
07
06

VG-LP1515Z 15pcs 15W RGBW 4in1 LED Par Light User Manual VG-LP1515Z 15pcs 15W RGBW 4in1 LED Par Light User Manual
console, if the console signal is received, the address code d will change into A, and the device
in the address state can be controlled by the console.
Ⅹ. TECHNICAL SPECIFICATION
Power supply
AC90-240V, 50/60Hz
Power consumption
200W
Light source
15pcs 15W RGBW 4in1(R: 3W, G: 4W; B: 4W; W:4W)
LED rated life
50,000 hours
Beam angle
10-60°
DMX channels
11CH
Protocols
DMX-512
Control modes
DMX-512; Master/slave mode; Demo mode
Housing
Aluminum
Protection rating
IP65
Working
temperature
-25-60℃
Fixture dimensions
330× 340×240mm
Net weight
7.53kg
NOTE: Due to improvement, the product specifications and this manual
are subject to change without prior notice.
Please keep this manual as a reference.
Thanks again for your business. We truly appreciate it!
