Vantage Hearth FD5106 User manual

Electric Heating Expert, Gateway House, Kings Parade, Kings Road, Fleet, Hampshire, GU51 3AB.
Phone number: 01252 560770. Website: www.electricheatingexpert.co.uk.
IST 03 F 048 - 01

2
Dear Customer
Thanks for choosing this Ecopower Heating product. Please read this manual carefully, as it contains important information on the correct and safe
and installation of your Vantage Thermodynamic Electric Radiator.
Contents
1) Vantage Electric Radiator characteristics Pag.3
2) Technical specifications Pag.3
3)
Warnings Pag.4
4) Installing your Vantage Electric Radiator Pag.4
5) Electrical connections Pag.7
6) Regulation and programming Pag.8
7)
Cleaning Pag.12
8) Trouble shooting Pag.12
9) Environment Pag.12
Electric Heating Expert, Gateway House, Kings Parade, Kings Road, Fleet, Hampshire, GU51 3AB.
Phone number: 01252 560770. Website: www.electricheatingexpert.co.uk.

3
1. Characteristics of the appliance
IP24: appliance protected against splashing water
Technical characteristics of the electronic components within your Vantage Electric Radiator
2. Description and technical specification of your Vantage Electric Radiator
The Vantage Electric Radiator has a die-cast EN AB 46100 aluminium alloy body containing a thermodynamic fluid to transmit heat internally. This
fluid is made up of highly refined mineral oil with a high heat transmission coefficient, characterized by high oxygenation resistance for durability
and low viscosity.
The thermodynamic fluid is heated by means of an electrical resistor with class I insulation, which has a control
thermostat and safety thermal fuse. The control and regulation electronics make it possible to regulate the am-
bient temperature with great precision. On the left-hand side there is a receptacle for scented oils for air freshe-
ning, or for distilled water to humidify the heated environment.
The attached CE label certifies that the appliance complies with European directives and electrical standards. The appliance must be installed accor-
ding to accepted practice, in accordance with current standards and the instructions contained in this manual.
Power supply 230 V +/-10% CA 50 Hz
Mod. FD5106 600 W
Mod. FD5112 1200 W
Mod. FD5118 1800 W
Insulation class Class I
Water protection rating IP24
Operating temperature 0 ÷ 40°C
Storage temperature -20 ÷ 80°C
Relative humidity RH 0 ÷ 85% without condensate
Regulation type Proportional integral
Temperature range 7° ÷ 35°C
Temperature reading resolution 1/16°C
Maximum range 0.5°C
Maximum deviation 1.5 °C
Electric Heating Expert, Gateway House, Kings Parade, Kings Road, Fleet, Hampshire, GU51 3AB.
Phone number: 01252 560770. Website: www.electricheatingexpert.co.uk.

4
3. Warnings regarding your Vantage Electric Radiator
This symbol appears on a label attached to your Vantage Electric Radiator. It means that you must not cover the radiator, as this may
lead to overheating. Ensure that the radiator is not covered with fabric, curtains, or other objects. The radiator should also not be
obstructed by bulky objects. This can lead to overheating, and also to decreased heating performance.
Before installation, ensure that the radiator is situated at least 10cm from the corners of your room. It must also never be situated in an alcove, on
a shelf, or directly below a power point.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance, and we suggest locking the controls to prevent tampering. All
work required on the appliance must be performed by a qualified professional. Repairs which require opening the thermodynamic fluid reservoir
must be made by the manufacturer, or a representative of Ecopower Heating Ltd.
4. Installing your Vantage Electric Radiator
To obtain the best results from your Vantage Electric Radiator in terms of thermal output and comfort, whenever possible we recommend installing
the radiator under a window or near areas of the space to be heated which have high thermal dispersion. The radiator must not be installed in an
alcove or beneath a power point. Curtains, furniture and objects which may obstruct proper heat distribution must be placed a minimum of 50 cm.
from the front of the radiator. Maintain a minimum space of 120 mm between the lower part of the radiator and the floor.
Fixing your Vantage Electric Radiator to the wall

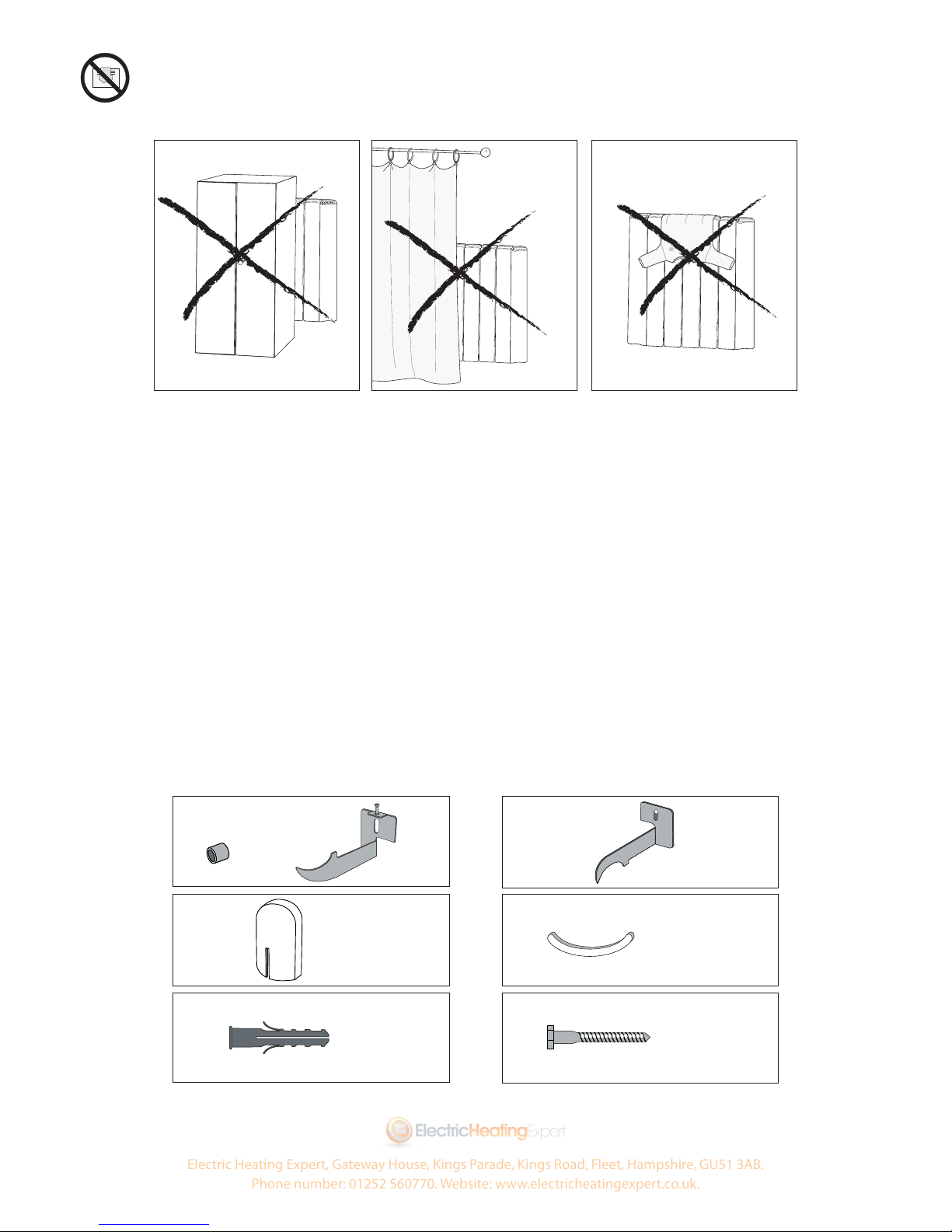

The radiator should be mounted to the wall using the supplied fixings and brackets. The supplied fixing kit consists of:
x2x2
x2
x3
x1
x3
x3
Electric Heating Expert, Gateway House, Kings Parade, Kings Road, Fleet, Hampshire, GU51 3AB.
Phone number: 01252 560770. Website: www.electricheatingexpert.co.uk.

5
1 2
3 4
Note: Where possible, a minimum clearance of 120mm should be kept between the base of the Vantage Radiator, and the floor.
Number of sections/ Wattage
600w / 5 sections 1.2kw / 9 sections 1.8kw / 12 sections
Dimension A 160mm 320mm 400mm
Dimension B 80mm 240mm 400mm
Dimension C 500mm 500mm 500mm
Electric Heating Expert, Gateway House, Kings Parade, Kings Road, Fleet, Hampshire, GU51 3AB.
Phone number: 01252 560770. Website: www.electricheatingexpert.co.uk.

6
7
The step shown in illustration 6 can only be considered
finished when the lower screw has been completely
tightened and the radiator is firmly fixed to the wall, with
no possible movement.
5 6
Electric Heating Expert, Gateway House, Kings Parade, Kings Road, Fleet, Hampshire, GU51 3AB.
Phone number: 01252 560770. Website: www.electricheatingexpert.co.uk.

7
5. Electrical connections
Important: When installing, or cleaning your Vantage Electric Radiator, it must be disconnected from the power supply.
The Vantage Electric Radiator must be connected only to a 230/240v AC power supply.
A multi-pole circuit breaker must be installed. The distance between the contacts must be at least 3 mm. The appliance’s power circuit must be
protected by a high sensitivity differential protection device.
The radiator is supplied with a 3-pin plug and allows phase, neutral and ground connections.
The electrical equipment must be provided with grounding.
Never insert metal objects into or attempt to pierce the side of the radiator containing the regulation system (right side).If the power cord is
damaged, it must be replaced by a qualified electrician only.

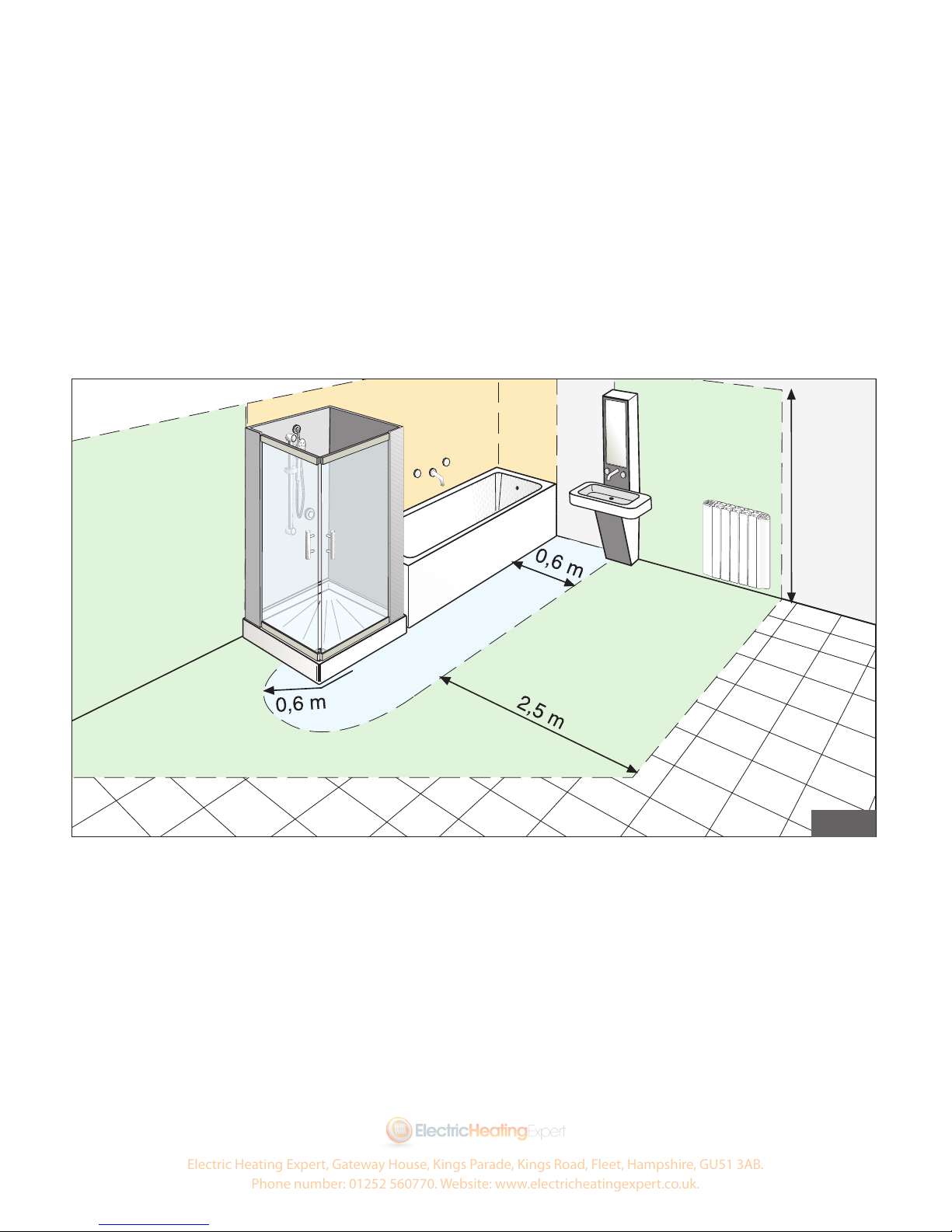

Details of bathroom installation
The Vantage Electric Radiator must be installed according to current regulations and laws in force in the country of use.
The radiator is class I and has IPX4 electrical protection. In bathrooms, it can be installed in areas 2 and 3 (see figure 1) provided that the control
device is not within reach of people using the shower or bathtub. The radiator must not be connected to the earth lead.
2,25 m
fig. 1
AREA 0
AREA 0
AREA 1
AREA 2
AREA 3
Electric Heating Expert, Gateway House, Kings Parade, Kings Road, Fleet, Hampshire, GU51 3AB.
Phone number: 01252 560770. Website: www.electricheatingexpert.co.uk.

8
6. Regulation and programming
Switching the Vantage Electric radiator on

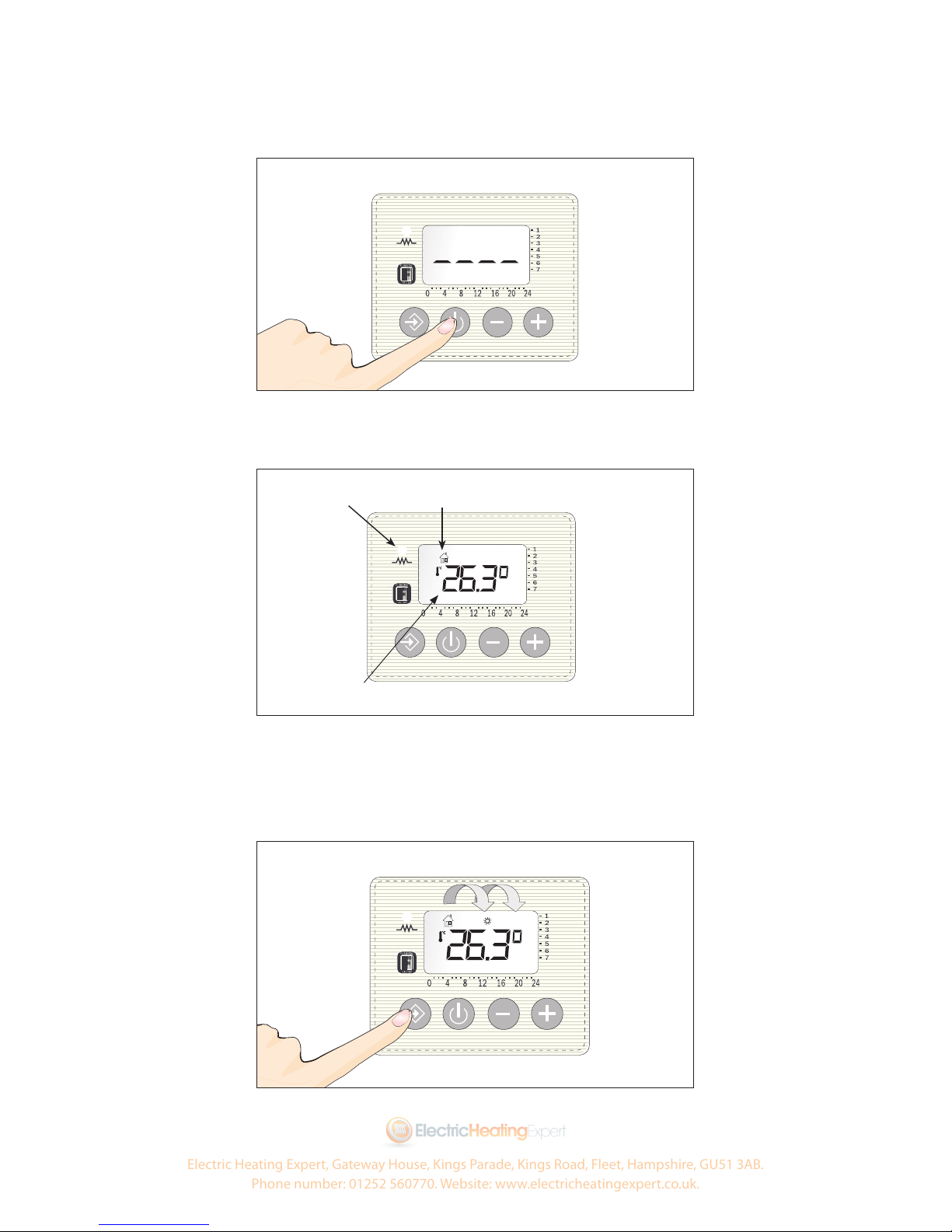

The Vantage Electric Radiator is regulated using four keys, as shown in the figure. When the appliance is in stand-by mode the display shows four
segments. To turn the radiator on, press the‘on/off’key, as shown in the following figure:
There is an LED light on the control panel: when the system is in heating mode and the room temperature has not yet reached the desired tempe-
rature programmed by the user, the LED is RED. Once the room reaches the programmed temperature, the LED turns GREEN.
Changing the mode
Press the‘mode’ key to select the desired mode:
ICON INDICATING THE
SELECTED MODE
PROGRAMMED TEMPERATURE
LED

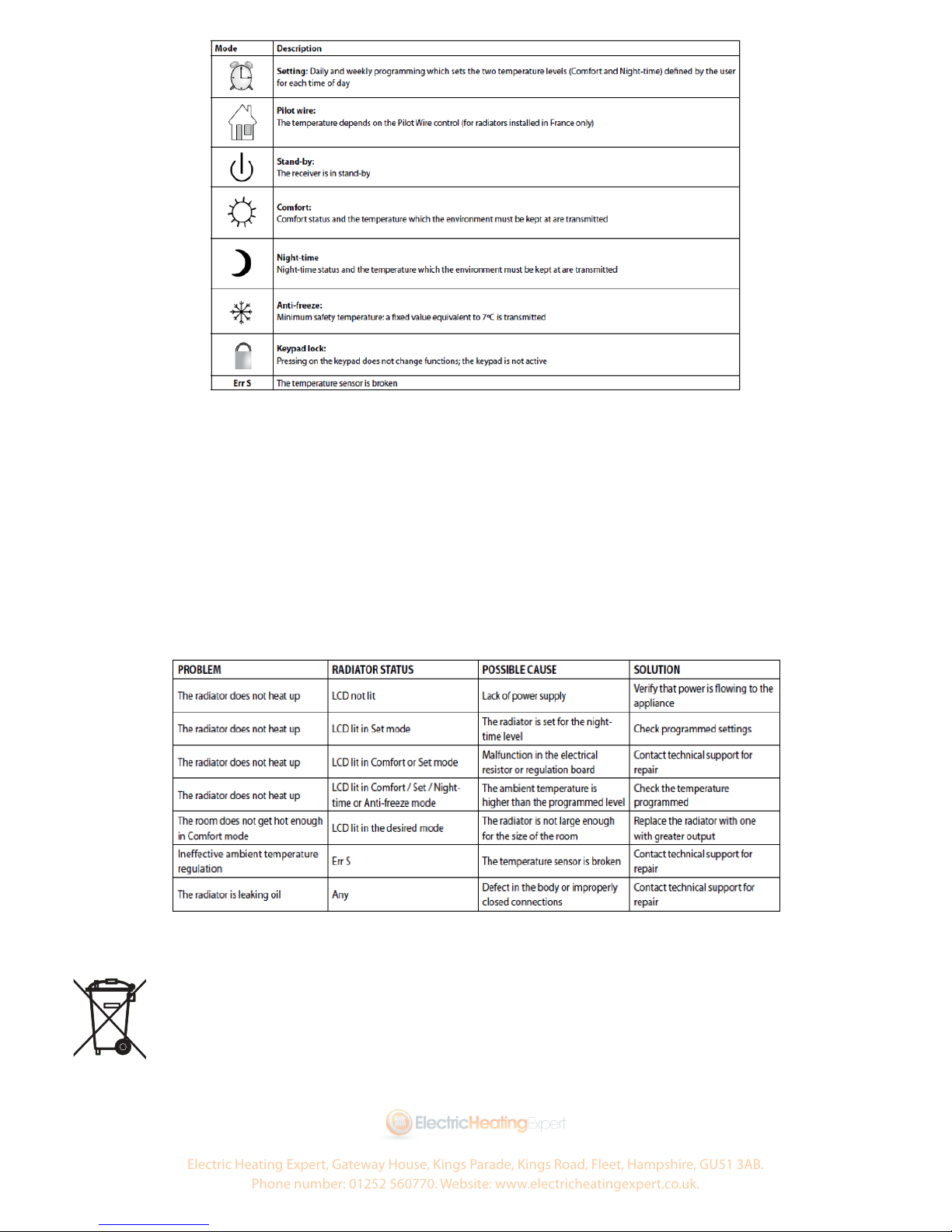

The radiator has various operating modes, as shown in the table. When the radiator is in clock mode, the screen shows the time; in the other modes it
shows the programmed temperature. A small icon indicates the current mode.
Electric Heating Expert, Gateway House, Kings Parade, Kings Road, Fleet, Hampshire, GU51 3AB.
Phone number: 01252 560770. Website: www.electricheatingexpert.co.uk.

9
Programming TH (Temp high) and TL (Temp low) temperatures
It is possible to set two separate temperature levels: TH is the desired ambient temperature during operation in Comfort mode. TL is the ambient
temperature in Night-time Reduction mode, also known as “set-back”. These two temperature levels can be set using the plus and minus keys. A
blinking temperature icon on the screen indicates that the temperature is being set. TH can be set in Comfort mode, TL can be set in Night-time
Reduction mode.

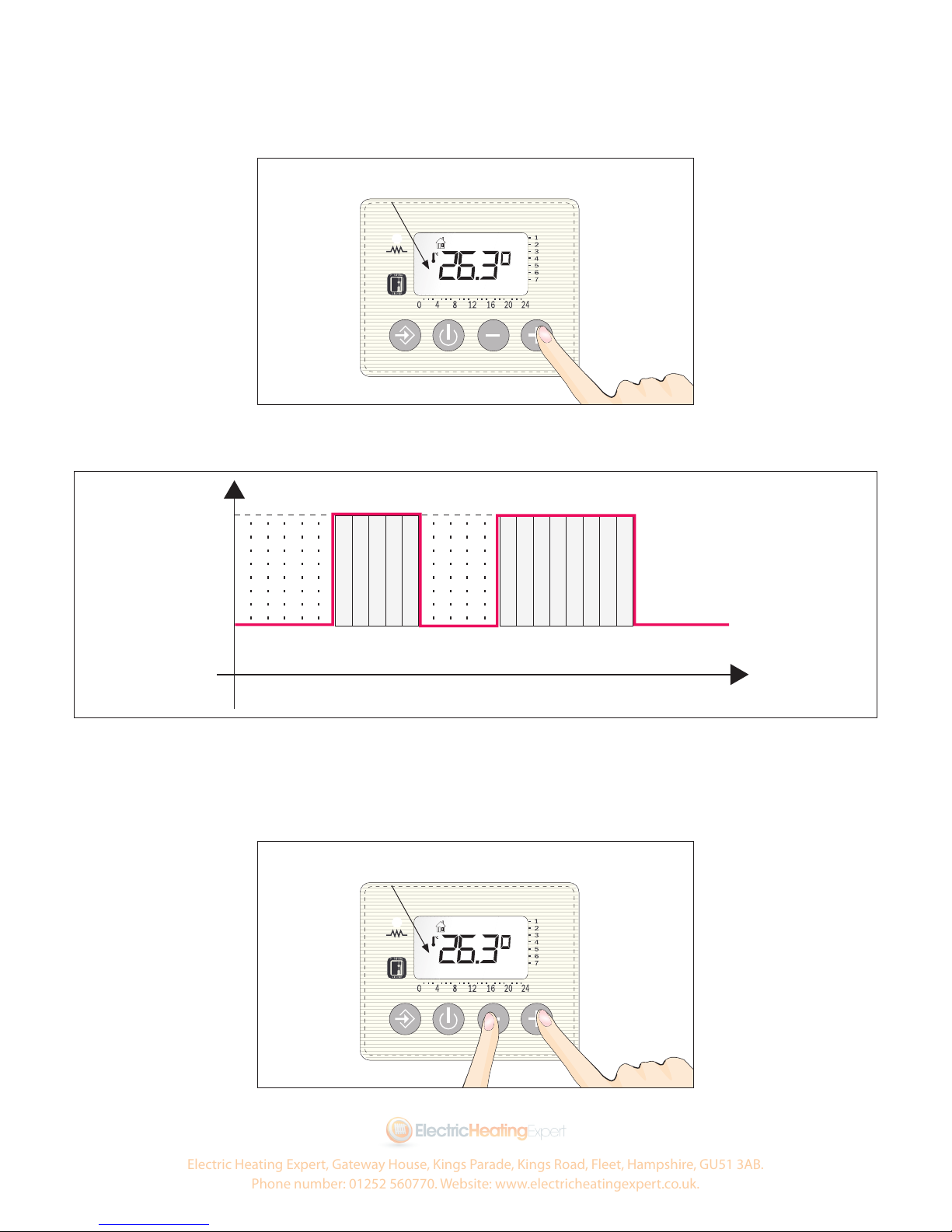

The two temperature levels are also used when programming the Vantage Electric Radiator:
02468101214161820
TL
TH
THERMOMETER
THERMOMETER
TEMPERATURE
TIME
Child lock
The Vantage Electric Radiator can be locked to prevent improper or accidental use. In order to activate the lock, press and hold the plus and minus keys
at the same time for three seconds: the keypad will then be locked. In order to unlock the keypad, press and hold both the plus and minus keys again
for three seconds.
TH is the desired ambient temperature during the time periods selected; TL is the (reduced) desired temperature outside the selected time periods.
Electric Heating Expert, Gateway House, Kings Parade, Kings Road, Fleet, Hampshire, GU51 3AB.
Phone number: 01252 560770. Website: www.electricheatingexpert.co.uk.

10
A dot will blink on the screen next to the days of the week. The current day can be selected using the plus or minus key. Use the ‘mode’key to
confirm the selection. The number corresponding to the hour will blink. Set the correct time using the plus and minus keys. Confirm the selection
with the ‘mode’key. The number corresponding to the minutes will blink. Set the correct minutes using the plus and minus keys. Confirm the
selection with the ‘mode’key
You can now assign a setting to each day of the week. When a segment appears between two times on the programming bar (at the bottom of the
screen), this indicates that the TH temperature level has been selected for this period. The absence of a segment indicates that during this period,
the radiator will keep the temperature at the TL level.
Starting from day 1, select the times when the TH temperature is desired. Pressing the + key activates the segment on the screen, and therefore TH
as well. Pressing the - key deactivates the segment and the programmed temperature will be equivalent to the TL level.
Confirm the selection using the ‘mode’key. This same process must be repeated for each day of the week (1-7).
PROGRAMME DAY PROGRAMME HOUR
PROGRAMME MIN.
04 812 16 20 24
Setting times and weekly programming

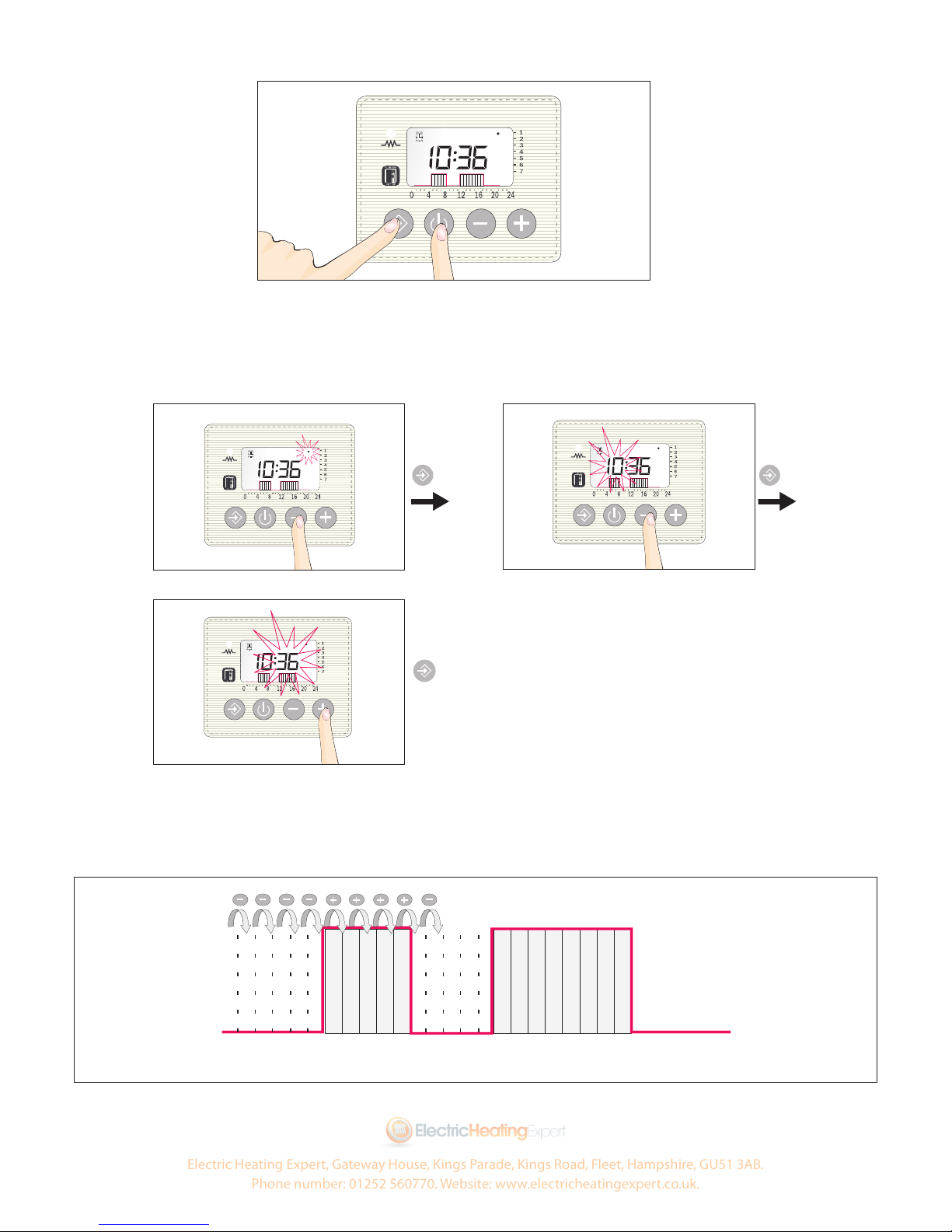

Press the‘stand-by’ and ‘mode’keys at the same time and hold for three seconds.
Electric Heating Expert, Gateway House, Kings Parade, Kings Road, Fleet, Hampshire, GU51 3AB.
Phone number: 01252 560770. Website: www.electricheatingexpert.co.uk.

11
02468101214161820
TL
TH
Description of operating modes
6.6.1. Programming mode
In this mode, the ambient temperature remains at the TH or TL level, depending on the times set by the user.
Comfort mode
This is the normal mode when the radiator is in use, keeping the ambient temperature at the programmed level.
1. Press the‘mode’ key until the screen displays the icon
2. Select the desired temperature using the + and - keys.
Night time mode
When this operating mode is selected, the radiator will keep the ambient temperature at the programmed TL temperature. The desired TL tempera-
ture is programmed as follows:
1. Press the‘mode’ key until the screen displays the icon
2. Select the desired TL temperature using the + and - keys.
Frost setting mode
When this mode is selected, the ambient temperature will not drop below 7ºC.
Stand-by mode
This means that the radiator is in stand-by mode.
Electric Heating Expert, Gateway House, Kings Parade, Kings Road, Fleet, Hampshire, GU51 3AB.
Phone number: 01252 560770. Website: www.electricheatingexpert.co.uk.

12
7. Cleaning the Vantage Electric Radiator
For safety reasons, disconnect the power supply before cleaning the appliance. Cleaning must be done when the radiator is turned off and is cold. Do
not use abrasive or corrosive products to clean the body: use soapy water, for example, and dry the external casing with a soft cloth. Clean plastic parts,
controls and the humidifier with a dry cloth only and avoid contact with chemicals or alcohol.
8. Trouble-shooting
If the Vantage Electric Radiator stops working, disconnect from the power supply and contact only a qualified technician who is authorized to work on
this type of product.
This appliance has been filled with an exact quantity of mineral-based thermodynamic fluid. Repairs which require opening the liquid reservoir must
be made by the manufacturer, its representatives or customer service. The manufacturer accepts no responsibility for harm to persons, animals, and
objects which may result from untrained handling of or improper work on the radiator.
9. Environment
The symbol placed on the appliance and shown here indicates that the product is subject to separate collection of electrical applian-
ces. At the end of its useful life, it cannot be disposed of together with common municipal solid waste. It must be disposed of at a
specific collection centre for the area or be given to the distributor when a new appliance of the same type is purchased for the same
use. Separate collection of electrical and electronic appliances is part of a policy aimed at defending, protecting and improving the
quality of the environment, and at limiting the harmful effects on human health caused by the presence of substances considered
hazardous according to the classification applied in European directives.
Warning! Improper disposal of the appliance is subject to penalties.
Electric Heating Expert, Gateway House, Kings Parade, Kings Road, Fleet, Hampshire, GU51 3AB.
Phone number: 01252 560770. Website: www.electricheatingexpert.co.uk.

13
DECLARATIONOFCONFORMITY

Withthepresent,


EcopowerHeatingLtd
252HighStreet
Aldershot
Hampshire
GU124LP


herebydeclaresthatthe
ELECTRICALRADIATORS
FORHEATING
Model
VANTAGE

aremanufacturedinaccordancewithEuropeandirectives

DIRECTIVE2006/95/CEof12December2006ontheharmonisationofthelawsofMemberStatesrelatingtoElectrical
Equipmentdesignedforusewithincertainvoltagelimits(lowvoltage)
DIRECTIVE2004/108/CE,forelectromagneticcompatibility
DIRECTIVE2002/96/CEof27January2003onwastefromelectricalandelectronicequipment(WEEE).

Andinaccordancewiththefollowingharmonizedregulations:
EN603351(200404):safetyofelectricalequipmentfordomesticorsimilaruses.Generalregulations.
EN60335230(200605):safetyofelectricalequipmentfordomesticorsimilaruses.Part2:Specificregulationsfor
electricalheatingappliancesforpremises.
EN550141:2000+A1:2001+A2:2002
EN6100032:2000
EN6100033:1995+A1:2001
EN550142:1997+A1:2001
EN6100042:1995+A1:1999+A2:2001
EN6100044:1995+A1:2001+A2:2002
EN6100045:1995+A1:2001
EN6100046:1996+A1:2001
EN61000411:1994+A1:2001



18/03/13
Electric Heating Expert, Gateway House, Kings Parade, Kings Road, Fleet, Hampshire, GU51 3AB.
Phone number: 01252 560770. Website: www.electricheatingexpert.co.uk.

14
Electric Heating Expert, Gateway House, Kings Parade, Kings Road, Fleet, Hampshire, GU51 3AB.
Phone number: 01252 560770. Website: www.electricheatingexpert.co.uk.

15
Electric Heating Expert, Gateway House, Kings Parade, Kings Road, Fleet, Hampshire, GU51 3AB.
Phone number: 01252 560770. Website: www.electricheatingexpert.co.uk.

16
Warranty information
The manufacturer warrants that the aluminium body, the fluid contained within, and the heating element of this product (Vantage Electric Radiator/
Alcor FD) will be free from manufacturing defect, for a period of 10 years from the date of purchase. All electronic components are guaranteed against
manufacturing defect for a period of 2 years from the date of purchase.
Electric Heating Expert, Gateway House, Kings Parade, Kings Road, Fleet, Hampshire, GU51 3AB.
Phone number: 01252 560770. Website: www.electricheatingexpert.co.uk.
The manufacturer reserves the right to modify the products
as it deems necessary and useful, without affecting their basic features.
IST 03 F 048 - 01 Novembre 2013 (11/2013)
0ZLIBIST55
