Vaporfi Vox II User manual

USER MANUAL
ENGLISH • ESPAÑOL

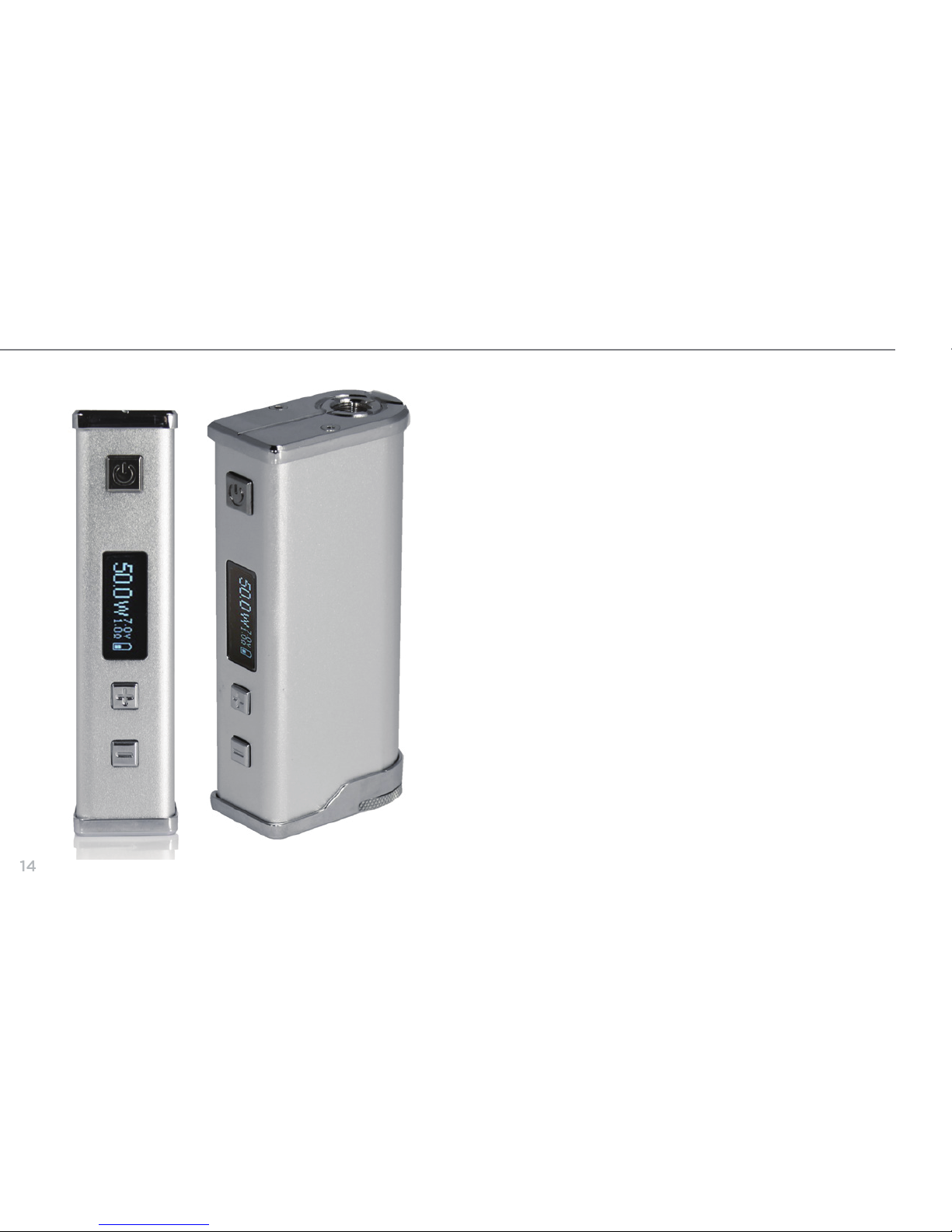

VOX II

VAPORFI® VOX II USER MANUAL
Thank you for purchasing the VaporFi VOX II. In order to use your device correctly,
efficiently and safely, please follow the instructions in this manual.

THE VOX II INCLUDES:
»[ 1 ] 50 watt vaporizer
»[ 1 ] USB charger
»[ 1 ] High-capacity 35A 2500mah battery

FEATURES:
»Adjustable Output Power from 7 w - 50 w (in 0.1 w increments)
»Accepts Atomizer Resistance from 0.2 ohm (sub) - 3.0 ohm
»Digital OLED Screen
»Output Voltage Range: 3.0 v - 8.5 v
»Input Voltage: 3.2 v - 4.2 v
»Maximum Output Current: 22 Amps
»510 Threading with Spring Loaded Pin
»Replaceable Battery
»Output Short-Circuit Protection
»Reverse Battery Protection
»Auto Ohm Resistance Meter (Finds ideal voltage for RBA/RDA)
»Low Voltage Protection

BATTERY OPERATION
The minimum battery requirement is (1) 35A /2100mAh (18650).
»Device Lock Feature
»Low Resistance Protection
»Input High Voltage Warning
»Temperature Protection
»USB Pass Through Charging System
»Vented Battery Casing
»Pocket Sized: 94mmx43mmx24mm
»Adjustable Output Power from 7 w - 50 w (in 0.1 w increments)

INSTALLING BATTERY
TURNING DEVICE ON
Press the power button 5 times continuously to turn the device on. VaporFi will
flash on the screen indicating that the device is on.
TURN DEVICE OFF
Press the power button 5 times continuously to turn the device off.
NOTE: To lock/unlock your VOX II press and hold the wattage up and down buttons at
the same time.
1.
2.
Unscrew and remove the top cap of the VOX II by turning the top counterclockwise.
Insert the battery into the VOX II with the positive side first.
Screw the top back on by turning it clockwise until secure (make sure not to over tighten).
3.
NOTE: If your battery rattles, this may indicate that your VOX battery is not making contact with the battery
pin. Unscrew the battery pin (copper piece located in the battery cap) by unscrewing the pin 2 turns
clockwise. Screw the battery cap back onto the VOX II and ensure the battery is no longer
rattling. Adjust battery pin accordingly.

CHARGING YOUR VOX II
1. Connect the USB charging cable into the micro USB port on the bottom of the
device.
2. Connect the other end of the USB charging cable to either the USB port
located on the wall charging adapter or to a fully powered USB port, such as
on a computer.
3. During charging the light above the USB port turns red. Once the device is fully
charged the light turns green.
Please allow 3-4 hours for charging to complete.
NOTE: The device is not to be used while charging.
ADJUSTING WATTAGE
NOTE: to quickly adjust wattage without the use of preset settings, exit setting menu
by pressing the “–” button and select desired wattage level. Output wattage can be
adjusted from 7 w to 50 w.

INCREASING WATTAGE
Wattage can be increased by 0.1 ohm increments when pressing “+” until the
desired wattage is displayed. Press and hold the “+” button to toggle through
wattage quickly.
DECREASING WATTAGE
Wattage can be decreased by 0.1 ohm increments when pressing “-” until the
desired wattage is displayed. Press and hold the “-” button to toggle through
wattage quickly.
ERROR CODES:
Low Res=Low atomizer resistance(<0.2Ω)
Low-Bat=Low battery voltage(<3.2V)
HHHHHHHH=High input voltage(>5V)
TOO HOT= High temperature

ADJUSTING PRESET SETTINGS
Your VOX II has 5 preset options that you can adjust in order to customize your
device to your vaping preferences.
TO ADJUST THESE SETTINGS:
1. Screw atomizer onto the VOX II
2. Let the VOX II enter sleep mode (sleep mode is engaged by not firing
your device for a few seconds). The VOX II will let you know it has engaged
sleep mode by dimming the LED screen.
3. Click the “+” button to cycle through the 5 settings (M1,M2,M3,M4,M5).
4. After desired setting is chosen (M1-M5), click the “-” button to change
the wattage setting.
5. Once desired wattage is reached, hold the power button for 2 seconds.
6. Your wattage setting is now preset for the chosen manual setting.

WARNING:
Please read before using
1. Keep this device out of reach of children, and avoid improper operation.
2. VOX II is not suitable for pregnant woman, nursing mother, the disabled or
person at the risk of heart attack, hypertension, diabetes, or those taking
medicine for depression and asthma.
3. Please do not place it in excessively hot, too cold or humid environment.
4. Please do not drop, throw or abuse the device.
5. Adjust wattage to below 10w if you are not using a re-buildable atomizer.
6. When vaping at 50 w and 0.2 ohm atomizer resistance, do not vape for more
than 30 minutes at a time.

GUARANTEE
All products come with a limited warranty. Please visit our website (www.
VaporFi.com) for more details.
DISCLAIMER
VaporFi products are not smoking cessation products and have not been tested
as such. The U.S. FDA has not approved these products for any use and they are
not intended to diagnose, cure, mitigate, treat or prevent any disorder, disease,
or physical or mental condition. Some VaporFi products contain nicotine,
a chemical known to the State of California to cause birth defects or other
reproductive harm. Nicotine is addictive and habit forming, and it is very toxic by
inhalation, in contact with the skin, or if swallowed.

ESPAÑOL
MANUAL DEL USUARIO
VOX II

VAPORFI® VOX II MANUAL DEL USUARIO
Gracias por adquirir el VaporFi VOX II. Para utilizar correctamente el dispositivo de
manera eficiente y segura, por favor siga las in strucciones de este manual.

EL VOX II INCLUYE:
»[ 1 ] Vaporizador de 50 watt
»[ 1 ] Cargador USB
»[ 1 ] Bateria de alta capacidad 35A 2500mah

CARACTERÍSTICAS:
»Salida de potencia ajustable entre 7 w y 50 w (por intervalos de 0.1 w)
»Acepta resistencias de atomizador desde 0.2 ohmios (sub) a 3.0 ohmios
»Pantalla digital OLED
»Rango de salida de voltage: 3.0 v - 8.5 v
»Rango de entrada: 3.2 v - 4.2 v
»Corriente de salida máxima : 22 Amps
»Rosca 510 con pasador Spring Loaded ajustable
»Batería reemplazable
»Protección contra cortocircuitos de salida
»Protección reversa de la batería
»Medidor automático de resistencia de ohmios (encuentra la tensión ideal
para RBA/RDA)

»Protección de baja tensión
»Protección de baja resistencia
»Funcion de bloqueo del dispositivo
»Aviso de tensión alta de entrada
»Protección de la temperatura
»Paso USB a través del sistema de carga
»Ventilación de la carcasa de la batería
»Tamaño de bolsillo: 94mmx43mmx24mm
»Potencia de Salida Ajustable de 7 W - 50 W ( en 0.1 w incrementos )

FUNCIONAMIENTO CON BATERÍA
INSTALACIÓN DE LA BATERÍA
1. Desenrosque y retire la tapa superior del VOX II girando la parte superior
hacia la izquierda.
2. Inserte la batería en el VOX II con el lado positivo primero.
3. Tornille la tapa de nuevo girándolo hacia la derecha hasta que quede firme
(asegúrese de no apretar demasiado).
ENCENDER EL DISPOSITIVO
Pulse el botón de encendido 5 veces seguidas para encender el dispositivo.
VaporFi parpadeará en la pantalla, lo cual indica que el dispositivo está
encendido.
APAGUE EL DISPOSITIVO
Pulse el botón de encendido 5 veces seguidas para apagar el dispositivo.
El requerimiento minimo de bateria para este dispositivo es una bateria de alta
capacidad de 35A /2100mAh (18650).
NOTA : Si la batería sonajeros , esto puede indicar que la batería de VOX no hace contacto con el pasador
de la batería. Desenrosque la (pieza de cobre ubicado en la tapa de la batería) pin batería aflojando el perno
2 vueltas hacia la derecha . Tornillo de la tapa de la batería en el VOX II y asegúrese de que la batería ya no
está sacudiendo . Ajuste pasador de la batería en consecuencia.

NOTA : Para bloquear / desbloquear el VOX II presione y mantenga la
potencia botones arriba y abajo al mismo tiempo.
CARGA DE LA VOX II
1. Conecte el cable de carga USB en el puerto micro USB en la parte de abajo
2. Conecte el otro extremo del cable de carga USB a un puerto USB situado en la pared
del adaptador de carga o a un puerto USB completamente encendido, como en un
ordenador.
3. Durante la carga, la luz sobre el puerto USB se vuelve roja. Cuando el dispositivo se
carga completamente, la luz se vuelve verde.
Por favor, espere 3-4 horas para que se complete la carga.
Nota: Este dispositivo no bebe ser usado mientras se esta caragando.
del dispositivo.
