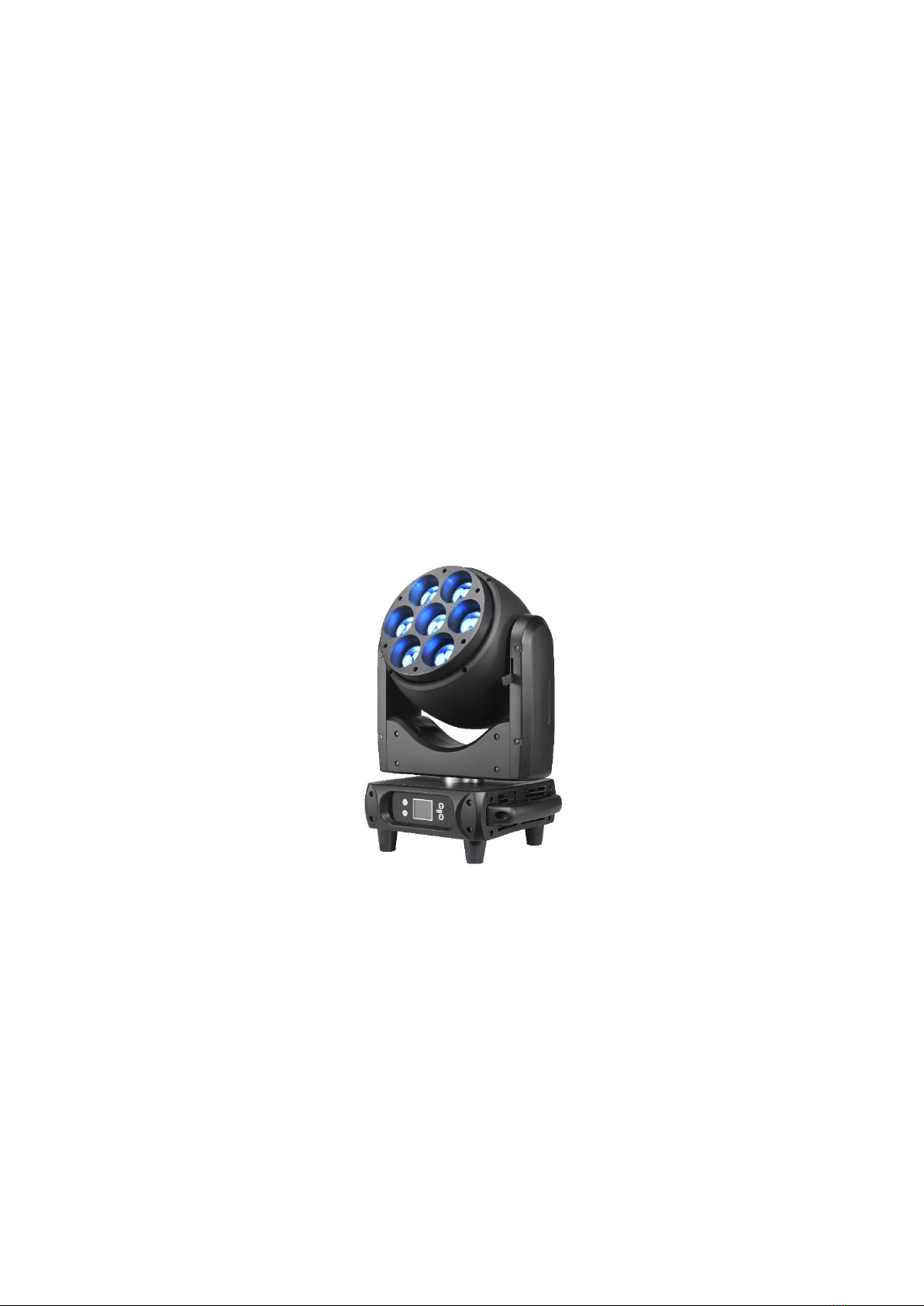

Vari Wash 760 User manual

User Manual
Vari Wash 760(Pixel)

- 1 -
Check that the unit has not been damaged during transport
Protection Against Fire
Maintain a minimum of 1 50cm distance from any type of flame
Replace fuse only with the specified type and rating
Do not install the unit to close a heat source
Make sure cable are properly secured away from unit movement
Maximum surface operating temperature 80°
Protection Against Electrical
Disconnect power before servicing
The unit must be earthed (electronically grounded)
Protection against Mechanical Hazards
Use safety chain when hanging unit
Use quality clamps or bolts when positioning unit
Do not open unit while it is on, risk of electrical shock

- 2 -
Technical Information
Electrical
Power supply:……………….…electronic auto-ranging
Input voltage range:……………supply 100-250V, 50/60Hz
Power consumption:……………4500W
Optic
Light source: Osram 60W RGBW quad LED X7pcs
LED life expectancy: 60,000 hours
Lens: High precision optical lens
Strobe: Dual lens strobe (0.5-9times/second)
Dimmer: Smooth dimmer from 0-100%
Feature
Zoom: 4°-50°
Effect: Bee eye rotating lens; Sharp beam; Uniform wash 3in1 effects
Motorized
Pan movement range: 540°
Tilt movement range: 270°
8bit/16 bit movement solution, optional
Automatic Pan/Tilt position correction
Pan movement 0°-540°at max…….
Tilt movement 0°-270°at max……..
LCD operation
Built-in demo sequences
Strong three-phase pan/tilt motors
Stand-alone operation
Supported protocols: DMX512
5 DMX modes (21/35/42/49/63 control channels)
Connection
DMX data in/out: Locking 5-pin or 3-pin XLR
AC power input: PowerCON input+output
Rigging
Mounting points: 2 pairs of 1/4-turn locks
Mounting horizontally or vertically via 2 Omega brackets
Temperatures
Maximum ambient temperature: 45℃
Maximum housing temperature: 75℃
Minimum distances
Min. distance from flammable surfaces: 3.0m
Min. distance to lighted object: 2.0m
Dimension: 331x265x415mm
Weight (net): 12.8kg
Warranty: 1 Year

- 3 -
Main Power Connection
The occupation of the connection-cable is as follows:
The equipment is w
it
h an ele
ctro
nic power suppl
y t
ha
t
will let
t
he uni
t
operate
fr
om 90V
to
240V
from
50Hz
t
o
Cable (USA)
Cable (EU)
Pin
110V 220V
Black Brown Live
L L
White Light Blue Neutral
N L
Green Yellow/Green Ground
DMX-512 Connection
The fixture is equipped with 3 pin XLR Sockets for DMX input and output. The sockets are wired in parallel. Only use a
shielded twisted pair cable designed for RS-485 and 3 pin XLR plugs and connectors in order to connect the controller
with thefixture or the fixture with another.
DMX—input DMX—output
1. Shield
2. Signal (-)
3. Signal (+)
1.
2.
3.
4.
Do not connect fixture to a dimmer system
This unit has autos witching power supply. It will respond to110Vor 220V automatically
This unit must be earthed. (Electronically grounded)
110V
Connection
L
L

- 4 -

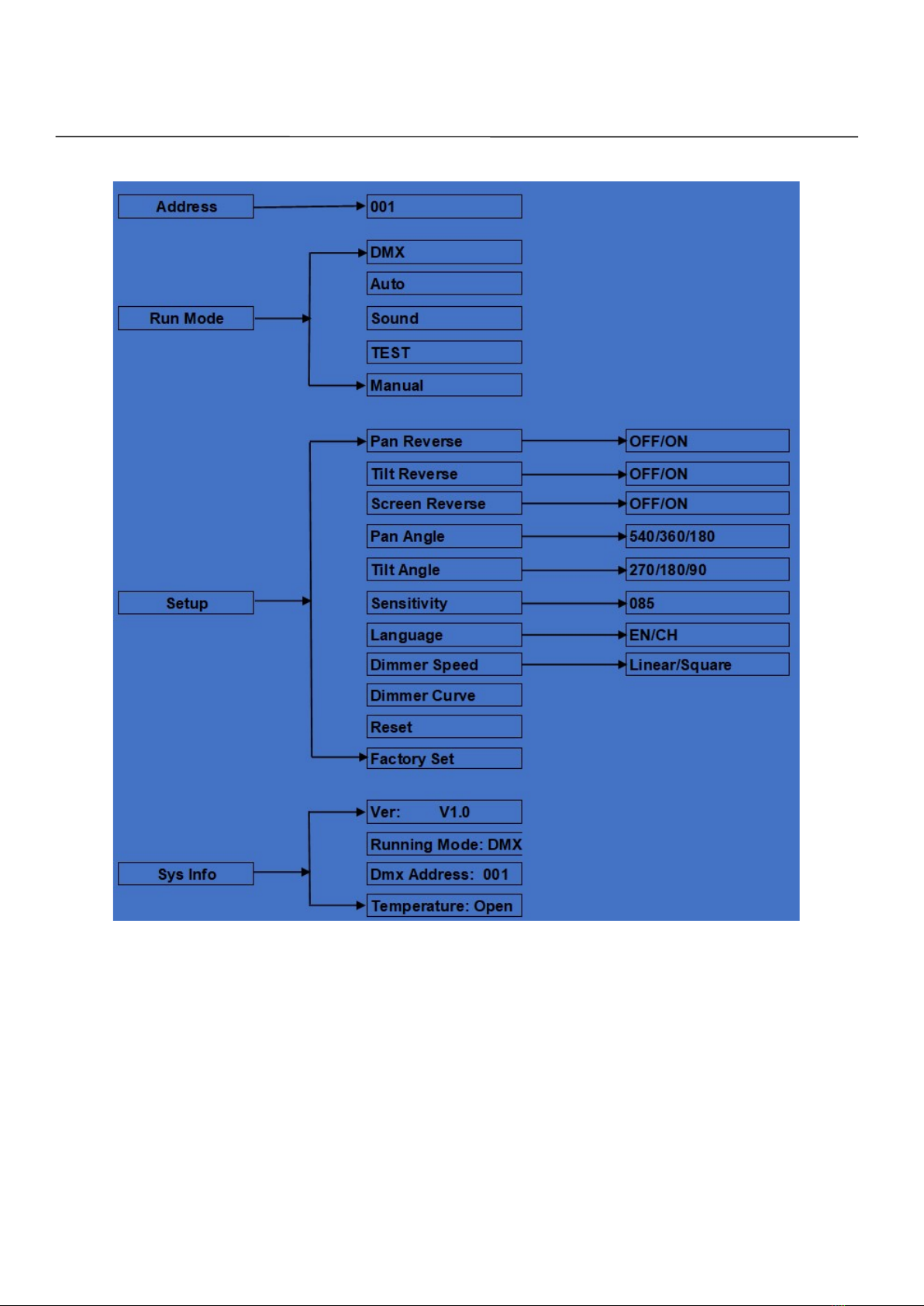

Menu Map

- 5 -

- 6 -
DMX Profile
21CH 35CH 42CH 49CH 63CH Function DMX
Value Description
1 1 1 1 1 LED Intensity 0-255 Red Color
2 2 2 2 2 LED Intensity Fine 0-255 Red Color Fine
3 3 3 3 3 LED Intensity 0-255 Green Color
4 4 4 4 4 LED Intensity Fine 0-255 Green Color Fine
5 5 5 5 5 LED Intensity 0-255 Blue Color
6 6 6 6 6 LED Intensity Fine 0-255 Blue Color Fine
7 7 7 7 7 LED Intensity 0-255 White Color
8 8 8 8 8 LED Intensity Fine 0-255 White Color Fine
9 9 9 9 9 Colors
0-4 No Function
5-9 Color 1
10-14 Color 2
15-19 Color 3
20-24 Color 4
25-29 Color 5
30-34 Color 6
35-39 Color 7
40-44 Color 8
45-49 Color 9
50-54 Color 10
55-59 Color 11
60-64 Color 12
65-69 Color 13
70-74 Color 14
75-79 Color 15
80-84 Color 16
85-89 Color 17
90-94 Color 18
95-99 Color 19
100-104 Color 20
105-109 Color 21
110-114 Color 22
115-119 Color 23
120-124 Color 24
125-129 Color 25
130-134 Color 26
135-139 Color 27
140-144 Color 28
145-149 Color 29
150-154 Color 30
155-159 Color 31
160-164 Color 32

- 7 -
165-169 Color 33
170-174 Color 34
175-179 No Function
180-201 Color Forward Fade
Fast to Slow
202-207 Stop
208-229 Color Backward Fade
Fast to Slow
230-234 No Function
235-249 Color Forward Snap
Fast to Slow
250-255 Color Backward Snap
Fast to Slow
10 10 10 10 10 CTO 0-255 8000K-2800K
11 11 11 11 11 Dimmer 0-255 0-100%
12 12 12 12 12 Dimmer Fine 0-255 0-100%
13 13 13 13 13 Strobe
0-2 Close
3-103 Strobe Effect1 Fast to
Slow
104-107 Open
108-157 Strobe Effect2 Fast to
Slow
158-207 Strobe Effect3 Fast to
Slow
208-212 Open
213-251 Pulse Strobe Fast to
Slow
252-255 Open
14 14 14 14 14 Pan 0-255 Pan 0-540°
15 15 15 15 15 Pan Fine 0-255 Pan 16bit
16 16 16 16 16 Tilt 0-255 Tilt 0-270°
17 17 17 17 17 Tilt Fine 0-255 Tilt 16bit
18 18 18 18 18 Macro
0-128 No Function
129-255 Programs(
Middle LED Off)
19 19 19 19 19 Reset 128-255
20 20 20 20 20 Zoom 0-255 50-5degree
21 21 21 21 21 Lens Rotation
0-127 Lens Position
Adjustment
128-189 Lens Forward Slow to
Fast
190-191 Stop
192-255 Lens Backward Slow to
Fast
/
22
/ /
22 Programs
000-007 No Function
008-014 Static Effects
015-046 32 Programs
47-255 Off
23 23 Speed
0-63 Static Effects
64-127 Lens Forward
Slow to Fast

- 8 -
128-255 Lens Backward
Slow to Fast
24 24 Delay Time 0-255 Short to Long
25 25 Foreground LED 0-255 Red Color
26 26 Foreground LED 0-255 Green Color
27 27 Foreground LED 0-255 Blue Color
28 28 Foreground LED 0-255 White Color
29 29 Foreground Dimmer 0-255 0-100%
30 30 Background Dimmer 0-255 0-100%
31 31 No Function 0-255
32 32 0-255
33 33 Foreground Strobe 0-255 Slow to Fast
34 34 Background Strobe 0-255 Slow to Fast
35 35 Background
0-7 No Function
8-16 Background Colors
17-255 No Function
/
22 22 36 LED1 Intensity 0-255 Red Color
23 23 37 LED1 Intensity 0-255 Green Color
24 24 38 LED1 Intensity 0-255 Blue Color
/ 25 39 LED1 Intensity 0-255 White Color
25 26 40 LED2 Intensity 0-255 Red Color
26 27 41 LED2 Intensity 0-255 Green Color
27 28 42 LED2 Intensity 0-255 Blue Color
/ 29 43 LED2 Intensity 0-255 White Color
28 30 44 LED3 Intensity 0-255 Red Color
29 31 45 LED3 Intensity 0-255 Green Color
30 32 46 LED3 Intensity 0-255 Blue Color
/ 33 47 LED3 Intensity 0-255 White Color
31 34 48 LED4 Intensity 0-255 Red Color
32 35 49 LED4 Intensity 0-255 Green Color
33 36 50 LED4 Intensity 0-255 Blue Color
/ 37 51 LED4 Intensity 0-255 White Color
34 38 52 LED5 Intensity 0-255 Red Color
35 39 53 LED5 Intensity 0-255 Green Color
36 40 54 LED5 Intensity 0-255 Blue Color
/ 41 55 LED5 Intensity 0-255 White Color
37 42 56 LED6 Intensity 0-255 Red Color
38 43 57 LED6 Intensity 0-255 Green Color
39 44 58 LED6 Intensity 0-255 Blue Color
/ 45 59 LED6 Intensity 0-255 White Color
40 46 60 LED7 Intensity 0-255 Red Color
41 47 61 LED7 Intensity 0-255 Green Color
42 48 62 LED7 Intensity 0-255 Blue Color
/ 49 63 LED7 Intensity 0-255 White Color

- 9 -
Fixture Size Drawing(mm)
Installation
Use an appropriate clamp to ring the fixture on the truss.
Follow the instructions mentioned at the bottom of the base.
Make sure that the device is fixed properly! Ensure that the structure (truss) to which you are attaching the fixtures is
secure.
Securing the fixture via one safety wire Securing the fixture via two safety wires
Cleaning!
Due to fog residue, smoke, and dust cleaning the internal and external optical lenses must be carried out periodically to
optimize light output.
Use normal glass cleaner and a soft cloth to wipe off the outside casing.
Clean the external optics with glass cleaner and a soft cloth every 20 days.
Always be sure to dry all parts completely before plugging the unit back in.
Cleaning frequency depends on the environment in which the unit operates (i.e. smoke, fog residue, dust, dew).
Unit not responding to DMX:
Check that the DMX cables are connected properly and are wired correctly (pin 3 is “hot”; on some other DMX devices
pin 5 may be “hot”). Also, check that all cables are connected to the right connectors; it does matter which way the inputs
and outputs are connected.
