Varytec Fan FX User manual

Fan FX
eect panel
User manual

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
26.05.2020, ID: 475607

Table of contents
1 General information................................................................................................................................. 6
1.1 Further information........................................................................................................................... 7
1.2 Notational conventions.................................................................................................................... 8
1.3 Symbols and signal words............................................................................................................... 8
2 Safety instructions.................................................................................................................................. 11
3 Features....................................................................................................................................................... 17
4 Installation and starting up................................................................................................................ 19
5 Connections and controls................................................................................................................... 21
6 Operating.................................................................................................................................................... 24
6.1 Menu overview................................................................................................................................. 31
6.2 Functions in 5-channel mode...................................................................................................... 32
6.3 Functions in 8-channel mode...................................................................................................... 33
6.4 Functions in 19-channel mode................................................................................................... 34
6.5 Functions in 91-channel mode................................................................................................... 36
7 Technical specications....................................................................................................................... 38
Table of contents
Fan FX 3
eect panel

8 Plug and connection assignments.................................................................................................. 40
9 Cleaning....................................................................................................................................................... 41
10 Protecting the environment.............................................................................................................. 42
Table of contents
4Fan FX
eect panel

Fan FX 5
eect panel

1 General information
This user manual contains important information on the safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to another user, be sure
that they also receive this manual.
Our products and user manuals are subject to a process of continuous development. We there‐
fore reserve the right to make changes without notice. Please refer to the latest version of the
user manual which is ready for download under www.thomann.de.
General information
6Fan FX
eect panel

1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and details on the
following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
General information
Fan FX 7
eect panel

1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
Texts and values displayed on the device are marked by quotation marks and italics.
Examples: ‘24ch’ , ‘OFF’ .
1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.
Letterings
Displays
General information
8Fan FX
eect panel

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in death or serious
injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – dangerous optical radiation.
General information
Fan FX 9
eect panel

Warning signs Type of danger
Warning – danger zone.
General information
10 Fan FX
eect panel

2 Safety instructions
This device is intended for use as an electronic lighting eect by means of LED technology. The
device is designed for professional use and is not suitable for use in households. Use the
device only as described in this user manual. Any other use or use under other operating con‐
ditions is considered to be improper and may result in personal injury or property damage. No
liability will be assumed for damages resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Extend the life of the device by regular breaks in operation and avoid switching it on and o
frequently. This device is not suitable for continuous use.
Intended use
Safety instructions
Fan FX 11
eect panel

DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never
remove any covers.
There are no user-serviceable parts inside.
Do not use the device if covers, protectors or optical components are missing or
damaged.
Safety
Safety instructions
12 Fan FX
eect panel

DANGER!
Electric shock caused by short-circuit
Always use proper ready-made insulated mains cabling (power cord) with a pro‐
tective contact plug. Do not modify the mains cable or the plug. Failure to do so
could result in electric shock/death or re. If in doubt, seek advice from a regis‐
tered electrician.
WARNING!
Eye damage caused by high light intensity
Never look directly into the light source.
WARNING!
Risk of epileptic shock
Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons
should avoid looking at strobe lights.
Safety instructions
Fan FX 13
eect panel

NOTICE!
Risk of re
Do not block areas of ventilation. Do not install the device near any direct heat
source. Keep the device away from naked ames.
Safety instructions
14 Fan FX
eect panel

NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.
Only operate the device within the ambient conditions specied in the chapter
‘Technical specications’ of this user manual. Avoid heavy temperature uctua‐
tions and do not switch the device on immediately after it was exposed to tem‐
perature uctuations (for example after transport at low outside temperatures).
Dust and dirt inside can damage the unit. When operated in harmful ambient
conditions (dust, smoke, nicotine, fog, etc.), the unit should be maintained by
qualied service personnel at regular intervals to prevent overheating and other
malfunction.
Safety instructions
Fan FX 15
eect panel

NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches
the voltage rating of the device and that the AC outlet is protected by a residual
current circuit breaker. Failure to do so could result in damage to the device and
possibly injure the user.
Unplug the device before electrical storms occur and when it is unused for long
periods of time to reduce the risk of electric shock or re.
NOTICE!
Possible damage due to installation of a wrong fuse
The use of dierent types of fuses can cause serious damage to the unit. Fire
hazard!
Only fuses of the same type may be used.
Safety instructions
16 Fan FX
eect panel

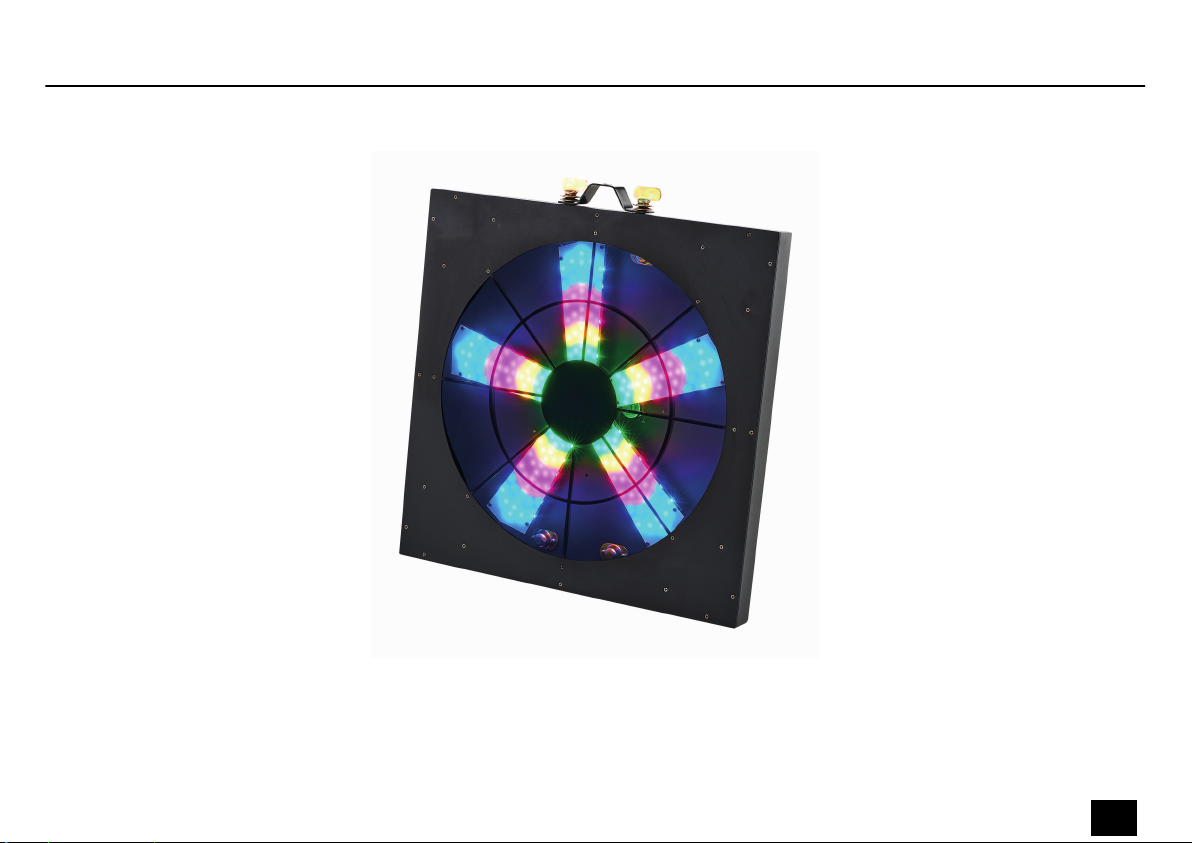

3 Features
The device is designed as an eective LED decorative fan and is ideal as a decorative element
in clubs, bars and on stages. Several devices can be connected to form a coherent surface.
Special features of the device:
nFan impeller with ve blades
n36 × RGB LED per blade
nsix separately controllable segments per blade
nControl protocols: DMX-512
nstepless speed control of the fan propeller in both directions
nalmost silent operation
nOperating modes: Stand alone, DMX (5, 8, 19, 91 channels)
nIn and outputs: DMX (3-pin)
nOperating via buttons and display on the unit
nPower Twist connectors for self-supply and for supplying further devices
nRobust metal housing with mounting bracket
Features
Fan FX 17
eect panel

For technological reasons, the light output of LEDs decreases over their lifetime. This eect
increases with higher operating temperature. You can extend the service life of the illuminants
by providing adequate ventilation and operating the LEDs with the lowest possible brightness.
Features
18 Fan FX
eect panel

4 Installation and starting up
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
The mounting bracket on the rear of the device is used for secure mounting and alignment of
the device on a tripod or the like. Secure the device additionally with a safety cable, which is
threaded through the safety eyelet on the unit's rear side.
Secure each individual device additionally with a safety cable, which is threaded through the
safety eyelet on the unit's rear side.
Make sure that the installation complies with the standards and rules that apply in your
country.
Connect the units to be controlled via suitable DMX cables to the device. A maximum of 30
devices may be serially connected to each serial port of the controller. The cable length in a
series connection for DMX operation should not exceed 100 metres.
Mounting options
Installation and starting up
Fan FX 19
eect panel

Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
Please note that this device must not be connected to a dimmer.
Installation and starting up
