1 General information
This manual contains important instructions for the safe operation of the unit. Read and follow
the safety instructions and all other instructions. Keep the manual for future reference. Make
sure that it is available to all those using the device. If you sell the unit please make sure that
the buyer also receives this manual.
Our products are subject to a process of continuous development. Thus, they are subject to
change.
General information
650/1000 Antihalo 650/1000 Fresnel 650/1000 PC 300/500 Antihalo 300/500 Fresnel 5
theatre spotlight

1.1 Further information
On our website (www.thomann.de) you will find lots of further information and details on the
following points:
Download This manual is also available as PDF file for you to download.
Keyword search Use the search function in the electronic version to find the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
General information
6650/1000 Antihalo 650/1000 Fresnel 650/1000 PC 300/500 Antihalo 300/500 Fresnel
theatre spotlight

1.2 Notational conventions
This manual uses the following notational conventions:
The individual steps of an instruction are numbered consecutively. The result of a step is
indented and highlighted by an arrow.
Example:
1. Switch on the device.
2. Press [Auto].
ðAutomatic operation is started.
3. Switch off the device.
1.3 Symbols and signal words
In this section you will find an overview of the meaning of symbols and signal words that are
used in this manual.
Instructions
General information
650/1000 Antihalo 650/1000 Fresnel 650/1000 PC 300/500 Antihalo 300/500 Fresnel 7
theatre spotlight

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates a pos-
sible dangerous situation that can result in death or serious
injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos-
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – hot surface.
General information
8650/1000 Antihalo 650/1000 Fresnel 650/1000 PC 300/500 Antihalo 300/500 Fresnel
theatre spotlight

Warning signs Type of danger
Warning – danger zone.
General information
650/1000 Antihalo 650/1000 Fresnel 650/1000 PC 300/500 Antihalo 300/500 Fresnel 9
theatre spotlight

2 Safety instructions
This device is intended to be used as an illumination effect. The device is designed for profes-
sional use and is not suitable for use in households. Use the device only as described in this
user manual. Any other use or use under other operating conditions is considered to be
improper and may result in personal injury or property damage. No liability will be assumed for
damages resulting from improper use.
This device may be used only by persons with sufficient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Intended use
Safety instructions
10 650/1000 Antihalo 650/1000 Fresnel 650/1000 PC 300/500 Antihalo 300/500 Fresnel
theatre spotlight

DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
DANGER!
Dangerous voltages
The rewiring, exchanging of light bulbs and general electrical maintenance of this
product should only be carried out by electrical specialists. Failure to follow these
safety precautions can result in electric shock, fire and/or death.
The product must be switched off and de-energised (mains plug / power supply
disconnected) before carrying out any maintenance / repair work.
Safety
Safety instructions
650/1000 Antihalo 650/1000 Fresnel 650/1000 PC 300/500 Antihalo 300/500 Fresnel 11
theatre spotlight

DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present.
Completely disconnect the device from the power supply before you open or
remove covers. Mount all covers and attach them firmly before connecting the
device again.
Do not use the device if covers, protectors or optical components are missing or
damaged.
DANGER!
Electric shock caused by short-circuit
Do not modify the mains cable or the plug. Failure to do so could result in electric
shock/death or fire. If in doubt, seek advice from a registered electrician.
Safety instructions
12 650/1000 Antihalo 650/1000 Fresnel 650/1000 PC 300/500 Antihalo 300/500 Fresnel
theatre spotlight

WARNING!
Eye damage caused by high light intensity
Never look directly into the light source.
WARNING!
Risk of burns at the surface and inside of the device
The surface and the inner parts of the device can become very hot during opera-
tion.
After switching off the device wait for at least 15 minutes before you start any
maintenance activities.
NOTICE!
Risk of fire
Do not block areas of ventilation. Do not install the device near any direct heat
source. Keep the device away from naked flames.
Safety instructions
650/1000 Antihalo 650/1000 Fresnel 650/1000 PC 300/500 Antihalo 300/500 Fresnel 13
theatre spotlight

NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.
NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches
the voltage rating of the device and that the AC outlet is protected by a residual
current circuit breaker. Failure to do so could result in damage to the device and
possibly injure the user.
Unplug the device before electrical storms occur and when it is unused for long
periods of time to reduce the risk of electric shock or fire.
Safety instructions
14 650/1000 Antihalo 650/1000 Fresnel 650/1000 PC 300/500 Antihalo 300/500 Fresnel
theatre spotlight

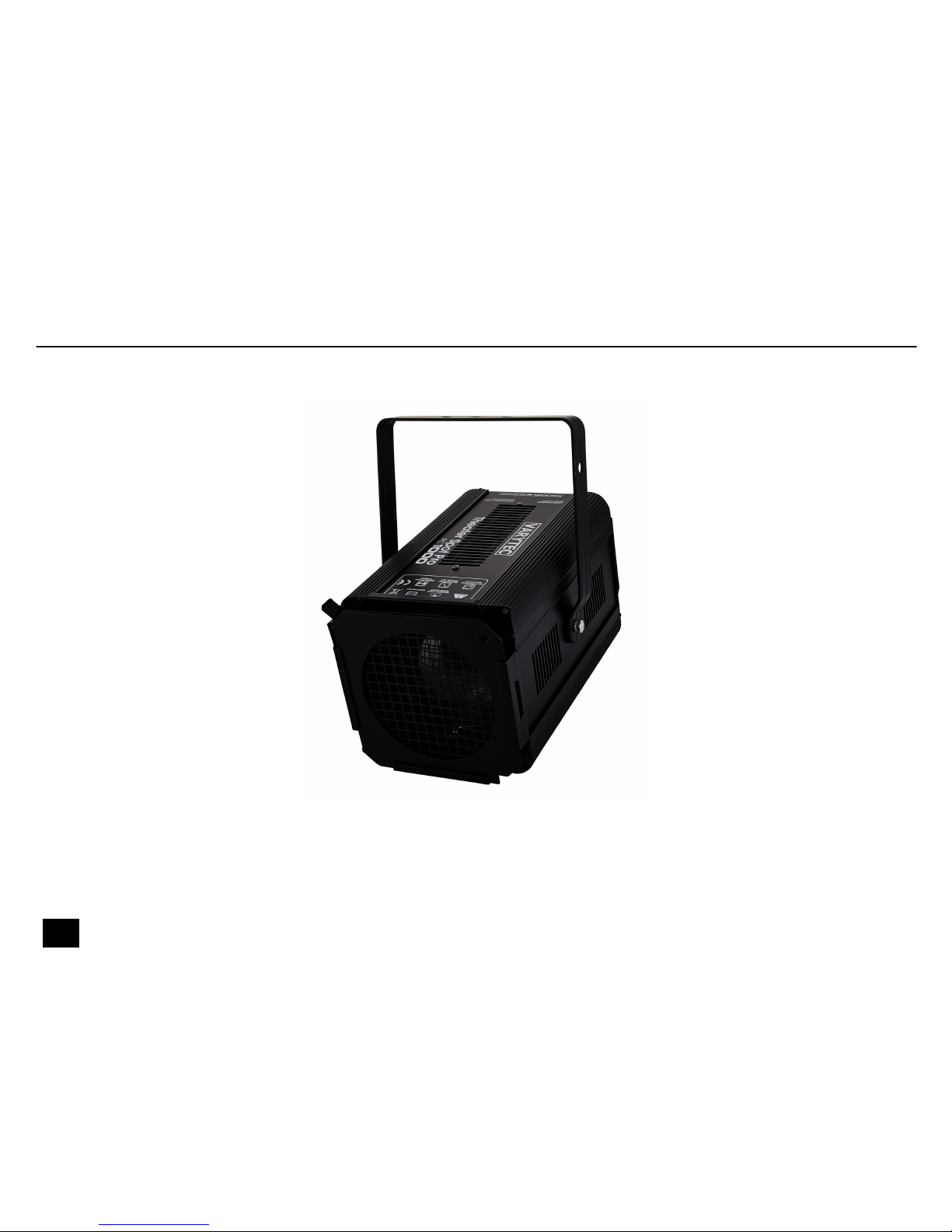

3 Features
Professional theatre spotlight for almost any application, for example in clubs, bars, small
stages and theatres.
Special features of the devices:
nModel 650/1000 Antihalo, model 650/1000 Fresnel and model 650/1000 PC are suitable for
halogen stage lights with GX9.5 base, 230 V, maximum power consumption 1000 W (not
included)
nModel 300/500 Antihalo and model 300/500 Fresnel are suitable for halogen stage lights
with GY9.5 base, 230 V, maximum power consumption 500 W (not included)
nManually adjustable zoom range from 10° to 40°
nModel 650/1000 Antihalo, model 300/500 Antihalo and model 300/500 Fresnel are spe-
cially suitable for close range
nCompact robust metal housing with colour filter frame holder and mounting bracket
nColour filter frame with protective grille included
nMains plug for self-assembly (not included)
Features
650/1000 Antihalo 650/1000 Fresnel 650/1000 PC 300/500 Antihalo 300/500 Fresnel 15
theatre spotlight

4 Connections and controls
Rear panel
Connections and controls
16 650/1000 Antihalo 650/1000 Fresnel 650/1000 PC 300/500 Antihalo 300/500 Fresnel
theatre spotlight

1 Mounting bracket for floor placement or hanging.
2 Safety cable eyelet.
3 Locking screw for the mounting bracket.
4 Power cord.
5 Locking screw for focus. Loosen the screw and position the slider for optimum illumination.
6 Retaining bracket
7 Holder for barn doors, colour films or filters.
Connections and controls
650/1000 Antihalo 650/1000 Fresnel 650/1000 PC 300/500 Antihalo 300/500 Fresnel 17
theatre spotlight

5 Maintenance
5.1 Installing / replacing the illuminant
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present.
Completely disconnect the device from the power supply before you open or
remove covers. Mount all covers and attach them firmly before connecting the
device again.
Do not use the device if covers, protectors or optical components are missing or
damaged.
Maintenance
18 650/1000 Antihalo 650/1000 Fresnel 650/1000 PC 300/500 Antihalo 300/500 Fresnel
theatre spotlight

WARNING!
Risk of burns at the surface and inside of the device
The surface and the inner parts of the device can become very hot during opera-
tion.
After switching off the device wait for at least 15 minutes before you start any
maintenance activities.
NOTICE!
Possible damages due to dirt or finger prints
Due to the high temperatures, even smallest pieces of dirt on the bulb can
destroy the lamp when it is turned on.
Do not touch the lamp directly with your fingers. Use clean gloves or a clean lint-
free tissue.
Maintenance
650/1000 Antihalo 650/1000 Fresnel 650/1000 PC 300/500 Antihalo 300/500 Fresnel 19
theatre spotlight

NOTICE!
Possible damages due to wrong type of lamp
Any attempt to use the device with a lamp other than those specified in this
manual can result in severe damages to the device.
Only use a lamp of the specified type.
Maintenance
20 650/1000 Antihalo 650/1000 Fresnel 650/1000 PC 300/500 Antihalo 300/500 Fresnel
theatre spotlight
