Varytec VP-m20 User manual

VP-m20
Video BiLight Panel
LED spotlight
User manual

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
17.03.2021, ID: 492099 (V2)

Table of contents
1 General information................................................................................................................................. 5
1.1 Further information........................................................................................................................... 6
1.2 Symbols and signal words............................................................................................................... 7
2 Safety instructions..................................................................................................................................... 9
3 Features....................................................................................................................................................... 13
4 Installation.................................................................................................................................................. 14
4.1 Dealing with lithium batteries..................................................................................................... 16
5 Connections and controls................................................................................................................... 18
6 Technical specications....................................................................................................................... 21
7 Cleaning....................................................................................................................................................... 23
8 Protecting the environment.............................................................................................................. 24
Table of contents
VP-m20 Video BiLight Panel 3
LED spotlight

4VP-m20 Video BiLight Panel
LED spotlight

1 General information
This user manual contains important information on the safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to another user, be sure
that they also receive this manual.
Our products and user manuals are subject to a process of continuous development. We there‐
fore reserve the right to make changes without notice. Please refer to the latest version of the
user manual which is ready for download under www.thomann.de.
General information
VP-m20 Video BiLight Panel 5
LED spotlight

1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and details on the
following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
General information
6VP-m20 Video BiLight Panel
LED spotlight

1.2 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.
Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in death or serious
injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
General information
VP-m20 Video BiLight Panel 7
LED spotlight

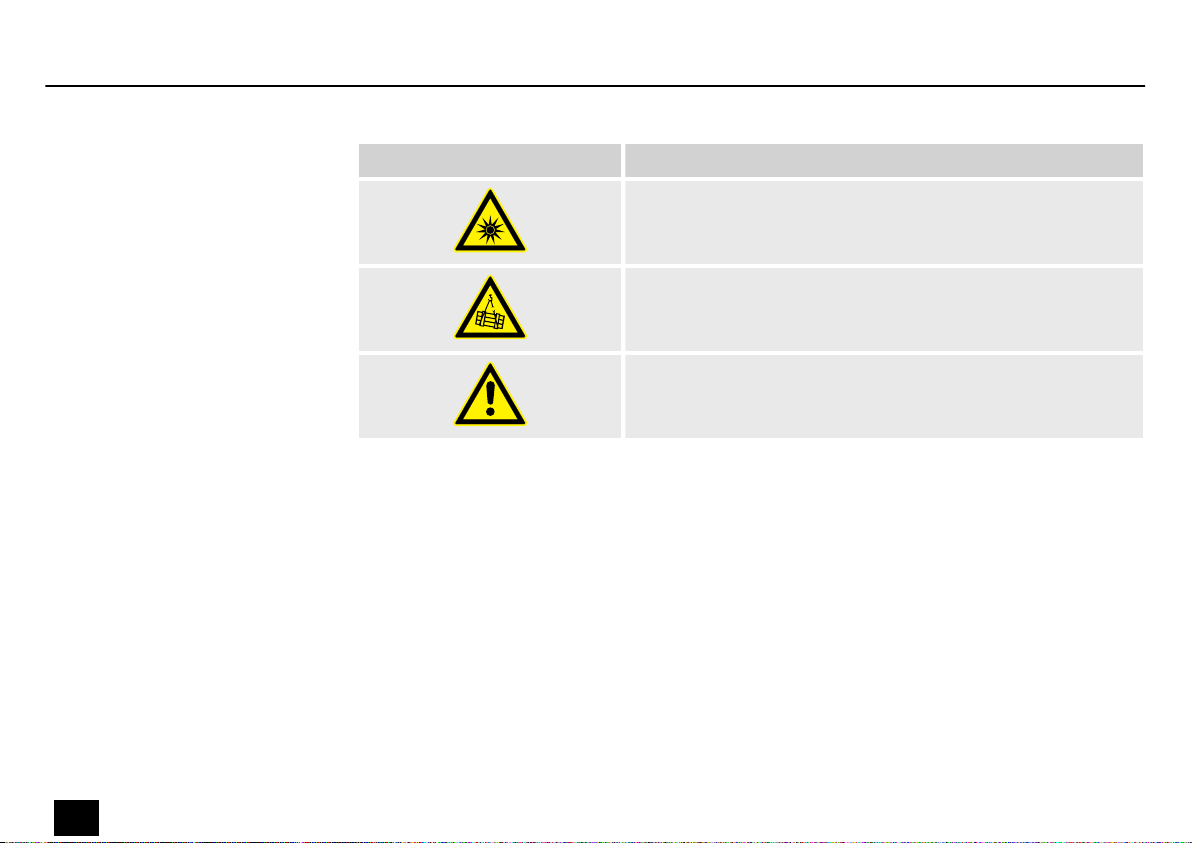

Warning signs Type of danger
Warning – dangerous optical radiation.
Warning – suspended load.
Warning – danger zone.
General information
8VP-m20 Video BiLight Panel
LED spotlight

2 Safety instructions
This device is intended for use as an electronic lighting eect by means of LED technology. The
device is designed for professional use only and is not suitable for use in households. Use the
device only as described in this user manual. Any other use or use under other operating con‐
ditions is considered to be improper and may result in personal injury or property damage. No
liability will be assumed for damages resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Extend the operating life of the device by regular breaks and by avoiding frequent
switching on and o. The device is not suitable for continuous operation.
Intended use
Safety instructions
VP-m20 Video BiLight Panel 9
LED spotlight

Safety
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking
hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and
choke! Never let children unattended use electrical devices.
WARNING!
Eye damage caused by high light intensity
Never look directly into the light source.
WARNING!
Incorrect handling of lithium batteries can result in injury
In the event of a short circuit, overheating or mechanical damage, lithium batteries can cause severe injuries. Follow the advice on
the correct handling of lithium batteries in the present section.
NOTICE!
Risk of re
Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked ames.
Safety instructions
10 VP-m20 Video BiLight Panel
LED spotlight

NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid
direct sunlight, heavy dirt, and strong vibrations. Only operate the device within the ambient conditions specied in the chapter
‘Technical specications’ of this user manual. Avoid heavy temperature uctuations and do not switch the device on immediately
after it was exposed to temperature uctuations (for example after transport at low outside temperatures). Dust and dirt inside can
damage the unit. When operated in harmful ambient conditions (dust, smoke, nicotine, fog, etc.), the unit should be maintained by
qualied service personnel at regular intervals to prevent overheating and other malfunction.
NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC
outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the
user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric
shock or re.
NOTICE!
Risk of overheating
The distance between light output and the illuminated surface must be more than 1.5 m (19.7in). Provide sucient ventilation. The
ambient temperature must always be below 40 °C (104 °F).
Safety instructions
VP-m20 Video BiLight Panel 11
LED spotlight

NOTICE!
Use of stands
When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does
not exceed the maximum permissible load capacity of the stand.
NOTICE!
Possible damage to lithium-ion batteries through incorrect storage
By deep discharge, lithium-ion batteries can be permanently damaged or lose some of their capacity. Before long breaks, charge the
batteries to around 50 % of their capacity and then switch o the device. Store the device at room temperature or cooler in an envi‐
ronment as dry as possible. If the batteries are stored for a longer period, recharge them to 50 % every three months. Fully charge
the batteries only shortly before use at room temperature.
Safety instructions
12 VP-m20 Video BiLight Panel
LED spotlight

3 Features
The LED spotlight with variable colour temperature is particularly suitable for lighting tasks
during video shooting, in reports on the road, or in the studio.
Special features of the device:
nHigh CRI for large and even illumination
nControl directly on the device
nUSB port for charging smartphones or other devices
nLightweight design for use on the go
nMobile operation via built-in rechargeable battery
nBarn doors included
For technological reasons, the light output of LEDs decreases over their lifetime. This eect
increases with higher operating temperature. You can extend the service life of the illuminants
by providing adequate ventilation and operating the LEDs with the lowest possible brightness.
Features
VP-m20 Video BiLight Panel 13
LED spotlight

4 Installation
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
You can install the device standing or hanging. When in use, the device must be mounted at a
solid surface or clamped to an approved truss.
Work from a stable platform whenever you install or move the device or when you perform
any kind of maintenance. Block access under the work area.
Installation
14 VP-m20 Video BiLight Panel
LED spotlight

WARNING!
Risk of injury caused by falling objects
Make sure that the installation complies with the standards and rules that apply
in your country. Always secure the device with a secondary safety attachment,
such as a safety cable or a safety chain.
Secure the barn door with a safety cable on the spotlight after installation. The
safety cable must run outside the barn door and must not interfere with the light
emission.
NOTICE!
Risk of overheating
The distance between light output and the illuminated surface must be more
than 1.5 m (19.7in).
Provide sucient ventilation.
The ambient temperature must always be below 40 °C (104 °F).
Installation
VP-m20 Video BiLight Panel 15
LED spotlight

NOTICE!
Use of stands
When mounting the device onto a stand, ensure that the stand is in a safe and
stable position and that the weight of the device does not exceed the maximum
permissible load capacity of the stand.
4.1 Dealing with lithium batteries
WARNING!
Incorrect handling of lithium batteries can result in injury
In the event of a short circuit, overheating or mechanical damage, lithium bat‐
teries can cause severe injuries.
Follow the advice on the correct handling of lithium batteries in the present sec‐
tion.
When handled correctly and appropriately lithium batteries pose no risk.
Installation
16 VP-m20 Video BiLight Panel
LED spotlight

Store lithium batteries in a cool, dry place, ideally in the original packaging.
Store lithium batteries away from heat sources (e.g. radiators or sunlight). Lithium batteries are
hermetically sealed. Never attempt to open a lithium battery.
If the battery housing is damaged small amounts of the electrolyte may leak out. If this should
happen, seal the lithium battery in airtight packaging and wipe up the traces of electrolyte
using absorbent paper towels. You must wear protective rubber gloves when doing so. Clean
your hands and the aected surface thoroughly with cold water.
Never attempt to recharge non-rechargeable lithium batteries. When charging lithium bat‐
teries you must use a suitable charging device intended for the purpose.
Before disposing of the device remove the lithium batteries. Protect used lithium batteries
against potential short circuits, e.g. by covering the poles with adhesive tape.
Only use powder extinguishers or other suitable extinguishing agents to extinguish a burning
lithium battery.
Installation
VP-m20 Video BiLight Panel 17
LED spotlight

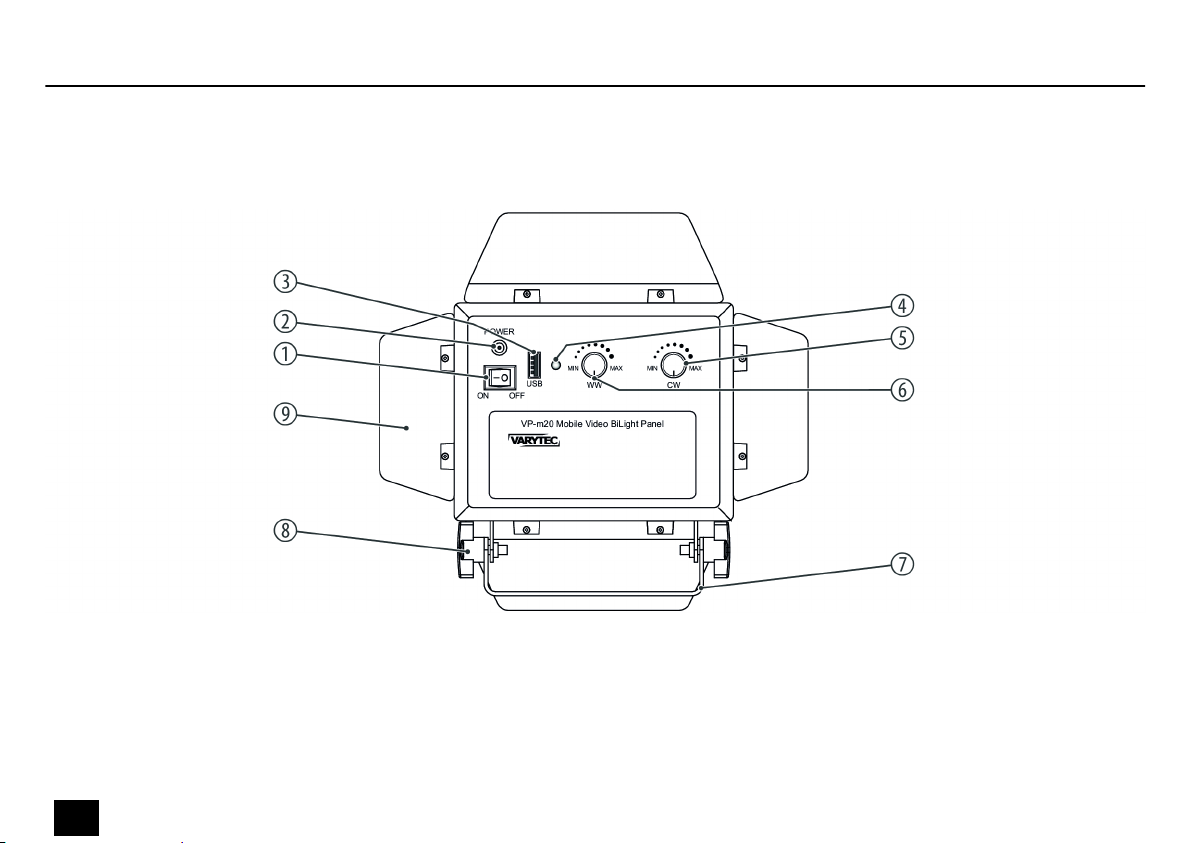

5 Connections and controls
Connections and controls
18 VP-m20 Video BiLight Panel
LED spotlight

1[ON] | [OFF]
Main switch. Turns the device on and o.
2[POWER]
Connection socket for the 15 V power supply unit
3[USB]
USB port for charging smartphones or other devices with 5 V supply voltage
4 Charge control LED
If the charge control LED lights up red, the internal battery is being charged. When the LED lights up green, the bat‐
tery is fully charged.
5[CW]
Brightness control (cool white)
6[WW]
Brightness control (warm white)
7 Bracket for hanging or tripod mounting
Connections and controls
VP-m20 Video BiLight Panel 19
LED spotlight

8 Locking screws for the bracket
9 Barn door
Connections and controls
20 VP-m20 Video BiLight Panel
