Varytec BAT.Trusslight RGBW User manual

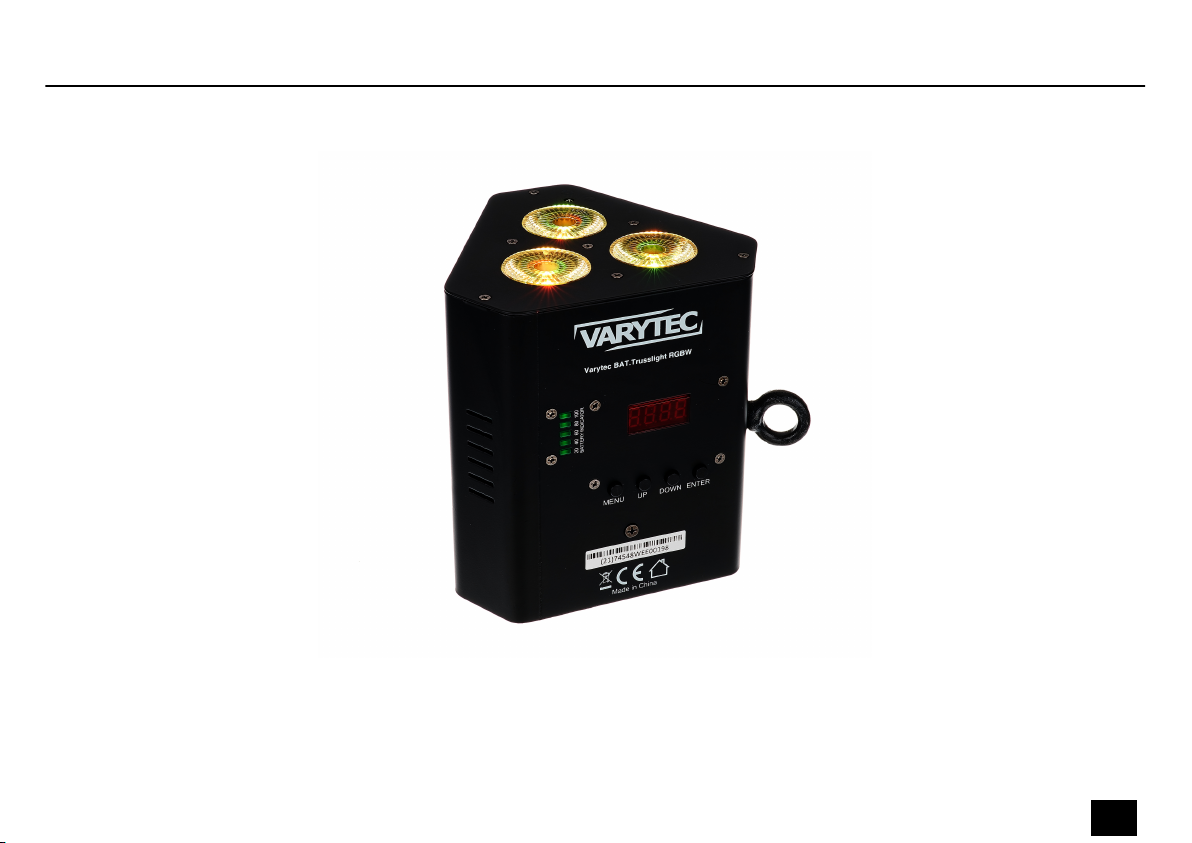

BAT.Trusslight RGBW
LED spotlight
User manual

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
17.03.2021, ID: 412271 (V3)

Table of contents
1 General information................................................................................................................................. 6
1.1 Further information........................................................................................................................... 7
1.2 Notational conventions.................................................................................................................... 8
1.3 Symbols and signal words............................................................................................................... 8
2 Safety instructions.................................................................................................................................. 11
3 Features....................................................................................................................................................... 16
4 Installation.................................................................................................................................................. 17
4.1 Dealing with lithium batteries..................................................................................................... 22
5 Starting up.................................................................................................................................................. 24
6 Connections and operating elements........................................................................................... 26
7 Operating.................................................................................................................................................... 32
7.1 Starting the device........................................................................................................................... 32
7.2 Operating controls on the unit................................................................................................... 32
7.3 Operating via IR remote control................................................................................................. 34
7.4 Menu overview................................................................................................................................. 35
Table of contents
BAT.Trusslight RGBW 3
LED spotlight

7.5 Functions in DMX mode................................................................................................................ 36
8 Technical specications....................................................................................................................... 38
9 Plug and connection assignments.................................................................................................. 41
10 Troubleshooting...................................................................................................................................... 42
11 Cleaning....................................................................................................................................................... 44
12 Protecting the environment.............................................................................................................. 45
Table of contents
4BAT.Trusslight RGBW
LED spotlight

BAT.Trusslight RGBW 5
LED spotlight

1 General information
This user manual contains important information on the safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to another user, be sure
that they also receive this manual.
Our products and user manuals are subject to a process of continuous development. We there‐
fore reserve the right to make changes without notice. Please refer to the latest version of the
user manual which is ready for download under www.thomann.de.
General information
6BAT.Trusslight RGBW
LED spotlight

1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and details on the
following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
General information
BAT.Trusslight RGBW 7
LED spotlight

1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.
Letterings
General information
8BAT.Trusslight RGBW
LED spotlight

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in death or serious
injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – dangerous optical radiation.
General information
BAT.Trusslight RGBW 9
LED spotlight

Warning signs Type of danger
Warning – suspended load.
Warning – danger zone.
General information
10 BAT.Trusslight RGBW
LED spotlight

2 Safety instructions
This device is intended for use as an electronic lighting eect by means of LED technology. The
device is designed for professional use only and is not suitable for use in households. Use the
device only as described in this user manual. Any other use or use under other operating con‐
ditions is considered to be improper and may result in personal injury or property damage. No
liability will be assumed for damages resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Extend the operating life of the device by regular breaks and by avoiding frequent
switching on and o. The device is not suitable for continuous operation.
Intended use
Safety instructions
BAT.Trusslight RGBW 11
LED spotlight

Safety
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking
hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and
choke! Never let children unattended use electrical devices.
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts
inside. Do not use the device if covers, protectors or optical components are missing or damaged.
DANGER!
Electric shock caused by short-circuit
Always use proper ready-made insulated mains cabling (power cord) with a protective contact plug. Do not modify the mains cable
or the plug. Failure to do so could result in electric shock/death or re. If in doubt, seek advice from a registered electrician.
WARNING!
Eye damage caused by high light intensity
Never look directly into the light source.
Safety instructions
12 BAT.Trusslight RGBW
LED spotlight

WARNING!
Risk of epileptic shock
Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights.
WARNING!
Incorrect handling of lithium batteries can result in injury
In the event of a short circuit, overheating or mechanical damage, lithium batteries can cause severe injuries. Follow the advice on
the correct handling of lithium batteries in the present section.
NOTICE!
Risk of re
Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked ames.
NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid
direct sunlight, heavy dirt, and strong vibrations. Only operate the device within the ambient conditions specied in the chapter
‘Technical specications’ of this user manual. Avoid heavy temperature uctuations and do not switch the device on immediately
after it was exposed to temperature uctuations (for example after transport at low outside temperatures). Dust and dirt inside can
damage the unit. When operated in harmful ambient conditions (dust, smoke, nicotine, fog, etc.), the unit should be maintained by
qualied service personnel at regular intervals to prevent overheating and other malfunction.
Safety instructions
BAT.Trusslight RGBW 13
LED spotlight

NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC
outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the
user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric
shock or re.
NOTICE!
Risk of re due to incorrect polarity
Incorrectly inserted batteries may destroy the device or the batteries. Ensure that proper polarity is observed when inserting bat‐
teries.
NOTICE!
Possible damage by leaking batteries
Leaking batteries can cause permanent damage to the device. Take batteries out of the device if it is not going to be used for a
longer period.
NOTICE!
Possible staining
The plasticiser contained in the rubber feet of this product may possibly react with the coating of your parquet, linoleum, laminate
or PVC oor and after some time cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the oor, but
use felt-pad oor protectors or a carpet.
Safety instructions
14 BAT.Trusslight RGBW
LED spotlight

NOTICE!
Possible damage to lithium-ion batteries through incorrect storage
By deep discharge, lithium-ion batteries can be permanently damaged or lose some of their capacity. Before long breaks, charge the
batteries to around 50 % of their capacity and then switch o the device. Store the device at room temperature or cooler in an envi‐
ronment as dry as possible. If the batteries are stored for a longer period, recharge them to 50 % every three months. Fully charge
the batteries only shortly before use at room temperature.
Safety instructions
BAT.Trusslight RGBW 15
LED spotlight

3 Features
Special features of the device:
n3 four-colour LEDs (red, green, blue and white, 10 W each)
nOperable in stand-alone mode or DMX
nControl via DMX, the supplied infrared remote control or the buttons and display on the
unit
nStand-alone operation with static colours
nSound control
nCan be mounted on three-point trusses
nMounting plate for inclination adjustment
nBattery or mains powered
nPower adapter and infrared remote control included
nSuitable for use in clubs, bars, theatres, exhibitions, etc. or for mobile use
For technological reasons, the light output of LEDs decreases over their lifetime. This eect
increases with higher operating temperature. You can extend the service life of the illuminants
by providing adequate ventilation and operating the LEDs with the lowest possible brightness.
Features
16 BAT.Trusslight RGBW
LED spotlight

4 Installation
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
WARNING!
Risk of injury caused by falling objects
Make sure that the installation complies with the standards and rules that apply
in your country. Always secure the device with a secondary safety attachment,
such as a safety cable or a safety chain.
Installation
BAT.Trusslight RGBW 17
LED spotlight

NOTICE!
Risk of overheating
The distance between light output and the illuminated surface must be more
than 1.5 m (19.7in).
Provide sucient ventilation.
The ambient temperature must always be below 40 °C (104 °F).
NOTICE!
Use of stands
When mounting the device onto a stand, ensure that the stand is in a safe and
stable position and that the weight of the device does not exceed the maximum
permissible load capacity of the stand.
Installation
18 BAT.Trusslight RGBW
LED spotlight

NOTICE!
Possible data transmission errors
For error-free operation make use of dedicated DMX cables and do not use ordi‐
nary microphone cables.
Never connect the DMX input or output to audio devices such as mixers or ampli‐
ers.
You can install the device using a stand, as well as standing or hanging upside down. When in
use, the device must always be attached to a solid surface or an approved truss. Use the
threads provided for mounting.
Additionally secure the device by a safety cable against falling. Pull the safety cable through
the safety cable eyelet on the top of the unit.
Always work from a stable platform whenever installing, moving or servicing the unit. In doing
so, the area underneath the unit must be cordoned o.
Mounting options
Installation
BAT.Trusslight RGBW 19
LED spotlight

Please note that this device must not be connected to a dimmer.
The infrared receiver for the IR remote control signals is located between the LEDs on the front
panel of the device. Make sure it's not obstructed.
Infrared sensor for the remote
control
