Vava VA-LTS006 User manual

100” 16:9 ALR Screen
for UST Projector
User Manual
VA-LTS006

Package Contents
Assemble the Inner Frames
Assemble the Screen
Assemble the Outer Frames and Corner Protectors
Mount the Screen onto Wall
Screen Height Adjustment
Specification
Warranty and Service
Contents
02
04
06
10
11
14
15
15

Thank you for choosing the VAVA Projection Screen. Please read this User Manual thoroughly
before use and retain it for future reference.
With the constant optimization of the projector, instructions in this User Manual may not be
totally applicable to the actual product.
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL SAFETY INFORMATION AND INSTRUCTIONS. KEEP FOR
FUTURE REFERENCE.
CAUTION
For optimal projection, safe installation and long lasting use of the screen, please always follow
below instructions carefully:
·Always handle the screen on a clean, level surface covered with clean cloth, film, etc.
·Gently hold and put down the unit to avoid any damage to the screen surface.
·Do not touch the screen surface by hand. Before handling the screen, put on the pairs of
gloves to avoid fingerprint, dust or hand oil on the screen surface.
·Do not poke the screen surface with any sharp or hard objects to avoid scratches or tears.
·It is recommended to clean the screen once every two weeks.
·Wipe clean the screen with a soft cloth and lukewarm water. For general dust, use a soft
brush (rough towels or cloth may damage the screen) to clean the screen surface.
·Do not clean with abrasive detergent, solvent or other coarse chemicals to avoid permanent
damage to the screen surface.
·You may notice a slight smell for first-time use, which will dissipate over time. If the smell is
too strong, open a window to ventilate the room.
·Children should be supervised to ensure that they do not play with the screen.
·Please contact your local dealer for repair or maintenance. For any questions or concerns,
please email us at [e-mail] or call us at [phone].
READ AND SAVE THESE INSTRUCTIONS
01

2 x Struts
(With hooks)
24 x ST4*8 Screws
⑥
Package Contents

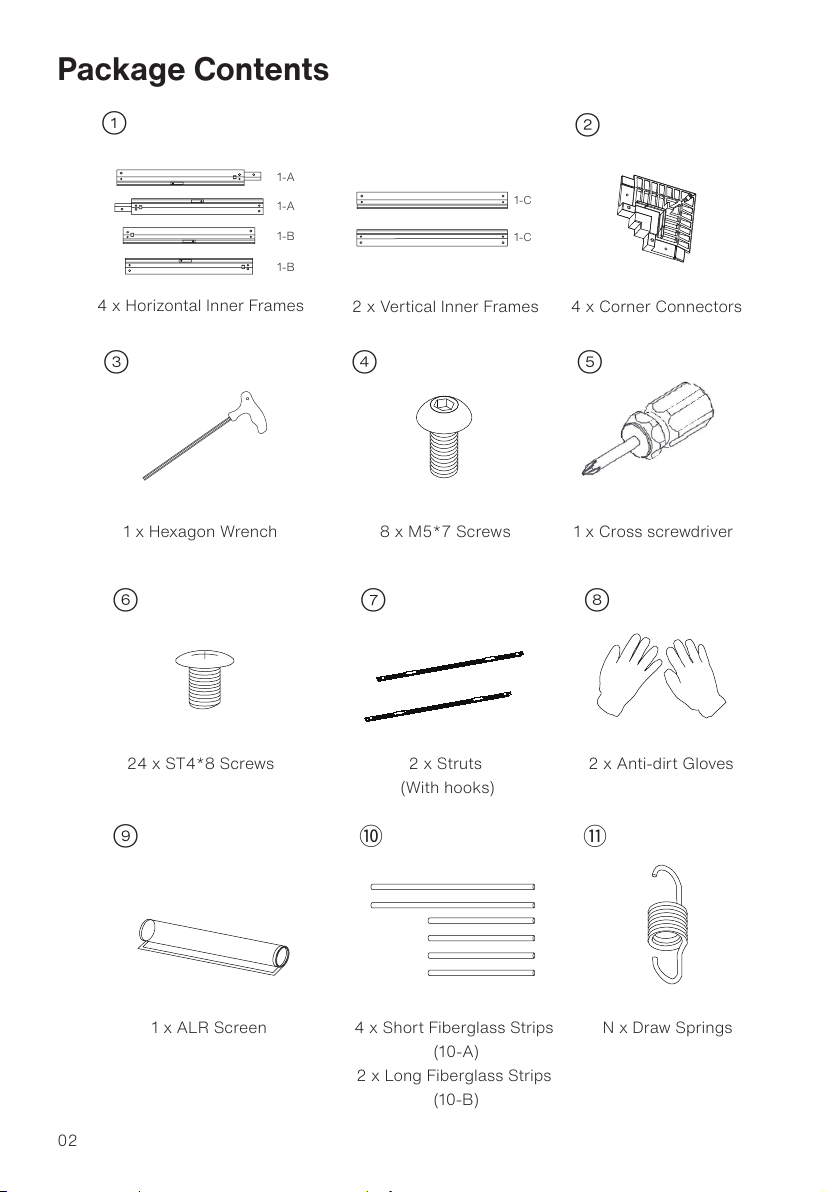

4 x Horizontal Inner Frames 4 x Corner Connectors
8 x M5*7 Screws 1 x Cross screwdriver1 x Hexagon Wrench
2 x Vertical Inner Frames
②
③④ ⑤
⑦
1-C
1-C
1-A
1-B
1-A
1-B
①
02
2 x Anti-dirt Gloves
⑧
4 x Short Fiberglass Strips
(10-A)
2 x Long Fiberglass Strips
(10-B)
1 x ALR Screen
⑨
N x Draw Springs


13-A
13-A
13-B
13-B
13-C 13-C
Package Contents
Note：
Please wear the included protective gloves before handling in case of scratches from
metal parts
03

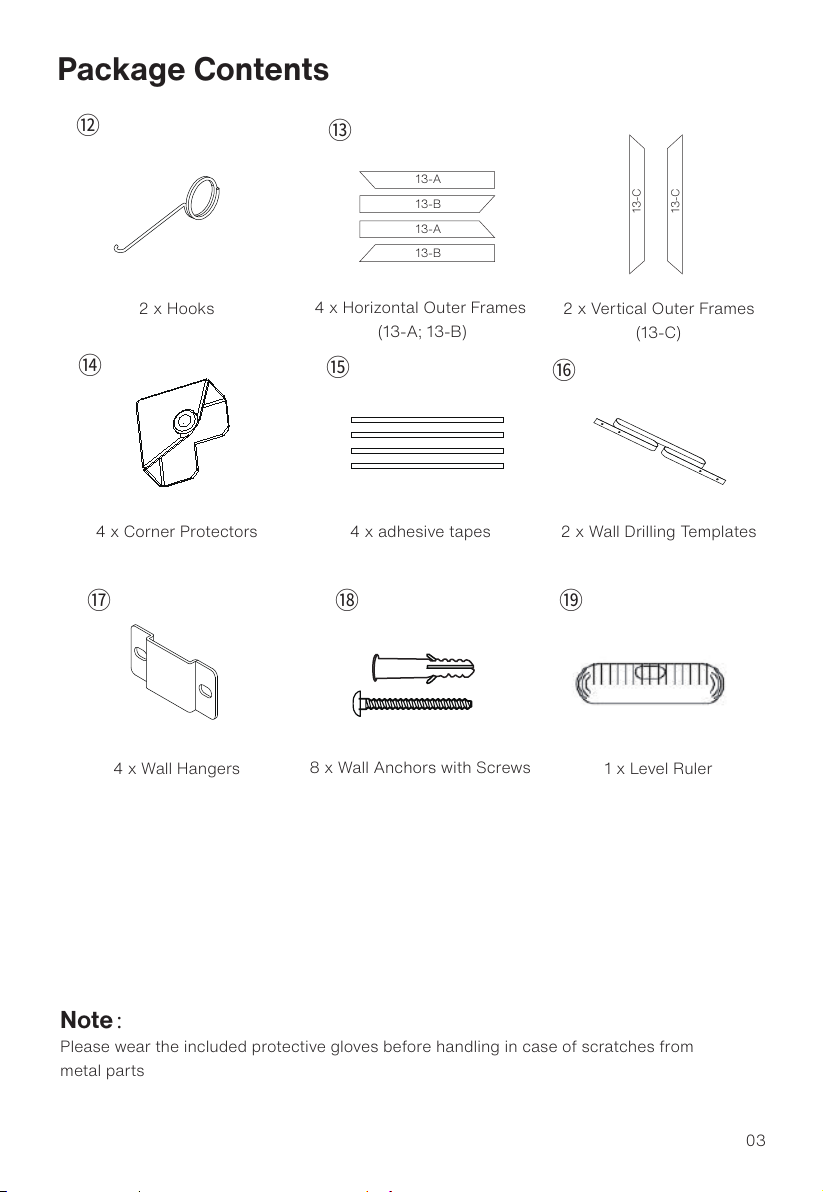

8 x Wall Anchors with Screws
4 x Wall Hangers

2 x Hooks 2 x Vertical Outer Frames
(13-C)
4 x adhesive tapes 2 x Wall Drilling Templates4 x Corner Protectors
4 x Horizontal Outer Frames
(13-A; 13-B)



1 x Level Ruler


Assemble the Inner Frames

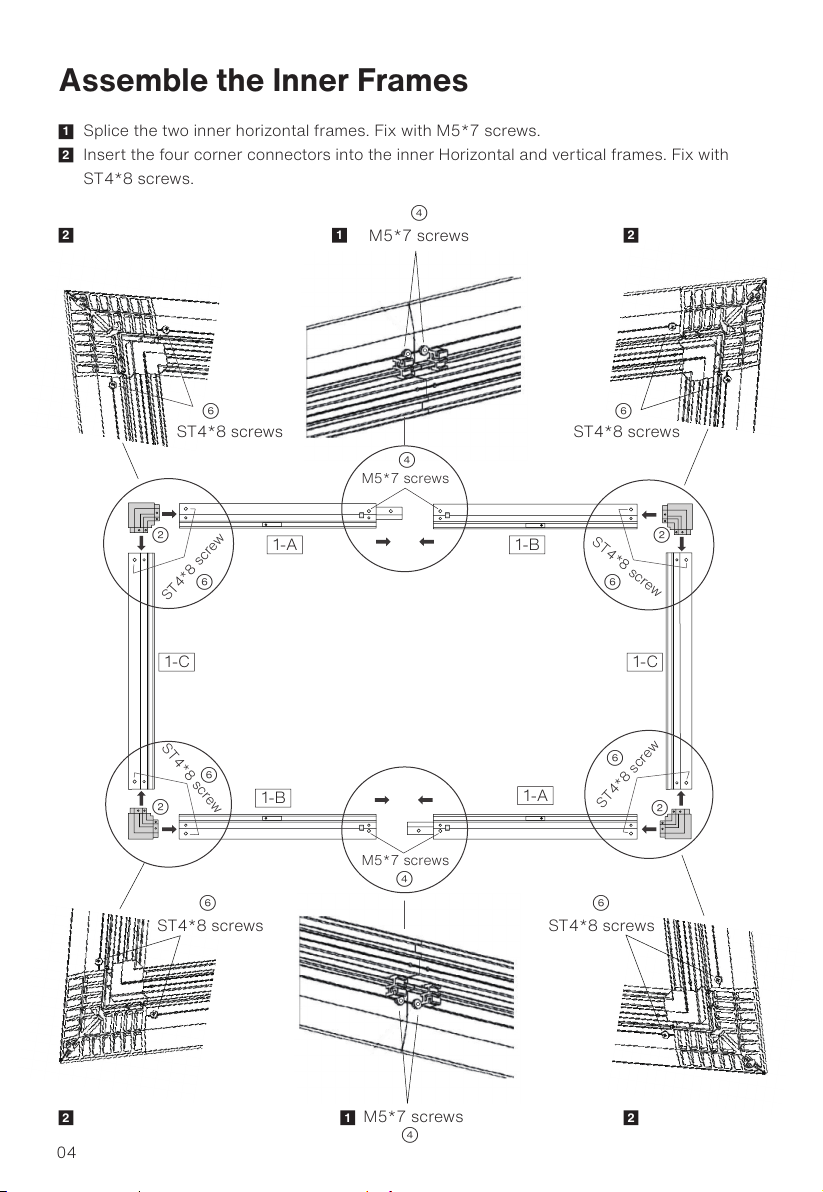

Splice the two inner horizontal frames. Fix with M5*7 screws.
Insert the four corner connectors into the inner Horizontal and vertical frames. Fix with
ST4*8 screws.
M5*7 screws
M5*7 screws
M5*7 screws
ST4*8 screw
ST4*8 screw
ST4*8 screw
ST4*8 screw
ST4*8 screws
1-A
1-C 1-C
1-B
1-B 1-A
④
④
⑥
⑥
⑥
⑥
②②
②
②
⑥
ST4*8 screws
⑥
ST4*8 screws
⑥
ST4*8 screws
⑥
1
2
1
1
④
M5*7 screws
④
2 2
2 2
04

Assemble the Inner Frames

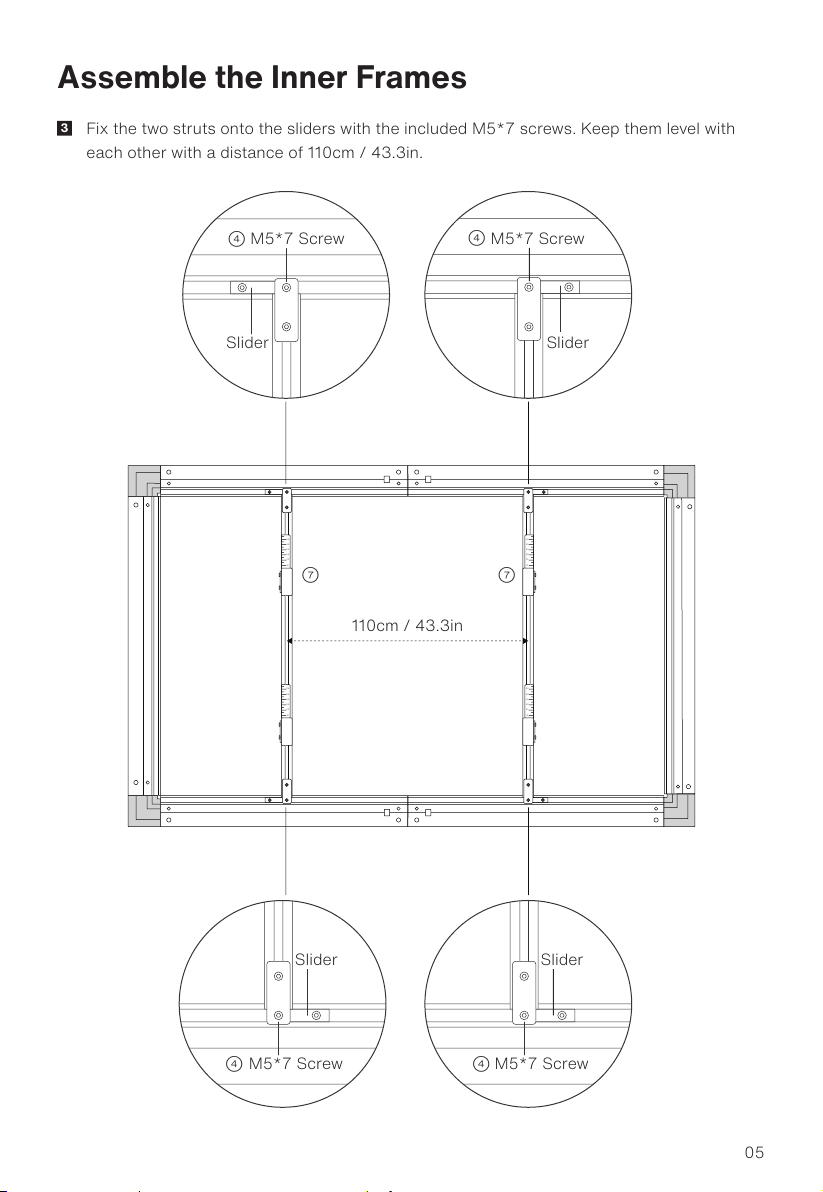

Fix the two struts onto the sliders with the included M5*7 screws. Keep them level with
each other with a distance of 110cm / 43.3in.
3
10
20
30
40
50
60
10
20
30
40
50
60
10
20
30
40
50
60
10
20
30
40
50
60
110cm / 43.3in
⑦ ⑦
Slider
M5*7 Screw
Slider
M5*7 Screw
Slider
M5*7 Screw
Slider
M5*7 Screw
④④
④④
05

Assemble the Screen
Place a piece of clean and soft cloth or plastic film onto a flat surface.
1
Wear the included anti-dirt gloves before handling the screen to avoid fingerprint smudges.
2
Unpack the screen, gently unroll it onto the cloth or plastic film with its back facing upwards.
Caution: Handle with care. Avoid any creases on screen
3
Cloth (clean, flat)
Black side facing upwards
Note:
The screen is easy to scratch. Do not poke the screen surface with any sharp or hard objects
to avoid scratches or tears.
Cloth (clean, flat)
06

Assemble the Screen

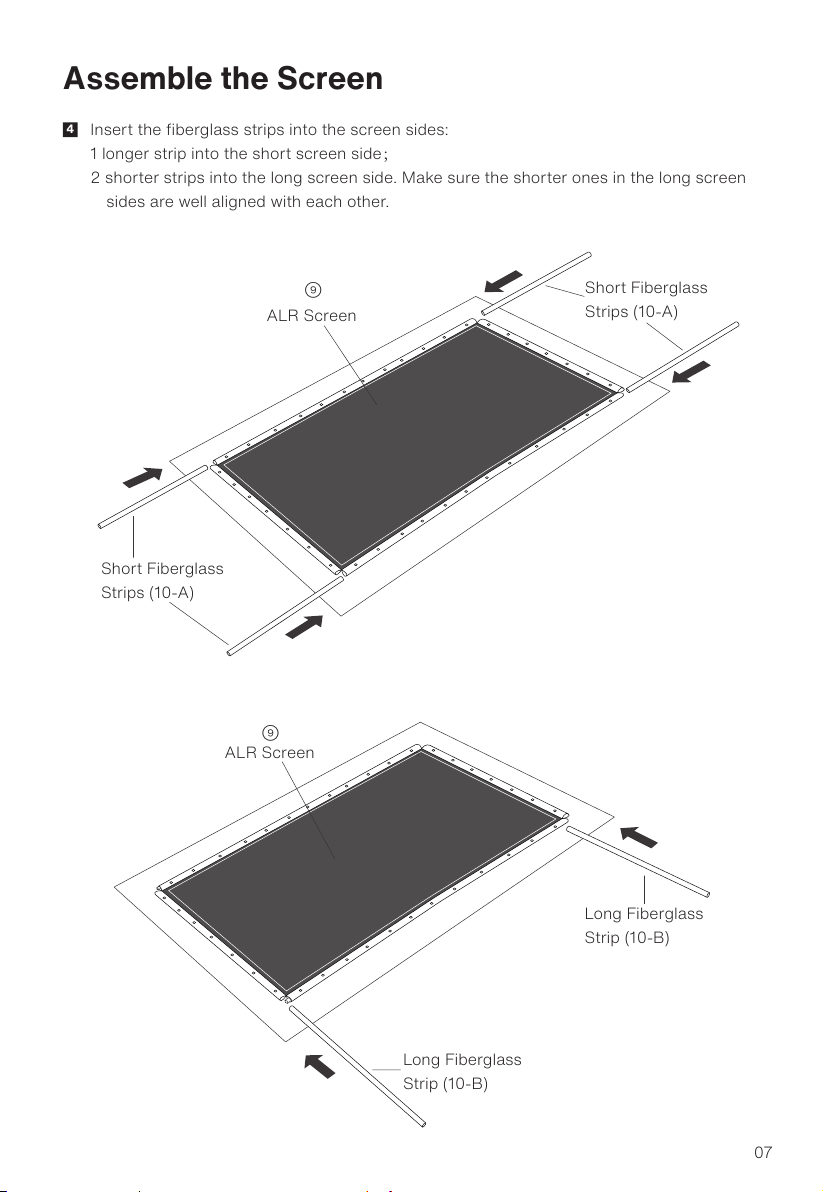

Insert the fiberglass strips into the screen sides:
1 longer strip into the short screen side；
2 shorter strips into the long screen side. Make sure the shorter ones in the long screen
sides are well aligned with each other.
4
Long Fiberglass
Strip (10-B)
Long Fiberglass
Strip (10-B)
Short Fiberglass
Strips (10-A)
Short Fiberglass
Strips (10-A)
ALR Screen
ALR Screen
⑨
⑨
07

08
Assemble the Screen
Put the installed inner frame onto the back side of the screen. Pay attention to the labels
on the screen for the right orientation and align them well by referring to the marks on the
four corners of the screen.
5
10
20
30
40
50
60
up
up
10
20
30
40
50
60
Lower
edge
Lower
edge
Upper height adjuster
Cloth
ALR Screen
⑨Make sure the
Lower edge mark in
this position.
Upper edge
Lower edge

4
3
6Attach the screen onto the inner frame using the tension springs. Install the tension springs
to the four corners in the sequence 1~8 first. Then install the other tension springs to both
sides from the frame center as shown below (please pull the springs with force at the
same time).
Assemble the Screen
Fiberglass Strip

Hook

Draw Spring

Place the screen upright to check its evenness. Adjust the spring until no
wrinkles observed.
7
Note:
·Pull the tension springs with hooks.
·Hang the tension spring on the fiberglass strips.
·It is strongly recommended that two people pull the tension springs on opposite sides at
the same time.
1
2
7 8
56
09

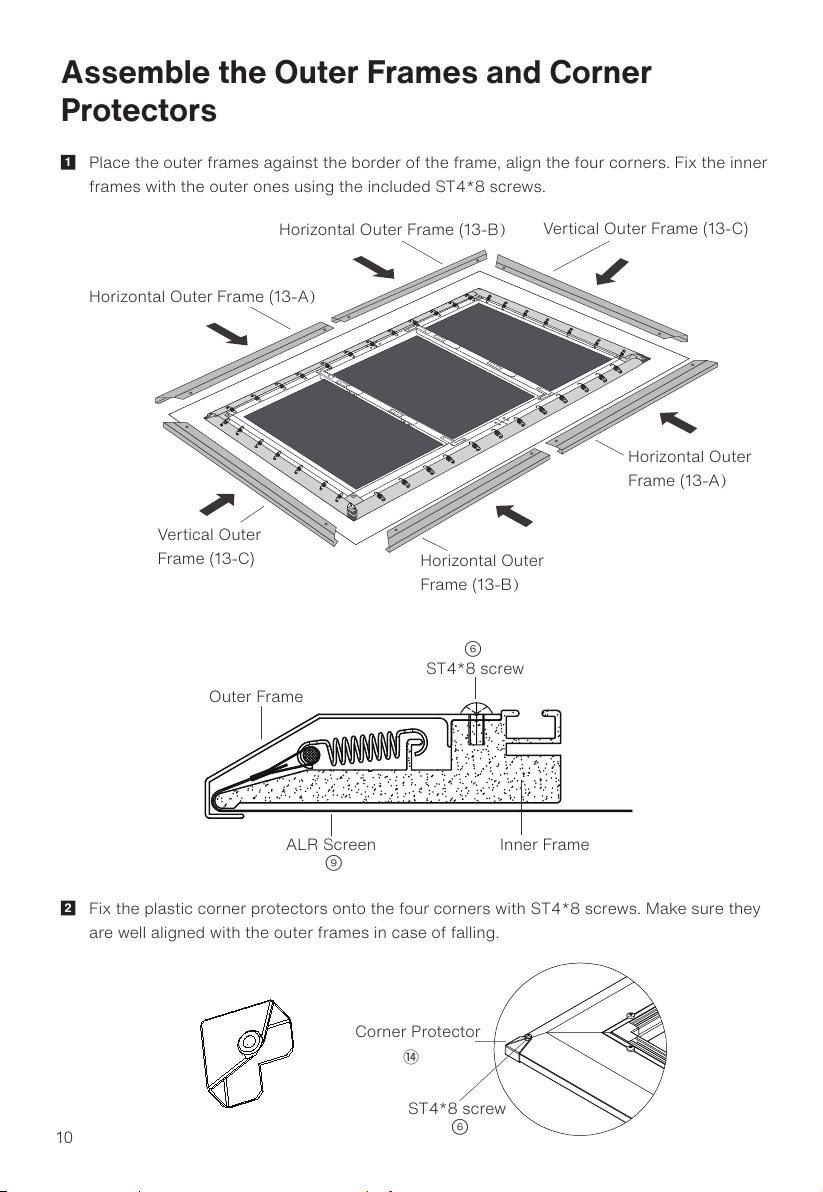

Place the outer frames against the border of the frame, align the four corners. Fix the inner
frames with the outer ones using the included ST4*8 screws.
1
2
Assemble the Outer Frames and Corner
Protectors
Horizontal Outer Frame (13-A）
Horizontal Outer
Frame (13-A）
Horizontal Outer Frame (13-B）
Horizontal Outer
Frame (13-B）
Vertical Outer Frame (13-C)
Vertical Outer
Frame (13-C)
Outer Frame
Inner Frame
ST4*8 screw
⑥
ALR Screen
⑨
Fix the plastic corner protectors onto the four corners with ST4*8 screws. Make sure they
are well aligned with the outer frames in case of falling.
Corner Protector

⑥
ST4*8 screw
10

11
Mount the Screen onto Wall
Please estimate the location of the screen to be mounted as per the projector used.
Generally, distance between the lower edge of the frame and ground is 60-80cm /
23.6-31.5in.
1
Recommended Distance
110cm/43.3in
Groud
60-80cm / 23.6-31.5in
Wall
hanger
Wall
Screen

Mount the Screen onto Wall
Wall Drilling Templates

Use the wall drilling template to locate the position of the four wall hangers holes. Drill as
per the holes on wall drilling template.
2
Then use the Wall Anchors with Screws to fix the four wall hangers onto the wall. Make
sure the hangers are level.
3
Note:
Use the level ruler to make sure the hangers are level.


Wall Hangers
Wall Anchors
with Screws
12

13


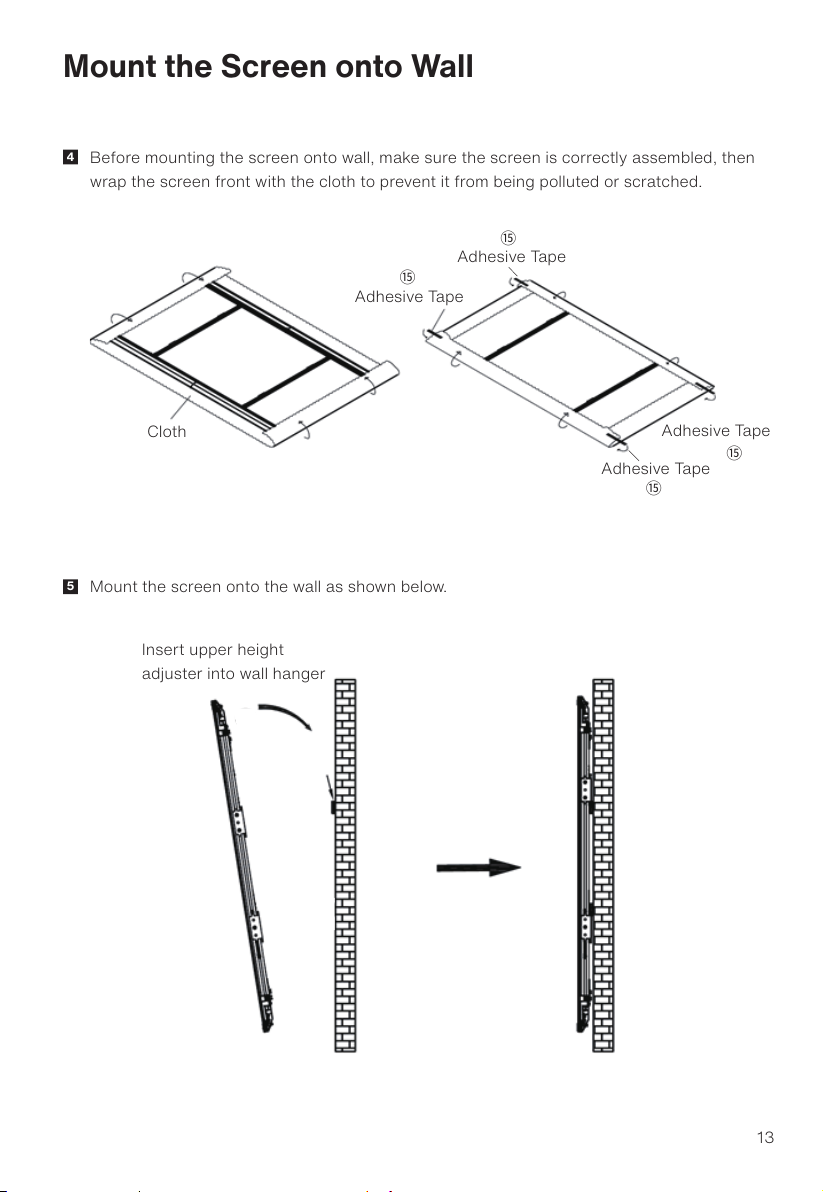

Mount the Screen onto Wall
Mount the screen onto the wall as shown below.
5
4
Insert upper height
adjuster into wall hanger
Before mounting the screen onto wall, make sure the screen is correctly assembled, then
wrap the screen front with the cloth to prevent it from being polluted or scratched.
Adhesive Tape
Adhesive Tape
Adhesive Tape
Adhesive Tape
Cloth




Screen Height Adjustment
Adjust the screen height via the height adjusters on the struts if you have already fixed
the wall hangers (Adjustable range: 7cm / 2.7in from top to bottom).
The height adjusters on the struts are locked to “0” by default.
Please adjust as shown below. Make sure the four height adjusters are set to the same
scale. Pre-compressed spring length: 9-10mm / 0.35-0.39 in.
1
2
3
Originally set to “0”
Slightly unscrew
two screws, move
the adjuster to
the desired scale
and tighten.
Upper Height Adjusters
1. Slightly unscrew
screw 1 and 2,
move the adjuster
to the same scale
as the upper ones.
Tighten screw 1.
2. Fully stretch the
spring, push screw
2 up and compress
the spring upwards
for 9-10mm /
0.35-0.39in then
tighten screw 2.
Adjust it as instructed. Make sure
the two upper height adjusters are
set to the same scale.
Adjust it as instructed. Make sure the
two lower height adjusters are set to the
same scale.
Originally set to “0”
Do not move
screw 3.
14

Specifications
Model
Gain
Viewing Angle
Ambient Light Resistance
Projection Size
Projection Ratio
Screen Size
Screen Weight
VA-LTS006
0.6
160°
92%
2214 x 1245 mm / 87.2 x 49.0 in
16:9
2234 x 1265 mm / 88.0 x 49.8 in
11.1KG/24.47lbs
Warranty and Service
We will provide you with after-sales service based on specific local policies. Please contact
your local sales representative or after-sales team for more details.
For any questions or concerns, please email us at [e-mail] or call us at (877)
969-8282 (Monday-Friday: 9:00 – 17:00 PST).
NORTH AMERICA
E-mail: [e-mail]
Tel: [phone] (Monday-Friday: 9:00 – 17:00 PST)
MANUFACTURER
Manufacturer: Shenzhen NearbyExpress Technology Development Co.,Ltd.
Address: Floor 7, Building E, Galaxy World Phase II, Shenzhen, China
VA-LTS006_Rev_1.0_ENMade in China
