Vax Infinity V-135B User manual

www.vax.co.uk Please read carefully before using this cleaner.
Always fully extend the mains cable before use.
Retain for future reference.
Vax careline
0870 6061248
instruction manual
Carpet washer
Vax model number:
V-135B
AAA
A N T I
A L L E R G E N
A D D I T I V E
V-135B Infinity U er Guide.qxd:V-135B U er Guide 6/10/08 16:37 Page 1

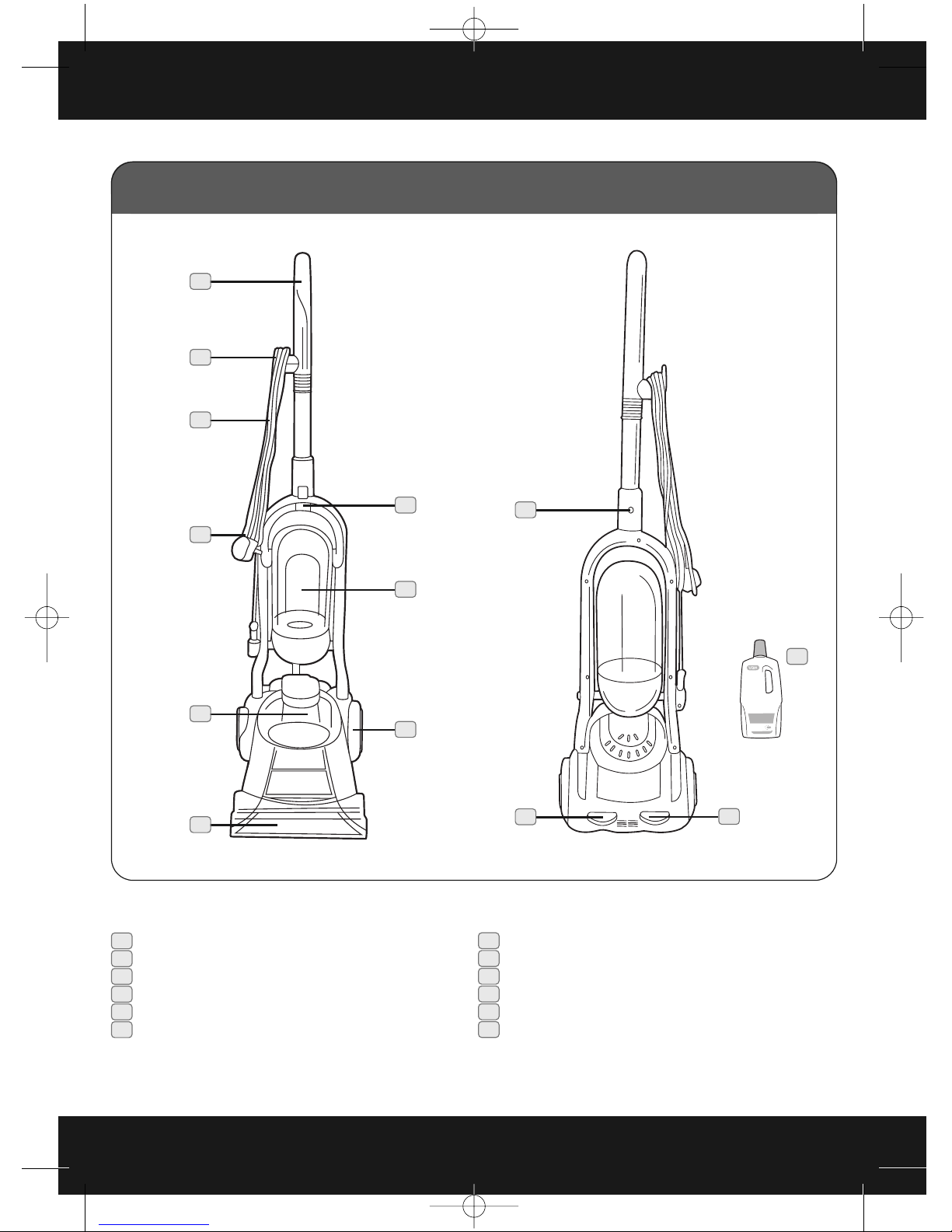

2parts overview
Fig.1/1
www.vax.co.uk
1. Diagram
V-135
1 Handle
2 Cord hooks
3 Power cord
4 Clean water tank release
5 Clean water tank
6 Dirty water tank lid
7 Wheels
8 Suction channel
9 Handle assembly release position
10 On/off switch
11 Handle release pedal
12 Vax AAA Solution
1
2
3
2
6
8
9
10 11
12
7
5
4
AAA
AN T I
AL L E R G E N
AD D I T I V E
V-135B Infinity U er Guide.qxd:V-135B U er Guide 6/10/08 16:37 Page 2

3
Vax Careline 0870 606 1248
safety information
2. Safety Information
FOR HOUSEHOLD USE ONLY.
When using the carpet washer, basic safety precautions
should always be observed, including the following:
1. Do not leave the carpet washer unattended when
plugged in. Unplug it from socket when not in use.
2. To prevent electric shock do not use outdoors.
3. ot to be used as a toy. Children should be supervised to
ensure that they do not play with the appliance.
4. This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning the use of the appliance by a person
responsible for their safety.
5. Use only as described in this manual.
6. Do not use with a damaged cord or plug. If the supply
cord and/or plug is damaged, they must be replaced
by the manufacturer, a Vax Service Agent or similarly
qualified persons in order to avoid hazard.
7. Do not pull or carry by the cord, use the cord as a
handle, allow the cord to come into contact with hot
or sharp surfaces or close a door on the cord.
8. Do not unplug by pulling on the cord.
9. Do not handle the plug or carpet washer with wet
hands.
10. Do not put any objects into openings or operate with
openings blocked, keep them free of anything that
may reduce airflow.
11. Keep hair, loose clothing, fingers and all parts of the
body away from openings and moving parts.
12. Do not use the carpet washer on any glowing,
burning or smoking particles.
13. Do not use without the solution tank and dirty water
tank in place.
14. Turn off all controls before unplugging.
15. Do not use to pick up flammable or combustible
liquids such as petrol, or use in areas where they may
be present.
16. Keep the unit on the floor.
17. Do not use an extension cord.
18. Do not attempt to remove blockages with sharp
objects as they may cause damage.
19. Store indoors put away after use to prevent tripping
accidents.
20. Using improper voltage may result in damage to the
motor and possible injury to the user. The correct
voltage is listed on the rating label.
21. A hazard may occur if the carpet washer runs over
the power supply cord.
22. To prevent dirty water from running into motor, do
not hold the appliance upside-down or lay on its side.
Use appliance in normal vacuuming position.
23. Use extra care when cleaning on stairs.
24. Do not carry appliance while motor is running.
NOTE: Carpets should be dry vacuumed thoroughly
before washing.
NOTE: The unit must be unplugged from the mains
socket outlet after use, and before cleaning or
maintaining the unit.
IM ORTANT: This unit is not intended for
commercial use.
LEASE KEE THESE INSTRUCTIONS
FOR FURTHER USE.
!
V-135B Infinity U er Guide.qxd:V-135B U er Guide 6/10/08 16:37 Page 3

www.vax.co.uk
4assembly/ operation

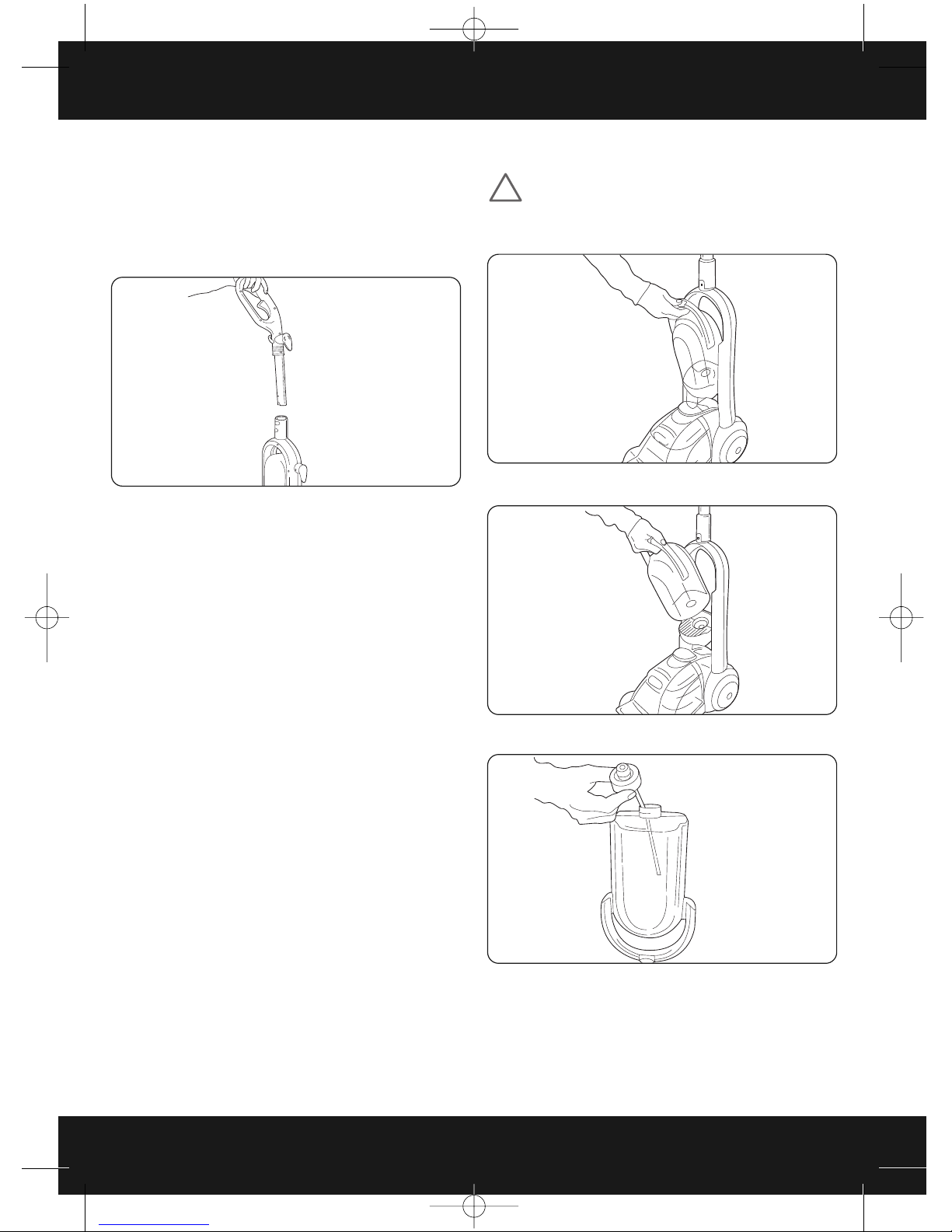

3. Assembly
utting your cleaner together
Slide the upper handle down onto the unit. The handle
will click and lock in place.
Run the mains wire above the upper cord hook and
secure with the cord clip (Fig 3/1).
4. Operation
IM ORTANT: Turn off when emptying and filling
the tanks and performing any maintenance.
Grasp the solution reservoir under the handle and press
the handle release lever in (Fig 4/1).
Tilt the solution reservoir away from the cleaner and
remove (Fig 4/2).
Unscrew the cap from the bottom of the solution
reservoir (Fig 4/3).
Pour the correct amount of Vax AAA Solution as directed
into the clean water tank
Fig.3/1
Fig.4/1
Fig.4/2
Fig.4/3
Fig.4
Fig.4
Fig.4
!
V-135B Infinity U er Guide.qxd:V-135B U er Guide 6/10/08 16:38 Page 4

5
Vax Careline 0870 606 1248
operation
IM ORTANT: Maximum water temperature
50°C.
Fill the remaining space in the solution reservoir with
warm tap water. Replace the measuring cap (Fig 4/4).
NOTE: use only Vax AAASolution, using other cleaning
solutions may cause excessive foaming.
This may cause the float to shut of the cleaner
prematurely. Using other cleaning solutions will
invalidate your warranty.
Place the bottom of the solution reservoir into the
cleaner and push into place. There will be an audible click
when the reservoir is in the correct position (Fig 4/5).
Plug the cord into a mains electricity socket.
Turn the power switch on (Fig 4/6).
The switch is located on the back of the cleaner, next to
the handle release.
The power switch controls the vacuum motor. Press on
the handle release pedal and pull the cleaner back into a
reclined position (Fig 4/7).
IM ORTANT: Never leave the cleaner
unattended with the power on.
NOTE: Vacuum carpets thoroughly with dry vacuum
cleaner before washing.
Whilst depressing solution spray trigger, push carpet
washer in a forwards motion. Release trigger and pull unit
backwards in same path to remove dirty water and
solution from the carpet. (Fig 4/8).
Repeat if necessary, when the dirty water reaches the
max fill line on the dirty water tank empty the tank.
Fig.4/4
Fig.4/5
Fig.4/7
Fig.4/6
Fig.4/8
!
!
V-135B Infinity U er Guide.qxd:V-135B U er Guide 6/10/08 16:38 Page 5

www.vax.co.uk
6operation

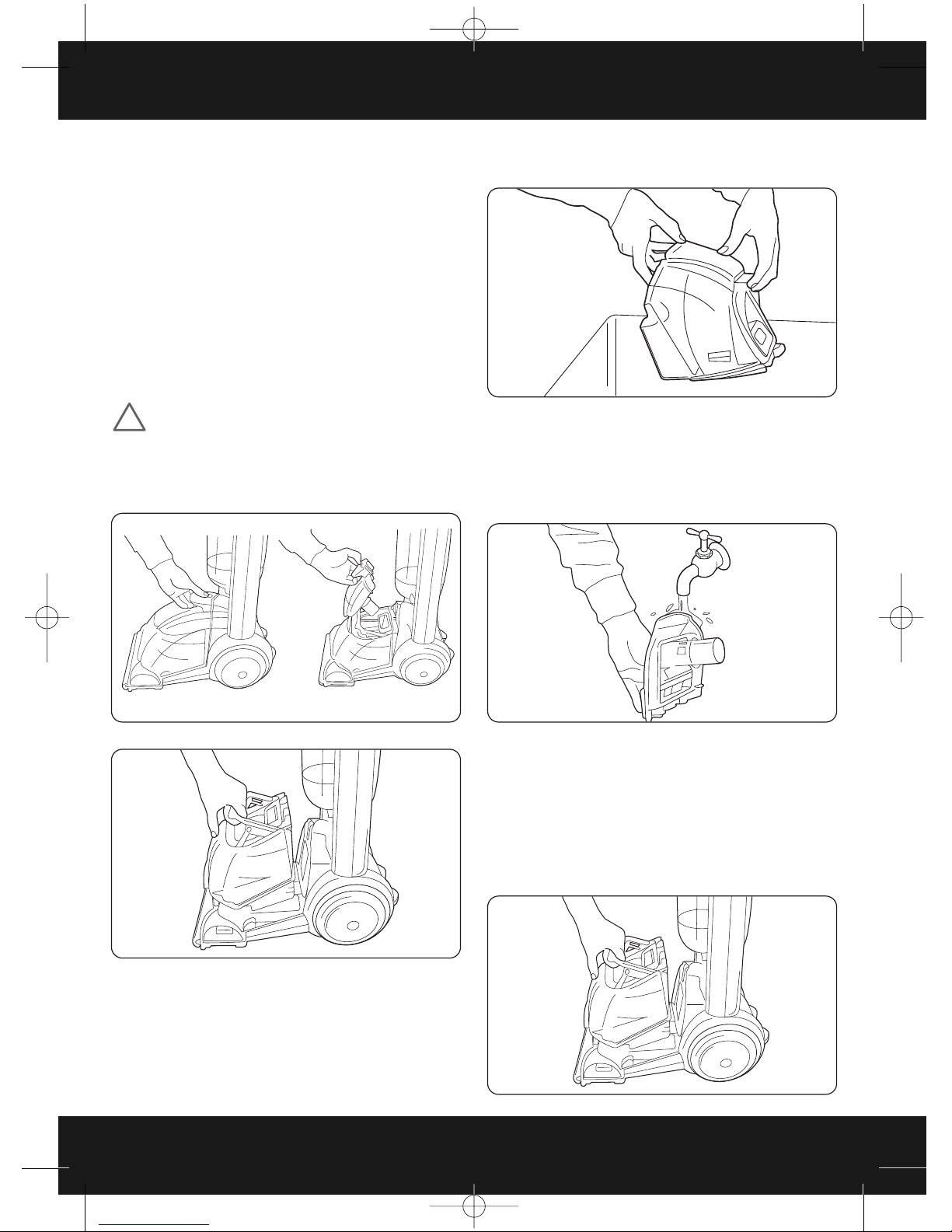

Emptying the dirty water tank
NOTE: The float in your Rapide is located forwards of
the back the dirty water tank lid. It will shut off the
suction when the dirty water tank is full. For best
results use a smooth steady motion keeping the
nozzle flat against the carpet.
Tipping the cleaner and breaking the seal of the
nozzle against the carpet will cause the float to rise
cutting off suction. Once the float is activated, empty
the dirty water tank. If the tank does not appear full
turn off the power switch and wait for the float to
settle. For best results use only Vax AAA Solution.
You will hear a change in motor pitch when the tank is full
and needs emptying.
IM ORTANT: Unplug your cleaner before
emptying the dirty water tank.
Grasp the top of the dirty water tank handle and press
the release latch. Grasp the handle and pull up top of the
base, take care to ensure that no dirty water leaks from
the front (Fig 4/10).
Remove dirty water tank (Fig 4/11).
To empty the water tank grasp the handle with one hand
and nozzle with the other and empty into the sink
(Fig 4/13).
Cleaning the dirty water tank
Rinse the dirty water tank and top thoroughly, with warm
water (Fig 4/14).
You should allow them to dry fully before replacing them
on your cleaner to prevent mildew.
Do not use any chemicals in the cleaning process.
Replacing the dirty water tank
Lift the front of the carpet cleaner base off the carpet
with one hand.
Grasp the handle and hook the front of the dirty water
tank into the base, making sure that the front of the
dirty water tank is resting on the base.
Failure to install the dirty water tank correctly will result
in poor dirty water pick up (Fig 4/15).
Fig.4/11
Fig.4/14
Fig.4/15
Fig.4/13
Fig.4/10
Fig.4
!
V-135B Infinity U er Guide.qxd:V-135B U er Guide 6/10/08 16:38 Page 6

7
Vax Careline 0870 606 1248
operation/ maintenance

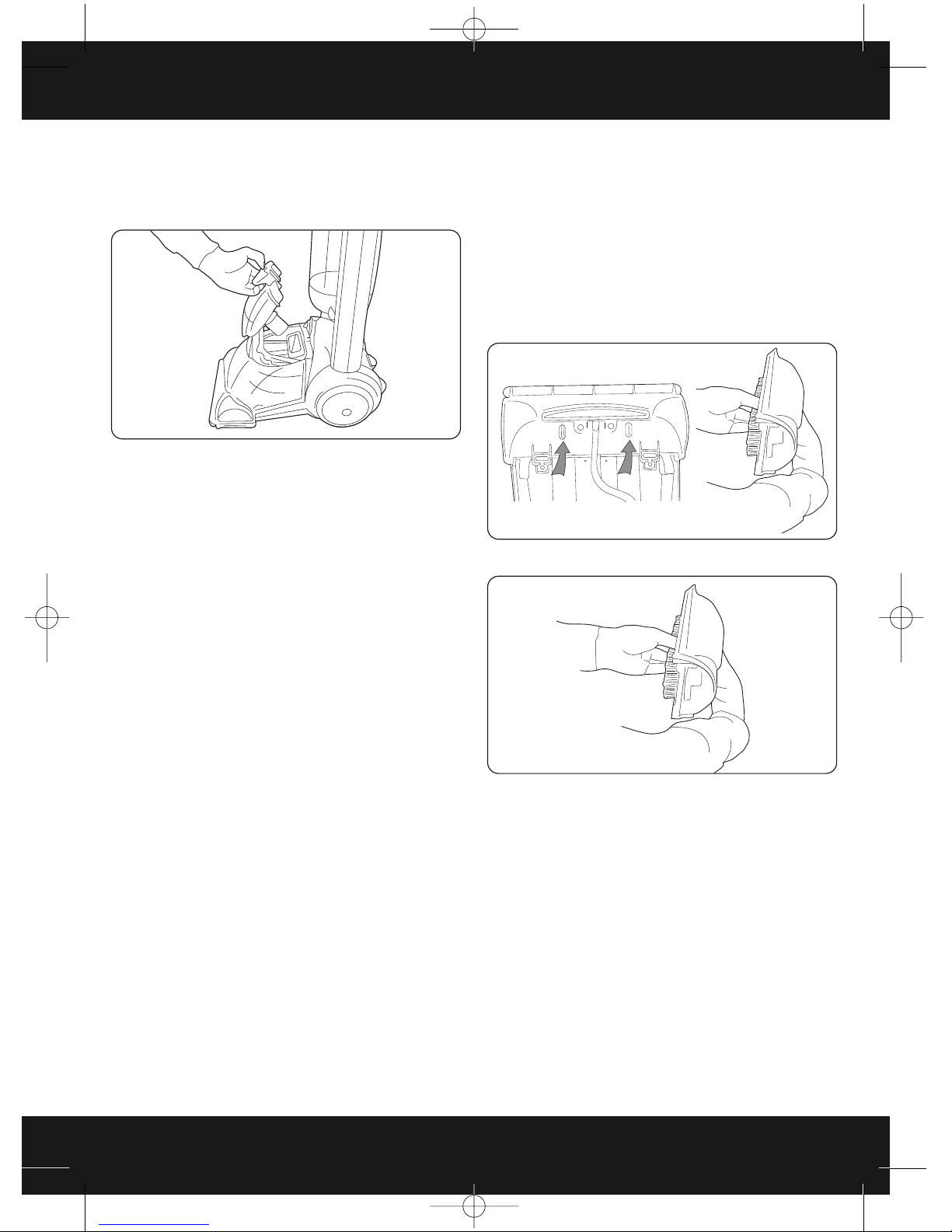

While making sure the dirty water tank is resting on the
base, place the rear of the tank into the base of the
cleaner, push down on the handle until it latches.
Replace top of dirty water tank by pressing it into place
(Fig 4/16).
5. Maintenance
Brush removal and replacement
NOTE: The plug must be removed from socket outlet
before cleaning or maintaining the appliance.
Remove the water tank switch off and unplug carpet
washer.
Flip the cleaner on its side to expose the nozzle base.
Lift out the floating brush bar by pressing the two
latches and pulling it gently (Fig 5/1).
Replace floating brushbar (Fig 5/2).
Fig.4/16
Fig.5/1
Fig.5/2
V-135B Infinity U er Guide.qxd:V-135B U er Guide 6/10/08 16:38 Page 7

www.vax.co.uk
8troubleshooting / uk service & help
6. Troubleshooting
WARNING: To reduce the risk of personal injury,
unplug the vacuum cleaner before performing
maintenance or troubleshooting checks.
ROBLEM: The cleaner won't run.
Cause: ot properly plugged into electrical outlet.
Solution: Plug in firmly.
Cause: o electricity in electrical outlet.
Solution: Check fuse or breaker.
Cause: O /off switch not turned on.
Solution: Push on/off switch to ‘on’.
Cause: Blown fuse/tripped breaker.
Solution: Reset circuit breaker or replace fuse.
ROBLEM: Cleaner won’t pick up/loss of suction.
Cause: Dirty water tank is full.
Solution: Switch off and unplug cleaner. Empty dirty
water tank as shown in Section 4.
Cause: Dirty water tank not installed correctly.
Solution: Refer to page 9 for fitting information.
Cause: Obstruction in hose/nozzle.
Solution: Remove hose and clear obstruction.
ROBLEM: Liquid escaping from the carpet washer.
Cause: Dirty water tank is full.
Solution: Switch off and unplug cleaner. Empty dirty
water tank as shown in Section 4.
Cause: Dirty water tank not installed correctly.
Solution: Refer to page 9 for fitting information.
Cause: Solution tank not installed correctly.
Solution: Make sure the tank is securely locked in place
ROBLEM: Clean solution won’t dispense.
Cause: Solution tank not installed correctly.
Solution: Make sure the tank is securely locked in place.
Cause: Solution tank empty.
Solution: Refill tank. Refer to page 6 for instructions.
Cause: Handle not fitted correctly.
Solution: Ensure handle is fitted correctly.
7. UK Service & Help
Vax Care 0870 6061248
Monday-Friday 8.00am to 8.00pm
Saturday-Sunday 9.00am to 5.00pm
Any queries or concerns about using the Vax, call the
Vax Careline. Calls are charged at the UK national rate.
Please make a note of the serial number and model
number of the carpet cleaner before calling. There are
over 400 approved Vax Service Agents in the UK. For the
nearest Service Agent, please call the Vax Careline.
www.vax.co.uk
!
V-135B Infinity U er Guide.qxd:V-135B U er Guide 6/10/08 16:38 Page 8

9
Vax Careline 0870 606 1248
technical specification
8. Technical Specification
Voltage: 220-240V ~50Hz
Wattage: 700 W
Capacity: Clean water tank - 2.6 litres
Dirty water tank - 1.8 litres
Cord length: 6m
Weight: 5kg
Subject to technical change without notice.
V-135B Infinity U er Guide.qxd:V-135B U er Guide 6/10/08 16:38 Page 9

www.vax.co.uk
10
This page has been left intentionally blank.
V-135B Infinity U er Guide.qxd:V-135B U er Guide 6/10/08 16:38 Page 10

11
Vax Careline 0870 606 1248
This page has been left intentionally blank.
V-135B Infinity U er Guide.qxd:V-135B U er Guide 6/10/08 16:38 Page 11

---
EEC STATEMENT OF COM LIANCE
Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility, declare that the
Vax V-135B Infinity by Vax is manufactured in compliance with the following Directives:
Safety: 2006/95/EC Low Voltage Directive
EMC: 2004/108/EC Electromagnetic Compatibility Directive
Waste electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for recycling advice.
Vax Ltd., Kingswood Road, Hampton Lovett, Droitwich, Worcestershire, WR9 OQH, UK
email: inf[email protected]o.uk - website: www.vax.co.uk
V-135B Infinity U er Guide.qxd:V-135B U er Guide 6/10/08 16:38 Page 12
