Vax Zen User manual

Bagless Cylinder
Get Cleaning...
What’s your Vax’s model number?
What’s your serial number? (Located on the base of the machine)
Note these down in case you need them in future. Please keep instructions for further use.
V C Z 16 0 0 /
– – – – –
C91-MZ Mach Zen Series User Guide.qxd:User guide 7/7/09 16:15 Page 1
User Guide
Vax Service line AU: 1300 361 505
NZ: 0800 800 900
www.vax.com.au VCZ1600 / VCZP1600 / VCZR1600
V C Z P1 6 0 0 /V C Z R 1 6 0 0

---
Vax Service line
AU: 1300 361 505 / NZ: 0800 800 900
2
Machine Overview
---
1
Machine Overview
Max
5
1 On/off button
2 Auto cord rewind button (hidden)
3 Floor tool parking slot (hidden)
4 Carry handle
5 Dirt container carry handle
6 Dirt container release button
7 Separator
8 Dirt container
9 Max fill line
10 Hose inlet
Unit
Accessories
14
13
17
16
2Vax Careline
0870 606 1248
Filters
7
8
2
3
4
10
9
617
18
!Dirt container must be emptied
as soon as this line is reached.
11 Crevice tool
12 Combination floor tool (VCZ1600 / VCZP1600 models only)
13 Telescopic extension tube
14 Flexible hose & handle
16 Pre-motor filter
17 Post-motor filter
12 15
11
15 2-in-1 tool (dusting brush & upholstery tool)
C91-MZ Mach Zen Series User Guide.qxd:User guide 7/7/09 16:15 Page 2
18
19
20
(4.2m stretch hose on VCZR1600 model only)
18 Turbo tool (VCZP1600 / VCZR1600 models only)
19 Turbo brush (VCZP1600 / VCZR1600 models only)
20 Hard floor brush (VCZR1600 model only)

---
www.vax.com.au
3
FOR HOUSEHOLD USE ONLY.
When using the vacuum cleaner, basic safety precautions
should always be observed, including the following:
1. Only use the vacuum cleaner indoors on dry
surfaces.
2. Turn off the vacuum cleaner controls before
disconnecting or connecting from the mains supply.
3. Always unplug the vacuum cleaner before
connecting or disconnecting the vacuum hose and
accessories.
4. Children should be supervised to ensure that they
do not play with the appliance.
5. This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
6. Use only as described in this manual. Use only Vax
recommended attachments.
7. Do not use the vacuum cleaner if it has been
dropped, damaged, left outdoors or dropped into
water. Do not use the vacuum cleaner with a
damaged cord or plug. If the supply cord is damaged,
8. Do not pull or carry by cord. Do not use the cord
as a handle, close a door on the cord or pull cord
around sharp edges or corners. Do not run the
vacuum cleaner over the cord. Keep the cord
away from heated surfaces.
9. Do not handle the plug or vacuum cleaner with wet
hands. Do not use outdoors or on wet surfaces.
10. Do not put any objects into openings. Do not use
with any openings blocked and do not restrict air-
flow. Keep all openings free of dust, lint, hair or
anything that might reduce airflow.
11. Keep hair, loose clothing, fingers and all parts of
the body away from openings and moving parts.
12. Do not pick up hot coals, cigarette butts, matches
or any hot, smoking or burning objects.
13. Do not pick up flammable or combustible
materials (lighter fluid, petrol, kerosene etc.) or use
in the presence of explosive liquids or vapours.
14. Do not vacuum up harmful or toxic material
(chlorine, bleach, ammonia, drain cleaner etc.).
15. Do not vacuum up hard or sharp objects such as
glass, nails, screws, coins, etc.
16. Do not use without ALL of the filters in place.
17. Take extra care when vacuuming on stairs.
18. Keep vacuuming area well lit.
19. Store the vacuum cleaner in a cool, dry area.
20. Turn off the on/off switch before unplugging the
vacuum cleaner
21. Use only SAA approved 10 amp extension cords.
Non-approved cords may overheat. Care should
be taken to arrange the cord so that the cord
cannot be tripped over.
WARNING: Always switch off and unplug the
vacuum cleaner from the electrical outlet before
assembling, opening or emptying the dirt container, or before
connecting/disconnecting the attachments.
CAUTION: The vacuum cleaner is a very powerful
unit. Before plugging the cord into the electrical
outlet, make sure the switch is in the ‘off’ position. Hold the
vacuum cleaner firmly when starting and in use.
IMPORTANT: If the inlet, hose or telescopic tube
is blocked, switch off the vacuum cleaner and
remove the blockage(s) before re-starting the vacuum
cleaner.
IMPORTANT: Cleaning filters improves vacuum
performance. Vax recommends that your filters
should be checked and cleaned periodically. If your filters are
washable make sure they are completely dry before
inserting back into the vacuum cleaner.
!
General Safety Information
!
!
!
vax.co.uk 3
C91-MZ Mach Zen Series User Guide.qxd:User guide 7/7/09 16:15 Page 3
it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order
to avoid a hazard.
This vacuum cleaner is intended for household use
only and NOT for commercial or industrial use.
PLEASE KEEP INSTRUCTIONS FOR FURTHER USE.
General Safety Information

---
Vax Service line
AU: 1300 361 505 / NZ: 0800 800 900
4
Operation
---
Operation
Assembling your vacuum cleaner
Operating the appliance
NOTE: Fully unwind
power cord before every
use. A yellow mark on
the cord indicates the
recommended cord
length. Do not exceed
the cord length beyond
the yellow mark.
4Vax Careline
0870 606 1248
Keep your Vax like new
IMPORTANT: The condition of the filters affects the
performance of your machine. Please check and clean
filters periodically (depending on the level of use). For full
cleaning instructions, see page 5.
!
IMPORTANT: Do not use the vacuum cleaner without
all of the filters in place.
!
Attach hose to hose
inlet on vacuum.
Switch vacuum cleaner on
14
14
12
C91-MZ Mach Zen Series User Guide.qxd:User guide 7/7/09 16:15 Page 4
Attach & extend
telescopic wand.
Choose an accessory & attach to
telescopic wand.
Press on/off switch located
on the top of the cleaner.

---
www.vax.com.au
5
Operation
---
Operation
4Vax Careline
0870 606 1248
Carpet cleaning
C91-MZ Mach Zen Series User Guide.qxd:User guide 7/7/09 16:15 Page 4
For carpet cleaning press the rocker switch on the combination floor head to lift the brushes or
use the turbo brush accessories. (Turbo brushes in VCZP1600 / VCZR1600 models only).
Hard floor cleaning
Hard floor cleaning, press the rocker switch on the combination floor head to lower the brushes
or use the hard floor brush accessory. (Hard floor brush in VCZR1600 model only).
Accessories
The accessories can also be attached directly to the handle by removing the telescopic tubes and
pushing in the desired accessory.
2-in-1 tool (Upholstery & Dusting Brush)
Dusting brush; for delicate surfaces. Upholstery tool; for carpet, upholstery and stairs etc.
Crevice tool
For crevices, corners and cracks, etc.
Turbo tool (VCZP1600 / VCZR1600 models only)
For cleaning upholstery, stairs, car interiors, mattresses and small surfaces.
Using the stretch hose (Not standard on all models VCZR1600 Model only)
Attach stretch hose to
vacuum
Attach stretch hose to
telescopic extension tube.
13
14
Packing away and storage
NOTE: For convenience
there is a parking slot located
at the rear of the vacuum
cleaner where the floor tool
and tubes can be attached
for storage and carrying.
14
Vacuum can remain at
bottom of stairs against
bottom step.

---
Vax Service line
AU: 1300 361 505 / NZ: 0800 800 900
6
Maintenance (Keep your Vax as good as new)
Maintenance (Keep your Vax as good as new)
Emptying and cleaning the dirt container
vax.co.uk 5
Cleaning the pre-motor filter
2 4 hr
tap
tap
Advanced cleaning
1
2
1
2
!40° C max
C91-MZ Mach Zen Series User Guide.qxd:User guide 7/7/09 16:15 Page 5
!WARNING: Always unplug the vacuum cleaner from the electrical outlet before removing dirt container.
!WARNING: Do not use the vacuum cleaner without all filters in place.
!WARNING: Vax recommends that filters should be checked & cleaned periodically (eg every 6 months
as a guide), depending on level of use.
Press down the button located
on the dirt container. When the
button is pressed down, the
dust barrel can be lifted to
remove.
Hold the dirt container over a
bin and press the quick release
button to empty the container.
When emptied, close the dirt
container flap. A click will be
heard when closed.
Replace the dirt container.
Cleaning the cyclone separator
1. Twist and pull the dirt container bin off the cyclone separator. The dirt container bin may
be wiped clean.
2. The separator should only be cleaned with a soft brush and wiped with a damp cloth.
3. Leave the separator to dry completely before replacing. Allow 24 hrs to dry.
!WARNING: The cyclone separator should not be
submerged in water.
Twist the top of dust canister and lift. Pull filter out. Separate the two filter components.
Tap over bin to release excess dirt. Rinse in warm water (max 40˚C).
Do not use detergents.
Allow to dry for 24 hours after removing
excess water.

---
www.vax.com.au
7
Maintenance (Keep your Vax as good as new)
---
Maintenance (Keep your Vax as good as new)
6Vax Careline
0870 606 1248
Cleaning Blockages
WARNING: To reduce the risk of electric shock, turn the vacuum cleaner off and unplug
the electrical outlet before performing maintenance/troubleshooting checks.
C91-MZ Mach Zen Series User Guide.qxd:User guide 7/7/09 16:15 Page 6
Cleaning the post-motor filter
tap
!WARNING: Do not wash the post-motor filter.
!
Hose Blockages
The hose may be disconnected from the
vacuum cleaner. Carefully remove any
blockages found and reconnect hose securely.
Accessory Blockages
Remove accessory from hose/ tube. Carefully
remove the blockage and return to the cleaner.
Cleaning Debris from the Turbo Tool (VCZP1600/VCZR1600 Models only)
NOTE: Switch the cleaner off and disconnect the power plug from the electrical outlet.
Press the two side buttons
together & pull sides apart.
Carefully use scissors to cut out
the blockage.
Realign turbo brush sides & press
together.
Squeeze together the tabs
at the base of the vacuum.
Remove filter by twisting. Pull filter out of cleaner. Tap over bin to release
excess dirt. Do not wash.
from

---
Vax Service line
AU: 1300 361 505 / NZ: 0800 800 900
8
Maintenance (Keep your Vax as good as new)
---
Maintenance (Keep your Vax as good as new)
6Vax Careline
0870 606 1248
C91-MZ Mach Zen Series User Guide.qxd:User guide 7/7/09 16:15 Page 6

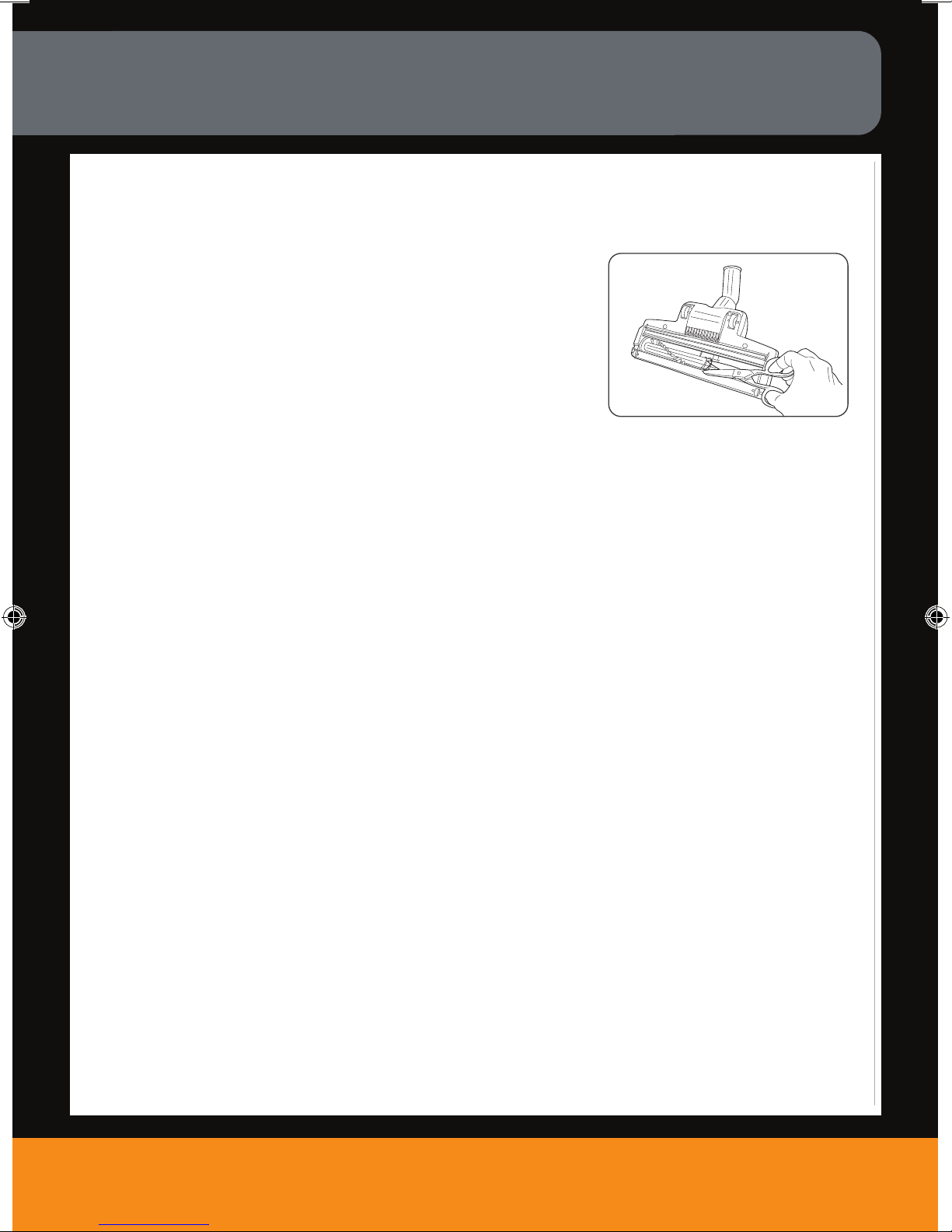

Removing the debris from the Turbo Brush
(VCZP1600/VCZR1600 Models only)
The brush bar will stop rotating if it is blocked during operation by
vacuuming up foreign objects, or if strands of hair or carpet are
wrapped around it.
Switch the vacuum cleaner off and disconnect the power plug
from the electrical outlet.
Lay the Turbo Brush floor head on a flat surface and turn over to
expose the brushbar. Using a pair of scissors, cut through any
threads or hairs caught by the brushbar that have wrapped
around the guides.

---
www.vax.com.au
9
FAQs
---
FAQs
!WARNING: to reduce the risk of personal injury, unplug the vacuum cleaner
before performing maintenance/troubleshooting checks.
Is there an accessory missing?
•Check the ‘Machine Overview’ page in this guide
to make sure the part is definitely included in your
unit.
•If it is missing, we’re here to help. Simply call us on
AU: 1300 361 505 / NZ: 0800 800 900
Why won’t the vacuum cleaner pick up?
•The filters may be clogged: Refer to the
Maintenance sections (Page 6).
•The Dirt Container is full or blocked: Refer to
the Maintenance sections (Page 6).
•The Dirt Container may be incorrectly installed:
Refer to the Maintenance sections (Page 6).
Why is dust escaping from the vacuum?
•The filters may not be installed correctly. Refer to the
Maintenance sections (Page 6).
•The Dirt container may be incorrectly installed:
Remove the Dirt Container from the unit by
pressing the Dirt Container Release Button (Page
6) and reattach it to the unit, ensuring it is locked
firmly back into place.
•The filters may be clogged: Refer to the
Maintenance sections (Page 6).
What do I do if an accessory/the unit becomes
damaged or broken?
•Visit www.vax.com.au for where to purchase parts
Why won’t the accessories pick up properly?
•The accessory may be blocked: Refer to the
Maintanance section (Page 7).
•The accessory may be faulty: call our
Vax Careline to order a replacement:
Why will the vacuum cleaner not run?
•It may not be plugged into the electrical outlet
correctly. Ensure that the plug is pushed into the
electrical outlet securely.
•The electrical outlet may not be working. Check the
fuse or breaker and consult an electrician.
U91-MA Mach Air Series User Guide.qxd:User guide 9/7/09 09:54 Page 8
AU: 1300 361 505 / NZ: 0800 800 900
AU: 1300 361 505 / NZ: 0800 800 900
and spares or please call our Vax careline
Visit www.vax.com.au or call on AU: 1300 361 505 / NZ: 0800 800 900
for information on where to purchase spare parts.

---
Vax Service line
AU: 1300 361 505 / NZ: 0800 800 900
10
---
Other Information
Vax Service & Help
Vax Customer Careline
Monday-Friday 8.30am to 5.00pm
Any queries or concerns about using the Vax, call the Vax Careline. Calls are charged at the standard
national rate.
Please make a note of the serial number and model number of the carpet cleaner before calling.
For the nearest Service Agent, please call the Vax Customer Careline or visit www.vax.com.au
Technical Specification
Voltage: 220-240V ~50Hz
Wattage: 1600 W
Capacity: 2.6L
Filters: Pre-motor filter (washable)
HEPA 12, Antibacterial post-motor filter (lifetime - tap to clean)
Cord length: 8m 8m 8m
6.5kg 6.5kg
Product weight: 6.5kg
Subject to technical change without notice.
Waste electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for recycling advice.
C91-MZ Mach Zen Series User Guide.qxd:User guide 7/7/09 16:15 Page 8
AU: 1300 361 505 / NZ: 0800 800 900
N197
VCZ1600 VCZP1600 VCZR1600
Packed weight:
(includes accessories)
9.5kg 10.2kg 10.2kg
Other Information

---
www.vax.com.au
11
Notes

---
Distributed by Techtronic Industries Pty. Ltd.
Level 1, 666 Doncaster Rd, Doncaster, Australia 3108.
www.vax.com.au. Service Line: AU: 1300 361 505 / NZ: 0800 800 900
U91-MA Mach Air Series User Guide.qxd:User guide 9/7/09 09:54 Page 12
