Vax Platinum PowerMax Installation instructions

PROVEN TO CLEAN BETTER
THAN THE LEADING RENTAL
ECB1SPV1
LET’S GET STARTED.

2
BASIC SAFETY PRECAUTIONS
This machine is intended for household use only and NOT for commercial or
industrial use.
• Only use the machine indoors and keep the area you’re cleaning well lit.
• Keep fingers, hair and loose clothing away from moving parts and openings
whilst using the machine.
• Before using the machine test your carpets/rugs/upholstery for colourfastness
and pile distortion.
• This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
• Only VAX recommended tools and solution should be used with this machine.
Using other solutions may invalidate the guarantee.
DONT'S
• Don’t leave the machine plugged in when unattended.
• Don’t use the machine if it has been dropped, damaged, immersed in water or
left outdoors.
• Don’t run over the cord or use the machine if the cord or plug is damaged.
If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
• Don’t use the machine to pick up any flammable or combustible materials
(lighter fluid, petrol, kerosene etc) or use the machine in an area with explosive
vapours or liquid.
• Don’t handle the plug or use the machine with wet hands.
• Don’t leave the machine in one spot for an extended period of time when it is
switched on. This machine is fitted with a rotating brushbar which, if left in
one place, may cause damage to the floor surface.
• Don’t use the machine to pick up hot coals, cigarette butts, matches or smoking
hot burning items or use in an area that is wet or where there may be harmful
fluids (chlorine, bleach and ammonia drain cleaner).
• Don’t pull or carry the machine by the power cord.
• Don’t use the power cord as a handle, pull the power cord around corners or
sharp edges, or close a door over the power cord.
• Don’t unplug the machine by pulling on the cord.
• Don’t carry the machine whilst it's switched on.
SAFETY GUIDE

3
• Don’t attempt to remove blockages with sharp objects as this may cause
damage to your machine. Remove blockages only as instructed in this guide
• Don’t use the machine with incorrect voltage as this may result in damage or
injury to the user. The correct voltage is listed on the ratings label.
• Don't over saturate your flooring. Always finish on a dry stroke.
• Don’t use on a surface that is damaged, uneven or incorrectly fitted.
DO'S
• Check with the manufacturer of your flooring prior to using the machine. Test
all carpets/rugs/upholstery before full usage. Run the machine over a small
hidden area. If no damage or pile distortion occurs continue cleaning.
• The clean water/solution tank should be filled with warm water (max 40°C)
only. Filling the clean water/solution tank with hot or boiling water will damage
the machine and invalidate the guarantee.
• Always vacuum your carpets thoroughly before using the machine.
• Always replace the fuse in the plug with a British 13amp fuse.
• Always turn off or unplug the machine from the mains before carrying out any
maintenance and before connecting or disconnecting the hose/accessories.
• Always check the machine, tools and accessories are free from damage, dirt/
debris before using.
• Take extra care when cleaning on the stairs.
• Always protect the power cable from heated surfaces and open flames.
• Turn off all controls on the machine before disconnecting or connecting the
power cord. After use always wrap the power cord around the cord clips
provided.
• Always keep the power cord away from the brushes whilst using the machine.
• Use only CE approved 13amp extension cords, non-approved extension cords
may overheat. Care should be taken to arrange the extension cord as it can be
a trip hazard.
• Always use the machine with all water/solution tanks and filters in place.
• Keep all openings clear and free from debris as this may affect the airflow/
suction/water pick up.
• Always use the machine in an upright position. To prevent motor damage from
dirty water, never hold the machine upside down or on its side.
• Store the machine in a cool, dry area. Before storing the machine ensure all
water/solutions tanks and filters are thoroughly clean and dry.
PLEASE KEEP INSTRUCTIONS FOR FURTHER USE AND USE ONLY
AS INSTRUCTED IN THIS GUIDE.

4
VAX Ltd, Artillery House, Heritage Way, Droitwich, WR9 8YB, UK.
WARRANTY & TECHNICAL
WARRANTY
If a VAX machine is used in the way it is intended and it breaks down within the
guarantee period, it’s our responsibility to repair or replace it.
Here’s what isn’t covered:
• Functional parts, tools and accessories after 12 months that may suffer
premature failure due to every day wear and tear.
• Consumables after 3 months such as belts, filters, brushbars, fuses etc
• Accidental damage.
• Cosmetic damage that does not affect the functioning of the product.
• Damage as a result of use not in accordance with the user guide.
• Damage caused by not carrying out regular maintenance.
• Damage to the power cord.
• Blockages; please refer to the user guide.
• Poor product performance caused by:
- Negligent use, misuse or careless operation of the machine.
- Failure to clean or maintain the product in accordance with the user guide.
- Use of the machine which is not in accordance with the user guide.
- Use of a VAX product for anything other than normal domestic household
purposes in the country in which it was purchased.
- Use of parts, accessories and consumables, which are not genuine VAX
components.
- Faulty installation or repairs - unless carried out by a qualified electrician or
engineer.
TECHNICAL
EU Statement of Compliance: Manufacturer/EU importer: VAX Limited, hereby on
our own responsibility, declare that the VAX Platinum Power Max is manufactured
in compliance with the following Directives:
Safety: 2014/35/EU Low Voltage Directive.
EMC: 2014/30/EU Electromagnetic Compatibility Directive.
Waste electrical products should not be disposed of with household
waste. Please recycle where facilities exist. Check with your Local
Authority or retailer for recycling advice.
VAX is a trade mark of Techtronic Cordless GP.
© 2019 - 2021 Techtronic Cordless GP. All rights reserved.

5
Hose Wash tool Pre-treatment wand
Hard floor squeegee Pre-treatment solution 2 x 250ml
Platinum solution
Accessory bag
SpinScrub tool
Included with your machine
CONTENTS
Safety guide
Warranty & technical
Getting in touch
Getting to know your machine
Getting started
Maintenance & cleaning
Accessories
Using your machine
2 - 3
4
6
7
8
14 - 17
18
9 - 13
What to do if it goes wrong 19

Thank you for buying this Platinum PowerMax.
Taking care of your carpets
The Platinum PowerMax is designed to make washing carpets regularly, as effective and efficient
as possible and this user guide will help you get the most out of your machine.
Maintaining your carpets will ensure they keep their appearance for longer and smell fresh and
clean. You’ve chosen carpets for your home for a reason and VAX will help you take good care
of them.
Taking care of your Platinum PowerMax
Also inside this guide are instructions on maintaining your new machine, so that it’s always ready
when you are to tackle your carpets.
Receive your FREE 6 year guarantee†
Register your product online:
vax.co.uk/registration
We’re here if you need us
Visit our online support:
support.vax.co.uk
Still need to get in touch?
Our UK based Customer Care Team are here to support you.
For help with assembly, operational or performance problems, or buying and fitting new accessories, you can
find all our contact details at vax.co.uk/contact
This user guide can be found online at: support.vax.co.uk
† Registration required. Terms and conditions apply, see vax.co.uk for details.
GETTING IN TOUCH
6

Subject to technical change without notice. Images are illustrative only.
To purchase accessories and consumables visit: vax.co.uk
TECHNICAL SPECIFICATION
Name VAX Platinum PowerMax
Code ECB1SPV1
Cord length 9m
Weight 9.5kg
Wattage: See rating label on machine for details.
Voltage: See rating label on machine for details.
GETTING TO KNOW YOUR MACHINE

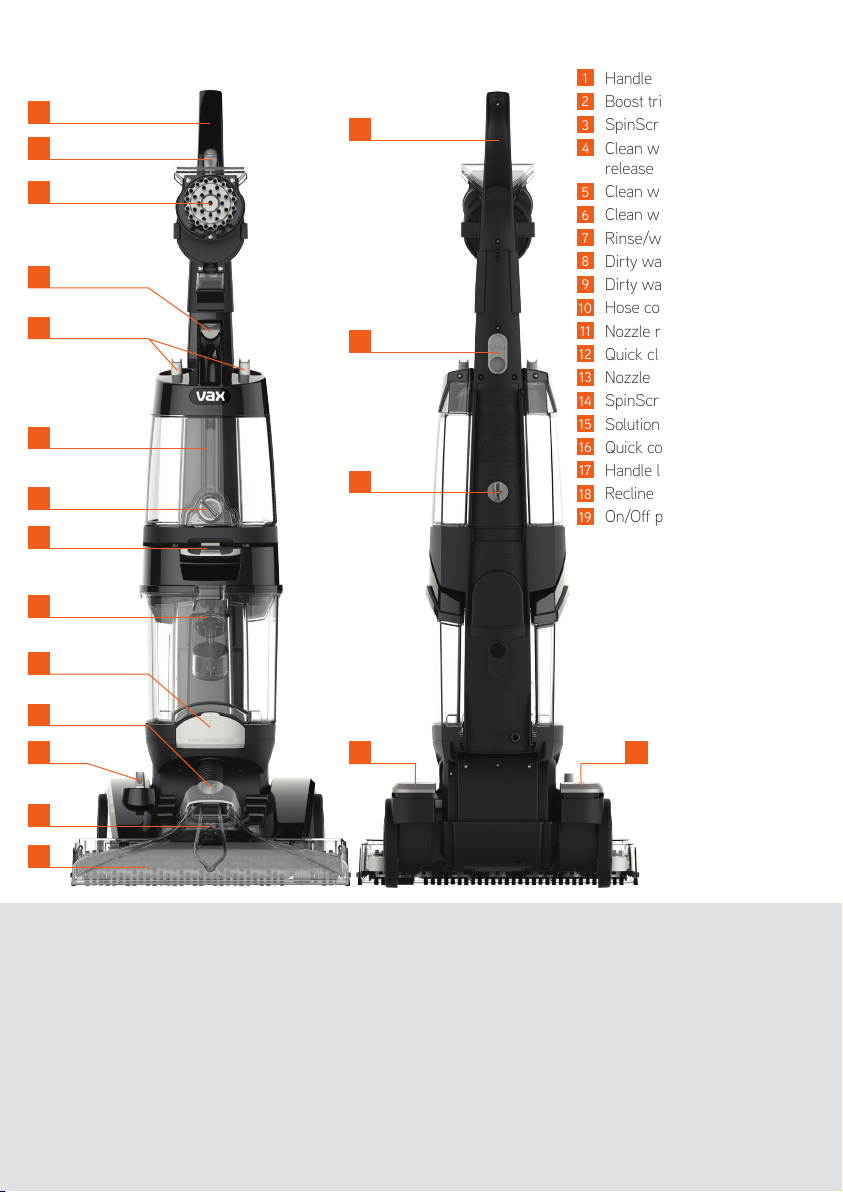

1Handle
2Boost trigger
3SpinScrub tool & caddy
4Clean water/solution tank
release button
5Clean water/solution tank caps
6Clean water/solution tank
7Rinse/wash dial
8Dirty water tank release latch
9Dirty water tank
10 Hose connection port cover
11 Nozzle release clip
12 Quick clean function
13 Nozzle
14 SpinScrub brushes & brushbar
15 Solution trigger (hidden)
16 Quick cord release hook
17 Handle lock dial
18 Recline pedal
19 On/Off pedal
1
15
16
17
4
5
6
7
8
9
10
11
12
13
14
2
3
1918
7

8

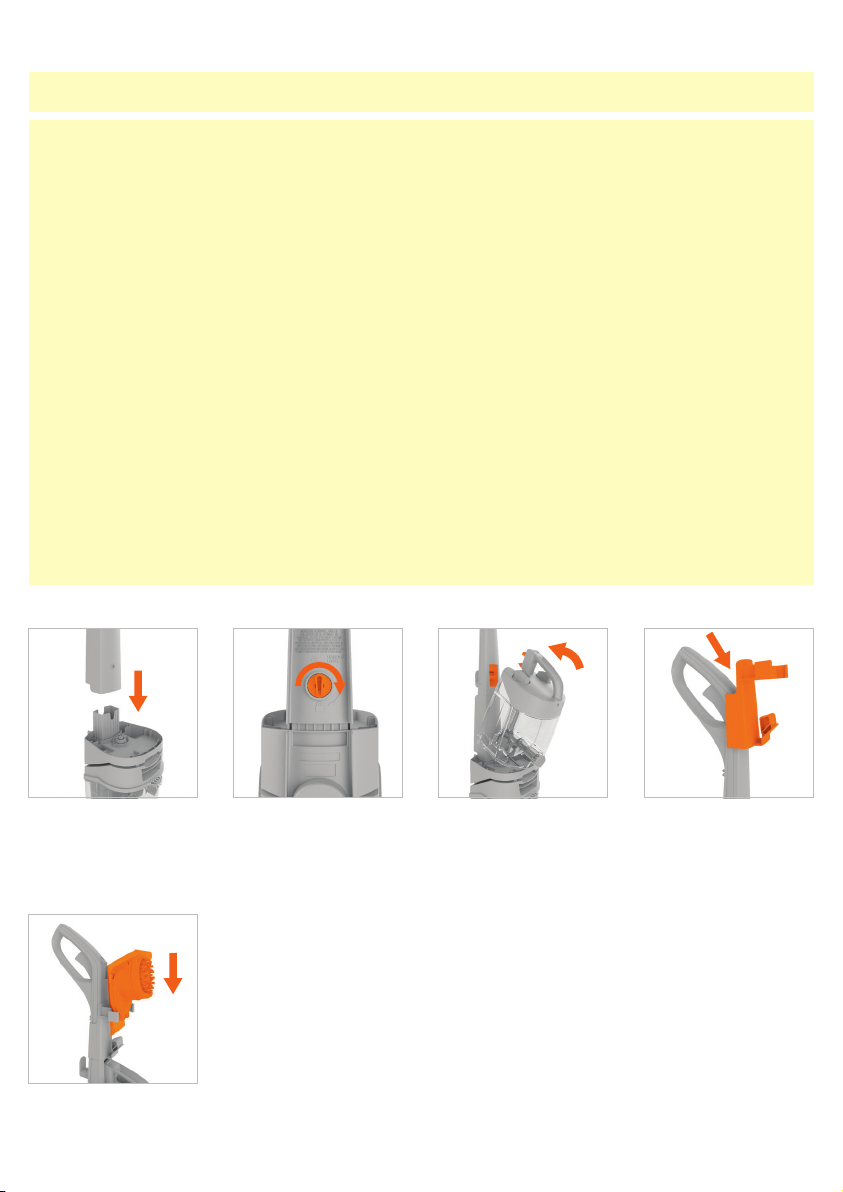

Line up the SpinScrub tool
with the holder and slide the
tool downwards into place.
Slide the SpinScrub tool
holder over and down
the handle.
Turn the handle lock dial
clockwise to lock in position.
Assemble the tanks by tilting
and lining up the front of
the tank to the washer and
pushing the tank back until
it clicks into place.
Stand the base of the
machine on the floor in the
upright position. Line up the
handle with the main body
and push into place.
GETTING STARTED
IMPORTANT: Carpets should be dry vacuumed thoroughly before washing.
• Test for colourfastness - Wet a white absorbent cloth with the solution. In a small hidden area of your carpet/rugs/
upholstery, gently rub with the dampened cloth. Wait ten minutes and check for colour removal or bleed with a white paper
towel or cloth. Check all carpets/rugs/upholstery material before first use and if your carpet has more than one colour,
check all colours.
• Test all flooring/carpets/rugs before first usage. Run the machine over a small hidden area. If no damage or pile distortion
occurs continue cleaning.
• When using the machine, basic safety precautions should always be observed. Do not over saturate your carpets and
continue using dry strokes until little water is visibly passing through the nozzle. When using the hose and tools always
finish on a dry stroke.
• When cleaning an entire room, move furniture out of the area to be cleaned. If the furniture cannot be moved, place
aluminium foil or wax paper under the legs. This will prevent wood finishes from staining your carpet. Pin up furniture
skirts and curtains.
• Only use VAX carpet solution. Using other solutions may cause excess foaming and will invalidate the guarantee.
• For heavily soiled areas, it may be necessary to repeat the cleaning process. Make criss-crossing strokes across the
original pattern and overlap with each pass.
• The clean water tank should only be filled with warm water (max 40�C). Filling the clean water tank with hot/boiling water
will damage your machine and invalidate the guarantee.
• Empty and rinse out clean and dirty water tanks and leave to air dry before storage. Do not leave solution stored in the
tanks between uses.
• This is a powerful machine, before plugging in make sure all controls are turned off and hold the machine firmly when
starting and during use.
PLEASE READ THE SAFETY PRECAUTIONS ON PAGES 2 & 3 BEFORE USE.
Assembly

9
Filling the water/solution tank

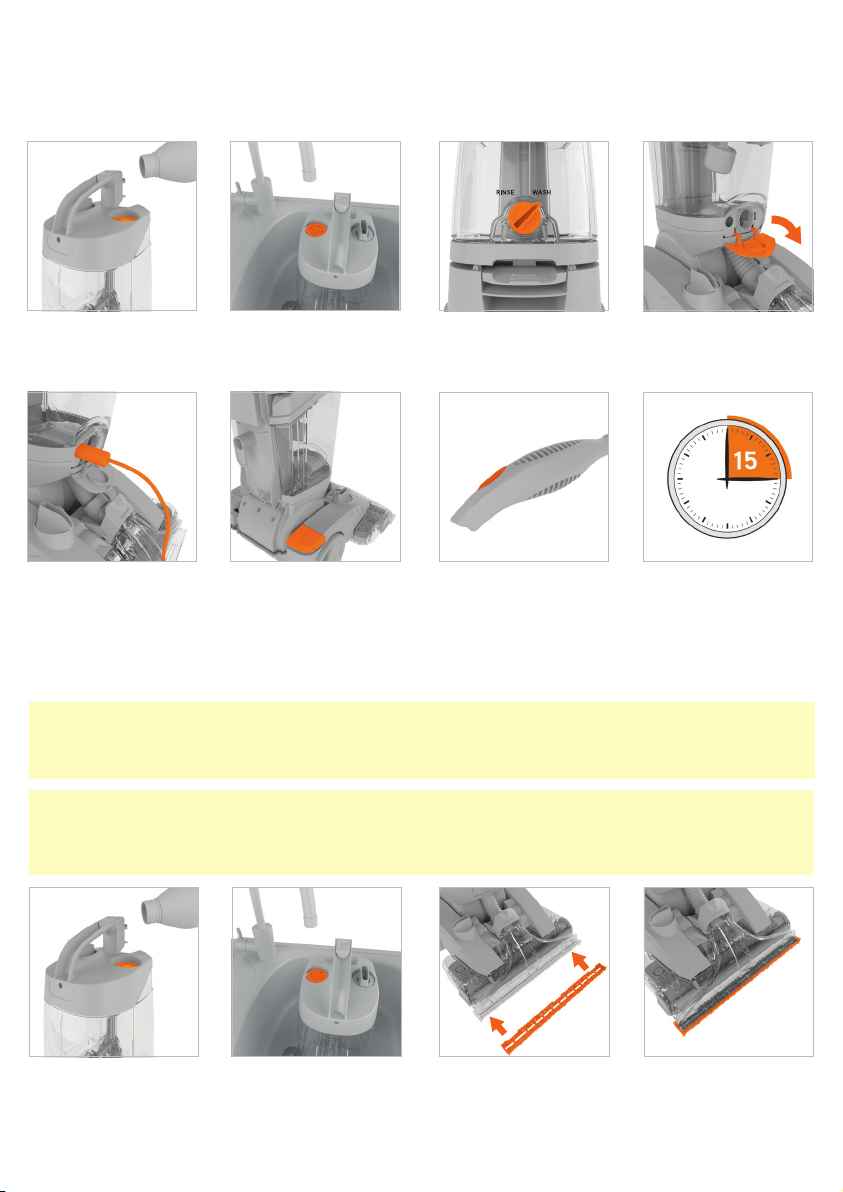

Press the clean water/
solution tank release
button, pull and lift to
remove the tank.
Twist the water/solution
tank cap anti-clockwise
and remove.
Pour the required amount
of carpet cleaning solution
into the tank. Tighten the
cap before returning the
tank to the washer.
Fill the clean water tank
with warm water (max
40°C). Fill to the max fill line
for a Deep Clean, and fill to
the Quick Clean fill line for a
quick surface clean.
Tilt and line up the front of
the tank to the washer and
push the tank back until it
clicks into place.
USING YOUR MACHINE
IMPORTANT: Do not leave the solution stored in the tanks between uses.
NOTE: This machine has an auto mix tank so any solution not used can be poured back into the bottle.

10
Squeeze the trigger to
release the solution and
water mix.
Press the recline pedal and
pull the handle backwards.
For tough stains press
the boost trigger together
with the solution trigger to
release more water and
solution mix.
For best results apply
water/solution on the
forward stroke and
release the trigger on the
backward stroke to pick
up water/solution. For a
dryer finish, follow with an
additional dry stoke with
no trigger pressed.

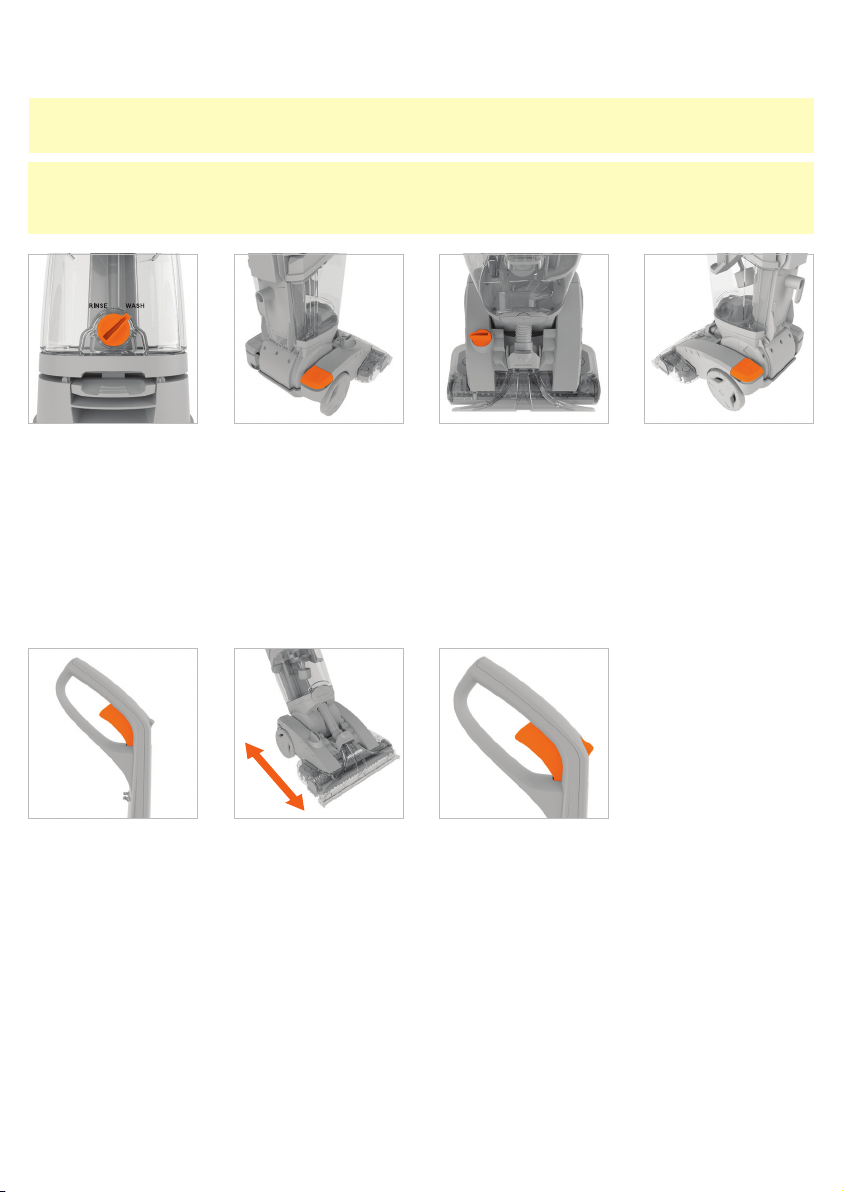

USING YOUR MACHINE
Operation
IMPORTANT: Carpets should be dry vacuumed thoroughly before washing. For heavily soiled areas, it may be necessary to
repeat the cleaning process. Make criss-crossing strokes across the original pattern and overlap with each pass. Do not over
saturate the carpet.
CAUTION: The brushbar constantly rotates when switched on and the machine is reclined. Never use on one spot for an
extended period of time as the brushbar may damage the floor surface.
Turn the rinse/wash dial
to WASH. The SpinScrub
brushes and brushbar
deep cleans your carpets
with water and solution,
removing dirt and stains.
Plug the machine into the
mains and press the On/Off
pedal to switch on.
Choose the cleaning
mode by turning the dial
on the base.
Quick Clean Mode:
Best for a quick, surface
clean - carpets dry in as
little as 1 hour.*
Deep Clean Mode:
Best overall results for
a thorough, deep clean.
*Tested in Quick Clean mode. Results may vary.

11
Turn the rinse/wash dial
to RINSE. Only water
is released to remove
solution residue.
Squeeze the trigger to
release water.
Press the recline pedal and
pull the handle backwards.
For best results apply water
on the forward stroke and
release the trigger on the
backward stroke to pick
up water/solution. For a
dryer finish, follow with an
additional dry stoke with no
trigger pressed.

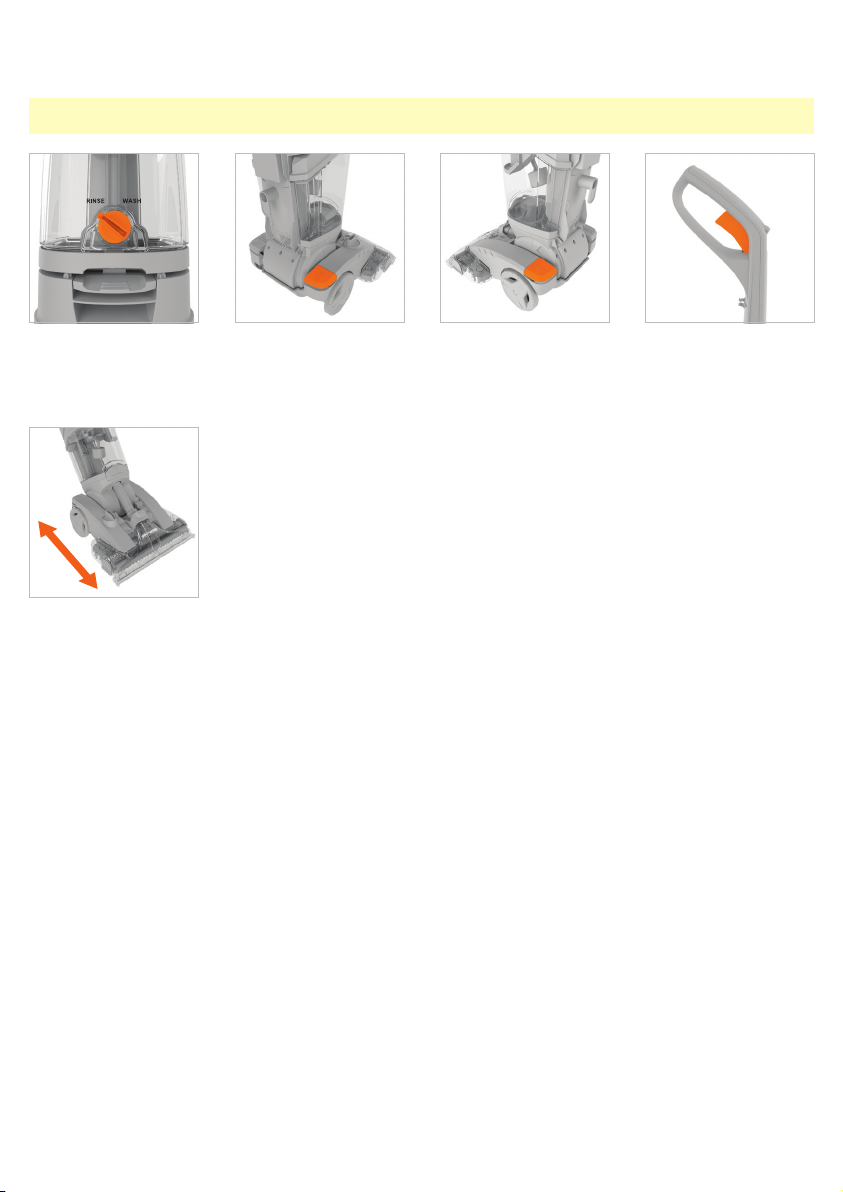

USING YOUR MACHINE
Rinsing the carpet
Plug the machine into the
mains and press the On/Off
pedal to switch on.
IMPORTANT: Optional step. To extract any remaining solution from your carpet, rinse your carpets with water only.

12
USING YOUR MACHINE
Turn the rinse/wash dial
to WASH.
Open the hose connection
port cover.
Push the hose end and hose solution
connector into the hose connection port.
To remove the hose press
the hose release clip on
the end of the hose and
pull to remove.
Plug the machine into the
mains and press the On/Off
pedal to switch on.
Select the SpinScrub or Wash tool. Slide the tool over
the tab at end of the hose until it clicks into place.
Press the trigger on the
forward stroke to release
water/solution.
Release the trigger on the
backward stroke to pick up
water/solution. For a dryer
finish continue using dry
strokes (trigger released)
until little water is visibly
passing through the tool.

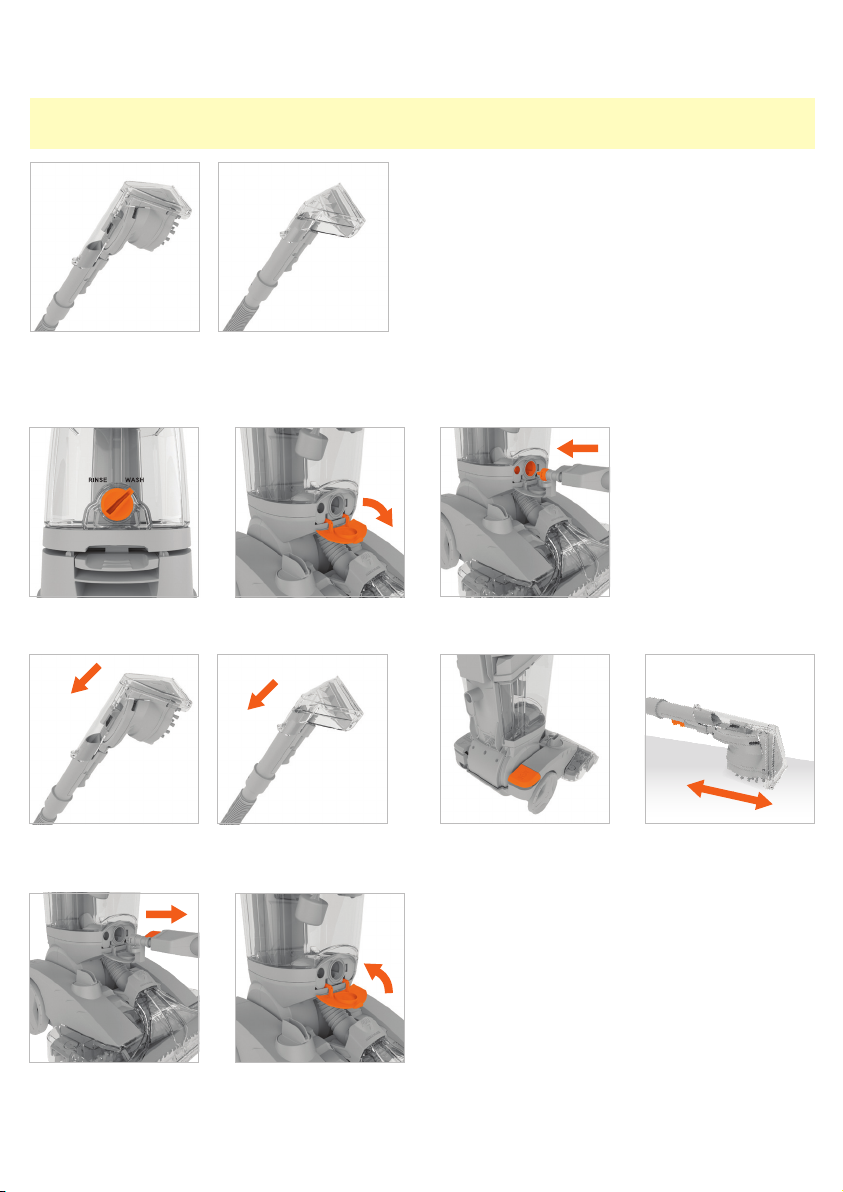

Using the hose and tools
IMPORTANT: The machine should be in the upright position when using the hose and tools; this will de-activate the brushes. To
avoid saturating the carpet, do not use more than 4 wet strokes over any one area. Always end with dry strokes (trigger released).
SpinScrub Tool
Suitable for targeting
stains and stubborn marks
on rugs and carpet.
Wash Tool
Suitable for use on upholstery
and carpeted stairs.
Perfect for reaching into crevices.
Always close the hose connection
port cover after using the hose.
The machine may lose suction if
it is not closed properly.

13
Using the pre-treatment wand
Pre-treating your carpet before washing will help to remove stubborn stains. Do not saturate your carpet.
Push the wand connector
into the solution tube port.
Press and hold the trigger
on the pre-treatment
wand, spraying evenly over
stubborn stains.
Leave the solution for 10-15
minutes before washing
the carpet.
Pour the required amount
of pre-treatment solution
into the tank.
Fill the clean water tank
with warm water
(max 40°C).
Turn the rinse/wash dial
to WASH.
Open the hose connection
port cover.
Washing hard floors
CAUTION: To prevent damage to wood floors and other hard floors, follow the flooring manufacturer's cleaning
recommendations. Inspect the floor surface for a worn finish, bare wood or separated joints. It is not recommended to use
the machine on floors if any of these conditions exist. Test on an inconspicuous area first.
IMPORTANT: Hard floors should be dry vacuumed thoroughly before washing.
Before attaching the hard floor squeegee onto the machine, either remove the tanks or make sure the tanks are empty before
lying the machine on its back.
Lie the machine on its back
and line up the squeegee
with the nozzle.
Hold the front of the
squeegee onto the edge
of the nozzle and push the
squeegee under the nozzle
until it clicks into place.
USING YOUR MACHINE
Plug the machine into the
mains and press the On/Off
pedal to switch on.
Pour the required amount
of solution into the tank.
Fill the clean water tank
with warm water
(max 40°C).

14
Press the dirty water tank
release latch and pull the
tank to remove.
Pull and lift the dirty water
tank clip to release the lid.
Lift the tank lid to remove.
Emptying and cleaning the dirty water tank
Clean the filter screen
located at the back of the
dirty water tank.
Empty the dirty water over
the sink or toilet. Rinse the
dirty water tank and lid
under water (max 40°C)
to remove dirt/debris.
MAINTENANCE & CLEANING
CAUTION: Always switch off and unplug the machine before performing any maintenance/troubleshooting checks.
The dirty water tank is fitted with a float. When the dirty water tank is full or the floorhead is not in contact with the carpet,
the float will activate by shutting off the suction on the machine. This will be noticeable as the motor noise on the machine
will increase. If the float has been activated empty the dirty water tank if it is full. If the dirty water tank is not full turn off the
machine at the power switch and wait for the float to settle before restarting your machine.
Empty and rinse out the clean and dirty water tanks and leave to air dry before replacing.
Do not leave solution stored in the tanks between uses.
To refit the dirty water tank,
tilt and line up the front
of the tank onto machine.
Push back until it clicks
into place.
Hook the dirty water tank clip
onto the lid and push down
to lock into place.
To replace the lid, hook the
tab on the front of the lid
into the front of the dirty
water tank.

15
IMPORTANT: If the nozzle is fitted incorrectly, this will cause poor dirty water pick up.
Remove both tanks and tilt
the machine back.
Lift the nozzle release clip
and pull the nozzle forward,
separating the tabs on the
nozzle and machine.
Rinse the nozzle under
water to remove dirt/debris.
Removing and cleaning the nozzle
MAINTENANCE & CLEANING
To replace the nozzle, tilt
the machine backwards.
Line up the tabs on the
nozzle with the tabs
underneath the front of the
machine. Lower the nozzle
backwards and push the
nozzle down until it clicks
into place.

16
Line up the spindle and
the tabs on the side of the
SpinScrub cover into the
machine. Push firmly until
it clicks into place.
Using a pair of scissors,
remove any threads or
hair caught around the
brushes. Rinse under
water to remove debris.

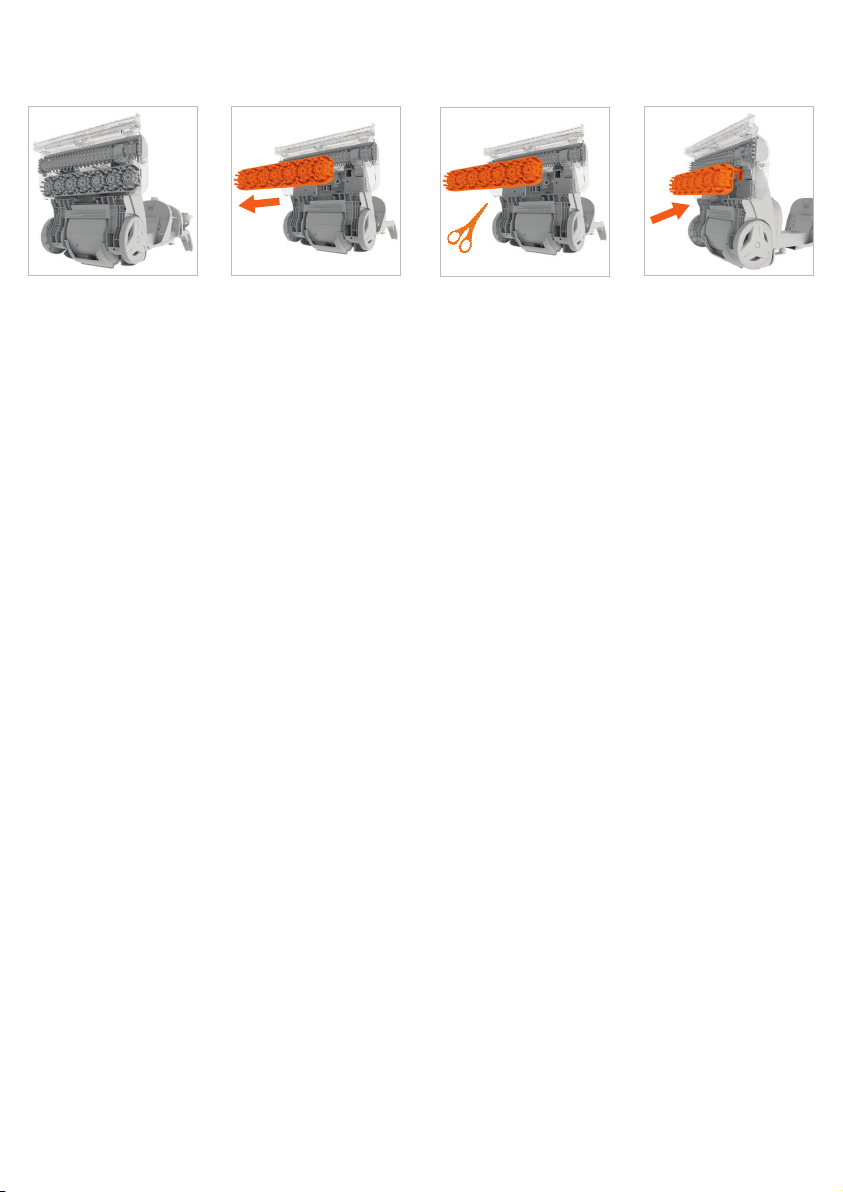

Removing and cleaning the SpinScrub brushes
Firmly pull the sides of the
SpinScrub cover and remove
the SpinScrub brushes.
Lie the machine on its back
exposing the SpinScrub
brushes and brushbar.
MAINTENANCE & CLEANING

17
Removing and cleaning the brushbar
To refit, loop the brushbar
through the belt and onto
the belt grip.
Line up the ‘right’ side
brushes with the base and
slide into place. Attach the
brushbar to the side brushes.
Pull and slide the right side
brushes together with the
brushbar. Remove the side
cap from the brushbar and
unloop the brushbar from
the belt.
Refit the belt guard and tighten the 2 screws.
Replace and tighten the 4 screws on the side
brushes and refit the rug guards, tightening the 4
screws to secure.
Attach the other side
of the brushbar to the side
brushes. Slide onto the side
of the base and into place.
Pull and slide the left side
brushes and remove the
side cap from the brushbar.
Using a crosshead screwdriver remove the 4 screws
on the side brushes and the top and bottom screws
from each of the rug guards (metal pins) to get
access to the brushbar.
Using a crosshead
screwdriver, undo the 2
screws and remove the
belt guard.
Using a pair of scissors,
remove any threads or hair
caught around the brushes.
Rinse under water to
remove debris.
MAINTENANCE & CLEANING

18
Don’t forget your solution!
Order at: www.vax.co.uk/spares-and-solutions
ACCESSORIES
Platinum (1.5l)
1-9-139136
Platinum Carpet Cleaning Solution deep
cleans carpets and removes stubborn stains.
Safe to use on wool carpets - Woolsafe approved.

19
IMPORTANT: Always unplug the machine before performing any maintenance/troubleshooting checks.
• The plug may not be fully pushed into the electrical socket.
• The fuse in the plug may need replacing. Always replace with a British 13amp fuse.
• Make sure the clean water/solution tank is fitted securely. See Filling the water/solution tank page 9.
• Rinse/wash dial has been set to Rinse, set dial to Wash to dispense solution. See Rinsing the carpet page 11.
• Trigger on the hose may not be depressed. See Using the hose and tools page 12.
• The clean water/solution tank valve may be stuck. Hold the tank over the sink and press the valve underneath to release.
• The clean water/solution tank is empty. Refill the tank. See Filling the water/solution tank page 9.
Why won't the machine turn on?
• Check the contents on the box to make sure the part is definitely included with your machine.
There is an accessory missing
Why won’t the solution/clean water dispense?
Why won’t the solution/clean water dispense when using the hose?
• Make sure the clean water/solution tank is fitted securely. See Filling the water/solution tank page 9.
• Rinse/wash dial has been set to Rinse, set dial to Wash to dispense solution. See Rinsing the carpet page 11.
• The clean water/solution tank valve may be stuck. Hold the tank over the sink and press the valve underneath to release.
• Squeeze the trigger on the handle to release solution and water mix.
• The clean water/solution tank is empty. Refill the tank. See Filling the water/solution tank page 9.
• The float in the dirty water tank may have been activated. Empty the dirty water tank and wait for the float to settle before
restarting your machine. See Emptying and cleaning the dirty water tank page 14.
• Check the SpinScrub and brushbar for blockages and clear. See Removing and cleaning the SpinScrub brushes page 16
and Removing and cleaning the brushbar page 17.
• The dirty water tank and/or lid may not be fitted correctly. See Emptying and cleaning the dirty water tank page 14.
• Check the nozzle for blockages and clear. See Removing and cleaning the nozzle page 15.
• Check the nozzle is correctly fitted. See Removing and cleaning the nozzle page 15.
• Check the filter screen in the dirty water tank for dirt/debris. Remove and clean.
• The hose connector port cover maybe open, close and retry. See Using the hose and tools page 12.
Why won't the machine pick up?
• The brushes will only spin when the machine is reclined.
• Check the nozzle is correctly fitted. See Removing and cleaning the nozzle page 15.
• Check the SpinScrub and brushbar for blockages and clear. See Removing and cleaning the SpinScrub brushes page 16
and Removing and cleaning the brushbar page 17.
• Check that the SpinScrub and brushbar are correctly fitted. See Removing and cleaning the SpinScrub brushes page 16
and Removing and cleaning the brushbar page 17.
• Check for damage to the brushbar and the spindle on the back of the SpinScrub brush.
Why won't the brushbar spin?
WHAT TO DO IF IT GOES WRONG

GET IN TOUCH
[email protected] vax.co.uk
