Vax Dynamo Cordless 21.6V Installation instructions

VX41
LET’S GET STARTED.
GRAB & GO CORDLESS
CONVENIENCE FOR
QUICK CLEAN-UPS!
LET’S GET STARTED.
GRAB & GO CORDLESS
CONVENIENCE FOR
QUICK CLEAN-UPS!

Let’s talk safety
Basic safety precautions
Don’ts
8Do not pull or carry by charger cord, use cord as a
handle, close a door on cord, or pull cord around sharp
edges or corners. Do not place product on cord. Do not
run appliance on cord.
8Don’t handle the charger plug or use the vacuum
cleaner with wet hands.
8Don’t charge the vacuum cleaner outdoors.
8Don’t attempt to remove blockages with sharp objects
as this may cause damage to the vacuum cleaner.
8Don’t try to short the terminals of the battery and
the charger.
8Don’t use the vacuum cleaner with incorrect voltage as
this may result in damage or injury to the user.
The correct voltage is listed on the rating label.
8Don’t vacuum harmful or toxic material (chlorine, bleach,
ammonia, drain cleaner etc.)
8Don’t vacuum up hot coals, cigarette butts, ash, matches
or smoking hot burning items or use in an area where
there may be harmful uids (chlorine, bleach, and
ammonia drain cleaner).
8Do not vacuum hard or sharp objects such as glass,
nails, screws or coins etc.
8Don’t not vacuum plaster dust, concrete dust or any
other building or vitreous material.
8Do not vacuum our, baking soda or any other
powder-based carpet refresher or deodoriser.
This vacuum cleaner is intended for household use
only and NOT for commercial or industrial use.
READ ALL THE INSTRUCTIONS BEFORE USING
THIS APPLIANCE
• It is a battery-operated appliance, the battery being
charged inside the appliance.
• Only use the vacuum cleaner indoors and keep the
area you’re cleaning well lit.
• Keep ngers, hair and loose clothing from moving parts
and openings whilst using the vacuum cleaner.
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities or lack of experience and
knowledge unless they have been given supervision
or instruction concerning use of the appliance by
a person responsible for their safety. Children should
not play with the vacuum cleaner. Cleaning and
user maintenance should not be made by children
without supervision
• Only Vax recommend tools and accessories should
be used with this vacuum cleaner
• Keep the charger and vacuum cleaner in a dry place,
and use them indoors only.
• Do not use charger with damaged cord or plug.
If appliance or charger is not working as it should,
has been dropped, damaged, left outdoors or dropped
into water, take it to a Vax authorised repair agent prior
to continuing use. Please contact our Customer Care
Line on: AU: 1300 361 505 / NZ: 0800 800 900
(Mon-Fri 8.30am to 5.00pm) or visit www.vax.com.au
/ vax.co.nz for your nearest Vax authorised repair agent.
Please keep instructions for further use.

3Always make sure the lter and dirt container are tted
correctly before using your vacuum cleaner.
3Turn o all controls on the vacuum cleaner before
disconnecting or connecting to charger.
3Always turn o and disconnect from charger before
carrying out any maintenance.
3Take extra care when cleaning on the stairs.
3Always protect the charger cord from heated surfaces
or near open ames.
3Use only SAA approved 10amp extension cords.
Care should be taken to arrange the extension cord
as it can be a trip hazard.
3Always carry the vacuum cleaner by the handle.
3 Store your vacuum cleaner in a cool, dry area.
Do’s

Thank you for buying this Dynamo Power.
Taking care of your carpets and hard oors
The Dynamo Power is designed to make vacuuming carpets and hard oors regularly, as eective
and efficient as possible and this user guide will help you get the most out of your machine.
Maintaining your carpets and hard oors will ensure they keep their appearance for longer
and Vax will help you take good care of them.
Taking care of your Dynamo Power
Also inside this guide are instructions on maintaining your new machine, so that it’s always ready
when you are to tackle your carpets and hard oors.
We’re here if you need us
For troubleshooting simply visit or call:
Australia: 1300 361 505* New Zealand: 0800 800 900*
vax.com.au vax.co.nz
*Monday – Friday: 8:30am -5:00pm
Calls are charged at the standard local rate. Please make note of the serial
number and model number of the product before calling.

Contents
Dynamo Power
Let’s talk safety
Getting to know your machine
Getting started
Using your machine
Taking care of your machine
Let’s talk technical
Accessories
What to do if it goes wrong
Getting in touch
Included with
your machine
2-in-1 tool
Charger
Screw (for attaching handle
to vacuum cleaner)
Docking station
2-in-1 tool connector

Getting to know your machine
Name Dynamo Power 21.6V
Model No VX41
Battery voltage 21.6V
Run time Up to 45 minutes*
Charge time 5 hours
Weight 3.29kg
Dust bin capacity 0.5l
Technical Specification
Subject to technical change without notice. * Low speed setting on hard floors. Images are illustrative only.
Model No YLS0241A- A260050
Input voltage 100-240V~50Hz 0.8A Max
Pre-motor lter
Model No VX42F
Charger Specification Accessories & Consumables
To purchase consumables and
accessories, please visit vax.com.au/vax.co.nz
Suction control button
On/O switch
Handheld release button
Handheld On/O button
Dirt container
release button
Floorhead release button
Floorhead
Machine charging ports
2-in-1 tool holder
Charging inlet
Double
Insulated
Class II
This product
meets applicable
regulatory
requirements.
Regulatory
Compliance Mark
(RCM)
Indoor
Use
Read
Instructions

Getting started
Assembling your 2-in-1 vacuum cleaner
Line up oorhead with
main body, push rmly
into place.
Line up handle with main
body and lower into place.
Insert screw into back of the
handle and tighten with a
cross head screwdriver until
handle is secured into place.
PLEASE READ ‘LET’S TALK SAFETY’ AT THE BEGINNING BEFORE USE
Accessories & Consumables
Charging your 2-in-1 vacuum cleaner
Plug the charger into the
back of the docking station
and plug into mains.
Slide the vacuum onto the
docking station. The LED
indicator on the handheld
On/O button will initially
turn green, then illuminate
red to indicate that it is in
place and charging.
Once fully charged LED
indicator on the handheld
On/O button will illuminate
green and turn o to power
saving mode.
When the vacuum needs recharging the LED
indicator on the handheld On/O button will
ash red and the machine will cut out.

Using your machine Using your machine
Unplug the charger from
the mains and remove
the vacuum from the
docking station.
Place foot on the oorhead and
pull the handle backwards to
recline the machine.
Press the ON button on
the handle to turn the
machine on.
Operating as an upright vacuum cleaner
To select between fast and
slow suction press the
suction controller button.
TIP
The brushbar will
not rotate when the
vacuum cleaner is in
the upright position.

Using your machine

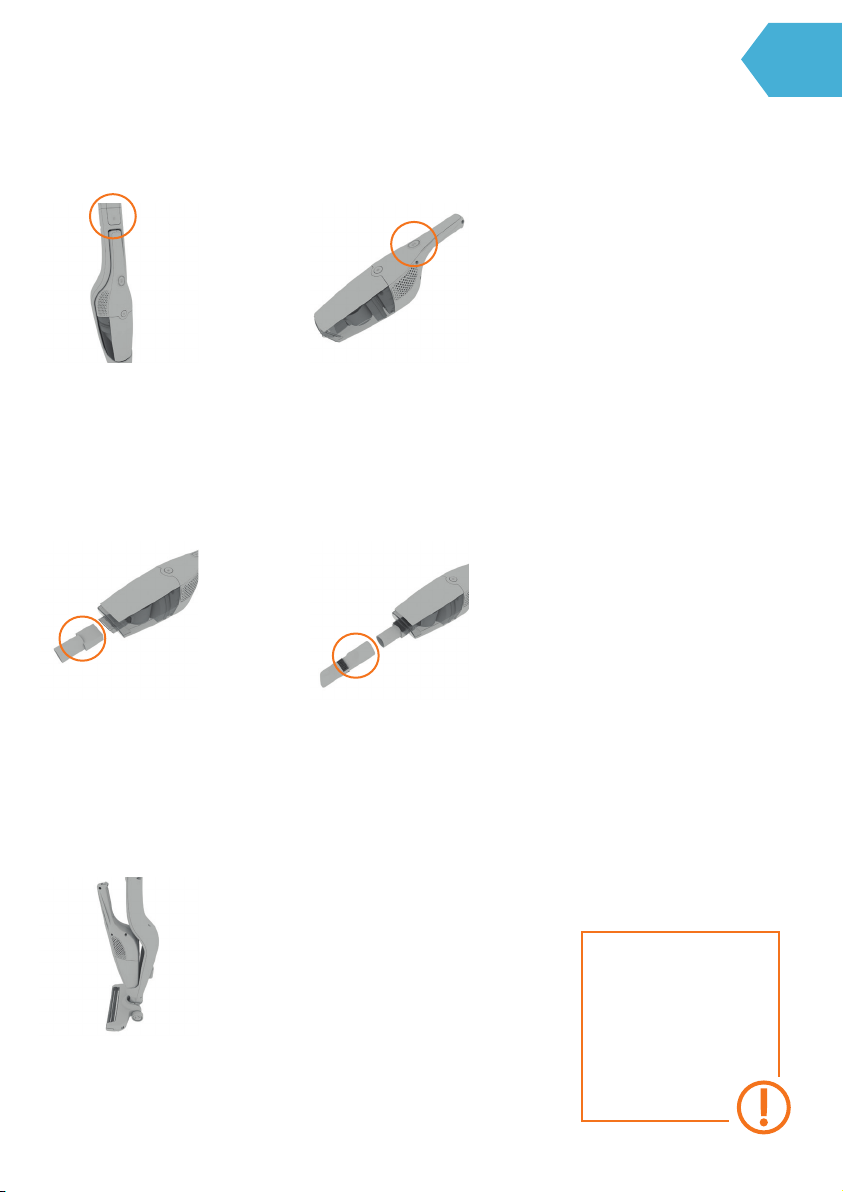

Press the handheld release
button. Lift to remove the
handheld from the main body.
Press the handheld
On/O button to switch
the handheld on.
Press the On/O button to switch the
handheld o. Pull and remove the 2-in-1
tool and connector from the nozzle. Line
up and return handheld into main body.
Operating as a handheld vacuum cleaner
For a more detailed clean, line up and push the 2-in-1 connector
into the handheld nozzle, then push and attach the 2-in-1 tool
securely onto the connector.
Always take extra care
when cleaning stairs.
Always switch the handheld
o before connecting
or disconnecting the
accessories and before
returning the handheld to
the main body.
CAUTION

Taking care of your machine
Press the handheld release
button. Lift to remove the
handheld from the main body.
Emptying the dirt container
Press the dirt container release
button to remove the dirt container.
Squeeze tabs to remove lter,
lter frame and separator.
Hold dirt container over a bin
allowing dirt/debris to fall out.
CAUTION: Always switch o the vacuum cleaner before carrying out any maintenance or troubleshooting.
TIP
Don’t over ll the dirt
container. Replace the
lters every 6 months,
depending on level of use.
Severely discoloured and
damaged lters need
to be replaced.

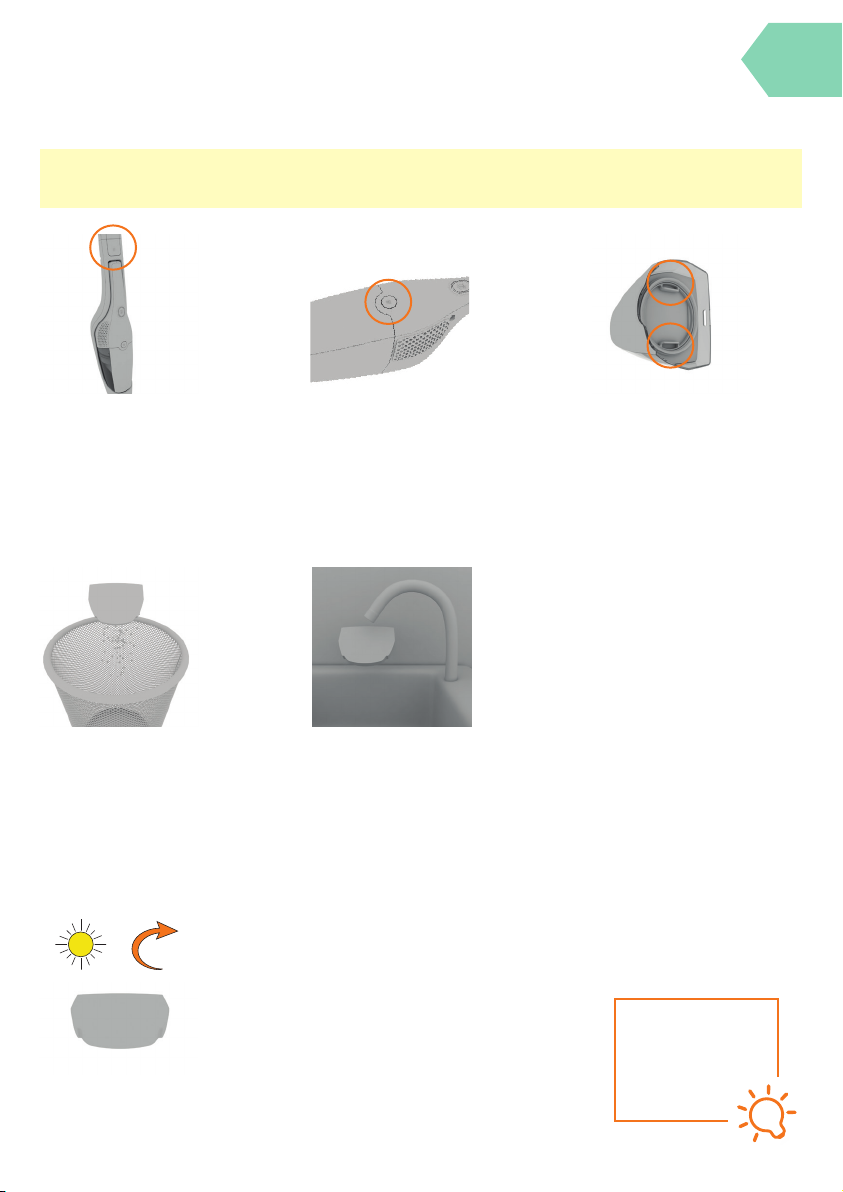

Cleaning the filter
Press the handheld release
button. Lift to remove the
handheld from the main body.
Pull foam lter from
underneath of lter frame.
Wash foam lter under
running water (max 40’C).
Do not use detergent.
Press the dirt container
release button to remove
the dirt container.
Squeeze tabs to remove lter,
lter frame and separator.
Tap lter, lter frame and
separator over a bin to remove
any dirt and debris. Do not
wash lter frame or separator.
Taking care of your machine
CAUTION: Always switch o the vacuum cleaner before carrying out any maintenance or troubleshooting.
Do not use your vacuum cleaner without the lters in place.
24hr
Leave for at least 24 hours or
until fully dry before replacing
into the machine.
TIP
For best cleaning
result lters require
cleaning every 4-6
uses or as needed.

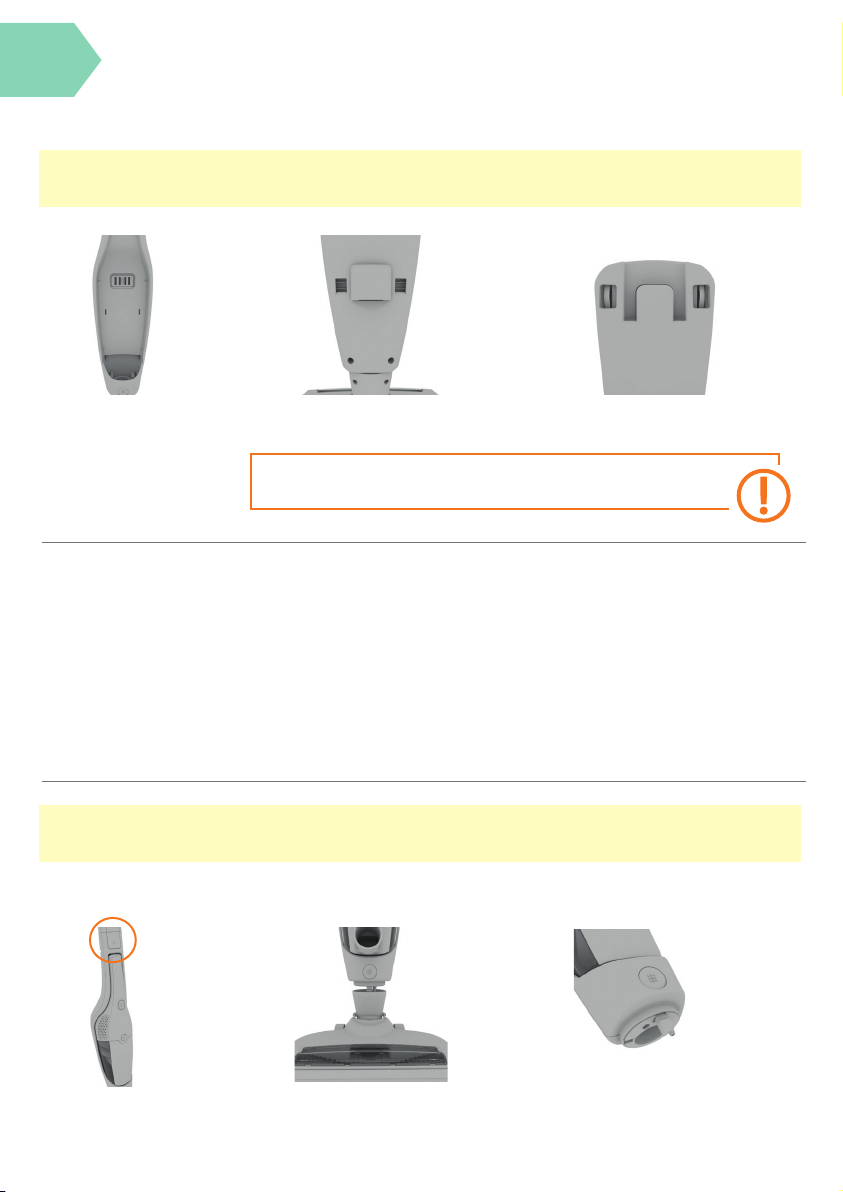

Cleaning the terminals
CAUTION: Always switch o the vacuum cleaner before carrying out any maintenance or troubleshooting.
Do not use your vacuum cleaner without the lters in place.
CAUTION: Always switch o the vacuum cleaner before carrying out any maintenance or troubleshooting.
Do not use your vacuum cleaner without the lters in place.
Clearing blockages
Battery Maintenance
Press the handheld release
button. Lift to remove the
handheld from the main body.
Press the oorhead
release button and pull
oorhead to remove.
Remove any blockage
from the main body.
Taking care of your machine/Let’s talk technical
Using a dry cloth or soft dusting brush remove any dust or debris from terminals in vacuum, on handheld
and on docking station.
• Never short-circuit the battery, i.e. never touch both poles simultaneously, especially with metal objects.
• Never dismantle the battery.
• Never expose the battery to high temperatures.
• Improper handling can lead to liquid leaking from the battery. This can cause skin irritations. Avoid any contact
with the uid.
• Do not replace the battery with a battery of a dierent type.
• If it becomes necessary to replace the battery, contact the Vax Careline on AU: 1300 361 505 / NZ: 0800 800 900
to determine the location of your nearest authorised service agent.
For best performance terminals in vacuum, on handheld
and on docking station must be free from dust and dirt.
CAUTION

Cleaning blockage for the brushbar
Using a pair of scissors
remove any threads or hair
caught around the brushbar.
If the brushbar has been
obstructed, the motor
protection sensor may have
been activated. Clear any
obstruction from the brushbar,
stand the machine onto the
docking station and wait
30 minutes for the vacuum
cleaner to reset itself.
Don’t forget your accessories!
AU: www.vax.com.au / NZ: www.vax.co.nz
Pre-motor filter
Model No. VX42F
Changing the brushbar
Replace the brushbar. Fitting
the spindle side rst, line up
and push the brushbar into
the spindle. Push the other
side of the brushbar back into
the oorhead and ret the
oorhead cover.
Turn the lock release to unlock
the oorhead cover. Lift and
remove oorhead cover.
Remove brush bar by lifting side
of brushbar not connected to the
spindle rst.
Let’s talk technical/Accessories

• Check the machine is fully charged. Go to ‘Using your machine’.
• Check the charger is plugged into the mains and correctly connected to the
docking station. Go to ‘Getting started’.
• Check the handheld has been correctly tted into the main body.
• Check terminals on vacuum, handheld and docking station are clean.
Go to ‘Let’s talk technical’.
• If the brushbar has been obstructed, the Motor Protection Sensor may have
been activated. Clear any obstruction from the brushbar. Wait 30 minutes for
the vacuum cleaner to reset itself.
• Check the vacuum is connected correctly to the docking station.
Go to ‘Getting started’.
• Check terminals on vacuum, handheld and docking station are clean.
Go to ‘Let’s talk technical’.
• Check charger and docking station for damage. If damaged please contact
our Customer Care Line on: AU: 1300 361 505 / NZ: 0800 800 900
Monday-Friday 8.30am to 5.00pm
• Check the charger is plugged into the mains and correctly connected to the
docking station. Go to ‘Getting started’.
• If the brushbar has been obstructed, the Motor Protection Sensor
may have been activated. Clear any obstruction from the brushbar.
Wait 30 minutes for the vacuum cleaner to reset itself.
• The brushbar may be blocked. Go to the ‘Let’s talk technical’ page.
• Empty the dirt container and clean lters. Go to the ‘Taking care of your
machine’ page.
• There may be a blockage in the vacuum cleaner. Go to ‘Clearing blockages’.
• The brushbar may not be turning. Go to ‘My brushbar isn’t turning?’ below.
• Low suction has been selected, increase to high suction. Go to ‘Using
your machine’.
SolutionProblem
Why does my vacuum
cleaner have no power?
Why isn’t my vacuum
cleaner charging?
Why won’t the vacuum
cleaner pick up?
My brushbar
isn’t turning.
What to do if it goes wrong
Why is the LED light
Continually ashing?
• The Red light will ash when the vacuum needs recharging.
Go to ‘Getting started’.

* Calls are charged at the standard local rate. Please make a note of the serial number and model number of the vacuum cleaner
before calling.
Getting in touch

Distributed by Techtronic Industries Australia Pty. Ltd.
31 Gilby Road, Mt Waverley, VIC 3149 Australia.
Careline AU: 1300 361 505 www.vax.com.au
Careline NZ: 0800 800 900 www.vax.co.nz
