Vecow RMS-1000 User manual

USER
Manual
USER
Manual
1.0.0 Edition 20200203
Intel®Core™ i7/i5/i3 SoC (Whiskey Lake) 1U Rackmount Fanless
Computing System, 8 GigE LAN w/6 X-coded M12, 4 10G USB,
Ignition Control, -40°C to 70°C
RMS-1000

ii
©Vecow RMS-1000 User Manual
Version Date Page Description Remark
0.10 2020/01/17 All Preliminary Release
1.00 2020/02/03 All O󰀩cial Release
Record of Revision

iii
©Vecow RMS-1000 User Manual
This manual is released by Vecow Co., Ltd. for reference purpose only. All
product o󰀨erings and specications are subject to change without prior notice.
It does not represent commitment of Vecow Co., Ltd. Vecow shall not be liable
for direct, indirect, special, incidental, or consequential damages arising out of
the use of the product or documentation or any infringements upon the rights of
third parties, which may result from such use.
Disclaimer
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy, and if it is not installed and used
in accordance with the instruction manual, it may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
FCC
The products described in this manual complies with all applicable European
Union (CE) directives if it has a CE marking. For computer systems to
remain CE compliant, only CE-compliant parts may be used. Maintaining CE
compliance also requires proper cable and cabling techniques.
CE
Declaration of Conformity
This document contains proprietary information protected by copyright. No part
of this publication may be reproduced in any form or by any means, electric,
photocopying, recording or otherwise, without prior written authorization
by Vecow Co., Ltd. The rights of all the brand names, product names, and
trademarks belong to their respective owners.
Copyright and Trademarks

iv
©Vecow RMS-1000 User Manual
Part Number Description
RMS-1000-8665UE
RMS-1000, onboard Intel® Core™ i7-8665UE, 8 GigE LAN w/6X-
coded M12, 2 COM, 4 10G USB 3.1 Gen2, 2 SSD Tray, 9V-48V
DC-in
RMS-1100-8665UE
RMS-1100, onboard Intel® Core™ i7-8665UE, 8 GigE LAN w/6X-
coded M12, 2 COM, 4 10G USB 3.1 Gen 2, 2 SSD Tray, 16V-160V
DC-in
Order Information

v
©Vecow RMS-1000 User Manual
Part Number Description
DDR4 32G Certied DDR4 32GB 2666MHz RAM
DDR4 16G Certied DDR4 16GB 2666/2400/2133 MHz RAM
DDR4 8G Certied DDR4 8GB 2666/2400/2133 MHz RAM
DDR4 4G Certied DDR4 4GB 2666/2400/2133 MHz RAM
PWA-120W 120W, 24V, 90V AC to 264V AC Power Adapter with 3-pin Terminal
Block
PWA-160W-WT 160W, 24V, 85V AC to 264V AC Power Adaptor with 3-pin Terminal
Block, Wide Temperature -30°C to +70°C
4G Module Mini PCIe 4G/GPS Module with Antenna
WiFi & Bluetooth
Module WiFi & Bluetooth Module with Antenna
Optional Accessories

vi
©Vecow RMS-1000 User Manual
Table of Contents
CHAPTER 1 GENERAL INTRODUCTION 1
1.1 Overview 1
1.2 Features 2
1.3 Product Specication 3
1.3.1 Specications of RMS-1000 3
1.3.2 Specications of RMS-1100 5
1.4 Supported CPU List 7

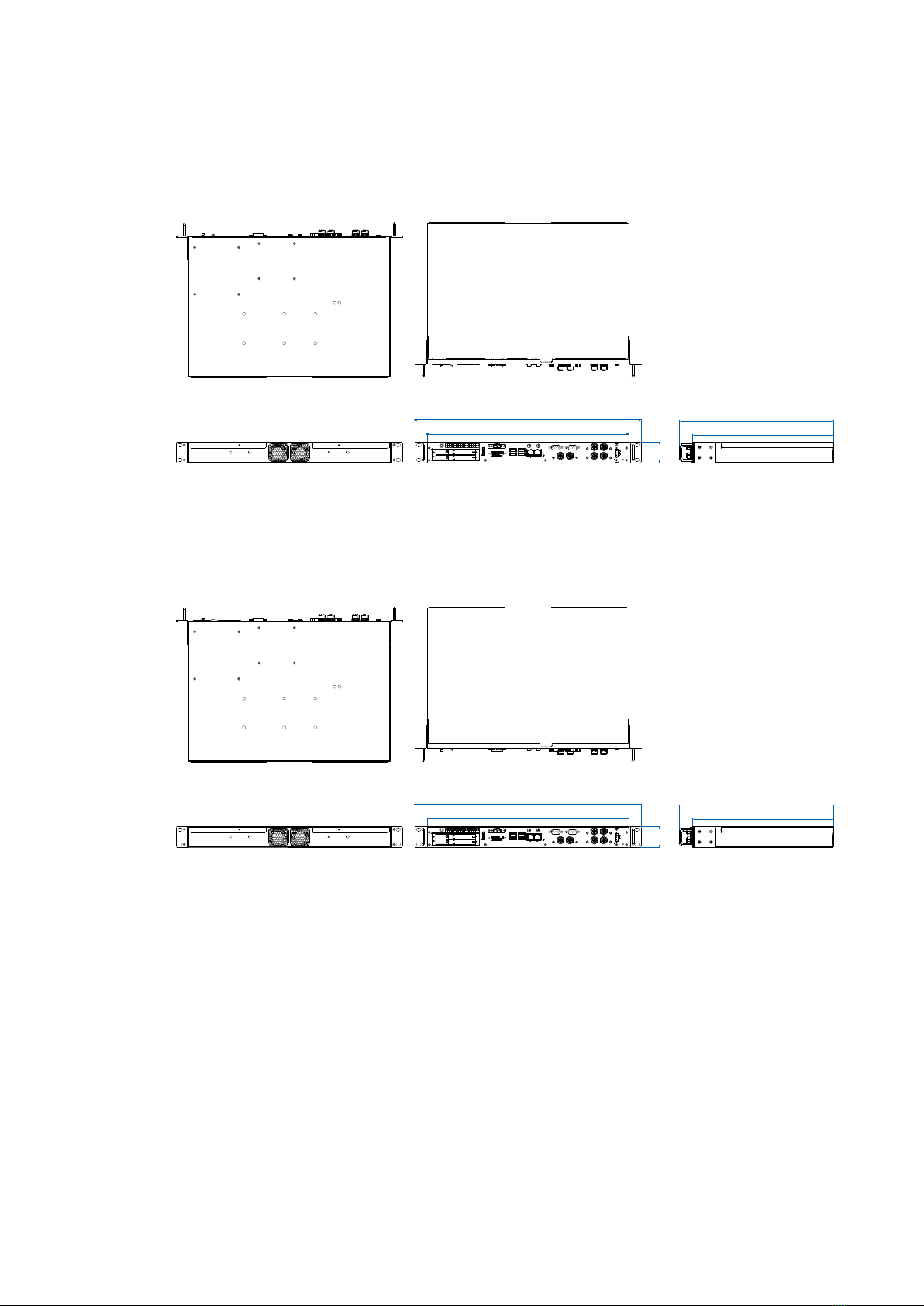

1.5 Mechanical Dimension 8
1.5.1 RMS-1000 Mechanical Drawing 8
1.5.2 RMS-1100 Mechanical Drawing 8
CHAPTER 2 GETTING TO KNOW YOUR RMS-1000 9
2.1 Packing List 9
2.2 Front Panel I/O & Functions 10
2.3 Ignition Control 14
CHAPTER 3 SYSTEM SETUP 17
3.1 How to Open Your RMS-1000/RMS-1100 17
3.2 Installing DDR4 SO-DIMM Module 19
3.3 Installing Mini PCIe Card 20
3.4 Installing Antenna Cable 21
3.5 Installing SIM Card 22
3.6 Installing SSD/HDD 23
3.7 Mounting Your RMS-1000/RMS-1100 24

vii
©Vecow RMS-1000 User Manual
CHAPTER 4 BIOS SETUP 26
4.1 BIOS Setting 26
4.2 Main Manu 27
4.3 Advanced Functions 27
4.4 Chipset Functions 39
4.5 Security 44
4.6 Boot Functions 46
4.7 Save & Exit 47
APPENDIX A : Isolated DIO Guide 48
APPENDIX B : Software Functions 53
APPENDIX C : RAID Functions 56
APPENDIX D : Power Consumption 60
APPENDIX E : Supported Memory & Storage List 64

1
©Vecow RMS-1000 User Manual GENERAL INTRODUCTION
GENERAL INTRODUCTION
1.1 Overview
RMS-1000 is a series of Rackmount Fanless System. Powered by Quad-core
8th generation Intel® Core™ i7/i5/i3 U-series processor (Whiskey Lake), DDR4
2400MHz up to 32GB memory; Advanced Intel® HD Graphics 620 graphics
engine supports DirectX 12 and OpenGL 4.5 API, DVI-D and DisplayPort dual
display serving up to ultra HD 4K resolution; Multiple USB 3.1 Gen 2 (10G),
Gen 3 PCIe (8GT/s), SATA III (6Gbps), USB 3.0 (5Gbps), GigE (1Gbps) LAN
and flexible 5G/WiFi/4G/3G/LTE/GPRS/UMTS wireless connections make
high-speed data conveying possible. Vecow RMS-1000 Series 1U Rackmount
Fanless In-vehicle Computing System delivers more than 40% power
productivity greater than former 7th Generation Intel Kaby Lake U-series SoC
processor with only 15W CPU power consumption.
Featuring 8 Independent GigE LAN with 6 X-coded, iAMT 12.0 supported,
2 COM RS-232/422/485, 4 external USB 3.1 Gen 2 support up to 10Gbps
data transfer, 2 Mini PCIe sockets for PCIe/USB/SIM socket/Optional mSATA
expansion, 1 SIM card socket for 5G/WiFi/4G/3G/LTE/GPRS/UMTS, 2 SATA
III, 9V to 48 wide range power input (RMS-1000) and 16V to 160V wide range
power input (RMS-1100), ignition power control, fanless -40°C to 70°C operating
temperature, smart manageability features, RMS-1000 is your trusted rackmount
engine.
Vecow RMS-1000 Series 1U Rackmount Fanless In-vehicle Computing System
delivers In-vehicle oriented, outstanding performance, Industrial-grade design
and rugged reliability for your ADAS, In-vehicle Infotainment, Fleet Management,
Traffic Control, Passenger Information System and any performance driven
compact Industry 4.0 and AIoT applications.
1

2
©Vecow RMS-1000 User Manual GENERAL INTRODUCTION
1.2 Features
• 8th Generation Intel® Core™ i7/i5/i3 U-series processor (Whiskey Lake)
• DDR4 2400MHz memory, up to 32GB
• Fanless design, -40°C to 70°C Operating Temperature (RMS-1000)
• Fanless design, -40°C to 55°C Operating Temperature (RMS-1100)
• 8-port 10/100/1000 Base-T GigE LAN with 6 X-coded M12 connections, iAMT
12.0 supported
• 9V to 48V Wide range DC Power Input (RMS-1000)
• 16V to 160V Wide range DC Power Input (RMS-1100)
• 4 10G USB 3.1 Gen 2, 2 COM RS-232/422/485
• 2 Front-access 2.5" SSD/HDD Tray
• SIM Socket for 5G/WiFi/4G/3G/LTE/GPRS/UMTS
• Expansion : SATA III, mSATA and Mini PCIe
• Ignition Power Control

3
©Vecow RMS-1000 User Manual GENERAL INTRODUCTION
1.3 Product Specication
1.3.1 Specications of RMS-1000
System
Processor 8th Quad Core Intel® Core™ i7/i5/i3 U-series Processor
(Whiskey Lake)
Chipset Intel® SoC (Cannon Lake)
BIOS AMI
SIO IT8786E
Memory 1 DDR4 2400MHz SO-DIMM, up to 32GB
Graphics
Graphics Processor Intel® UHD Graphics 620
Interface • DVI-D : Up to 1920 x 1200 @60Hz
• DisplayPort : Up to 4096 x 2304 @60Hz
Ethernet
LAN 1 Intel® I219LM GigE LAN supports iAMT 12.0
LAN 2 Intel® I210 GigE LAN
LAN 3 ~ LAN 8 M12 Type X-Coded Intel® I210 GigE LAN
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Storage
SATA 2 SATA III (6Gbps)
mSATA 1 SATA III (Mini PCIe Type, 3Gbps)
Storage Device 2 2.5" SSD/HDD Bracket (Internal)
I/O Interface
Serial 2 COM RS-232/422/485 (ESD 8kV)
USB 4 USB 3.1 Gen 2 (External)
LED Power, HDD
SIM Card 1 SIM Card Socket (Internal)
Expansion
Mini PCIe
2 Mini PCIe Socket :
• 1 Full-Size for PCIe/USB/Internal SIM Card
• 1 Full-size for PCIe/USB/Optional mSATA
Power
Power Input 9V to 48V DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block : On, O󰀨, IGN

4
©Vecow RMS-1000 User Manual GENERAL INTRODUCTION
Others
TPM Optional Inneon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when
CPU overheats.
Software Support
Microsoft Windows 10
Linux Fedora 19, Ubuntu 10.04 LTS, or Linux Kernel 3.0 above
Mechanical
Dimension 482.6mm x 301.4mm x 44.0mm (19.00" x 11.87" x 1.73")
Weight 4.0 kg (8.8 lb)
Mounting Rackmount
Environment
Operating Temperature -40°C to 70°C (-40°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% at 70°C
Shock • IEC 60068-2-27
• SSD : 50G, Half-sine, 11ms
Vibration • IEC 60068-2-64
• SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN50155, EN50121-3-2

5
©Vecow RMS-1000 User Manual GENERAL INTRODUCTION
1.3.2 Specications of RMS-1100
System
Processor 8th Quad Core Intel® Core™ i7/i5/i3 U-series Processor
(Whiskey Lake)
Chipset Intel® SoC (Cannon Lake)
BIOS AMI
SIO IT8786E
Memory 1 DDR4 2400MHz SO-DIMM, up to 32GB
Graphics
Graphics Processor Intel® UHD Graphics 620
Interface • DVI-D : Up to 1920 x 1200 @60Hz
• DisplayPort : Up to 4096 x 2304 @60Hz
Ethernet
LAN 1 Intel® I219LM GigE LAN supports iAMT 12.0
LAN 2 Intel® I210 GigE LAN
LAN 3 ~ LAN 8 M12 Type X-Coded Intel® I210 GigE LAN
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Storage
SATA 2 SATA III (6Gbps)
mSATA 1 SATA III (Mini PCIe Type, 6Gbps)
Storage Device 2 2.5" SSD/HDD Bracket (Internal)
I/O Interface
Serial 2 COM RS-232/422/485 (ESD 8kV)
USB 4 USB 3.1 Gen 2 (External)
LED Power, HDD
SIM Card 1 SIM Card Socket (Internal)
Expansion
Mini PCIe
2 Mini PCIe Socket :
• 1 Full-Size for PCIe/USB/Internal SIM Card
• 1 Full-size for PCIe/USB/Optional mSATA
Power
Power Input 16V to 160V DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block : On, O󰀨, IGN

6
©Vecow RMS-1000 User Manual GENERAL INTRODUCTION
Others
TPM Optional Inneon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when
CPU overheats.
Software Support
Microsoft Windows 10
Linux Fedora 19, Ubuntu 10.04 LTS, or Linux Kernel 3.0 above
Mechanical
Dimension 482.6mm x 301.4mm x 44.0mm (19.00" x 11.87" x 1.73")
Weight 4.0 kg (8.8 lb)
Mounting Rackmount
Environment
Operating Temperature -40°C to 55°C (-40°F to 131°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% at 85°C
Shock • IEC 60068-2-27
• SSD : 50G, Half-sine, 11ms
Vibration • IEC 60068-2-64
• SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN50155, EN50121-3-2

7
©Vecow RMS-1000 User Manual GENERAL INTRODUCTION
1.4 Supported CPU List
Processor No. Cores TDP Cache Max. Frequency ECC Memory
Intel® Core™ i7-8665UE 4 15W 8M Up to 4.4GHz N
Intel® Core™ i5-8365UE 4 15W 6M Up to 4.1GHz N
Intel® Core™ i3-8145UE 215W 4M Up to 3.9GHz N
Intel® Celeron 4305UE 215W 2M Up to 2.0GHz N

8
©Vecow RMS-1000 User Manual GENERAL INTRODUCTION
1.5 Mechanical Dimension
1.5.1 RMS-1000 Mechanical Drawing
1.5.2 RMS-1100 Mechanical Drawing
482.6 (19.00”)
430.0 (16.93”)
44.0 (1.73”)
329.8 (12.98”)
301.4 (11.87”)
Unit : mm (inch)
482.6 (19.00”)
430.0 (16.93”)
44.0 (1.73”)
329.8 (12.98”)
301.4 (11.87”)
Unit : mm (inch)

9
©Vecow RMS-1000 User Manual GETTING TO KNOW YOUR RMS-1000
2
GETTING TO KNOW YOUR RMS-1000
2.1 Packing List
Item Description Qty
1RMS-1000/RMS-1100 Embedded System 1
2Driver/User Manual DVD 1
Item Description Outlook Usage P/N Qty
1HANDLE for
1U For HANDLE 53-4001442-203 2
2Ear for 1U For HANDLE 62-03P0396-000 2
3Flat head
M3*8L Ni+Ny For HANDLE 53-M000050-012 4
4Flat head
M4*6L For HANDLE N/A 8
5PHILLPIS
M2.5x6L, Ni Mini PCIe slot 53-2426906-30B 2
6Terminal block
3-pin (5.0mm) DC-IN/Switch 51-2411R03-S1B 2
7Key SSD/HDD tray N/A 1

10
©Vecow RMS-1000 User Manual GETTING TO KNOW YOUR RMS-1000
2.2 Front Panel I/O & Functions
2.2.1 RMS-1000 Front I/O & Functions
In Vecow's RMS-1000 series family, all I/O connectors are located on the
front panel. Most of the general connections to the computer device, such as
DisplayPort, DVI-D, USB 3.1, audio, LAN Jack, COM port and DC-IN are placed
on the front panel.

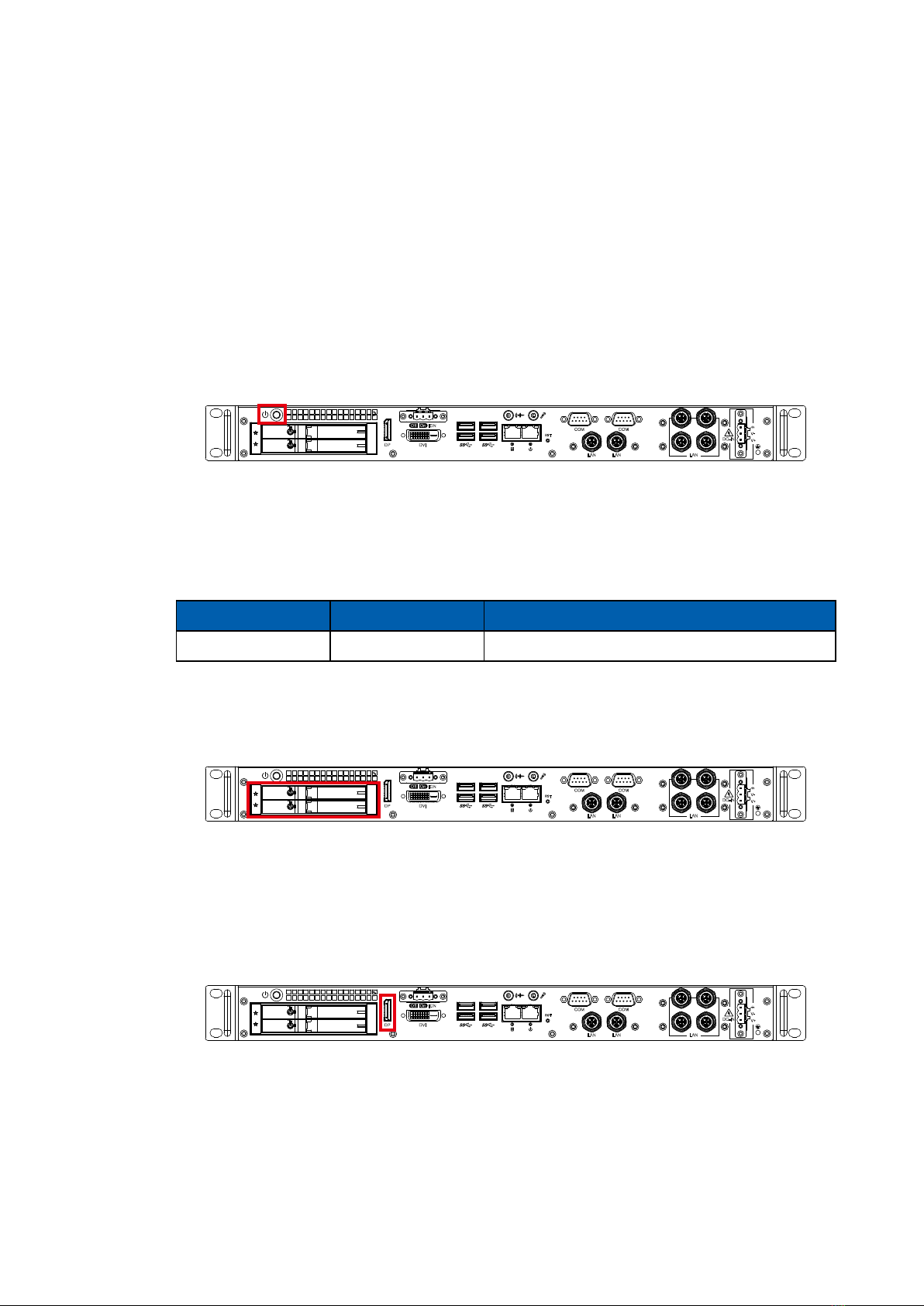

2.2.1.1 Power Button
The power button is a non-latched switch. In case of system halts, you can press
and hold the power button for 4 seconds to compulsorily shut down the system.
Please note that a 4 seconds interval is kept by the system between two on/off
operations (i.e. once turning o󰀨 the system, you shall wait for 4 seconds to initiate
another power-on operation).
LED Color Power Status System Status
Green Power System power status (on/o󰀨)
RST
DP
LAN LAN LAN
DVI 10 10
COM COM
DC-IN
Off |On IGN
2.2.1.2 SSD/HDD Tray
There are 2 front-access 2.5" SSD/HDD trays in the front side of RMS-1000.
Just trigger to open the SSD/HDD tray, up to 4TB is available.
RST
DP
LAN LAN LAN
DVI 10 10
COM COM
DC-IN
Off |On IGN
2.2.1.3 DisplayPort
Onboard Display Port support auxiliary channel dual mode, connection supports
up to 4096x2304 resolution at 60 Hz.
RST
DP
LAN LAN LAN
DVI 10 10
COM COM
DC-IN
Off |On IGN

11
©Vecow RMS-1000 User Manual GETTING TO KNOW YOUR RMS-1000

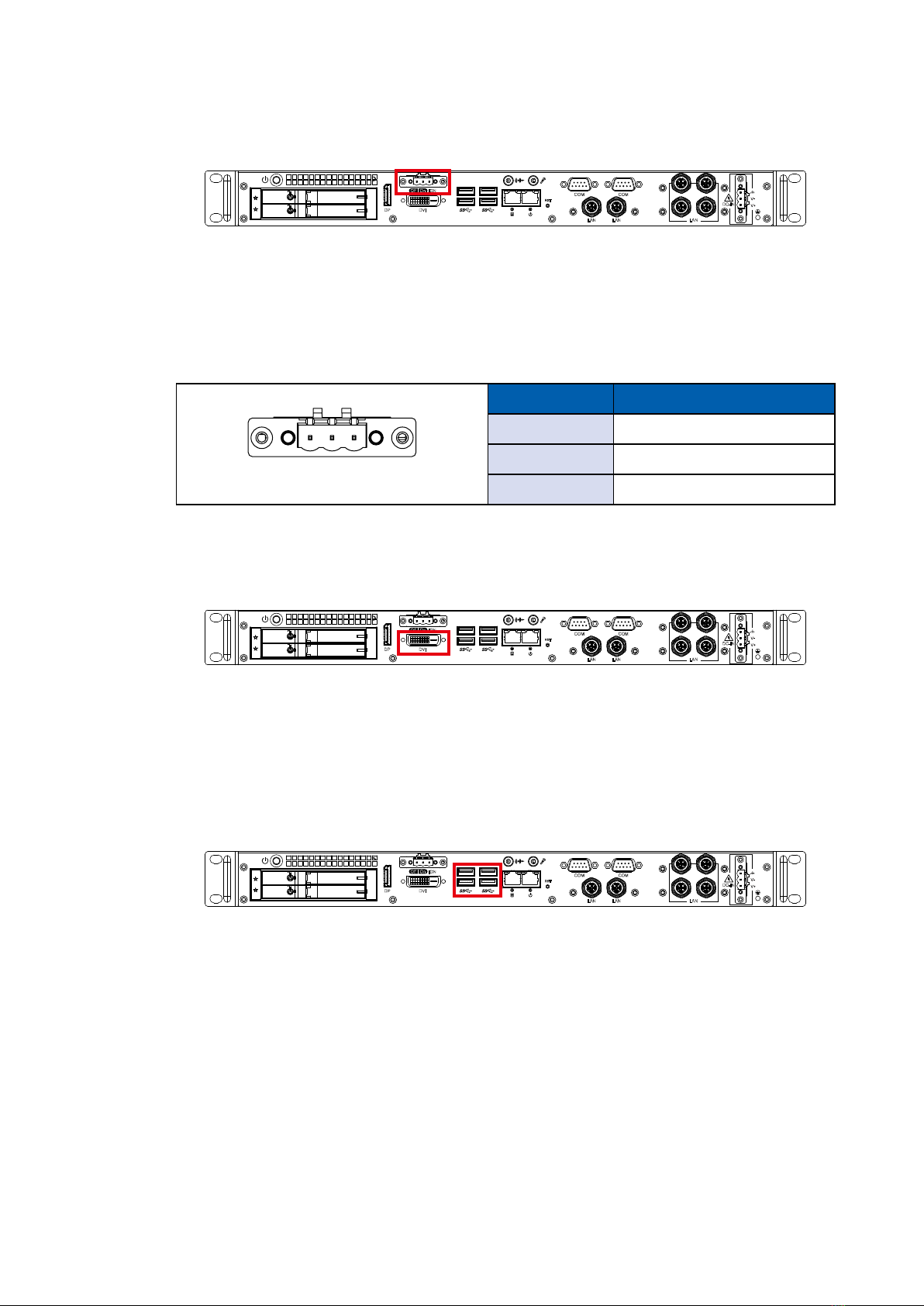

2.2.1.4 Remote Power On/O Switch & LED Terminal Block
It is a 3-pin power-on/power-o󰀨 switch through Phoenix Contact terminal block.
You could turn on or o󰀨 the system power by using this contact. This terminal
block supports dual function on soft power-on/power-off (instant off or delay
four seconds), and suspend mode. Another function is provided ignition power
control feature for in-vehicle applications. The built-in MCU monitors the ignition
signal and turns on/o󰀨 the system according to pre-dened on/o󰀨 delay period.
RST
DP
LAN LAN LAN
DVI 10 10
COM COM
DC-IN
Off |On IGN
Pin No. Denition
1Ignition (IGN)
2SW+
3SW-
321
2.2.1.5 DVI Connector
The DVI output mode supports up to 1920 x 1080 resolution. The DVI is
automatically selected according to the display device connected. You will need
a DVI-D cable when connecting to a display device.
RST
DP
LAN LAN LAN
DVI 10 10
COM COM
DC-IN
Off |On IGN
2.2.1.6 USB 3.1 Connector
There are 4 USB 3.1 Gen2 connections available supporting up to 10GB per second
data rate in the top side of RMS-1000. They are also compliant with the requirements
of SuperSpeed (SS), high speed (HS), full speed (FS) and low speed (LS).
RST
DP
LAN LAN LAN
DVI 10 10
COM COM
DC-IN
Off |On IGN

12
©Vecow RMS-1000 User Manual GETTING TO KNOW YOUR RMS-1000
2.2.1.8 Audio Connector
There are two audio connectors, mic-in and line-out, in the front side of RMS-
1000. Onboard Realtek ALC892 audio codec supports 5.1 channel HD audio
and fully complies with Intel® High Definition Audio (Azalia) specifications. To
utilize the audio function in Windows platform, you need to install corresponding
drivers for both Intel® Whiskey Lake-U chipset and Realtek ALC892 codec.
RST
DP
LAN LAN LAN
DVI 10 10
COM COM
DC-IN
Off |On IGN
2.2.1.9 PWR & HDD LED Indicator
HDD LED/Orange : A Hard Disk LED. If the LED is on, it indicates that the
system's storage is functional. If it is o󰀨, it indicates that the system's storage is
not functional. If it is ashing, it indicates data access activities.
Power LED/Green : If the LED is solid green, it indicates that the system is
powered on.
RST
DP
LAN LAN LAN
DVI 10 10
COM COM
DC-IN
Off |On IGN
LED Color Power Status System Status
Orange HDD • On/Off : Storage status, function or not.
• Twinkling : Data transferring
Green Power System power status (on/o󰀨)
2.2.1.10 Reset Tact Switch
It is a hardware reset switch. Use this switch to reset the system without power o󰀨
the system. Press the Reset Switch for a few seconds, then reset will be enabled.
RST
DP
LAN LAN LAN
DVI 10 10
COM COM
DC-IN
Off |On IGN

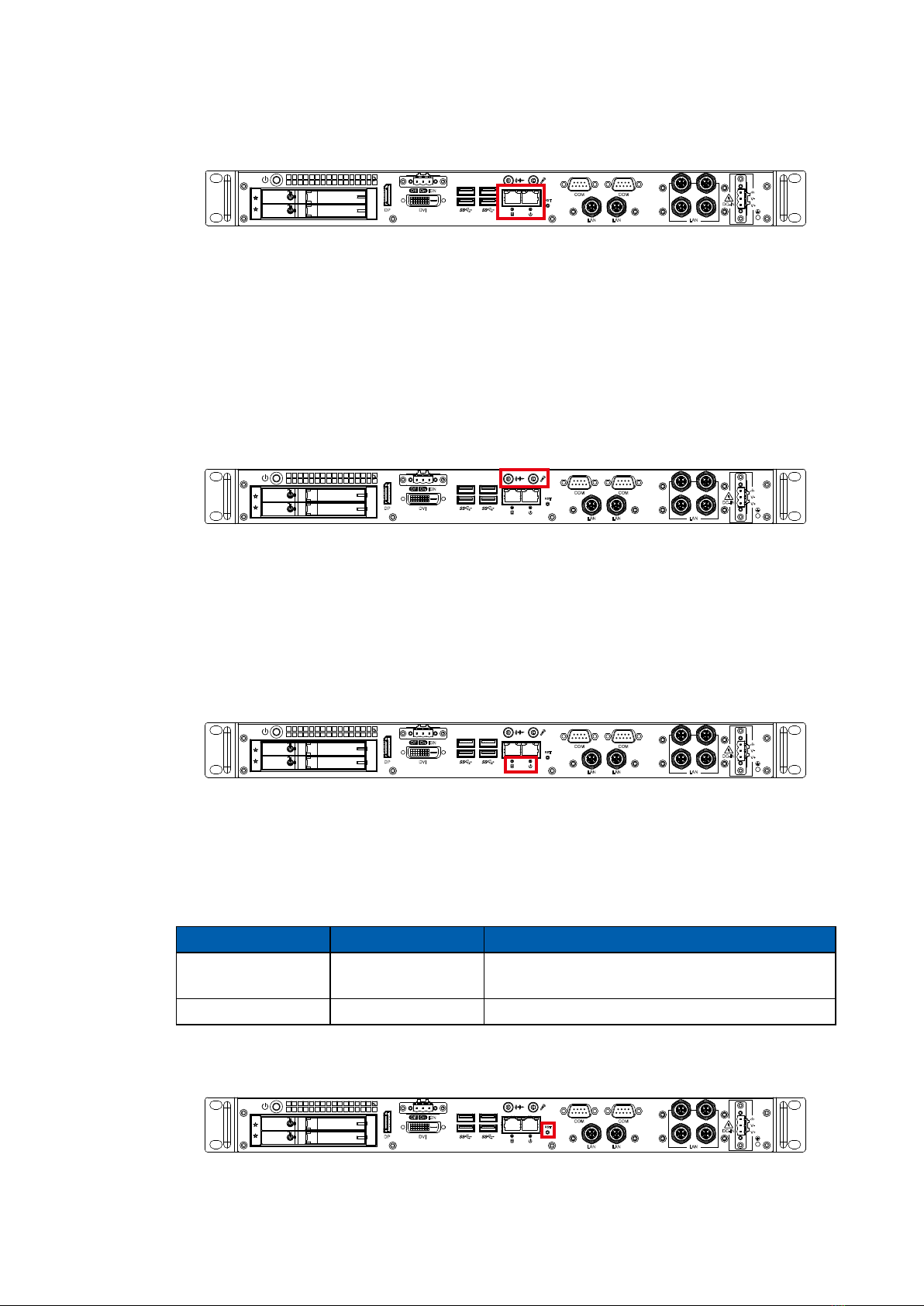

2.2.1.7 RJ45 Connector
There are two 8-pin RJ-45 jacks supporting 10/100/1000 Mbps Ethernet
connections in the front side of RMS-1000. LAN 1 is powered by Intel® I219-LM
Ethernet engine; LAN 2 is powered by Intel® I210-IT Ethernet engine. When both
LAN 1 and LAN 2 work in normal status, basic iAMT function is enabled. Using
suitable RJ-45 cable, you can connect RMS-1000 system to a computer or to any
other devices with Ethernet connection, for example, a hub or a switch. Moreover,
both LAN 1 and LAN 2 supports Wake on LAN and Pre-boot functions.
RST
DP
LAN LAN LAN
DVI 10 10
COM COM
DC-IN
Off |On IGN

13
©Vecow RMS-1000 User Manual GETTING TO KNOW YOUR RMS-1000
2.2.1.11 COM port connector
Serial port can be configured for RS-232, RS-422, or RS485 with auto flow
control communication. The default definition of is RS-232. If you want to
change to RS-422 or RS-485, you can nd the setting in BIOS.
RST
DP
LAN LAN LAN
DVI 10 10
COM COM
DC-IN
Off |On IGN
Pin NO. Denition Denition Denition Denition
1DCD TXD- TXD- DATA-
2RXD TXD+ TXD+ DATA+
3TXD RXD+ RXD+ ---------
4 DTR RXD- RXD- ---------
5 GND GND GND GND
6 DSR --------- RTS- ---------
7RTS --------- RTS+ ---------
8 CTS --------- CTS+ ---------
9RI --------- CTS- ---------
2.2.1.12 LAN port connector
There are 6 M12 jacks supporting 10/100/1000 Mbps Ethernet connections
in the front side of RSM-1000. All LANs is powered by Intel® I210-IT Ethernet
engine. When both work in normal status, basic iAMT function is enabled. Using
suitable M12 LAN cable, you can connect RMS-1000 system to a computer or
to any other devices with Ethernet connection, for example, a hub or a switch.
The pinouts of LAN are listed as follow :
Pin No. Denition Pin No. Denition
1LAN_MDI_0P 2LAN_MDI_0N
3LAN_MDI_1P 4 LAN_MDI_1N
5 LAN_MDI_3P 6 LAN_MDI_3N
7LAN_MDI_2N 8 LAN_MDI_2P
4 5
1 8
3 6
2 7
RST
DP
LAN LAN LAN
DVI 10 10
COM COM
DC-IN
Off |On IGN
2.2.1.13 Power Terminal Block
This system supports 9V to 48V DC power input by terminal block in the rear
side. In normal power operation, power LED lightens in solid green.
RST
DP
LAN LAN LAN
DVI 10 10
COM COM
DC-IN
Off |On IGN
Pin No. Denition
1V+
2V-
3Chassis GND
3
2
1
