Vecow ECS-9200 User manual

USER
Manual
USER
Manual
1.1.0 Edition 20170718
ECS-9200/9100 GTX950
Quad Core Intel®Xeon®/ Core™i7 Processor Embedded System
with Intel®C236 Chipset & NVIDIA GEFORCE®GTX 950 Graphics
High Performance, Independent Graphics, EN50155

ii
Version Date Page Description Remark
1.0 05/25/2017 All Ofcial Release
1.1 07/18/2017 22,76-77 Update
Record of Revision

iii
This manual is released by Vecow Co., Ltd. for reference purpose only. All
product offerings and specications are subject to change without prior notice.
It does not represent commitment of Vecow Co., Ltd. Vecow shall not be liable
for direct, indirect, special, incidental, or consequential damages arising out of
the use of the product or documentation or any infringements upon the rights of
third parties, which may result from such use.
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy, and if it is not installed and used
in accordance with the instruction manual, it may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
FCC
The products described in this manual complies with all applicable European
Union (CE) directives if it has a CE marking. For computer systems to
remain CE compliant, only CE-compliant parts may be used. Maintaining CE
compliance also requires proper cable and cabling techniques.
CE
This document contains proprietary information protected by copyright. No part
of this publication may be reproduced in any form or by any means, electric,
photocopying, recording or otherwise, without prior written authorization
by Vecow Co., Ltd. The rights of all the brand names, product names, and
trademarks belong to their respective owners.
Disclaimer
Declaration of Conformity
Copyright and Trademarks

iv
Part Number Description
ECS-9204MX-
GTX950
ECS-9200, NVIDIA GeForce® GTX 950, 6 GigE LAN w/4 X-coded
M12 PoE+, 2 SSD Tray, 8 USB 3.0, 4 COM, 1 M2DOM, 3 SIM,
32 Isolated DIO
ECS-9204M-
GTX950
ECS-9200, NVIDIA GeForce® GTX 950, 6 GigE LAN w/4 A-coded
M12 PoE+, 2 SSD Tray, 8 USB 3.0, 4 COM, 1 M2DOM, 3 SIM,
32 Isolated DIO
ECS-9240-
GTX950
ECS-9200, NVIDIA GeForce® GTX 950, 6 GigE LAN w/4 PoE+,
2 SSD Tray, 8 USB 3.0, 4 COM, 1 M2DOM, 3 SIM, 32 Isolated
DIO
ECS-9100-
GTX950
ECS-9100, NVIDIA GeForce® GTX 950, 2 GigE LAN, 2 SSD
Tray, 8 USB 3.0, 4 COM, 1 M2DOM, 3 SIM, 16 GPIO
Order Information

v
Part Number Description
E3-1275 v6 7th Generation Intel® Xeon® E3-1275 v6 Processor
(8M Cache, up to 4.20 GHz, 80W)
E3-1275 v5 6th Generation Intel® Xeon® E3-1275 v5 Processor
(8M Cache, up to 4.00 GHz, 80W)
E3-1225 v5 6th Generation Intel® Xeon® E3-1225 v5 Processor
(6M Cache, up to 3.70 GHz, 80W)
E3-1268L v5 6th Generation Intel® Xeon® E3-1268L v5 Processor
(8M Cache, up to 3.40 GHz, 35W)
i7-7700 7th Generation Intel® Core™ i7-7700 Processor
(8M Cache, up to 4.20 GHz, 65W)
i7-7700T 7th Generation Intel® Core™ i7-7700T Processor
(8M Cache, up to 3.80 GHz, 35W)
i7-6700 6th Generation Intel® Core™ i7-6700 Processor
(8M Cache, up to 4.00 GHz)
i7-6700TE 6th Generation Intel® Core™ i7-6700TE Processor
(8M Cache, up to 3.40 GHz)
DDR4 16G Certied DDR4 16GB 2133MHz RAM
DDR4 8G Certied DDR4 8GB 2133MHz RAM
DDR4 4G Certied DDR4 4GB 2133MHz RAM
PWA-280WB-WT 280W, 24V, 85V AC to 264V AC Power Adapter with 3-pin
Terminal Block (7.62mm pitch), Wide Temperature -30°C to
+70°C
PWA-160WB-WT 160W, 24V, 85V AC to 264V AC Power Adapter with 3-pin
Terminal Block (7.62mm pitch), Wide Temperature -30°C to
+70°C
VESA Mount VESA Mounting Kit
DIN-RAIL DIN Rail Kit
Rack Mount 2U Rackmount Kit
TMK2-20P-100 Terminal Block 20-pin to Terminal Block 20-pin Cable, 100cm
TMK2-20P-500 Terminal Block 20-pin to Terminal Block 20-pin Cable, 500cm
TMB-TMBK-20P Terminal Board with One 20-pin Terminal Block Connector
and DIN-Rail Mounting
3G Module Mini PCIe 3G/GPS Module with Antenna
4G Module Mini PCIe 4G/GPS Module with Antenna
WiFi & Bluetooth
Module Mini PCIe WiFi & Bluetooth Module with Antenna
Order Accessories

vi
Table of Contents
CHAPTER 1 GENERAL INTRODUCTION 1
1.1 Overview 1
1.2 Features 2
1.3 Product Specication 2
1.3.1 Specications of ECS-9204MX GTX950 2
1.3.2 Specications of ECS-9204M GTX950 4
1.3.3 Specications of ECS-9240 GTX950 7
1.3.4 Specications of ECS-9100 GTX950 9
1.4 Supported CPU List 11
1.5 Mechanical Dimension 12

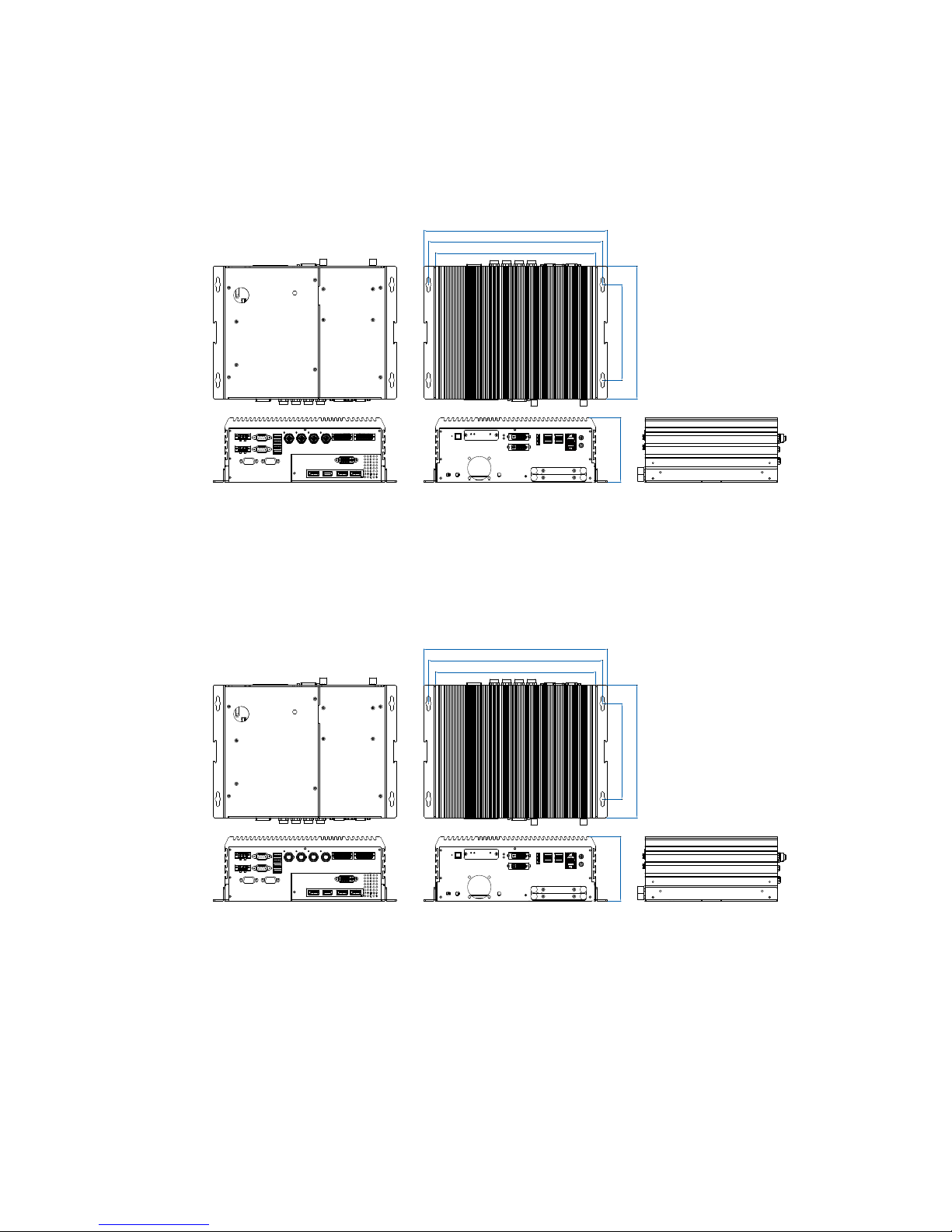

1.5.1 Dimensions of ECS-9204MX GTX950 12
1.5.2 Dimensions of ECS-9204M GTX950 12

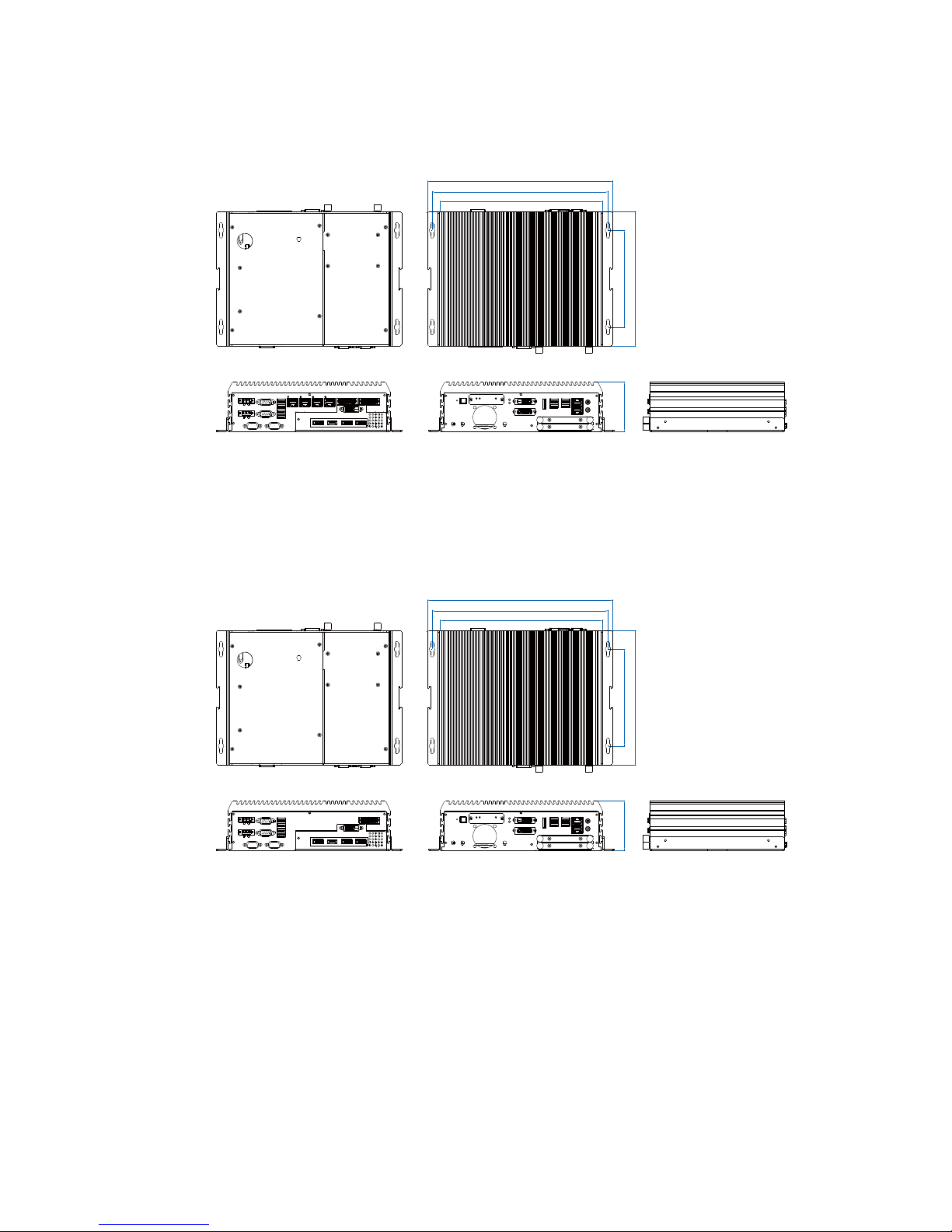

1.5.3 Dimensions of ECS-9240 GTX950 13
1.5.4 Dimensions of ECS-9100 GTX950 13
CHAPTER 2 GETTING TO KNOW YOUR
ECS-9200/9100 GTX950 14
2.1 Packing List 14
2.2 Front Panel I/O & Functions 15
2.3 Rear Panel I/O & Functions 23
2.4 Main Board Expansion Connectors 31
2.5 Main Board Jumper & Deep Switch Settings 43
2.6 Ignition Control 47
CHAPTER 3 SYSTEM SETUP 51
3.1 How to Open Your ECS-9200/9100 GTX950 51
3.2 Installing CPU 55
3.3 Installing DDR4 SO-DIMM Modules 58
3.4 Installing Mini PCIe Card 59

vii
3.5 Installing CFast Card 60
3.6 Installing SIM Card 61
3.7 Installing SSD/HDD 62
3.8 Installing M.2 64
3.9 Installing M2DOM 65
3.10 Mounting Your ECS-9200/9100 GTX950 67
CHAPTER 4 BIOS SETUP 73
4.1 Entering BIOS SETUP 73
4.2 Main 74
4.3 Advanced 74
4.4 Chipset 83
4.5 Security 88
4.6 Boot 89
4.7 Save & Exit 90
APPENDIX A : Isolated DIO Guide 91
APPENDIX B : Software Functions 94
APPENDIX C : RAID Installation Guide 98
APPENDIX D : Power Consumption 102
APPENDIX E : Supported Memory & Storage List 104
APPENDIX F : Graphics Performance 107

1
GENERAL INTRODUCTION
1
GENERAL INTRODUCTION
Vecow ECS-9200/9100 GTX950 series is an all-in-one integrated, rugged &
compact, workstation-grade embedded system. Flexible LGA1151 Socket supports
the workstation-grade Intel® Xeon®/Core™ i7 processor (Kaby Lake-S/Skylake-S)
running with advanced Intel® C236 chipset and dual-channel DDR4 2133MHz
ECC memory, up to 32GB capacity, NVIDIA GeForce® GTX 950 computing with
advanced NVIDIA Pascal™ architecture, ECS-9200/9100 GTX950 delivers up to
14% system performance improved than the one without an independent CUDA
graphics engine; Advanced Intel® HD Graphics 630 and independent NVIDIA
GeForce® GTX 950 graphics engine support up to DirectX 12.1, OpenGL 4.5 and
OpenCL 2.0 API, featuring multiple DVI-D, DVI-I, DisplayPort and HDMI display
interfaces support up to 7 independent HD displays and even 5 independent
Ultra HD 4K displays, ECS-9200/9100 GTX950 offers more than 460% improved
graphics performance than the one without an independent graphics engine;
; Multiple SATA III (6Gbps), USB 3.0 (5Gbps), PoE (1Gbps) LAN and wireless
connections make high-speed data conveying possible. Vecow ECS-9200/9100
GTX950 Series GPU Computing System brings you outstanding workstation-grade
system performance to conquer demanding workloads in mission-critical real-time
embedded computing applications.
All-in-one integrated features, -40°C to 60°C operating temperature, 6 GigE
LAN ports with 4 X-coded/A-coded M12 connection supporting IEEE 802.3at
(25.5W/48V) PoE+ without additional power connections, 3 external SIM sockets
for WiFi/3G/4G/LTE/GPRS/UMTS, 2 Front-access 2.5” SSD trays, 1 Front-access
CFast socket, 2 SATA III supports software RAID function, 8 external USB 3.0, 4
COM RS-232/422/485, M.2 expansion, M2DOM expansion, 3 Mini PCIe/mSATA
sockets, 32 Isolated DIO for smart circuit protection, 10V to 36V wide range power
input with 80V Surge protection, congurable ignition power control, smart remote
management features, remote power switch, EN50155 and EN50121 compliant,
Vecow ECS-9200/9100 GTX950 Series GPU Computing System features multiple
I/O, integrated functions and industrial-grade reliability for any real-time graphics
performance driven embedded applications. With leading workstation-grade system
performance, leading integrated features, smart manageability, outstanding mobile
availability, secure power protection and rugged reliability, Vecow ECS-9200/9100
GTX950 Series GPU Computing System is your great choices for Machine Vision,
Embedded Workstation, Vehicle Computing, Mobile DVR/NVR, Deep Learning,
Artificial Intelligence(AI) and any Industry 4.0/IIoT graphics performance-driven
real-time embedded computing applications.
1.1 Overview

2
GENERAL INTRODUCTION
©Vecow ECS-9200/9100 GTX950 User Manual
1.2 Features
• LGA 1151 Socket supports workstation-grade Intel® Xeon®/Core™ i7 Processor
(Kaby Lake-S) with C236 chipset
• NVIDIA GeForce® GTX 950 Graphics engine supports NVIDIA Pascal™ GPU
architecture
• Multiple DVI-D, DVI-I, DisplayPort and HDMI display interfaces, up to 7
independent HD displays
• 2 DDR4 2133MHz Memory, up to 32GB (ECC/Non-ECC)
• 6 Independent GigE LAN with 4 X-coded M12 IEEE 802.3at PoE+, iAMT 11.0
supported
• 3 SIM Card Socket for 3G/4G/LTE/WiFi/GPRS/UMTS
• Storage : 2 2.5" SSD Tray, 1 CFast, 1 M2DOM, 2 SATA III
• Expansion : 1 M.2 Socket, 3 Mini PCIe/mSATA
• 8 External USB 3.0, 4 COM
• 32 Isolated DIO, 3 Mini PCIe/mSATA
• 10V to 36V DC power input with 80V Surge Protection
• Configurable Ignition Power Control
• -40°C to 60°C Operating Temperature
1.3 Product Specication
1.3.1 Specications of ECS-9204MX GTX950
System
Processor Quad Core 7th/6th Generation Intel® Xeon®/Core™ i7/i5/i3
Processor (Kaby Lake-S/Skylake-S)
Chipset Intel® C236
BIOS AMI
SIO IT8786E
Memory • DDR4 2133MHz
• Up to 32GB
• 2 260-pin SO-DIMM Socket (ECC/Non-ECC)
I/O Interface
Serial 4 COM RS-232/422/485 w/auto flow control (ESD 8KV)
USB • 8 USB 3.0 (External)
• 1 USB 2.0 (Internal)
Isolated DIO 32 Isolated DIO (16 DI, 16 DO)
LED Power, HDD, Wireless, PoE
SIM Card 3 External SIM Card Socket

3
GENERAL INTRODUCTION
Expansion
Mini PCIe 3 Full-size for PCIe/USB/External SIM Card/mSATA
M.2 1 M.2 Socket (Key ID : M)
Graphics
Processor • Intel® HD Graphics 630/530
• NVIDIA® GeForce® GTX 950
Interface 8 Display interfaces :
• 1 DVI-D : Up to 1920 x1200 @ 60 Hz
• 2 DVI-I : Up to 1920 x 1200 @ 60Hz
• 1 DisplayPort : Up to 4096 x 2304 @ 60Hz
• 3 DisplayPort : Up to 5120 x 3200 @ 60Hz
• 1 HDMI : Up to 5120 × 3200 @ 60Hz
Storage
SATA 2 SATA III support software RAID 0, 1
mSATA 3 SATA III (Mini PCIe Type, 6Gbps)
M2DOM 1 PCIe 3.0 (8GT/s)
Storage Device • 1 CFast Socket, Push-in/Push-out Ejector
• 2 Front-access 2.5" SSD/HDD Tray
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219 GigE LAN supports iAMT 11.0
LAN 2 Intel® I210 GigE LAN
PoE (X-coded M12)
LAN 3 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 4 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 5 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 6 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
Power
Input Voltage 10V to 36V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block : On, Off, IGN
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Inneon SLB9665 supports TPM 2.0, LPC
interface

4
GENERAL INTRODUCTION
©Vecow ECS-9200/9100 GTX950 User Manual
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control
when CPU overheats.
Software Support
OS Windows 10, Windows 8.1, Windows 7, Linux
Mechanical
Dimensions (WxDxH) 260mm x 215mm x 104mm (10.2" x 8.5" x 4.1")
Weight 4.7 kg (10.36 lb)
Mounting • Wallmount by mounting bracket
• DIN Rail Mount (Optional)
• 2U Rackmount (Optional)
Environment
Operating Temperature 35W TDP CPU :
Xeon® E3-1268L v5, Core™ i7 : -40°C to 60°C (-40°F to
140°F)
65W TDP CPU :
Core™ i7 : -40°C to 55°C (-40°F to 131°F)
80W TDP CPU :
Xeon® E3-1275 v6, E3-1275 v5, E3-1225 v5 : -40°C to
45°C (-40°F to 113°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% at 60°C
Shock • IEC 60068-2-27
• SSD : 50G @ Wallmount, Half-sine, 11ms
Vibration • IEC 60068-2-64
• SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN50155, EN50121-3-2
1.3.2 Specications of ECS-9204M GTX950
System
Processor Quad Core 7th/6th Generation Intel® Xeon®/Core™ i7
Processor (Kaby Lake-S/Skylake-S)
Chipset Intel® C236
BIOS AMI
SIO IT8786E
Memory • DDR4 2133MHz
• Up to 32GB
• 2 260-pin SO-DIMM Socket (ECC/Non-ECC)

5
GENERAL INTRODUCTION
I/O Interface
Serial 4 COM RS-232/422/485 w/auto flow control (ESD 8KV)
USB • 8 USB 3.0 (External)
• 1 USB 2.0 (Internal)
Isolated DIO 32 Isolated DIO (16 DI, 16 DO)
LED Power, HDD, Wireless, PoE
SIM Card 3 External SIM Card Socket
Expansion
Mini PCIe 3 Full-size for PCIe/USB/External SIM Card/mSATA
M.2 1 M.2 Socket (Key ID : M)
Graphics
Processor • Intel® HD Graphics 630/530
• NVIDIA® GeForce® GTX 950
Interface 8 Display interfaces :
• 1 DVI-D : Up to 1920 x1200 @ 60 Hz
• 2 DVI-I : Up to 1920 x 1200 @ 60Hz
• 1 DisplayPort : Up to 4096 x 2304 @ 60Hz
• 3 DisplayPort : Up to 5120 x 3200 @ 60Hz
• 1 HDMI : Up to 5120 × 3200 @ 60Hz
Storage
SATA 2 SATA III support software RAID 0, 1
mSATA 3 SATA III (Mini PCIe Type, 6Gbps)
M2DOM 1 PCIe 3.0 (8GT/s)
Storage Device • 1 CFast Socket, Push-in/Push-out Ejector
• 2 Front-access 2.5" SSD/HDD Tray
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219 GigE LAN supports iAMT 11.0
LAN 2 Intel® I210 GigE LAN
PoE (A-coded M12)
LAN 3 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 4 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 5 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 6 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210

6
GENERAL INTRODUCTION
©Vecow ECS-9200/9100 GTX950 User Manual
Power
Input Voltage 10V to 36V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block : On, Off, IGN
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Inneon SLB9665 supports TPM 2.0, LPC
interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control
when CPU overheats.
Software Support
OS Windows 10, Windows 8.1, Windows 7, Linux
Mechanical
Dimensions (WxDxH) 260mm x 215mm x 104mm (10.2" x 8.5" x 4.1")
Weight 4.7 kg (10.36 lb)
Mounting • Wallmount by mounting bracket
• DIN Rail Mount (Optional)
• 2U Rackmount (Optional)
Environment
Operating Temperature 35W TDP CPU :
Xeon® E3-1268L v5, Core™ i7 : -40°C to 60°C (-40°F to
140°F)
65W TDP CPU :
Core™ i7 : -40°C to 55°C (-40°F to 131°F)
80W TDP CPU :
Xeon® E3-1275 v6, E3-1275 v5, E3-1225 v5 : -40°C to
45°C (-40°F to 113°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% at 60°C
Shock • IEC 60068-2-27
• SSD : 50G @ Wallmount, Half-sine, 11ms
Vibration • IEC 60068-2-64
• SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN50155, EN50121-3-2

7
GENERAL INTRODUCTION
1.3.3 Specications of ECS-9240 GTX950
System
Processor Quad Core 7th/6th Generation Intel® Xeon®/Core™ i7
Processor (Kaby Lake-S/Skylake-S)
Chipset Intel® C236
BIOS AMI
SIO IT8786E
Memory • DDR4 2133MHz
• Up to 32GB
• 2 260-pin SO-DIMM Socket (ECC/Non-ECC)
I/O Interface
Serial 4 COM RS-232/422/485 w/auto flow control (ESD 8KV)
USB • 8 USB 3.0 (External)
• 1 USB 2.0 (Internal)
Isolated DIO 32 Isolated DIO (16 DI, 16 DO)
LED Power, HDD, Wireless, PoE
SIM Card 3 External SIM Card Socket
Expansion
Mini PCIe 3 Full-size for PCIe/USB/External SIM Card/mSATA
M.2 1 M.2 Socket (Key ID : M)
Graphics
Processor • Intel® HD Graphics 630/530
• NVIDIA® GeForce® GTX 950
Interface 8 Display interfaces :
• 1 DVI-D : Up to 1920 x1200 @ 60 Hz
• 2 DVI-I : Up to 1920 x 1200 @ 60Hz
• 1 DisplayPort : Up to 4096 x 2304 @ 60Hz
• 3 DisplayPort : Up to 5120 x 3200 @ 60Hz
• 1 HDMI : Up to 5120 × 3200 @ 60Hz
Storage
SATA 2 SATA III support software RAID 0, 1
mSATA 3 SATA III (Mini PCIe Type, 6Gbps)
M2DOM 1 PCIe 3.0 (8GT/s)
Storage Device • 1 CFast Socket, Push-in/Push-out Ejector
• 2 Front-access 2.5" SSD/HDD Tray
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out

8
GENERAL INTRODUCTION
©Vecow ECS-9200/9100 GTX950 User Manual
Ethernet
LAN 1 Intel® I219 GigE LAN supports iAMT 11.0
LAN 2 Intel® I210 GigE LAN
PoE
LAN 3 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 4 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 5 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 6 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
Power
Input Voltage 10V to 36V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block : On, Off, IGN
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Inneon SLB9665 supports TPM 2.0, LPC
interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control
when CPU overheats.
Software Support
OS Windows 10, Windows 8.1, Windows 7, Linux
Mechanical
Dimensions (WxDxH) 260mm x 215mm x 79mm (10.2" x 8.5" x 3.1")
Weight 4.5 kg (9.92 lb)
Mounting • Wallmount by mounting bracket
• DIN Rail Mount (Optional)
• 2U Rackmount (Optional)
Environment
Operating Temperature 35W TDP CPU :
Xeon® E3-1268L v5, Core™ i7 : -40°C to 60°C (-40°F to
140°F)
65W TDP CPU :
Core™ i7 : -40°C to 55°C (-40°F to 131°F)
80W TDP CPU :
Xeon® E3-1275 v6, E3-1275 v5, E3-1225 v5 : -40°C to
45°C (-40°F to 113°F)

9
GENERAL INTRODUCTION
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% at 60°C
Shock • IEC 60068-2-27
• SSD : 50G @ Wallmount, Half-sine, 11ms
Vibration • IEC 60068-2-64
• SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN50155, EN50121-3-2
1.3.4 Specications of ECS-9100 GTX950
System
Processor Quad Core 7th/6th Generation Intel® Xeon®/Core™ i7
Processor (Kaby Lake-S/Skylake-S)
Chipset Intel® C236
BIOS AMI
SIO IT8786E
Memory • DDR4 2133MHz
• Up to 32GB
• 2 260-pin SO-DIMM Socket (ECC/Non-ECC)
I/O Interface
Serial 4 COM RS-232/422/485 w/auto flow control (ESD 8KV)
USB • 8 USB 3.0 (External)
• 1 USB 2.0 (Internal)
DIO 16 GPIO
LED Power, HDD, Wireless
SIM Card 3 External SIM Card Socket
Expansion
Mini PCIe 3 Full-size for PCIe/USB/External SIM Card/mSATA
M.2 1 M.2 Socket (Key ID : M)
Graphics
Processor • Intel® HD Graphics 630/530
• NVIDIA® GeForce® GTX 950
Interface 8 Display interfaces :
• 1 DVI-D : Up to 1920 x1200 @ 60 Hz
• 2 DVI-I : Up to 1920 x 1200 @ 60Hz
• 1 DisplayPort : Up to 4096 x 2304 @ 60Hz
• 3 DisplayPort : Up to 5120 x 3200 @ 60Hz
• 1 HDMI : Up to 5120 × 3200 @ 60Hz

10
GENERAL INTRODUCTION
©Vecow ECS-9200/9100 GTX950 User Manual
Storage
SATA 2 SATA III support software RAID 0, 1
mSATA 3 SATA III (Mini PCIe Type, 6Gbps)
M2DOM 1 PCIe 3.0 (8GT/s)
Storage Device • 1 CFast Socket, Push-in/Push-out Ejector
• 2 Front-access 2.5" SSD/HDD Tray
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219 GigE LAN supports iAMT 11.0
LAN 2 Intel® I210 GigE LAN
Power
Input Voltage 10V to 36V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block : On, Off, IGN
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Inneon SLB9665 supports TPM 2.0, LPC
interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control
when CPU overheats.
Software Support
OS Windows 10, Windows 8.1, Windows 7, Linux
Mechanical
Dimensions (WxDxH) 260mm x 215mm x 79mm (10.2" x 8.5" x 3.1")
Weight 4.5 kg (9.92 lb)
Mounting • Wallmount by mounting bracket
• DIN Rail Mount (Optional)
• 2U Rackmount (Optional)

11
GENERAL INTRODUCTION
Environment
Operating Temperature 35W TDP CPU :
Xeon® E3-1268L v5, Core™ i7 : -40°C to 60°C (-40°F to
140°F)
65W TDP CPU :
Core™ i7 : -40°C to 55°C (-40°F to 131°F)
80W TDP CPU :
Xeon® E3-1275 v6, E3-1275 v5, E3-1225 v5 : -40°C to
45°C (-40°F to 113°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% at 60°C
Shock • IEC 60068-2-27
• SSD : 50G @ Wallmount, Half-sine, 11ms
Vibration • IEC 60068-2-64
• SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN50155, EN50121-3-2
1.4 Supported CPU List
Processor No. TDP Cache Max. Frequency Embedded
Xeon® E3-1575M v5 45W 8M Up to 3.00 GHz
Xeon® E3-1545M v5 45W 8M Up to 2.90 GHz
Xeon® E3-1535M v5 45W 8M Up to 2.80 GHz
Xeon® E3-1515M v5 45W 8M Up to 2.80 GHz
Xeon® E3-1505M v5 45W 8M Up to 2.80 GHz Yes
Xeon® E3-1505L v5 25W 8M Up to 2.00 GHz
Core i7-6970HQ 45W 8M Up to 3.70 GHz
Core i7-6920HQ 45W 8M Up to 3.80 GHz
Core i7-6870HQ 45W 8M Up to 3.60 GHz
Core i7-6820HQ 45W 8M Up to 3.60 GHz
Core i7-6770HQ 45W 6M Up to 3.50 GHz
Core i7-6700HQ 45W 6M Up to 3.50 GHz
Core i7-6820EQ 45W 8M Up to 3.50 GHz Yes
Core i7-6822EQ 25W 8M Up to 2.80 GHz

12
GENERAL INTRODUCTION
©Vecow ECS-9200/9100 GTX950 User Manual
1.5 Mechanical Dimension
1.5.1 Dimensions of ECS-9204MX GTX950
155.0 (6.10”)
215.0 (8.46”)
260.0 (10.24”)
282.0 (11.10”)
297.0 (11.69”)
104.1 (4.10”)
Unit: mm (inch)
1.5.2 Dimensions of ECS-9204M GTX950
155.0 (6.10”)
215.0 (8.46”)
260.0 (10.24”)
282.0 (11.10”)
297.0 (11.69”)
104.1 (4.10”)
Unit: mm (inch)

13
GETTING TO KNOW YOUR ECS-9200/9100 GTX950
1.5.3 Dimensions of ECS-9240 GTX950
260.0 (10.24”)
282.0 (11.10”)
297.0 (11.69”)
155.0 (6.10”)
215.0 (8.46”)
79.1 (3.11”)
Unit: mm (inch)
1.5.4 Dimensions of ECS-9100 GTX950
260.0 (10.24”)
282.0 (11.10”)
297.0 (11.69”)
155.0 (6.10”)
215.0 (8.46”)
79.1 (3.11”)
Unit: mm (inch)
