Vecow VCM-1000 User manual

USER
Manual
USER
Manual
1.0.0 Edition 20230703
13th/12th Gen Intel®Core™ i9/i7/i5/i3 Compact Embedded System
6 GigE LAN w/4 PoE+, 12 USB, DC 24V, -25°C to 75°C Operation Temp.
VCM-1000

ii
©Vecow VCM-1000 User Manual
Version Date Page Description Remark
1.0 2023/07/03 All O󰀩cial Release
Record of Revision

iii
©Vecow VCM-1000 User Manual
This manual is released by Vecow Co., Ltd. for reference purpose only. All
product o󰀨erings and specications are subject to change without prior notice.
Vecow Co., Ltd. is under no legal commitment to the details of this document.
Vecow shall not be liable for direct, indirect, special, incidental, or consequential
damages arising out of the use of this document, the products, or any third party
infringements, which may result from such use.
Disclaimer
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy, and if it is not installed and used
in accordance with the instruction manual, it may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
FCC
The products described in this manual comply with all applicable European
Union (CE) directives if it has a CE marking. For computer systems to
remain CE compliant, only CE-compliant parts may be used. Maintaining CE
compliance also requires proper cable and cabling techniques.
CE
Declaration of Conformity
This document contains proprietary information protected by copyright. No part
of this publication may be reproduced in any form or by any means, electric,
photocopying, recording or otherwise, without prior written authorization
by Vecow Co., Ltd. The rights of all the brand names, product names, and
trademarks belong to their respective owners.
Copyright and Trademarks

iv
©Vecow VCM-1000 User Manual
Part Number Description
VCM-1000 VCM-1000, 2 GigE LAN, 2 COM, 4 USB 3.2, 1 SSD Bracket,
Fanless
VCM-1000F VCM-1000F, 2 GigE LAN, 2 COM, 4 USB 3.2, 1 SSD Bracket, Fan
VCM-1100F VCM-1100F, 6 GigE LAN w/4 PoE+, 2 COM, 8 USB 3.2, 28 Isolated
DIO, 2 SSD Bracket, Fan
Order Information

v
©Vecow VCM-1000 User Manual
CPU Cores GHz TDP (W) ECC RAM
Intel® Core™ i9-13900E 24 5.2 65
NA
Intel® Core™ i9-13900TE 24 5 35
Intel® Core™ i7-13700E 16 5.1 65
Intel® Core™ i7-13700TE 16 4.8 35
Intel® Core™ i5-13500E 14 4.6 65
Intel® Core™ i5-13500TE 14 4.5 35
Intel® Core™ i3-13100E 4 4.4 65
Intel® Core™ i3-13100TE 4 4.1 35
Intel® Core™ i9-12900E 16 5 65
Intel® Core™ i9-12900TE 16 4.8 35
Intel® Core™ i7-12700E 12 4.8 65
Intel® Core™ i7-12700TE 12 4.7 35
Intel® Core™ i5-12500E 6 4.5 65
Intel® Core™ i5-12500TE 6 4.3 35
Intel® Core™ i3-12100E 4 4.2 65
Intel® Core™ i3-12100TE 4 4 35
CPU List

vi
©Vecow VCM-1000 User Manual
Part Number Description
DDR5 32G Certied DDR5 32GB 4800MHz RAM
DDR5 16G Certied DDR5 16GB 4800MHz RAM
DDR5 8G Certied DDR5 8GB 4800MHz RAM
PWA-120W1 120W, 24V, 90V AC to 264V AC Power Adapter with 3-pin
Terminal Block
PWA-160W-WT 160W, 24V, 85V AC to 264V AC Power Adaptor with 3-pin
Terminal Block, Wide Temperature -30°C to +70°C
PWA-180W 180W, 24V, 90V AC to 264V AC Power Adapter with 3-pin
Terminal Block
VESA Mount VESA Mounting Kit
DIN-RAIL Kit DIN Rail Kit and VESA Mounting Kit
M.2 Storage
Module M.2 Key M Storage Module
4G Module 4G/GPS Module with Antenna
WiFi & Bluetooth WiFi & Bluetooth Module with Antenna
Optional Accessories

vii
©Vecow VCM-1000 User Manual
Table of Contents
CHAPTER 1 GENERAL INTRODUCTION 1
1.1 Overview 1
1.2 Features 2
1.3 Product Specication 3
1.3.1 Specications of VCM-1000 3
1.3.2 Specications of VCM-1000F 5
1.3.3 Specications of VCM-1100F 7
1.4 Supported CPU List 9
1.5 Mechanical Dimension 10
1.5.1 Dimensions of VCM-1000 10
1.5.2 Dimensions of VCM-1000F 10
1.5.3 Dimensions of VCM-1100F 11
CHAPTER 2 GETTING TO KNOW YOUR VCM-1000 12
2.1 Packing List 12
2.2 Front Panel I/O Functions 14
2.3 Main Board Expansion Connectors 29
2.4 Main Board Jumper Settings 38
2.5 Ignition Control 42
CHAPTER 3 SYSTEM SETUP 45
3.1 How to Open Your VCM-1000 45
3.2 Installing CPU 47
3.3 Installing DDR5 SO-DIMM Modules 53
3.4 Installing Mini PCIe Card 55
3.5 Installing SSD/HDD 57
3.6 Installing M.2 60
3.7 Installing Antenna Cable 66
3.8 Mount Your VCM-1000 68

viii
©Vecow VCM-1000 User Manual
CHAPTER 4 BIOS SETUP 70
4.1 BIOS Setup 70
4.2 Main Menu 71
4.3 Advanced Functions 72
4.4 Chipset Functions 78
4.5 Security Function 81
4.6 Boot Function 84
4.7 Save & Exit 84
APPENDIX A : Isolated DIO Guide 85
APPENDIX B : Software Functions 90
APPENDIX C : Power Consumption (VCM-1100) 94
APPENDIX D : Power Consumption (VCM-1000) 97
APPENDIX E : Supported Memory & Storage List 99

1
©Vecow VCM-1000 User Manual GENERAL INTRODUCTION
GENERAL INTRODUCTION
1.1 Overview
Vecow VCM-1000 Series is a high-performance embedded system powered
by a 24-core 13th/12th Gen Intel® Core™ i9/i7/i5/i3 processor. It supports up
to 65W TDP CPU, and DDR5 memory up to 64GB, delivering exceptional
performance and scalability.
To facilitate seamless connectivity and e󰀩cient communications, the VCM-1000
Series o󰀨ers a wide range of I/O interfaces, including 6 independent GigE LAN
ports with 4 IEEE 802.3at PoE+, 2 COM ports, and support for up to 12 USB 3.2
connections. Additionally, to meet the growing storage demands of advanced
IoT applications, the VCM-1000 Series is equipped with 2 2.5" SSD/HDD slots
and 1 M.2 Key M socket. This conguration provides a faster, smaller, and more
e󰀩cient solution for data-rich applications.
Vecow VCM-1000 is designed to help accelerate the deployment of modern
AIoT applications. It is compact, with a 2U half-rack design, supports software
ignition control, TPM 2.0, and allows for a wide range of operating temperatures
from -25°C to 75°C, making it ideal for demanding workloads such as digital
factories, public security, mobile robots, and any Edge AI applications.
1

2
©Vecow VCM-1000 User Manual GENERAL INTRODUCTION
1.2 Features
• 24-core 13th Gen Intel® Core™ i9/i7/i5/i3 Processor running with Intel® H610E PCH
• 2 DDR5 4800MHz SO-DIMM, up to 64GB Memory
• 6 Independent GigE LAN with 4 IEEE 802.3at PoE+
• 12 USB, 2 COM RS-232/422/485, 28 Isolated DIO
• WiFi/4G/3G/LTE/GPRS/UMTS, M.2 Key E, M.2 Key B
• Software Ignition Control, TPM 2.0, Intel® TCC
• Compact 2U half-rack design, -25°C to 75°C wide range operating temperature
• Optional VHub AIoT Solution Service supports OpenVINO based AI accelerator and
advanced Edge AI application

3
©Vecow VCM-1000 User Manual GENERAL INTRODUCTION
1.3 Product Specication
1.3.1 Specications of VCM-1000
System
Processor • Intel® 13th Generation Core™ i9/i7/i5/i3 Processor (Raptor Lake-S)
• Intel® 12th Generation Core™ i9/i7/i5/i3 Processor (Alder Lake-S)
Chipset Intel® H610E
BIOS AMI
SIO IT8786E
Memory
• 2 DDR5 4800MHz (Non-ECC)
• Up to 64GB
• 2 260-pin SO-DIMM Socket
I/O Interface
Serial 2 COM RS-232/422/485
USB 4 USB 3.2 (External), 4 USB 2.0 (External), 2 USB 2.0
(Internal)
LED Power, HDD, PoE, Wireless
SIM Card 1 SIM Card Socket (Internal)
Expansion
M.2 • 1 M.2 Key B Socket (2280/3052/3042, PCIe, SATA, USB 2)
• 1 M.2 Key E Socket (2230, PCIe)
Graphics
Graphics Processor Intel® UHD Graphics 770 driven by Intel® Xe Architecture
Interface • 1 VGA : Up to 1920 x 1200 @60Hz
• 1 DVI-D : Up to 1920 x 1200 @60Hz
Storage
SATA 1 SATA III (6Gbps)
M.2 1 M.2 Key M Socket (2280/22110, PCIe x2, SATA)
Storage Device 1 2.5" SSD/HDD Bracket (Internal)
Ethernet
LAN 1 Intel® I219LM GigE LAN
LAN 2 Intel® I210 GigE LAN
Power
Input Voltage 24V DC-in (±5%)
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode Software Ignition Control
Remote Switch 3-pin Terminal Block : On, O󰀨, IGN

4
©Vecow VCM-1000 User Manual GENERAL INTRODUCTION
Others
TPM Inneon SLB9670 supports TPM 2.0, SPI Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control
when CPU overheats.
Software Support
OS Windows 11, Windows 10, Linux
Mechanical
Dimension (W x L x H) 200mm x 200mm x 55mm (7.87" x 7.87" x 2.16")
Weight 2.5kg (5.51 lb)
Mounting
• Wallmount by mounting bracket
• VESA Mount (Optional)
• DIN Rail Mounting (Optional)
Environment
Operating Temperature • 35W CPU Fanless : -25°C to 60°C (-13°F to 140°F)
• 65W CPU Fanless : -25°C to 45°C (-13°F to 113°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% humidity, non-condensing
Relative Humidity 95% at 60°C
Shock • IEC 60068-2-27
• SSD : 50G @ wallmount, Half-sine, 11ms
Vibration • IEC 60068-2-64
• SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC

5
©Vecow VCM-1000 User Manual GENERAL INTRODUCTION
1.3.2 Specications of VCM-1000F
System
Processor • Intel® 13th Generation Core™ i9/i7/i5/i3 Processor (Raptor Lake-S)
• Intel® 12th Generation Core™ i9/i7/i5/i3 Processor (Alder Lake-S)
Chipset Intel® H610E
BIOS AMI
SIO IT8786E
Memory
• 2 DDR5 4800MHz (Non-ECC)
• Up to 64GB
• 2 260-pin SO-DIMM Socket
I/O Interface
Serial 2 COM RS-232/422/485
USB 4 USB 3.2 (External), 4 USB 2.0 (External), 2 USB 2.0
(Internal)
LED Power, HDD, PoE, Wireless
SIM Card 1 SIM Card Socket (Internal)
Expansion
M.2 • 1 M.2 Key B Socket (2280/3052/3042, PCIe, SATA, USB 2)
• 1 M.2 Key E Socket (2230, PCIe)
Graphics
Graphics Processor Intel® UHD Graphics 770 driven by Intel® Xe Architecture
Interface • 1 VGA : Up to 1920 x 1200 @60Hz
• 1 DVI-D : Up to 1920 x 1200 @60Hz
Storage
SATA 1 SATA III (6Gbps)
M.2 1 M.2 Key M Socket (2280/22110, PCIe x2, SATA)
Storage Device 1 2.5" SSD/HDD Bracket (Internal)
Ethernet
LAN 1 Intel® I219LM GigE LAN
LAN 2 Intel® I210 GigE LAN
Power
Input Voltage 24V DC-in (±5%)
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode Software Ignition Control
Remote Switch 3-pin Terminal Block : On, O󰀨, IGN

6
©Vecow VCM-1000 User Manual GENERAL INTRODUCTION
Others
TPM Inneon SLB9670 supports TPM 2.0, SPI Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control
when CPU overheats.
Software Support
OS Windows 11, Windows 10, Linux
Mechanical
Dimension (W x L x H) 200mm x 200mm x 55mm (7.87" x 7.87" x 2.16")
Weight 2.5kg (5.51 lb)
Mounting
• Wallmount by mounting bracket
• VESA Mount (Optional)
• DIN Rail Mounting (Optional)
Environment
Operating Temperature • 35W CPU with Fan : -25°C to 75°C (-13°F to 167°F)
• 65W CPU with Fan : -25°C to 60°C (-13°F to 140°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% humidity, non-condensing
Relative Humidity 95% at 75°C
Shock/ Vibration
• IEC 61373 : 2010
• Railway Applications : Rolling Stock Equipment, Shock
and Vibration Test
EMC CE, FCC

7
©Vecow VCM-1000 User Manual GENERAL INTRODUCTION
1.3.3 Specications of VCM-1100F
System
Processor • Intel® 13th Generation Core™ i9/i7/i5/i3 Processor (Raptor Lake-S)
• Intel® 12th Generation Core™ i9/i7/i5/i3 Processor (Alder Lake-S)
Chipset Intel® H610E
BIOS AMI
SIO IT8786E
Memory
• 2 DDR5 4800MHz (Non-ECC)
• Up to 64GB
• 2 260-pin SO-DIMM Socket
I/O Interface
Serial 2 COM RS-232/422/485
USB 8 USB 3.2 (External), 4 USB 2.0 (External), 2 USB 2.0
(Internal)
Isolated DIO 28 Isolated DIO : 24 DO, 4 DI
LED Power, HDD, PoE, Wireless
SIM Card 1 SIM Card Socket (Internal)
Expansion
M.2 • 1 M.2 Key B Socket (2280/3052/3042, PCIe, SATA, USB 2)
• 1 M.2 Key E Socket (2230, PCIe)
Graphics
Graphics Processor Intel® UHD Graphics 770 driven by Intel® Xe Architecture
Interface • 1 VGA : Up to 1920 x 1200 @60Hz
• 1 DVI-D : Up to 1920 x 1200 @60Hz
Storage
SATA 2 SATA III (6Gbps)
M.2 1 M.2 Key M Socket (2280/22110, PCIe x2, SATA)
Storage Device 2 2.5" SSD/HDD Bracket (Internal)
Ethernet
LAN 1 Intel® I219LM GigE LAN
LAN 2 Intel® I210 GigE LAN
Ethernet
LAN 3 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350
LAN 4 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350
LAN 5 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350
LAN 6 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350

8
©Vecow VCM-1000 User Manual GENERAL INTRODUCTION
Power
Input Voltage 24V DC-in (±5%)
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode Software Ignition Control
Remote Switch 3-pin Terminal Block : On, O󰀨, IGN
Others
TPM Inneon SLB9670 supports TPM 2.0, SPI Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control
when CPU overheats.
Software Support
OS Windows 11, Windows 10, Linux
Mechanical
Dimension (W x L x H) 200mm x 200mm x 67mm (7.87" x 7.87" x 2.63")
Weight 2.8kg (6.18 lb)
Mounting
• Wallmount by mounting bracket
• VESA Mount (Optional)
• DIN Rail Mounting (Optional)
Environment
Operating Temperature • 35W CPU with Fan : -25°C to 75°C (-13°F to 167°F)
• 65W CPU with Fan : -25°C to 60°C (-13°F to 140°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% humidity, non-condensing
Relative Humidity 95% at 75°C
Shock/ Vibration
• IEC 61373 : 2010
• Railway Applicatioans : Rolling Stock Equipment, Shock
and Vibration Test
EMC CE, FCC

9
©Vecow VCM-1000 User Manual GENERAL INTRODUCTION
1.4 Supported CPU List
CPU Cores GHz TDP (W) ECC RA M
Intel® Core™ i9-13900E 24 5.2 65
NA
Intel® Core™ i9-13900TE 24 5 35
Intel® Core™ i7-13700E 16 5.1 65
Intel® Core™ i7-13700TE 16 4.8 35
Intel® Core™ i5-13500E 14 4.6 65
Intel® Core™ i5-13500TE 14 4.5 35
Intel® Core™ i3-13100E 4 4.4 65
Intel® Core™ i3-13100TE 4 4.1 35
Intel® Core™ i9-12900E 16 5 65
Intel® Core™ i9-12900TE 16 4.8 35
Intel® Core™ i7-12700E 12 4.8 65
Intel® Core™ i7-12700TE 12 4.7 35
Intel® Core™ i5-12500E 6 4.5 65
Intel® Core™ i5-12500TE 6 4.3 35
Intel® Core™ i3-12100E 4 4.2 65
Intel® Core™ i3-12100TE 4 4 35

10
©Vecow VCM-1000 User Manual GENERAL INTRODUCTION
1.5 Mechanical Dimension
1.5.1 Dimensions of VCM-1000
1.5.2 Dimensions of VCM-1000F
65.0 (2.56”)
200.0 (7.87”)
228.6 (9.00”)
248.6 (9.79”)
200.0 (7.87”) 130.0 (5.12”)
55.0 (2.17”) 58.4 (2.30”)
65.0 (2.56”)
200.0 (7.87”)
228.6 (9.00”)
248.6 (9.79”)
180.0 (7.09”) 130.0 (5.12”)
55.0 (2.17”) 58.4 (2.30”)
Unit : mm (inch)
Unit : mm (inch)

11
©Vecow VCM-1000 User Manual GENERAL INTRODUCTION

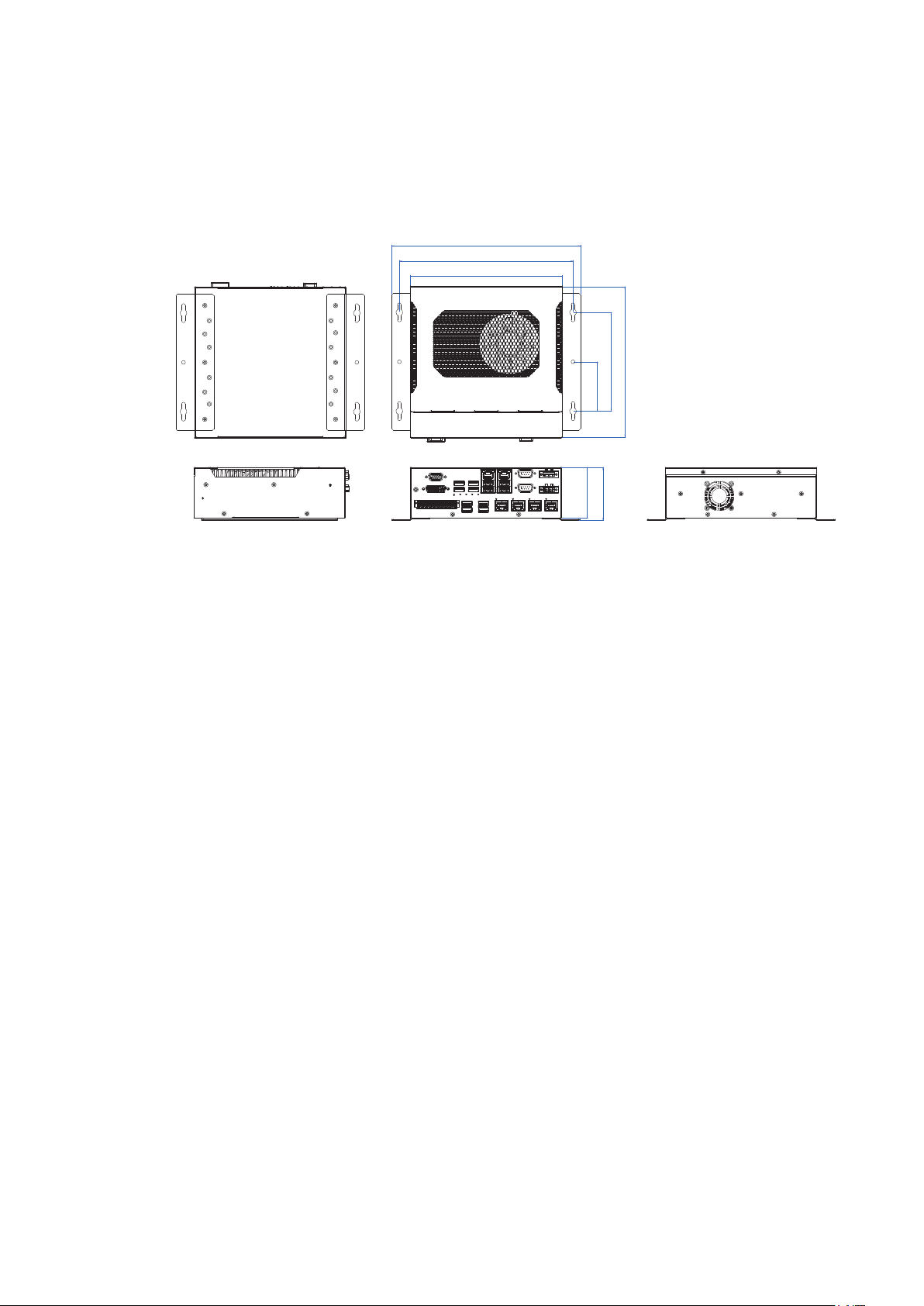

1.5.3 Dimensions of VCM-1100F
65.0 (2.56”)
200.0 (7.87”)
228.6 (9.00”)
248.6 (9.79”)
200.0 (7.78”) 130.0 (5.12”)
67.0 (2.64”) 70.4 (2.77”)
Unit : mm (inch)

12
©Vecow VCM-1000 User Manual GETTING TO KNOW YOUR VCM-1000
2
GETTING TO KNOW YOUR VCM-1000

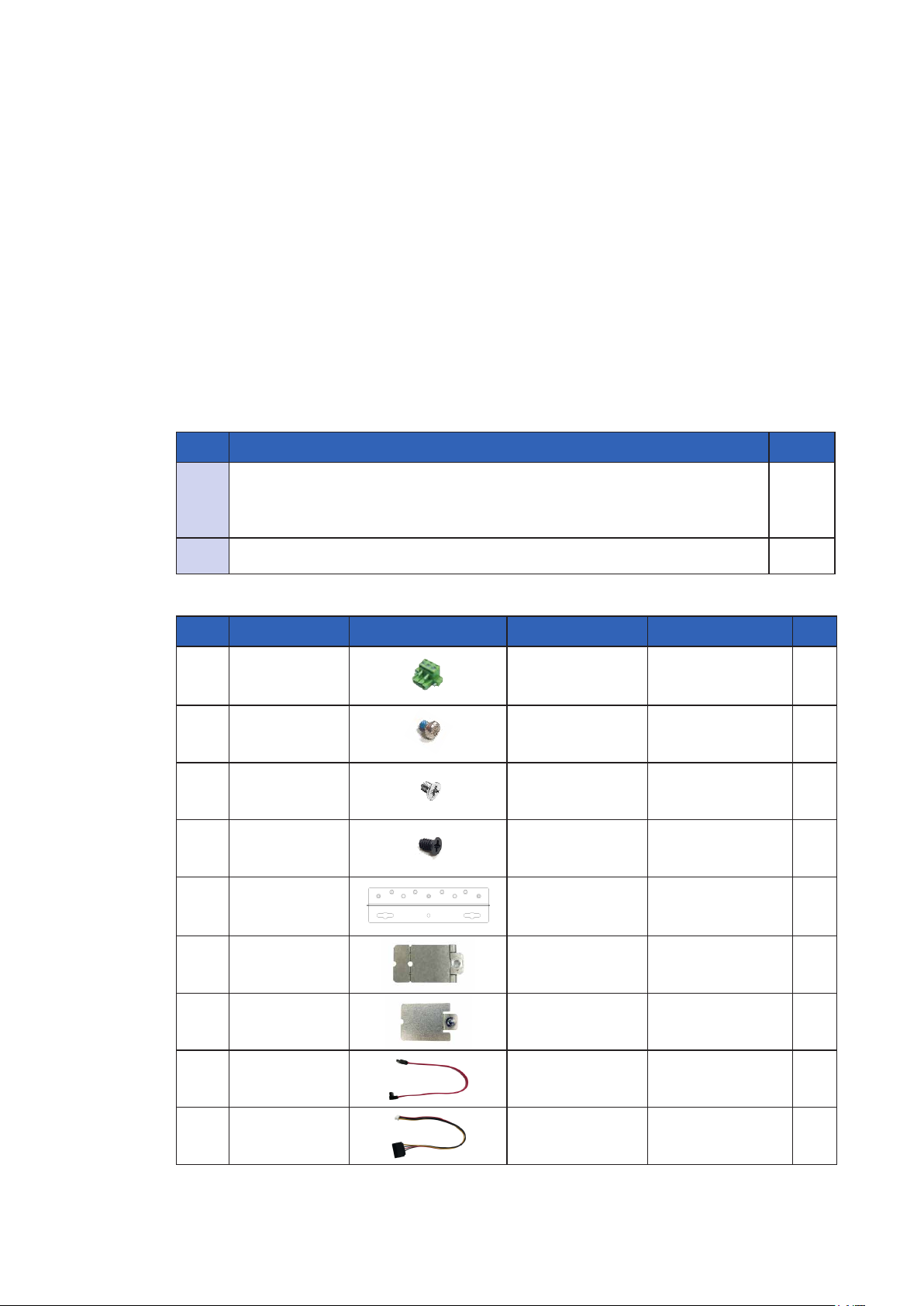

2.1 Packing List
2.1.1 VCM-1000/VCM-1000F
Item Description Qty
1
VCM-1000 Compact Embedded System (According to the
conguration of you order, the VCM-1000 series may contain SSD/
HDD and DDR5 SO-DIMM. Please verify these items if necessary.)
1
2VCM-1000/VCM-1000F accessory box, which contains: 1
Item Description Outlook Usage P/N Qty
1
Terminal
block 3-pin
(5.0mm)
DC-IN/IGN 51-2411R03-S1B 2
2PHILLPIS
M3x4L, Ni+Ny M.2 53-2426204-80B 5
3Flat M3x4L SSD/HDD 53-2466204-30B 8
4Flat #6-32x6L,
Black+Ny
Wall mount
bracket 53-I000350-311 8
5
Wall mount
bracket VCM-
1000
Wall Mount
bracket 62-03P1187-01A 2
6M.2 Key B 52
to 80
M.2 Key B 3052
extender bracket 62-03P0997-30A 1
7M.2 Key M 80
to 110
M.2 Key M 2280
extender bracket 62-03P1212-30A 1
8SATA Data
Cable
SATA Data
Cable 61-13I0707-0DA 1
9SATA Power
Cable
SATA Power
Cable 61-13P0415-08A 1
