Vecow SPC-5000 User manual

USER
Manual
USER
Manual
1.0.0 Edition 20191212
Intel® Core™ i7/i5/i3 SoC (Whiskey Lake) Ultra-Compact Fanless
Embedded System, 2 GigE LAN, 4 10G USB 3.1 Gen 2, 2 COM, 9V to 48V,
Ignition Control, -40°C to 85°C
SPC-5000

ii
©Vecow SPC-5000 User Manual
Version Date Page Description Remark
0.10 2019/12/05 All Preliminary Release
1.00 2019/12/12 All O󰀩cial Release
Record of Revision

iii
©Vecow SPC-5000 User Manual
This manual is released by Vecow Co., Ltd. for reference purpose only. All
product o󰀨erings and specications are subject to change without prior notice.
It does not represent commitment of Vecow Co., Ltd. Vecow shall not be liable
for direct, indirect, special, incidental, or consequential damages arising out of
the use of the product or documentation or any infringements upon the rights of
third parties, which may result from such use.
Disclaimer
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy, and if it is not installed and used
in accordance with the instruction manual, it may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
FCC
The products described in this manual complies with all applicable European
Union (CE) directives if it has a CE marking. For computer systems to
remain CE compliant, only CE-compliant parts may be used. Maintaining CE
compliance also requires proper cable and cabling techniques.
CE
Declaration of Conformity
This document contains proprietary information protected by copyright. No part
of this publication may be reproduced in any form or by any means, electric,
photocopying, recording or otherwise, without prior written authorization
by Vecow Co., Ltd. The rights of all the brand names, product names, and
trademarks belong to their respective owners.
Copyright and Trademarks

iv
©Vecow SPC-5000 User Manual
Part Number Description
SPC-5000-8665U SPC-5000, onboard Intel® Core™ i7-8665UE, 2 GigE LAN, 1 SSD,
4 USB 3.0 Gen2, 2 COM, 1 SIM
SPC-5000-8365U SPC-5000, onboard Intel® Core™ i5-8365UE, 2 GigE LAN, 1 SSD,
4 USB 3.0 Gen2, 2 COM, 1 SIM
SPC-5000-8145U SPC-5000, onboard Intel® Core™ i3-8145UE, 2 GigE LAN, 1 SSD,
4 USB 3.0 Gen2, 2 COM, 1 SIM
SPC-5000-4305U SPC-5000, onboard Intel® Celeron®4305UE, 4 GigE LAN, 1 SSD,
4 USB 3.0 Gen2, 2 COM, 1 SIM
SPC-5100-8665U SPC-5100, onboard Intel® Core™ i7-8665UE, 2 GigE LAN, 1 SSD,
4 USB 3.0 Gen2, 2 COM, 1 SIM
SPC-5100-8365U SPC-5100, onboard Intel® Core™ i5-8365UE, 2 GigE LAN, 1 SSD,
4 USB 3.0 Gen2, 2 COM, 1 SIM
SPC-5100-8145U SPC-5100, onboard Intel® Core™ i3-8145UE, 2 GigE LAN, 1 SSD,
4 USB 3.0 Gen2, 2 COM, 1 SIM
SPC-5100-4305U SPC-5100, onboard Intel® Celeron®4305UE, 4 GigE LAN, 1 SSD,
4 USB 3.0 Gen2, 2 COM, 1 SIM
SPC-5200-8665U SPC-5200, onboard Intel® Core™ i7-8665UE, 4 GigE LAN, 1 SSD,
4 USB 3.0 Gen2, 4 COM, 1 SIM, 2 PoE LAN, 16 Isolated DIO
SPC-5200-8365U SPC-5200, onboard Intel® Core™ i5-8365UE, 4 GigE LAN, 1 SSD,
4 USB 3.0 Gen2, 4 COM, 1 SIM, 2 PoE LAN, 16 Isolated DIO
SPC-5200-8145U SPC-5200, onboard Intel® Core™ i3-8145UE, 4 GigE LAN, 1 SSD,
4 USB 3.0 Gen2, 4 COM, 1 SIM, 2 PoE LAN, 16 Isolated DIO
SPC-5200-4305U SPC-5200, onboard Intel® Celeron®4305UE, 4 GigE LAN, 1 SSD,
4 USB 3.0 Gen2, 4 COM, 1 SIM, 2 PoE LAN, 16 Isolated DIO
Order Information

v
©Vecow SPC-5000 User Manual
Part Number Description
DDR4 32G Certied DDR4 32GB 2666MHz RAM
DDR4 16G Certied DDR4 16GB 2666/2400/2133 MHz RAM
DDR4 8G Certied DDR4 8GB 2666/2400/2133 MHz RAM
DDR4 4G Certied DDR4 4GB 2666/2400/2133 MHz RAM
PWA-120W 120W, 24V, 90V AC to 264V AC Power Adapter with 3-pin Terminal
Block
PWA-160W-WT 160W, 24V, 85V AC to 264V AC Power Adaptor with 3-pin Terminal
Block, Wide Temperature -30°C to +70°C
TMK2-20P-100 Terminal Block 20-pin to Terminal Block 20-pin Cable, 100cm
TMK2-20P-500 Terminal Block 20-pin to Terminal Block 20-pin Cable, 500cm
TMB-TMBK-20P Terminal Board with One 20-pin Terminal Block Connector and
DIN-Rail Mounting
VESA Mount VESA Mounting Kit for SPC-5200
DIN-RAIL DIN Rail and VESA Mounting Kit for SPC-5200
DIN-RAIL DIN Rail Kit for SPC-5000/5100
4G Module Mini PCIe 4G/GPS Module with Antenna
WiFi & Bluetooth
Module Intel® Mini PCIe WiFi & Bluetooth Module with Antenna
Optional Accessories

vi
©Vecow SPC-5000 User Manual
Table of Contents
CHAPTER 1 GENERAL INTRODUCTION 1
1.1 Overview 1
1.2 Features 2
1.3 Product Specication 3
1.3.1 Specications of SPC-5000 3
1.3.2 Specications of SPC-5100 5
1.3.3 Specications of SPC-5200 7
1.4 Supported CPU List 9
1.5 Mechanical Dimension 10
1.5.1 SPC-5000 Mechanical Drawing 10
1.5.2 SPC-5100 Mechanical Drawing 10
1.5.3 SPC-5200 Mechanical Drawing 10
CHAPTER 2 GETTING TO KNOW YOUR SPC-5000 11
2.1 Packing List 11
2.2 Front Panel I/O & Functions 13
2.3 Rear Panel I/O & Functions 22
2.4 Connector/Jumper Locations 24
2.5 Main Board Jumper Settings 41
2.6 Ignition Control 44
CHAPTER 3 SYSTEM SETUP 47
3.1 How to Open Your SPC-5000 47
3.2 Installing DDR4 SO-DIMM Module 50
3.3 Installing Mini PCIe Card 51
3.4 Installing Antenna Cable 52
3.5 Installing SIM Card 53
3.6 Installing SSD/HDD 54
3.7 Mounting Your SPC-5000 56

vii
©Vecow SPC-5000 User Manual
CHAPTER 4 BIOS SETUP 58
4.1 BIOS Setting 58
4.2 Main Manu 59
4.3 Advanced Functions 59
4.4 Chipset Functions 71
4.5 Security 76
4.6 Boot Functions 78
4.7 Save & Exit 79
APPENDIX A : Isolated DIO Guide 80
APPENDIX B : Software Functions 85
APPENDIX C : RAID Functions 88
APPENDIX D : Power Consumption 92
APPENDIX E : Supported Memory & Storage List 100

1
©Vecow SPC-5000 User Manual GENERAL INTRODUCTION
GENERAL INTRODUCTION
1.1 Overview
SPC-5000 is a series of rugged Ultra-compact Fanless Embedded Box PC.
Powered by Quad-core 8th generation Intel® Core™ i7/i5/i3 U-series processor
(Whiskey Lake), dual channel DDR4 2133MHz up to 32GB memory; Advanced
Intel® HD Graphics 620 graphics engine supports DirectX 12 and OpenGL 4.5
API, DVI-D and DisplayPort dual display serving up to ultra HD 4K resolution;
Multiple USB 3.1 Gen 2 (10G), Gen 3 PCIe (8GT/s), SATA III (6Gbps), USB
3.0 (5Gbps), GigE (1Gbps) LAN and flexible 5G/WiFi/4G/3G/LTE/GPRS/UMTS
wireless connections make high-speed data conveying possible. Vecow SPC-5000
Series Ultra-compact Fanless Embedded System delivers you more than 40%
power productivity greater than former 7th Generation Intel® Kaby Lake U-series
SoC processor with only 15W CPU power consumption.
Featuring 4 Independent GigE LAN with 2 PoE (Power over Ethernet), iAMT 12.0
supported, 2 COM RS-232/422/485, 4 external USB 3.1 Gen 2 support up
to 10Gbps data transfer, 2 Mini PCIe sockets for PCIe/USB/SIM socket/
Optional mSATA expansion, 1 SIM card socket for WiFi/4G/3G/LTE/GPRS/
UMTS, 1 SATA III, 9V to 48V wide range power input, ignition power control,
fanless -40°C to 85°C operating temperature, smart manageability features,
SPC-5000 is your smart and compact embedded engine. Optional SUMIT A,
B connection supports flexible expansion feature enabling 10GigE LAN/10G
SFP+/5G networks/SIM socket/PoE LAN/GigE LAN/1G Fiber/Video capture
functions possible. Vecow SPC-5000 Series Ultra-compact Fanless Embedded
System integrates outstanding power productivity, smart manageability, mobile
availability, leading power protection, versatile expandability, industrial-grade
reliability and all-in-one compact solution for low-profile performance driven
embedded applications.
Vecow SPC-5000 Series Ultra-compact Fanless Embedded System delivers
outstanding performance, compact integrated functions, smart manageability,
mobile availability, trusted reliability and flexible expansion features for your
Machine Vision, In-Vehicle Computing, Factory Automation, Intelligent Control
and any performance driven compact Industry 4.0 and AIoT applications.
1

2
©Vecow SPC-5000 User Manual GENERAL INTRODUCTION
1.2 Features
• 8th Generation Intel® Core™ i7/i5/i3 U-series processor (Whiskey Lake)
• DDR4 2133MHz memory, up to 32GB
• Fanless, -40°C to 85°C Operating Temperature
• Compact size, matches 1U one rack unit of height
• DisplayPort and DVI-D dual display supports up to 4K display
• 2 Independent GigE LAN, iAMT 12.0 supported (SPC-5000/5100)
• 4 Independent GigE LAN with 2 PoE (Power over Ethernet), iAMT 12.0
supported (SPC-5200)
• 4-port USB 3.1 Gen 2 supports up to 10Gbps data transfer
• SIM Socket for WiFi/4G/3G/LTE/GPRS/UMTS
• 2 COM RS-232/422/485 (SPC-5000/5100)
• 4 COM RS-232/422/485, 16 Isolated DIO (SPC-5200)
• 9V to 48V wide range DC Power Input
• Ignition Power Control, TPM 2.0
• Expansion : SATA III, mSATA and Mini PCIe
• Optional supports Full function SUMIT A, B expansion for multiple 10GigE LAN,
10GigE SFP+, 5G Network, SIM Socket, PoE LAN, Serial Port, GigE LAN, GigE
Fiber LAN, or Video Capture (SPC-5000/5100)
• Easy to customize for low-profile system applications
• One-stop SUMIT Expansion Design and Manufacturing Services
(SPC-5000/5100)

3
©Vecow SPC-5000 User Manual GENERAL INTRODUCTION
1.3 Product Specication
1.3.1 Specications of SPC-5000
System
Processor Quad Core Intel® Core™ i7/i5/i3 U-series Processor
(Whiskey Lake)
Chipset Intel® SoC (Cannon Lake)
BIOS AMI
SIO IT8786E
Memory 1 DDR4 2400MHz SO-DIMM, up to 32GB
Graphics
Graphics Processor Intel® UHD Graphics 620
Interface • DVI-D : Up to 1920 x 1200 @60Hz
• DisplayPort : Up to 4096 x 2304 @60Hz
Ethernet
LAN1 Intel® I219LM GigE LAN supports iAMT 12.0
LAN2 Intel® I210 GigE LAN
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Storage
SATA 1 SATA III (6Gbps)
mSATA 1 SATA III (Mini PCIe Type, 6Gbps)
Storage Device 1 2.5" SSD/HDD Bracket (Internal)
I/O Interface
Serial 2 COM RS-232/422/485 (ESD 8KV)
USB 4 USB 3.1 Gen 2 (External)
LED Power, HDD
SIM Card 1 SIM Card Socket (Internal)
Expansion
Mini PCIe
2 Mini PCIe Socket :
• 1 Full-Size for PCIe/USB/Internal SIM Card
• 1 Full-size for PCIe/USB/Optional mSATA
SUMIT A, B • 1 SUMIT Connector A (Internal, optional)
• 1 SUMIT Connector B (Internal, optional)

4
©Vecow SPC-5000 User Manual GENERAL INTRODUCTION
Power
Power Input 9V to 48V DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block : On, O󰀨, IGN
Others
TPM Optional Inneon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when
CPU overheats.
Software Support
Microsoft Windows 10
Linux Fedora 19, Ubuntu 10.04 LTS, or Linux Kernel 3.0 above
Mechanical
Dimension 150.4mm x 106.2mm x 44.0mm (5.92" x 4.18" x 1.73")
Weight 0.9 kg (1.98 lb)
Mounting • Wallmount by mounting bracket
• DIN Rail Mount (Optional)
Environment
Operating Temperature -40°C to 70°C (-40°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% at 70°C
Shock • IEC 60068-2-27
• SSD : 50G @wallmount, Half-sine, 11ms
Vibration • IEC 60068-2-64
• SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN50155, EN50121-3-2

5
©Vecow SPC-5000 User Manual GENERAL INTRODUCTION
1.3.2 Specications of SPC-5100
System
Processor Quad Core Intel® Core™ i7/i5/i3 U-series Processor
(Whiskey Lake)
Chipset Intel® SoC (Cannon Lake)
BIOS AMI
SIO IT8786E
Memory 1 DDR4 2400MHz SO-DIMM, up to 32GB
Graphics
Graphics Processor Intel® UHD Graphics 620
Interface • DVI-D : Up to 1920 x 1200 @60Hz
• DisplayPort : Up to 4096 x 2304 @60Hz
Ethernet
LAN1 Intel® I219LM GigE LAN supports iAMT 12.0
LAN2 Intel® I210 GigE LAN
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Storage
SATA 1 SATA III (6Gbps)
mSATA 1 SATA III (Mini PCIe Type, 6Gbps)
Storage Device 1 2.5" SSD/HDD Bracket (Internal)
I/O Interface
Serial 2 COM RS-232/422/485 (ESD 8KV)
USB 4 USB 3.1 Gen 2 (External)
LED Power, HDD
SIM Card 1 SIM Card Socket (Internal)
Expansion
Mini PCIe
2 Mini PCIe Socket :
• 1 Full-Size for PCIe/USB/Internal SIM Card
• 1 Full-size for PCIe/USB/Optional mSATA
SUMIT A, B • 1 SUMIT Connector A (Internal, optional)
• 1 SUMIT Connector B (Internal, optional)
Power
Power Input 9V to 48V DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block : On, O󰀨, IGN

6
©Vecow SPC-5000 User Manual GENERAL INTRODUCTION
Others
TPM Optional Inneon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when
CPU overheats.
Software Support
Microsoft Windows 10
Linux Fedora 19, Ubuntu 10.04 LTS, or Linux Kernel 3.0 above
Mechanical
Dimension 150.4mm x 106.2mm x 62.1mm (5.92" x 4.18" x 2.44")
Weight 1.3 kg (2.87 lb)
Mounting • Wallmount by mounting bracket
• DIN Rail Mount (Optional)
Environment
Operating Temperature -40°C to 85°C (-40°F to 185°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% at 85°C
Shock • IEC 60068-2-27
• SSD : 50G @wallmount, Half-sine, 11ms
Vibration • IEC 60068-2-64
• SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN50155, EN50121-3-2

7
©Vecow SPC-5000 User Manual GENERAL INTRODUCTION
1.3.3 Specications of SPC-5200
System
Processor Quad Core Intel® Core™ i7/i5/i3 U-series Processor
(Whiskey Lake)
Chipset Intel® SoC (Cannon Lake)
BIOS AMI
SIO IT8786E
Memory 1 DDR4 2400MHz SO-DIMM, up to 32GB
Graphics
Graphics Processor Intel® UHD Graphics 620
Interface • DVI-D : Up to 1920 x 1200 @60Hz
• DisplayPort : Up to 4096 x 2304 @60Hz
Ethernet
LAN1 Intel® I219LM GigE LAN supports iAMT 12.0
LAN2 Intel® I210 GigE LAN
PoE
LAN3 GigE IEEE 802.3af Class 3 PoE by Intel®I210
LAN4 GigE IEEE 802.3af Class 3 PoE by Intel®I210
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Storage
SATA 1 SATA III (6Gbps)
mSATA 1 SATA III (Mini PCIe Type, 6Gbps)
Storage Device 1 2.5" SSD/HDD Bracket (Internal)
I/O Interface
Serial 4 COM RS-232/422/485 (ESD 8KV)
USB 4 USB 3.1 Gen 2 (External)
Isolated DIO 16 Isolated DIO : 8 DI, 8 DO
LED Power, HDD, PoE
SIM Card 1 SIM Card Socket (Internal)
Expansion
Mini PCIe
2 Mini PCIe Socket :
• 1 Full-Size for PCIe/USB/Internal SIM Card
• 1 Full-size for PCIe/USB/Optional mSATA

8
©Vecow SPC-5000 User Manual GENERAL INTRODUCTION
Power
Power Input 9V to 48V DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block : On, O󰀨, IGN
Others
TPM Optional Inneon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when
CPU overheats.
Software Support
Microsoft Windows 10
Linux Fedora 19, Ubuntu 10.04 LTS, or Linux Kernel 3.0 above
Mechanical
Dimension 227.4mm x 106.2mm x 44.0mm (8.95" x 4.18" x 1.73")
Weight 1 kg (2.18 lb)
Mounting
• Wallmount by mounting bracket
• DIN Rail and VESA Mount (Optional)
• VESA Mount (Optional)
Environment
Operating Temperature -40°C to 70°C (-40°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% at 70°C
Shock • IEC 60068-2-27
• SSD : 50G @wallmount, Half-sine, 11ms
Vibration • IEC 60068-2-64
• SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN50155, EN50121-3-2

9
©Vecow SPC-5000 User Manual GENERAL INTRODUCTION
1.4 Supported CPU List
Processor No. Cores TDP Cache Max. Frequency ECC Memory
Intel® Core™ i7-8665UE 4 15W 8M Up to 4.4GHz N
Intel® Core™ i5-8365UE 4 15W 6M Up to 4.1GHz N
Intel® Core™ i3-8145UE 2 15W 4M Up to 3.9GHz N
Intel® Celeron 4305UE 2 15W 2M Up to 2.0GHz N

10
©Vecow SPC-5000 User Manual GENERAL INTRODUCTION

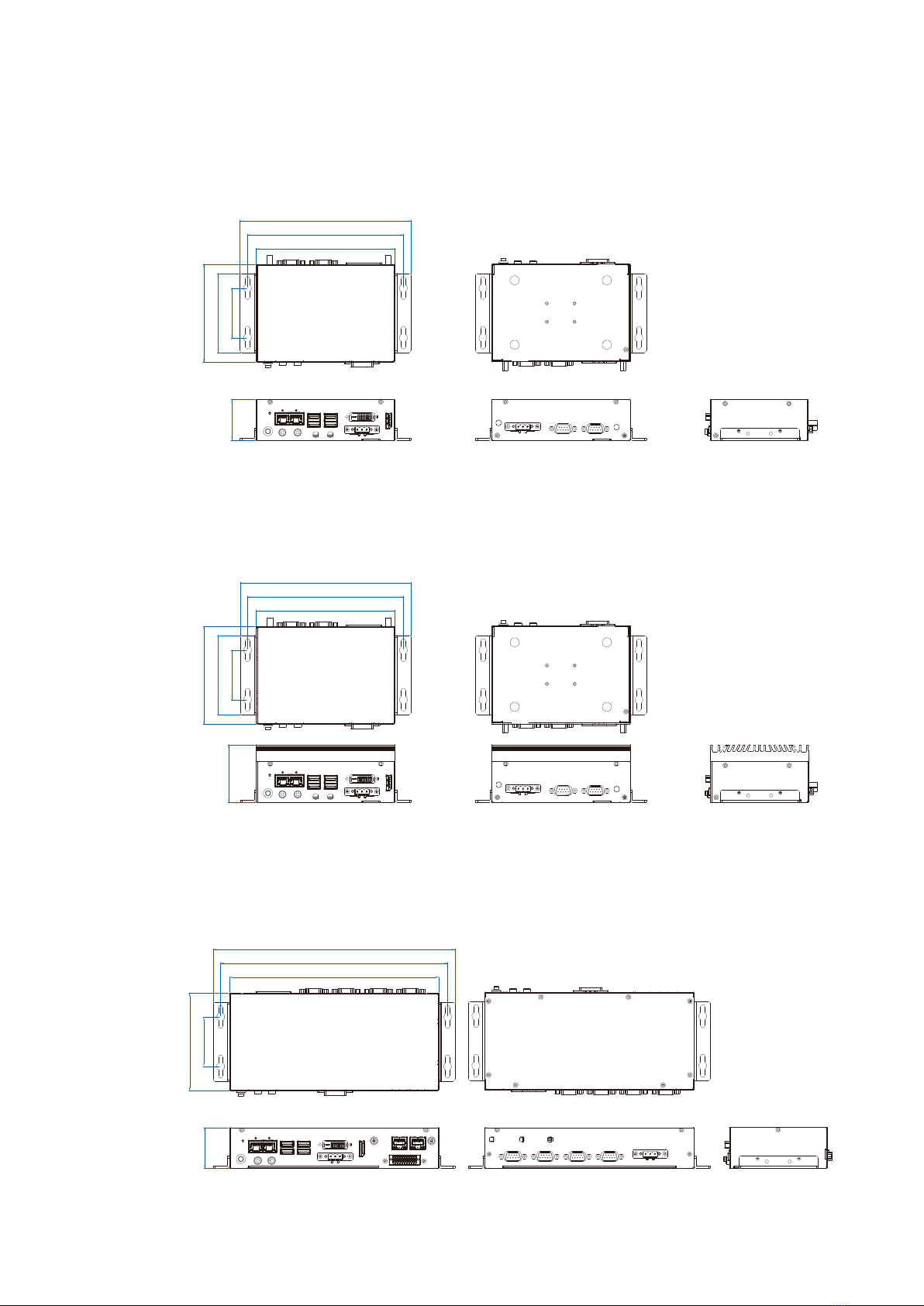

1.5 Mechanical Dimension
1.5.1 SPC-5000 Mechanical Drawing
1.5.2 SPC-5100 Mechanical Drawing
169.1 (6.66”)
185.4 (7.30”)
150.4 (5.92”)
106.2 (4.18”)
85.8 (3.38”) 53.8 (2.12”)
62.1 (2.45”)
Unit : mm (inch)
1.5.3 SPC-5200 Mechanical Drawing
106.2 (4.18)
53.8 (2.12)
246.1 (9.69)
262.4 (10.33)
44.0 (1.73)
227.4 (8.95)
Unit : mm (inch)
169.1 (6.66”)
185.4 (7.30”)
150.4 (5.92”)
106.2 (4.18”)
85.8 (3.38”) 53.8 (2.12”)
44.0 (1.73”)
Unit : mm (inch)

11
©Vecow SPC-5000 User Manual GETTING TO KNOW YOUR SPC-5000
2
GETTING TO KNOW YOUR SPC-5000
2.1 Packing List
2.1.1 SPC-5000 & SPC-5100 Packing List

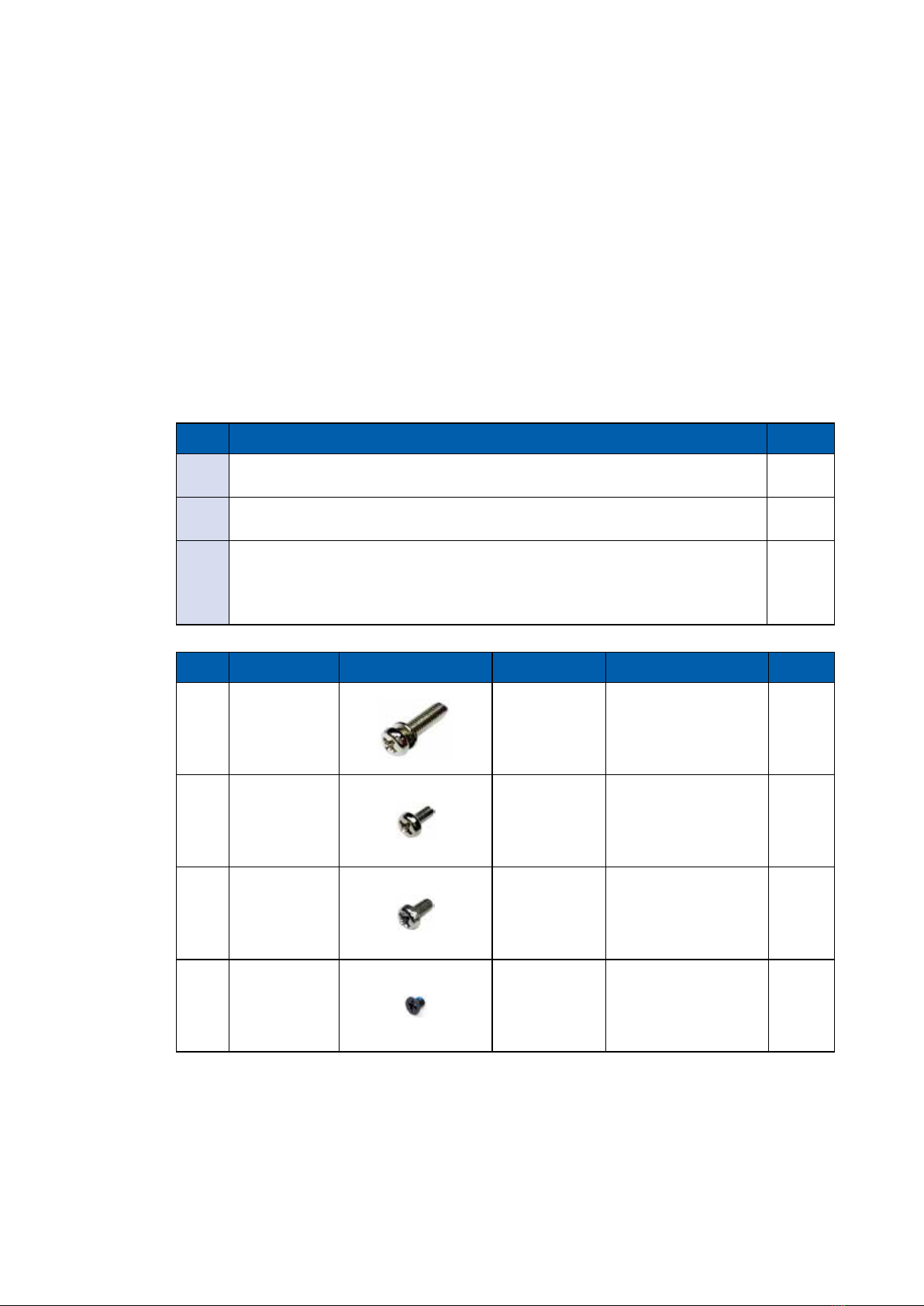

Item Description Qty
1SPC-5000/5100/Embedded System 1
2Driver/User Manual DVD 1
3
• Wall-mounting bracket (SET)
• Terminal block plug pitch 5.0mm 3-pin
• Foot Pad
1
2
4
Item Description Outlook Usage P/N Qty
1
PHILLPIS
M4x16L with
washer, Ni
Mount 53-24D6416-30B 4
2PHILLPIS
M2.5x6L, Ni
Mini PCIe
slot 53-2426906-30B 2
3PHILLPIS
M3*6L Mount 53-2426206-80B 4
4M3x4L SSD/HDD 53-2470000-218 4

12
©Vecow SPC-5000 User Manual GETTING TO KNOW YOUR SPC-5000
2.1.2 SPC-5200 Packing List
Item Description Qty
1SPC-5200 Embedded System 1
2Driver/User Manual DVD 1
3
• Wall-mounting bracket (SET)
• Terminal block plug pitch 5.0mm 3-pin
• Foot Pad
1
2
4
Item Description Outlook Usage P/N Qty
1
PHILLPIS
M4x16L with
washer, Ni
Mount 53-24D6416-30B 4
2PHILLPIS
M2.5x6L, Ni
Mini PCIe
slot 53-2426906-30B 2
3PHILLPIS
M3*6L Mount 53-2426206-80B 4
4M3x4L SSD/HDD 53-2470000-218 4

13
©Vecow SPC-5000 User Manual GETTING TO KNOW YOUR SPC-5000
2.2 Front Panel I/O & Functions
2.2.1 SPC-5000/5100 Front I/O & Functions
In Vecow's SPC-5000/5100 series family, all I/O connectors are located on the
front panel. Most of the general connections to the computer device, such as
audio, USB3.1, DVI-D, LAN Jack, and DisplayPort, are placed on the front panel.
2.2.1.1 Reset Tact Switch
It is a hardware reset switch. Use this switch to reset the system without power o󰀨
the system. Press the Reset Switch for a few seconds, then reset will be enabled.
DVI DP
IGN On | Off
LAN LAN
2.2.1.2 Power Button
The power button is a non-latched switch. In case of system halts, you can press
and hold the power button for 4 seconds to compulsorily shut down the system.
Please note that a 4 seconds interval is kept by the system between two on/off
operations (i.e. once turning o󰀨 the system, you shall wait for 4 seconds to initiate
another power-on operation).
DVI DP
IGN On | Off
LAN LAN
