USER’S MANUAL
Руководство по эксплуатации
AIR PURIFIER VECTRA VHP22 CAMELOT
Очиститель воздуха VHP22 CAMELOT
THANK YOU FOR CHOOSING THIS VECTRA PRODUCT.
BEFORE USING IT, PLEASE READ THIS INSTRUCTION MANUAL
Благодарим Вас за выбор очистителя VECTRA.
Перед его применением прочитайте, пожалуйста, эту инструкцию.

3
CONTENTS
1. Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2. Function Illustration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3. Main Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4. Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
5. Technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
5.1 What is it the technology of photo catalyst oxidation
and its advantages? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
5.2 Plasma Technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
5.3 Anion generator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
6. Illustration of air cleaning procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
7. Operation Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
8. Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
9. Trouble shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

4
When using any electrically powered product, basic safety precautions
should always be followed, including the following:
PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THE
PRODUCT.
1. Do not optionally disassemble the unit, or insert the metal sticks into the
unit, which may lead to the hazard of electrical shock.
2. Do not place the unit on the surface or cover of the audio/video or refrig
eratory, etc.
3. Reserve some room in front of and do not block the wind door while using,
meanwhile keep the metal objects away from the unit.
4. Stop using the unit while using the mosquitorepellent incense or mosqui
to pesticide.
5. The unit is attached with automatic safety protection switch, and it can
automatically switch off the power while the back cover is opened, which
make the short circuit and the high voltage impossible.
6. Do not use the unit under conditions of high temperature or high humidity
or flammable gas or liquid.
7. Set in "high speed" to clean room air rapidly; while used at night, set the
speed to “L” to keep the air fresh and clean.
8. Do not allow children to play it as a toy; if long time no use, pls disconnect
the adaptor plug.
9. If UV light tube or adaptor is broken, you must use professional parts or
buy the special matched parts from the original manufacturers or mainte
nance office, and replace them by the professionals.
Important Safety Instructions
WARNING : To reduce the risk of fire, electrical
shock and injury to persons and property:
1. Important Safety Instructions

5

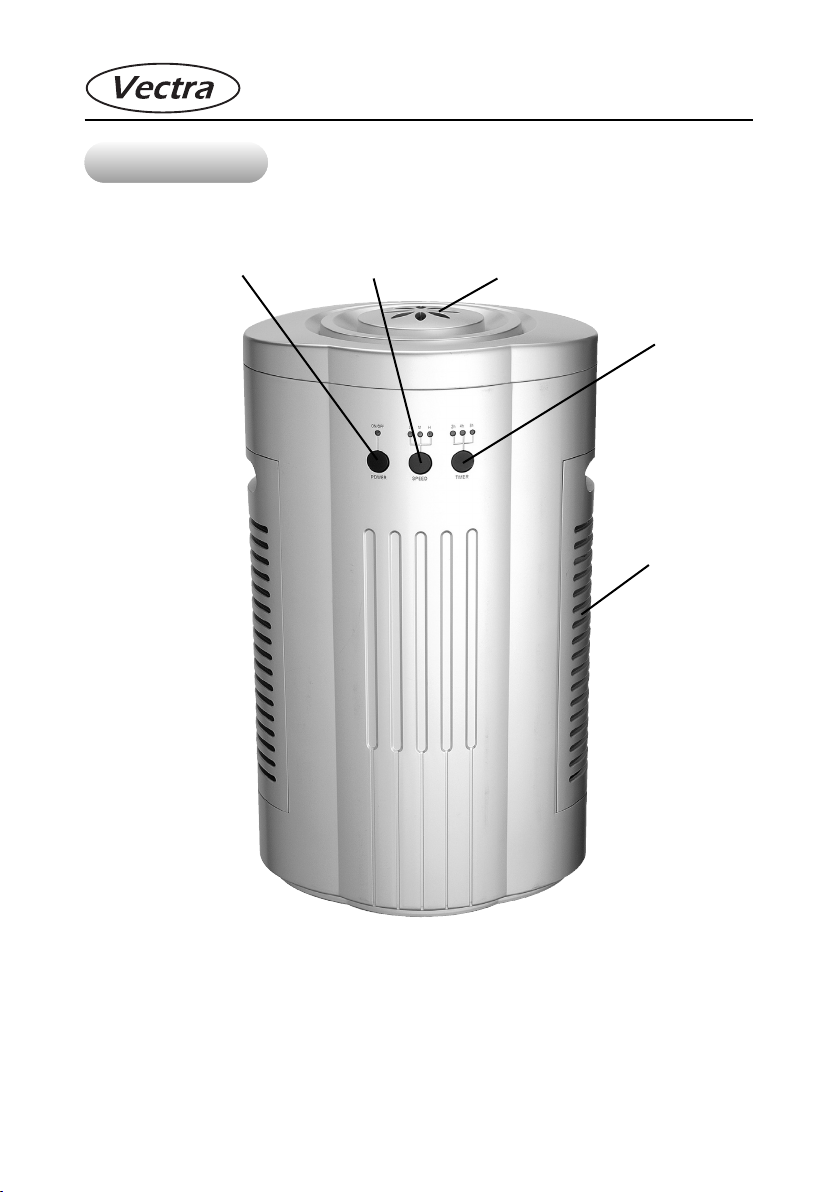

Function Illustration
On/Off
Air outlet/
Anion outlet
Speed
Air Inlet
Timer
2. Function Illustration

6
VECTRA VHP22 CAMELOT is a kind of new air purifier, which integrates high
frequency plasma technology and highdensity negativeions purifying effect,
which can nearly oxidate or disassemble or kill all the hazardous contaminat
ed substance in the air, and reduce indoors air contamination, even improve
air quality and people’s immunity. Therefore, it can be widely used in your bed
room, guest room, hospital ward, office room, laboratory and computer room,
through which you can freely enjoy the wonderful fresh air from the nature.
TiO2photocatalyst works under UV light to control VOC (Volatile Organic
Compounds) including formaldehyde, benzene and so on.
1. Working environment: Temperature: 0°C ~+40°C, humidity: <95%RH;
2. Dimension: 392x236x182 mm;
3. Power supply: 12V DC;
4. Consumed power: 14W;
5. Negative ion: >3.0x106ions/cm3;
6. Effective area: <25m2;
7. Life time of UV light: >3000h (concerned with the switch ON
or OFF frequency);
8. Life time of fan motor: >50000h;
9. Formaldehyde extinguishing rate: 65%.
5.1 What is it the technology of photo catalyst oxidation and its
advantages?
The technology of photo catalyst oxidation is the "green" (ecologically
clean) technology of the organic components elimination from the air and
aqueous flows.
Photo catalyst is the basis of this technology, chemical constituent, which
becomes highly reactive, when it undergoes the action of ultraviolet radiation
with different wavelengths.
Main Feature
3. Main Feature
4. Technical data
5. Technology

7
Titanium oxide is the most effective and economical component at the
same time.
5.2 Plasma Technology
Plasma filter is capable to remove not only the smallest solid particles, but
also smells. The cleaning process occurs in 2 stages. At the first stage the
cleaning plate attracts the positively charged particles in air, after which the
electrically active zone of the filter of air purifier due to the electrical discharge
absorbs and splits particles. Thus, smells from the domestic animals, ciga
rettes, trash and the others are destroyed.
5.3 Anion generator
Anion generator fills the room by negatively charged particles, which ben
eficially influence on the human organism.
1,2 billion anions are generated in one second, which acts on the particles
of dust, being contained in air, as "nailing" them to the floor.
Air saturated by anions supports the natural atmosphere optimum for the
people and similar to pure forest air. The consequences of electromagnetic
radiation are eliminated. The presence of anions in air prevents the propaga
tion of infection.

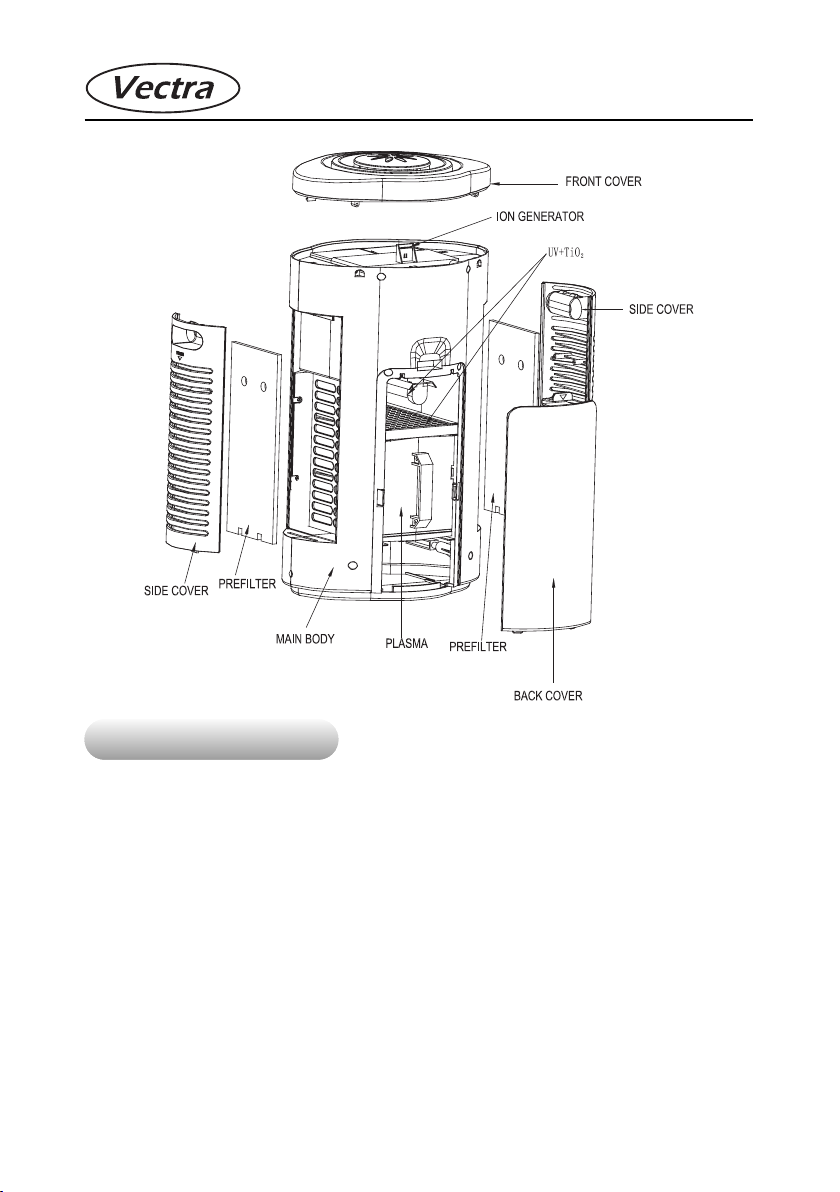

1. Fan motor: lead in the wind to create convection.
2. UV lamp: provide 254nm UV light source.
3. TiO2 photocatalyst: to dispel VOC(Volatile Organic Compounds) .
4. Plasma generator: dispel VOC, peculiar smell and deleterious germina.
5. Prefilter arrests large contaminating particles.
Illustration of air cleaning procedure
6. Illustration of air cleaning procedure

8
1. Take out the matched adaptor, and insert the DC plug into the the power
socket in the unit, then put the adaptor’s plug into AC power which is the
same input voltage as the adaptor.
2. Press “POWER” to switch the unit on or off, when the unit start, the fan
speed is tolerated as “L” class.
3. Press the “SPEED” button to choose fan speed (L – Low, M – Med,
H – High).
4. Press the "TIMER" button to set time 2, 4, 8 hours can be set to control its
timed stop effects, which can be expressed with corresponded LED light.
Operation Guide
7. Operation Guide

9
CAUTION: DISCONNECT FROM POWER SUPPLY BEFORE SERVICING
1. Do not clean the machine with organic solvent?pls disconnect the power
supply and then clean the unit with soft cloth and neutral cleanser; but do
not allow any liquid enter the unit.
2. While using for some time, to remove the dust from the anion outlet with
dry brush under conditions of power supply disconnection.
3. Demount and clean the front filter with water or extra a little of cleanser
every 1~2 months, and replace it after dry(better to have it in the sunlight
for some time).
4. Demount and Clean the plasma module with water or a little of cleanser
every 1~2 months, and replace it while dry, to ensure the correct mount
ing direction.
5. Timely disconnect the power supply plug if long time no use.
6. While disconnecting the power supply, if frequently clean the anion outlet
with a sanitary dry cloth(pure air outlet), it’s better to keep the clean effect.
Maintenance
Important:
•For quick air cleaning, please set the speed control to the Highspeed
setting. After about 30 minutes, set the speed control to Lower
speed setting.
•To maintain fresh air in your room all the time, it’s good for you to set
the speed control in Lowspeed setting;
•For nighttime use, please set the speed control to the lowspeed con
trol setting for quiet air cleaning
8. Maintenance

10
Trouble shooting
Trouble Possible problem Treatment
Not working
1. Ill touch of plug;
2. power adaptor is
broken;
3. back cover is
open or not
closed well.
1. reconnect the plug
well ;
2. replace the
transformer with the
same spec;
3. remount the back
cover.
Noise operation Something blocked or the
parts are incorrectly fitted Turn to professionals for help
fire noise
1. too humid
environment;
2. plasma module is
too dirty;
3. plasma module is
not dried after
washing.
1. replace to better
environment;
2. wash and clean the
plasma module;
3. not use the plasma
module before it’s
dried.
9. Trouble shooting
