Vega NB-11 User manual
www.vega-absolute.ru
NB-IoT Pulse Counter
VEGA NB-11
User manual
Vega NB-11 / User Manual
2 Revision 03 – 08 October 2020
Document Information
Title Pulse Counter Vega SI-11
Document type Manual – Translation from Russian
Document number V02-NB11-01
Revision and date 03 - 08 October 2020
This document applies to the following products:
Product name
Type number
Vega NB Vega NB-11
Revision History
Revision Date Name Comments
01 17.06.2019 KEV The first release
02 14.07.2020 KEV Minor changes
03 08.10.2020 KEV We recalculate the number of transmitted packets in
warranty conditions
Vega NB-11 / User Manual
3
Revision 03 – 08 October 2020
CONTENTS
INTRODUCTION......................................................................................................................................................................... 4
1 DESCRIPTION AND OPERATION ......................................................................................................................................... 5
Device description ................................................................................................................................................................. 5
Comunication and data collection algorithm .................................................................................................................. 5
Functional ................................................................................................................................................................................ 6
Marking..................................................................................................................................................................................... 6
2 SPECIFICATION ....................................................................................................................................................................... 7
3 OPERATION.............................................................................................................................................................................. 8
Contacts ................................................................................................................................................................................... 8
Hall sensor ............................................................................................................................................................................... 9
Buttons ................................................................................................................................................................................... 10
Indication ............................................................................................................................................................................... 11
Initial Startup ......................................................................................................................................................................... 12
Connecting via USB ............................................................................................................................................................. 12
4 VEGA NB-IoT CONFIGURATOR ......................................................................................................................................... 14
Interface of the application ................................................................................................................................................ 14
Connection to the device ................................................................................................................................................... 15
“System” tab .......................................................................................................................................................................... 16
“Settings” tab ......................................................................................................................................................................... 17
“Vega NB-11” tab .................................................................................................................................................................. 18
5 COMMUNICATION PROTOCOL ........................................................................................................................................ 19
6 STORAGE AND TRANSPORTATION REQUIREMENTS ................................................................................................... 21
7 CONTENT OF THE PACKAGE ............................................................................................................................................. 22
8 WARRANTY............................................................................................................................................................................. 23
Vega NB-11 / User Manual
4 Revision 03 – 08 October 2020
INTRODUCTION
This manual is designated for Vega NB-11 pulse counter (hereinafter – the counter)
manufactured by Vega-Absolute OOO and provides information on powering and activation
procedure, control commands and functions of the counter.
This manual is targeted at specialists familiar with installation work fundamentals of
electronic and electrical equipment.
The counter shall be installed and adjusted by qualified specialists in order to
ensure proper operation of the device
Vega-Absolute OOO reserves the right to make changes to the manual related to the
improvement of equipment and software, as well as to eliminate typos and inaccuracies,
without prior notice.
Vega NB-11 / User Manual
5
Revision 03 – 08 October 2020
1 DESCRIPTION AND OPERATION
DEVICE DESCRIPTION
Vega NB-11 pulse counter is designed for counting of pulses incoming to 4
independent inputs, further accumulating and transmitting of this information in NB-IoT
network.
In addition, Vega NB-11 can be used as a security device – two additional inputs
operate in security mode, there is also Hall sensor.
The pulse counter can be used for any utilities’ meters and industrial equipment with
pulse output of herkon type or open-drain type.
Equipment with NAMUR pulse output is not supported
De-bouncing logics with 5 msec time constant is integrated in the pulse counter. The
pulse counting is carried out for frequencies up to 200 Hz.
The counter is powered by a 6400 mAh built-in battery.
COMUNICATION AND DATA COLLECTION ALGORITHM
The readings collecting from the meter with a configurable period 5, 15, 30 minutes, 1,
6, 12 or 24 hours. The readings stored in the device memory and transmitting during the next
communication session with the NB-IoT network.
The adjustable data transfer period can be equal to 5, 15, 30 minutes, 1, 6, 12 and 24
hours. Data transferring in random point in time during set period. At the next communication
session, the device starts sending accumulated packets with readings, from the earliest to the
latest.
The device operates with confirmation all the time and send the next packet only after
receiving a confirmation of the delivery of the previous one. If such confirmation was not
received, NB-11 completes the communication session until the next one according to the
schedule. Herewith, the device continues to collect data according to the data collection
period and store it in memory. Non-transmitted packets remain in the device memory until
the next communication session.
The internal clock is set automatically when device connected to the "Vega NB-IoT
Configurator" via USB.
Vega NB-11 / User Manual
6 Revision 03 – 08 October 2020
FUNCTIONAL
Vega NB-11 pulse counter has the following features:
oFour pulse inputs for connecting the external devices with pulse output
oTwo inputs operating in the «security» mode for connecting the external leakage and
safety sensors, etc.
oQueue of sending when delivery is not possible
oTime referencing of readings by internal clock
oCommunication in case of security inputs or Hall sensor actuation
oTemperature measurement
oCharge measuring of the built-in battery (%)
MARKING
Device marked with sticker that contain the next information:
oDevice model;
oIMEI;
oMonth and year of manufacture;
oQR-code containing IMEI for automatized count.
Sticker located in three places – on device case, in factory certificate and on the packing
box.
Vega NB-11 / User Manual
7
Revision 03 – 08 October 2020
2 SPECIFICATION
Main
Pulse inputs
4
Maximum input frequency
200 Hz
Security inputs 2
USB-port
micro-USB, type B
Operating temperatures
-40…+85 °С
Built-in temperature sensor yes
Hall sensor yes
Quantity of black box records
up to 100 000
Cellular communications
Supported Cellular Standards LTE Cat NB1
Data transfer protocol MQTT
Guaranteed number of transmitted packets if
the data transferring once a day
3600
LTE NB-IoT antenna type external
Power
Built-in battery 6400 mAh
Case
Housing dimensions 95 х 95 х 50 mm
Ingress protection rating IP67
Vega NB-11 / User Manual
8 Revision 03 – 08 October 2020
3 OPERATION

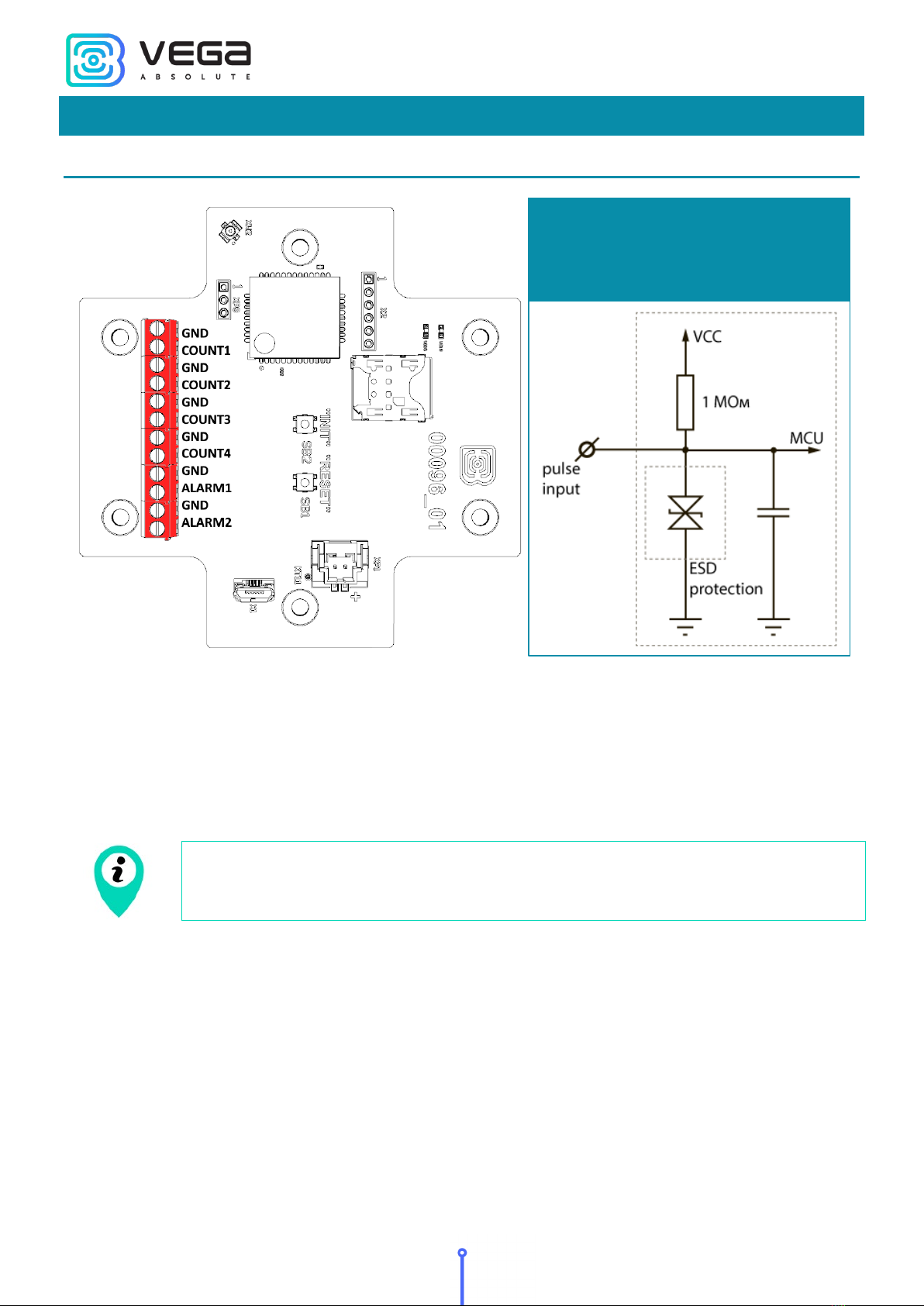

CONTACTS
The pulse counter allows to connect circuits with the following types of NO contacts:
- reed switch;
- mechanical pushbutton;
- open-collector output.
Equipment with NAMUR pulse output is not supported
Polarity effects only "open collector" circuits.
There are two security inputs on the board. The device monitors status changes on the
security inputs and when the security input triggers, the device is activated and sends an alarm
message to the network.
Circuit design of the pulse inputs
Vega NB-11 / User Manual
10 Revision 03 – 08 October 2020

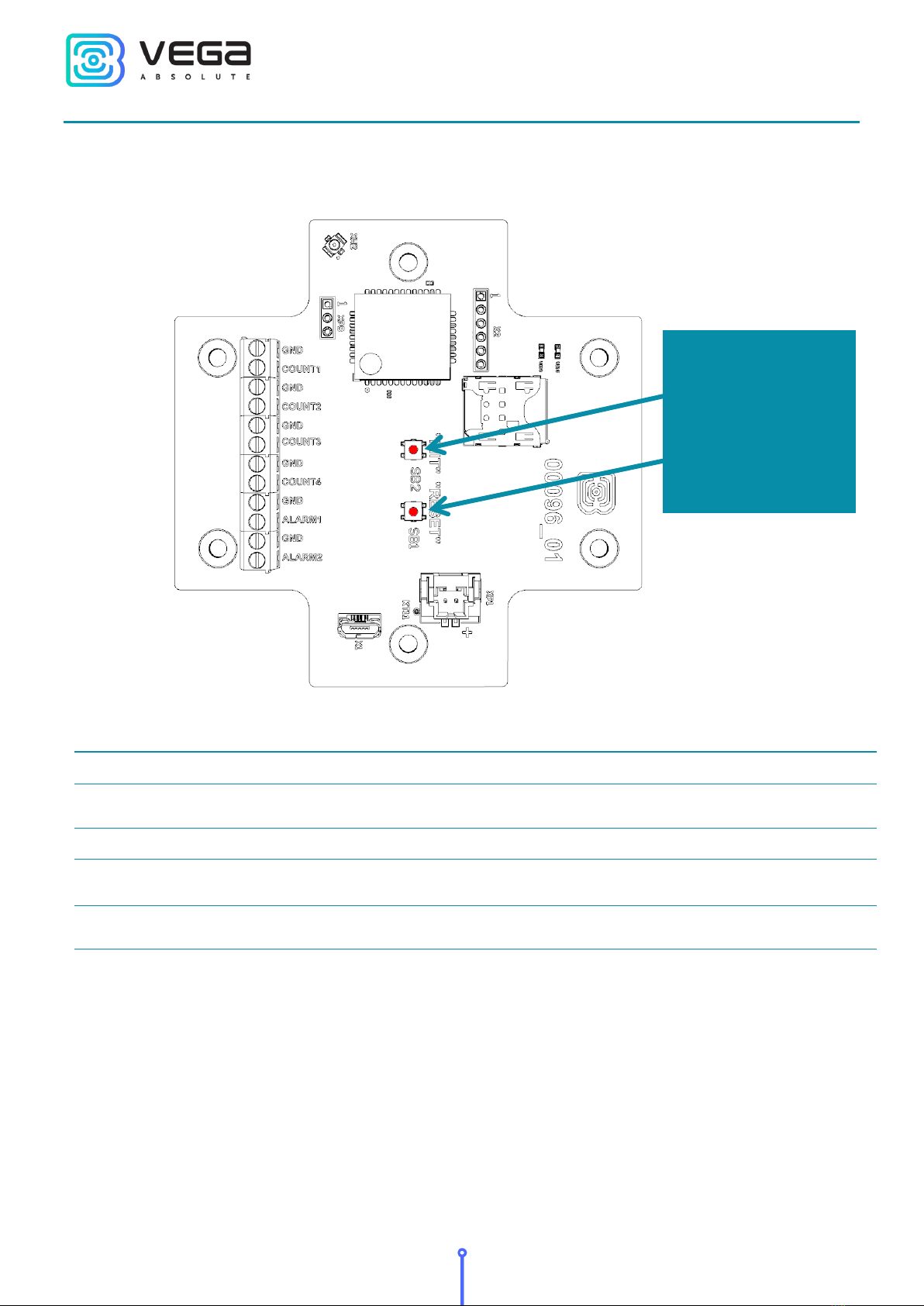

BUTTONS
There are two buttons on the board which can help you to manage the device. Buttons
are described in the table below.
Action Result
RESET
Short pressing Device reloading
INIT
Pressing for 1 second Registration at the network
Pressing for 2 seconds Data transmitting
Pressing for 3 seconds LTE-modem switching off
When you hold down the button, the red LED starts flashing once a second, which will
help you to find out the duration of pressing. Pressing for 1 second corresponds to one flash
of the LED, pressing for 2 seconds corresponds to two and so on.
INIT button
RESET button
Vega NB-11 / User Manual
11
Revision 03 – 08 October 2020

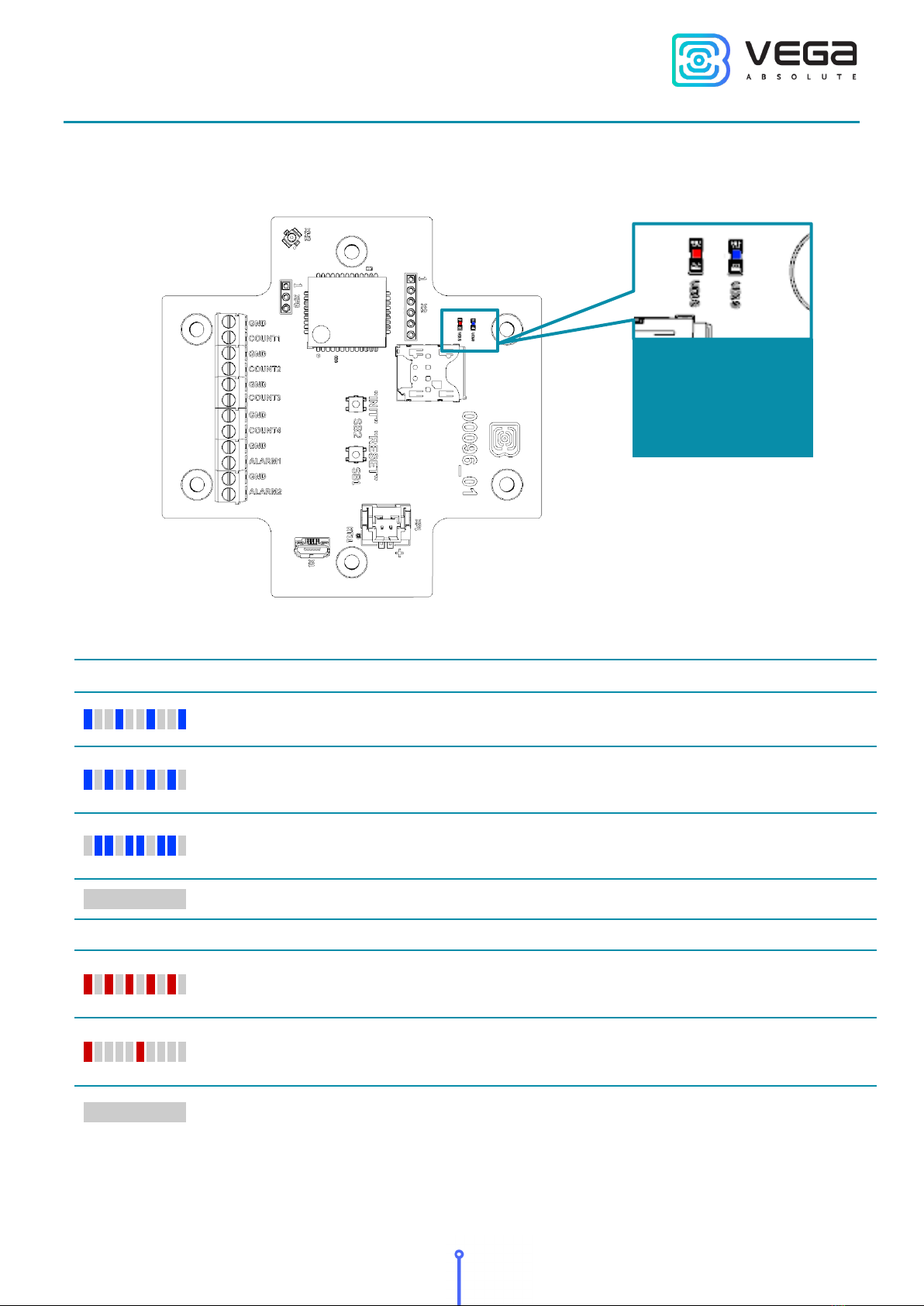

INDICATION
There are two LEDs on the board: red and blue. Blue LED VD19 shows LTE-modem state,
and red LED VD18 – the device state.
LED signal
Meaning
LTE-modem
Short flash every three
seconds Device search the network
Short flash every
second
Device successfully registered and it is
in the network
Two short flashes every
one second Device transmits data to the network
No light LTE-modem switched off
Device
Short flash every
second Battery charge is lower than 5%
Short flash every five
seconds Device in the ‘Operation’ mode
No light
Device in the ‘Sleep’ mode or switched
off
LEDs location on
the board
Vega NB-11 / User Manual
12 Revision 03 – 08 October 2020
INITIAL STARTUP
Firstly, it is necessary to install SIM into slot on the board and set up the data transmitting
with “Vega NB-IoT Configurator” (See part 4).
Vega NB-11 modem powered by the built-in battery which comes with. After battery
connection the device loading and switch to the ‘Sleep’ mode until the communication session
according with the schedule.
If you need to test the data transmitting, then press and hold the INIT button for the 2
seconds.
CONNECTING VIA USB
The pulse counter can be adjusted with the "Vega NB-IoT Configurator" application
through the USB connection (See part 4).
Before connecting the device to the computer for the first time, you must install the
driver for the COM port stsw-stm32102, which can be downloaded from iotvega.com. After
running the executable file VCP_V1.4.0_Setup.exe, the installer window will appear:

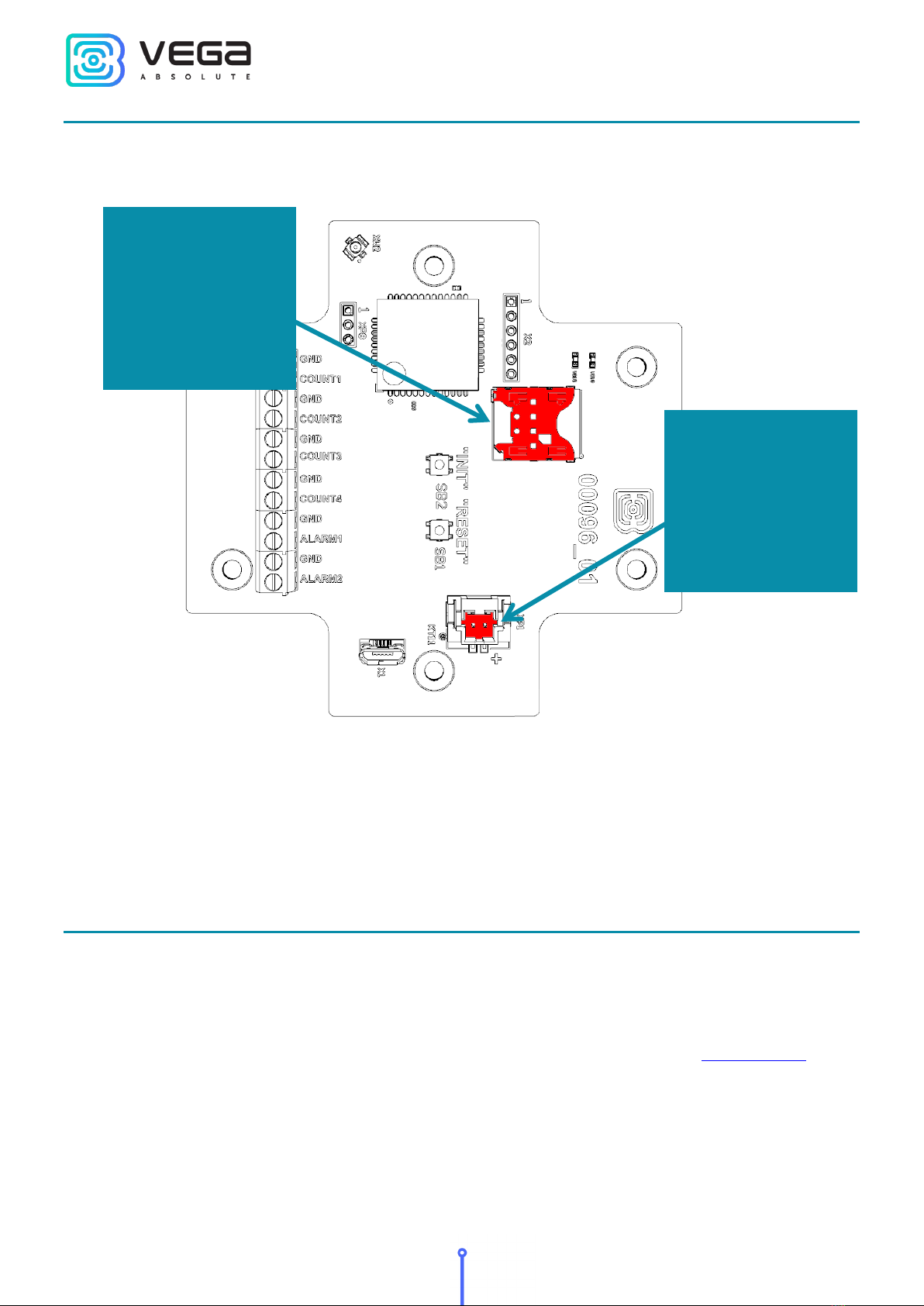

Location of the
battery connector
on the board
Location of the SIM
slot on the board (if
there is)
Vega NB-11 / User Manual
13
Revision 03 – 08 October 2020
In this window, you need to click Next, then Install, and then the installation will begin.
When the installation is completed successfully, the following screen appears:
After pressing Finish the driver is ready for operation, - it is possible to connect the pulse
counter via USB.
Vega NB-11 / User Manual
14 Revision 03 – 08 October 2020
4 VEGA NB-IOT CONFIGURATOR
The "Vega NB-IoT Configurator" application (hereinafter referred to as the configurator)
is intended for setting up the device via USB.
INTERFACE OF THE APPLICATION
The "Vega NB-IoT Configurator" application does not require the special installation.
When the executable file is launched, the window for working with the application appears.
The menu on the left allows you to select the device model, connect to the device or
disconnect from it, and update firmware.
The application window contains three tabs – System, Settings and device manage.
Vega NB-11 / User Manual
15
Revision 03 – 08 October 2020
CONNECTION TO THE DEVICE
For the connection to the device, perform the following steps:
1. Connect the USB cable to the device.
2. Start the "Vega NB-IoT Configurator" application.
3. Click the "Connect" button in the menu on the left.
The application automatically recognizes the type of device, and the device selection
menu becomes inactive.
To read the settings from the device, you need to click the "Get settings" button, until
this point the application will display the default settings or from the last connected device.
After making the necessary changes to the settings, you should click the "Apply settings"
button and only then disconnect from the device with the "Disconnect" button. Also, the
application allows to save settings into a file after what you can load it from that file on other
similar devices for speed up the debugging process.
Vega NB-11 / User Manual
16 Revision 03 – 08 October 2020

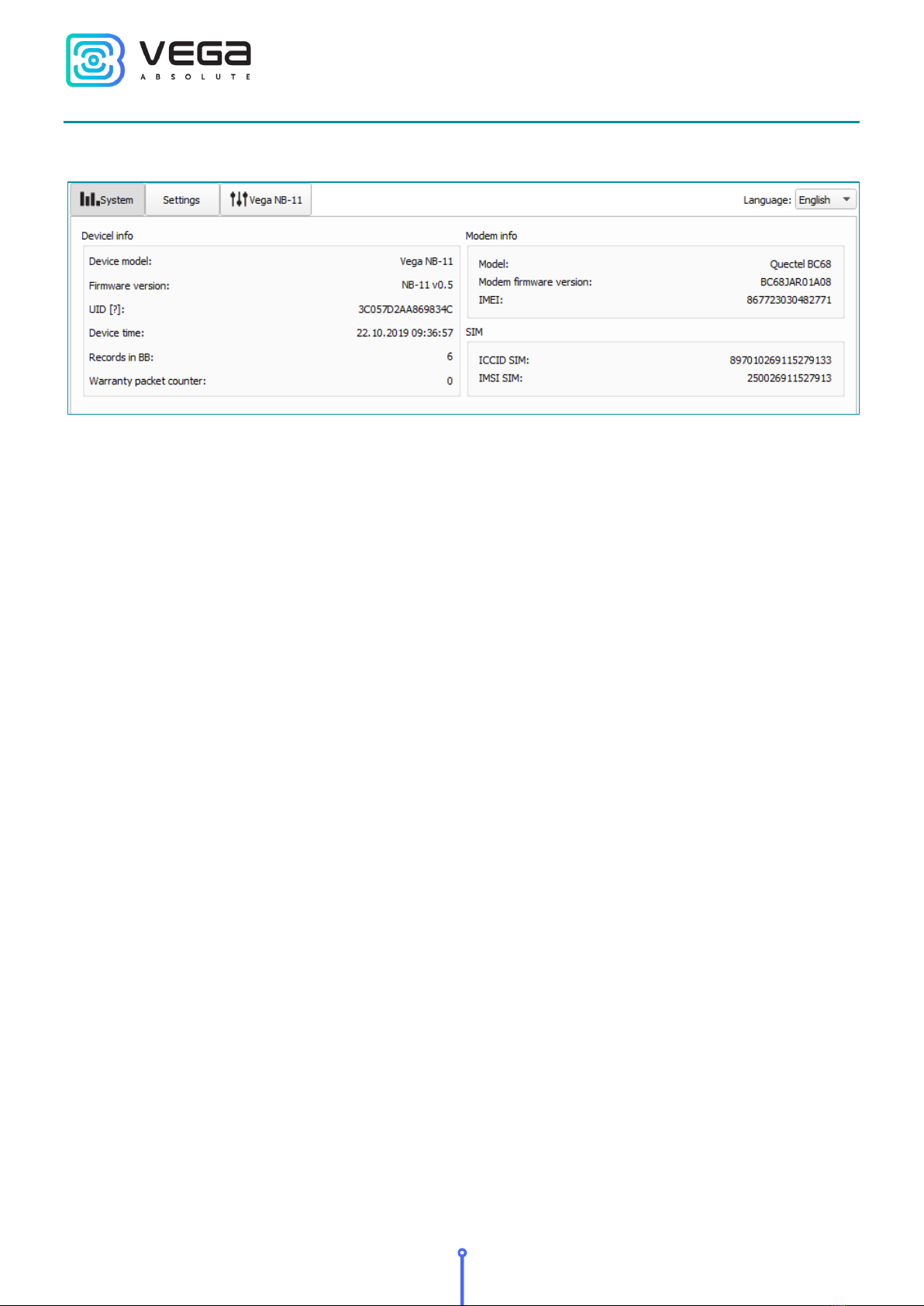

“SYSTEM” TAB
The "System" tab displays information about the device, about modem, and SIM.
Device info - the configurator reads information about the device model, its firmware
and automatically corrects the device's time when connected to it. In that block you can find
out the number of records in the black box and the number of packets sent by the device.
Modem info – in that block information about LTE-modem is displayed.
SIM – identifiers of the SIM card (SIM chip).
Vega NB-11 / User Manual
17
Revision 03 – 08 October 2020

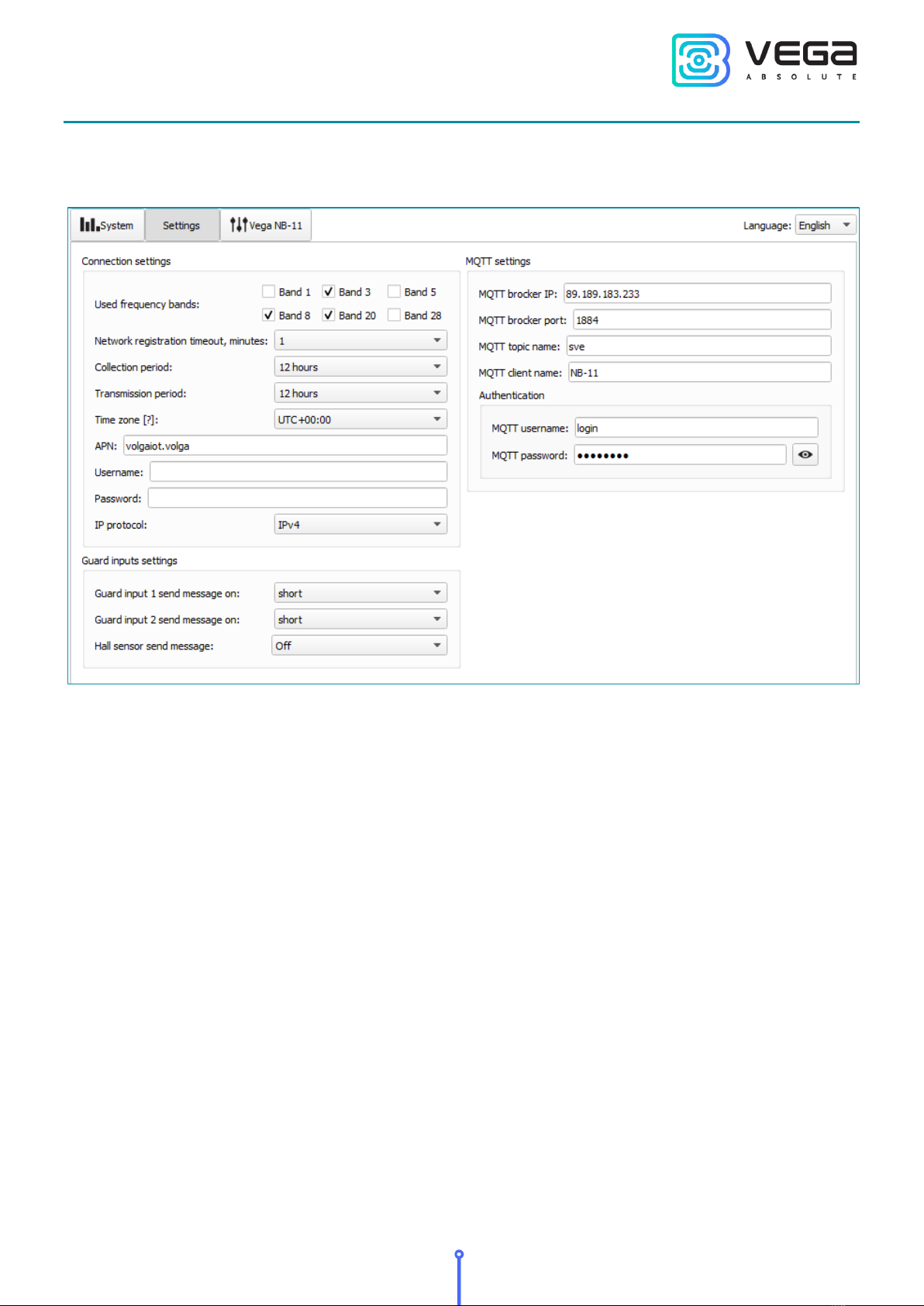

“SETTINGS” TAB
The " Settings" tab allows to configure various parameters of the network connection
and device operation.
Connection settings – a group of parameters set up the data collection and transmitting.
Used frequency bands for NB-IoT devices connection can be different for different
cellular operators. You can ask the operator about used band or select all the bands.
Network registration timeout – it’s a period after which the modem will switch to the
‘Sleep” mode when registration waiting. For battery economy it’s better to set minimal period
for which the device can registered in the network in the specific covering conditions.
Cellular operator can give you APN or set it by default if the field is empty.
Time zone set up for the data collection period which is equal to the device time (UTC)
plus time zone. Transmission period is always use UTC time regardless of the time zone setting.
Readings collected at 00:00 if the collection period is 24 hours; at 00:00 and at 12:00 if
the period is 12 hours etc. All readings stored in the device memory until the next
communication session.
Transmission period can be equal to 5, 15, 30 minutes, 1, 6, 12 and 24 hours. When
beginning of communication session, the device starts sending packets with readings from the
earliest packet. The time of data transmitting cannot be specified, it’s defined in random way
for every device in chosen period of transmission from the moment of connection to the
Vega NB-11 / User Manual
18 Revision 03 – 08 October 2020
network. For example, transmission period is 30 minutes, and device was started at 16:40 by
the internal device clock. In random way the device calculate data transmitting time and set it
at 16:41 in the half-hour period from 16:40 to 17:10. Thus, packets from this device will transmit
at 16:41, at 17:11, at 17:41, at 18:11 and so on every 30 minutes by the internal device clock.
By default, packets sent with confirmation and this parameter cannot be changed. The
number of retries is 5.
Guard inputs settings – allows to set up mode of security inputs triggering – when
security circuit is short, open or in a both cases.
MQTT settings – settings of connection with MQTT broker.
“VEGA NB-11” TAB
The “Vega NB-11” tab contains detail information about the connected device, its sensors
and inputs.
Network – displays the current parameters of the connection and allows to control it.
Buttons in this block have logic like INIT button on the board.
Inputs/outputs – displays current parameters of the device and allows to form a packet,
i. e. to collect data from all the inputs and put the packet to the black box until the next
communication session.
Device output – displays device’s events in real time.
Vega NB-11 / User Manual
19
Revision 03 – 08 October 2020
5 COMMUNICATION PROTOCOL
Data transmits via MQTT protocol. You should to specify in the device settings the address
and port of the server where the data will be sent. Those settings specified in application “Vega
NB-IoT Configurator”. It must be MQTT broker as a server (received side). You should to specify
in the device settings the address and port of the broker. Also, you should to specify a topic
name where the data published and a client name – the name which the device use for
publishing. All those settings specified in “Vega NB-IoT Configurator” in part “MQTT settings”.
For watching the data sending by the device you should to deploy MQTT broker on a PC and
subscribe some application on MQTT broker.
Vega NB-11 sends the message on the server as a text of JSON format. See example below.
{
"Message": {
"dev": "NB-11 v0.5",
"IMEI": "867723030711633",
"IMSI": "250990283462252",
"ICCID": "8970199170730496963",
"num": 3,
"UTC": 1571227504
},
"LBS": {
"TAC": "9C8D",
"CID": "0856831D",
"SQ": 19
},
"CellStatus": {
"EARFCN": 1240,
"PCID": 26,
"RSRP": -822,
"RSRQ": -108,
"RSSI": -744,
"SNR": 119
},
"Telemetry": {
"reason": "time",
"UTC": 1571227500,
"bat": 99,
"temp": 28,
"pulse1": 0,
"pulse2": 0,
"pulse3": 0,
"pulse4": 0
}
}
Transcription of the message fields:
Message – part with information about current message.
dev – name and version of the device firmware
Vega NB-11 / User Manual
20 Revision 03 – 08 October 2020
IMEI – LTE-modem identifier
IMSI,ICCID – SIM-card (SIM-chip) identifiers
num – the number of the message
UTC – the date and the time of message sending in UTC format by Greenwich
LBS – part with information about the gateway parameters which resend that packet
TAC, CID – gateway identifiers
SQ – gateway signal quality
CellStatus – part with information about the cellular state
EARFCN – the number of radio frequency channel (absolute)
PCID – physical network address
RSRP – input signal power
RSRQ – input signal quality
RSSI – indicator of the input signal power
SNR – signal to noise ratio
Telemetry – part with collected data (one packet)
reason – reason for packet forming*
UTC – the date and the time of message collecting in UTC format by Greenwich
bat – battery charge
temp – processor temperature
pulse1– pulse number on the input 1
pulse2– pulse number on the input 2
pulse3– pulse number on the input 3
pulse4– pulse number on the input 4
*Possible values for Reason field (Reason for packet forming):
time – packet formed by the time (data collection period set up in the
Configurator for the device)
alarm1– packet formed by the alarm on the input "ALARM1" (communication
session initiated by this event)
alarm2– packet formed by the alarm on the input "ALARM2" (communication
session initiated by this event)
cnfg – packet formed by the command from Configurator
hall sensor – packet formed by the Hall sensor (communication session initiated
by this event)
button – packet formed by the button pressing (communication session initiated
by this event)
Table of contents
Other Vega Cash Counter manuals
