Vega VEGAMIP R61 User manual

Operating Instructions
VEGAMIP R61
Receiving unit
-Transistor
Document ID:
40694
Radar

Contents
1About this document
1.1Function.................................. 4
1.2Target group .............................. 4
1.3Symbolism used............................ 4
2For your safety
2.1Authorised personnel ........................ 5
2.2Appropriate use ............................ 5
2.3Warning about misuse ....................... 5
2.4General safety instructions . . . . . . . . . . . . . . . . . . . . 5
2.5CE conformity ............................. 6
2.6Radio license for Europe. . . . . . . . . . . . . . . . . . . . . . 6
2.7Radio license for USA/Canada . . . . . . . . . . . . . . . . . 6
2.8Environmental instructions..................... 7
3Product description
3.1Structure ................................. 8
3.2Principle of operation ........................ 8
3.3Packaging,transport and storage ............... 10
3.4Accessories and replacement parts . . . . . . . . . . . . . . 11
4Mounting
4.1General instructions ......................... 13
4.2Instructions for installation ..................... 13
5Connecting to power supply
5.1Preparing the connection ..................... 23
5.2Connection procedure........................ 23
5.3Wiring plan,single chamber housing . . . . . . . . . . . . . 25
6Setup
6.1Adjustment elements ........................ 27
6.2Adjustment................................ 28
7Maintenance and fault rectification
7.1Maintaining ............................... 33
7.2Remove interferences ........................ 33
7.3Exchange of the electronics . . . . . . . . . . . . . . . . . . . 34
7.4How to proceed in case of repair. . . . . . . . . . . . . . . . 34
8Dismounting
8.1Dismounting steps .......................... 35
8.2Disposal ................................. 35
9Supplement
9.1Technical data ............................. 36
9.2Dimensions ............................... 40
2VEGAMIP R61 • - Transistor
Contents
40694-EN-120228

Safety instructions for Ex areas
Please note the Ex-specific safety information for installation and
operation in Ex areas.These safety instructions are part of the
operating instructions manual and come with the Ex-approved
instruments.
Editing status:2012-02-14
VEGAMIP R61 • - Transistor 3
Contents
40694-EN-120228

1About this document
1.1Function
This operating instructions manual provides all the information you
need for mounting,connection and setup as well as important
instructions for maintenance and fault rectification.Please read this
information before putting the instrument into operation and keep this
manual accessible in the immediate vicinity of the device.
1.2Target group
This operating instructions manual is directed to trained qualified
personnel.The contents of this manual should be made available to
these personnel and put into practice by them.
1.3Symbolism used
Information,tip,note
This symbol indicates helpful additional information.
Caution:If this warning is ignored,faults or malfunctions can
result.
Warning:If this warning is ignored,injury to persons and/or serious
damage to the instrument can result.
Danger:If this warning is ignored,serious injury to persons and/or
destruction of the instrument can result.
Ex applications
This symbol indicates special instructions for Ex applications.
lList
The dot set in front indicates a list with no implied sequence.
àAction
This arrow indicates a single action.
1Sequence
Numbers set in front indicate successive steps in a procedure.
4VEGAMIP R61 • - Transistor
1About this document
40694-EN-120228

2For your safety
2.1Authorised personnel
All operations described in this operating instructions manual must be
carried out only by trained specialist personnel authorised by the plant
operator.
During work on and with the device the required personal protective
equipment must always be worn.
2.2Appropriate use
The VEGAMIP 61 is a sensor for level detection.
You can find detailed information on the application range in chapter
"Product description".
Operational reliability is ensured only if the instrument is properly used
according to the specifications in the operating instructions manual as
well as possible supplementary instructions.
2.3Warning about misuse
Inappropriate or incorrect use of the instrument can give rise to
application-specific hazards,e.g.vessel overfill or damage to system
components through incorrect mounting or adjustment.
2.4General safety instructions
This is a state-of-the-art instrument complying with all prevailing
regulations and guidelines.The instrument must only be operated in a
technically flawless and reliable condition.The operator is responsible
for the trouble-free operation of the instrument.
During the entire duration of use,the user is obliged to determine the
compliance of the necessary occupational safety measures with the
current valid rules and regulations and also take note of new
regulations.
The safety instructions in this operating instructions manual,the
national installation standards as well as the valid safety regulations
and accident prevention rules must be observed by the user.
For safety and warranty reasons,any invasive work on the device
beyond that described in the operating instructions manual may be
carried out only by personnel authorised by the manufacturer.Arbitrary
conversions or modifications are explicitly forbidden.
The safety approval markings and safety tips on the device must also
be observed.
VEGAMIP R61 • - Transistor 5
2For your safety
40694-EN-120228

The emitting frequencies of the sensors depend on the model,but are
all in the Kband range.The low transmitting power lies far below the
internationally permitted limit value.When the instrument is used
correctly,it presents no danger to human health.It may be operated
without restriction outside of closed vessels.
2.5CE conformity
The device fulfills the legal requirements of the applicable EC
guidelines.By affixing the CE marking,VEGA confirms successful
testing of the product.
Only with class Ainstruments:
The device is a class Ainstrument designed for use in an industrial
environment.When used in a different environment,e.g., in a living
area,the electromagnetic compatibility must be ensured by the user.If
necessary,suitable screening measures against conducted and
emitted disturbances must be taken.
You can find the conformity certificate in the download section under
www.vega.com.
2.6Radio license for Europe
The instrument is approved according to EN 300440-1V1.5.1(2009-
03)and EN 300440-2V1.531 (2009-03)and can be used without radio
limitations.
2.7Radio license for USA/Canada
Operation is only permitted if the following two conditions are fulfilled:
lThe instrument must not emit interference radiation
lThe instrument must operate without being affected by incoming
interference radiation,including such that may trigger unwanted
operating conditions.
The instrument is in conformity with the following regulations:
FCC:Part 15 of the FCC regulations
IC:RSS-210 Issue 7,RSS-GEN Issue 2and RSS-102 Issue 4of the IC
regulations.
Conversions or modifications of the instrument not expressly approved
by the manufacturer will lead to loss of the approval.
Before use,make sure that the respective approval numbers are
stated on the type label (see chapter "Configuration").
6VEGAMIP R61 • - Transistor
2For your safety
40694-EN-120228

2.8Environmental instructions
Protection of the environment is one of our most important duties.That
is why we have introduced an environment management system with
the goal of continuously improving company environmental protection.
The environment management system is certified according to DIN
EN ISO 14001.
Please help us fulfil this obligation by observing the environmental
instructions in this manual:
lChapter "Packaging,transport and storage"
lChapter "Disposal"
VEGAMIP R61 • - Transistor 7
2For your safety
40694-EN-120228

3Product description
3.1Structure
The type label contains the most important data for identification and
use of the instrument:
lArticle number
lSerial number
lTechnical data
lArticle numbers,documentation
With the serial number,you can access the delivery data of the
instrument via www.vega.com,"VEGA Tools"and "serial number
search".In addition to the type label outside,you can also find the
serial number on the inside of the instrument.
With the serial number of the instrument on the type label you have
access to the following data on our homepage:
lArticle number of the instrument (HTML)
lDelivery date (HTML)
lOrder-specific instrument features (HTML)
lOperating instructions at the time of shipment (PDF)
lOrder-specific sensor data for an electronics exchange (XML)
lTest certificate "Measuring Accuracy"(PDF)
Go to www.vega.com,"Service" "VEGA Tools"and "serial number
search".
The scope of delivery typically includes the following parts.
lPoint level sensor VEGAMIP R61 (receiving unit)
lDocumentation
-this operating instructions manual
-Supplementary instructions manual "Plug connector for level
sensors"(optional)
-Ex-specific"Safety instructions"(with Ex versions)
-if necessary,further certificates
lThe corresponding emitting unit VEGAMIP T61 is described in a
separate operating instructions manual.
3.2Principle of operation
VEGAMIP 61 is a microwave barrier for level detection.
It is designed for industrial use in all areas of process technology and
can be used in bulk solids and liquids.
Typical applications are overfill and dry run protection.With an
operating distance of 100 m,VEGAMIP 61 can be used,for example,
in bulk solids silos with large diameters.Thanks to its simple and
rugged measuring system,VEGAMIP 61 is virtually unaffected by the
process and the chemical and physical properties of the medium.
Type label
Serial number
Scope of delivery
Application area
8VEGAMIP R61 • - Transistor
3Product description
40694-EN-120228

VEGAMIP 61 can also be used for detection of vehicles and ships or
for material recognition on conveyor belts.
It works even under extremely difficult conditions:different grain sizes,
contamination,extreme filling noise,high temperatures,strong dust
generation and abrasive products are all no problem for the
instrument.
The VEGAMIP 61 consists of the following components.
33
5
4
5
21
Fig.1:VEGAMIP 61 with plastic housing
1Emitting unit VEGAMIP T61
2Receiving unit VEGAMIP R61 with control electronics
3Housing cover
4Housing with control electronics
5Process fitting
VEGAMIP R61 • - Transistor 9
3Product description
40694-EN-120228

Several antenna versions are available for different applications.
1 2 3 5
4
Fig.2:Antenna versions
1Threaded version -internal horn antenna with PTFE cover
2Plastic encapsulated antenna with PP cover
3Horn antenna/316L
4VEGAMIP 61 with angled antenna extension
5Encapsulated horn antenna with PTFE cover
The emitting unit transmits a focused microwave signal via horn
antenna to the receiving unit on the opposite side.If there is medium
between emitting and receiving unit,the signal is damped.This
change is detected by the built-in electronics module and converted
into a switching command.
3.3Packaging,transport and storage
Your instrument was protected by packaging during transport.Its
capacity to handle normal loads during transport is assured by a test
according to DIN EN 24180.
The packaging of standard instruments consists of environment-
friendly,recyclable cardboard.For special versions,PE foam or PE foil
is also used.Dispose of the packaging material via specialised
recycling companies.
Transport must be carried out under consideration of the notes on the
transport packaging.Nonobservance of these instructions can cause
damage to the device.
The delivery must be checked for completeness and possible transit
damage immediately at receipt.Ascertained transit damage or
concealed defects must be appropriately dealt with.
Functional principle
Packaging
Transport
Transport inspection
10 VEGAMIP R61 • - Transistor
3Product description
40694-EN-120228

Up to the time of installation,the packages must be left closed and
stored according to the orientation and storage markings on the
outside.
Unless otherwise indicated,the packages must be stored only under
the following conditions:
lNot in the open
lDry and dust free
lNot exposed to corrosive media
lProtected against solar radiation
lAvoiding mechanical shock and vibration
lStorage and transport temperature see chapter "Supplement -
Technical data -Ambient conditions"
lRelative humidity 20 …85 %
3.4Accessories and replacement parts
The protective cover protects the sensor housing against soiling and
intense heat from solar radiation.
You will find additional information in the supplementary instructions
manual "Protective cover"(Document-ID 34296).
Flanges are available in different versions according to the following
standards:DIN 2501,EN 1092-1,ANSI B 16.5,JIS B 2210-1984,
GOST 12821-80.
You can find additional information in the supplementary instructions
manual "Flanges according to DIN-EN-ASME-JIS"(Document-ID
31088).
The electronics module VEGAMIP R61 is a replacement part for
microwave barriers of VEGAMIP series 60.
You will find additional information in the following operating
instructions manual:
l"Electronics module VEGAMIP R61 (receiving unit)"(Document-ID
36428)
Storage
Storage and transport
temperature
Protective cap
Flanges
Electronics module
VEGAMIP R61 • - Transistor 11
3Product description
40694-EN-120228

With high process temperatures exceeding 80 °C,you have to use a
mounting adapter for the emitting and the receiving unit.The mounting
adapter can only be used with the threaded version (internal horn
antenna with PTFE cover).
Fig.3:VEGAMIP 61 with high temperature mounting adapter
Mounting adapter
12 VEGAMIP R61 • - Transistor
3Product description
40694-EN-120228

4Mounting
4.1General instructions
With instruments with threaded process fitting,suitable tools must be
applied for tightening the hexagon.
Warning:
The housing must not be used to screw the instrument in!Applying
tightening force can damage internal parts of the housing.
Make sure that all parts of the instrument exposed to the process,in
particular the active measuring component,process seal and process
fitting,are suitable for the existing process conditions.These include
above all the process pressure,process temperature as well as the
chemical properties of the medium.
You can find the specifications in chapter "Technical data"and on the
type label.
Use the recommended cables (see chapter "Connecting to power
supply")and tighten the cable gland.
You can give your instrument additional protection against moisture
penetration by leading the connection cable downward in front of the
cable entry.Rain and condensation water can thus drain off.This
applies mainly to outdoor mounting as well as installation in areas
where high humidity is expected (e.g.through cleaning processes)or
on cooled or heated vessels.
4.2Instructions for installation
If possible,install VEGAMIP 61 in a position where strong signal
damping by the medium is expected.
Avoid mounting the instrument too close to the vessel wall.Reflections
from the vessel wall or from vessel installation can influence the
switching accuracy.

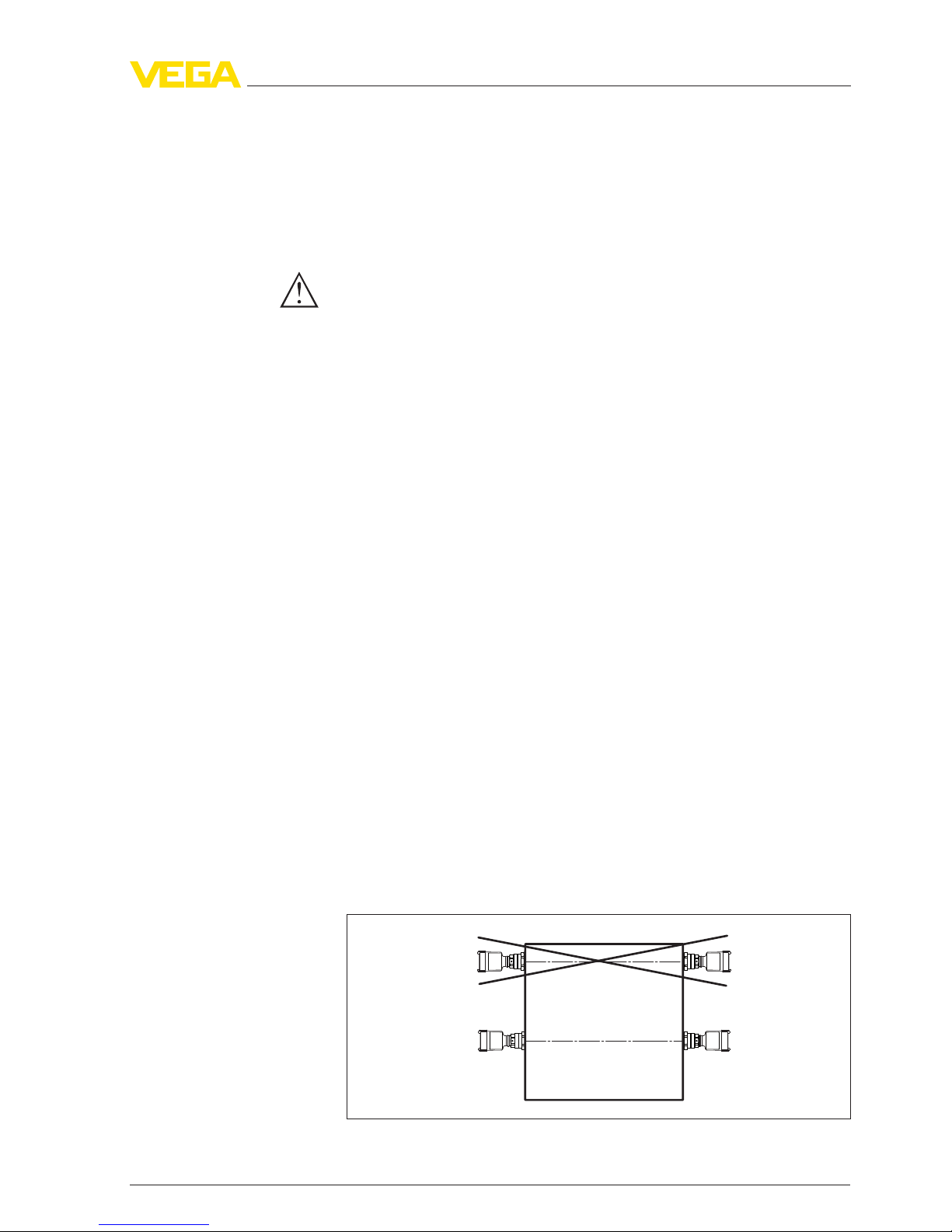

Fig.4:Installation position (top view)
Screwing in
Suitability for the pro-
cess conditions
Moisture
Switching point
VEGAMIP R61 • - Transistor 13
4Mounting
40694-EN-120228

The VEGAMIP 61 requires a minimum product strength to detect
different products.
Dependent on the medium there will be a respective product
thickness.
The properties of the medium are also dependent on the granulation
size,the bulk density and the moisture content.
Some exemplary reference values for the min.strength of the medium:
Product type Medium Min.product
strength
Plastic granules PTFE,PS >1000 mm
PP,PE,HDPE,POM >500 mm
PA,PVC,PVDF >250 mm
Foodstuffs and wood Flour >100 mm
Cereals,corn,rice >100 mm
Wood chips (dry)>500 mm
Wood chips (moist)>100 mm
Mineral products /Ore Stones (e.g.limestone)>100 mm
Cement,clinker >100 mm
Glass (crushed)>100 mm
Coal >50 mm
Bauxite >100 mm
Ore >100 mm
IfVEGAMIP 61 is mounted in the filling stream,unwanted false
measurement signals can be generated.For this reason,mount
VEGAMIP 61 at a position in the vessel where no disturbances,e.g.
from filling openings,agitators,etc., can occur.
Microwaves can penetrate non-conductive materials.Hence,it is
possible to measure through the wall of non-conductive vessels.
Product strength
Inflowing medium
Non-metallic vessels
14 VEGAMIP R61 • - Transistor
4Mounting
40694-EN-120228

Fig.5:Bulk solids vessel of plastic
In metal vessels,you have to mount VEGAMIP 61 on flanges or
threaded sockets.It is also possible to measure through a window.In
general,all products such as glass,ceramic and plastic are suitable as
window material.
Max.thickness of the window material:
Type of material Window material Max.thick-
ness
Plastics PTFE,PS <5000 mm
PP,PE,HDPE,POM <1000 mm
PA,PVC,PVDF <500 mm
Rubber <50 mm
Glass or ceramic Inspection glass <200 mm
Aluminiumoxide ceramic
Al
2
O
3
<200 mm
Abrasion protection (ceramic)<100 mm
Insulation material Mineral wool <1000 mm
Ceramic fibre plates <1000 mm
Fireclay bricks <500 mm
Metal vessels
VEGAMIP R61 • - Transistor 15
4Mounting
40694-EN-120228

A
C
B
Fig.6:Installation in front of a vessel window
A Window of non-conductive material,for example,glass,plastic,etc.
B Mounting with condensation on the inner wall of the vessel
C Inspection glass fitting
In general,the same as for metal vessels applies to concrete vessels
due to the steel braining.
In general,the same as for metal vessels applies to wood vessels due
to the liquid absorption of the wood.
VEGAMIP 61 can be used for detection of products in pipelines.In
pipelines of non-metallic products such as plastic or glass,the
measured product can be detected through the pipe wall.
x
Fig.7:Installation in pipelines
xMin.distance 100 mm (3.94 in)
Mount the threaded version of VEGAMIP 61 in the following way:
Concrete vessel
Wood vessels
Pipelines
Threaded version
16 VEGAMIP R61 • - Transistor
4Mounting
40694-EN-120228

1 2 34
Fig.8:VEGAMIP 61 -threaded version G1½A
1Polarisation marking
2Instrument hexagon
3Locknut
4Process seal
1Insert the supplied process seal (1)before screwing it in
2To screw VEGAMIP 61 in,use the instrument hexagon (3)below
the housing.
Screw the instrument in and hand-screw it a flat wrench
3Turn the sensor back (max.180°)to reach the required orientation
of the polarisation marking (4)
4Hold the instrument in this position and tighten with the counter nut
(2)
Caution:
The housing must not be used to screw the instrument in!Applying
tightening force can damage internal parts of the housing.
Note:
In the case of VEGAMIP 61 with NPT thread,the instrument seals in
the thread itself.Hence,no counter nut is necessary for these
versions.
Avoid long sockets in which the medium can remain and if possible,
mount VEGAMIP 61 front-flush.This applies mainly if buildup and dust
are expected.
Buildup
VEGAMIP R61 • - Transistor 17
4Mounting
40694-EN-120228

2
1
Fig.9:Front flush installation
1Unfavourable installation -bulk solid can settle in front of the sensor
2Correct front flush installation
If a front-flush installation is not possible,you can fill long sockets with
a plastic or ceramic cylinder to avoid build up of bulk solids and dust
deposits.Select the material according to the diameter of the socket
and adapt the length as far as possible to the shape of the vessel wall.
Secure the filling material against falling out or turning.If using a fixing
screw is technically not possible,you can secure the material in the
socket with an adhesive.
18 VEGAMIP R61 • - Transistor
4Mounting
40694-EN-120228

2
1
2
21
1
Fig.10:Front flush installation
1Plastic or ceramic material
2Fixing screw (if technically possible)
In very abrasive products,VEGAMIP 61 should be installed with a
mounting adapter or in front of a suitable window.In this case,you
have to use a window material which is appropriately resistant.
In case of strong vessel vibrations,the VEGAMIP 61 should be
mounted with anti vibration blocks or rubber buffers.
Abrasive medium
Vibrations
VEGAMIP R61 • - Transistor 19
4Mounting
40694-EN-120228

1
2
Fig.11:Installation with vessel vibrations
1Anti vibration blocks or rubber buffers
2Window of non-conductive material,for example,glass,plastic,etc.
Angle
For an optimum switching signal,the two sensors must be adapted to
each other.The accuracy must be in a range of ±5°.
Offset
The two sensors can have an offset of up to <5%of the sensor
distance (d)to each other.Example:with a sensor distance of
1000 mm,the two sensors must have an offset of max.50 mm to each
other.
General rule:the bigger the antenna and the better it focusses,the
more precise the orientation has to be.
5°
+
-
d
<d
20
Fig.12:Orientation of the sensors -Angle and offset
Orientation of the sensor
20 VEGAMIP R61 • - Transistor
4Mounting
40694-EN-120228
