1 About this document
B 61-300 • For supply and control cables
40488-EN-161114
1 About this document
1.1 Function
This operating instructions manual provides all the information you
need for mounting, connection and setup as well as important instruc-
tionsformaintenanceandfaultrectication.Pleasereadthisinforma-
tion before putting the instrument into operation and keep this manual
accessible in the immediate vicinity of the device.
1.2 Target group
This operating instructions manual is directed to trained specialist
personnel.The contents of this manual should be made available to
these personnel and put into practice by them.
1.3 Symbols used
Information, tip, note
This symbol indicates helpful additional information.
Caution: If this warning is ignored, faults or malfunctions can result.
Warning: If this warning is ignored, injury to persons and/or serious
damage to the instrument can result.
Danger: If this warning is ignored, serious injury to persons and/or
destruction of the instrument can result.
Ex applications
This symbol indicates special instructions for Ex applications.
SIL applications
This symbol indicates instructions for functional safety which must be
taken into account particularly for safety-relevant applications.
• List
The dot set in front indicates a list with no implied sequence.
→ Action
This arrow indicates a single action.
1 Sequence of actions
Numbers set in front indicate successive steps in a procedure.
Battery disposal
This symbol indicates special information about the disposal of bat-
teries and accumulators.

4
2 For your safety
B 61-300 • For supply and control cables
40488-EN-161114
2 For your safety
2.1 Authorised personnel
All operations described in this operating instructions manual must
be carried out only by trained specialist personnel authorised by the
plant operator.
During work on and with the device the required personal protective
equipment must always be worn.
2.2 Appropriate use
The B61-300 is an overvoltage arrester for sensors and signal condi-
tioning instruments with mains voltage supply.
Youcannddetailedinformationabouttheareaofapplicationin
chapter "Product description".
2.3 Warning about incorrect use
Inappropriate or incorrect use of the instrument can give rise to
application-specichazards,e.g.vesseloverllordamagetosystem
components through incorrect mounting or adjustment.
2.4 General safety instructions
This is a state-of-the-art instrument complying with all prevailing
regulations and guidelines. The instrument must only be operated in a
technicallyawlessandreliablecondition.Theoperatorisresponsible
for the trouble-free operation of the instrument.
During the entire duration of use, the user is obliged to determine the
compliance of the necessary occupational safety measures with the
current valid rules and regulations and also take note of new regula-
tions.
The safety instructions in this operating instructions manual, the na-
tional installation standards as well as the valid safety regulations and
accident prevention rules must be observed by the user.
For safety and warranty reasons, any invasive work on the device
beyond that described in the operating instructions manual may be
carried out only by personnel authorised by the manufacturer. Arbi-
traryconversionsormodicationsareexplicitlyforbidden.
The safety approval markings and safety tips on the device must also
be observed.
2.5 Safety label on the instrument
The safety approval markings and safety tips on the device must be
observed.
2.6 CE conformity
ThedevicefullsthelegalrequirementsoftheapplicableEUguide-
lines.ByaxingtheCEmarking,weconrmsuccessfultestingofthe
product.

5
2 For your safety
B 61-300 • For supply and control cables
40488-EN-161114
YoucanndtheCECerticateofConformityinthedownloadsection
under "www.vega.com".
2.7 Safety instructions for Ex areas
PleasenotetheEx-specicsafetyinformationforinstallationandop-
eration in Ex areas. These safety instructions are part of the operating
instructions manual and come with the Ex-approved instruments.
2.8 Environmental instructions
Protection of the environment is one of our most important duties.
That is why we have introduced an environment management system
with the goal of continuously improving company environmental pro-
tection.Theenvironmentmanagementsystemiscertiedaccording
to DIN EN ISO 14001.
Pleasehelpusfullthisobligationbyobservingtheenvironmental
instructions in this manual:
• Chapter "Packaging, transport and storage"
• Chapter "Disposal"

6
3 Product description
B 61-300 • For supply and control cables
40488-EN-161114
3 Product description
3.1 Conguration
The scope of delivery encompasses:
• Overvoltage arrester B61-300 (optionally integrated in housing
with PE terminal)
• PE terminal for carrier rail
• Documentation
– This operating instructions manual

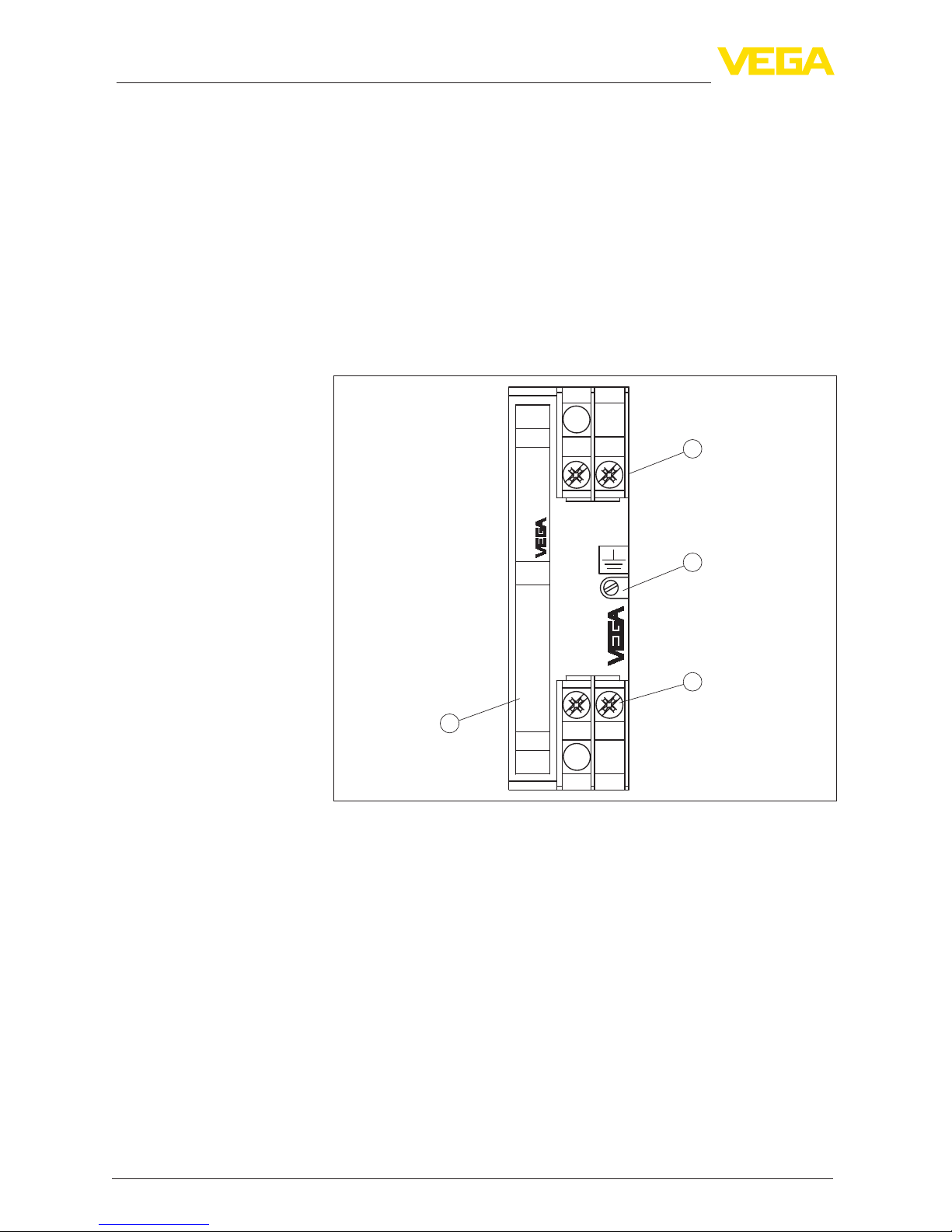

Thefollowingillustrationshowsthecongurationoftheovervoltage
arrester B61-300:
B61 - 300
OUT
IN
IP 20
max. 300 V AC/0,5 A
L1 N
L1 N
4
1
2
3
Fig. 1: Conguration of B61-300
1 Terminals Out (protected side)
2 Screw for carrier rail fastening
3 Terminals In (unprotected side)
4 Type label
3.2 Principle of operation
Voltage surges can be caused by indirect atmospheric discharges
(lightning strokes) or switching operations in the supply network.
Further causes can be inductive or capacitive couplings from other
electrical systems. Voltage peaks (transients) must be expected espe-
cially when long power supply and signal cables are used.
Such voltage surges can cause damage to sensors and signal condi-
tioning instruments.
VEGA overvoltage arresters reduce voltage surges on the supply or
signal cables to a safe level.They are designed for mounting on car-
Scope of delivery
Constituent parts
Application area

7
3 Product description
B 61-300 • For supply and control cables
40488-EN-161114
rier rail according to EN 50 022/EN 50 035 in the switching cabinet or
in a metal or plastic housing close to the sensor.
Dependingontheversion,dierentcombinationsofprotectiveele-
ments for voltage limitation are used. Typical protective elements
are suppressor diodes (diodes with special characterstics), varistors
(voltage-dependent resistors) as well as overvoltage arresters (gas
arresters).
As soon as the voltage increases to the response voltage of the
protective element, the element becomes conductive and the energy
is discharged to ground. After the overvoltage has subsided, the
protective element returns to its high-impedance state and thus has
noinuenceonthesupplyorsignalcircuit.
3.3 Packaging, transport and storage
Your instrument was protected by packaging during transport. Its
capacity to handle normal loads during transport is assured by a test
based on ISO 4180.
The packaging of standard instruments consists of environment-
friendly, recyclable cardboard. For special versions, PE foam or PE
foil is also used. Dispose of the packaging material via specialised
recycling companies.
Transport must be carried out in due consideration of the notes on the
transport packaging. Nonobservance of these instructions can cause
damage to the device.
The delivery must be checked for completeness and possible transit
damage immediately at receipt. Ascertained transit damage or con-
cealed defects must be appropriately dealt with.
Uptothetimeofinstallation,thepackagesmustbeleftclosedand
stored according to the orientation and storage markings on the
outside.
Unlessotherwiseindicated,thepackagesmustbestoredonlyunder
the following conditions:
• Not in the open
• Dry and dust free
• Not exposed to corrosive media
• Protected against solar radiation
• Avoiding mechanical shock and vibration
• Storage and transport temperature see chapter "Supplement -
Technical data - Ambient conditions"
• Relative humidity 20 … 85 %
Functional principle
Packaging
Transport
Transport inspection
Storage
Storage and transport
temperature

8
4 Mounting instructions
B 61-300 • For supply and control cables
40488-EN-161114

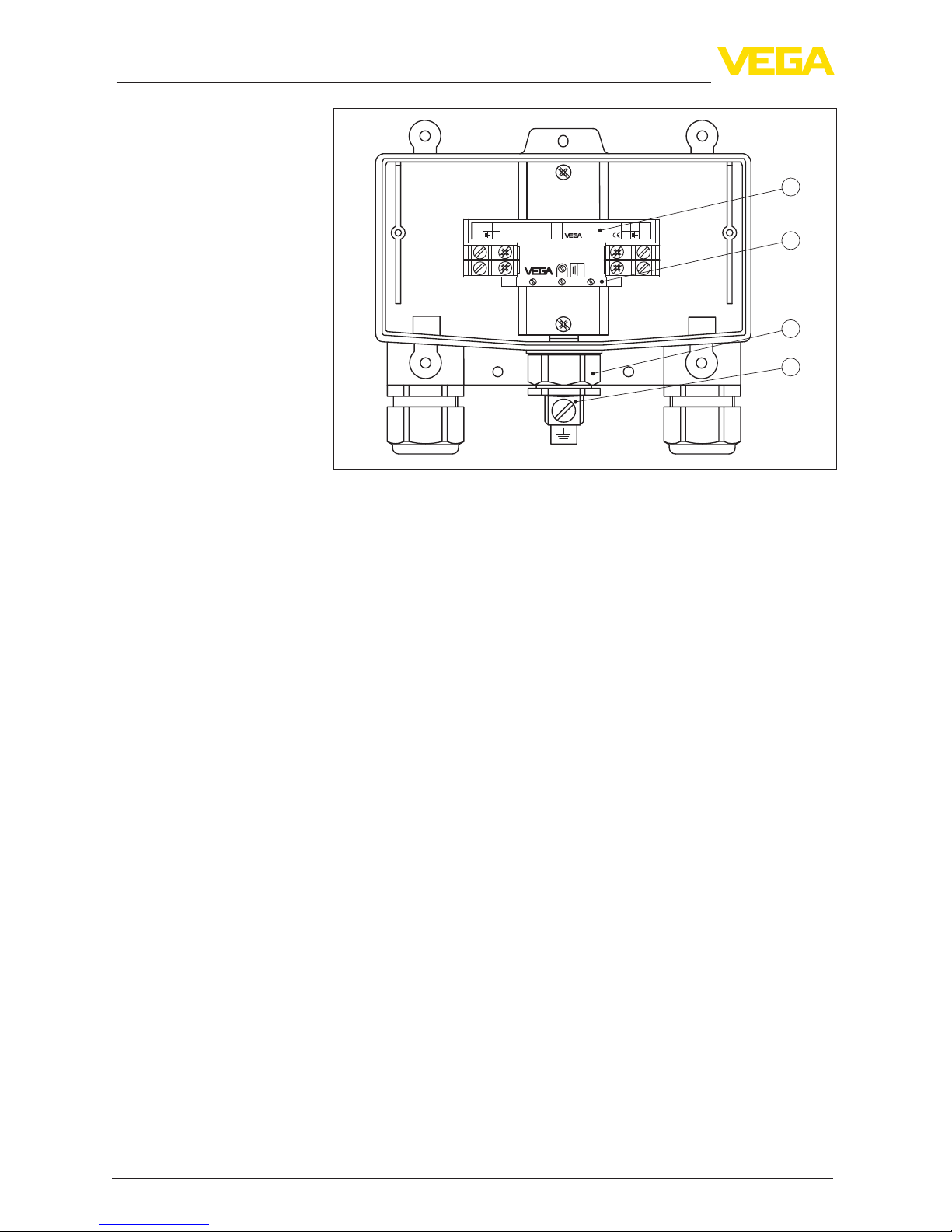

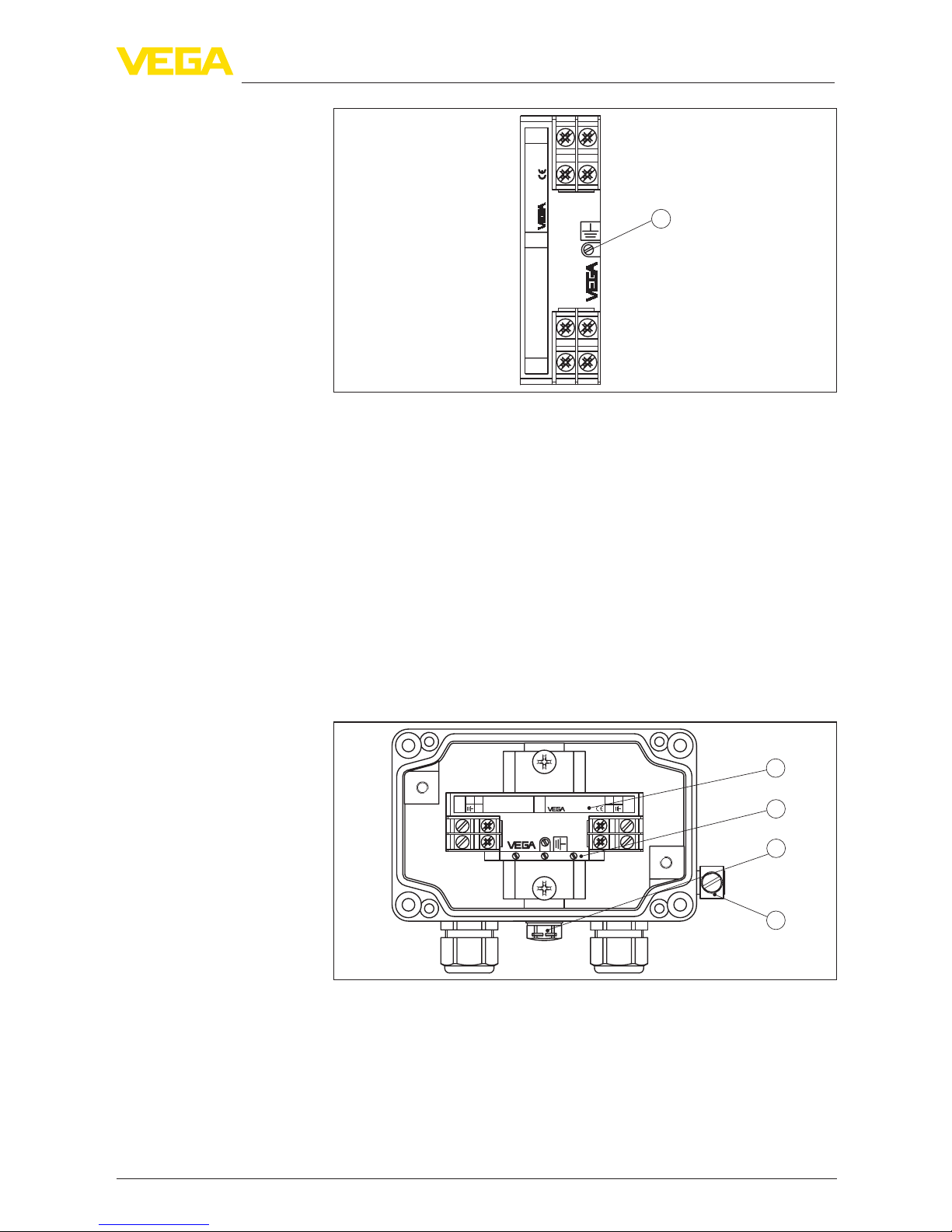

4 Mounting instructions

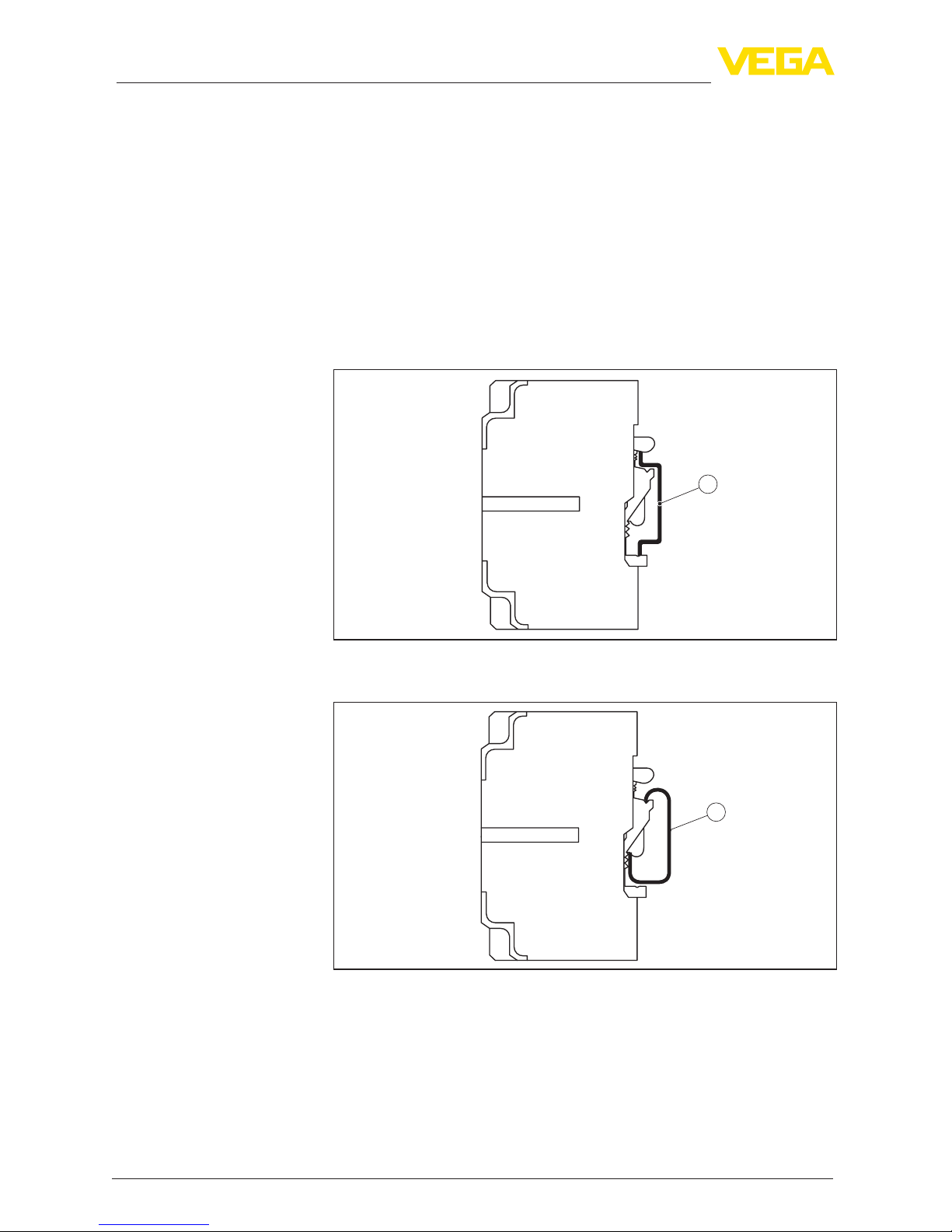

4.1 Installation in switching cabinet
The overvoltage arrester is mounted in the switching cabinet on
carrier rails according to EN 50 022 (DIN rail) or EN 50 035 (C-rail). It
is fastened to the carrier rail with a screw located on its exterior. The
screw is marked with the symbol for functional ground. Depending on
the version, it may be galvanically connected to the ground terminal of
the overvoltage arrester (see circuit diagram in chapter "Wiring plan").
The carrier rail must be connected (low impedance) to the potential
equalizationline(PA).Thewirecross-sectionmustbeatleast2.5
mm2, the cable must be as short as possible.
1
Fig. 2: Mounting on carrier rail according to EN 50 022 (DIN rail) 35 x 7.5 mm
1 Carrier rail
1
Fig. 3: Mounting on carrier rail according to EN 50 035 (C-rail) 35 x 7.5 mm
1 Carrier rail
Installation procedure
Proceed as follows:
1. Loosenxingscrew

9
4 Mounting instructions
B 61-300 • For supply and control cables
40488-EN-161114
OUT
IN
IP 20
1
Fig. 4: Mounting on carrier rail
1 Fixing screw
2. Place the overvoltage arrester onto the rail and let it snap in
3. Tightenxingscrew

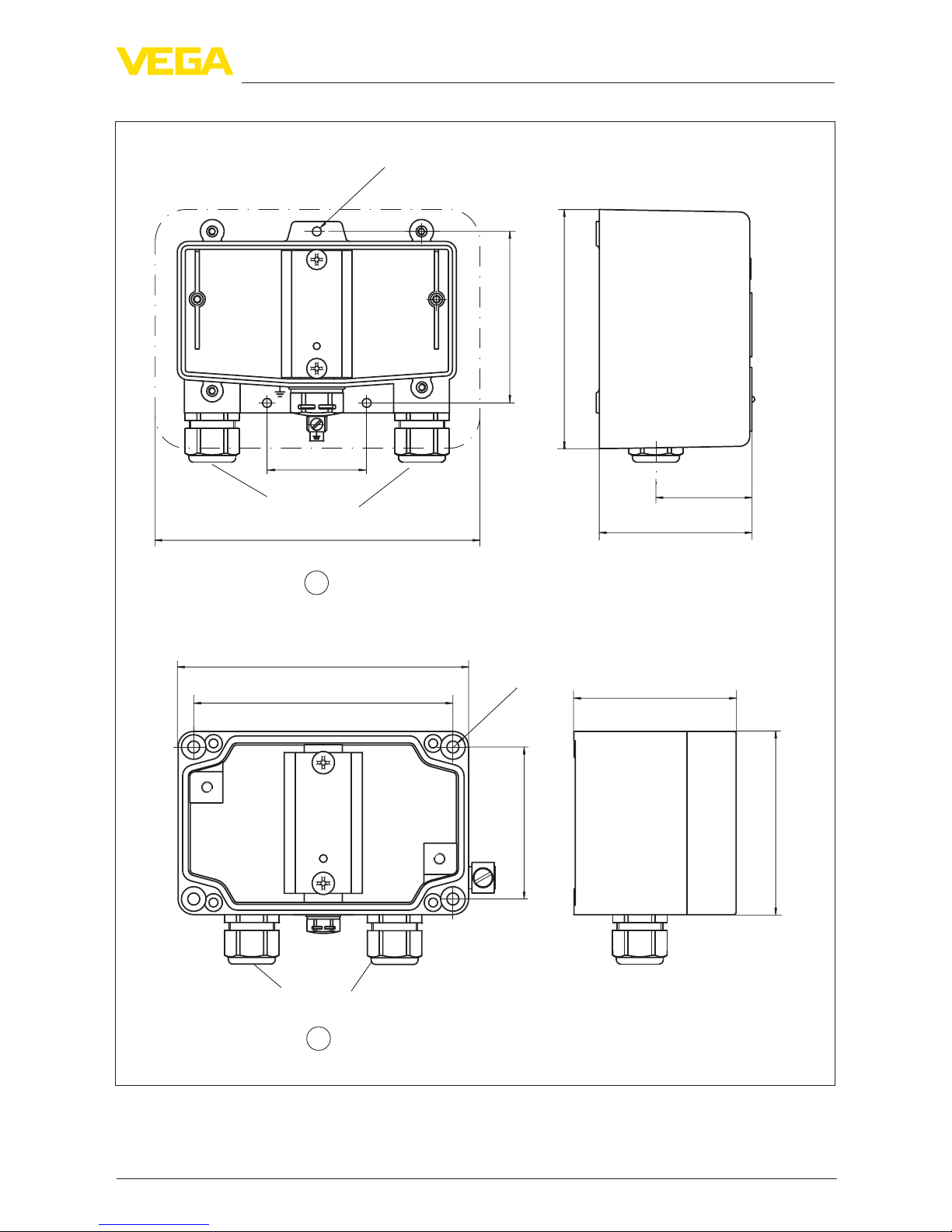

4.2 Mounting in housing
The overvoltage arrester is optionally available in a plastic or alu-
minium housing. Make sure when mounting that the cable glands
point downward.Thus avoids water ingress.
The carrier rail inside the housing is galvanically connected to the
ground terminal outside on the housing. For this function of the over-
voltage arrester, this ground terminal must be connected (low imped-
ance)withthepotentialequalizationline(PA).Thewirecross-section
must be at least 2.5 mm2, the cable must be as short as possible.
1
2
4
3
OUT
IN
IP 20
Fig. 5: Mounting in Aluminium housing
1 Overvoltage arrester
2 PE terminal
3 Pressure compensation
4 Ground terminal

10
4 Mounting instructions
B 61-300 • For supply and control cables
40488-EN-161114
1
2
3
4
OUT
IN
IP 20
Fig. 6: Mounting in plastic housing
1 Overvoltage arrester
2 PE terminal
3 Pressure compensation
4 Ground terminal
