1About this document
1.1Function
This operating instructions manual has all the information you
need for quick mounting and setup of a replacement
component (cable shortening set). Please read this manual
before you start setup.
1.2Target group
This operating instructions manual is directed to trained,
qualified personnel.The contents of this manual should be
made available to these personnel and put into practice by
them.
1.3Symbolism used
Information,tip,note
This symbol indicates helpful additional information.
Caution:If this warning is ignored,faults or
malfunctions can result.
Warning:If this warning is ignored,injury to persons and/or
serious damage to the instrument can result.
Danger:If this warning is ignored,serious injury to persons
and/or destruction of the instrument can result.
Ex applications
This symbol indicates special instructions for Ex applications.
lList
The dot set in front indicates a list with no implied sequence.
àAction
This arrow indicates a single action.
1Sequence
Numbers set in front indicate successive steps in a procedure.
VEGAWAVE 62 -Cable shortening set 3
About this document
32361-EN-060822

2For your safety
2.1Authorised personnel
All operations described in this operating instructions manual
must be carried out only by trained specialist personnel
authorised by the operator.For safety and warranty reasons,
any internal work on the instruments must be carried out only
by personnel authorised by the manufacturer.
2.2Appropriate use
The cable shortening set is used to shorten VEGAWAVE
sensors in cable version (VEGAWAVE 62).
2.3Warning about misuse
Inappropriate or incorrect use of the instrument can give rise to
application-specific hazards,e.g.vessel overfill or damage to
system components through incorrect mounting or adjustment.
2.4Environmental instructions
Protection of the environment is one of our most important
duties.That is why we have introduced an environment
management system with the goal of continuously improving
company environmental protection.The environment man-
agement system is certified according to DIN EN ISO 14001.
Please help us fulfil this obligation by observing the environ-
mental instructions in this manual:
lChapter "Storage and transport"
lChapter "Disposal"
4VEGAWAVE 62 -Cable shortening set
For your safety
32361-EN-060822

3Product description
3.1Configuration
The scope of delivery encompasses:
lCable shortening set
lDocumentation
-this operating instructions manual
3.2Principle of operation
The cable shortening set is a set of parts required to shorten a
VEGAWAVE 62.
The cable shortening set can be also used e.g.if the sensors
must be led through a narrow tube.
The cable shortening set must not be used if the concerned
sensor is used for solid detection in water.
The cable of the sensor consists of a suspension cable,the
electrical wires and an outer insulation.
3.3Storage and transport
Your instrument was protected by packaging during transport.
Its capacity to handle normal loads during transport is assured
by a test according to DIN EN 24180.
The packaging of standard instruments consists of environ-
ment-friendly,recyclable cardboard.For special versions,PE
foam or PE foil is also used.Dispose of the packaging material
via specialised recycling companies.
lStorage and transport temperature see "Supplement -
Technical data -Ambient conditions"
lRelative humidity 20 …85 %
Scope of delivery
Area of application
Physical principle
Packaging
Storage and transport tem-
perature
VEGAWAVE 62 -Cable shortening set 5
Product description
32361-EN-060822

4Mounting
4.1General instructions
Necessary tools:
lTape measure/Yardstick
lCloth
lMarker (permanent)
lBolt cutter
lFlat wrench SW 24
lGaspipe pliers
lSkinning tools
lCable cutter
lWire cutter
lCrimping tool
lAllen wrench 2mm
lHot air blow-dryer
lTalcum/Mounting grease
Additionally:
lBench vice with Aluminium or plastic braces
6VEGAWAVE 62 -Cable shortening set
Mounting
32361-EN-060822

4.2Mounting sequence
1 2 3 4
7 6 5

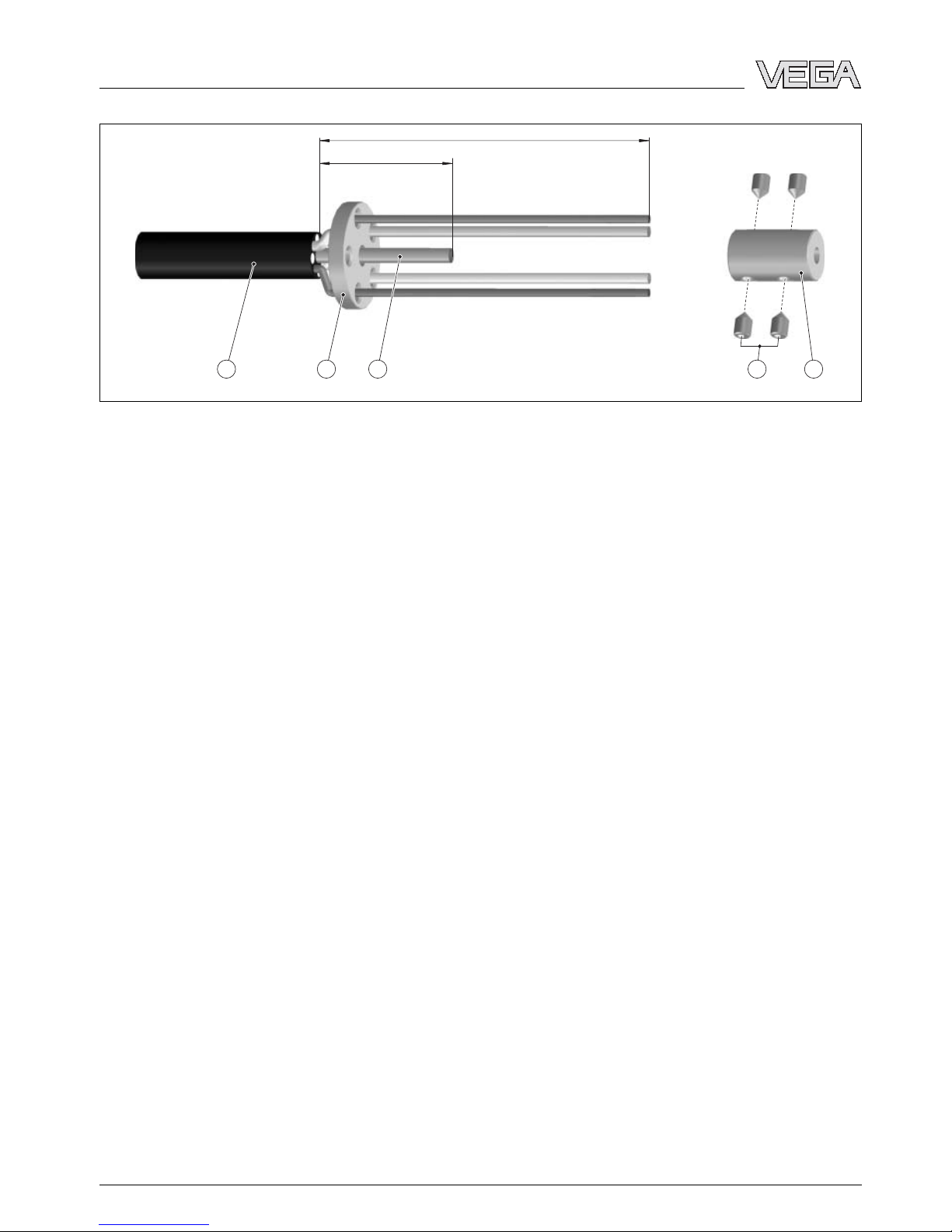

Fig.1:Cable shortening set for VEGAWAVE 62
1Crimp connector yellow,2pcs., article no.2.11444
2Crimp connector red,3pcs., article no.2.18710
3Crimping sleeve blue 8x30 mm,1pce., article no.1.243
4Crimping sleeve black 3x55 mm,1pce., article no.1.1207
5O-rings 37 x2mm,2pcs., article no.2.28878
6Pins M4x6,4pcs., article no.2.28894
7Cable clamp 12 x20 mm,1pce., article no.2.28876
The numbers refer to the figures on the following pages.
1Interrupt the voltage supply of the sensor and remove
connection cable.
2Dismount the sensor.
3Clean the cable (9)of the sensor.
4Determine new sensor length (L)with a tape measure
according to the illustration and mark with the marker.
You find information on the sensor length (L)in the
operating instructions manual of the sensor.
Mounting
VEGAWAVE 62 -Cable shortening set 7
Mounting
32361-EN-060822

Lneu
L
145 mm
(5 45/64")
9
Fig.2:Cut the cable with a bolt cutter
9Cable
5Cut the cable (9)with a bolt cutter approx.145 mm
(approx.5.7in)above the new sensor length (L).
6Clamp the upper part of the oscillator (19)in to the bench
vice.
149

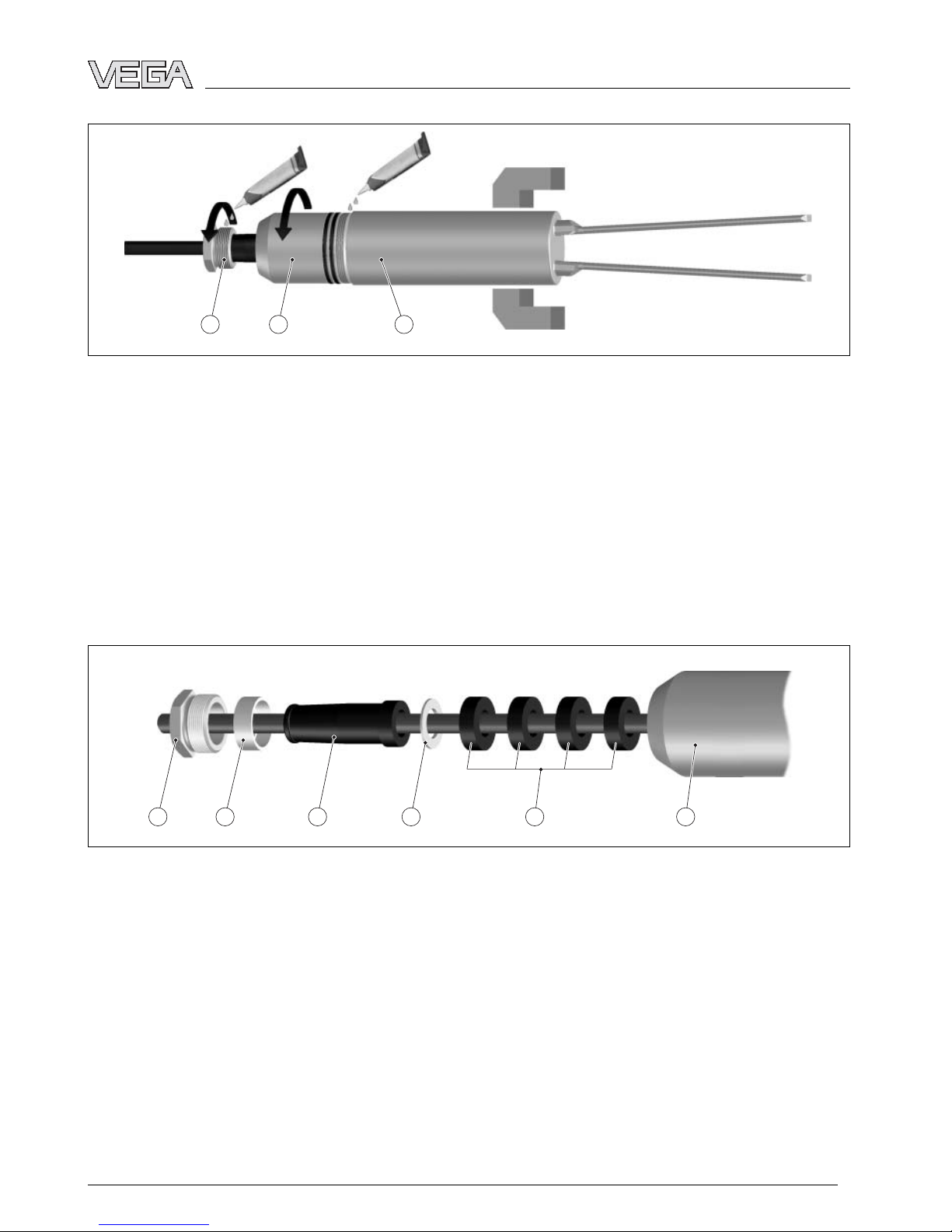

Fig.3:Unscrew pressure screw
9Cable
14 Pressure screw
7Remove pressure screw (14)with the flat spanner SW 24
so that the cable does not turn with the following
dismounting.
8Clamp the lower part of the oscillator (below the screwed
separating position)into the bench vice.
Do not clamp on the fork tines
8VEGAWAVE 62 -Cable shortening set
Mounting
32361-EN-060822

149 19
Fig.4:Turn the vibrating element
9Cable
14 Pressure screw
19 Upper part of the oscillator
9Loosen the upper part of the oscillator (19)with gaspipe
pliers and unscrew it.Both threaded connections are
secured with soluable screw retention lacquer.
Make sure that the cable (9)does not turn.
A B
Fig.5:Uncompress the vibrating element carefully -cut the leads
AUpper part of the oscillator
BLower part of the oscillator
10 Uncompress the two parts (Aand B)carefully.
Cut the leads directly on the clead pressing (see arrows)
with wire cutting pliers.
VEGAWAVE 62 -Cable shortening set 9
Mounting
32361-EN-060822

9 1019
Fig.6:Pull the cable out the of upper part of the oscillator
9Cable
10 Breaker plate
19 Upper part of the oscillator
11 Pull the cut cable (9)out of the upper part of the oscillator
(19).
Keep all parts for mounting.
79 12 10
Fig.7:Cut the suspension cable (12)with a bolt cutter
7Cable clamp
9Cable
10 Breaker plate
12 Suspension cable
12 Cut the suspension cable (12)with a bolt cutter and keep
the breaker plate (10)for mounting.
13 Clean the remaining sensor cable (9)from oil and grease
and rub it offwith talcum.
The old cable crimping can be no longer used and must be
disposed accordingly.
10 VEGAWAVE 62 -Cable shortening set
Mounting
32361-EN-060822

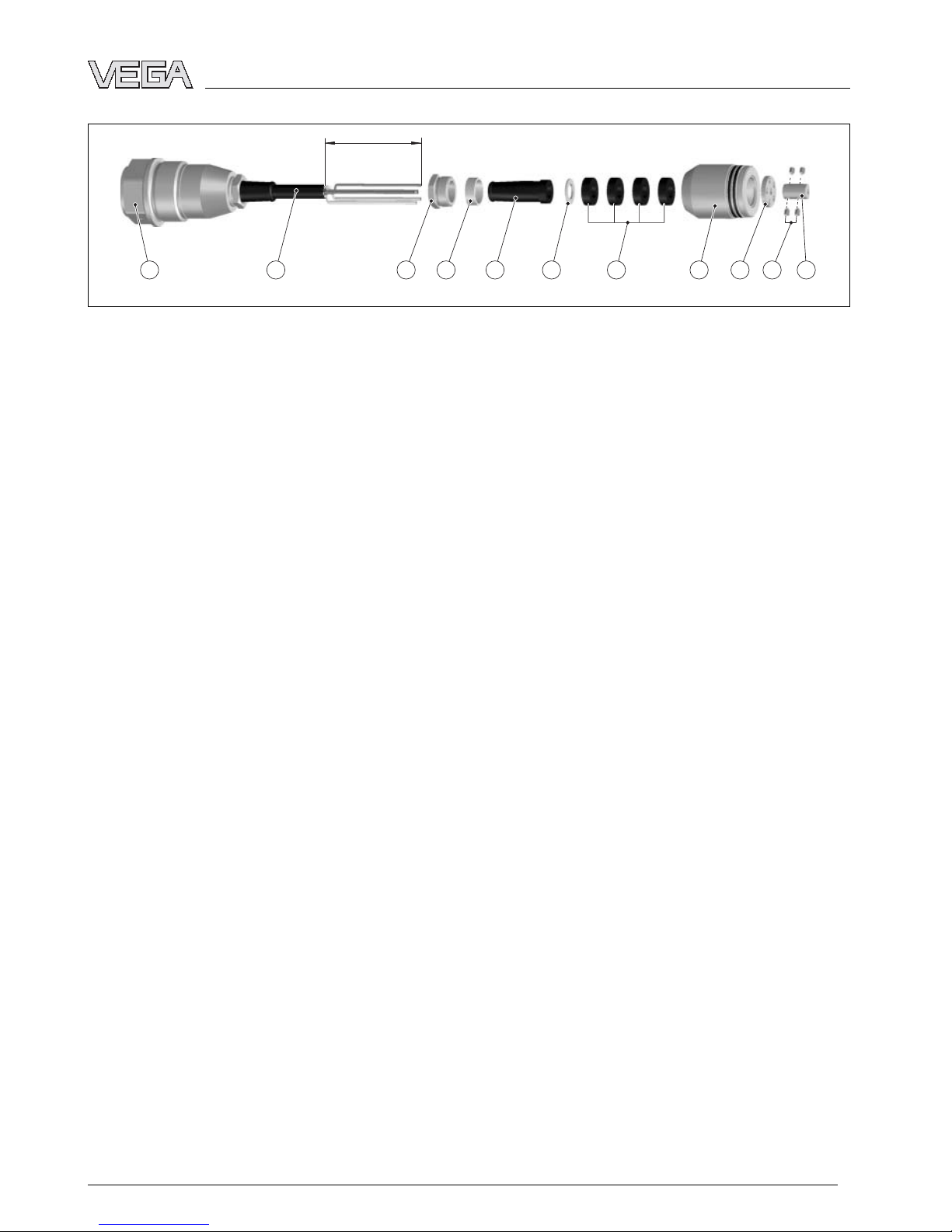

6181798 14 15 16 19 10 7
100 mm
(3 15/16")
Fig.8:Shift the parts to the cable
6Pins (4pcs.)
7Cable clamp
8Mounting boss
9Cable
10 Breaker plate
14 Pressure screw
15 Pressure ring
16 Rubber cover
17 Washer
18 Rubber rings (4pcs.)
19 Upper part of the oscillator
14 Shift the individual parts (14,15,16,17,18,19)to the
cable according to drawing.
Make sure that the shoulder of the washer (17)points in the
direction of the pressure ring (15).
15 Remove the outer isolation of the cable on 100 mm (4in)
length.
16 Shorten the suspension cable (12)with a bolt cutter by
70 mm (2.8in)(remaining length:30 mm/1.2in).
VEGAWAVE 62 -Cable shortening set 11
Mounting
32361-EN-060822

69 1210 7
30mm
(1 3/16")
100 mm
(3 15/16")
Fig.9:Shorten suspension cable -shift cable clamp
6Pins
7Cable clamp
10 Breaker plate
12 Suspension cable
17 Plug the breaker plate (10)on the bare suspension cable
(12)and lead the 4wires (green,yellow,red,green-yellow)
separately through the outer holes of the breaker plate
(10).
Do not lead the fawn plastic cords (11)through the breaker
plate.
18 Shift the cable clamp (7)flush to the suspension cable (12).
When shifting,turn the cable clamp in the direction of the
cable drilling to avoid splicing the wire.The chamfered side
facilitates inserting the suspension cable.
19 Tighten the pins (6)constantly on all sides with an Allen
wrench 2mm.The pins should be screwed in with the
same depth into the cable clamp (approx.3Nm/2.2lbf ft).
20 Cut the fawn plastic cords (11)as short as possible with a
wire cutter.
21 Remove the insulation of the screened green (GN)and
yellow (YE)wire on a length of 60 mm (2.4in). Slightly push
back the screen braiding and open it with a sharp object in
the rear section.
Make sure that the wires are not damaged.
12 VEGAWAVE 62 -Cable shortening set
Mounting
32361-EN-060822

11
BK
GN/YE
GN
YE
RD
60mm
(2 23/64")

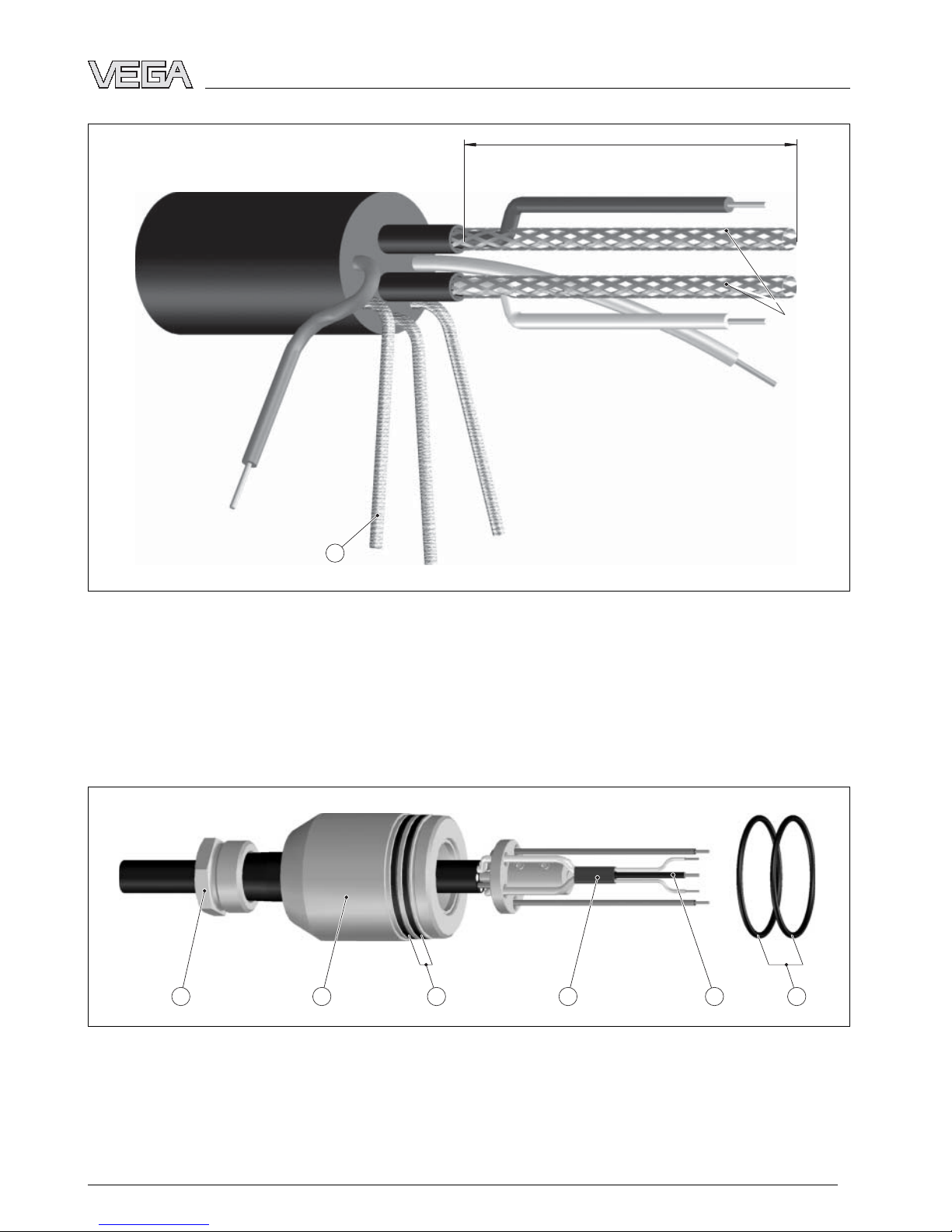

Fig.10:Pull the wires out of the braiding
11 Plastic cords
GN Green
YE Yellow
22 Pull the yellow and green wire backwards out of the screen
braiding.
23 Exchange O-rings (5), slightly grease thread and O-rings.

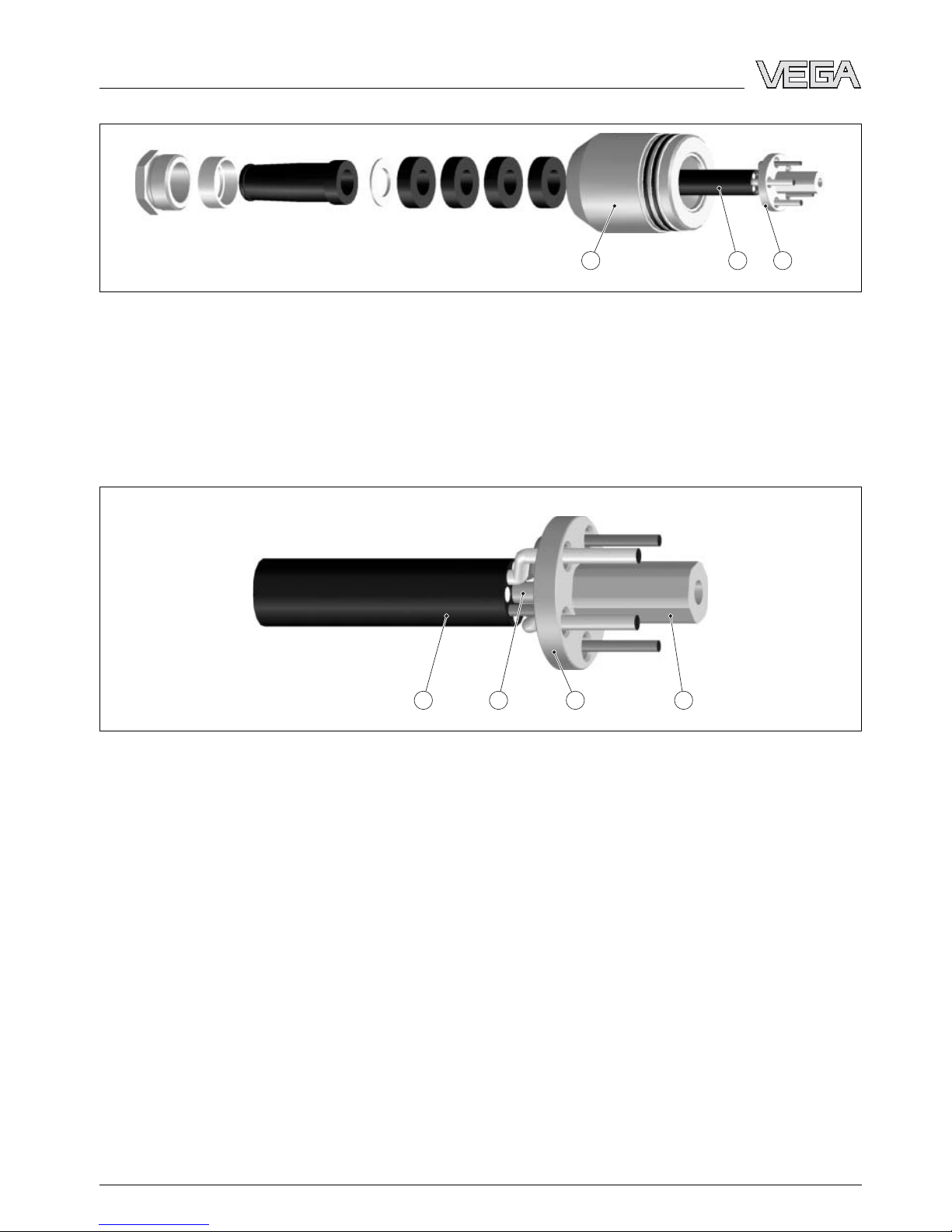

5 5
19 3 414
Fig.11:Exchange O-ringe -prepare wires
3Shrinking sleeve -blue
4Crimping sleeve -black
5O-rings
14 Pressure screw
19 Upper part of the oscillator
VEGAWAVE 62 -Cable shortening set 13
Mounting
32361-EN-060822

24 Merge the screening of the wires (yellow)and (green)and
twist ist.Insulate the twisted screening with the black
crimping sleeve (4)according to the drawing.Shrink the
transition green-black-yellow in the isolated wire with the
blue crimping sleeve (3).
6
GN/YE
GN
BK
YE
RD
GN/YE
GN
BK
YE
RD
712

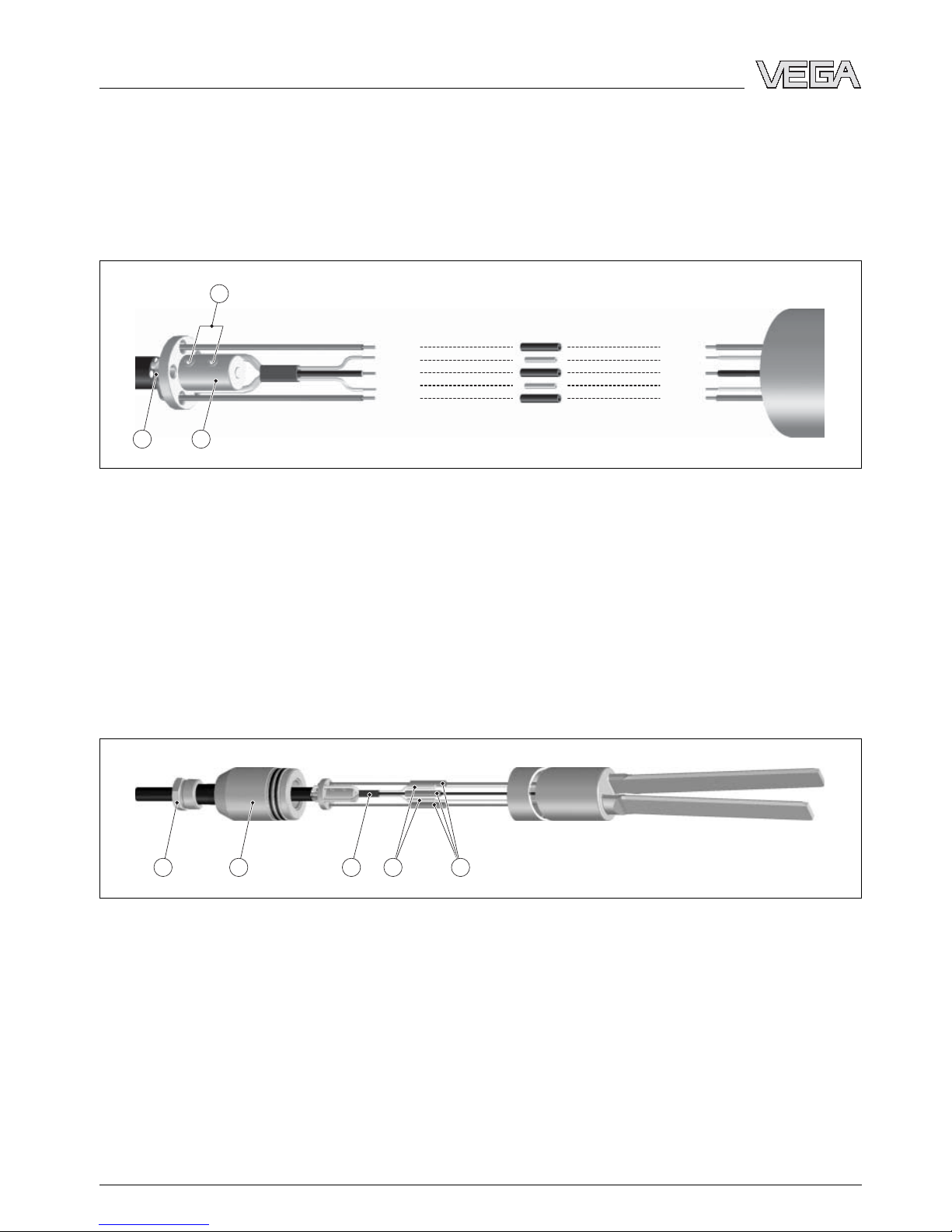

Fig.12:Connect wires
6Pins
7Clamp terminal
12 Suspension cable
GN Green
BK Black
YE Yellow
RD red
GN/YE
Green-yellow
25 Dismantle the wires on 5mm (0.2in)and connect with the
crimp connectors and crimping pliers according to drawing.
1 2314 19
Fig.13:Connect wires with crimping pliers
1Crimp connection -yellow (2pcs.)
2Crimp connection -red (3pcs.)
3Shrinking sleeve -blue
14 Pressure screw
19 Upper part of the oscillator
26 Merge the parts of the vibrating element (A+B). Provide
the thread with screw retention lacquer.Make sure that you
do not squeeze any wires.
The cable must not turn.
14 VEGAWAVE 62 -Cable shortening set
Mounting
32361-EN-060822

14 A B
Fig.14:Mount the vibrating element
14 Pressure screw
AUpper part of the oscillator
BLower part of the oscillator
27 Mount the parts of the vibrating element.Clamp the lower
part of the oscillator (B)into the bench vice and turn only
the upper part of the oscillator (A). The cable must not turn.
28 Pull the cable (9)to the top and push the seal rings (18)
and the washer (17)in the upper part of the oscillator (19).
29 Shift the pressure screw (14)and the pressure ring (15)on
the rubber jacket (16).
181714 15 16 19
Fig.15:Cable seal
14 Pressure screw
15 Pressure ring
16 Rubber jacket
17 Washer
18 Rubber rings
19 Upper part of the oscillator
30 Provide the pressure screw (14)with screw retention
lacquer and screw it into the upper part of the oscillator
(19).
31 Tighten the pressure screw (14)with the flat wrench SW 24
(approx.6Nm/4.4lbf ft).
32 Check length of the sensor.
VEGAWAVE 62 -Cable shortening set 15
Mounting
32361-EN-060822

33 Install the sensor.
34 Connect the sensor according to the operating instructions
manual of the sensor.
35 Check the correct switching function of the sensor.
16 VEGAWAVE 62 -Cable shortening set
Mounting
32361-EN-060822

5Maintenance and fault rectification
5.1Maintenance
If mounted correctly to the sensor,the cable shortening set is
maintenance-free.There are no restrictions of the specifica-
tions in the sensor documentation.
5.2Instrument repair
Take note of the specifications in the sensor documentation.
VEGAWAVE 62 -Cable shortening set 17
Maintenance and fault rectification
32361-EN-060822

6Dismounting
6.1Dismounting procedure
Note chapter "Mounting"and carry out the stated steps in
reverse order.
6.2Disposal
The cable shortening set consists of materials which can be
recycled by specialised recycling companies.
Materials:see "Technical data"
Take note of the specifications in the sensor documentation.
18 VEGAWAVE 62 -Cable shortening set
Dismounting
32361-EN-060822

7Supplement
7.1Technical data
General data
Materials,wetted parts The resistance of the sensor does not change
by using the cable shortening set.
The materials used are stated in the operating
instructions manual of the sensor.
Sensor length 0.3... 80 m(1... 262 ft)
Approvals
The respective approvals of the sensor are not restricted by the correct use of the cable
shortening set.
VEGAWAVE 62 -Cable shortening set 19
Supplement
32361-EN-060822

VEGA Grieshaber KG
AmHohenstein 113
77761 Schiltach
Germany
Phone [phone]
Fax [phone]
E-mail:[e-mail]
www.vega.com
ISO 9001
All statements concerning scope of delivery,application,
practical use and operating conditions of the sensors and
processing systems correspond to the information avail-
able at the time of printing.
©VEGA Grieshaber KG,Schiltach/Germany 2006
Subject to change without prior notice 32361-EN-060822
