Veigel S00280220 User manual

Installation and
Operating Instructions
Universal Installation Kit
for the Twister
Art. No.: S00280220
www.veigel-automotive.de
Rehamotive

Document no. 250562
Created 2020-02-13
Name Schulz
Revised
Version 1
Subject to technical modications without prior
notication and to errors.
Reproduction, even in part, only permitted with
permission from Veigel GmbH + Co. KG.

Contents
1-1
Contents
Contents.....................................................................................................1-1
Revision history .................................................................................................. 1-2
Symbols used ..................................................................................................... 1-3
General information ..................................................................................2-1
General safety information.................................................................................. 2-1
Intended use ....................................................................................................... 2-2
Foreseeable misuse ........................................................................................... 2-2
Product description...................................................................................3-1
Type plate ........................................................................................................... 3-1
Twister scope of delivery .................................................................................... 3-2
Applicable documents......................................................................................... 3-3
OPERATION ...............................................................................................4-1
Safety information............................................................................................... 4-1
Operation ............................................................................................................ 4-1
Assembly....................................................................................................5-1
Safety information............................................................................................... 5-1
Tightening torques .............................................................................................. 5-1
Removing the original seat ................................................................................. 5-2
Assembling the Twister installation kit ............................................................... 5-3
Positioning the template .................................................................................... 5-4
Customising the angle brackets ........................................................................ 5-5
Belt connection ................................................................................................... 5-6
Assembling the Twi ster ...................................................................................... 5-7
Checking the function ......................................................................................... 5-7
Maintenance and care...............................................................................6-1
Safety information............................................................................................... 6-1
Maintenance/care ............................................................................................... 6-1
Transport, storage and disposal ..............................................................7-1
Transport and storage......................................................................................... 7-1
Disposal .............................................................................................................. 7-1
Installation record .....................................................................................8-1

1-2
Contents
Revision history
Edition Revisions Chapter
01 / 2020-02-13 Initial version
02 / 2014-03-26 Editorial revision
03 / 2013-12-16 Editorial revision
04 / 2015-09-07 Addition of Veigel Commander operation 4-5
05 / 2015-11-27 "Veigel Commander operation" removed 4-5
06 / 2016-09-07 Veigel hotline address details corrected 1-3
Type plate updated 3-2

Contents
1-3
Symbols used
The following symbols are used in these operating instructions:
This symbol refers to tips and recommendations.
This character refers to information that, if not observed, will pose a risk to your
health or the functionality of the device.
This character refers to important additional information.
NOTE
ATTEN-
TION!
Individual images contained in these instructions may deviate from the driving
aid you received.
Thank you for
choosing this high-quality Veigel product!
Veigel hotline
Telephone: [phone]
Fax: [phone]
E-mail: [e-mail]
Web: http://www.veigel-automotive.de
Veigel GmbH + Co. KG
Verrenberger Weg 36
74613 Öhringen, Germany

1-4
Contents
Blank page for your notes

Safety information
2-1
General information
General safety information
The Twister is a pre-assembled component that comes ready to install. It was
designed and built in line with carefully chosen harmonised standards that must
be observed, as well as further technical specications. Consequently, it is
a state-of-the-art product and provides the best possible level of safety while
in operation. The Twister left the factory in a awless condition in terms of
technical safety.
However, safety can only be achieved in practice if all the required actions have
been taken. The persons responsible for installation and operation have a duty
to plan these actions and monitor their implementation.
Observe the following in particular during operation:
• Please read these installation and operating instructions carefully before using
the swivel seat.
• Only accessories obtained from the manufacturer may be used with the Twister.
• Structural modications to the Twister may only be performed following
consultation with the manufacturer.
• Comply with the operating instructions when using and operating the Twister.
• Observe the applicable accident prevention and safety provisions when
operating the Twister.
• The Twister may only be operated if it is in a awless, functional condition.
Arrange for functional faults to be remedied immediately.
• The complete operating and installation instructions must always be carried
in the vehicle.
ATTEN-
TION!

2-2
Safety information
If this information is not observed, this will void the warranty, the
manufacturer’s liability and, in certain situations, the type approval. As
a consequence, no claims can then be made against us.
ATTEN-
TION!
• This Twister is only suitable for use in the named vehicle types; it may only be
installed in these vehicle types.
• The Twister replaces an original seat without a lateral airbag.
• The swivel functions are only intended to make vehicle entry and exit easier
for people up to a maximum body weight of 160 kg.
Intended use
• ThereisariskofinjurywhenturningtheTwisterby90°ifapersonis
sitting on it at the time.
• ItisnotpermittedtooperatetheTwisterwhiledriving.
• Onthewhole,privateindividualsarenotpermittedtostoreairbags.
Foreseeable misuse
ATTEN-
TION!

3-1
Product description
Product description
The Twister helps seniors and individuals with disabilities to get into and out of
a vehicle.
People with severely restricted mobility can use it to turn themselves into and
out of the vehicle with ease.
If the Twister is turned so it is facing fully outwards, it can also be pulled right out
of the vehicle until the seat is completely outside.
1. Home position: Twister 0°, seat in rearmost position, facing forwards. The
Twister must be locked in this position while driving.
2. 90° position: Twister turned outwards by 90°. The Twister can be pushed out
from this position, to make it easier to get into a wheelchair, for example.
The Twister has 2 positions:
Type plate
The type plate and factory number are important when it comes to uniquely
identifying the scope of delivery.
Unique order number
Unique serial number of the driving aid
Type designation
Veigel GmbH + Co. KG
Type: Version: S
Type designation:
Factory no.: xxxxxx-xxx
Article no.: S00280220
Please enter the factory number of the driving aid here:
Factory no.: ______________________________
The type plate is stuck onto the Twister.

3-2
Product description
Figure 1: Twister layout
Twister scope of delivery
Item Description Art. no.
1Tube 106319
2Centre punch 106399
3Template 106318
4Angle bracket 106317
5Angle bracket 2 106400
6Bar 106316
Not
shown
Spacer tube
Qty Description
12 Fillister-head screw M8x25
8Hexagon nut ISO 4032 M8
8Hexagon nut DIN 985 M8
12 Washer DIN 7349-8.4x21x4
4 Fillister-head screw M10x45
4 Fillister-head screw M10x40
1
2
3
4
5
6
M10x45
M10x40
M8x25
M8x25
M8
8.4x21x4
1
6

3-3
Product description
Intended use
Applicable documents:
Twister installation and operating instructions S00001
NOTE
See the parts certicate for detailed information about the assignment.

3-4
Product description
Blank page for your notes

4-1
Operation
Safety information
OPERATION
Keep the installation and operating instructions together with the vehicle
documents.
ATTEN-
TION!
Arrange for any irregularities to be examined by a workshop.
Operate the seat as per the information provided by the vehicle manufacturer.
The standard functionality of the seat remains fully intact.
Operation

5 -1
Assembly
Assembly
Safety information
Tightening torques
The tightening torques as specied by the vehicle manufacturer apply when
converting vehicles using Veigel driving aids.
Unless otherwise stated in the text, the usual DIN tightening torques provided
in the table below apply for Veigel parts.
ATTEN-
TION!
ATTEN-
TION!
• Installation and maintenance work may only be performed by specialist sta
using suitable tools.
• Please read these operating instructions carefully before installing the Twister.
• Pass the operating instructions on to the customer, together with the
installation instructions for the Twister and any parts certicate, when you
hand over the vehicle.
• Observe the applicable accident prevention and safety provisions when
installing and maintaining the Twister.
• Only accessories obtained from us may be used with the Twister.
• Structural modications to the Twister may only be performed following
consultation with the manufacturer.
• If the Twister is installed in an authorised workshop, the installation record must
be lled in (see appendix). If it is installed at the factory, a separate installation
record will be prepared and archived at the factory.

5-2
Assembly

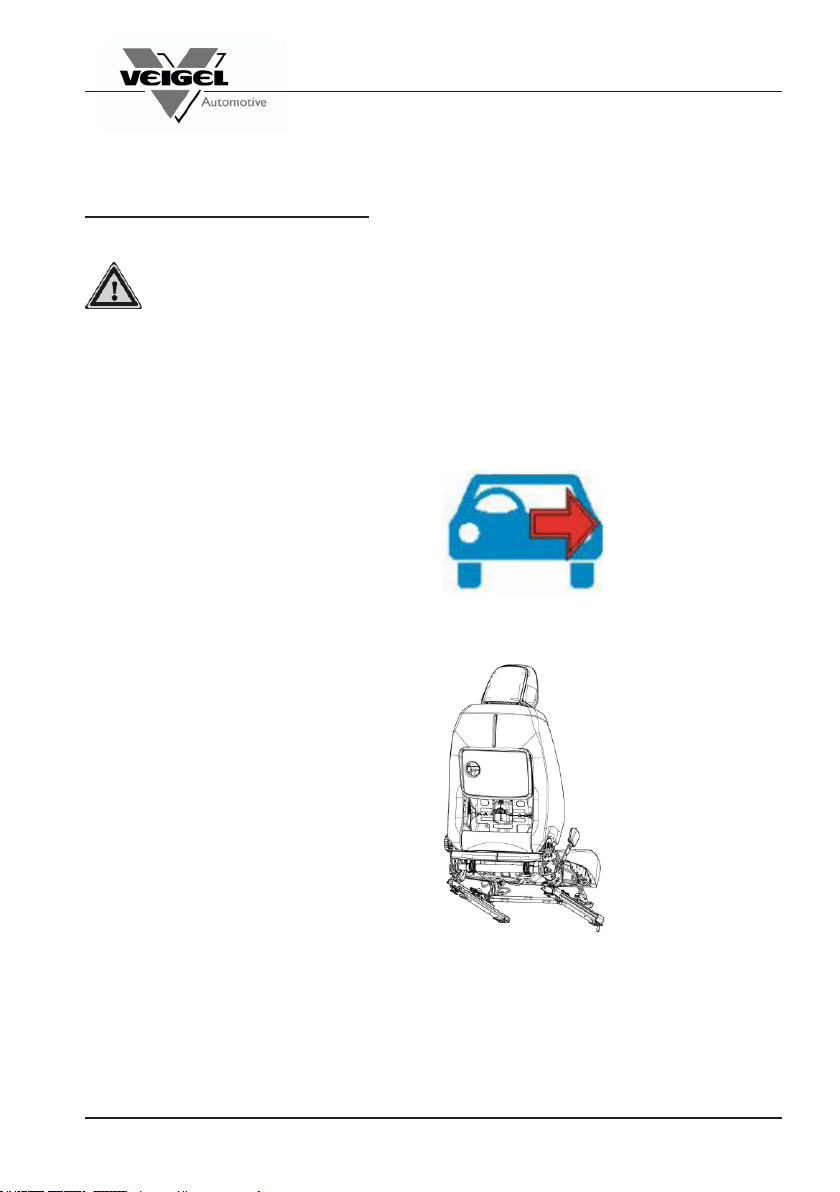

Removing the original seat
ATTEN-
TION!
Only trained individuals may make modications to or work on airbag
systems.
Remove the original seat on the
passenger side according to the
manufacturer's instructions.
Add the Twister and installation kit to the vehicle documents in accordance
with Section19 Paragraph 2 and Section 21 of the StVZO (Straßenverkehrs-
Zulassungs-Ordnung, the German Road Tra󰀩c Licensing Regulations).
Figure 5-1: Vehicle seat removed

5-3
Assembly

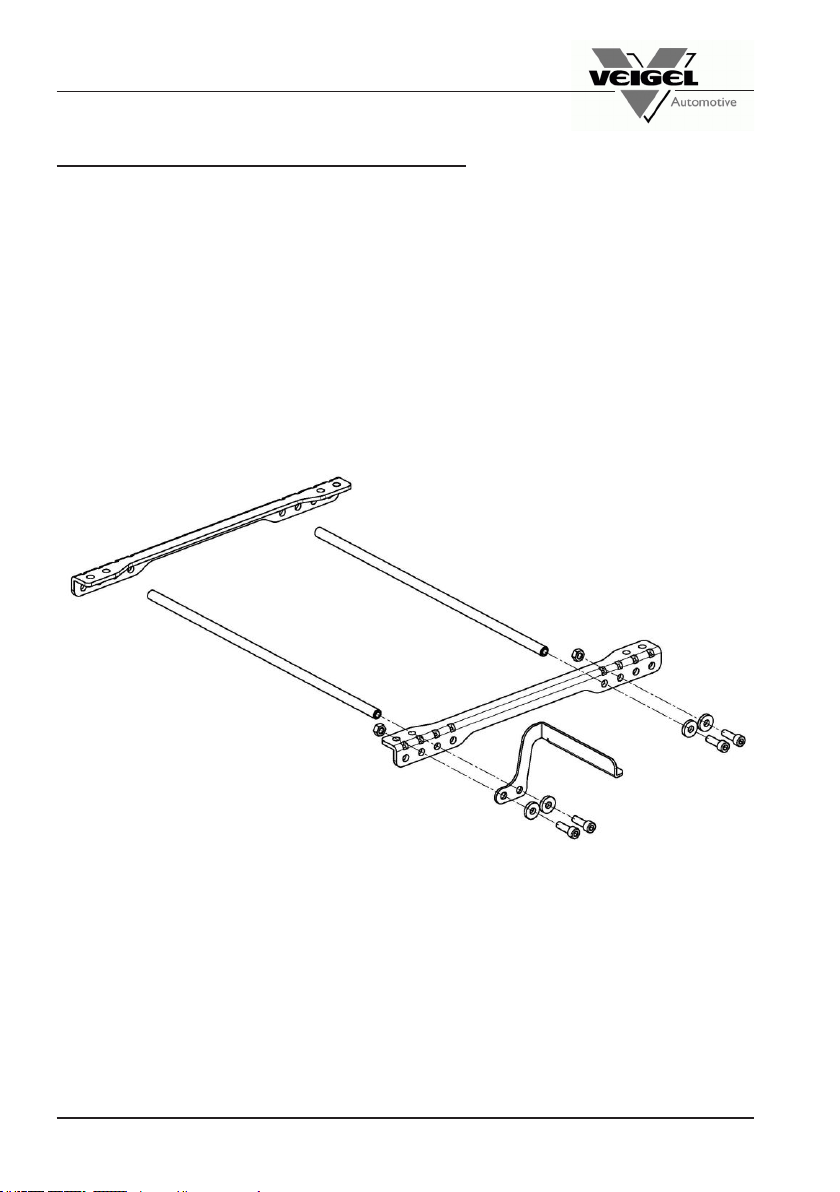

Figure 5.1: Installation frame
Assemble the installation frame as per the gure.
Lift the installation frame into the vehicle, to the position where the seat will be located.
Align the installation frame so the two bars (item 6) lie at.
Assembling the Twister installation kit
Required screws:
12 x llister-head screw M8x25
8 x hexagon nut ISO 4032 M8
8 x hexagon nut DIN 985 M8
12 x washer 8.4x21x4
4 x llister-head screw M10x45
1 x llister-head screw M10x40
Required parts:
Item 1 Tube
Item 2 Centre punch
Item 3 Template
Item 4 Angle bracket
Item 5 Angle bracket 2
Item 6 Bar
Spacer tube

5-4
Assembly
Positioning the template

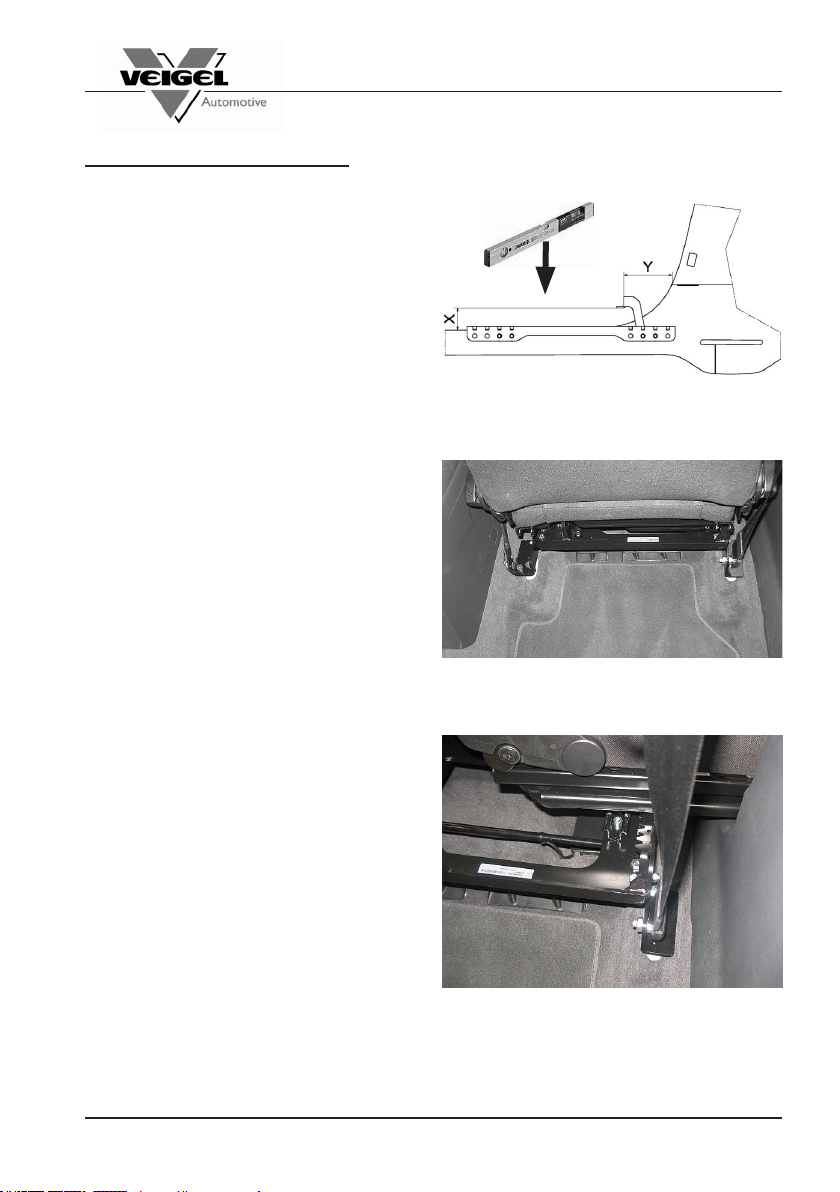

Figure 5.2: Positioning the template
Figure 5.3: Checking the clearances
Figure 5.4: Checking the clearance to the
B-pillar
Use the template to establish the
correct position.
Dimension X should be in the
bottom third of the B-pillar.
Make sure that this does not make
dimension Y too small and leaves
su󰀩cient clearance to the B-pillar.
Use the spirit level to ensure the
installation frame is straight, both
lengthwise and crosswise.
When aligning the frame, leave
a large enough clearance to the
centre console and the B-pillar.
The installation frame must
protrude at least 10 mm above the
door sill trim.

5-5
Assembly
Figure 5.7: Angle bracket 2
Figure 5.6: Angle bracket
Figure 5.5: Punch-marking
Screw the centre punch into the
threaded hole for the vehicle seat.
Bend an angle bracket and position
it over the centre punch.
Use a hammer to punch-mark the
bracket.
Customising the angle brackets
Customise each angle bracket
individually.
Use the hole pattern in the vehicle
as a guide.
Create angle brackets that are of
a height whereby the installation
frame protrudes above the door
sill trim and is aligned in parallel. Ø10.5
Ø10.5
Figure 5.8: Spacer tube
Make spacers out of the tube
provided to compensate for the
height at the vehicle seat.

5-6
Assembly
Figure 5.9: Seat belt buckle
Figure 5.10: Seat belt strap
Choose a suitable location on the
two rear angle brackets for the seat
belt buckle and strap.
Strictly observe the provisions
of technical regulation ECE R-14
on safety-belt anchorages when
customising these parts.
Belt connection
Make sure that the seat belt can
never be in contact with the Twister.

5-7
Assembly

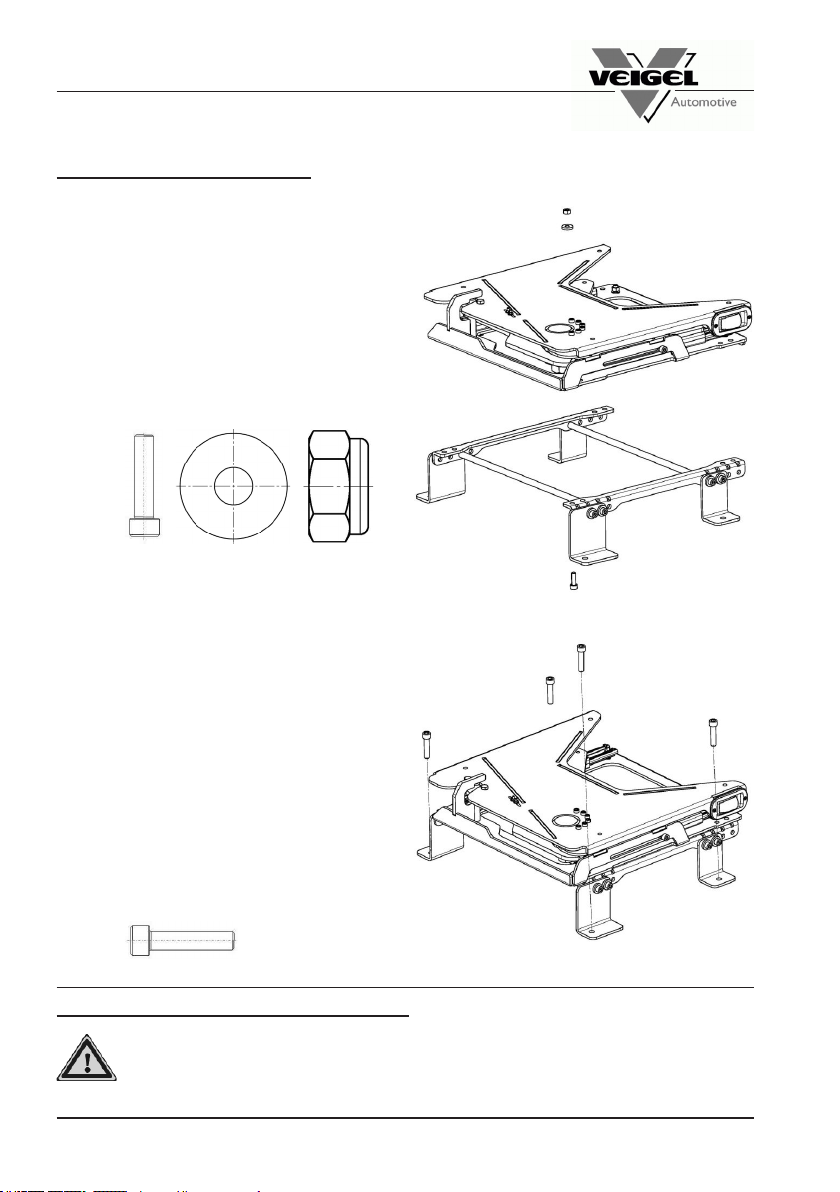

Figure 5.11: Installing the Twister
Assembling the Twister
M8 = 25 Nm ±10%
8x
Screw the Twister and the
installation frame together.
Use the M8x25 fillister-head
screws, 8.4 washers and M8
hexagon nuts to do this.
Make absolutely sure that all
4 screw connections sit properly
and are not under strain.
Figure 5.12: Installation in the vehicle
M10 = 49 Nm ±10%
4x
Use the M10x40 or M10x45
llister-head screws for installation
in the vehicle, depending on the
condition of the vehicle oor.
Use spacers to compensate for
the height di󰀨erence between the
carpet and the body sheet, see
Figure 5.8.
Note the screw-in depth of the
mounting points in the vehicle.
Disassembling the installation kit
Disassemble the installation kit by following the assembly steps in reverse order.
Mount the seat using the original screws.
ATTEN-
TION!
