Veikk VK640 User manual

User Manual

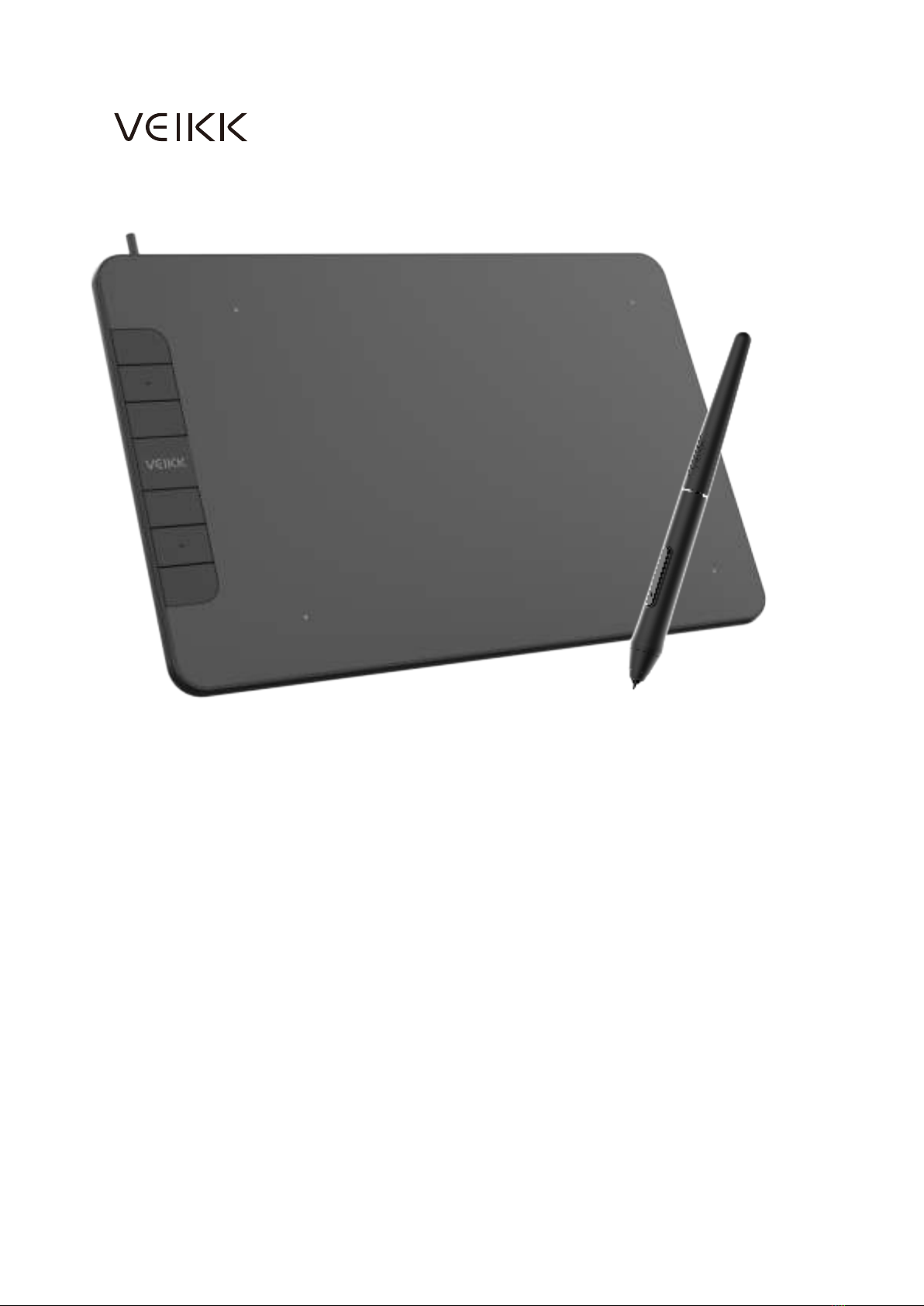

VK640 Graphic Pen Tablet
BATTERY-FREE PEN TABLET
www.veikk.com

Safety Precautions
Donotusethisproductinacontrolsystemthatrequiresahigh
degreeofsafetyandreliability.
Insuchasystem, thisproductmaynegativelyaffectother electronic
devicesandmalfunctionduetotheeffectofthosedevices.
Keep out of reach of children to avoid danger.
Makesurethatachilddoesnotputthepenor pentipinhis/her
mouth.
Thepentiporsideswitchcovercouldbedetachedandbe
accidentally swallowed.
Turnthepoweroffinthe areaswhereelectronicdevicesare
prohibited.
On boardanaircraftorinanyotherlocationwhereelectronic
devicesareprohibited, please unplug the USB connector from the
tablet to turn it off.
Donotplacethisproductonanunstablesurface.
Placingthisproductonanunstableortiltedsurfaceorinalocation
exposed toexcessivevibrationscouldcauseittofalloffwhich may
damage the product.
!

Avoid high or low-temperature locations for storage.
Do not store this product in a location where the temperature drops
below 5℃ or goes above 40℃ and in locations subject to excessive
temperature fluctuations to avoid damage to the product.
Do not disassemble.
Do not disassemble or modify this product as this could expose you
to heat, fire, electric shock and injury. Disassembling the product will
also void your warranty.
Do not use alcohol for cleaning.
Never use alcohol, thinner, benzene or other mineral solvents as
they could discolor or cause deterioration to the product.
Do not expose to water.
Do not place glasses or vases filled with water or other liquids near
this product. Exposure to water or liquid could damage the product.
Donotplaceheavyobjectsontopofthisproduct.
Donotstepon orplaceheavyobjectsonthisproductasthiscould
damageit.
!

LimitationofLiability
Donotplacemetalobjectsonthisproductduringoperation.
Placingmetalobjectsonthisproductduringoperationcouldcauseit
to malfunction ordamageit.
Donotstrikethepenagainsthardobjects.
Strikingthepenagainsthardobjectcoulddamageit.
Donothandlethepenwithsoiledhands.
Thepenisahigh-precisioninstrument. Handlingitwithsoiledhands
orusingitinlocationsexposedtodustor strongodorsmaycause
theentryofforeignmatterwhichwillresultinbreakdown.
VEIKKshallinnoeventbeliablefordamagesresultingfromfiresor
earthquakes, thosecausedbythirdpartiesandthosearisingfrom
user misuse, abuseorneglect.
VEIKKshallinnoeventbeliableforincidentaldamages-including
but notlimitedtolossofbusinessincome, interruptionofbusiness
activities, corruptionorlossof data-thatariseoutof theuseorfailure
tousethis product.
VEIKKshallinnoeventbeliablefordamagesresultingfromuses
not documentedinthismanual.
VEIKKshallinnoeventbeliablefordamagesfrommalfunction
causedby connectiontootherdevicesoruseofthirdpartysoftware.

Catalog
1.Product Overview..................................................................... 1
2.Packing List.............................................................................. 2
3.Installing Driver........................................................................ 2
4.Tablet Connection.................................................................... 3
5.Replacing the Nibs................................................................... 4
6.Specifications........................................................................... 4
7.Driver Settings.......................................................................... 5
8.FAQ.......................................................................................... 14

1.Product Overview
1
Shortcut Keys VEIKK Logo

2
3.Installing Driver
VK640
10.12
Android 6.0 or later (Except Samsung Android device)
For a PC/laptop:
3.2 Installation
3.1 OS Support
For an Android mobile phone:
No need to install VEIKK driver on your phone.VK640
Pen Holder x1
(Includes 8 pen nibs)
2.Packing List

3
4.Tablet Connction
1.Connect the tablet to your computer with USB cable.
For a PC/laptop:
For an Android mobile phone:
1.Please connect the tablet to your phone with the OTG adapter.
2.Rotate the tablet as shown in Figure1,then you can start using your tablet.
Note1: Works in mobile phone vertical screen mode only.
Note2: For some mobile phones, you need to enable the OTG function manually
in the phone’s settings.
Note3: The shortcut keys of the pen and tablet can't work on Android mobile phone.
Figure 1

4
5.Replacing the Nibs
6.Specifications
VK640
232 mm x152 mm x 8 mm

5
7.Driver Settings
Windows:
7.1 Pen:
7.1.1 Pen Function Settings
You may customize the functions of your
tablet pen’s barrel buttons here. Use the
“Pen” option to program custom
keystrokes.
7.1.2 Current Pen Pressure
Current Pen Pressure shows the current
pressure level being exerted on your tablet
and can be used to test pen pressure.

6
7.1.3 Click Sensitivity
You can adjust pen pressure to “Output”
or “Input” sensitivity on here.
7.2 Mapping
Define the tablet area that will be mapped to the screen area.

7

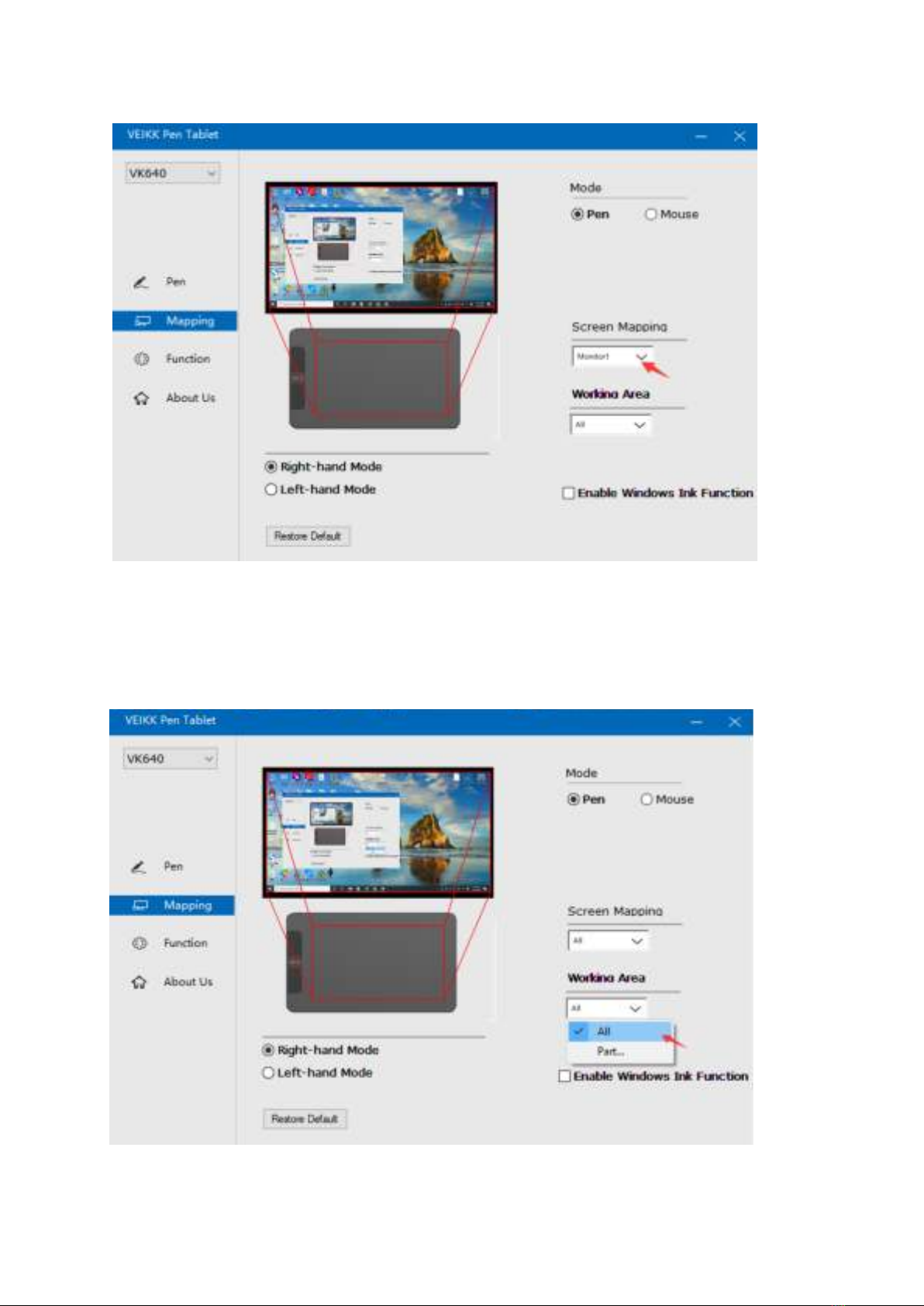

7.2.1 Screen Mapping
All Area: the entire active area of the tablet. This is the default setting
Part Area: Click Part

8

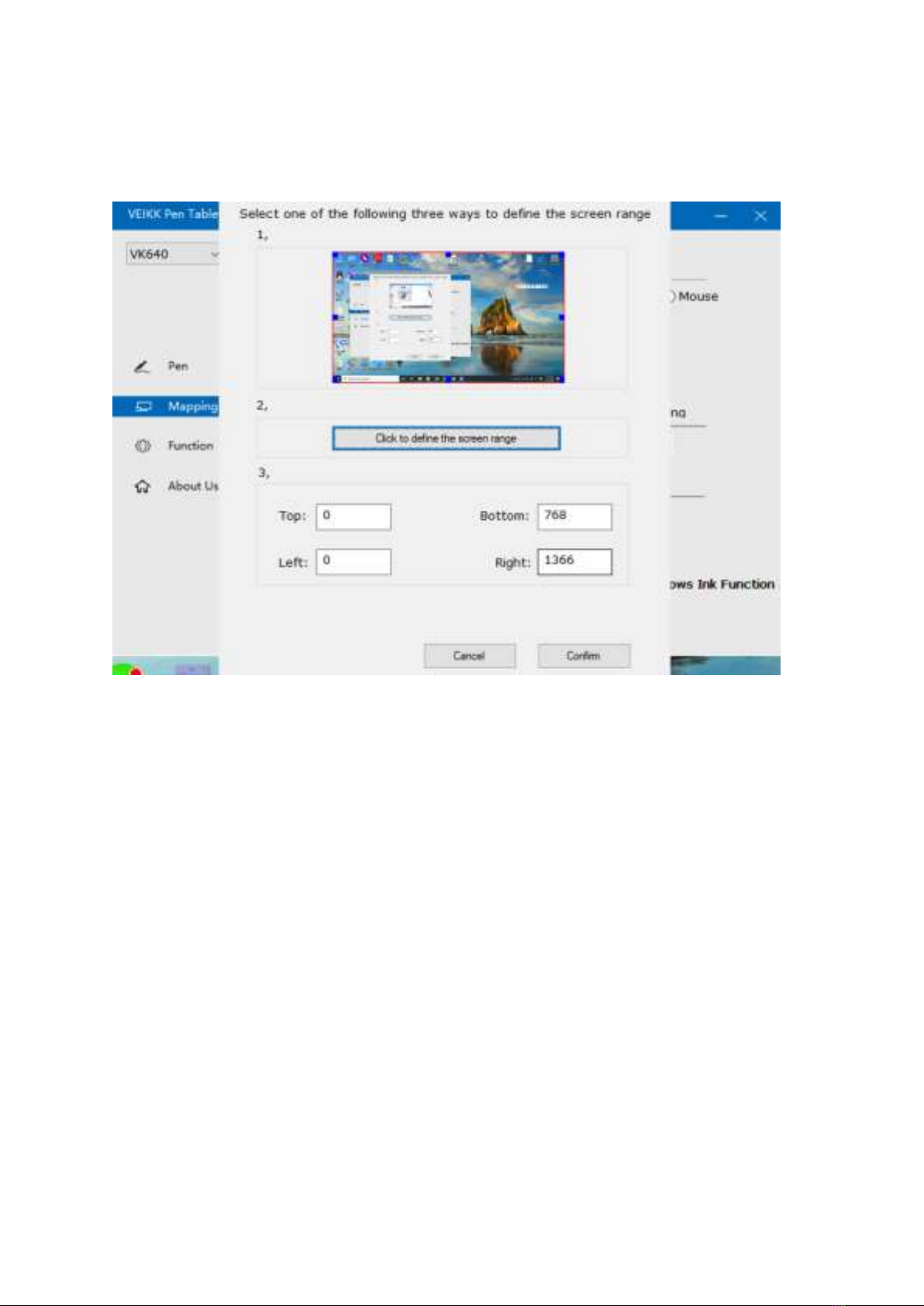

Then go to the next page, select one of the following three ways to define the screen
range.
Monitor1: If more than one monitor is in use and you are in extended mode, you need
to choose the related monitor on the driver interface which you are going to map to.
If your monitors are in mirror mode(All monitors display the same content), the tablet
maps to the entire space on each monitor and the screen cursor is displayed on each
monitor simultaneously.

9
7.2.2 Working Area
All Area:the entire active area of the tablet.This is the default setting

10
Part Area:Click Part
Then go to the next page, select one of the following three ways to define
the pen tablet partial.

11

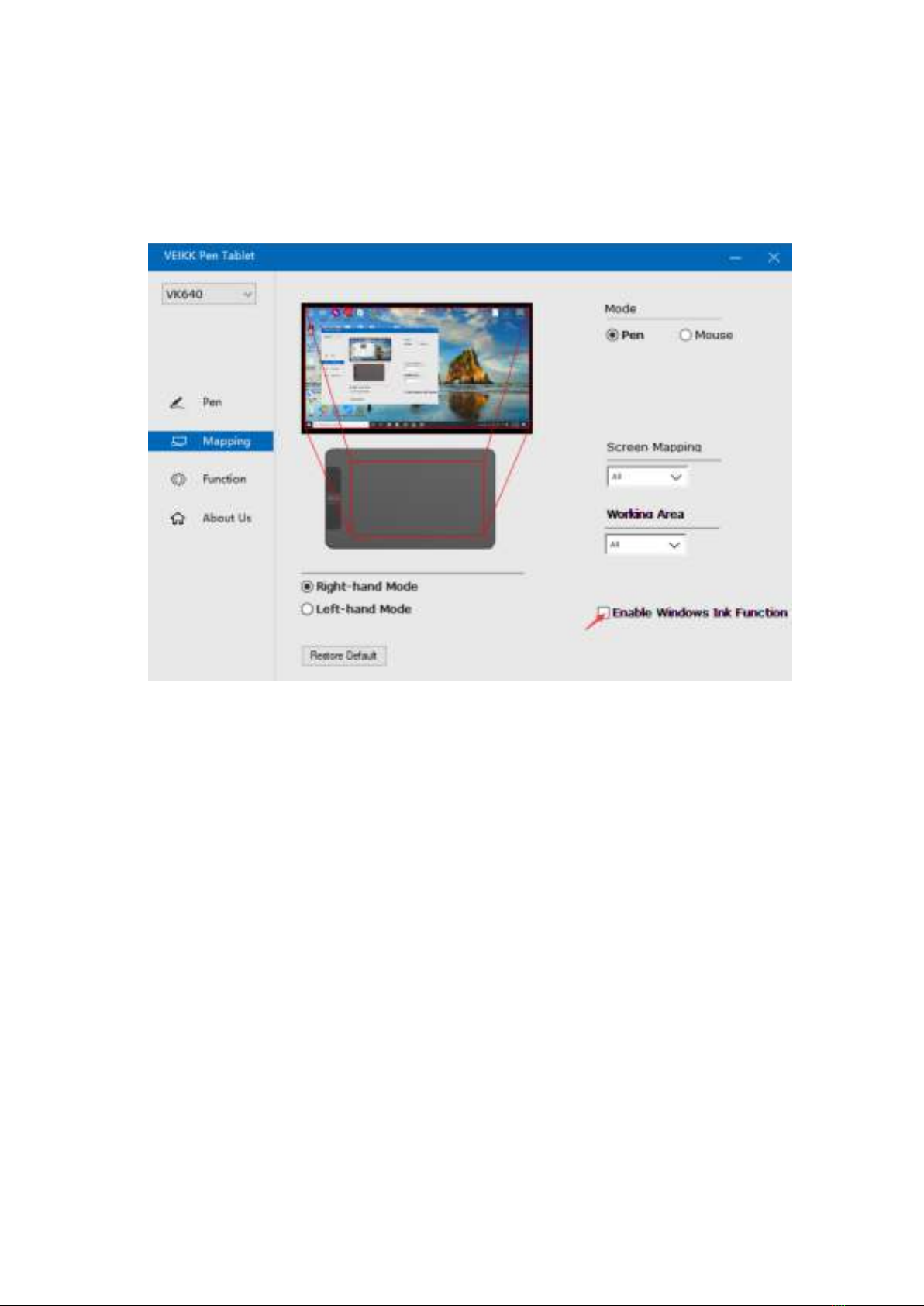

7.2.3 Enable Windows Ink Function
This capability can be toggled on and off here. Enabling this will allow support
for Windows Ink and applications that run using Windows Ink.
7.3.1 Application List：You can add or remove software by “+”or “-”
7.3 Function
Customize the Touch Keys

“+”: Click “+” to add softwares, you have two ways to select an application,
1、Choose from the dropdown(need to open the software firstly)
2、Choose from the browser
12

“-”: Click “-” to remove the softwares you added before.
7.3.2 Hotkey
Redefine Hotkey: Click on the title of the button. A dropdown menu will appear with a
list of tool options. Choose the one you want to use.
13
Mac:
Note:Driver settings in Mac system are the same in Windows system.
Users who use Mac system can take reference to Windows system.

14
8.FAQ
1. Where can I download the latest veikk driver?
2. How to install driver for veikk Pen tablet?
Please visit the VEIKK website to download the current updated driver
version: www.veikk.com
(1) Please uninstall all tablet drivers from your computer completely.
(2) Disable any all antivirus program or firewall, and keep all drawing softwares closed.
(3) Please connect USB cable to the computer and VEIKK pen tablet.
(4) Please download VEIKK driver from our official website: www.veikk.com
(5) Click VK Tablet Driver.exe and follow the prompts to install. If Mac system, please open it
with default installer.
(6) Once the driver is completely installed, you will see an icon appearing on the system tray
(lower right corner) and the desktop (Windows) and system Preference (Mac).
(7) After a successful installation, the digital pen should be able to control the cursor, and
activated for configuration on the pressure test area.
(1) Please plug the VEIKK tablet into your computer with USB cable.
(2) Download VEIKK driver and install it.
(3) After installation, the system preferences dialog box will pop up automatically.
(4) Click” Open System Preference” ---”Click the lock to make changes”---tick
“Tablet Driver Center”--Lock it to save.
(5) Open VEIKK driver from System Preference, click the tablet with the pen, if you can see
the pen pressure changes, it means you have installed the driver successfully.
(1) Please plug the VEIKK tablet into your computer with USB cable.
(2) Download VEIKK driver from our offical web and install it.
(3) After installation, the system preferences dialog box will pop up automatically.
(4) Click” Open System Preference” ---”Click the lock to make changes”---
tick “Tablet Driver Center”.
3. How to install driver in Mac OS Mojave (10.14) ?
4. How to install driver in Mac OS Catalina (10.15)?

15
(1) Make sure the tablet icon is in the task bar. If not, it means you have not installed the
driver, please install the driver and then reboot system to test again.
(2) If you can see the driver icon in the task bar, please open it and go to the “Pressure”
interface to test the pen pressure. If the pen pressure level changes when you click with
the pen, that means you have installed the driver correctly.
(3) Make sure the application that you are using supports pen pressure. Not all of the
applications support pen pressure function.
(4) Have you ever installed other tablet driver in your computer? If yes, please uninstall all
drivers and reboot. When the computer restart, install the VEIKK driver again.
(5) Click the tablet with the pen, the system preferences dialog box will pop up automatically
again.
(6) Click” Open System Preference” ---”Click the lock to make changes”---
tick “Tablet Driver Center”--Lock it to save.
(7) Open VEIKK driver from System Preference, click the tablet with the pen, if you can see
the pen pressure changes, it means you have installed the driver successfully.
(1) Make sure USB are connected correctly.
(2) Change a USB Port or a computer to have a try.
(3) After all cables are connected correctly, check whether the pen can control the cursor even
without tablet driver. If yes, disable your antivirus and keep all drawing softwares closed,
then go to our website to download the latest driver and install it
5. My tablets can not use the pen pressure.
6. The pen can not control the cursor.
Windows:
Run ‘Control panel --- Run ‘program’--- choose‘VKTabletDriver’--- follow the unload tips until
unloading is finished.
Mac:
(1) Open‘Finder’---‘Application’---‘Pen tablet Setting’---‘Uninstall Pen Tablet Driver’
If the first method do not uninstall the driver completely, please
(2) Open‘Finder’---‘Application’---‘Pen tablet Setting’ please delete the file directly.
7. How to uninstall driver?
