Veikk VK1560 User manual

VK1560
User Manual • Uživatelský manuál •
Užívateľský manuál • Használati utasítás •
Benutzerhandbuch

2
English
3 –19
Čeština
20 –36
Slovenčina
37 –53
Magyar
54 –70
Deutsch
71 –87

3
Dear customer,
Thank you for purchasing our product. Please read the following instructions carefully
before first use and keep this user manual for future reference. Pay particular attention
to the safety instructions. If you have any questions or comments about the device,
please contact the customer line.
󲐜󲐝󲐞󲐟󲐠www.alza.co.uk/kontakt
✆[phone]
Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Prague 7, www.alza.cz

4
Important Safety Instructions
Warning
Do not use this product in a control system that requires a hight degree of safety and
reliability.
In such a system, this product could negatively affect other electronic device and could
malfunction due to the effect of those devices.
Turn the power off in areas where use of electronic devices is prohibited.
On board and aircraft or in any other location where use of electronic devices is
prohibited, this product, if left on, could negatively affect other electronic devices.
Unplug the USB connector from this product and turn the power off.
Do not use this product in a location frequented by little children.
Make sure that a child does not put the pen or pen tip in his/her mouth.
The pen tip or side switch cover could be detached and be accidentally swallowed.
Caution
Do not place this product on an unstable surface.
Placing this product or an unstable or tilted surface or in a location exposed to excessive
vibrations could cause it to fall of resulting in injury.
Do not place heavy objects on top of this product.
Do not step or place heavy objects on this product as this could damage it.
Warning
Avoid hight or low-temperature locations for storage.
Do not store this product in a location where the temperature drops below 5°C or goes
above 40°C and in locations subject to excessive temperature fluctuations. Failure to
heed this caution could result in damage to the product and its components.
Do not disassemble.
Do not disassemble or modify this product as this could expose you to heat, fire, electric
shock and injury. Disassembling the product will also void your warranty.
Do not use alcohol for cleaning.
Never use alcohol thinner, benzene or other mineral solvents as they could discolour or
cause deterioration to the product.
Do not expose to water.
Do not place glasses or vases filled with water or other liquids near this product.
Exposure to water or liquid could damage the product.

5
Caution
Do not place metal objects on this product during operation.
Placing metal objects on this product during operation could cause it to malfunction or
damage it.
Do not strike the pen against hard objects.
Striking the pen against hard object could damage it.
Do not handle the pen with soiled hands.
The pen is a high precision instrument. Handling it with soiled hands or using it in
locations exposed to dust or strong odors may cause the entry of foreign matter which
will result in breakdown.
General Information
Overview
Welcome to the VEIKK! This user manual will help you setup the VK1560 and install the
driver. Either you are a beginner or professional, this one can satisfy your requirement.
For the driver, please download from www.veikk.com.
System Requirement
Windows 11/10/8/7, Mac OS 10.12 (or later), Chrome OS 88 (or later), Linux

6
Hardware Specification
HDMI Port
Power Port
USB Port
Power Switch
Moving Function Key
Menu
Auto
Moving Function Key
Shortcut Key 1
Shortcut Key 2
Shortcut Key 3
Quick Dial
Shortcut Key 5
Shortcut Key 6
Shortcut Key 7
Shortcut Key 8
Custom Click Button 1
Custom Click Button 2

7
Display Connection
1. Connect the end of USB cable to computer.
2. Connect the other end of USB cable to VK1560.
3. Connect one end of HDMI cable to computer.
4. Connect the other end of HDMI cable to VK1560.
5. Plug the power cable into power outlet.
6. Plug the other end of the power adapter into VK1560 power port.
Note 1: We recommended you insert the VEIKK USB cable to the host USB port of your
computer. You may use a USB hub with and attached external power supply to
adequately power your VEIKK if needed.
Note 2: Make sure your computer supports multiple monitors. Check if your computer
has extra HDMI ports. If your computer has an independent video card, please use the
HDMI ports there.
Note 3: If there isn’t any input signal, it means the table doesn’t receive HDMI video
input. Please reconnect the HDMI cable or change another HDMI cable or change
another computer to have a try.
USB Cable
HDMI Cable

8

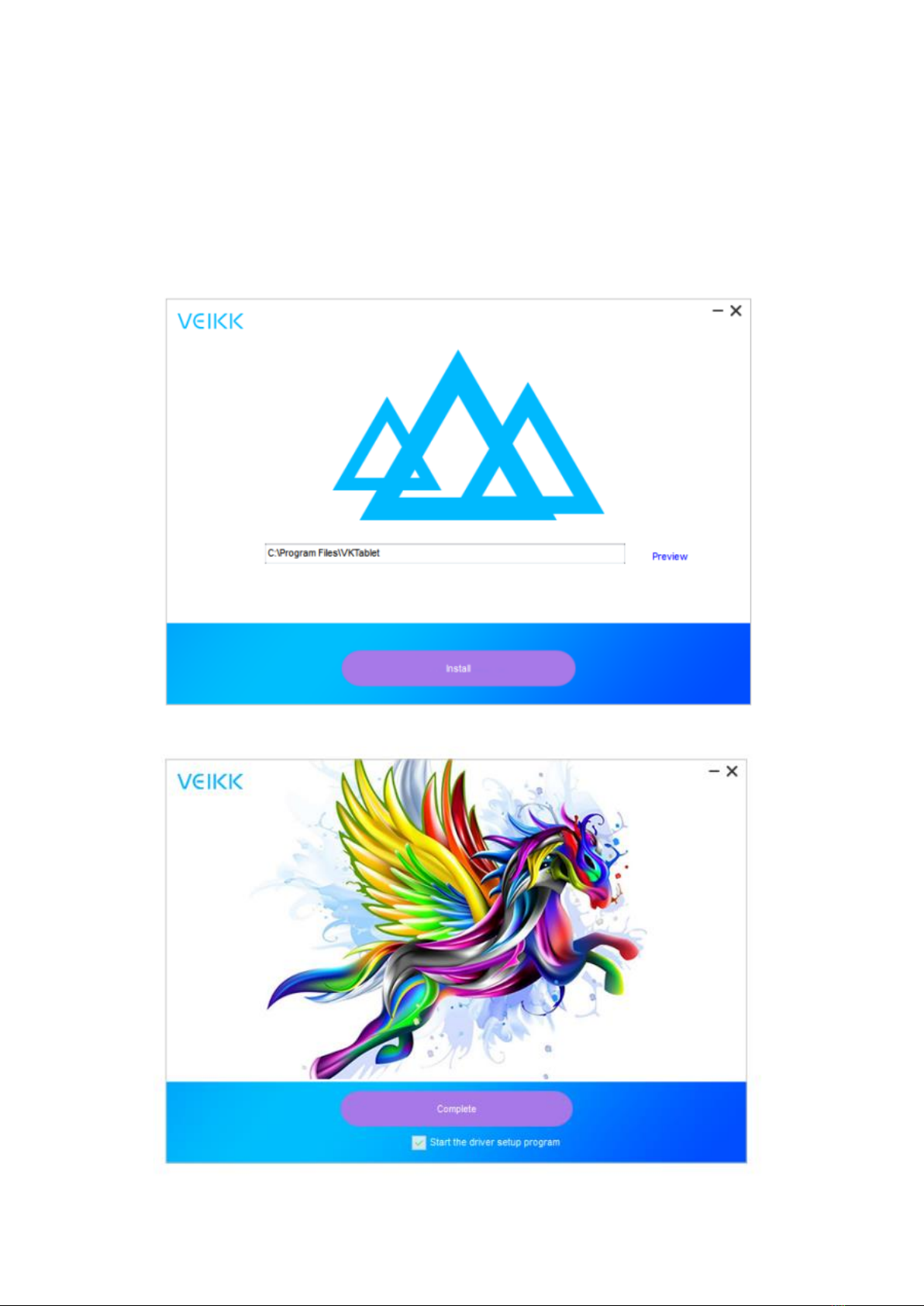

Installation on Windows
1. Before installing driver, please uninstall all tablet drivers from your computer,
and keep all antivirus program closed.
2. Connect the tablet to your computer before installation.
3. Please download updated driver from www.veikk.com.
4. Unzip download file to desktop, open the new unzipped folder.
5. Click VK TabletDriver.exe and follow onscreen instructions.
6. After installation then restart your computer.

9
Monitor Mapping

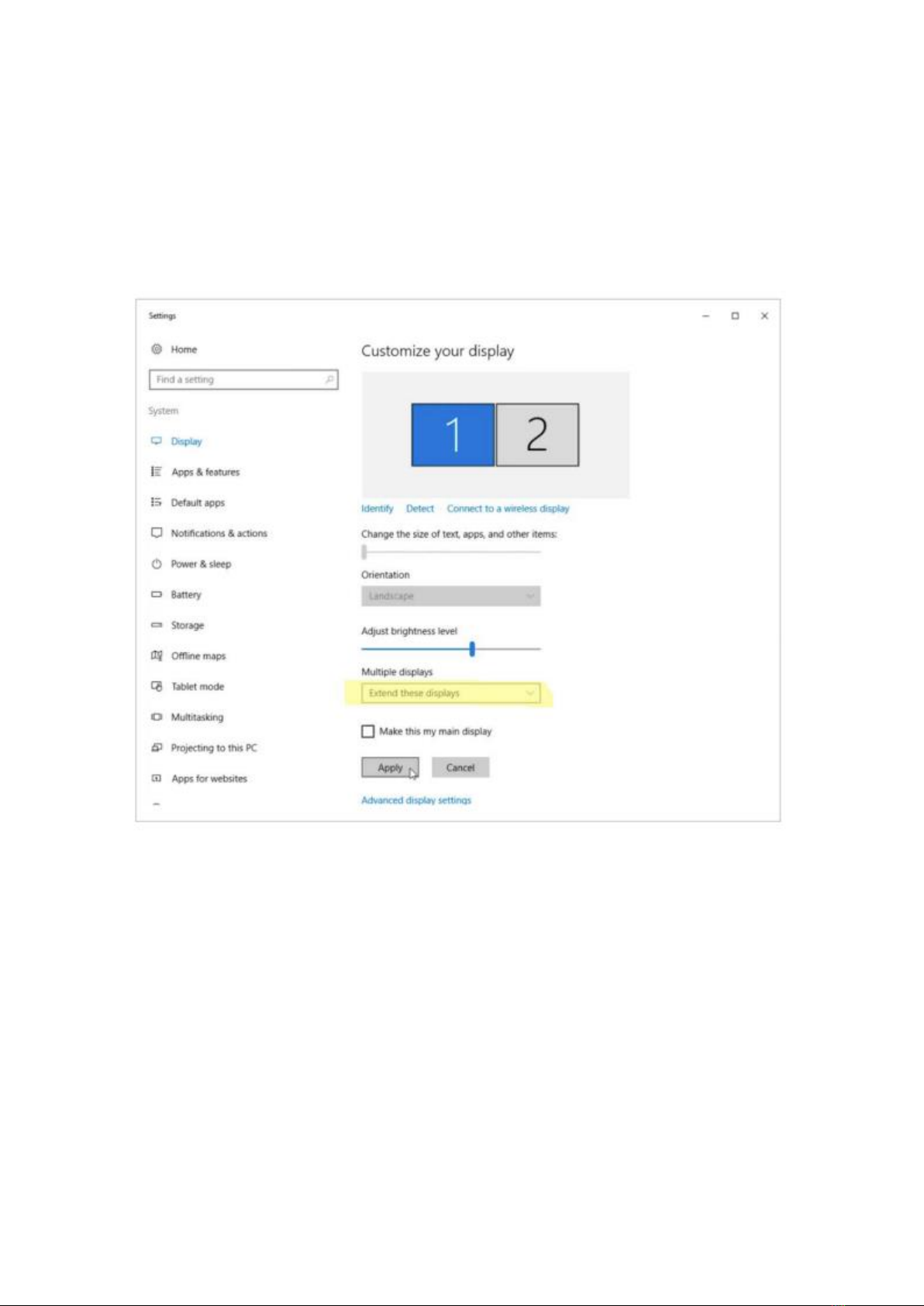

How to Change to Extended Display
Extended Display means you work with a larger Windows area spanning your computer
monitor and your VK1560 LCD Display. Applications can be moved from one display to
the other and will allow you to work in different screen resolutions.
1. Right-click your desktop and select Screen Resolution.
2. In Multiple Display dropdown, change to [Extend these Displays]
3. If your computer is equipped with more than one monitor, your VK1560 pen
display will map to the monitors based on how they are configured in the
DISPLAY PROPERTIES control panel.
4. After you have correctly configured your computer for multiple monitors, you can
then adjust your VK1560 pen display mapping by opening the driver icon and
charging the appropriate options. This enables you to toggle the current VK1560
mapping and screen cursor between the system desktop or primary display and
your other monitors.
Note: Under the Duplicate display mode of the Multiple Display function, the display
resolution of your monitor must be set to the same resolution as your VK1560.
Otherwise, your pen cursor will be misplaced on the screen. For VK1560, please make
sure the other monitor resolution is set to 1920x1080.

10
Specification
Product Dimension
425mm (L) x 261mm (W) x 15mm (H)
Active Area
344.25mm x 193.64mm
Pen
Battery-free Passive Pen
DPI
1920 x 1080
Pen Pressure
8192 levels
Resolution
5080 LPI
Reading Height
10mm
Brightness
250 (cd/m2
Vk1560 Pen Display Configuration
Pen

11

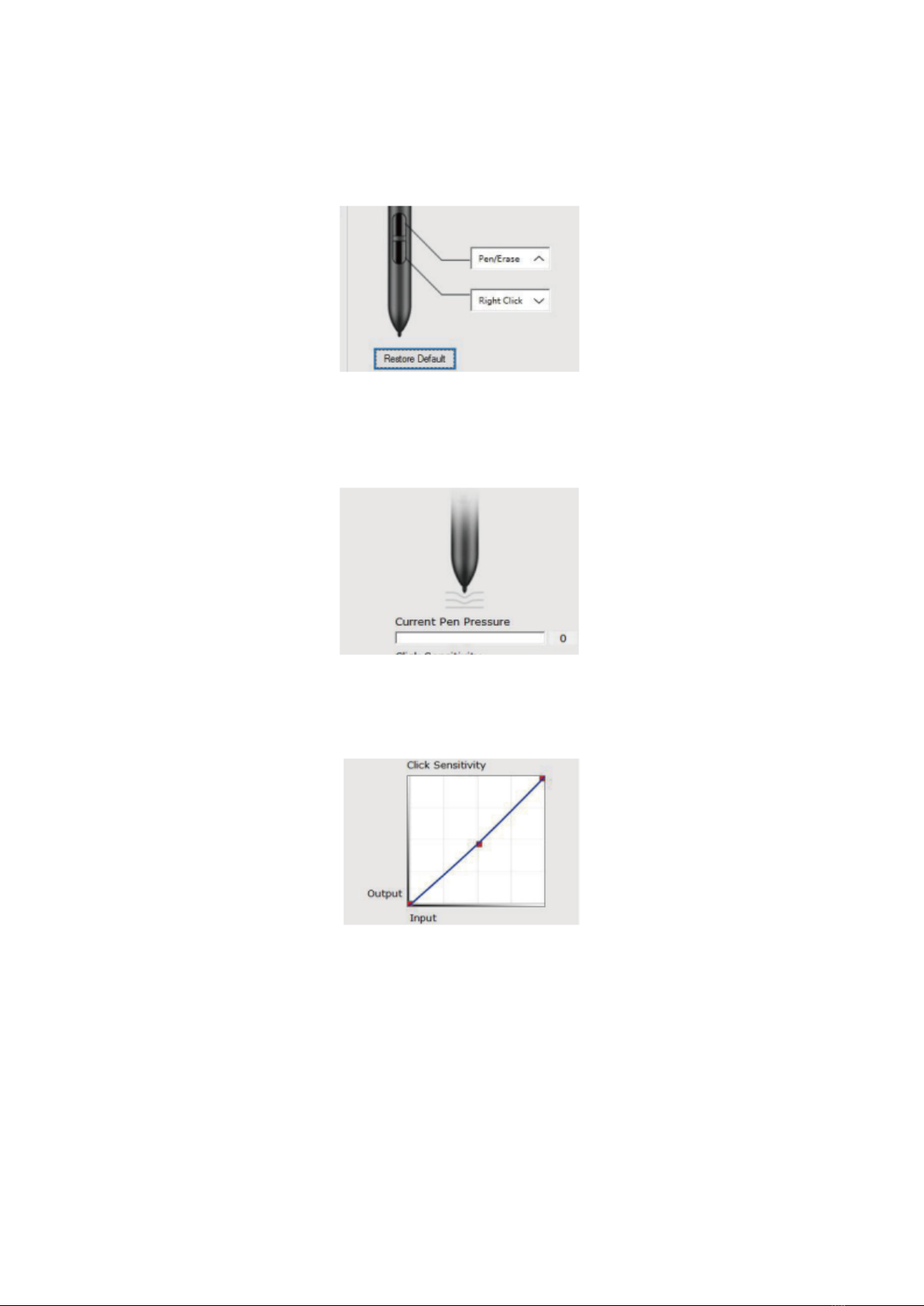

Pen Function Settings
You may customize the functions of pen buttons. Use the “Pen” option to program
custom keystrokes.
Current Pen Pressure
Current Pen Pressure shows the current pressure level being exerted on your tablet and
can be used to test pen pressure.
Click Sensitivity
You can adjust pen pressure to “Output” or “Press” sensitivity on here.

12
Mapping
Define the display area that will be mapped to the computer screen area.
Monitor Setting
Here you can adjust the monitor colour temperature and parameter.

13
Rotate
If can freely rotate the pen display and satisfy left hand users.
Screen Mapping
If working in Extended Display, choose which monitor you want your VK1560 pen display
to track with. Most likely, you will want it to track with the VK1560 display. To learn which
monitor is Monitor 1 and which is Monitor 2. Please go to Start > Settings > Display and
click Identify.

14
Calibration
Click “Start Calibration” to activate the calibration screen. Press the crosses appearing on
the screen one by one with the P68 pen to calibrate the screen.
Enable Windows Ink Function
Microsoft Windows provides extensive support for pen input. Pen features are
supported in such as Microsoft Office, Adobe Photoshop CC, AI and so on.

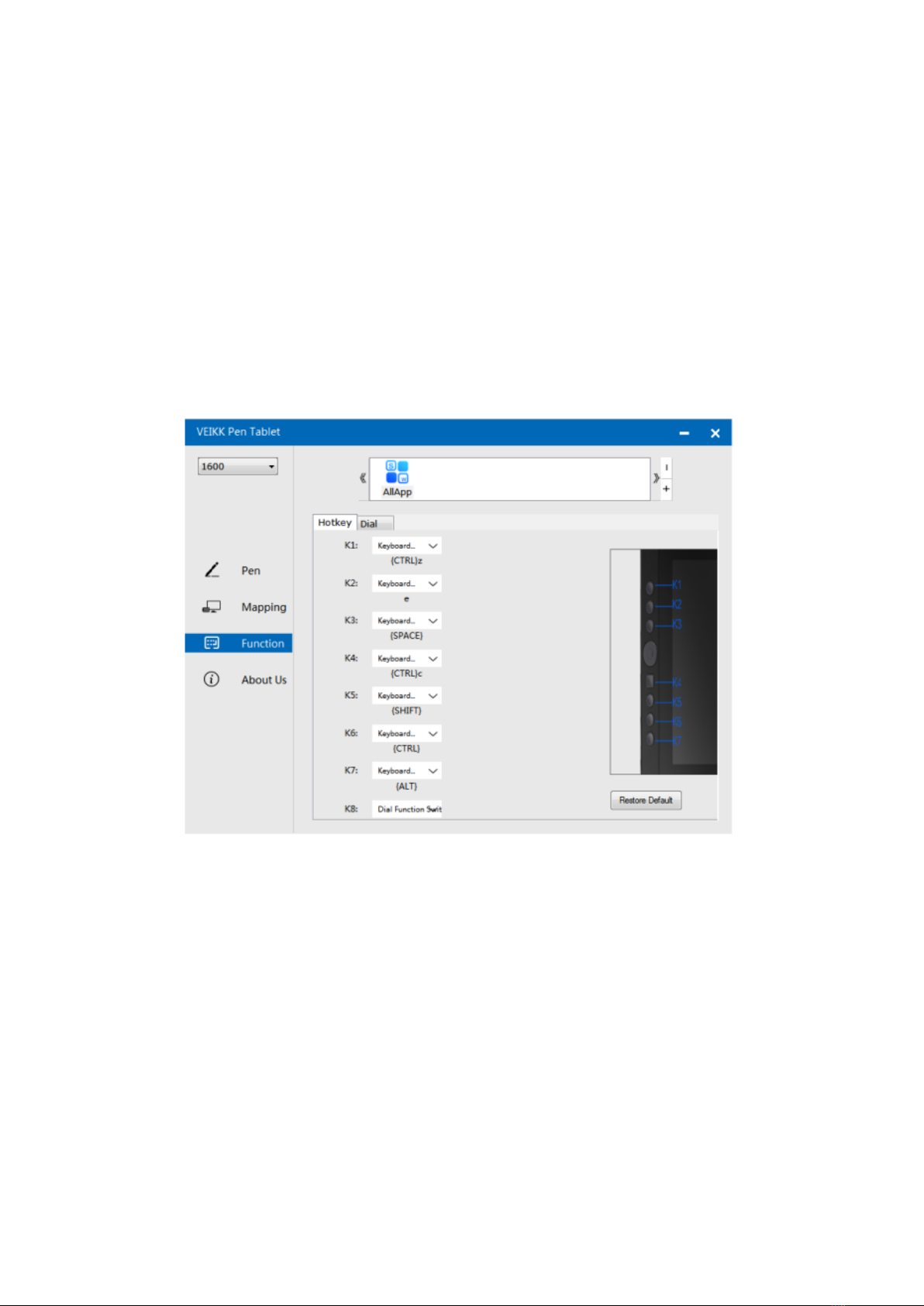

Functions
Customize the Fast Access Buttons and Dial from Function Tab.
Hotkeys
Redefine Hotkey: Click on the title of the button. A dropdown menu will appear with a
list of tool options. Choose the one you want to use. Custom Define: At the bottom of
the dropdown menu, choose Custom. This will allow you to input a custom keyboard
shortcut.
Note: Software keystrokes are based on English input methods. If not yet, set to English
when using Hotkeys on your VK1560 pen display.
Note: Most creative software will not accept keystroke inputs when you pen is still in use
or when your pen is still within the detectable cursor range. To avoid invalid keystroke
actions, hold the pen away from the screen before pressing your Fast Access button.
(Hold pen at least 1.5 cm away from the surface of the screen.)

15
Dial
You can define 5 functions to the Dail. Tap on Dial button to select the function you
would like to use. To switch between functions, press down on the edge of the Dial. You
will see the function name briefly at the bottom of the screen when switched.

16
About Us
Check for updating: If you want to install the newest driver, click “Check for updating”. If
there is no response, that means the driver you installed is the newest. If you find
newest driver in the list, you just need to update.
Diagnostic Tools: Check for missing key files
Mac:
Note: Driver settings in Mac system are the same in Windows system. Users who use
Mac system can refer to Windows system.

17
Warranty Conditions
A new product purchased in the Alza.cz sales network is guaranteed for 2 years. If you
need repair or other services during the warranty period, contact the product seller
directly, you must provide the original proof of purchase with the date of purchase.
The following are considered to be a conflict with the warranty conditions, for
which the claimed claim may not be recognized:
•Using the product for any purpose other than that for which the product is intended
or failing to follow the instructions for maintenance, operation, and service of the
product.
•Damage to the product by a natural disaster, the intervention of an unauthorized
person or mechanically through the fault of the buyer (e.g., during transport,
cleaning by inappropriate means, etc.).
•Natural wear and aging of consumables or components during use (such as
batteries, etc.).
•Exposure to adverse external influences, such as sunlight and other radiation or
electromagnetic fields, fluid intrusion, object intrusion, mains overvoltage,
electrostatic discharge voltage (including lightning), faulty supply or input voltage and
inappropriate polarity of this voltage, chemical processes such as used power
supplies, etc.
•If anyone has made modifications, modifications, alterations to the design or
adaptation to change or extend the functions of the product compared to the
purchased design or use of non-original components.

18
EU Declaration of Conformity
This equipment is in compliance with the essential requirements and other relevant
provisions of Directive 2014/30/EU and Directive 2011/65/EU amended (EU) 2015/863.

19
WEEE
This product must not be disposed of as normal household waste in accordance with
the EU Directive on Waste Electrical and Electronic Equipment (WEEE - 2012/19 / EU).
Instead, it shall be returned to the place of purchase or handed over to a public
collection point for the recyclable waste. By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the environment
and human health, which could otherwise be caused by inappropriate waste handling of
this product. Contact your local authority or the nearest collection point for further
details. Improper disposal of this type of waste may result in fines in accordance with
national regulations.
