Veikk A15Pro User manual

User Manual
A15Pro Graphic Pen Tablet
BATTERY-FREE PEN TABLET
www.veikk.com
3 colours for choice:Red Grey Blue
Extra Quick Dial perfects your creating process

Safety Precautions
Donotusethisproductinacontrolsystemthatrequiresahigh
degreeofsafetyandreliability.
Insuchasystem, thisproductmaynegativelyaffectother electronic
devicesandmalfunctionduetotheeffectofthosedevices.
Keep out of reach of children to avoid danger.
Makesurethatachilddoesnotputthepenor pentipinhis/her
mouth.
Thepentiporsideswitchcovercouldbedetachedandbe
accidentally swallowed.
Turnthepoweroffinthe areaswhereelectronicdevicesare
prohibited.
On boardanaircraftorinanyotherlocationwhereelectronic
devicesareprohibited, please unplug the USB connector from the
tablet to turn it off.
Donotplacethisproductonanunstablesurface.
Placingthisproductonanunstableortiltedsurfaceorinalocation
exposed toexcessivevibrationscouldcauseittofalloffwhich may
damage the product.
!

Avoid high or low-temperature locations for storage.
Do not store this product in a location where the temperature drops
below 5℃or goes above 40℃ and in locations subject to excessive
temperature fluctuations to avoid damage to the product.
Do not disassemble.
Do not disassemble or modify this product as this could expose you
to heat, fire, electric shock and injury. Disassembling the product will
also void your warranty.
Do not use alcohol for cleaning.
Never use alcohol, thinner, benzene or other mineral solvents as
they could discolor or cause deterioration to the product.
Do not expose to water.
Do not place glasses or vases filled with water or other liquids near
this product. Exposure to water or liquid could damage the product.
Donotplaceheavyobjectsontopofthisproduct.
Donotstepon orplaceheavyobjectsonthisproductasthiscould
damageit.
!

LimitationofLiability
Donotplacemetalobjectsonthisproductduringoperation.
Placingmetalobjectsonthisproductduringoperationcouldcauseit
to malfunction ordamageit.
Donotstrikethepenagainsthardobjects.
Strikingthepenagainsthardobjectcoulddamageit.
Donothandlethepenwithsoiledhands.
Thepenisahigh-precisioninstrument. Handlingitwithsoiledhands
orusingitinlocationsexposedtodustor strongodorsmaycause
theentryofforeignmatterwhichwillresultinbreakdown.
VEIKKshallinnoeventbeliablefordamagesresultingfromfiresor
earthquakes, thosecausedbythirdpartiesandthosearisingfrom
user misuse, abuseorneglect.
VEIKKshallinnoeventbeliableforincidentaldamages-including
but notlimitedtolossofbusinessincome, interruptionofbusiness
activities, corruptionorlossof data-thatariseoutof theuseorfailure
tousethis product.
VEIKKshallinnoeventbeliablefordamagesresultingfromuses
not documentedinthismanual.
VEIKKshallinnoeventbeliablefordamagesfrommalfunction
causedby connectiontootherdevicesoruseofthirdpartysoftware.

Catalog
1.Product Overview..................................................................... 1
2.Packing List.............................................................................. 2
3.Installing Driver........................................................................ 3
4.Tablet Connection.................................................................... 3
5.Replacing the Nibs................................................................... 4
6.Specifications........................................................................... 4
7.Driver Settings.......................................................................... 5
8.FAQ.......................................................................................... 15

1.Product Overview
1
During the normal working state, when tablet connected with the computer,
power indicator flashes, then always on; when pen suspended in the reading
height, pen indicator flashes, then always on when pen touches the active
area; when hotkeys being pressed, key indicator always on.

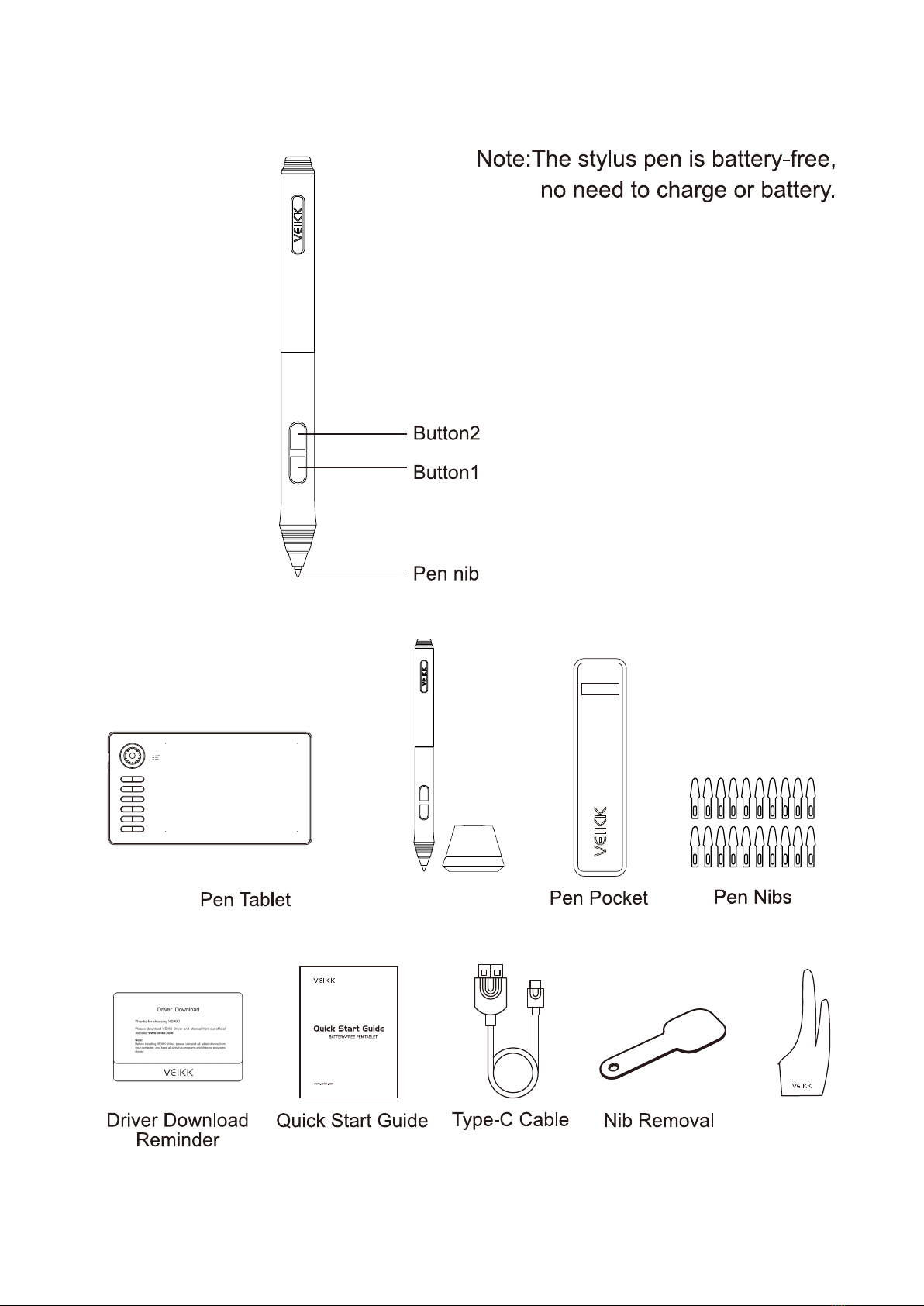

2.Packing List
2
Pen(P002)
A15Pro Pen & Holder
Artist Glove
A15PRO

3
3.Installing Driver
3.1 OS Support
Windows 10/8/7（32/64 bits)
Mac OS 10.12 or later
3.2 Installation
1) Before installing the tablet driver, please uninstall all tablet drivers from your computer
that you installed before, and keep all antivirus program and drawing program closed.
2) Connect the tablet to your computer before installation (Please refer to 4.Tablet
Connection).
3) Please download the updated driver from www.veikk.com.
4) Click Set up.exe and follow the onscreen instructions.
5) After installation then restart your computer.
1. Take out the A15 Pro from the package, connect the tablet to your computer with the USB
cable.
2. Open the driver interface, the upper left corner shows the product model(just like “A15 Pro”),
indicating that the tablet has been successfully mounted to the driver, you can start using
your tablet now.
4.Tablet Connection

4
6.Specifications
5.Replacing the Nibs
When the pen nib is heavily worn, please replace the nib with the nib removal.
Model
Dimension
Working Area
Pressure Sensitivity
Report Rate
Resolution
Reading Height
Interface
Keys
A15 Pro
358mm x 200mm x 9mm
10 x 6 inch
8192 levels
250 PPS
5080 LPI
10 mm
Type-C
12 Hotkeys + Quick Dial

5
7.Driver Settings
Windows:
7.1 Pen:
7.1.1 Pen Function Settings
You may customize the functions of your
tablet pen’s barrel buttons here. Use the
“Pen” option to program custom
keystrokes.
7.1.2 Current Pen Pressure
Current Pen Pressure shows the current
pressure level being exerted on your tablet
and can be used to test pen pressure.

6
7.1.3 Click Sensitivity
You can adjust pen pressure to “Output”
or “Input” sensitivity on here.

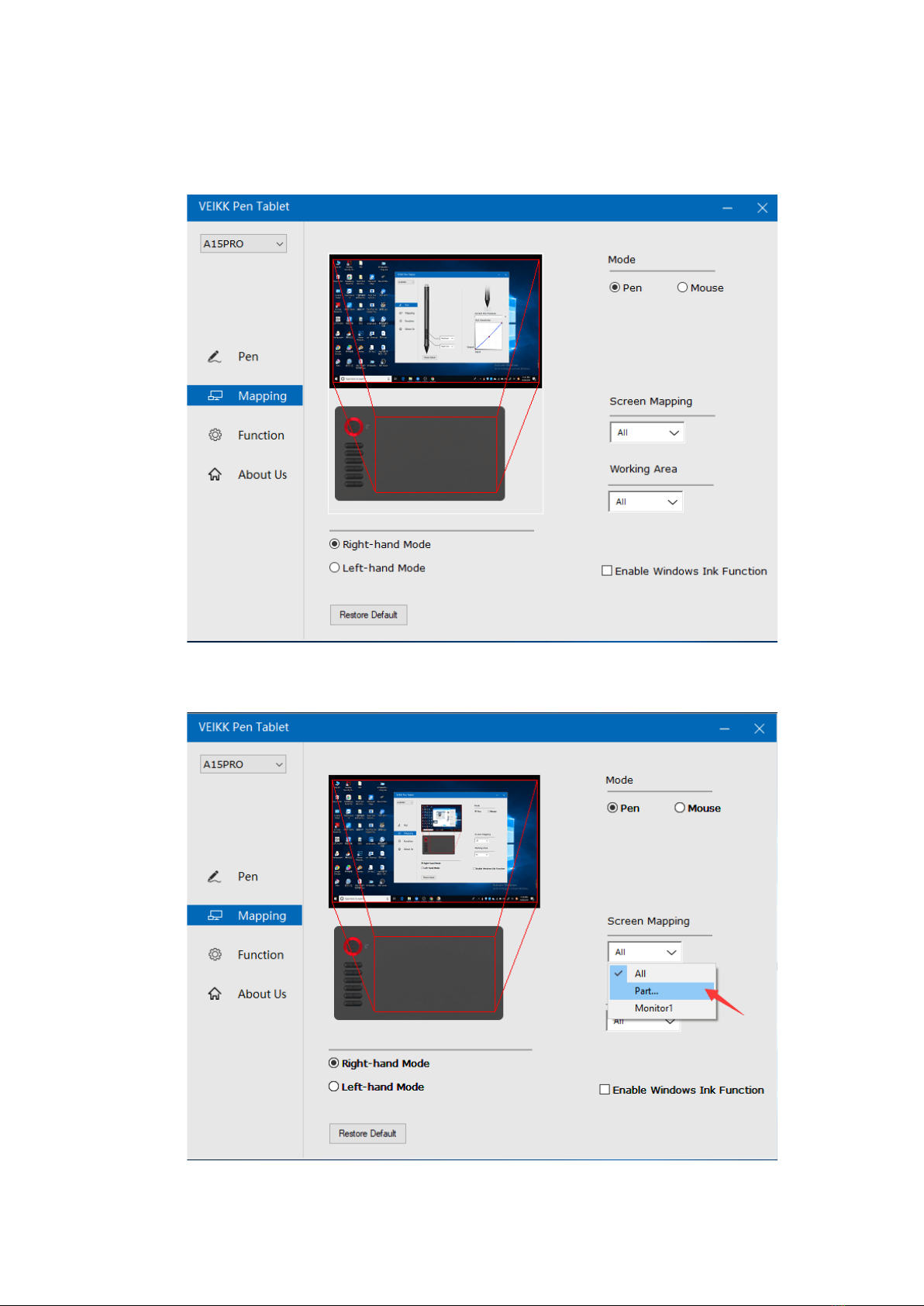

7.2 Mapping
Define the tablet area that will be mapped to the screen area.

7
7.2.1 Screen Mapping
All Area: the entire active area of the tablet. This is the default setting
Part Area: Click Part

8
Then go to the next page, select one of the following three ways to define the screen
range.

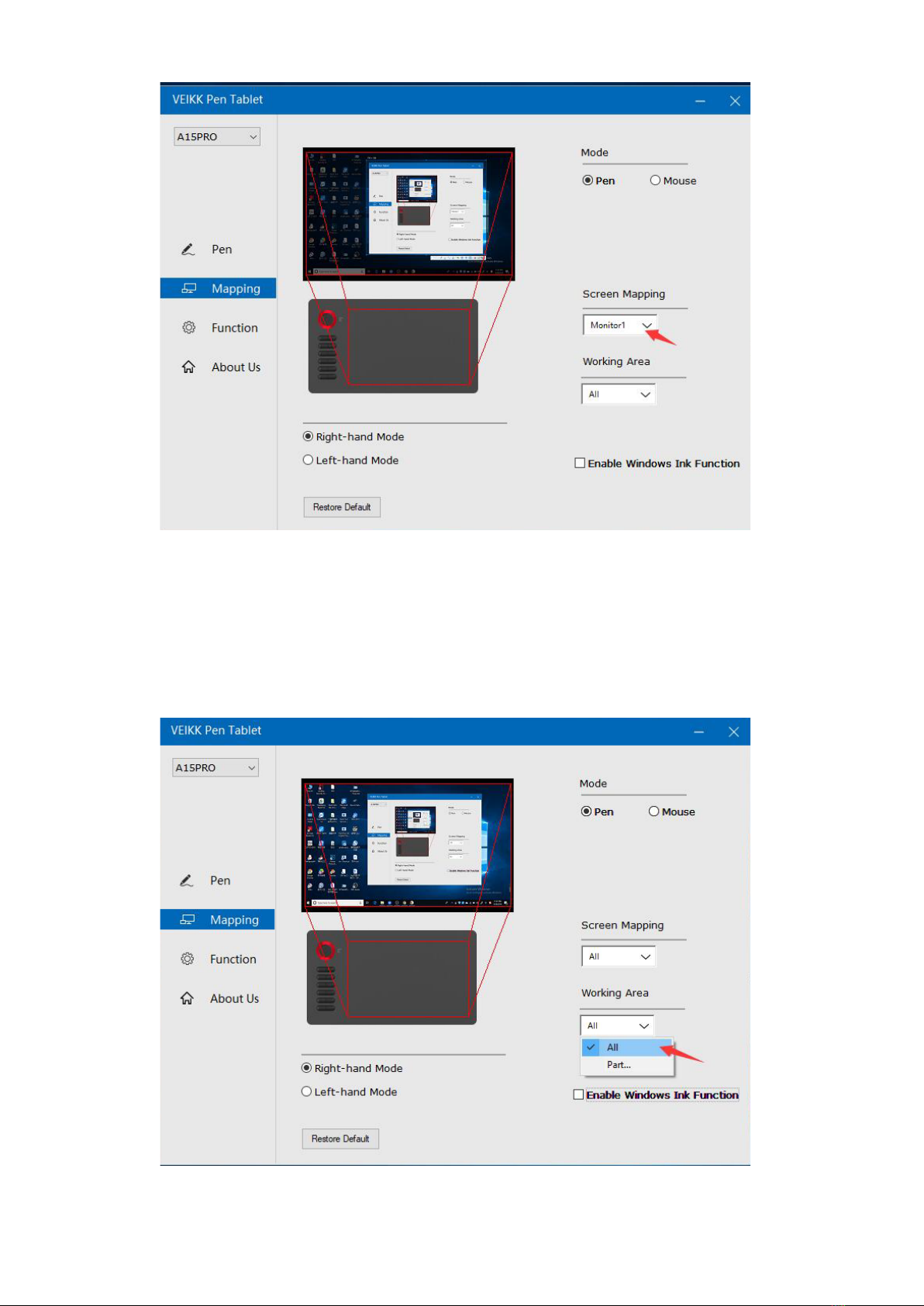

Monitor1: If more than one monitor is in use and you are in extended mode, you need
to choose the related monitor on the driver interface which you are going to map to.
If your monitors are in mirror mode(All monitors display the same content), the tablet
maps to the entire space on each monitor and the screen cursor is displayed on each
monitor simultaneously.

9
7.2.2 Working Area
All Area:the entire active area of the tablet.This is the default setting

10
Part Area:Click Part
Then go to the next page, select one of the following three ways to define
the pen tablet partial.

11
7.2.3 Enable Windows Ink Function
This capability can be toggled on and off here. Enabling this will allow support
for Windows Ink and applications that run using Windows Ink.
7.3.1 Application List：You can add or remove software by “+”or “-”
7.3 Function
Customize the Touch Keys

“+”: Click “+” to add softwares, you have two ways to select an application,
1、Choose from the dropdown(need to open the software firstly)
2、Choose from the browser
12

“-”: Click “-” to remove the softwares you added before.
7.3.2 Hotkey
Redefine Hotkey: Click on the title of the button. A dropdown menu will appear with a
7.3.3 Quick Dail
You can define the functions of the Dial. Tap on Dial button to select the function you
would like to use. To switch between functions, press down the middle button of the Dial.
You will see the function name briefly at the bottom of the screen when switched.
list of tool options. Choose the one you want to use.
13

Mac:
Note:Driver settings in Mac system are the same in Windows system.
Users who use Mac system can take reference to Windows system.

14
8.FAQ
1.The stylus can’t control the cursor.
2.How do I know that the A15 Pro driver installed successfully?
A. Whether the tablet’s status indicator light turn on when the stylus is in contact with
the working area? If yes, uninstall the A15 Pro driver and reboot, then connect the tablet
to your computer and test your stylus.If the cursor responses to your pen input, the
tablet’s hardware is functional.Go to our official website
http://www.veikk.comdownload the latest driver and re-install.
B. Connect the tablet then run the driver installation,complete the installation, then
reboot.
3.How do I determine if a problem is software or hardware related?
A. Connect and install the A15 Pro on a different computer. If the tablet functions properly
on the new computer, you are experiencing a software problem.Please uninstall all
tablet drivers(including A15 Pro driver)from your computer, download the latest driver
from our official website http://www.veikk.com and then re-install.
B. The A15 Pro indicator lights will help you determine if an issue is hardware related.
When functioning properly,the blue status indicator light will light up when the stylus
pen is in range of or touching the tablet’s working area.
4.There is no pressure in the graphics software, but the cursor moves.
You may have installed other tablet drivers or opened the drawing software when
installing the driver. Please uninstall all drivers and close the drawing software, then
re-install A15 Pro driver.Then restart your computer after completing the installation.
A. After installing the driver,the A15 Pro driver icon would be visible in your system
tray on the bottom-right corner of your screen(Windows OS) and desktop.
B. Or open the driver interface, the upper left corner shows the A15 Pro, indicating that
the tablet has been successfully mounted to the driver, you can start using your tablet
now.
