Veilux VB-11IRC68L2810-HD User manual

FULL HD MEGA PIXEL CAMERA
FULL HD
MEGA PIXEL
IR BULLET CAMERA
USER’S MANUAL
■ 1/3" Panasonic CMOS sensor
■ Full HD Resolution
■ DAY & NIGHT
■ WDR (Wide Dynamic Range)
■ DNR (Digital Noise Reduction, 2D+3D)
■ Privacy mask Function
■ On Screen Display
■ Intelligent motion detection
■ HD-SDI/CVBS Output
■ Multi Protocol(Pelco-D, Pelco-P)
HD 003
The Art of Surveillance
®

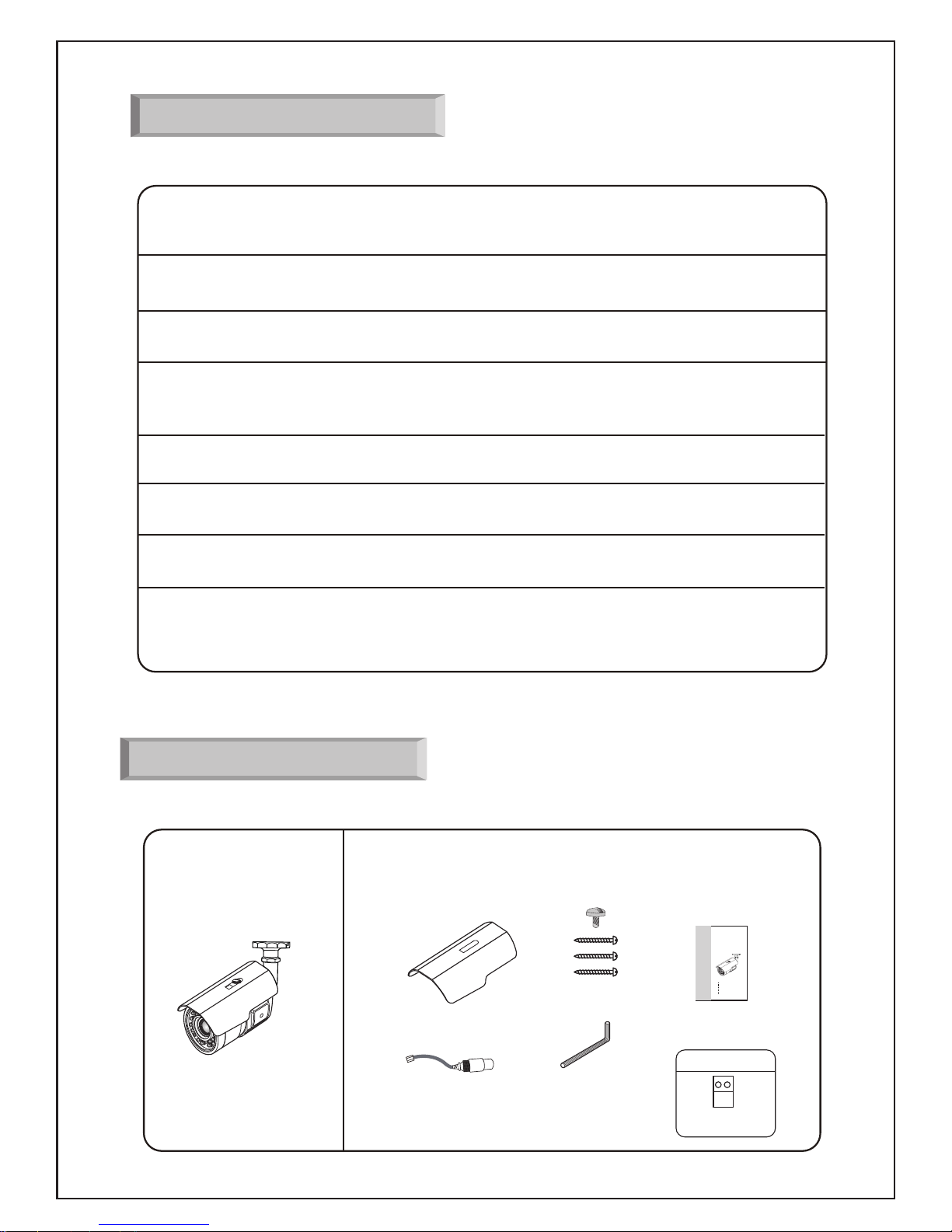

Precaution
Components
Do not install the camera in extreme temperature conditions .
To avoid malfunctions, never use the camera close to a gas
or oil leak
Do not Keep the camera face tostrong light directly
Do not disassemble the camera even if troubles happened
Do not drop the camera or subject them to physical shocks.
Do not install the camera under unstable lighting conditions
Do not install or use the camera in an environment where the
humidity is high
Do not expose the camera to rain or spill beverage on it.
WDR / 3D DNR
IR BULLET CAMERA
USER’S MANUAL
WDR/3D DNR IR BULLET CAMERA
WDR/3DDNR
ZeroDefect
HighResolution of 600 TV Lines
SensUp(x512, DSS)
DIS(DigitalImage Stabilization)
PolygonalPrivacy Masking
D.Zoom(x1~x10)
Eclipse
HighSensitivity Day&Night
Option
RS-485
Terminal Block
SCREW
MANUAL
L-WRENCH
SERVICE VIDEO
SUN SHIELD

1. Features
• 1/3" Panasonic CMOS sensor
2,227,080pixels(Total) / 2,122,848pixels(Active)
• Full HD Resolution
1920x1080p / 30fps
1280x720p / 60fps
• DAY & NIGHT
This camera supports lter changed day and night function using DC Motor
controller. It can be changeable OLPF day to night depending on the luminance
level using DC Motor. It can be also controlled by external Day and Night port.
• WDR (Wide Dynamic Range)
WDR, more eectively than previous models,
by applying an optimum fusion ratio when combining the high speed
shutter used in bright areas and the low speed shutter used in dark areas.
• DNR (Digital Noise Reduction, 2D+3D)
The DNR technology eliminates noise thus generating a distinct and clear
image. This camera DNR function utilizes both an adaptive 2D lter
reducing noise in the brightness of the image and an adaptive 3D lter
reducing noise caused by movement.
• Privacy mask Function
The privacy zone function makes it possible to make specic areas of the
scene from view.
• On Screen Display
This camera supports the OSD function. And so, the camera can be controlled
by selecting text displayed on the monitor screen.
• Intelligent motion detection
You can transmits an alert signal when it detects motion of an object on
the screen. This feature is useful when you have to monitor several screens
simultaneously.
• Output
Digital output : HD-SDI
Analog output : NTSC, PAL Composite (without WDR)
• Protocol
This camera supports the multi-protocol (Pelco-D, Pelco-P)

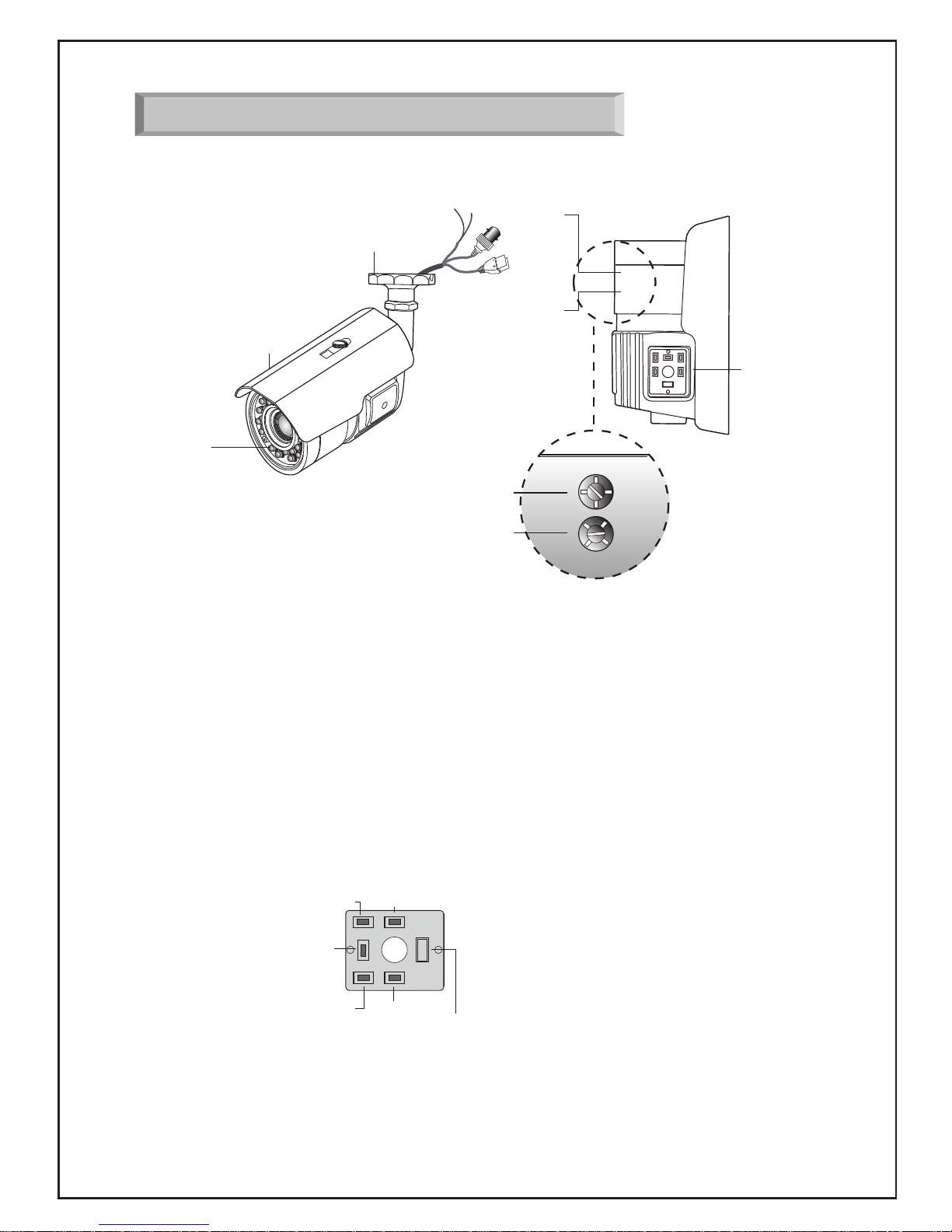

2. Names and Functions of Parts
③
③
②
②
①
④
⑤
⑥
① IR LEDs
② Focus Handle
Used to provide for accurate of an object within the
lens field of view
③ Zoom Handle
Used to adjust zoom magnification by turning
④ OSD Board
⑤ Sun-Shield
⑥ Bracket
Service Video
DOWN
RIGHT
ENTER
LEFT
UP

Monitor
Adaptor
HD-SDI Cable
AC24V + (RED)
AC24V - (BLACK)
AC Power Connecting
DVR
RS485 +
(Option)
RS485 -
PORT2
TX
+
_+ _+ _+ _
RX TX RX
PORT1
3. Installation & Connection

4. How to Set up the Function
MENU
MODEL IR CDS
EXPOSURE
WHITE BAL
INTELLIGENCE
SPECIAL FUNC
DISPLAY
EXIT
MENU
MODEL IR CDS
EXPOSURE
WHITE BAL
INTELLIGENCE
SPECIAL FUNC
DISPLAY
EXIT
Main Menu
MODEL
Functions can be set-up using the Menu Key of pelco protocol.
The menu consists of the “Main Menu” and “Sub Menu”.
The main menu is displayed where 6 camera functions can be selected.
The sub menu is displayed at the push of each main menu selection.
select model : IR CDS
-> Switches day and Night using an external CDS Sensor

EXPOSURE
BRIGHTNESS 10
LENS DC
SHUT SPEED AUTO
FLICKERLESS OFF
DSS OFF
AGC ON
WDR/BLC
DAY&NIGHT
SMART IR OFF
RETURN
MENU
MODEL IR CDS
EXPOSURE
WHITE BAL
INTELLIGENCE
SPECIAL FUNC
DISPLAY
EXIT
EXPOSURE
1. BRIGHTNESS : Adjust brightness level
- 0(dark) ~ 20(bright) steps
2. LENS : Select LENS type(DC / MANUAL)
MODE : In case of the indoor, will be recommended the INDOOR MODE
In case of the outdoor, will be recommended the OUTDOOR MODE
*If Shutter rolling occurs, the MODE should be changed from
OUTDOOR to INDOOR
3. SHUTTER SPEED : Can be set to AUTO or MANUAL(PAL(NTSC))
AUTO / 1/25(30),1/50(60),1/100(120),1/240,
1/500,1/1000,1/2000,1/4000,1/8000, 1/16,000,
1/30000, 1/60000 sec.
4. FLICKERLESS : Select ON or OFF
5. DSS : Select maximum DSS(Digital Slow Shutter)
-OFF / x2, x3, x4
6. AGC : SELECT ON/OFF
Select ON : Auto gain control(0~20 steps)
7. WDR/BLC : Select WDR(Wide Dynamic Range) or BLC(Back Light Compensation)
- WDR
WEIGHT :Represent the exposure of the shutter.The higher value,
the brighter part looks well but the dark part relatively seems to
darken (0 ~ 3)
- BLC
AREA : According to illumination of WINDOW, BLC controls.


① IR LEDs
② Focus Handle
Used to provide for accurate of an object within the
lens field of view
③ Zoom Handle
Used to adjust zoom magnification by turning
④ OSD Board
⑤ Sun-Shield
⑥ Bracket
POS-X : Adjust the window X-Axis position
POS-Y : Adjust the window Y-Axis position
SIZ-X : Adjust the window X-Axis size
SIZ-Y : Adjust the window Y-Axis size
* ACE and DEFOG should be off while WDR mode is on.
8. DY&NIGHT : Select Day&Night
1) D&N
-AUTO / DAY / NIGHT / EXT
Delay : 0 ~ 255 seconds
BURST : OFF / ON
THRS : (LOW / MIDDLE / HIGH)
According to daytime, nighttime setting the levels of transition
sets to no changes when it is dark at, higher the step it is set to
GAP : LOW / MIDDLE / HIGH
This setting adjusts the margin of change from the setting
of light to dark /daytime to nighttime and dark to light / nighttime
to daytime. If this setting is too low then fluctuation may occur.
2) IR CDS Model
 -AUTO / DAY / NIGHT
 Delay : ---
 BURST : OFF / ON
 THRS : ---
 GAP : ---

MENU
MODEL IR CDS
EXPOSURE
WHITE BAL
INTELLIGENCE
SPECIAL FUNC
DISPLAY
EXIT
WHITE BAL
AWB AUTO
CHROMA 10
RETURN
1. AWB : Select WHITE BALANCE mode
-AUTO / ONE PUSH / MANUAL /INDOOR / OUTDOOR
AUTO : Automatically adjusts color according tothe available lighting.
ONE PUSH : It is a fixed whitebalance mode that may be automatically
readjusted only bypressing ONE PUSH
MANUAL : Color can be corrected when the user increases or decreases
“Red Gain” or “Blue Gain”.
RED GAIN : Adjust Rgain value 0 ~ 20
BLUE GAIN : Adjust B gain value 0 ~ 20
INDOOR : Set color temperatureto be Indoor light (3700°K)
OUTDOOR : Set color temperatureto be Outdoor light (5100°K)





2. CHROMA : Adjust CHROMA gain value
-0 ~ 20 steps
WHITE BALANCE


1. SHARPNESS : Adjust sharpness level(0 ~ 10 steps)
2. MIRROR : Select a flip mode
-OFF / H / V / H&V
H : You can flip thepicturehorizontally on the screen
V : You can flip thepicture vertically on the screen
H&V : You can flip thepicturehorizontally & vertically on the screen
3. Freeze : Select real or still mode(OFF / ON)
4. E.ZOOM : Select maximum digital zoom magnification.
-x1 ~ x12, x14, x15, x18, x21, x25, x32
5. HLC : Select High Light Compensation
When extremely bright light isprojected tothe camera masking is
used on theportion toprevent partial saturation on themonitor.
-OFF / ON
ON LEVEL : 0 ~ 20 steps
COLOR : Black, White, Yellow, Cyan, Green, Magenta, Red, Blue
6. ACE : Select Digital WDR(WideDynamic Range)
-OFF / ON
*When ACE is ON, WDR and DEFOG function can not turn on
7. DNR: Select Digital Noise Reduction
-AUTO / OFF / LOW / MIDDLE / HIGH
8. D.COMPRESS : Video image data compression function.
Please use this function only IP camera.
-OFF / ON
MENU
MODEL IR CDS
EXPOSURE
WHITE BAL
INTELLIGENCE
SPECIAL FUNC
DISPLAY
EXIT
SHARPNESS 6
MIRROR OFF
FREEZE OFF
E.ZOOM X1
HLC OFF
ACE OFF
DNR AUTO
D.COMPRESS OFF
RETURN

MENU
MODEL IR CDS
EXPOSURE
WHITE BAL
INTELLIGENCE
SPECIAL FUNC
DISPLAY
EXIT
INTELLIGENCE
PRIVACY OFF
MOTION OFF
RETURN
1. PRIVACY : Hide an area you want tohide on the screen
-OFF / ON
MASK# : Select mask area number (0 ~ 31)
MODE : Mask enable or disable (OFF / ON)
X-POS : Adjust themask X-Axis position
Y-POS : Adjust themask Y-Axis position
X-SIZ : Adjust themask X-Axis size
Y-SIZ : Adjust themask Y-Axis size
COLOR : Cyan, Green, Magenta, Red, Blue, Black, White, Yellow
TRANS : Select mask transparency level (0 ~ 4)





2. MOTION : When there ismovement of the subject on the screen,
there will be an motion detection
-OFF / ON
SENSITIVITY : Adjust sensitivity of MD (0 ~ 20 steps)
More sensitive to setting to lower step with sensitivity
AREA : Designate motion detection area (WHOLE / EACH)
-AREA# : Setting 3 areas(0~2) of motion detection
-MODE : Limit and define areas of motion detection
-X-POS : Adjust the AREA X-Axis position
-Y-POS : Adjust the AREA Y-Axis position
-X-SIZ : Adjust the AREA X-Axis size
-Y-SIZ : Adjust the AREA Y-Axis size
-TRANS : Adjust color tone of designated area.
INTELLIGENT



INTERVAL :Select the alarm interval time (0 ~ 255sec)
DWELL : Select the duration time about changing MD mode (0 ~ 255sec)
RETURN



MENU
MODEL IR CDS
EXPOSURE
WHITE BAL
INTELLIGENCE
SPECIAL FUNC
DISPLAY
EXIT
SPECIAL FUNC
SHADING DET OFF
SHADING OFF
DEFECT DET OFF
DEFOG OFF
SYSTEM PAL
HD FORMAT 1080P
PG OFF
CVBS ON
COMM
DEFAULT ON
RETURN
1. SHADING DET : Sets the shading calibration that the lens will perform.
Only occurs when the entire screen is viewed in white
light.(OFF / ON)
2. SHADING: Select Lens shading compensation.(OFF / ON)
3. DEFECT DET : Compensates for bad pixels that my occur. Occurs
when the whole screen is in full black or if there is bad
pixelation and it changes the THRS values until the
screen is fixed.(OFF / ON)
*If you use a DC lens what closed IRIS, you do not need to block the lens while
operating DEFECT function.In case of using a DC lens not closed and manual lens,
you have to block the lens while operating DEFECT function.
4. DEFOG : Carry out defog function
-OFF / ON
LEVEL : Eliminate amount of fog on display screen.(0 ~ 10)
* When DEFOG is ON, ACE and WDR function can not turn on.
5. SYSTEM : Select NTSC or PAL (NTSC / PAL)
6. HD FORMAT : Select Digital output to 1080P or 720P(1080P / 720P)
7. PG : Select Color pattern generator.(OFF / ON)
8. CVBS : Select Composite signal(OFF / ON)
SPECIAL FUNCTION

MENU
MODEL IR CDS
EXPOSURE
WHITE BAL
INTELLIGENCE
SPECIAL FUNC
DISPLAY
EXIT
DISPLAY
DISP SEL
SET TITLE
RETURN
9. COMM : Set up the camera ID, baud rate, protocol
-ID : Select the camera ID(1 ~ 255)
-BAUD RATE : Select serial communication speed
2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200bps
-PROTOCOL : Select operating protocol
Pelco-D / Pelco-P / UPDATE
10. DEFAULT : All the settings will be restored to the factory default.
1. DISP SEL : Select display item.
-ID : OFF / ON
-TITLE : OFF / ON
-EZOOM : OFF / ON
2. SET TITLE : Select camera title menu (Text edit)
i
DISPLAY

5. Specification
2. MOTION : When there ismovement of the subject on the screen,
there will be an motion detection
-OFF / ON
SENSITIVITY : Adjust sensitivity of MD (0 ~ 20 steps)
More sensitive to setting to lower step with sensitivity
AREA : Designate motion detection area (WHOLE / EACH)
-AREA# : Setting 3 areas(0~2) of motion detection
-MODE : Limit and define areas of motion detection
-X-POS : Adjust the AREA X-Axis position
-Y-POS : Adjust the AREA Y-Axis position
-X-SIZ : Adjust the AREA X-Axis size
-Y-SIZ : Adjust the AREA Y-Axis size
-TRANS : Adjust color tone of designated area.
Image Sensor
Total Pixels
Active pixels
Scanning system
Resolution
Min. illumination
Video Output
S/N Ratio
Exposure
Lens
AGC
Shutter Speed
DSS
Brightness
WDR/BLC
Day&Night
White Balance
DNR
ACE
HLC
D.Compress
E.Zoom
Freeze
Mirror
1/3" Panasonic CMOS
2010(H) x 1108(V) = 2,227,080 (pixel)
1944(H) x 1092(V) = 2,122,848 (pixel)
Progressive
Digital ; 1920x1080p(1080p/30fps) , 1280x720p(720p/60fps)
Analog : 700TVL
Color : 1.0 lux , BW : 0.5lux
Color DSS : 0.002 lux , BW DSS : 0.001 lux
HD-SDI, BT.1120
Analog : NTSC, PAL(without WDR)
more than 50dB (AGC off)
DC / Manual
Off / On
Auto, 1/30(1/25) ~ 1/30000 sec
off / x2 / x3 / x4
0 ~ 20 steps
Off / WDR / BLC
Auto / Day / Night / Ext
Auto / ONE PUSH / Manual / Indoor / Outdoor
Off / Low / Middle / High / Auto
Shappness 0~10 steps
Off / On
Off / On
Off / On
x1 ~ x32
Off / On
Off / H / V / H&V

Design and specifications are subject to change without notice.
Intelligence
Privacy
Motion Detection
Special Function
Shading Det
Defect Det
HD Format
PG
CVBS
COMM
Display
Disp Sel (Off / On)
Set Title
Language
IR
Night View Distance
Lens
Cable 5C-2V 120m(Max)
Operating Temperature
Storage Temperature
Off / On (32 points)
Off / On (4 points)
Off / On
Shading Off / On
Off / On
Defog Off / On
System NTSC / PAL
1080P / 720P
Off / On
Off / On
ID (1 ~ 255)
Default On / Done
Baudrate : 2400 /4800 /9600 /19200 /38400 / 57600 /115200
Protocol : Pelco-P / Pelco-D/Update
ID /Title /Zoom Ratio
TextEdit
English
O.S.D Text 0~9, A~Z, a~z
68EA
Outdoor 50m Outdoor 40m
40EA
Dimension 94(
Ø ) x 161mm 74.5( Ø ) x 162mm
ICR 2.8~10mm Mega Pixel Varifocal Lens
Power Source
Power Consumption
DC12V±10% , AC24V±10%
DC12V800mA / AC 24V 300mA DC12V600mA / AC 24V 260mA
-10 ~ +50 (Humidity : 0%RH ~ 80%RH)
-20 ~ +60 (Humidity : 0%RH ~ 90%RH)
