1. Introduction
1.1. Overview
The Veilux VDIP-2L316 is a state-of-the-art (Megapixel), multi-codec (H.264, MJPEG) IP camera (or network
camera) built with embedded software and hardware technology. It enables real time transmission of
synchronized video of up to 2 M pixels and audio data. Remote clients can connect to Veilux VDIP-2L316 for
the real time video/audio data through various client solutions running on PC, PDA or mobile phones. Real time
2-way communication is available through bidirectional audio communication feature.
Designed to be a stand-alone streaming audio & video transmission device, Veilux VDIP-2L316 can be applied
to various application area such as video security, remote video monitoring, distance education, video
conference or internet broadcasting system.
Embedded PoE (Power over Ethernet, IEEE 802.3af) will enable the owner to reduce TCO (Total Cost of
Ownership) by reducing on-site wiring works for the installation.

V
Ve ei il lu ux x V VD DI IP P- -2 2L L3 31 16 6 / / V VD DI IP P- -2 2L L3 31 16 6D DN N / / V VD DI IP P- -2 2L L3 31 16 6D DN NI IR R O Ow wn ne er r’ ’s s M Ma an nu ua al l
Rev.1.0 (Jan. 2010)
6
Website: www.Veilux.net Phone# [phone]
1.2. Specification
Category
Sub-Category
Details
Video
Compression
H.264/MJPEG
Resolution
**Refer to the datasheet.
Audio
(Bi-directional)
Up
32 Kbps G.726
Down
64 Kbps PCM
Network
Interface
RJ-45, 10/100 Mbps, PoE (802.3af)
Access network
Static, DHCP, PPP/PPPoE
Protocol
IPv4/6, TCP, UDP, IGMP, ICMP, ICMPv6 etc.
I/O
Sensor In
1
NC, NO Selectable
Relay Output
1
For alarm annunciation or
remote ON/OFF control
RS-232C
For factory use only
Mic/Line In
Selectable in Admin page
Line Out
1 V p-p output for amplified speaker
CVBS output
For temporal use during installation
Power Supply
PoE
Power over Ethernet (IEEE802.3af)
DC Adaptor
12V DC adaptor (2A)
Mounting
Wall or Ceiling, Recessed Ceiling Mount Kit
Motion Detection
3 zones
Arbitrary shape with independent sensitivity
Upgrade
Firmware upgrade over IP network
Administration
Remote administration over IP network
Client & Viewer
Web Viewer
Simple viewing over internet explorer
NVR-Pro
Standard CMS software
3rd Party CMS
Ask Veilux for details
Dynamic IP support
DDNS support
Supported
Security
Video/Audio stream encryption
ID and Password protection

V
Ve ei il lu ux x V VD DI IP P- -2 2L L3 31 16 6 / / V VD DI IP P- -2 2L L3 31 16 6D DN N / / V VD DI IP P- -2 2L L3 31 16 6D DN NI IR R O Ow wn ne er r’ ’s s M Ma an nu ua al l
Rev.1.0 (Jan. 2010)
7
Website: www.Veilux.net Phone# [phone]
IP filtering for restricting administrative
access for audio and bi-audio
Time management
Sync to PC
Synchronize to PC
Manual
Manual time setting
Internet Time Server
Synchronize to Time Server
DLS
Day light saving
SDK support
Active-X
HTTP
Source filter

V
Ve ei il lu ux x V VD DI IP P- -2 2L L3 31 16 6 / / V VD DI IP P- -2 2L L3 31 16 6D DN N / / V VD DI IP P- -2 2L L3 31 16 6D DN NI IR R O Ow wn ne er r’ ’s s M Ma an nu ua al l
Rev.1.0 (Jan. 2010)
8
Website: www.Veilux.net Phone# [phone]
1.3. Applications of Veilux VDIP-2L316
Security surveillance (buildings, stores, manufacturing facilities, parking lots, banks, government facilities,
military, etc.)
Remote monitoring (hospitals, kindergartens, traffic, public areas, etc.)
Teleconference (Bi-directional audio conference). Remote Learning, Internet broadcasting
Weather and environmental observation

V
Ve ei il lu ux x V VD DI IP P- -2 2L L3 31 16 6 / / V VD DI IP P- -2 2L L3 31 16 6D DN N / / V VD DI IP P- -2 2L L3 31 16 6D DN NI IR R O Ow wn ne er r’ ’s s M Ma an nu ua al l
Rev.1.0 (Jan. 2010)
9
Website: www.Veilux.net Phone# [phone]
2. Product Description
2.1. Contents
The product package contains followings :
Contents
Description
Remarks
Veilux VDIP-2L316
IP camera Veilux VDIP-2L316 main unit
Power Adaptor
Default built in standard PoE module
(IEEE802.3af)
12VDC Adaptor
(Optional item)
Mounting bracket
Standard ceiling mount bracket
Embedded
(Optional item)
CD
Software & User’s Guide
Quick Reference Guide
Quick installation guide

V
Ve ei il lu ux x V VD DI IP P- -2 2L L3 31 16 6 / / V VD DI IP P- -2 2L L3 31 16 6D DN N / / V VD DI IP P- -2 2L L3 31 16 6D DN NI IR R O Ow wn ne er r’ ’s s M Ma an nu ua al l
Rev.1.0 (Jan. 2010)
10
Website: www.Veilux.net Phone# [phone]

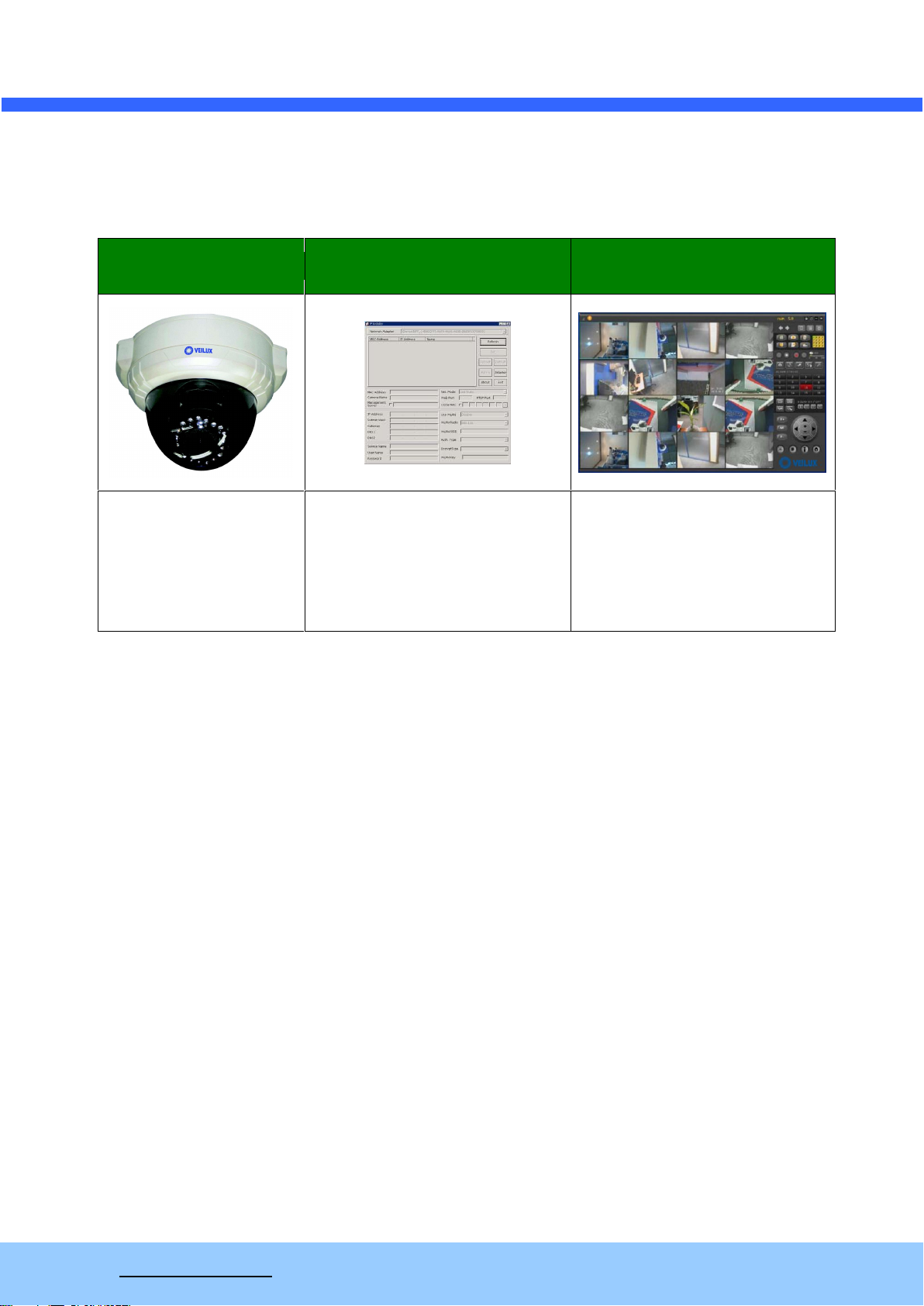

2.2. Product Preview
2.2.1. Preview
Veilux VDIP-2L316
IP-Installer
CMS Software
(NVXR-64)
(Megapixel) IP Camera
PC software to allocate an IP
address to the IP Camera
PC software to view and record
the A/V streaming data transmitted
from IP camera.
(Simultaneous support of up to 16
IP cameras)

V
Ve ei il lu ux x V VD DI IP P- -2 2L L3 31 16 6 / / V VD DI IP P- -2 2L L3 31 16 6D DN N / / V VD DI IP P- -2 2L L3 31 16 6D DN NI IR R O Ow wn ne er r’ ’s s M Ma an nu ua al l
Rev.1.0 (Jan. 2010)
11
Website: www.Veilux.net Phone# [phone]
2.3. Physical description
2.3.1. External View
Figure 2-1. External view of Veilux VDIP-2L316
2.3.2. Rear panel
Figure 2-2. Rear panel of Veilux VDIP-2L316
Sensor In
Relay Out
Video Out
Serial (pin 1
at leftmost)
Mic/Line In
Line Out
DC In
LAN

V
Ve ei il lu ux x V VD DI IP P- -2 2L L3 31 16 6 / / V VD DI IP P- -2 2L L3 31 16 6D DN N / / V VD DI IP P- -2 2L L3 31 16 6D DN NI IR R O Ow wn ne er r’ ’s s M Ma an nu ua al l
Rev.1.0 (Jan. 2010)
12
Website: www.Veilux.net Phone# [phone]
2.4. Functional Description
DC 12V : Power input for supplying 12V DC power.
Caution: If Veilux VDIP-2L316 is powered by PoE, do not plug in DC Jack with active DC
power into DC power connector.
MIC/LINE IN
Connect external audio source or microphone.
Line Out
Connect speakers with built in amplifier. Audio from remote site is output through Line out in bi-directional
audio mode.
100Base-T
100Mbps Ethernet connector (RJ-45) with PoE standard (802.3af). 2 LEDs on the Ethernet connector
shows the status of Veilux VDIP-2L316 as the followings:
-Status LED (Dual Color - Red/Green) : It will be lit in green or red depending on the status.
Green: Green color indicates that the camera is in normal operation mode. Continuous green
indicates that data transmission is possible. Blinking green means that someone is
connected to Veilux VDIP-2L316.
Red: Continuous or blinking red indicates that hardware is in abnormal condition.
- LINK/LAN LED (Orange)
It will be lit with orange color when network cabling is all right. Blinking orange color indicates that
normal data transmission is under way. Off state indicates that there is trouble in network connection.
RS-232C
3 Pins on the right of the connector are assigned for RS-232 port. Please note that leftmost pin is
numbered as 1.
Red/Green LED will be lit with red momentarily and it will be lit with green after a while when
power is applied into Veilux VDIP-2L316

V
Ve ei il lu ux x V VD DI IP P- -2 2L L3 31 16 6 / / V VD DI IP P- -2 2L L3 31 16 6D DN N / / V VD DI IP P- -2 2L L3 31 16 6D DN NI IR R O Ow wn ne er r’ ’s s M Ma an nu ua al l
Rev.1.0 (Jan. 2010)
13
Website: www.Veilux.net Phone# [phone]
Pin
Description
Misc.
1
Not used
2
Not used
3
RxD (Connect to TxD of the other end)
For debugging & factory use only.
4
TxD (RxD (Connect to RxD of the other end))
5
Ground of RS-232C
ALARM IN/OUT and Composite Video Output
Figure 2-3 ALARM IN/OUT and Composite Video Output Terminal of Veilux VDIP-2L316
Used for connecting P/T device, sensor, and composite video output. Pin assignments are as follows.
Pin
Description
Misc.
1
SNS IN (+)
Sensor In (+). NC/NO selectable in admin mode.
2
SNS In (-)
Sensor In (-). NC/NO selectable in admin mode.
3
CVBS OUT(+)
Composite video output
4
CVBS OUT(-)
Ground for composite video output
5
RLY OUT
Relay output : closed circuit in alarm to indicate alarm
status
6
RLY OUT
SNS IN : Examples of sensing devices are infrared sensors, motion sensors, heat/smoke sensors,
magnetic sensor, etc. Connect the two wires of the sensors to “SNS In”. The sensor type
(NC/NO) can be set in Administrative mode. 10mA can be flown into sensor device. Multiple
Relay Out
CVBS GND
CVBS Out
Sensor In -
Sensor In
+

V
Ve ei il lu ux x V VD DI IP P- -2 2L L3 31 16 6 / / V VD DI IP P- -2 2L L3 31 16 6D DN N / / V VD DI IP P- -2 2L L3 31 16 6D DN NI IR R O Ow wn ne er r’ ’s s M Ma an nu ua al l
Rev.1.0 (Jan. 2010)
14
Website: www.Veilux.net Phone# [phone]
sensor devices can be connected in parallel.
Sensor
Device
Sensor
Power
Supply
NO/NCType
Sensor1-
Sensor1+
+12V GND
Sensor
Device
Sensor
Power
Supply
Open CollectorType
Photo Coupler
Figure 2-4. SENSOR Input connection
RLY OUT : A Relay output is provided for connecting alarm devices or for remote on/off devices
such as light. Relay is normal open and it will be closed upon alarm annunciation or remote on.
The relay is capable of switching 30V AC/DC, 2A.
Figure 2-5. RELAY Output connection
Factory Default Switch
A switch provided for returning the IP camera to factory default state. Open the dome cover to access
the switch. Press the switch for a few seconds while power is applied.

V
Ve ei il lu ux x V VD DI IP P- -2 2L L3 31 16 6 / / V VD DI IP P- -2 2L L3 31 16 6D DN N / / V VD DI IP P- -2 2L L3 31 16 6D DN NI IR R O Ow wn ne er r’ ’s s M Ma an nu ua al l
Rev.1.0 (Jan. 2010)
15
Website: www.Veilux.net Phone# [phone]
Figure 2-6 Factory Default switch of Veilux VDIP-2L316
Caution: Restoring the factory default will erase all settings.

V
Ve ei il lu ux x V VD DI IP P- -2 2L L3 31 16 6 / / V VD DI IP P- -2 2L L3 31 16 6D DN N / / V VD DI IP P- -2 2L L3 31 16 6D DN NI IR R O Ow wn ne er r’ ’s s M Ma an nu ua al l
Rev.1.0 (Jan. 2010)
16
Website: www.Veilux.net Phone# [phone]
3. On Site Installation
3.1.
C
Ce ei il li in ng g o or r W Wa al ll l M Mo ou un nt ti in ng g
Please follow through the procedures in the order of the numbers for each procedure.

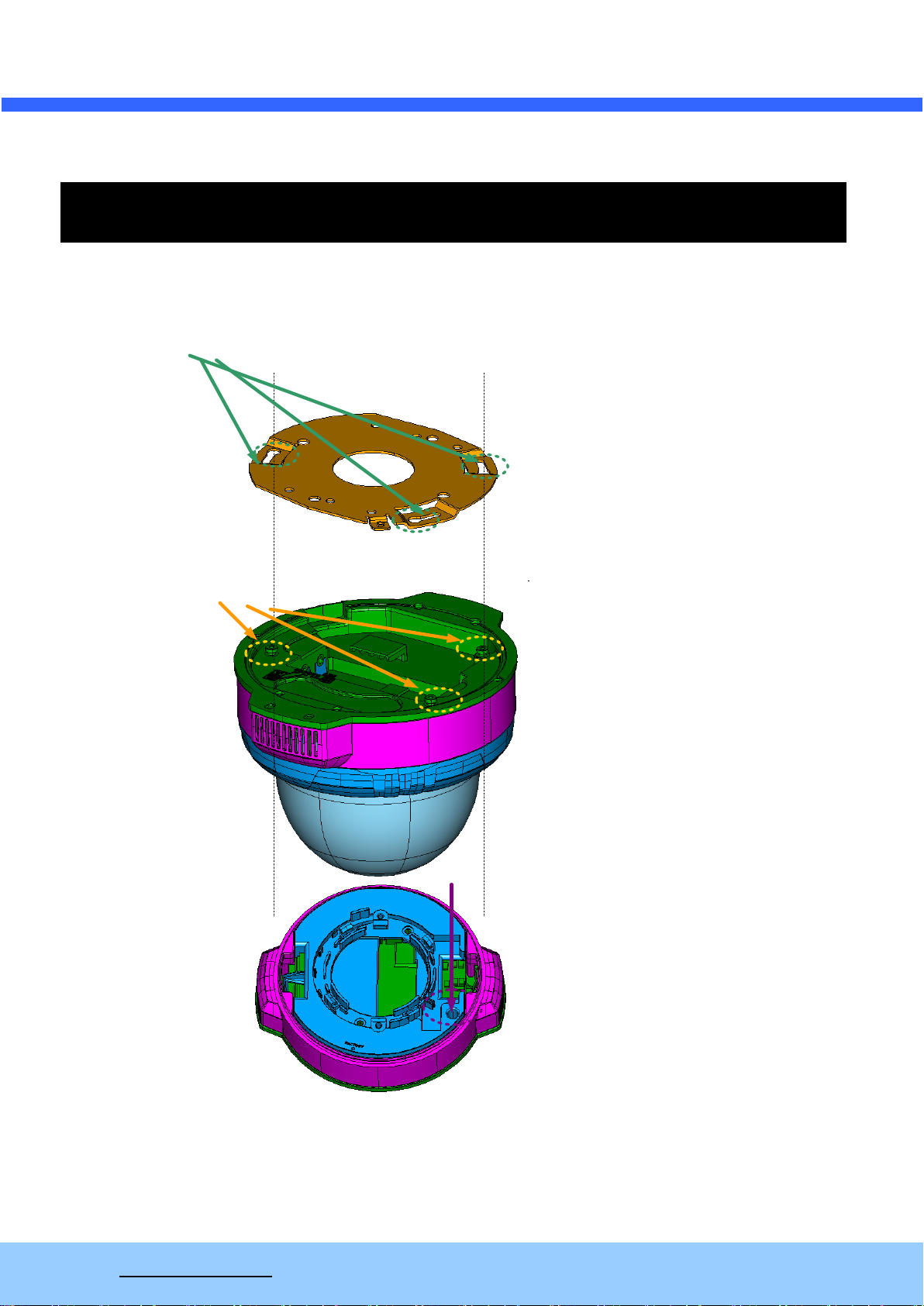

1. Fix the mounting bracket.
2. Seat the IP camera onto the mounting
bracket. Make sure to align the angular
positions of the “mounting knobs”and mating
“mounting bracket holes”properly. Once
seated, rotate the camera to the right until it is
locked.
3. Open the cover and apply a screw through
the hole indicated by the arrow to prevent the
camera from rotation.
4. Place the cover.
Mounting
Bracket
Mounting Knobs
Mounting Knob
Holes

V
Ve ei il lu ux x V VD DI IP P- -2 2L L3 31 16 6 / / V VD DI IP P- -2 2L L3 31 16 6D DN N / / V VD DI IP P- -2 2L L3 31 16 6D DN NI IR R O Ow wn ne er r’ ’s s M Ma an nu ua al l
Rev.1.0 (Jan. 2010)
17
Website: www.Veilux.net Phone# [phone]
3.2.
E
Em mb be ed dd de ed d m mo ou un nt t b br ra ac ck ke et t
Please follow through the procedures in the order of the numbers for each procedure.

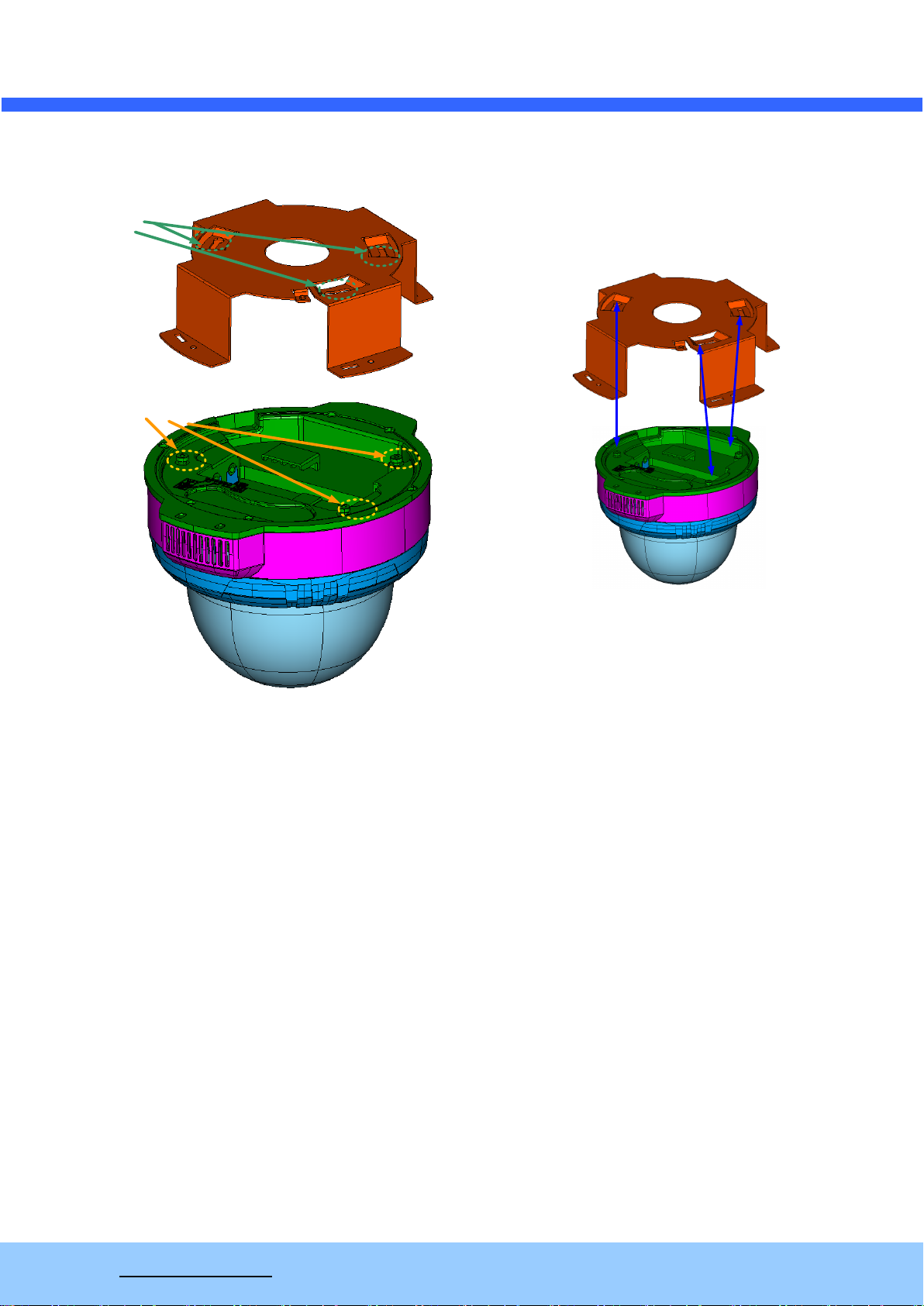

1. Prepare a 165mm diameter hole on the
ceiling
2. Place the bracket holder above the ceiling
panel through prepared hole.
Bracket Holder
Ceiling Panel
Recessed Mounting
Bracket
Fixing Screws
IP Camera
Decoration Panel
3. Plug in the recessed mounting bracket
through the hole.
4. Fix the mounting bracket and bracket
holder using two screws.
5. Slide in the IP camera into the mounting
bracket. Be careful to place the camera in the
right position by aligning the positions of the
“mounting knobs”and “mounting knob
holes”. (Note 1)
8. Place the decoration panel.
6. Open the cover and apply a screw through
the hole indicated by the arrow to prevent the
camera from rotation.
7. Place the cover.
Note 1 : Aligning “Mounting Knobs” and “Mounting knob Holes”

V
Ve ei il lu ux x V VD DI IP P- -2 2L L3 31 16 6 / / V VD DI IP P- -2 2L L3 31 16 6D DN N / / V VD DI IP P- -2 2L L3 31 16 6D DN NI IR R O Ow wn ne er r’ ’s s M Ma an nu ua al l
Rev.1.0 (Jan. 2010)
18
Website: www.Veilux.net Phone# [phone]
Mounting Knobs
Mounting Knob
Holes
Make sure to align the positions of the “mounting knobs”
and “mounting knob holes”when you plug in the IP
camera into the mounting bracket.
Once it is firmly plugged in, twist the IP camera to the right
until it is locked.

V
Ve ei il lu ux x V VD DI IP P- -2 2L L3 31 16 6 / / V VD DI IP P- -2 2L L3 31 16 6D DN N / / V VD DI IP P- -2 2L L3 31 16 6D DN NI IR R O Ow wn ne er r’ ’s s M Ma an nu ua al l
Rev.1.0 (Jan. 2010)
19
Website: www.Veilux.net Phone# [phone]
4. Getting Started
Brief information for first time operation of Veilux VDIP-2L316 is provided in this chapter.
4.1. PC Requirement
Audio/Video streaming data received from Veilux VDIP-2L316 can be displayed or stored in a PC running client
programs. Minimum requirement of the PC is described below:
Recommended
Remark
CPU
Pentium IV 3G above
Main Memory
1GB above
Operating System*
Windows XP /Vista/ 7 (32 Bit)
Web Browser
Internet Explorer 6.0 above
Graphic Card
64M above
Higher than 1600x1200
Network
100 Base-T Ethernet
* Operating Systems supported: Windows 2000 Professional / XP / Vista / 7 (32 bit)

V
Ve ei il lu ux x V VD DI IP P- -2 2L L3 31 16 6 / / V VD DI IP P- -2 2L L3 31 16 6D DN N / / V VD DI IP P- -2 2L L3 31 16 6D DN NI IR R O Ow wn ne er r’ ’s s M Ma an nu ua al l
Rev.1.0 (Jan. 2010)
20
Website: www.Veilux.net Phone# [phone]
4.2. Quick Installation Guide
1. Connect PC and Veilux VDIP-2L316 to network.
1) Prepare a PC to run programs for the installation and video connection
(PC is needed to assign IP address to Veilux VDIP-2L316)
2) In case of using PoE, connect the PC and Veilux VDIP-2L316 to the network using one of the following
ways.
If your LAN Switch does not support standard PoE, connect Veilux VDIP-2L316 as shown in dotted line
in Figure 4-1. The DC power is applied through DC adaptor.
Figure 4-1. Power and network connection
1. Install “IP installer and set IP parameters on Veilux VDIP-2L316
Insert the CD provided with product into the PC. Install WinPcap and IP Installer in sequence. Make sure
that IP Installer can’t run without WinPcap.
IP installer Ver. 3.0.1 or later is needed in the configuration of Veilux VDIP-2L316.
Follow the sequence below for setting the IP parameter
i) Run IP installer > Select Network Adaptor >OK
ii) Click ①in IP installer window.> Double click on ②> Fill in ④> make a selection in ⑤> Fill the
parameters in ⑥
iii) Click on ⑨to apply the settings.
iv) You can connect to admin page by clicking on ⑩.
LAN switch with
standard POE
(802.3af)
LAN switch
DC adaptor
