Velocity VDOT-S6 User manual

GLT-299-6-10 Rev.0
http://www.velocitydetection.com
SOUNDER BASE VDOT-S6 BASE
NOT TO BE USED FOR INSTALLATION PURPOSES.
Velocity reserves the right to make changes at any time without
notice in prices, colours, materials, components, equipment, speci-
cations and models and also to discontinue models.
Features
• UL Listed Base.
• Compatible to Velocity’s UL Listed detectors.
• Provides 4 sound patterns (continuous, march, ANSI 3
temporal, ANSI 4 temporal).
• Over 85 bD at 10 feet away.
• Address programmed by VDOT-AD2 programmer.
• Contains a locking screw for tamper protection.
• Reduces wiring cost.
Description
VDOT-S6 Base is a detector base with sounder, which is in-
dividually or collectively controlled by a control panel using
addressable system. The detector base has 4 sound patterns
which are continuous, march, ANSI 3 temporal and 4 temporal
patterns. These patterns which are used in and around
buildings can be selected by a control panel. The sound
pressure level at 10 feet from the base is over 85 dB. Up to
127 bases can be connected to a loop of the control panel.
The base is designed to be mounted to 3-1/2” octagonal, 4”
octagonal or 4” square electrical box.

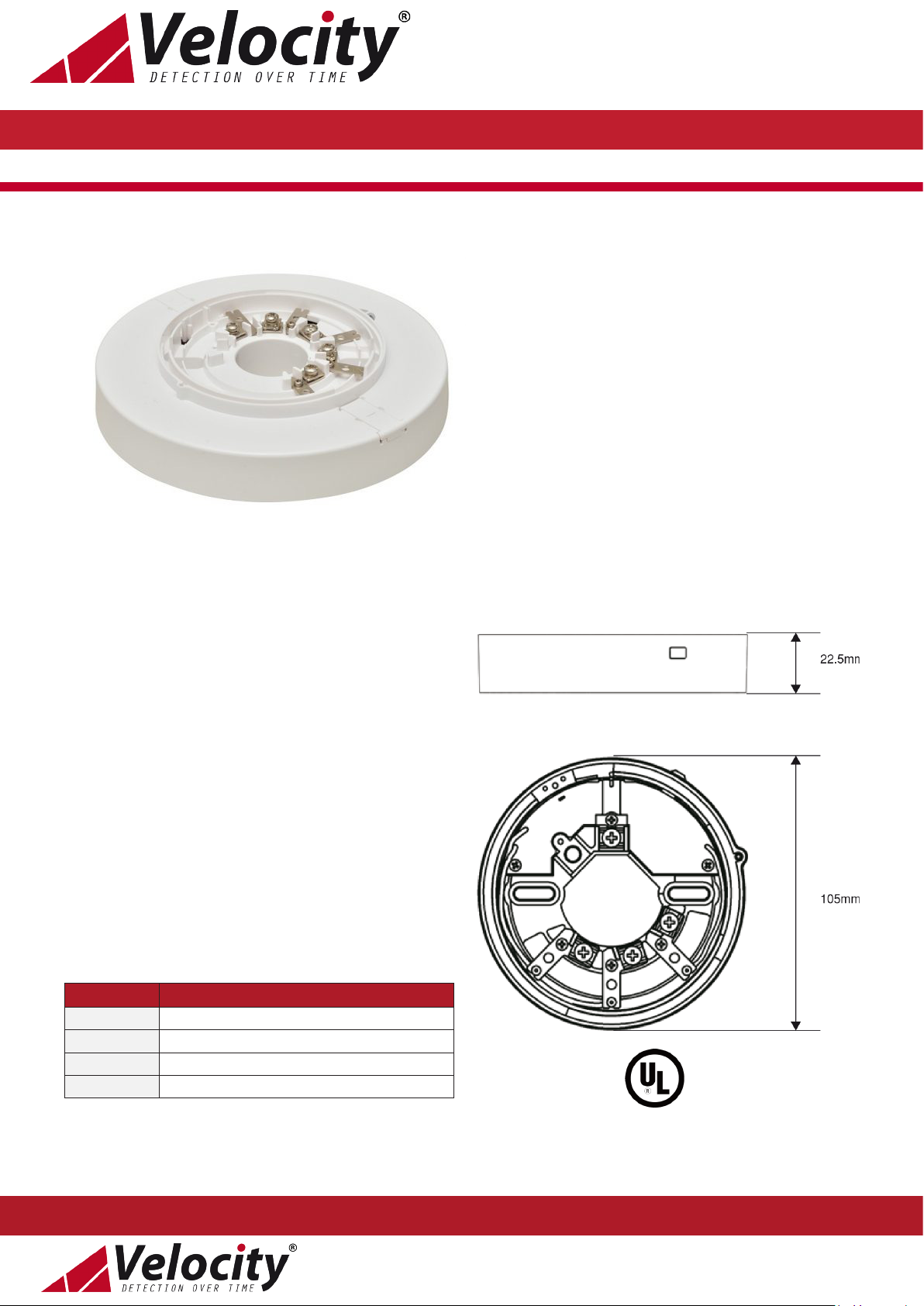

Dimensions
Page 1
Compable Detector Models
Models Description
VDOT-PY Addressable Photoelectric Smoke Detector
VDOT-PYH Addressable Multisensory Detector
VDOT-H2 Addressable Heat Detector
VDOT-DPH Addressable Dual Optical / Heat Detector

Distributed By
http://www.velocitydetection.com
GLT-299-6-10 Rev.0
Zeta Alarms Limited
72-78 Morfa Road, Swansea
SA1 2EN
Tel: [phone] FAX: [phone]
All specications are subject to change without any notice.
For more information, contact with VELOCITY.
Locking Screw
VDOT-S6 Base contains a locking screw to avoid
unauthorisedremoval of detectors.
Mounng
VDOT-S6 Base can be mounted to 4” square, 4” octagonal, or
3-1/2” octagonal electrical box.
Specication
Specications VDOT-S6 Base
SLC Applied Voltage Rated Range 20 VDC to 38 VDC
AUX. Supply Voltage Rated Range 16 VDC to 33 VDC
SLC Current Consumption Stanby: 0.5 mA Alarm: 1.4 mA
AUX Supply Current Consumption Standby: 0.5 mA Alarm: 20 mA
Sound Pressure Level ≥ 85 dB @ 10 Feet Away
Maximum Quantity Per Loop 127 units
Operating Temperature -10°C to +55°C (14°F to 131°F)
Storage Temperature -20°C to +60°C (-4°F to 140°F)
Relative Humidity ≤ RH 95 % Non-Condensing
Environment Indoor, dry use only
Terminal AWG12-20
Dimensions φ160 mm x H 31 mm
Weight 170 g
Standard UL268 and UL464
Page 2
Installation Diagrams
Analog Addressable Wiring
When connected to analog addressable detectors such as
VDOT-PY, VDOT-PYH, VDOT-H2, VDOT-DPH, etc.
Terminals
VDOT-S6 Base is supplied with 5 terminals (including 1 un-
used) as follows:
