INSTALLATION GUIDE
MODELS H50100H AND H50100E
VB0195
These products earned the ENERGY STAR®by meeting strict energy efficiency guidelines set by Natural Resources
Canada and the US EPA. They meet ENERGY STAR requirements only when used in Canada.
RESIDENTIAL INDOOR USE ONLY
! !
READ AND SAVE THESE INSTRUCTIONS
21456 rev. 03
Venmar Ventilation inc., 550 Lemire Blvd., Drummondville, QC, Canada J2C 7W9
REGISTER YOUR PRODUCT ONLINE AT: www.venmar-usa.com
For additional information - visit www.venmar-usa.com

2
Please take note that this manual uses the following symbols to emphasize particular information:
Identifies an instruction which, if not followed, might cause serious personal injuries including possibility of death.
Identifies an instruction which, if not followed, may severely damage the unit and/or its components.
NOTE: Indicates supplementary information needed to fully complete an instruction.
WARNING
!
CAUTION
ABOUT THIS GUIDE
ABOUT THESE UNITS
LIMITATION
For residential (domestic) installation only. Installation work and electrical wiring must be done by a qualified person(s) in accordance with
all applicable codes and standards, including fire-rated construction codes and standards.
WARNING
!
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSON(S) OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or
telephone number listed in the warranty.
2. We recommend that your unit be inspected by a specialized technician once a year.
3. Before servicing or cleaning the unit, disconnect power cord from electrical outlet.
4. This unit is not designed to provide combustion and/or dilution air for fuel-burning appliances.
5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
6. Do not use this unit with any solid-state speed control device other than following optional main and auxiliary wall controls:
7. This unit must be grounded. The power supply cord has a 3-prong grounding plug for your personal safety. It must be plugged into a
mating 3-prong grounding receptacle, grounded in accordance with the national electrical code and local codes and ordinances. Do
not remove the ground prong. Do not use an extension cord.
8. Do not install in a cooking area or connect directly to any appliances.
9. Do not use to exhaust hazardous or explosive materials and vapors.
10. When performing installation, servicing or cleaning the unit, it is recommended to wear safety glasses and gloves.
11. Due to the weight of the unit, two installers are recommended to perform installation.
12. When applicable local regulations comprise more restrictive installation and/or certification requirements, the aforementioned
requirements prevail on those of this document and the installer agrees to conform to these at his own expenses.
CAUTION
1. To avoid prematurate clogged filters, turn OFF the unit during construction or renovation.
2. Please read specification label on product for further information and requirements.
3. Be sure to duct air outside – Do not intake/exhaust air into spaces within walls or ceiling or into attics, crawl spaces, or garage.
4. Intended for residential installation only in accordance with the requirements of NFPA 90B.
5. Do not run any air ducts directly above or closer than 2 ft (0.61 m) to any furnace or its supply plenum, boiler, or other heat producing
appliance. If a duct has to be connected to the furnace return plenum, it must be connected not closer than 9’ 10” (3 m) from this plenum
connection to the furnace.
6. The ductwork is intended to be installed in compliance with all applicable codes.
7. When leaving the house for a long period of time (more than two weeks), a responsible person should regularly check if the unit
operates adequately.
8. If the ductwork passes through an unconditioned space (e.g.: attic), the unit must operate continuously except when performing
maintenance and/or repair. Also, the ambient temperature of the house should never drop below 65°F (18°C).
Optional Main Controls Optional Auxiliary Controls
Altitude, Deco-Touch, Lite-Touch Constructo,
Simple-Touch Constructo, Constructo
60-minute crank timer, 20/40/60-minute lighted push button,
Dehumidistat

TABLE OF CONTENTS
3
1. D IMENSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2. TYPICAL INSTALLATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.1 FULLY DUCTED SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.2 CENTRAL DRAW POINT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.3 SIMPLIFIED INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3. INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-11
3.1 INSPECT THE CONTENT OF THE BOX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3.2 TOOLS AND MATERIAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3.3 LOCATING THE UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3.4 PLANNING OF THE DUCTWORK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3.5 INSTALLING NON-INSULATED DUCTS AND DIFFUSERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-9
3.5.1 FULLY DUCTED SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.5.2 CENTRAL DRAW POINT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.5.3 SIMPLIFIED INSTALLATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.6 INSTALLING INSULATED FLEXIBLE DUCTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.6.1 CONNECTION TO THE UNIT PORTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
3.6.2 LOCATING EXTERIOR PORTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
3.7 CONNECTING INSULATED DUCTS TO EXTERIOR PORTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.8 INSTALLING TANDEM®TRANSITION KIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.9 CONNECTING THE DRAIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4. CONTROLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-14
4.1 INTEGRATED CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.2 BOOTING SEQUENCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.3 SETTING EXTENDED DEFROST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.4 ELECTRICAL CONNECTION TO OPTIONAL WALL CONTROLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13-14
4.4.1 ELECTRICAL CONNECTION TO ALTITUDE MAIN WALL CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
4.4.2 ELECTRICAL CONNECTION TO DECO-TOUCH MAIN WALL CONTROL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
4.4.3 ELECTRICAL CONNECTION TO LITE-TOUCH CONSTRUCTO OR SIMPLE-TOUCH CONSTRUCTO MAIN WALL CONTROLS . . . . . . . . .13
4.4.4 ELECTRICAL CONNECTION TO CONSTRUCTO MAIN WALL CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
4.4.5 ELECTRICAL CONNECTION TO OPTIONAL AUXILIARY WALL CONTROLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
5. ELECTRICAL CONNECTION TO THE FURNACE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
6. WIRING DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
7. B ALANCING THE UNIT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
8. SERVICE PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
9. TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19-20
1. DIMENSIONS
11¼"
17 7/16"
37 7/8"
33"
11 7/8"
VK0086A 39 /8"

4
2.TYPICAL INSTALLATIONS
Use the following illustrations as guidelines to help you decide on how the unit will be installed.
All the units should be hung from the joists.
In every case, bathroom fans and a range hood could be used to exhaust stale air.Also, for homes with more than one level, we recommend
one exhaust register at the highest level.
There are 3 installation methods: Fully Ducted System, Central Draw Point and Simplified Installation.
NOTE: An electrical outlet has to be available within 3 feet of the unit.
2.1 FULLY DUCTED SYSTEM (PRIMARILY FOR HOMES WITH RADIANT HOT WATER OR ELECTRIC BASEBOARD HEATING)
VH0024
Stale air coming from the register located at the highest level of the
house is exhausted to the outside. Fresh air from outside is filtered and
supplied by the register located in the lowest liveable level.
Homes with more than one level require at least one exhaust register at
the highest level.
See figure at right.
2.2 CENTRAL DRAW POINT (CONNECTION TO AFORCED AIR SYSTEM)
VH0025
Stale air coming from the register located at the highest level of the
house is exhausted to the outside. Fresh air from outside is filtered and
supplied to the return (plenum) or the supply duct of the forced air unit.
See figure at right.
For this type of installation, it is not essential that the forced air system
blower runs when the unit is in operation, but we recommend it.
NOTE: Home with multiple forced air systems should have one unit on
each system.
2.3 SIMPLIFIED INSTALLATION (CONNECTION TO AFORCED AIR SYSTEM)
VH0093
Stale air is exhausted to the outside. Fresh air from outside is filtered and
supplied to the return (plenum) or the supply duct of the forced air unit.
See figure at right.
To avoid cross-contamination and achieve the highest efficiencies, the
forced air system blower must always be ON.
NOTE: Home with multiple forced air systems should have one unit on
each system.

5
3. INSTALLATION
• Inspect the exterior of the unit for shipping damage. Ensure that there is no damage to the door, ports, power cord, etc.
• Remove the transport tape over the heat or energy recovery core
of the unit.
• Inspect the inside of the unit for damage. Ensure that blower
assembly, heat or energy recovery core, core filters, insulation,
dampers, prefilter and HEPA filter, etc. are all intact, then reinstall
the door.
NOTE: Write the installation date on the HEPA filter frame for future
reference (see illustration at right).
TOP
DESSUS
FRONT
AVANT
Instal.date:
Dated’instal. :
__ / __ / ____
21293
FRONT
AVANT
Instal. date:
Date d’instal. :
__ / __ / ____
VD0322
NOTE: Before proceeding to the installation, check the content of the box. Remove all packaging material from the unit.
In order to prevent damages to the door hooks, do not open completely the
unit door; tilt it about 3" from the unit base and lift it up. See illustration at
right.
CAUTION
±3”
VD0303A
B
C
VD0302
A
• Using a Phillips or a Robertson screwdriver, loosen both door screws (A).
NOTE: The screws will stay attached to the door.
• Open (B) and lift out (C) the door.
3.1 INSPECT THE CONTENT OF THE BOX

6
3. INSTALLATION (CONT’D)
3.3 LOCATING THE UNIT
Choose an appropriate location for the unit.
• Within an area of the house where the ambient temperature is kept between 50°F (10°C) and 104°F (40°C).
• Away from living areas (dining room, living room, bedroom), if possible.
• So as to provide easy access to the interior of the unit, for maintenance.
• Close to an exterior wall, so as to limit the length of the insulated flexible duct to and from the unit.
• Away from hot chimneys and other fire hazards.
• Allow for a power source (standard 3-prong grounding outlet).
• FOR HRV UNITS ONLY: Close to a drain. If no drain is close by, use a pail to collect
run-off.
Hang the unit with the four hooks, chains and springs provided.See illustration at right.
VD0305
Make sure the unit is level.
CAUTION
3.2 TOOLS AND MATERIAL
Following are the tools and material needed:
• Phillips no. 2 or Robertson no. 2 screwdriver
• Small flat blade screwdriver (for wall control connection)
• Wire stripper (for wall control connection)
• Hammer and flat blade screwdriver (for plenum or supply furnace duct connection installation only, to make holes in existing
metal duct)
• Scissors or utility knife (to cut duct tape)
• Measuring tape
• Duct tape
• Tin snips or metal shear (for plenum or supply furnace duct connection installation only, to cut ductwork)
• Aluminum duct tape (for plenum connection installation only)
• Jig saw
• Caulking gun and caulking.
3.4 PLANNING OF THE DUCTWORK
• Keep it simple. Plan for a minimum of bends and joints.
• Keep the length of insulated ducts to a minimum.
• Do not ventilate crawl spaces or cold rooms. Do not attempt to recover the exhaust air from a dryer or a range hood. This
would cause clogging of the filters and recovery module.
• If the house has two floors or more, be sure to plan for at least one exhaust register on the highest lived-in level.

7
HOW TO CONNECT THE FLEXIBLE DUCTS TO THE DIFFUSERS
Once the diffusers location is determined, cut out 5¼” diameter hole.
Run one end of the flexible duct through the hole and fix it to the diffuser base (1),
using a tie wrap and duct tape. Assemble the diffuser base to the wall (or ceiling)
using its 4 no. 8 x 3/4” screws. Then, slide in the diffuser (2).
See illustration at right.
Ø 5¼”
VJ0094A
2
1
3. INSTALLATION (CONT’D)
HOW TO CONNECT THE FLEXIBLE DUCTS TO THE UNIT PORTS
Both flexible ducts attached to the diffusers must be connected to the bottom ports of
the unit. When facing the unit door, the fresh air to building port is located on left side
and the exhaust air from building port is on the right side. Refer to the identification
labels affixed beside each unit ports. Using tie wrap, attach the fresh air to building
duct to its corresponding port, then do the same for the exhaust air to building duct
and port. See illustration at right.
NOTE: Use an insulated duct if the duct will have to go through a space where it is
possible to experience extreme temperature conditions (eg: in northern area,
unheated attic in winter or uncooled attic in southern area). Also, if you plan to
stop the unit for more than 12 hours, we recommend to cover the duct with R12
insulation. VJ0107
Aire de salida desde el interior
RIGHT SIDE OF THE UNIT
Fresh air distribution ductwork
• Install the fresh air distribution diffuser in a large, open area in the lowest level to ensure the greatest possible air circulation.
• Keep in mind that the fresh air diffuser must be located as far as possible from the stale air diffuser. If desired, you can install
another diffuser.
• Install the diffuser either in the ceiling OR 6 to 12 inches (152 to 305 mm) from the ceiling on an interior wall. (The cooler air
will then cross the upper part of the room and mix with room air, before descending to occupant’s level.)
• If a register must be floor installed, direct the airflow up the wall.
UNIT PORTS IDENTIFICATION
Each unit port has an identification label
beside it to avoid wrong duct connections to
the unit. Always refer to these labels before
performing any duct and port connection.
VJ0106
Aire de salida hacia el exterior
Aire fresco hacia el interior
Aire fresco desde el exterior
Aire de salida desde el interior
UNIT
DOOR
Stale air exhaust ductwork
• Install the stale air exhaust diffuser in the main area where the contaminants are produced: kitchen, living room, etc. Position
the diffuser as far from the stairway as possible and in such a way that the air circulates in all the lived-in spaces in the house.
If desired, you can install another diffuser (sold separately).
• If a diffuser is installed in the kitchen, it must be located at least 4 feet (1.2 m) from the range.
• Install the diffuser 6 to 12 inches (152 to 305 mm) from the ceiling on an interior wall OR install it in the ceiling.
Never install a stale air exhaust diffuser in a closed room where a combustion device operates, such as a
gas furnace, a gas water heater or a fireplace.
WARNING
!
3.5 INSTALLING NON-INSULATED DUCTS AND DIFFUSERS
3.5.1 FULLY DUCTED SYSTEM (AS ILLUSTRATED IN SECTION 2.1)

8
3.5 INSTALLING NON-INSULATED DUCTS AND DIFFUSERS (CONT’D)
3. INSTALLATION (CONT’D)
Stale air exhaust ductwork
Same as for Fully Ducted System, described in step 3.5.1
3.5.2 CENTRAL DRAW POINT (AS ILLUSTRATED IN SECTION 2.2)
Fresh air distribution ductwork
When performing duct connections, always use approved tools and materials. Respect all corresponding
laws and safety regulations. Please refer to your local building code.
WARNING
!
Method 2: Return side connection
• Locate the opening for fresh air ductwork on the forced air unit return duct at
a minimum linear distance of 9’ 10” (3 m) upstream (from forced air unit drop:
A+B+C). Cut out a 5” Ø hole in this location, using metal shear.
• Use a metal transition to connect the unit duct to the forced air unit return duct.
• Attach the other end of the flexible duct to the Fresh air to building port (see icon
on the left side of the unit). Use tie wrap and duct tape to seal the connection.
See illustration at right. VJ0099
A + B + C = NOT LESS
THAN 9’ 10” (3 M)
UNIT DOOR METAL
TRANSITION
When performing connection to the furnace supply duct, this duct must be sized to support the additional
air flow produced by the HRV/ERV. Also, use a metal duct with a backdraft damper to prevent the risk of
overheating the HRV/ERV.
CAUTION
There are 2 methods for connecting the unit to the furnace:
Method 1: Supply side connection
• Cut an opening into the furnace supply duct at least 18” (0.5 m) from the
furnace.
• Connect this opening to the fresh air distribution port of the HRV/ERV
(use metal duct, see figure at right).
• Make sure that the HRV/ERV duct forms an elbow inside the furnace
ductwork.
• If desired, interlock (synchronize) the furnace blower operation with the
HRV/ERV operation (see Section 5).
VJ0108
MINIMUM 18”
(0.5 M)
UNIT DOOR
METAL DUCT WITH
BACKDRAFT DAMPER

9
3.5 INSTALLING NON-INSULATED DUCTS AND DIFFUSERS (CONT’D)
3. INSTALLATION (CONT’D)
Fresh air distribution ductwork (return side connection)
Same as for Central Draw Point, described in step 3.5.2
3.5.3 SIMPLIFIED INSTALLATION (AS ILLUSTRATED IN SECTION 2.3)
Stale air exhaust ductwork (return side connection)
When performing duct connections, always use approved tools and materials. Respect all corresponding
laws and safety regulations. Please refer to your local building code.
WARNING
If using Method 2, make sure the furnace blower operation is synchronized with the HRV/ERV operation!
See Section 5.
CAUTION
!
VJ0109
3’ (0.9 M)
MINIMUM
UNIT DOOR
A + B + C = NOT LESS
THAN 9’ 10” (3 M)
When performing connection to the furnace supply duct, this duct must be sized to support the additional
air flow produced by the HRV/ERV. Also, use a metal duct with a backdraft damper to prevent the risk of
overheating the HRV/ERV.
CAUTION
There are 2 methods for connecting the unit to the furnace:
Method 1: Return-supply connection Method 2: Return-return connection
VJ0110
MINIMUM 18”
(0.5 m)
UNIT DOOR
METAL DUCT WITH
BACKDRAFT DAMPER
A + B + C = NOT LESS
THAN 9’ 10” (3 M)
Stale air intake:
• Cut an opening into the furnace return duct not less than 9’ 10” (3 m) from forced air unit drop: (A+B+C).
• Connect this opening to the stale air intake port on the HRV/ERV as shown.
Fresh air distribution: (Same instruction as for Method 1 or Method 2, section 3.5.2)
For Method 2 (return-return), make sure there is a distance of at least 3 feet (0.9 m) between both connections to the furnace.
NOTE: For Method 1, it is not essential to synchronize the furnace blower operation with the HRV/ERV operation, but we
recommend it.

10
3. INSTALLATION (CONT’D)
3.6 INSTALLING INSULATED FLEXIBLE DUCTS
Make sure the vapor barrier on the insulated ducts does not tear during installation to avoid condensation
within the ducts.
CAUTION
Use the following procedure for connecting the insulated flexible ducts to the unit ports (Exhaust air to outside and Fresh air from
outside). Refer to identification labels before performing any duct and port connection.
For both remaining ducts, pull back the insulation to expose
the interior flexible duct.
Connect the interior flexible duct to the smaller part of the
inner ring of the port using a tie wrap.
Pull the insulation over the joint and tuck it between the
inner and outer rings of the port. Pull the vapor barrier over
the insulation and over the outer ring of the port.
Apply duct tape gently to the joint in order to make an airtight
seal. See figures at right.

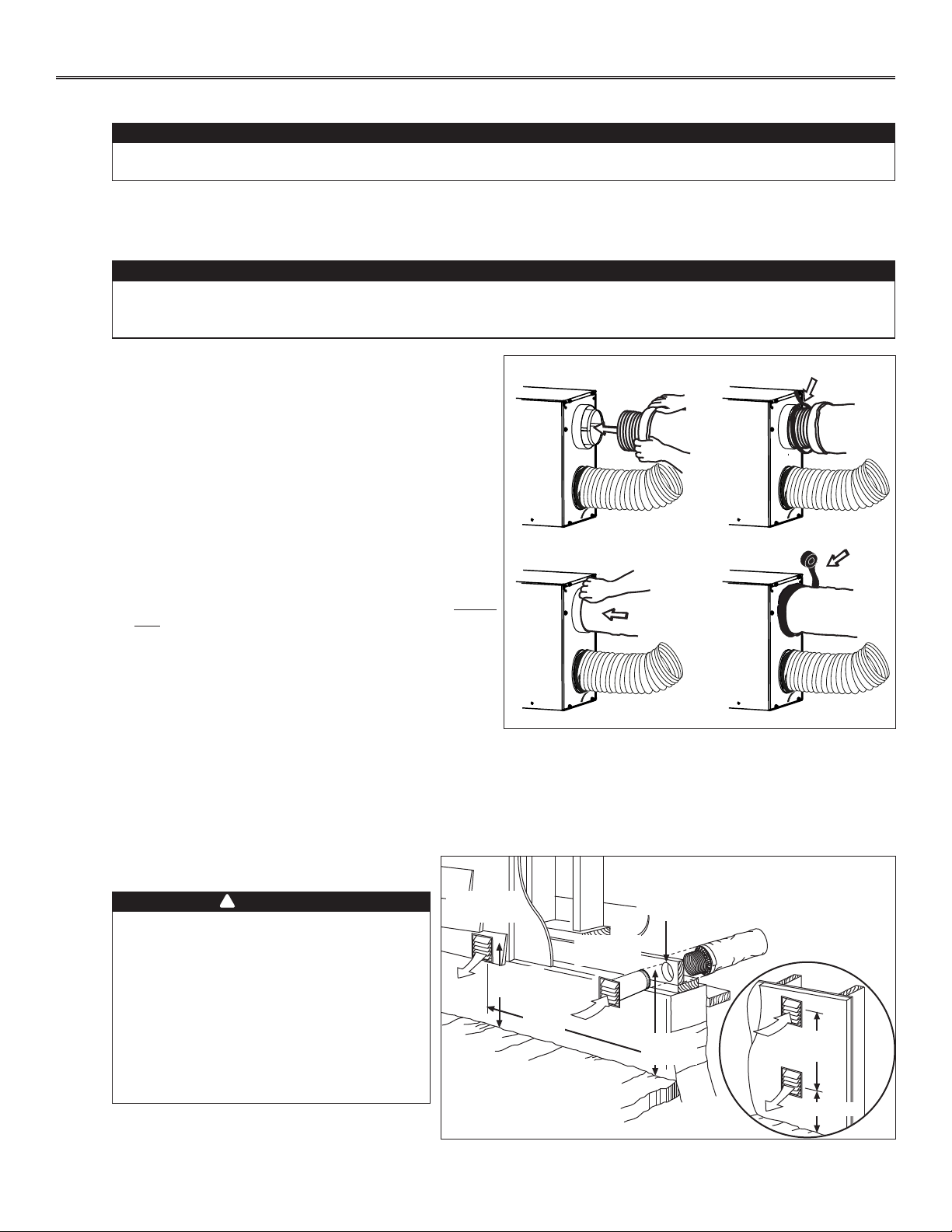

3.6.1 CONNECTION TO THE UNIT PORTS
VJ0102
Avoid compressing the insulation when you pull the tape tightly around the joint. Compressed insulation
loses its insulation properties and causes water dripping due to condensation on the exterior surface of
the duct.
CAUTION
Choose an appropriate location for installing the exterior ports:
•There must be a minimum distance of 6’ (1.8 m) between the hoods to avoid cross-contamination
•There must be a minimum distance of 18” (457 mm) from the ground
3.6.2 LOCATING EXTERIOR PORTS
Make sure the fresh air intake port is
located at least 6 feet (1.8 m) away (or
more, as per applicable building codes or
standards) from sources of contamination
such as:
• Dryer exhaust, high efficiency furnace
vent, central vacuum vent
• Gas meter exhaust, gas barbecue grill
• Garbage bin
• Any exhaust from a combustion source.
WARNING
!
VD0203
6’
(1.8 M)6’
(1.8 M)
STALE AIR
EXHAUST PORT
18’’
(457 MM)
18’’ (457 MM)
5’’ Ø
(127 MM)
5’’ Ø
(127 MM)
FRESH AIR
INTAKE PORT
OPTIONAL
LOCATION

3.7 CONNECTING INSULATED DUCTS TO EXTERIOR PORTS
•For each exterior port, using a jig saw, cut a 5’’ diameter hole in the
exterior wall.
•From the outside, slide the exterior port in place and attach it to the
exterior wall, using 2 no. 8 x 1½” provided screws. Seal the outline with
silicone.
• From the inside, pull back the insulation to expose the flexible duct and,
using a tie wrap, attach it to the exterior port rigid duct. Carefully seal
with duct tape. Pull the insulation over the joint. Pull the vapor barrier
over the insulation and over the joint. Apply gently duct tape to the joint
making an airtight seal. See illustration at right.
VR0028
3. INSTALLATION (CONT’D)
11
3.8 INSTALLING TANDEM®TRANSITION* KIT
If desired, it is possible to perform insulated ducts connection with the outside
using the Tandem transition kit (purchase separately, part number 14690). The
joist opening needed to install the Tandem transition must be 9¾” minimum. The
maximum height of the Tandem transition is 8¾”. To connect the insulated flexible
ducts to the Tandem transition (Exhaust air to outside and Fresh air from outside),
follow the instructions included with the kit.
*Patented.
VR0003 Tandem transition kit
3.9 CONNECTING THE DRAIN
Cut two sections of plastic tubing, approximately
12” long, and connect each one to both inner drain
fittings located under the unit as shown.
Join these both sections to the “T” junction and
main tube as shown, to prevent the unit from
drawing unpleasant odors from the drain source.
VD0308A
± 1”
Run the tube to the floor drain or to an alternative
drain pipe or pail.
IMPORTANT
If using a pail to collect water, locate the tube end
approximately 1” from the top of the pail in order to
prevent water from being drawn back up into the unit.
VD0311A
± 12” ± 12”
TIE WRAP
A drain tubing (included) must be installed for all HRV units. For ERV units, it is not required, however, it
is recommended for climates where the outside temperature typically remains below -13°F (-25°C), (over a
24-hour period) for several days in a row, combined with an indoor humidity of 40% or higher.
CAUTION
NOTES: 1. For ERV unit, remove both drain plugs inside the unit prior to
install tubing.
2. ERV core and blower assembly removed from illustration to ease
understanding.
VD0323

12
4. CONTROLS
4.2 BOOTING SEQUENCE
The unit booting sequence is similar to a personal computer boot sequence. Each time the unit is plugged after being unplugged, or
after a power failure, the unit will perform a 30-second booting sequence before starting to operate.
During the booting sequence, the integrated defrost control LED will light AMBER for 5 seconds, and then will shut off for 2 seconds.
After that, the LED will light RED for the rest of the booting sequence. During this RED light phase, the unit is checking and resetting
the motorized damper position. Once the motorized damper position completely set, the RED light turns off and the booting sequence
is done.
4.3 SETTING EXTENDED DEFROST
The unit is factory set to normal defrost. In cold region (outside temperature -17°F [ -27°C] and lower), it may be
necessary to setup extended defrost. During the first 3 seconds of booting sequence, while the integrated
control LED is AMBER, press on push button for about 3 seconds.The LED will blink GREEN the number of times
corresponding to the actual defrost mode of the unit.
NOTE: During setting extended defrost, while the push button is pressed, the LED will light RED to indicate
the signal has been received.
Refer to table below to modify the defrost cycle of the unit. It is possible to change the selection as many times
needed.
DEFROST CYCLE PRESS ON PUSH BUTTON LED BLINKS GREEN
1 NORMAL (HRV UNIT)ONCE 1 TIME
2 EXTENDED (HRV UNIT)TWICE 2 TIMES
3 NORMAL (ERV UNIT)THREE TIMES 3 TIMES
4 EXTENDED (ERV UNIT)FOUR TIMES 4 TIMES
If a problem occurs during the unit operation, its integrated control LED (2) will blink. The color of the blinking light depends on the
type of error detected. Refer to Section 9 Troubleshooting on last pages for further details.
NOTE: The integrated control must be turned OFF to use an optional main control.
VD0324
4.1 INTEGRATED CONTROL
These units are equipped with an integrated control located under the electrical compartment of the
unit. Use the push button (1) to control the unit; the LED (2) will then show which mode the unit is in
(see illustration at right).
PRESS ON PUSH BUTTON LED COLOR RESULTS
ONCE AMBER UNIT IS ON LOW SPEED
TWICE GREEN UNIT IS ON HIGH SPEED
THREE TIMES NOLIGHT UNIT IS OFF
1
2
VD0310
Refer to table below to see how to operate the unit using its integrated control.
To exit setting extended defrost, press 3 seconds on push button OR wait 60 seconds; the LED will blink and shut off, then light RED
(the unit returns in its booting sequence).

13
4. CONTROLS (CONT’D)

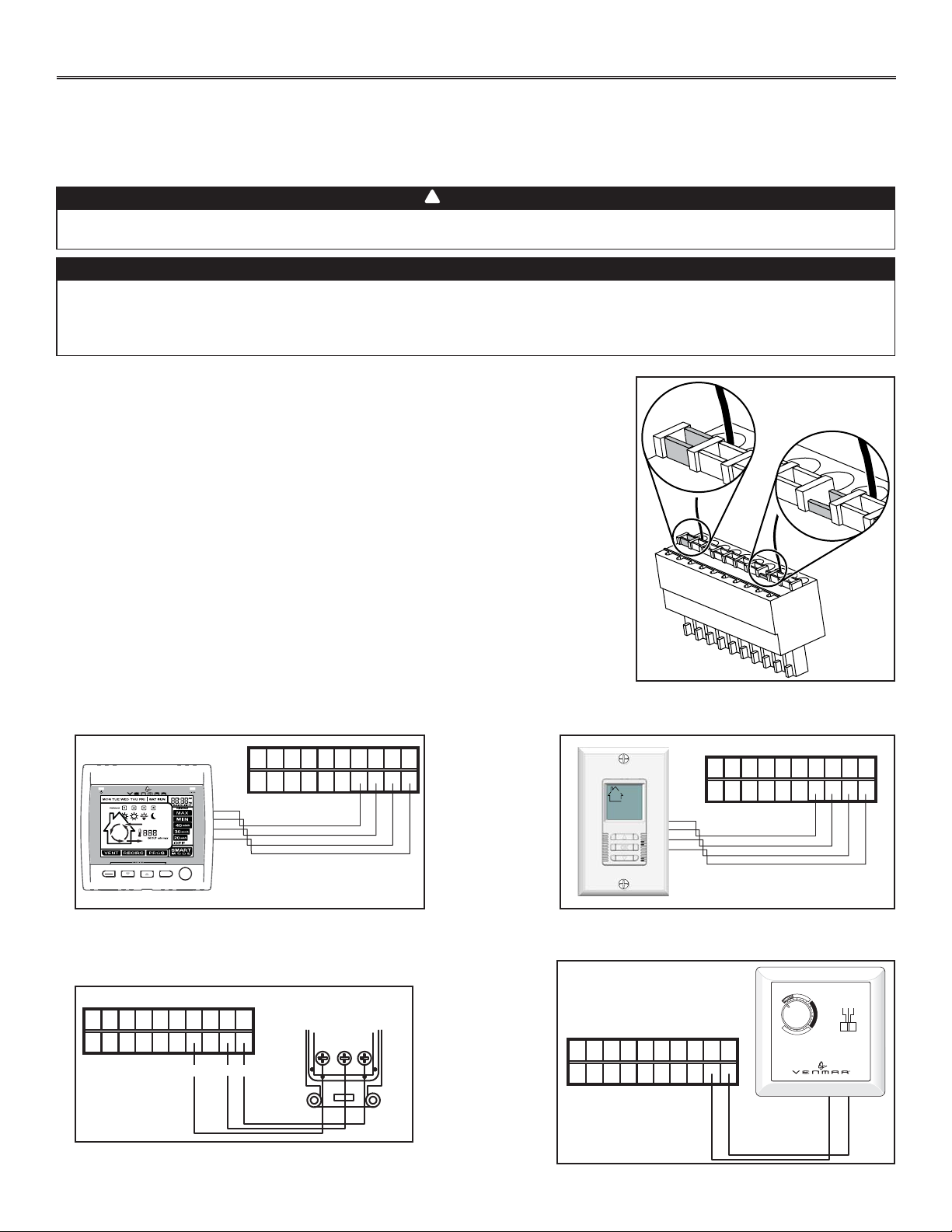

4.4 ELECTRICAL CONNECTION TO WALL CONTROLS
For more convenience, this unit can also be controlled using an optional main wall control.
NOTES: 1. The integrated control must be turned OFF to use an optional main control.
2. If an optional auxiliary control is used, if activated, this auxiliary control will override the optional main control.
WARNING
Always disconnect the unit before making any connections. Failure in disconnecting power could result in electric
shock or damage of the wall control or electronic module inside the unit.
!
CAUTION
Never install more than one main wall control per unit. Make sure that the wires do not short-circuit between
themselves or by touching any other components on the wall control. Avoid poor wiring connections. To reduce
electrical interference (noise) potential, do not run wall control wiring next to control contactors or near light
dimming circuits, electrical motors, dwelling/building power or lighting wiring, or power distribution panel.
Use the terminal connector included in the installation kit to perform the electrical connection for
main and optional wall controls. Check if all wires are correctly inserted in their corresponding
holes in the terminal block. (A wire is correctly inserted when its orange receptacle is lower
than another one without wire. On picture at right, wire Ais correctly inserted, but not wire B.)
4.4.1 ELECTRICAL CONNECTION TO ALTITUDE
MAIN WALL CONTROL
4.4.2 ELECTRICAL CONNECTION TO DECO-TOUCH
MAIN WALL CONTROL
4.4.3 ELECTRICAL CONNECTION TO
LITE-TOUCH CONSTRUCTO OR SIMPLE-TOUCH
CONSTRUCTO MAIN WALL CONTROLS
4.4.4 ELECTRICAL CONNECTION TO CONSTRUCTO
MAIN WALL CONTROL
NO C NC I OC OL Y R G B
VE0175
SMART
SET
MODE
PREF
NO C NC I OC OL Y R G B
VE0250
NO C NC I OC OL Y R G B
BG
OC
MAIN WALL
CO
NTR
O
L
LITE-TOUCH CONSTRUCTO
and
SIMPLE-TOUCH CONSTRUCTO
REAR VIEW
G B
Y
VE0100A
NO C NC I OC OL Y R G B
VE0102
--5°C
23° F
5°C
41°F
C
O
M
F
O
R
T
Z
O
N
E
-20°C
-4°F
OFF
MIN MAX
#
X
X
X
X
X
0
1
/
9
8
CONSTRUCTO
VE0272
A
B

4. CONTROLS (CONT’D)
14
VE0273
Once the control(s) connections have been made, insert the terminal connector in the electrical
compartment interface. Plug the unit.
NOTE: Refer to user manual for information about the use of optional main and auxiliary wall controls.
4.4 ELECTRICAL CONNECTION TO WALL CONTROLS (CONT’D)
4.4.5 ELECTRICAL CONNECTION TO OPTIONAL AUXILIARY WALL CONTROLS
NOTE: If an optional auxiliary wall control is
activated and then, the Dehumidistat
is being activated, this one will
override the auxiliary wall control
commands.
NO C NC I OC OL Y R G B
PUSH-BUTTON TIMERS
(5 MAXIMUM)
60-MINUTE
CRANK TIMER
DEHUMIDISTAT
VE0256A

5. ELECTRICAL CONNECTION TO THE FURNACE
15
For a furnace connected to a cooling system:
On some older thermostat, energizing the “R” and “G” terminals at the furnace has the effect of energizing “Y” terminal at the thermostat
and thereby turning on the cooling system. If you identify this type of thermostat, you must use the ALTERNATE FURNACE INTERLOCK WIRING.
WARNING
Never connect a 120-volt AC circuit to the terminals of the furnace interlock (standard wiring). Use only the low
voltage class 2 circuit of the furnace blower control.
!
W R G Y
W
R
G
C
Y
UNIT TERMINAL CONNECTOR
THERMOSTAT
TERMINALS
FOUR
WIRES
TWO WIRES
heating only
FURNACE
24-VOLT
TERMINAL BLOCK TWO WIRES COOLING SYSTEM
NO C NC I OC OL Y R G B
W R G Y
W
R
Y
R
G
Y
C
THERMOSTAT
TERMINAL
4 WIRES
2 WIRES
heating only wiring
nuts
FURNACE
24-VOLT
TERMINAL BLOCK 2 WIRES COOLING SYSTEM
NO
NC
C
UNIT TERMINAL CONNECTOR
NO C NC I OC OL Y R G B
VE0108A
STANDARD FURNACE INTERLOCK WIRING ALTERNATE FURNACE INTERLOCK WIRING

6. WIRING DIAGRAM
16
WARNING
!
WIRING DIAGRAM
Critical characteristic.
NOTES
1. Use specified UL listed/CSA Certified line fuse.
2. If any of the original wire, as supplied, must
be replaced, use the same equivalent wire.
3. Field wiring must comply with applicable
codes, ordinances and regulations.
4. Remote control (class 2 circuit) available,
see instruction manual.
COLOR CODE
BK BLACK
BL BLUE
BN BROWN
G GREEN
RRED
WWHITE
Y YELLOW
nc no connection
OORANGE
P PURPLE
Line voltage factory wiring
Class 2 low voltage factory wiring
Class 2 low voltage field wiring
J11
12
T1
24 V
Class 2
9.5 V
Class 2
O
O
Y
Y
120 V
106 V
81 V
71 V
Neutral
W
BK
BL
P
BN
R
nc
nc
BN
P
BL
J8
12345
J14
10
9
8
7
6
5
4
3
2
1
J13
ICP
1 2 3 4 5
J12
J9
1234
3A
3 AG Type
21
J10
ELECTRONIC ASSEMBLY A1
F1
Override switch
(optional; see
notes 3 & 4)
R1 Thermistor
J2 J1
1234512
J3
12
A2
DAMPER
ELECTRONIC ASSEMBLY
M2
Damper
Motor
BK
BK
BK
W
G
120 Volts AC
60 Hz
J6
J4
2
1
1
2
3
BK
BL
BN
Fan motor
M1
C1
Motor
capacitor
BK
BK
BKG
Y
BK
G
R
Y
OL
OC
I
Field wiring
remote control
(see notes 3 & 4)
See note 1
120 V AC
Line Neutral
J10-2 J10-1
F1 K2
K3
Fan motor M1
M
M
Damper motor M2
J4-1 J4-2
C1 Motor capacitor
J4-3J6-1 J6-2
J9-4
A2
J2-1 J3-1
J2-2 J3-2
J12-1
J12-2
K4
J8-2
J8-1
J8-5
J8-4
9.5 V AC 24 V AC
T1
nc nc
106 VAC
81 VAC
71 VAC
J9-3
J9-1
~
~
+-
CPU
K4K3K2
LOGIC DIAGRAM
VE0291A
R
Furnace blower
interlock (optional;
see notes 3 & 5)
5. Furnace fan circuit must be class 2 circuit only.
• Risk of electric shocks.Before performing any maintenance or servicing,always disconnect the unit from its power source.
• This product is equipped with an overload protection (fuse). A blown fuse indicates an overload or a
short-circuit situation. If the fuse blows, unplug the product and check the polarity and voltage output from the
outlet. Replace the fuse as per the servicing instructions (refer to wiring diagram for proper fuse rating) and
verify the product. If the replaced fuse blows, it may be a short-circuit and the product must be discarded or
returned to an authorized service center for examination and/or repair.

7.1 WHAT YOU NEED TO BALANCE THE UNIT
• A magnehelic gauge capable of measuring 0 to 0.5 inch of water (0 to 125 Pa) and 2 plastic
tubes.
• The balancing chart located on the unit door.
7.2 PRELIMINARY STAGES TO BALANCE THE UNIT
• Seal all the unit ductwork with tape. Close all windows and doors.
• Turn off all exhaust devices such as range hood, dryer and bathroom fans.
• Make sure the balancing dampers are fully open.
NOTE: The balancing dampers are NOT INCLUDED; to be supplied by others. Install the balancing dampers in Fresh air to
building duct and exhaust air from building duct (Aand Bon illustration below), at the more convenient place.
• Make sure all filters are clean (if it is not the first time you balance the unit).
7.3 BALANCING PROCEDURE
1. Set the unit to high speed.
Make sure that the furnace/air handler blower is ON if the installation is in any way connected to the ductwork of the cold air
return. If not, leave furnace/air handler blower OFF. If the outside temperature is below 32°F/0°C, make sure the unit is not
running in defrost while balancing.(By waiting 10 minutes after plugging the unit in, you are assured that the unit is not in a defrost
cycle.)
2. Place the magnehelic gauge on a level surface and adjust it to zero.
3. Connect tubing from gauge to exhaust air flow pressure taps
(see illustration at right).
Be sure to connect the tubes to their appropriate high/low
fittings. If the gauge drops below zero, reverse the tubing
connections.
NOTE: It is suggested to start with the exhaust air flow
reading because the exhaust has typically more
restriction than the fresh air, especially in cases of
fully ducted installations or source point ventilation.
Place the magnehelic gauge upright and level.
Record equivalent air flow of the reading according
to the balancing chart.
4. Move tubing to fresh air flow pressure taps (see diagram).
Adjust the fresh air balancing damper (A) until the fresh air
flow is approximately the same as the exhaust air flow. If
fresh air flow is less than exhaust air flow, then go back and adjust the exhaust balancing damper (B) to equal the fresh air flow.
5. Secure both dampers in place with a fastening screw.
6. Write the required air flow information on a label and affix it near the unit for future reference (date, maximum speed air flows,
your name, phone number and business address).
NOTE: The unit is considered balanced even if there is a difference of ±10 cfm (or ± 5 l/s or 17 m³/h) between the two air flows.
VP0009
7. B ALANCING THE UNIT
17
VP0024
AB
EXHAUST
AIR FLOW
FRESH
AIR FLOW

18
8. SERVICE PARTS
1
2
3
4
5
6
78
9
11
12
13
14
VL0062
10
ITEM DESCRIPTION QTY. H50100H H50100E
1T
RANSFORMER 1 61545 61545
2E
LECTRONIC BOARD 1 61184 61184
3C
APACITOR 6 F 1 61550 61550
4B
LOWER ASSEMBLY 1 61552 61552
5C
ORE BRACKET 1 61553 61553
6D
OOR ASSEMBLY 1 61560 61560
7HEPA FILTER KIT¹ 1 21293 21293
8P
REFILTER KIT FOR HEPA FILTER² 1 61561 61561
9C
ORE FILTER 2 61563 61562
10 BOTTOM FILTER RETAINING WIRE 1 61564
11 DAMPER SYSTEM ASSEMBLY 1 61565 61565
12 HEAT RECOVERY CORE 1 61567
ENERGY RECOVERY CORE 161410
13 BRACKET WITH RETAINING NUT 2 61411 61411
14 DOUBLE COLLAR PORT 2 61569 61569
REPLACEMENT PARTS AND REPAIRS
In order to ensure your ventilation unit remains
in good working condition, you must use
Venmar Ventilation Inc. genuine replacement
parts only. Venmar Ventilation Inc genuine
replacement parts are specially designed for
each unit and are manufactured to comply
with all the applicable certification standards
and maintain a high standard of safety. Any
third party replacement part used may cause
serious damage and drastically reduce the
performance level of your unit, which will result
in premature failing. Venmar Ventilation Inc.
recommends to contact a certified service
depot for all replacement parts and repairs.
¹ HEPA FILTER KIT INCLUDES 2 PREFILTERS.
² PREFILTER KIT INCLUDES 2 PREFILTERS.

19
9.TROUBLESHOOTING
If the unit does not work properly, reset the unit by unplugging it for one minute and then replug it. If it is still not working
properly, refer to table below.
If the integrated control LED of the unit is flashing, this means the unit sensors detected a problem. See the table below to know where
the problem occurs on the unit.
LED COLOR ERROR TYPE ACTION UNIT STATUS
LED flashes GREEN Thermistor error Replace thermistor Unit works but will defrost frequently
LED flashes AMBER Damper error Go to point 5 Unit does not work
• Unplug the unit. Disconnect the
main control and the optional
auxiliary control(s) (if need be).
Jump Gand Bterminals. Plug the
unit back and wait about 10 seconds. If the motors run on high
speed and the damper opens, the circuit board is not defective.
• Check if fuse F1 is blown. In that case, replace fuse F1 as per
product nameplate.
NO C NC I OC OL Y R G B
VE0097
PROBLEMS POSSIBLE CAUSES YOU SOULD TRY THIS
1
The error code E1 is
displayed on Altitude or
Deco-Touch wall control
screen.
• The wires may be in reverse
position.
• The wires may be broken.
• The wires may have a bad
connection.
• Ensure that the color coded wires have been connected to their
appropriate places.
• Inspect every wire and replace any that is damaged.
• Ensure the wires are correctly connected.
2
There is no outside
temperature displayed
on Altitude wall control
screen __.
• The unit thermistor is defective
(the integrated control LED of
the unit must flash GREEN).
NOTE: At its very start-up or after a power failure, it takes some
minutes before the outside temperature appears on
screen. The delay duration depends on which operation
mode the wall control is set.The shortest delay is obtained
when the wall control is set on MIN or MAX in VENT Mode.
• Replace the unit thermistor.
3
Altitude or Deco-Touch
wall control screen
alternates between
normal display and E3.
• The Altitude or Deco-Touch wall
control may be defective.
• Replace the Altitude or Deco-Touch wall control.
4
Unit does not work. • The circuit board
may be defective.
• The fuse may be defective.
5
The damper actuator
does not work.
• The damper actuator or the
integrated damper mechanism
may be defective.
• The circuit board or the
transformer may be defective.
• Unplug the unit. Disconnect the main control and the optional
controls(s) (if need be).Wait 10 seconds and plug the unit back.
Check if the damper opens. If not, use a multimeter and check
for 24 VAC on J12-1 and J12-2 (in electrical compartment). If
there is 24 VAC, replace the entire damper assembly.
NOTE: It is normal to experience a small delay (7-8 seconds)
before detecting the 24 VAC signal at starting-up. This
signal will stay during 17-18 seconds before disappearing.
• If there is no 24 VAC, check for 24 VAC between J8-1 and J8-2.
If there is 24 VAC, replace the circuit board, and if there is no 24
VAC, change the transformer.
6
The wall control does not
work.
• The wires may be in reverse
position.
• The wires may be broken.
• The wire in the wall OR the wall
control may be defective.
• Ensure that the color coded wires have been connected to their
appropriate places.
• Inspect every wire and replace any that are damaged.
• Remove the wall control and test it right beside the unit using
another shorter wire. If the wall control works there, change the
wire. If it does not, change the wall control.

20
9.TROUBLESHOOTING (CONT’D)
PROBLEMS POSSIBLE CAUSES YOU SOULD TRY THIS
7
The Dehumidistat
does not work OR the
20/40/60-minute push
button timer does not
work OR its indicator light
does not stay on.
• The wires may be in reverse
postion.
• The Dehumidistat or push
button may be defective.
8
The motor does not work. • The fuse may be defective.
• The motor may be defective.
• The motor or capacitor
may be defective.
• Check if fuse F1 is blown. In that case, replace fuse F1 as per
product nameplate.
NOTE: Refer to Section 6 Wiring diagram.
• If the voltage reading is 120 VAC on J4, change the defective
motor.
• Using a multimeter, check the ohms value on motor connector.
For BLUE and BLACK motor wires, the right value is ± 43 ohms.
For BLUE and BROWN motor wires, the right value is ± 48
ohms. For BROWN and BLACK motor wires, the right value is
± 91 ohms. If the ohms values are the same, the motor is not
defective. Replace the motor capacitor.
9
The defrost cycle does
not work (the fresh air
duct is frozen) OR the
fresh air distributed is very
cold.
• Ice deposits may be hindering
the damper operation.
• The damper rod or the port
damper itself may be broken.
• The damper actuator or circuit
board may be defective.
• Remove the ice.
• Inspect these parts and replace if necessary.
• See point 5.
10
The integrated defrost
control push button does
not work.
• The 30-second boot sequence
is not completed.
• See Section 4.1 Booting Sequence.
• Ensure that the color coded wires have been connected to their
appropriate places.
• Jump the OL and OC terminals.
If the unit switch to high speed,
remove the Dehumidistat or push
button and test it right beside the
unit using another shorter wire. If it works here, change the wire.
If it doesn’t, change the Dehumidistat or the push button.
NO C NC I OC OL Y R G B
VE0098
If the problem is still not solved, call our Technical Support: 1-800-567-3855.
This manual suits for next models
1
Table of contents
Other Venmar Fan manuals

Venmar
Venmar EA1500 User manual

Venmar
Venmar 41502 User manual

Venmar
Venmar AVS S10C ERV User manual

Venmar
Venmar ERV500i Manual

Venmar
Venmar KUBIX HRV PLUS Series User manual

Venmar
Venmar S10 ERV User manual

Venmar
Venmar PRO225 User manual

Venmar
Venmar A110H65RS Use and care manual

Venmar
Venmar vanEE 2000 HE User manual

Venmar
Venmar 1.3 HE User manual
Popular Fan manuals by other brands

Vent-Axia
Vent-Axia MVDC-MS Installation and wiring instructions

Fanimation
Fanimation Bourbon Street FP510 Series Specification sheet

TURNTIDE
TURNTIDE VES-Artex ECVD72 install guide

Stirling
Stirling EE-5612 quick start guide

for Living
for Living 043-5218-2 instruction manual

Euromatic
Euromatic FF5-Z instruction manual
