Ventrac LE3200 User manual

VENTRAC
3200
09.10092 Rev. 00
OPERATOR’SMANUAL
Original Operator’s Manual

2
To the Owner
Contact Information and Product Identification
If you need to contact an authorized Ventrac dealer for information on servicing your product,
always provide the product model and serial numbers.
Please fill in the following information for future reference. See the picture(s) below to find the
location of the identification numbers. Record them in the spaces provided.
Date of Purchase: __________________________________________________________________
Dealer:___________________________________________________________________________
DealerAddress:____________________________________________________________________
____________________________________________________________________
Dealer Phone Number: ______________________________________________________________
Dealer Fax Number: ________________________________________________________________
Model # (A):__________________________
Serial # (B): __________________________
Affix Part/Serial Number label here.
Engine Serial # (C): ______________________
Venture Products Inc. reserves the right to make changes
in design or specifications without obligation to make like
changes on previously manufactured products.
A
B
C
C
328 East Water St.
PO Box 148
Orrville, OH 44667
www.ventrac.com
A copy of the parts manual
and this operator’s manual
is available at:
http://ventrac.com/manuals
View all manuals

TABLE OF CONTENTS
3
INTRODUCTION PAGE 6
Product Description................................................................................................................................7
Why Do I Need an Operator’s Manual?.................................................................................................7
Using Your Manual.................................................................................................................................8
Manual Glossary....................................................................................................................................8
SAFETY PAGE 9
Safety Decals.........................................................................................................................................9
General Safety Procedures..................................................................................................................11
Training Required.................................................................................................................................11
Personal Protective Equipment Requirements ....................................................................................11
Operating Safely ..................................................................................................................................11
Preventing Accidents............................................................................................................................12
Keep Riders Off....................................................................................................................................12
Operating On Slopes............................................................................................................................13
Roadway Safety...................................................................................................................................13
Truck Or Trailer Transport....................................................................................................................13
Maintenance.........................................................................................................................................14
Fuel Safety...........................................................................................................................................14

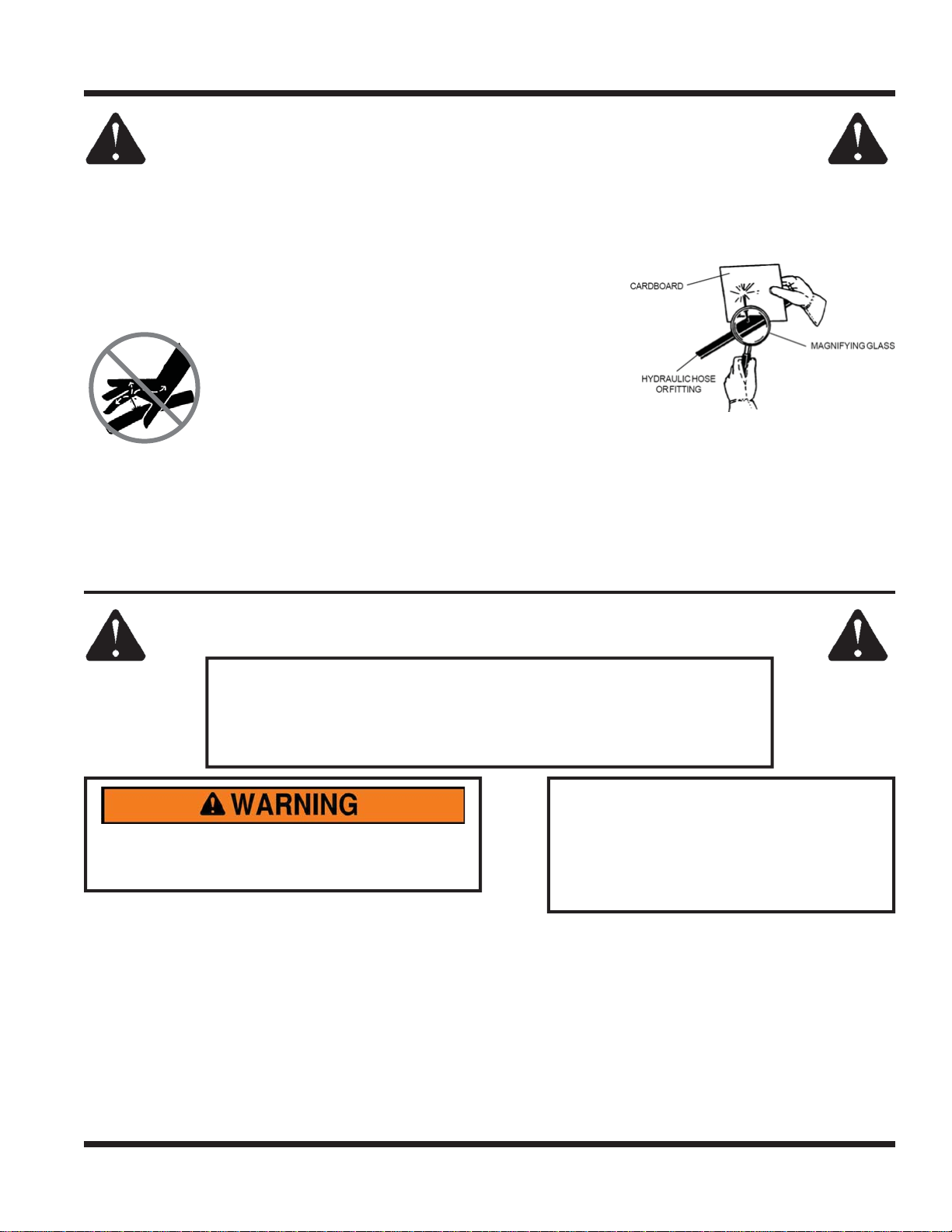

Hydraulic Safety...................................................................................................................................15
Operator Platform Access....................................................................................................................15
LE3200 Safety Procedures..................................................................................................................15
Operator Interlock Systems..................................................................................................................16
OPERATIONAL CONTROLS PAGE 17

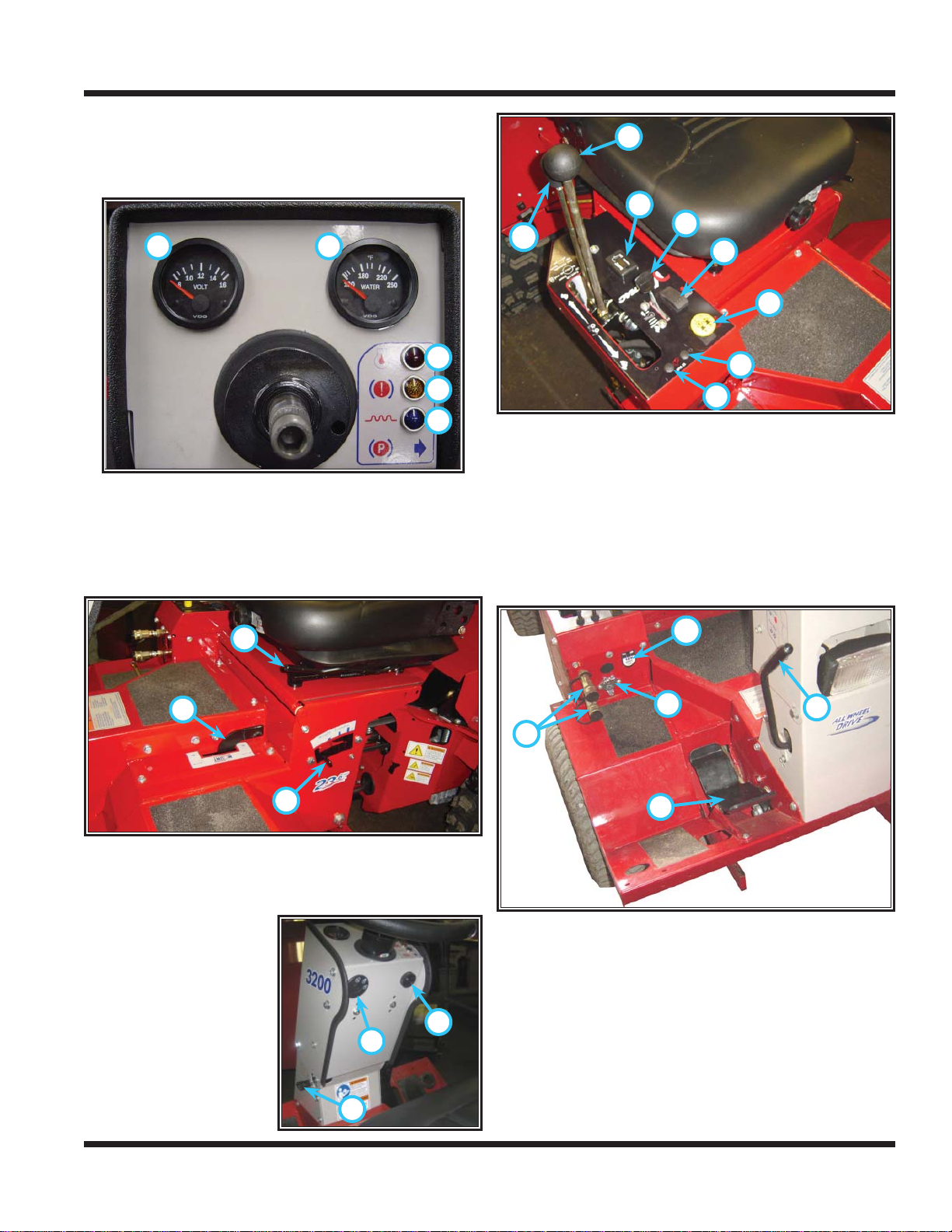

Operational Control Locations..............................................................................................................17

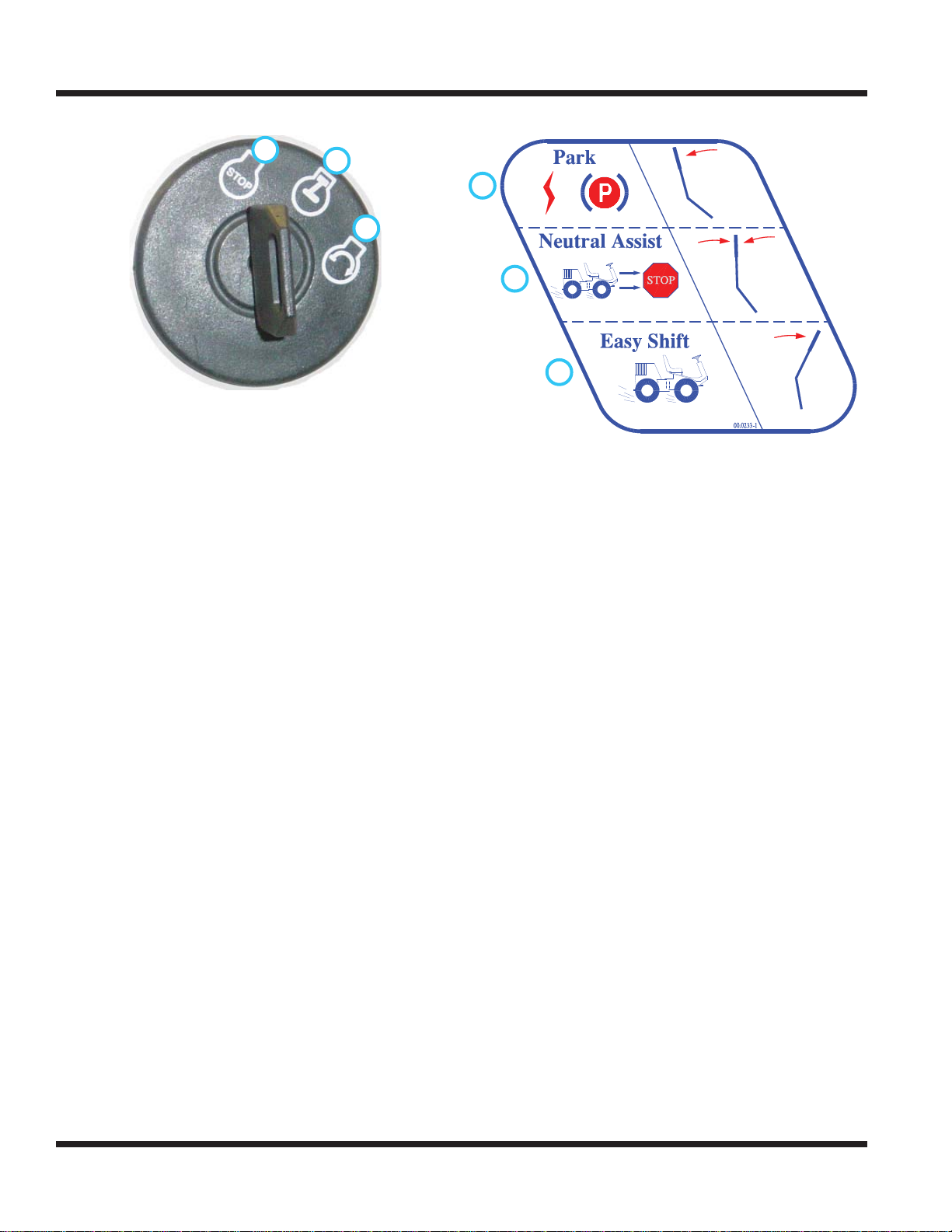

Ignition Key Switch (J)..........................................................................................................................18
Steering Tilt Adjustment Lever (I).........................................................................................................18
Engine Oil Pressure Warning Light (C)................................................................................................18
Water In Fuel Warning Light (D)...........................................................................................................18
Glow Plug Indicator Light (E) ...............................................................................................................18
High Temperature SensorAlarm (K)....................................................................................................18
Selector Lever/Parking Brake (T).........................................................................................................18
Foot Pedal (U)......................................................................................................................................18
Attachment Lock Lever (F)...................................................................................................................19
Weight Transfer Adjustment Lever (G).................................................................................................19
Seat Slide Adjustment Lever (H)..........................................................................................................19
Auxiliary Hydraulic Quick Couplers (V)................................................................................................19
Volt Gauge (A)......................................................................................................................................19
Engine Coolant Temperature Gauge (B)..............................................................................................19

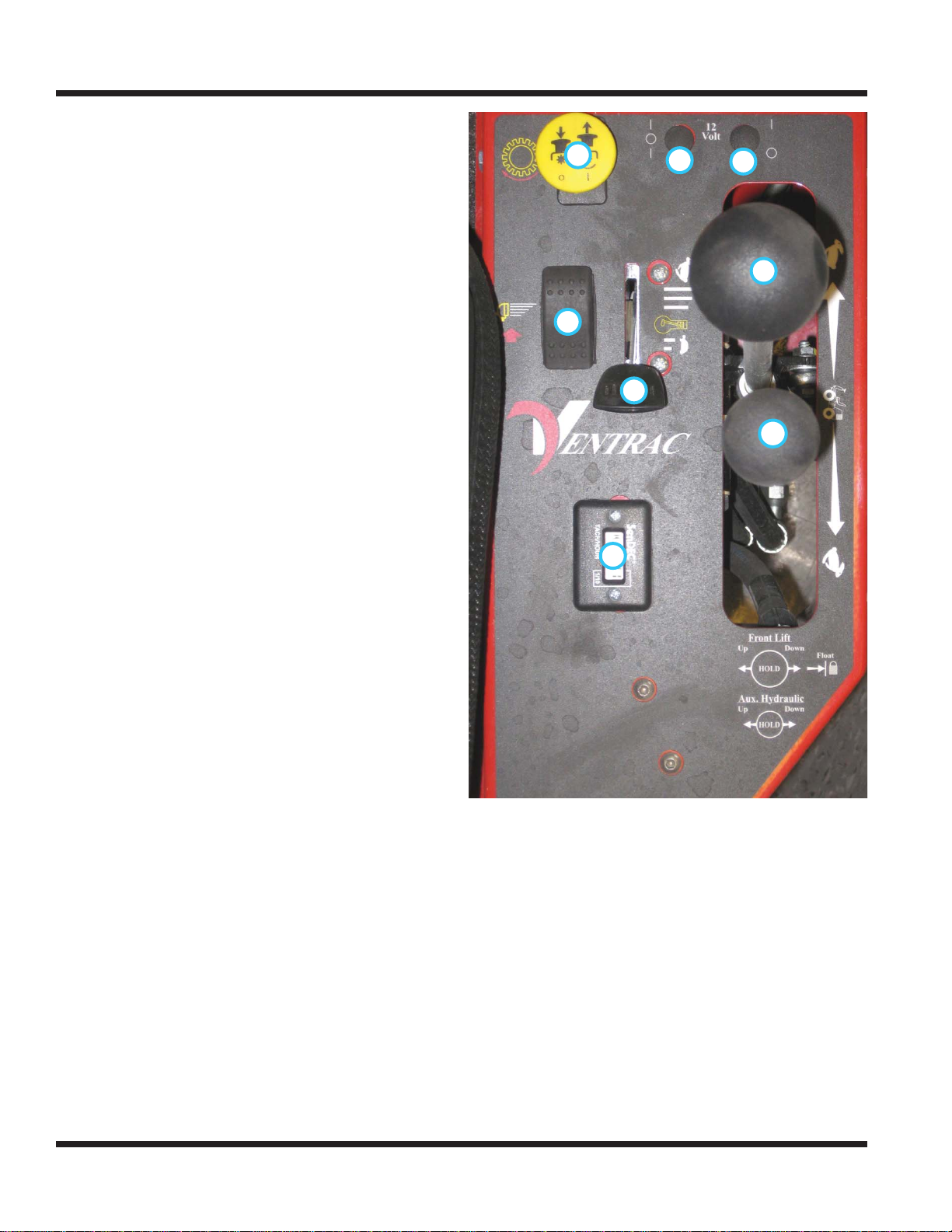

S.D.L.A. Levers (L & M) .......................................................................................................................20
Power Take Off (PTO) Switch (Q)........................................................................................................20
Light Switch (P)....................................................................................................................................20
Throttle (O)...........................................................................................................................................20
Tachometer & Hour Meter (N)..............................................................................................................20
12 Volt Switches (R & S)......................................................................................................................20
12 Volt Outlet (W).................................................................................................................................20
12 Volt 4-Pin Socket (X).......................................................................................................................20

TABLE OF CONTENTS
4
GENERAL OPERATION PAGE 21
Daily Inspection....................................................................................................................................21
Starting the Engine...............................................................................................................................21
Forward and Reverse...........................................................................................................................21
Stopping the Power Unit ......................................................................................................................22
Attaching..............................................................................................................................................22
Detaching.............................................................................................................................................22
Operating Attachments.........................................................................................................................22
Front Hitch............................................................................................................................................22
Weight Transfer....................................................................................................................................22
PTO Drive Belt.....................................................................................................................................23
Front Auxiliary Couplers.......................................................................................................................23
12 Volt Auxiliary Outlets
(Optional Equipment)...........................................................................................................................23
Operating On Slopes............................................................................................................................24
Towing or Pushing the Power Unit.......................................................................................................24
SERVICE PAGE 25
Cleaning and General Maintenance.....................................................................................................25
Lubrication Locations...........................................................................................................................26
Checking Engine RPM.........................................................................................................................27
Checking Engine Oil Level...................................................................................................................27
Changing Engine Oil and Filter............................................................................................................27
Cleaning Air Intake System..................................................................................................................28
Servicing Air Filter Elements................................................................................................................29
Checking Coolant Level.......................................................................................................................30
Cleaning Radiator and Screen.............................................................................................................31
Draining Cooling System......................................................................................................................31
Flushing Cooling System .....................................................................................................................31
Servicing Fuel Filter .............................................................................................................................31
Filling the Fuel Tank.............................................................................................................................32
Servicing Fuel Filter .............................................................................................................................32
Water in Fuel........................................................................................................................................32
Changing the Fuel Filter.......................................................................................................................32
Checking Alternator Belt.......................................................................................................................32
Adjusting Alternator Belt Tension .........................................................................................................33
Service the Battery Safely....................................................................................................................33
Removing and Installing Battery ..........................................................................................................33
Cleaning Battery and Terminals...........................................................................................................34
Using a Booster Battery.......................................................................................................................34
Changing the Headlight Bulb ...............................................................................................................35
Changing the Taillights.........................................................................................................................35
Fuses ...................................................................................................................................................36
Inspection of Belts................................................................................................................................36
Engine Drive Belt Adjustment...............................................................................................................37
Engine Drive Belt Replacement...........................................................................................................38
PTO Belt Replacement ........................................................................................................................39
Transaxle Drive Belt Replacement.......................................................................................................39
Checking Hydraulic Oil Level...............................................................................................................40
Changing Hydraulic Oil and Filter ........................................................................................................40

TABLE OF CONTENTS
5
Tire Pressure........................................................................................................................................40
Maintenance Schedule.........................................................................................................................41
Maintenance Checklist.........................................................................................................................42
TROUBLESHOOTING PAGE 43
Engine:.................................................................................................................................................43
Electrical System:.................................................................................................................................44
Hydraulic System:................................................................................................................................45
Power Unit:...........................................................................................................................................45
SPECIFICATIONS PAGE 46
Engine..................................................................................................................................................46
Electrical...............................................................................................................................................46
Powertrain............................................................................................................................................46
Controls/Instrumentation......................................................................................................................46
Other Features.....................................................................................................................................46
Dimensions ..........................................................................................................................................47
Fluid Capacities....................................................................................................................................47
Noise Emissions...................................................................................................................................48
Vibration Levels....................................................................................................................................48
EC Declaration of Conformity...............................................................................................................49
WARRANTY PAGE 50
A copy of the parts manual
and this operator’s manual
is available at:
http://ventrac.com/manuals
View all manuals
SERVICE (Continued)

Introduction - 6
INTRODUCTION
Accessories
Item Description Part Number
Accessories
Item Description Part Number
Seat Arm Rest 47.0113 Tractor Cab 70.2005
Roll Cage 70.3015 Two-N-One Front Hitch 70.2001
Suspension Seat 70.3020 Rear Weight Brackets 70.3017
Weight Transfer* 70.3014 Tilt Steering* 70.3019
Rear Auxiliary Hydraulics 70.3018 12 Volt Switch and Plug 70.3016
Spreader 39.55500
Attachments
Item Description Part Number
Attachments
Item Description Part Number
Aerator with Open Spoon Tines 39.55490 Aerator with Slitter/Slicer Tines 39.55492
Aerator with Coring Tines 39.55494 Blade - 48” 39.55258
Blade - 60” 39.55250 Blower 39.35445
Broom 39.35402 Edger 39.55330
Excavator - 30” 39.55236 Excavator - 48” 39.55230
Field Mower - 45” 39.35102 Finish Mower - 52” 39.35100
Finish Mower - 60” 39.35101 Rear Discharge Mower 39.35107
Slip Scoop - 36” 39.55216 Slip Scoop - 48” 39.55210
Snow Blower 39.35427 Stump Grinder 39.35300
Terra Rake - 52” 39.55431 V-Blade 39.55271
*Standard on the LE3200
Venture Products Inc. is pleased to provide you with your new
Ventrac! We hope that Ventrac equipment will provide you
with a ONE Tractor Solution.
Listed below are just some of the items that can provide you
versatility as you use your LE3200. Please visit our web site,
or contact your authorized Ventrac dealer for a complete list of
items available for your new tractor.

INTRODUCTION
Introduction - 7
Product Description
• The 3200 is a unique all-wheel-drive power unit that distributes its power to four equal sized flotation
tires for excellent control, traction, stability, maneuvering, and braking.
• An innovative, patented Tandem Drive Train, coupled with a uni-body articulated and oscillating frame,
creates a quiet, efficient, and powerful all-wheel-drive performer.
• The 3200 has power steering and a turning radius of 28 inches (71 cm) to maneuver in and around tight
places with ease.
• Tandem hydrostatic transmissions are controlled with Ventrac’s patented S.D.L.A. control, which is
located next to the operator, allowing for easy control of Speed, Direction, Lift, and Auxiliary functions
with one hand.
• The 3200 is designed with the operator seated up-front for unobstructed visibility of attachments and
terrain ahead and allows for a rear mounted engine that keeps heat, exhaust, and noise located behind
the operator.
• The 3200 is equipped with Ventrac’s minute mount system. This allows you to change the front
mounted attachments quickly and efficiently, while moving from job to job with minimal effort. A rear
mounted 2” receiver hitch is also a standard feature.
Why Do I Need an Operator’s Manual?
This manual has been created to help you gain the important knowledge of what is needed to safely
operate, maintain, and service your machine. It is divided into sections for convenient reference of the
appropriate section.
You must read and understand the operator’s manual for each piece of Ventrac equipment you own. Read-
ing the operator’s manual will help you become familiar with each specific piece of equipment. Under-
standing the operator’s manual will help you, as well as others, avoid personal injury and/or damage to the
equipment. Keep this manual with the machine at all times. The manual should remain with the machine
even if it is sold. If this manual becomes damaged or unreadable, it should be replaced immediately. Con-
tact your local Ventrac dealer for a replacement.
When using a Ventrac attachment, be sure to read and follow the safety and operating instructions of both
the power unit and the attachment being used to ensure the safest operation possible.
The information in this manual provides the operator with the safest procedures to operate the machine
while getting the maximum use out of the unit. Failure to follow the safety precautions listed in this manual
may result in personal injury and/or damage to the equipment.

INTRODUCTION
Introduction - 8
Using Your Manual
Throughout this manual, you will encounter special messages and symbols that identify potential safety
concerns to help you as well as others avoid personal injury or damage to the equipment.
ATTENTION
This symbol identifies potential health and
safety hazards. It marks safety precautions.
Your safety and the safety of others is involved.
SYMBOL DEFINITIONS
There are three signal words that describe the level of safety concern: Danger, Warning, and Caution.
Safety should always be the #1 priority when working on or operating equipment. Accidents are more likely
to occur when proper operating procedures are not followed or inexperienced operators are involved.
Note: Right-Hand and Left-Hand orientations may be referred to at different places throughout this manual.
Right-Hand and Left-Hand is determined as if sitting on the tractor seat facing forward.
SIGNAL WORD DEFINITIONS
Indicates a potentially hazardous situation
which, if not avoided, could result in death or
serious injury.
Indicates an imminently hazardous situation
which, if not avoided, will result in death or
serious injury. This signal word is limited to the
most extreme cases.
Indicates a potentially hazardous situation
which, if not avoided, may result in minor or
moderate injury and/or property damage. It may
also be used to alert against unsafe practices.
Manual Glossary
Power Unit A Ventrac tractor or other Ventrac engine powered device that may be operated by itself or
with an attachment or accessory.
Attachment A piece of Ventrac equipment that requires a Power Unit for operation.
Accessory A device that attaches to a Power Unit or Attachment to extend its capabilities.
Machine Describes any “Attachment” or “Accessory” that is used in conjunction with a power unit.

SAFETY
Safety - 9
Safety Decals
The following safety decals must be maintained on your Ventrac 3200 power unit.
Keep all safety decals legible. Remove all grease, dirt, and debris from safety decals and instructional
labels. If any decals are faded, illegible, or missing, contact your dealer promptly for replacements.
When new components are installed, be sure that current safety decals are affixed to the replacement
components.
SAFETY
F
F
C
C
B
B
G
G
D
D
C
C
E
E
A
A
C
C
B
B
G
G
1
1. WARNING: Read operator’s manual.
A
1. WARNING: Cutting/crushing hazard - Stay
away from moving parts.
1
B
C
1
1. Cutting / entanglement hazard - Stay away from moving parts.

SAFETY
Safety - 10
Decal Description Part Number Quantity
A Warning, Read Owners Manual 00.0363 1
B Warning, Pinch Point 00.0364 2
C Warning - Moving Parts 00.0365 3
D Warning, Operator Safety 00.0362 1
E Warning, Battery 00.0366 1
F Warning, Diesel Only 00.0368 1
G Warning, Do Not Remove Shields 00.0369 2
D
1 2 3
4 5 6 7 8
1. WARNING: Read operator’s manual.
2. Wear personal protective gear, such as safety glasses, closed toe shoes or boots, and ear
protection.
3. Do not operate while under the influence of drugs or alcohol.
4. WARNING: Read slope operation instructions. Slow down when operating on slopes. Keep
the roll bar in the raised and locked position and the seat belt securely fastened.
5. WARNING: Keep a safe distance from the edge of drop-offs, ditches, and embankments. The
machine could roll over if a wheel drops over the edge or if the edge caves in.
6. Do not carry passengers. Stop the machine if someone enters the area.
7. WARNING: Hydraulic fluid is under high pressure and can penetrate skin, causing injury. Keep
hands, face, and body away from pinholes or nozzles the eject hydraulic fluid under high pressure.
8. When towing or pushing the power unit, the transaxles must be disengaged by moving the
front and rear axle neutral links to the neutral position or damage to the transaxles will result.
G
1. Cutting / dismemberment / entanglement
hazard - Do not remove shields.
Stay away from moving parts.
1
F
123
1. DANGER: Explosion / fire hazard.
2. Keep away from fire, sparks, and pilot lights
when refueling or storing machine and fuel.
3. Smoking is prohibited.
1. DANGER: Battery acid is caustic and can cause chemical burns. Keep bystanders a safe
distance from the battery.
2. Wear eye protection, such as goggles or a face shield, when checking or servicing batteries.
3. Wear appropriate protective gear, such as rubber gloves and an apron, when checking or
servicing batteries.
4. Do not expose batteries to arcs, sparks, or open flames. Do not use smoking materials near
batteries.
5. Explosion hazard - batteries produce flammable and explosive gases.
E
1
2
3
4
5
